USER’S MANUAL
PowerMax UPS
MAX-650A
Please read and understand this instructions manual. This manual provides safety,
installation and operation which will guide you to the best performance of your
equipment. Please keep this manual. It includes important instructions for the
safe usage of the equipment and to obtain manufacturer’s support in case of need.
Please keep or recycle the packaging materials! Packaging materials used in our
products are designed to provide from transportation. These materials are
necessary in case that the damage that may occur during the shipment is not
covered by the product’s warranty.
1. Introduction
1-1 System description
This Line Interactive UPS with LED indicators, newest technology and
powerful function.
This Line Interactive UPS is designed with 2-Steps Boost and 1 step Buck
AVR to stabilize input voltage. Input voltage range is -30% +25%, but
output regulation is +/-10%.
This Line Interactive UPS provides you with the ability of protection for your
critical devices.
1-2 Features
•Line Interactive design
•Microprocessor control guarantees high reliability
•Frequency 50/60 auto-sensing
•Equipped with 2-Steps Boost & 1-Step Buck AVR to stabilize utility
voltage
•Built-in DC start function enable UPS to be started up without AC power
supplied
•UPS Green Mode (Optional)(Energy Saving Function)
•Off-mode Charging
•Over/Low Voltage. Short-Circuit, and Lighting/Surge(Optional) Protection
•Built-in CCCV (Constant Current, Constant Voltage) battery Charger
2. Caution
Be sure to operate within the power rating of the UPS. Bellow 1/2 or 1/3 of the
rated power recommended for longer backup time & longer battery life.
Do not place the UPS near excessive humidity, under direct sunshine, or close
to heat-emitting sources.
If the UPS is out of order, detach the power cord and consult your dealer right
away. Do not remove cover; there is no serviceable part inside.
The unit should be supplied by a grounded source. Do not operate the unit
without a ground source.
The socket should be installed near the equipment and be easily accessible.
Do not plug the UPS’s power cord into itself. That will result in a safety hazard.
Aqualified technician or electrician in accordance with local electrical code
should perform installation.
The UPS contains voltage that is potentially hazardous. Qualified or certified
technician should proceed all repairs and maintenance.
The UPS has its own integral energy source (battery). The output receptacles
may be active even when the UPS is not connected to an AC supply.
The UPS is suitable for computers and electronic equipment with substantial
rectifier or capacitive loads, not suitable for electronics equipment with
significant inductive loads, such as motors & fluorescent lamps.
3. Installation
The UPS must be installed in a protected environment away from heat-emitting
appliances such as a radiator or heater. Do not install this product where
excessive moisture is present.
CAUTION: Never connected a laser printer or plotter periodically draws
significantly more power than its idle status, and may overload the UPS.

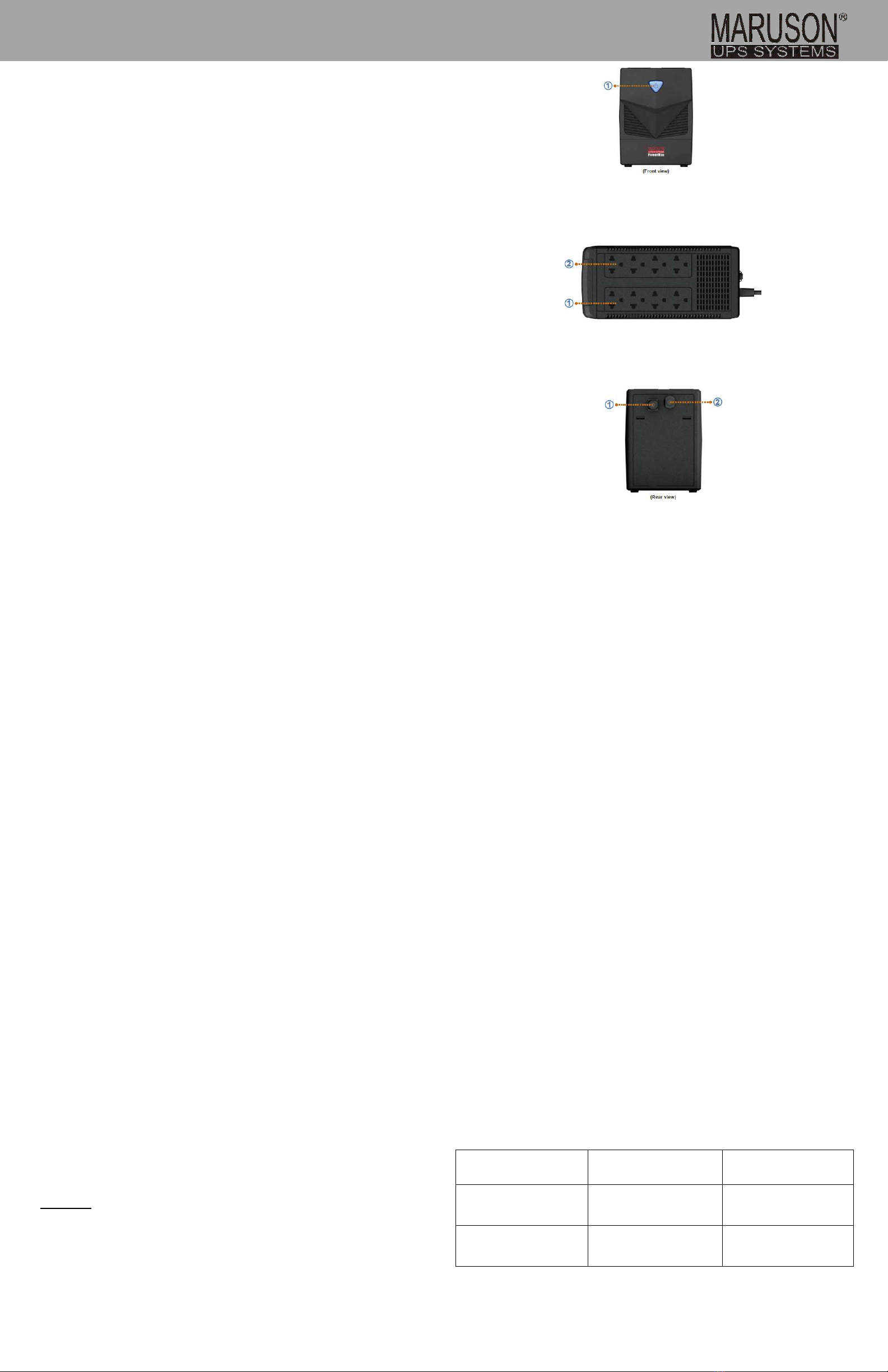

4. Overview
4-1 Front Panel
(1) Main Power Button: On/Off or Silence button and indicate UPS
statuses
4-2 Top Panel
(1) Battery back-up & AVR protection outlets
(2) Surge Protection Outlets
4-3 Rear Panel
(1) AC Input: Connect to input power cord
(2) AC Circuit Breaker
5 Operation
5-1 When UPS is connected to city utility, but UPS is not powered on, UPS will
charge battery automatically and Blue LED button will flash every 2
seconds.
Please press main switch on front panel for 1 second to turn UPS on.
5-2 To turn Off UPS when UPS is under AC mode, please press main switch on
front panel for 4 seconds.
To turn off UPS when UPS is under battery mode, please press main switch
and then UPS will shut down completely in 10 seconds.
This UPS is designed with “Off-mode charging”, so UPS will charge battery
continuously when UPS is under AC normal. If users intend to power off
UPS completely, users have to plug out power cord from city utility.
5-3 DC Start:
Press on main switch for 4 seconds when city utility is black out, UPS will
be turned on and then go back up mode. To turn off UPS, please press
main switch for 4 seconds again. If users want to turn on UPS again, please
wait for 10 seconds to press main switch for 4 seconds again.
5-4 When UPS is under batter mode and battery voltage is too high or low,
buzzer will keep.
5-5 Buzzer will keep twice every 8 seconds when AC power is black out. To
silence alarm please simply press main switch. To re-start alarm, please
press main switch again.
6 Storage
To ensure battery lifetime, please kindly read and also follow below instruction
completely.
This unit is shipped from factory with its internal battery fully charged, however,
some charge maybe lost during shipping and the battery should be recharged
prior to use. Plug the unit into an appropriate power supply and allow the UPS
to charge fully by leaving it plugged at least 10 hours.
Extended Storage
Storage Temperature
Recharge Frequency
Charging Duration
5 to 86°F
(-
15 to 30°C)
Every 6 Months 10 Hours
86 to 113°F
(30 to 45°C)
Every Month 10 Hours

USER’S MANUAL
PowerMax UPS
MAX-650A
7 BASIC INDICATION TABLE
STATUS RED-LED BLUE-LED BUZZER
Backup Mode Battery normal
Load normal
When UPS goes to
Backup mode , Red
Led is on.
When battery and load
are normal, Red Led
starts to blink twice
every 4 seconds.
OFF Beeping twice
every 8 seconds
No load
(for green mode
function only)
When no-load is
defected, RED-LED
goes off firstly and
afterwards blinks once
every 4 seconds.
OFF Beeping once
every 4 seconds
Low battery
When UPS goes to
backup mode,
RED-LED is on.
When low battery, LED
starts to blink 4 times
every second
OFF Beeping 4 times
every second
STATUS RED-LED BLUE-LED BUZZER
AC normal
mode
Battery full OFF ON continuously OFF
Battery charge
70%~90%
OFF Blinking once every 8 seconds OFF
Battery charge
50%~70%
OFF Blinking once every 4 seconds OFF
Battery charge
30%~50%
OFF Blinking once every 2 seconds OFF
Battery charge
0%~30%
OFF Blinking once every second OFF
STATUS RED-LED BLUE-LED BUZZER
OFF
mode
AC I/P disconnected
(UPS off completely)
OFF OFF OFF
AC I/P normal
(Battery in charging)
OFF Blinking once every 2
seconds
OFF
AC I/P normal
(Battery is full charged)
OFF OFF OFF
UPS timer is set
(through UPS interface)
Blinking once
every 2 seconds
See BLUE-LED status in
above table of “AC normal
mode’’
OFF
STATUS RED-LED BLUE-RED BUZZER
Fault Condition Over temperature Depending on AC I/P condition or
load condition
Beeping 32 times
every other 2
seconds
Over load Beeping
continuously
O/P short circuit Beeping 32 times
every other 2
seconds
Note: To silence alarm, please press control button.
8 TROUBLE SHOOTING
Upon UPS failure, please kindly check UPS by following below steps. If there is no problem with
below points, please kindly send UPS service.
Is main power switch turned on?
Is the UPS plugged into a working wall outlet?
Is the line voltage within the rating specified?
Is the fuse blown (at rear panel)?
Is the UPS over-loaded?
Is the battery not fully charged?
Please provide the following information when call for service
1. Model number, serial number.
2. Date of the problem occurred, date of purchase.
3. Full description of the problem including load, LED button, and alarm status installation
condition, working environment, etc.
TROUBLESHOOTING CHART
PROBLEM POSSIBLE CAUSE ACTION TO TAKE
UPS cannot turn on
LED button not light
LED button not pushed or push-time
too short
Press LED button more than
1 second
Battery voltage less tan 10V Recharge the battery
PCB failure Replace the PCB, call for
service
Load less tan 25w at battery mode Normal condition, “no load
shutdown function’’ is active
Power cord lose Plug in the power cord
AC fuse burn out Replace the AC fuse
PCB failure Replace the PCB, call for
service
UPS always at
battery mode
Battery not fully charged Recharge the UPS at least 5
hours
Backup time too
short
Battery detective Replace the battery, call for
service
Buzzer continuous
beeping
Overload Remove some loads
9 Specification
MODEL MAX-650A
CAPACITY VA/W 650 VA / 360 W
INPUT
Voltage 110/115/120VAC or 220/230/240VAC
Voltage Range -30% +25%
Frequency 50/60Hz (Auto Sensing)
OUTPUT
Frequency
Regulation
(Batt. Mode) 50Hz or 60Hz +/-1Hz
Waveform Simulated sine wave
BATTERY
Battery Type 12 V/ 4.5 AH x 1pc
Back up Time Up to 20 minutes
Recharge Time < 5 hours to 90% capacity
TRANSFER TIME 2-6ms (Typical)
PROTECTION
AC Surge
Protection 175 Joules
AC Input Circuit breaker
Full Protection Discharge, Overcharge, and Overload Protection
PHYSICAL Dimension 8.27 x 3.86 x 5.16 in (D x W x H)
ENVIRONMENT
Operating
Environment 0-40°C, 0-90 % Relative Humidity (non-condensing)
Noise Level Less than 40dB
** Product specification may change without notice. Battery backup time is based on basic PC and
varies with equipment, configuration, battery age, temperature, etc.
Product Warranty and Service Information:
Warranty obligations its products to be free from defects in material and workmanship during the
warranty period.
This warranty does not apply to any damage, deterioration, or malfunction resulting from accident,
misuse, neglect, fire, water, lightning, or an adverse operating environment.
For U.S. customers, please register your product at www.MarusonUSA.com. For international
customers, please contact your local authorized distributor or e-mail [e-mail]
for assistance.
Maruson Technology Corporation
1351 Titan Way, Brea, CA 92821, U.S.A.
Toll Free: 1-888-MARUSON
TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
Web Site: www.MarusonUSA.com
