2

Welcome to the Marvel Experience
Congratulations on adding a new Marvel crescent ice maker to your home and thank
you for choosing our quality American-built product. You’ll enjoy years of crescent ice
in the comfort and convenience of your home, backed by our full worry-free warranty.
We are thrilled to welcome you to our growing community of Marvel owners, who
trust in our products and our support.
The information in this guide is intended to help you install and maintain your new
Marvel crescent ice maker to protect and prolong the lifetime of your unit. We
encourage you to contact our Technical Support team at [phone] with any
questions.
Cheers!
Installation Operation and Maintenance Instructions
3

Installation Operation and Maintenance Instructions
Safety and Warning
NOTICE
Please read all instructions before installing, operating, or
servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a Danger,
Warning or Caution based on the risk type:
DANGER
!
Danger means that failure to follow this safety statement
will result in severe personal injury or death.
WARNING
!
Warning means that failure to follow this safety statement
could result in serious personal injury or death.
CAUTION
!
Caution means that failure to follow this safety statement
may result in minor or moderate personal injury, property
or equipment damage.
WARNING
!
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the state of
California to cause cancer and birth defects or other
reproductive harm.
www.P65warnings.CA.gov
Disposal and Recycling
DANGER
!
RISK OF CHILD ENTRAPMENT. Before you throw away
your old refrigerator or freezer, take off the doors and leave
shelves in place so children may not easily climb inside.
If the unit is being removed from service for disposal, check and
obey all federal, state and local regulations regarding the
disposal and recycling of refrigeration appliances, and follow
these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
Environmental Requirements
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce the
unit’s ability to reach low temperatures and/or reduce ice
production on applicable models.
For best performance, keep the unit out of direct sunlight and
away from heat generating equipment.
In climates where high humidity and dew points are present,
condensation may appear on outside surfaces. This is
considered normal. The condensation will evaporate when the
humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
4

Installation Operation and Maintenance Instructions
Electrical
WARNING
!
SHOCK HAZARD — Electrical Grounding Required. Never
attempt to repair or perform maintenance on the unit until
the electricity has been disconnected.
Never remove the round grounding prong from the plug
and never use a two-prong grounding adapter.
Altering, cutting or removing power cord, removing power
plug, or direct wiring can cause serious injury, fire, loss of
property and/or life, and will void the warranty.
Never use an extension cord to connect power to the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and local
codes. This unit requires connection to a grounded
(three-prong), polarized receptacle that has been placed
by a qualified electrician.
The unit requires a grounded and polarized 115 VAC, 60 Hz,
15A power supply (normal household current). An individual,
properly grounded branch circuit or circuit breaker is
recommended. A GFCI (ground fault circuit interrupter) is
usually not required for fixed location appliances and is not
recommended for your unit because it could be prone to
nuisance tripping. However, be sure to consult your local codes.
See CUTOUT DIMENSIONS for recommended receptacle
location.
Cutout Dimensions
PREPARE SITE
Your Marvel product has been designed for either free-
standing or built-in installation. When built-in, your unit does
not require additional air space for top, sides, or rear.
However, the front grille must NOT be obstructed, and
clearance is required for an electrical connection in the rear.
CAUTION
!
Unit can NOT be installed behind a closed cabinet door.
CUTOUT DIMENSIONS
5
34-1/4"
(870 mm)
to 35"
(889 mm)
15-1/4"
(387 mm)
24"
(610 mm)
4"
(102 mm)
7"
(178 mm)
5/8"
(16 mm)
Preferred location
for water line and
electrical outlet is in
adjacent cabinet.

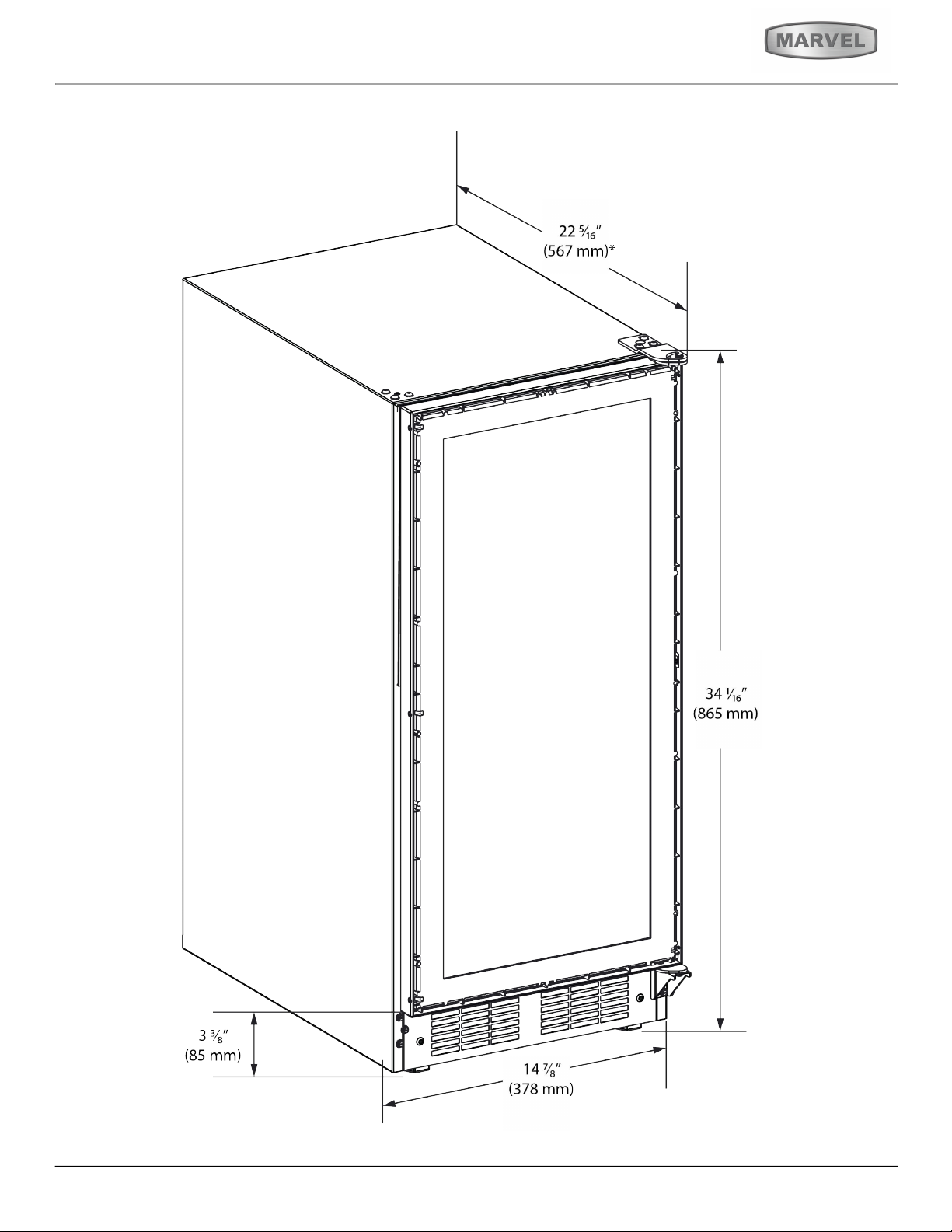

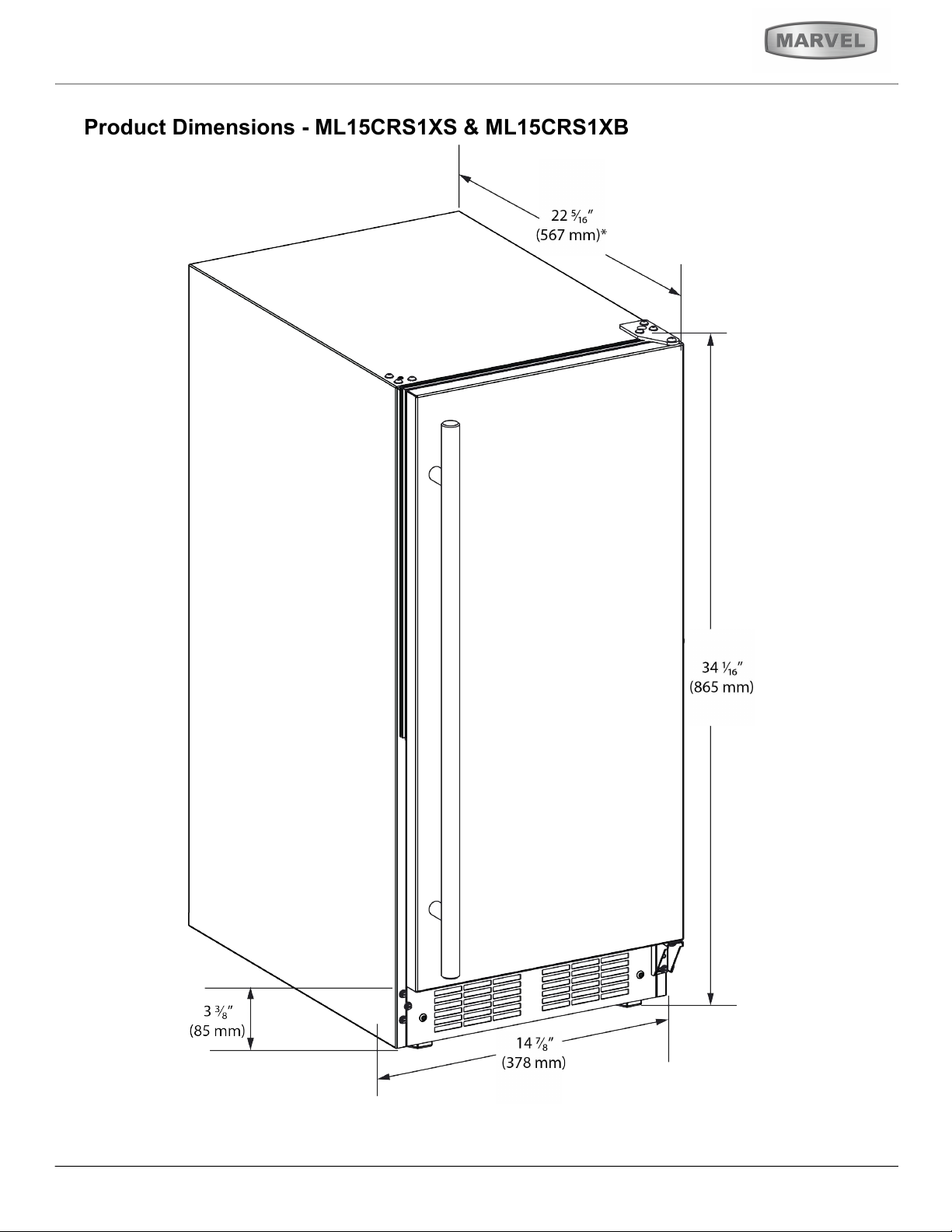

Product Dimensions - ML15CRS1XS & ML15CRS1XB
*Add 3/4" To Depth For Water Line Clearance
Installation Operation and Maintenance Instructions
Not Including Handle
6

*Add 3/4" To Depth For Water Line Clearance
Installation Operation and Maintenance Instructions
7
Includes 3/4" (20 mm)
Overlay Panel
Product Dimensions - ML15CRP1XP

Installation Operation and Maintenance Instructions
Side-by-Side Installation
Two units may be installed side-by-side.
Cutout width for a side-by-side installation is the cutout
dimension of a single unit times two.
No trim kit is required. However, 1/4" (6 mm) of space needs to
be maintained between the units to ensure unobstructed door
swing.
Units must operate from separate, properly grounded electrical
receptacles placed according to each unit’s electrical
specifications requirements.

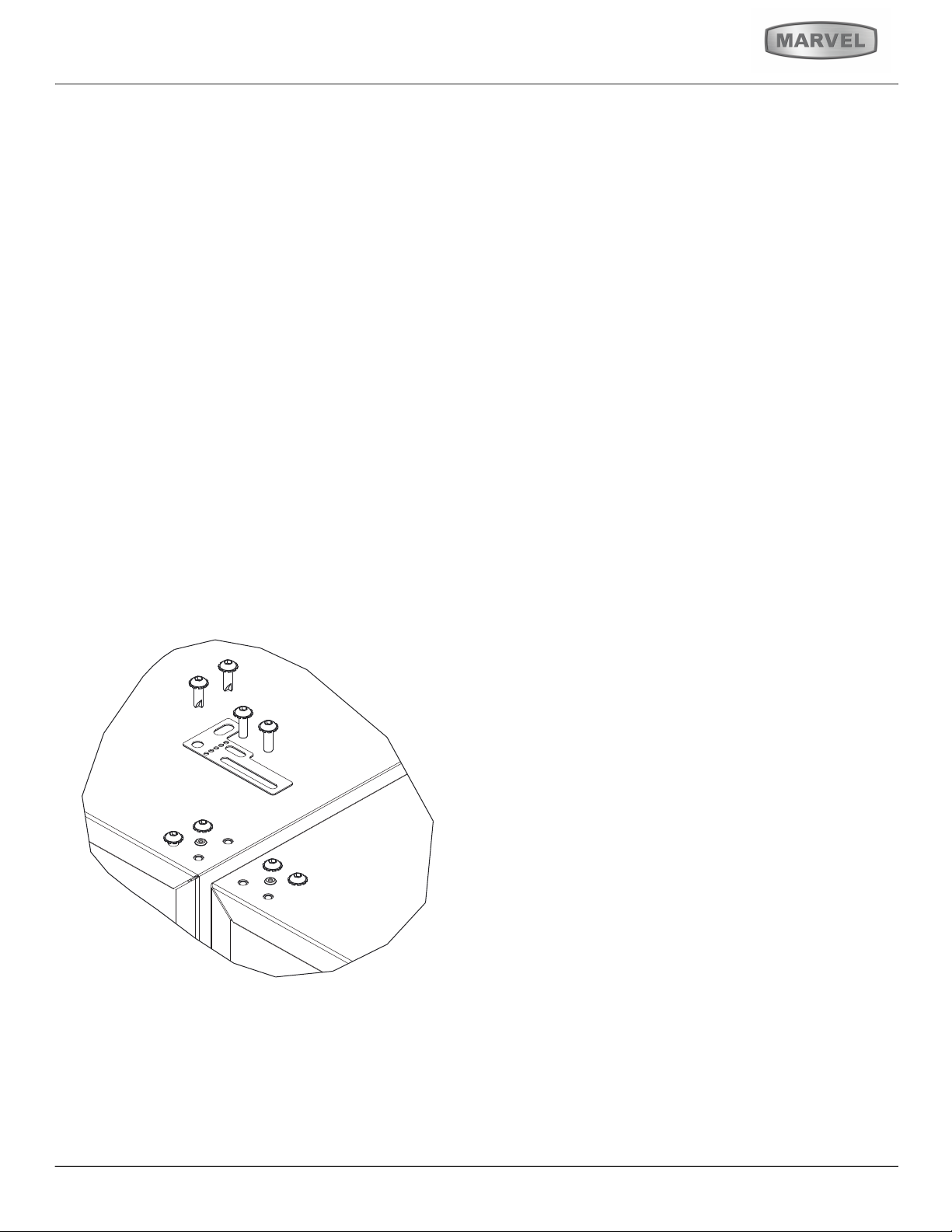

Side-by-Side Installation with Bracket
1. Slide both units out so screws on top of units are easily
accessible.
2. Remove screws as shown below.
3. Place bracket over holes and attach to unit with two screws
removed in step 2 using a T-25 Torx driver. Tighten screws
fully.
4. Gently push units into position. Be careful not to entangle
the electrical cord or water line, if applicable.
5. Re-check the leveling, from front to back and side to side.
Make any necessary adjustments. The unit’s top surface
should be approximately 1/8" (3 mm) below the countertop.
8

Installation Operation and Maintenance Instructions
Water Hookup
PREPARE PLUMBING
The water valve uses a standard 1/4" (6.35 mm) compression
fitting.
CAUTION
!
Plumbing installation must observe all state and local
codes. All water and drain connections MUST BE made by
a licensed/qualified plumbing contractor. Failure to follow
recommendations and instructions may result in damage
and/or harm.
Water Supply Connection
When connecting the water supply, please note the following:
• Before installing the unit and connecting to the cold water
supply, review the local plumbing codes.
• The water pressure should be between 20 and 120 psi (138
and 827 kPa).
• The water line MUST have a shut-off valve in the supply line.
• The water line should be looped into 2 coils. This will allow
the unit to be removed for cleaning and servicing. Make
certain that the tubing is not pinched or damaged during
installation.
WARNING
!
Connect to potable water supply only.
CAUTION
!
Do not use any plastic water supply line. The line is under
pressure at all times. Plastic may crack or rupture with age
and cause damage to your home.
Do not use tape or joint compound when attaching a
braided flexible water supply line that includes a rubber
gasket. The gasket provides an adequate seal – other
materials could cause blockage of the valve.
Failure to follow recommendations and instructions may
result in damage and/or harm, flooding or void the product
warranty.
Use new hose set. Do not reuse old hose set.
CAUTION
!
Turn off water supply and disconnect electrical supply to
unit prior to installation.
Use caution when handling back panel. The edges could
be sharp.
1. Turn off water supply and disconnect electrical supply to
product prior to attempting installation.
2. Remove the back panel.
9

Installation Operation and Maintenance Instructions
3. Locate water valve inlet.
4. Break away filler feature in bushing with flat screwdriver.
5. Thread water line through back panel hole (with bushing).
6. Locate water valve inlet and connect to valve.
7. Turn on water supply and check for leaks.
8. Reinstall back panel.
9. Install retaining clip.
Remove
ZLWKɠDW
screwdriver

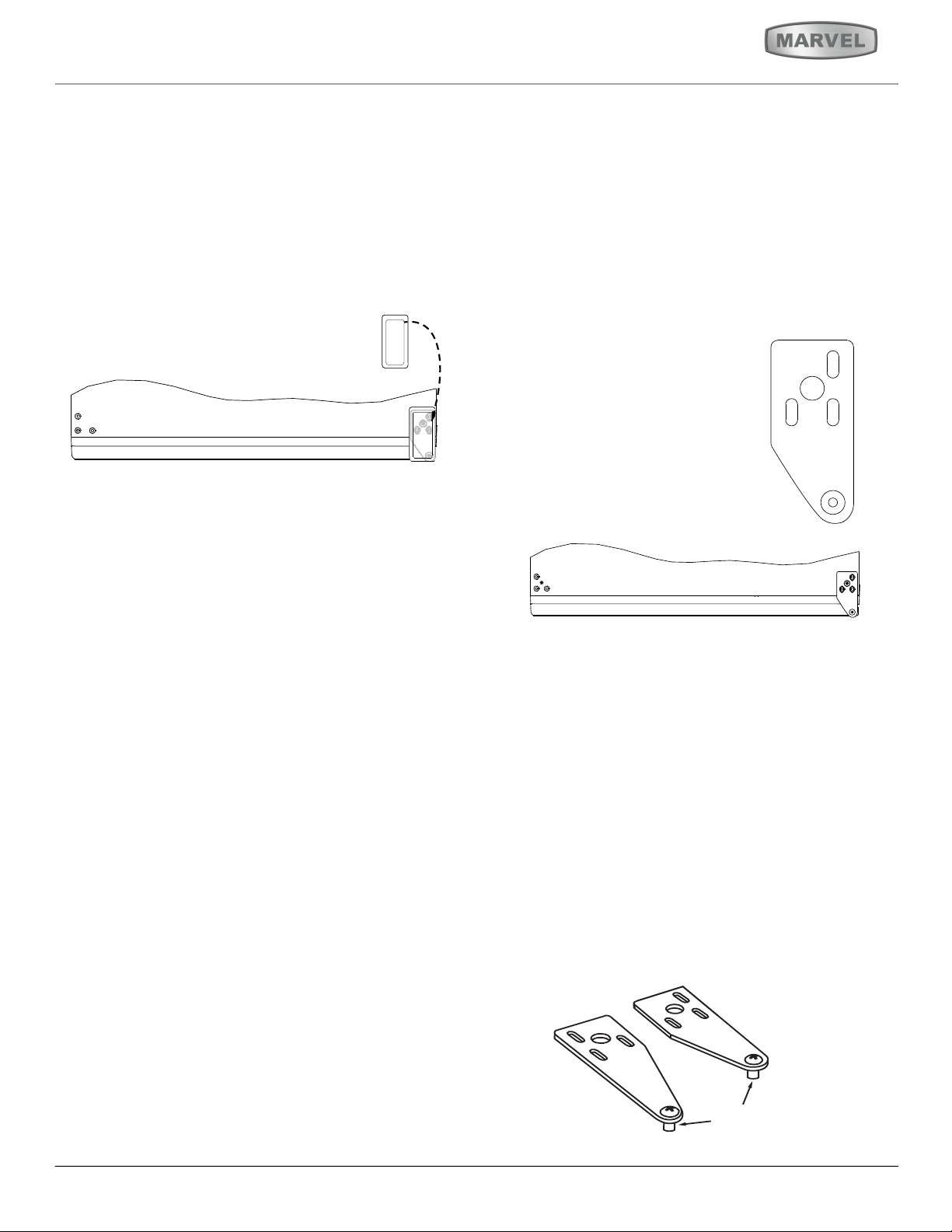

Anti-Tip Bracket

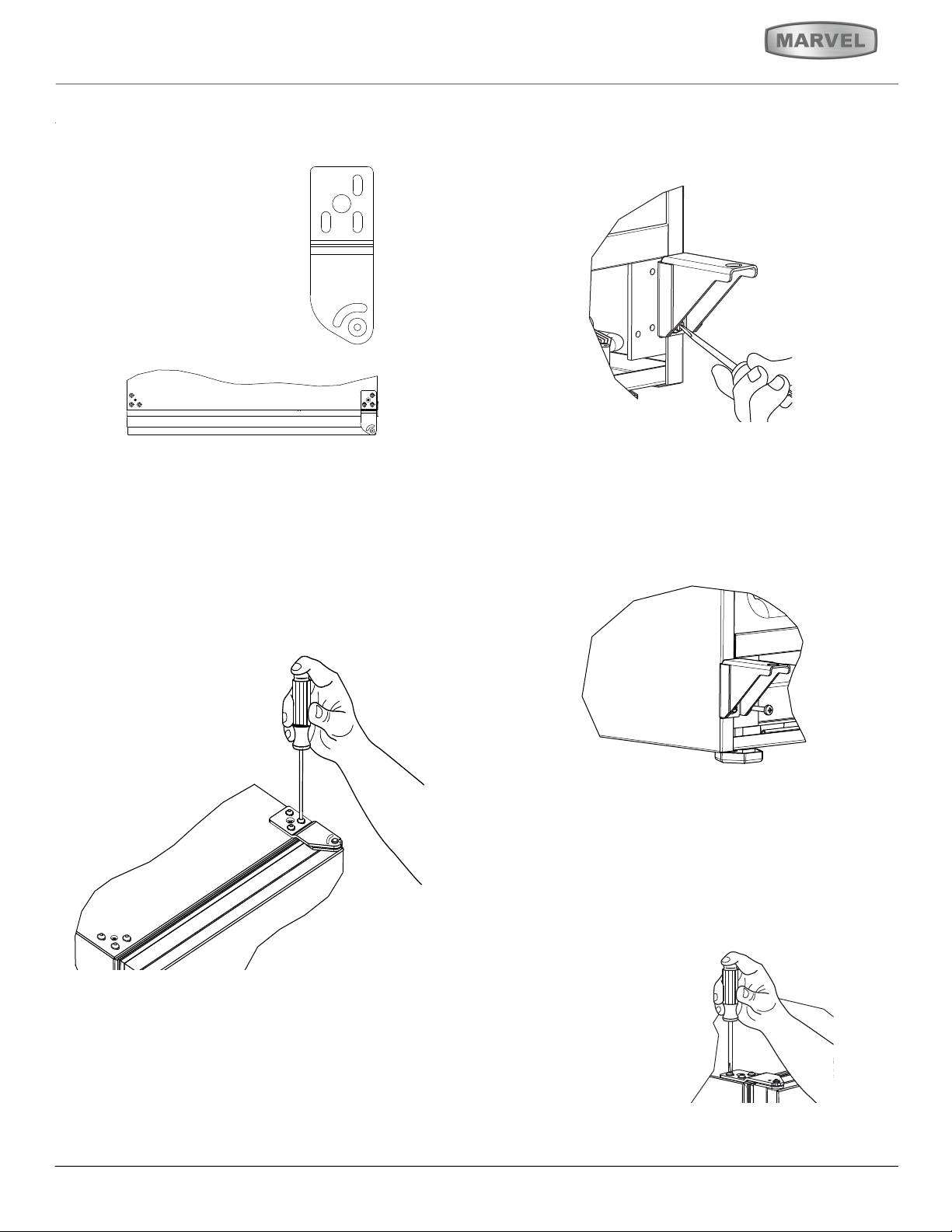

1. Slide unit out so screws on top of unit are easily accessible.
2. Remove the two screws from the opposite side of the hinge
assembly using a T-25 Torx driver (see below).
3. Place bracket over holes and attach to unit with two screws
removed in step 2 using a T-25 Torx driver. Tighten screws
fully.
4. Gently push unit into position. Be careful not to entangle the
electrical cord or water line, if applicable.
5. Check to be sure the unit is level from front to back and side
to side. Make any necessary adjustments. The unit’s top
surface should be approximately 1/8" (3 mm) below the
countertop.
6. Secure bracket into adjoining surface.
10

Installation Operation and Maintenance Instructions
General Installation

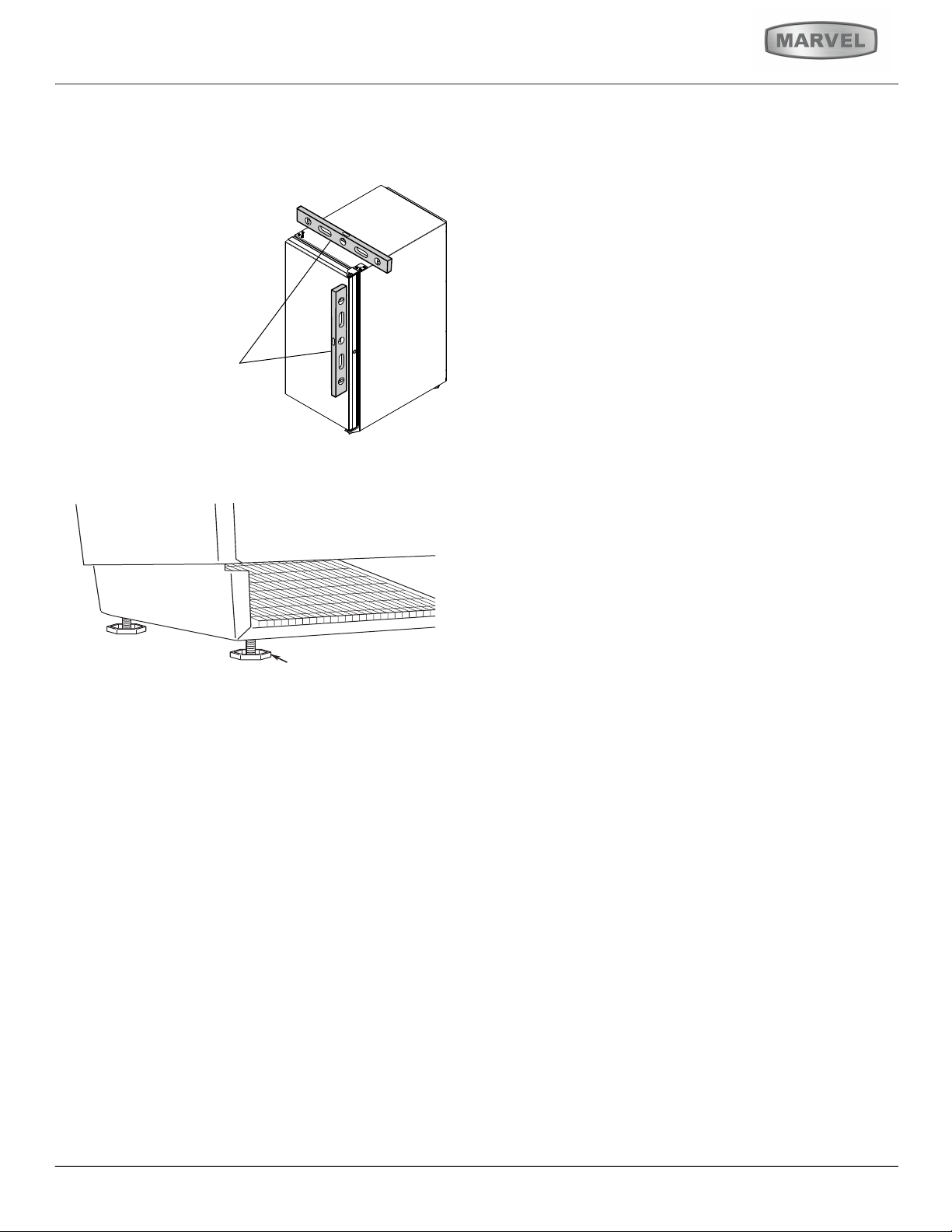

LEVELING INFORMATION
1. Use a level to confirm
the unit is level. Level
should be placed
along top edge and
side edge as shown.
2. If the unit is not level,
adjust the legs on the corners of the unit as necessary.
3. Confirm the unit is level after each adjustment and repeat
the previous steps until the unit is level.
INSTALLATION TIP
If the room floor is higher than the floor in the cutout opening,
adjust the rear legs to achieve a total unit rear height of 1/8"
(3 mm) less than the opening’s rear height. Shorten the unit
height in the front by adjusting the front legs. This allows the
unit to be gently tipped into the opening. Readjust the front legs
to level the unit after it is correctly positioned in the opening.
INSTALLATION
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not to entangle
the cord or water and drain lines.
3. Re-check the leveling, from front to back and side to side.
Make any necessary adjustments. The unit’s top surface
should be approximately 1/8" (3 mm) below the countertop.
4. Install the anti-tip bracket.
5. Remove interior packing material and wipe out the inside of
the unit with a clean, water-dampened cloth.
1
Turn to Adjust
11

Installation Operation and Maintenance Instructions

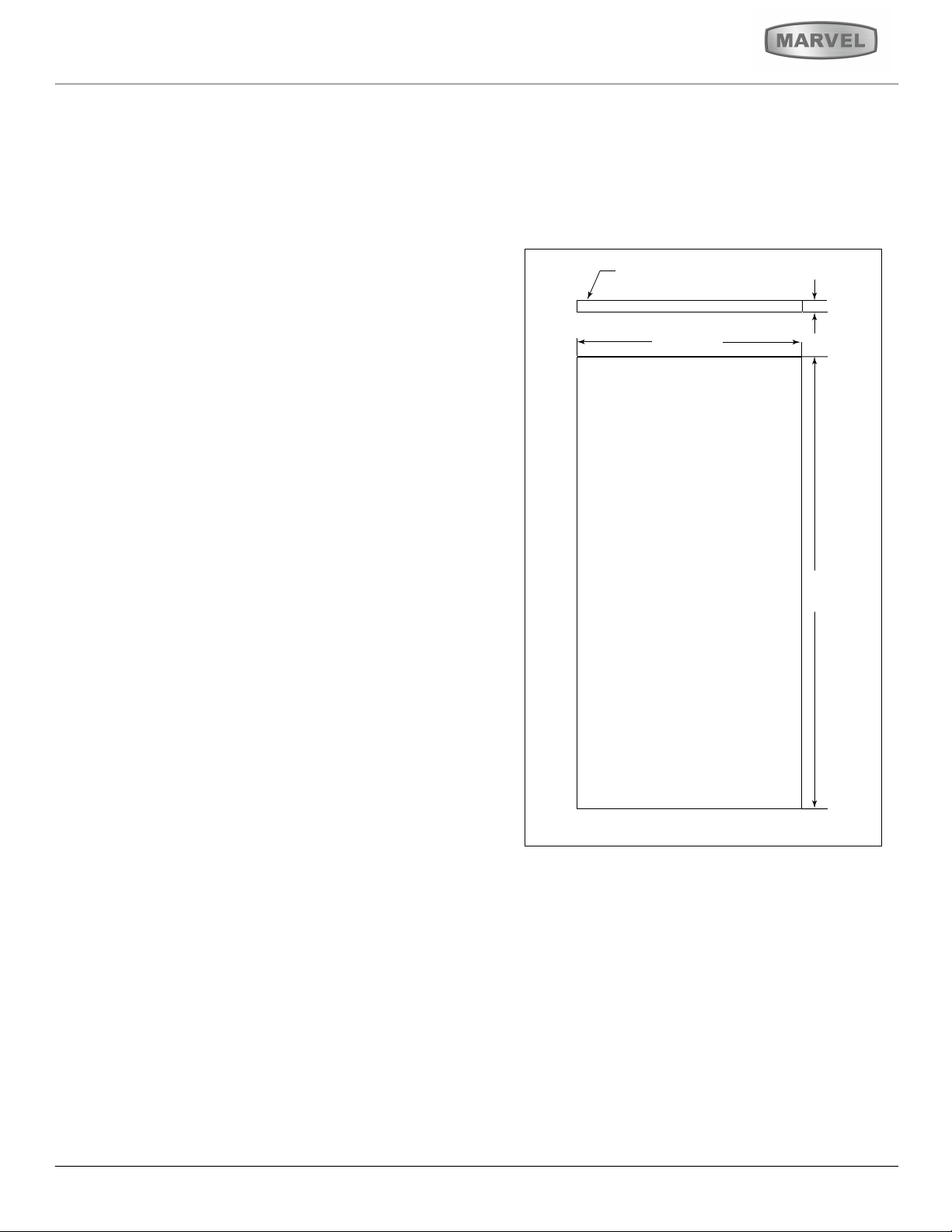

Overlay Door Panel Dimensions
NOTICE
Due to differences in surrounding cabinetry the panel may
not perfectly align with door. The procedure below is
designed to provide a finished overlay panel that
seamlessly integrates with surrounding cabinetry.
The door panel must not weigh more than 20 lbs (10 kg).
It is important to ensure that all drilled holes are drilled to
the correct depth in order to avoid splits in the wood when
hardware is installed.
When applying an overlay panel to a unit, ensure that
both sides are finished in order to prevent warping.
A full overlay door panel completely covers the door frame and
provides a built-in appearance.
Overlay Panel Preparation
1. Cut the panels to the dimensions listed in the diagram
below.
2. Optional: Stain or Finish panel to desired stain or color. Be
sure to closely follow the instructions provided by the
manufacturer.
3. Optional: Install handles and hardware.
Overlay Panel Dimensions
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY PANEL FLAT AND WITHOUT
INTERFERENCE
3/4"
(20 mm)
Overlay Panel
14-3/4"
(375 mm)
30-1/4"
(768 mm)
-ML15CRP1XP
OVERLAY PANEL
12

Installation Operation and Maintenance Instructions
Overlay Door Panel Installation
NOTICE
Due to differences in floor construction or surrounding
cabinetry, the panel may not sit flush with the top of
the door.

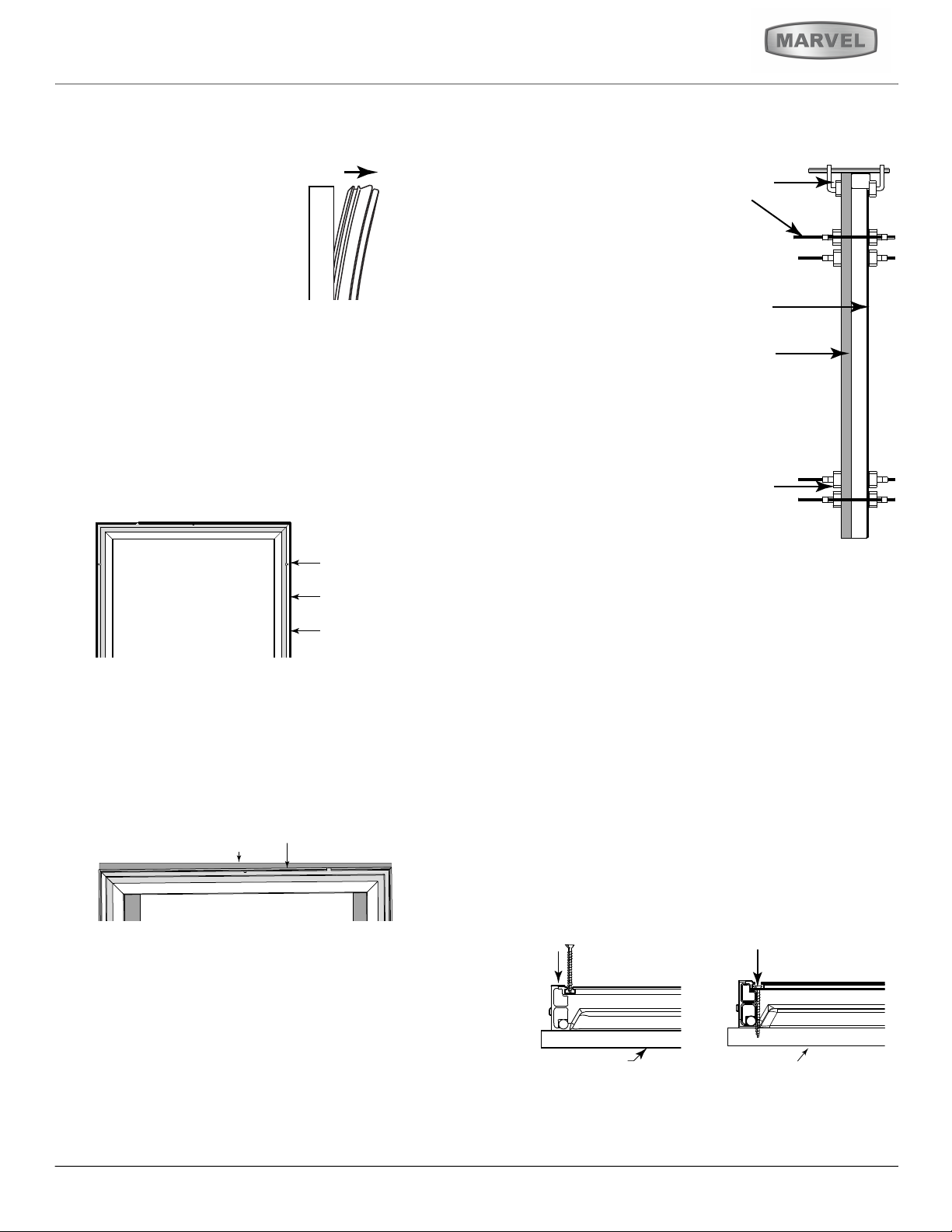

Secure overlay panel to
door using clamps. A
robust tape may also be
used. Marvel
recommends the use of
bar clamps to secure the
panel to the door. If using
tape, be certain the tape
will not damage panel
finish upon removal.
Using a 7/64" (3 mm) drill
bit, drill 6 pilot holes into
the wood panel 1/2" (12
mm) deep using the holes
in the door frame as a
guide.
- ML15CRP1XP
It is important to ensure that all drilled holes are drilled to
the correct depth in order to avoid splits in the wood when
hardwood is installed.
Locate 6 of the #6x 1-1/4" (32 mm) screws provided with
your unit.
Using a Phillips screwdriver, place one screw into each of
the 6 pilot holes and screw down. Do not over tighten
screws.
Be sure the screws force their way past the opening on
the gasket channel and sit flush against the bottom of the
channel.
Align Panel
Against
Door Edge First
1. Fully open door.
2. Starting at corner, pull gasket
away from door.
3. Continue to pull gasket free
from gasket channel.
4. Upon removal, lay gasket down on a flat surface.
5. The panel should be aligned with the outside edge
(opposite the hinge) and high enough to align with the
highest point in the door.
Door
Panel
Wood
Panel
Door
Bar
Clamp
Bar
Clamp
Overlay Panel
Overlay Panel
Align Top Of Panel With Highest Point Of Door
6.
7.
8.
9.
10.
13

Installation Operation and Maintenance Instructions
NOTICE
If panel requires additional adjustment after removing
clamps, slightly loosen each screw and adjust panel as
necessary. Tighten screws upon completion.
12. Starting at the corners, re-install the gasket into the gasket
channel in the frame. Make sure the gasket is fully seated.
This may take some force.
Removing the grille
1. Disconnect power to the unit.
2. Loosen the two screws (1).
3. Remove grille (2) from unit.
Installing the grille
1. Align cabinet and grille holes and secure, but do not over
tighten grille screws (1).
2. Reconnect power to the unit.
Door Swing
Units have a zero clearance for the door to open 90°, when
installed adjacent to cabinets.
Stainless Steel and black and white models require
2-1/8" (54 mm) door clearance to accommodate the handle if
installed next to a wall.
Overlay models require 1/4" (6 mm) clearance if installed
next to a wall. Allow for additional space for any knobs or
pulls installed on the overlay panel/frame.
Wall Wall
90°
Door Swing
90°
Door Swing
2-1/8" Min.
(54 mm)
1/4" Min.
(6 mm)
11. Remove clamps from door.
!WARNING
Disconnect electric power to the unit before
removing the grille.
Door Swing
Grille Installation
REMOVING AND INSTALLING GRILLE
When using the unit, the grille must be installed.
14

Installation Operation and Maintenance Instructions
Door Adjust
HINGE COVER
Hinge cover included with the literature bag is optional.
To install hinge cover:
1. Press hinge cover squarely over hinge.
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not sealing
properly. If the door is not sealed, the unit may not cool properly,
or excessive frost may form in the interior.
NOTICE
Properly aligned, the door’s gasket should be firmly in
contact with the cabinet all the way around the door (no
gaps). Carefully examine the door’s gasket to ensure that it
is firmly in contact with the cabinet. Also make sure the
door gasket is not pinched on the hinge side of the door.
To align and adjust the door:
1. Gently pry off hinge cover from top of unit.
2. Loosen (do not remove) top and bottom hinge screws using
a Torx T-25 screwdriver on the top and a 1/4" socket on the
bottom.
3. Align door squarely with cabinet.
4. Make sure gasket is firmly in contact with cabinet all the way
around the door (no gaps).
5. Tighten bottom hinge screws.
6. Tighten top hinge screws and replace hinge cover.
Location of the unit may make it desirable to mount the door
on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
TO REVERSE THE DOOR (Black and Stainless Models)
Hinge Cover
Top Hinge
Right Side
Top Hinge
Left Side
Pivot
Screw
Remove top hinge and door:
1. Remove hinge cover from top of unit.
2. Hold door to keep it from falling.
3. Remove top hinge from cabinet using a Torx T-25
screwdriver to remove three screws.
4. Remove pivot screw from hinge, flip hinge over, and
install the pivot screw in the same hole from the
opposite surface.
15

Installation Operation and Maintenance Instructions
Remove door by tilting forward and lifting door off bottom
hinge. Retain shoulder washers; they will be reused.
Remove three screws from hinge holes on the opposite
side. Reinstall into holes where the hinge was removed.
Take care not to scratch the cabinet.
Remove bottom hinge:
1. Remove bottom hinge from cabinet using a 1/4" socket
2. Remove corresponding screws on opposite side of cabinet.
On some models there may be a nut behind one or both
screws on either side.
Install bottom hinge:
Install two or three screws, depending on model. Replace
nuts if used.
Install top hinge and door:
1. Install the top hinge. Do not tighten.
2. Rotate the door 180o to reverse and set the door onto
the bottom hinge.
3. Align edge of the hinge with the outer edge of the unit.
4. Tighten three hinge screws and replace hinge cover.
Align and adjust the door:
Align and adjust the door (see DOOR ADJUST)
5.
6.
16

Installation Operation and Maintenance Instructions
Remove top hinge and door:
1. Hold door to keep it from falling.
2. Remove top hinge from cabinet using a Torx T-25
screwdriver to remove three screws. Set aside and save for
possible future use.
3. Remove door by tilting forward and lifting door off bottom
hinge. Retain shoulder washers; they will be reused.
4. Remove three screws from hinge holes on the opposite
side. Reinstall into holes where the hinge was removed.
Take care not to scratch cabinet.
Remove bottom hinge:
1. Remove bottom hinge from cabinet.
2. Remove corresponding screws on opposite side of cabinet.
On some models there may be a nut behind one or both
screws on either side.
Install bottom hinge:
Install two or three screws, depending on model. Replace
nuts if used.
Install top hinge and door:
TO REVERSE THE DOOR (Overlay Model)
1. Use alternate hinge supplied with unit and reinstall the
screws. Do not tighten..
2. Lift the door on to the bottom hinge.
3. Align flat edge of the hinge with the outer edge of the unit.
4. Tighten three screws.
Align and adjust the door:
Align and adjust the door (see DOOR ADJUST).
17

Installation Operation and Maintenance Instructions
First Use
All controls are preset at the factory. Initial startup
requires no adjustments.
NOTICE
Marvel recommends discarding the ice produced
during the first two to three hours of operation to avoid
possible dirt or scale that may dislodge from the water
line.
To turn the unit on or off:
Press the rocker switch located inside the door on the front
panel, or behind the grille.
Ice
ICE MAKER OPERATION
When the ice bucket is full, the ice making mechanism will
shut off. However, the refrigeration system will continue to
cool and maintain the ice supply.
NOTICE
Do not place cans or bottles in the ice compartment
because they will freeze.
To turn off ice production: Raise the bin arm into an
upright and locked position. The unit will preserve temperature
for ice storage.
NOTICE
If not intending to use the ice maker, turn the water supply
valve off. It is also important to raise the bin arm of the ice
maker (see above). Failure to raise the bin arm may result
in damage to the water valve.
Certain sounds are normal during the unit’s operation. You may
hear the compressor or fan motor, the water valve, or ice
dropping into the ice bucket.
CAUTION
!
NEVER use an ice pick, knife or other sharp instrument to
separate cubes. Shake the ice bucket instead.
During periods of limited use or high ambient temperatures, it is
common for cubes to fuse together. Gently shake the bucket to
break apart cubes. If not using the ice maker regularly, empty
the ice bucket periodically to ensure fresh cubes.
It is normal for cubes to appear cloudy. The cause is air trapped
in the water because of fast freezing. It is not caused by the
health, taste or chemical make up of the water. It is the same air
that is in every glass of water you drink.
Remove the ice bucket for emptying and cleaning. To remove
the ice bucket, raise the bin arm and remove the bucket from
the ice compartment. Use the ice bucket for ice storage only.
OFF
ON
OFF
ON
18

Installation Operation and Maintenance Instructions
ICE MAKER ADJUSTMENT
Ice Cube Thickness Adjustment
Interval - As Required
On ice maker equipped models, adjust the cube size by
changing water amount injected into the ice maker assembly as
follows:
1. Remove the ice maker assembly cover (1).
2. Find the adjusting screw on the ice maker assembly control
box (2). The adjusting screw is just below the minus (-) and
plus (+) signs on the control box.
CAUTION
!
Too large of an adjustment to the screw can cause the
water to overflow the ice maker and can cause property
damage.
3. Turn the adjusting screw toward the minus (-) sign
(clockwise) for smaller cubes or toward the plus (+) sign
(counterclockwise) for larger cubes.
4. Install the ice maker assembly cover.
ADJUSTING ICE HARVEST
1. Remove the front grille (see GRILLE INSTALLATION).
2. Using a flat tip screwdriver, turn the adjusting screw (3) a
small increment clockwise for a COLDER setting (slower ice
production) or counterclockwise for a WARMER setting
(faster ice production).
3. Reinstall the front grille (two screws).
NOTICE
The unit requires proper airflow to perform at its highest
efficiency. Do not block the front grille at any time, or the
unit will not perform as expected. Do not install the unit
behind a door.
1
2
C
O
L
D
E
R
Warmer Colder
3
12
Airflow and Product Loading
19

Installation Operation and Maintenance Instructions
Cleaning
EXTERIOR CLEANING
Vinyl Clad (Black or White) Models
Clean surfaces with a mild detergent and warm water solution.
Do not use solvent-based or abrasive cleaners. Use a soft
sponge and rinse with clean water. Wipe with a soft, clean towel
to prevent water spotting.
Clean any glass surfaces with a non-chlorine glass cleaner.
Stainless Models
Stainless door panels, handles and frames can discolor when
exposed to chlorine gas, pool chemicals, saltwater or cleaners
with bleach.
Keep your stainless unit looking new by cleaning with a good
quality all-in-one stainless steel cleaner and polish monthly. For
best results use Claire® Stainless Steel Polish and Cleaner.
Comparable products are acceptable. Frequent cleaning will
remove surface contamination that could lead to rust. Some
installations may require cleaning weekly.
Do not clean with steel wool pads.
Do not use stainless steel cleaners or polishes on any
glass surfaces.
Clean any glass surfaces with a non-chlorine glass cleaner.
Do not use cleaners not specifically intended for stainless
steel on stainless surfaces (this includes glass, tile and
counter cleaners).
If any surface discoloring or rusting appears, clean it quickly with
Bon-Ami® or Barkeepers Friend Cleanser® and a nonabrasive
cloth. Always clean with the grain. Always finish with Claire®
Stainless Steel Polish and Cleaner or comparable product to
prevent further problems.
Using abrasive pads such as ScotchBrite™ will cause the
graining in the stainless steel to become blurred.
Rust not cleaned up promptly can penetrate the surface of
the stainless steel and complete removal of the rust may
not be possible.
Integrated Models
To clean integrated panels, use household cleaner per the
cabinet manufacturer’s recommendations.
INTERIOR CLEANING
Disconnect power to the unit.
Clean the interior and all removed components using a mild
nonabrasive detergent and warm water solution applied with a
soft sponge or non-abrasive cloth.
Rinse the interior using a soft sponge and clean water.
Do not use any solvent-based or abrasive cleaners. These
types of cleaners may transfer taste to the interior products and
damage or discolor the interior.
20
