Marvel MLCP215 User manual
O W N E R S GUIDE
MARVEL UNDERCOUNTE R R E FRIGER A T I O N
THE ORIGINAL R EFRIGER A T I O N EXPERTSSINCE 1892
FOR MODEL #M LRE224
OWNER’S GUIDE
MARVEL UNDERCOUNTER REFRIGERATION
THE ORIGINAL REFRIGERATION EXPERTS SINCE 1892
FOR MODEL # MLCP215
WELCOME
Welcome to the Marvel Experience!
Congratulations on your purchase of the industry’s quietest
clear ice machine with the best ice clarity and purity. Your
new investment is protected by a limited warranty for the
rst year, and hermetically sealed refrigeration system parts
are covered for an additional 4 years.
Here’s your guide to the operation and maintenance of your
Marvel Clear Ice Machine to ensure years of enjoyment. If
you have any questions, please contact Marvel Customer
Service or Tech Support at:
Phone: (616) 754-5601
Email:
Got a Marvelous Design?
We would love to see how your Marvel product looks in its
new home. Send us photos at marketing@marvelrefriger-
ation.com, and we might feature your Marvel home design
on our website and social media!
Warranty Registration
It is important you send in your warranty registration card
immediately after taking delivery of your appliance or you
can register online at www.marvelrefrigeration.com.
The following information will be
required when registering your
appliance:
Service Number
Serial Number
Date of Purchase
Dealer’s name and address
The service number and serial number can be found on the
serial plate which is located inside the cabinet on the left
side near the top.
Online regis-
tration available at
www.marvelrefriger-
ation.com
XXXXXXXXXXXX
XXXXXXXXXXXX
MARVEL
g
R600A
TABLE OF CONTENTS
Tip: Click on any section below to jump directly there
Safety
Important Safety Instructions
Installation
Unpacking Your Appliance
Electrical
Cutout & Product Dimensions
Side-by-Side & Stacking Installations
Door Reversal
Installing The Water Supply
Maintenance

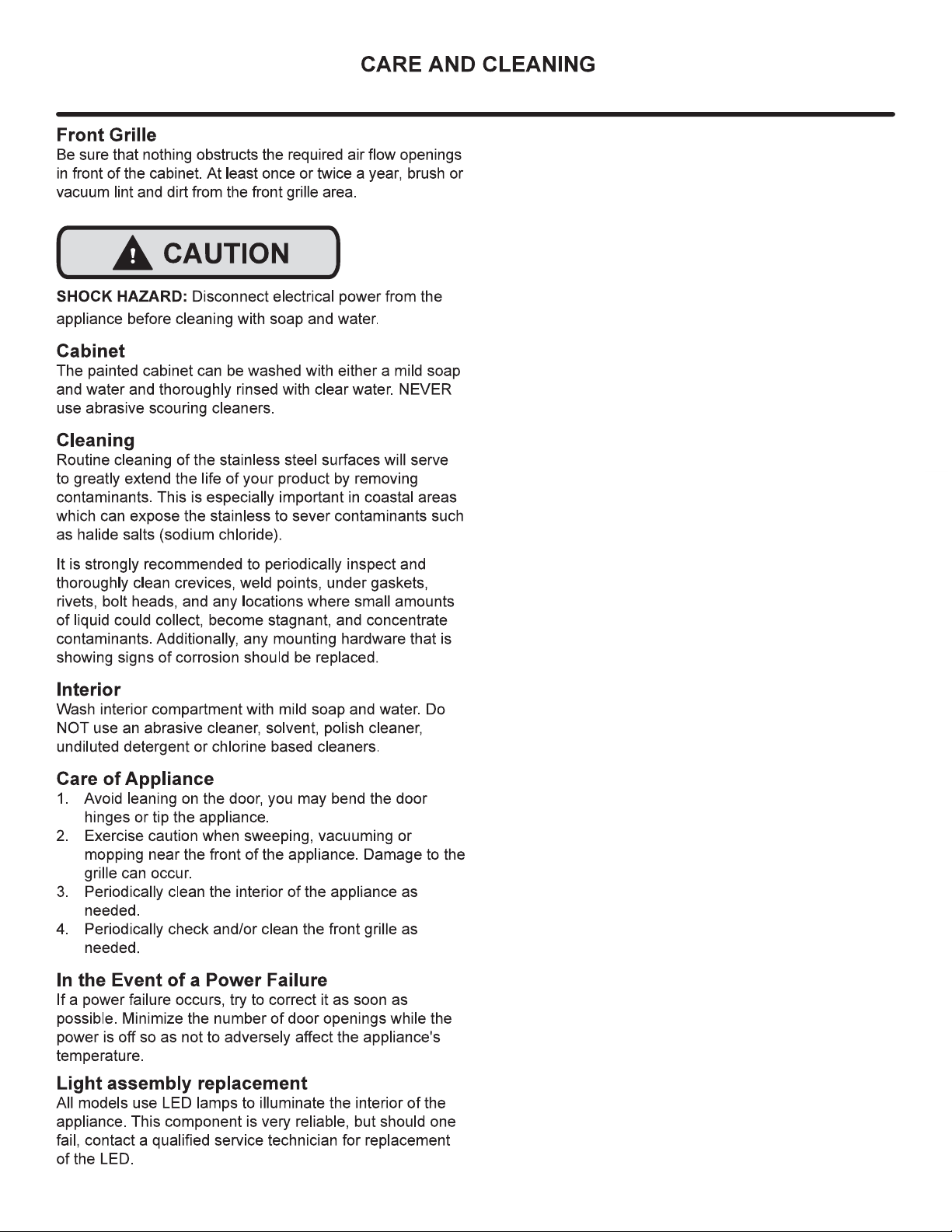

Care and Cleaning

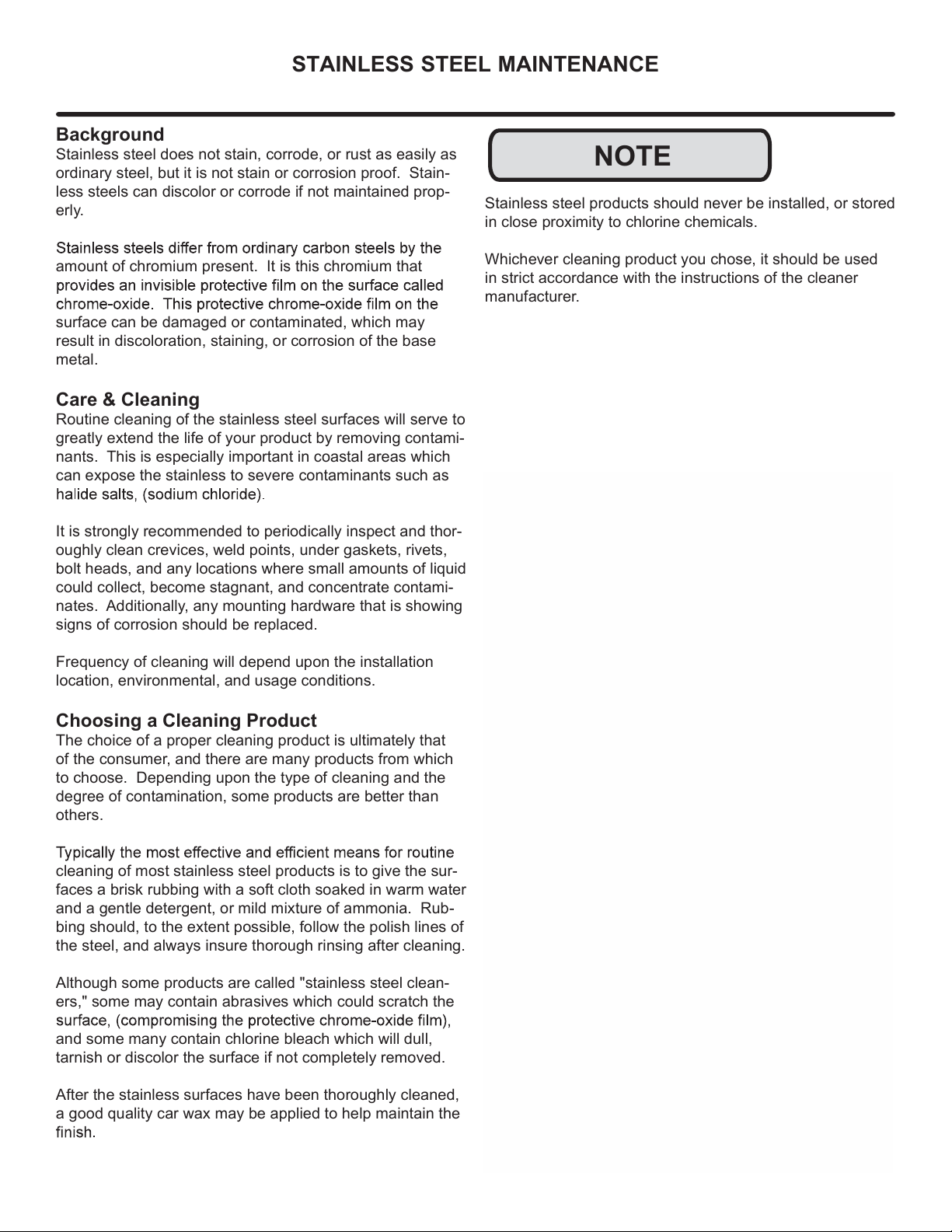

Stainless Steel Maintenance
Service

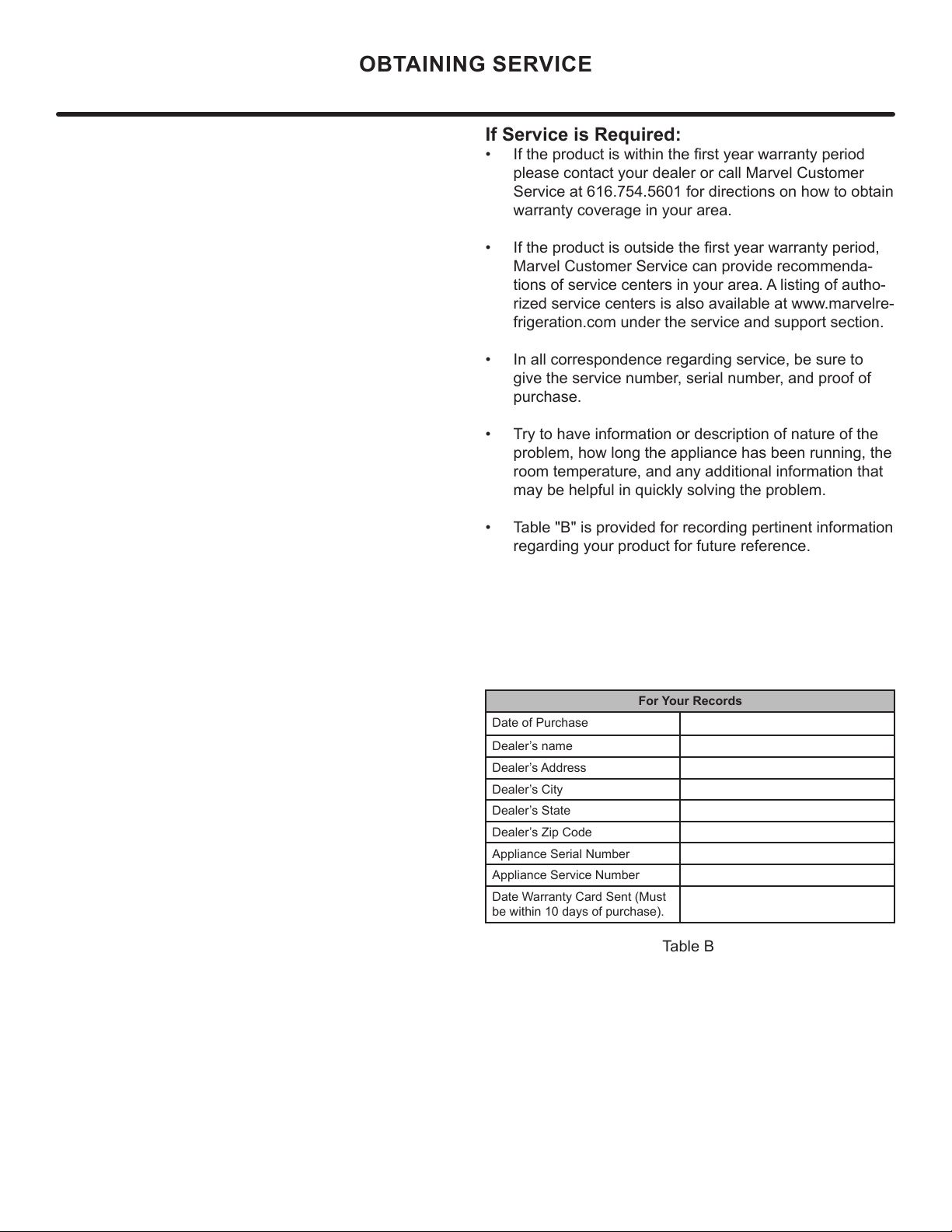

Obtaining Service

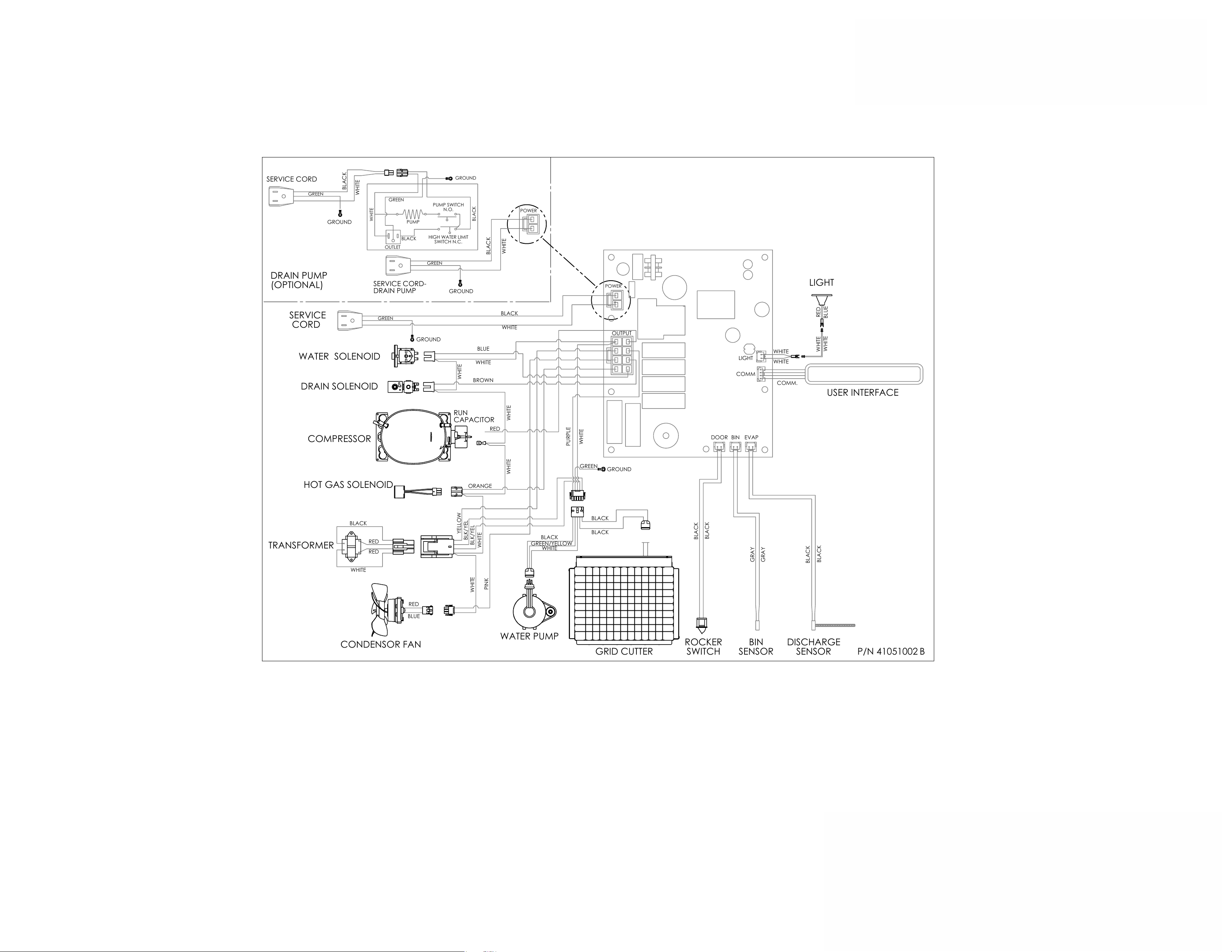

Wire Diagram
Product Liability
Warranty Claims
Ordering Replacement Parts
System Diagnosis Guide
Compressor Specifications
Thermistor
Warranty
3

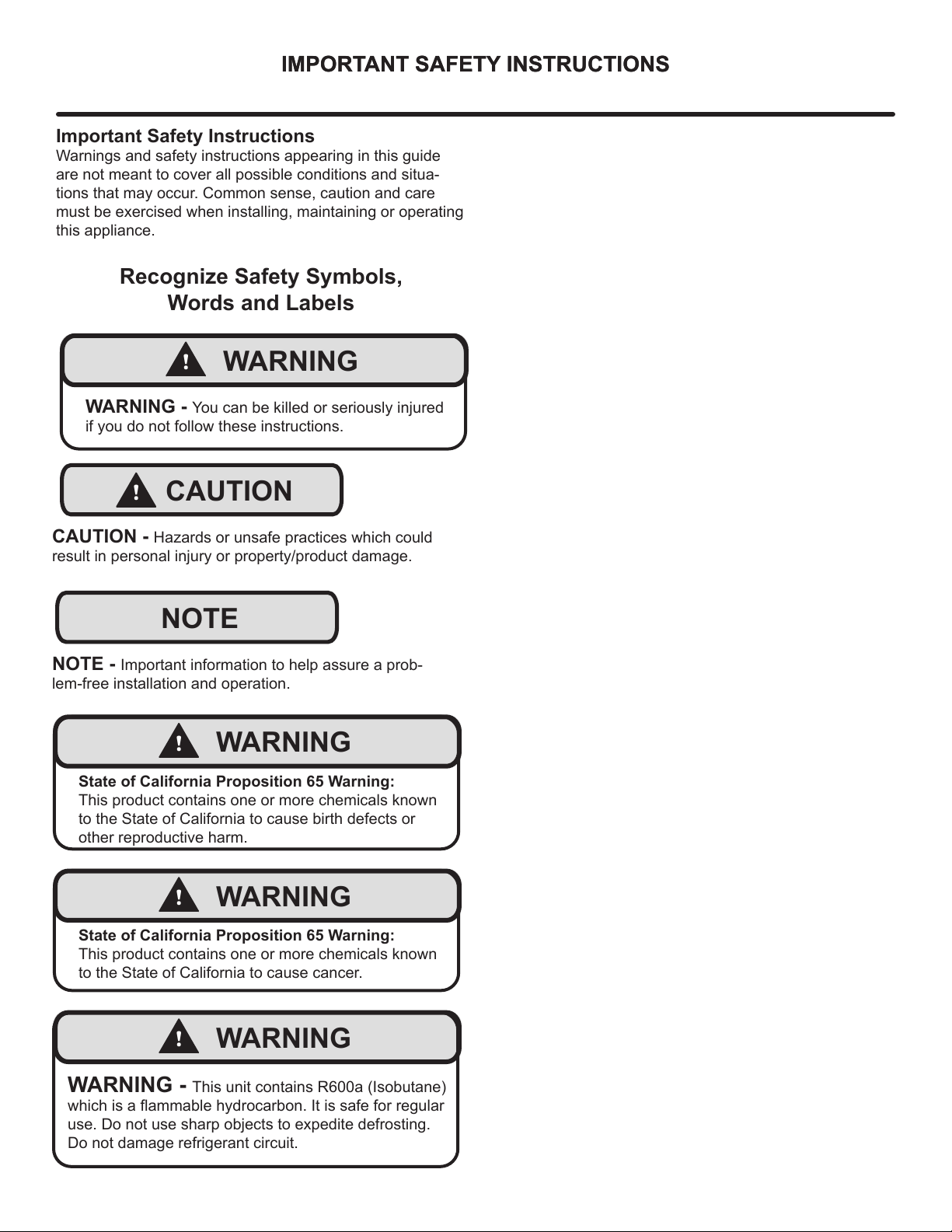

IMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONS
Important Safety Instructions
Warnings and safety instructions appearing in this guide
are not meant to cover all possible conditions and situa-
tions that may occur. Common sense, caution and care
must be exercised when installing, maintaining or operating
this appliance.
Recognize Safety Symbols,
Words and Labels
NOTE
!CAUTION
CAUTION - Hazards or unsafe practices which could
result in personal injury or property/product damage.
NOTE - Important information to help assure a prob-
lem-free installation and operation.
!WARNING
WARNING - You can be killed or seriously injured
if you do not follow these instructions.
!WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause cancer.
!WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause birth defects or
other reproductive harm.
!WARNING
WARNING - This unit contains R600a (Isobutane)
which is a fl ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite defrosting.
Do not damage refrigerant circuit.
4

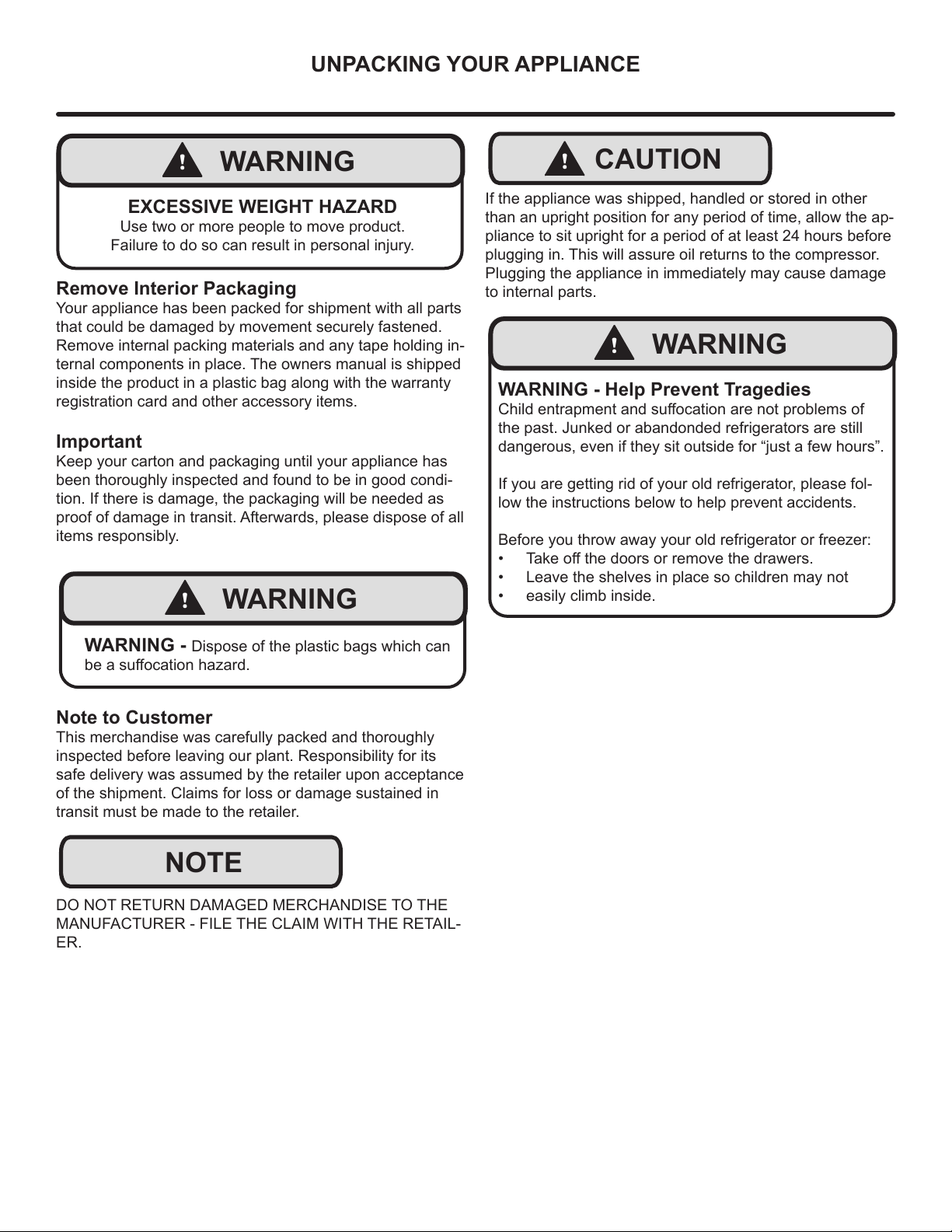

UNPACKING YOUR APPLIANCE
!WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
Remove Interior Packaging
Your appliance has been packed for shipment with all parts
that could be damaged by movement securely fastened.
Remove internal packing materials and any tape holding in-
ternal components in place. The owners manual is shipped
inside the product in a plastic bag along with the warranty
registration card and other accessory items.
Important
Keep your carton and packaging until your appliance has
been thoroughly inspected and found to be in good condi-
tion. If there is damage, the packaging will be needed as
proof of damage in transit. Afterwards, please dispose of all
items responsibly.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE RETAIL-
ER.
NOTE
!WARNING
WARNING - Dispose of the plastic bags which can
be a suff ocation hazard.
!CAUTION
!WARNING
WARNING - Help Prevent Tragedies
Child entrapment and suff ocation are not problems of
the past. Junked or abandonded refrigerators are still
dangerous, even if they sit outside for “just a few hours”.
If you are getting rid of your old refrigerator, please fol-
low the instructions below to help prevent accidents.
Before you throw away your old refrigerator or freezer:
• Take off the doors or remove the drawers.
• Leave the shelves in place so children may not
• easily climb inside.
If the appliance was shipped, handled or stored in other
than an upright position for any period of time, allow the ap-
pliance to sit upright for a period of at least 24 hours before
plugging in. This will assure oil returns to the compressor.
Plugging the appliance in immediately may cause damage
to internal parts.
5

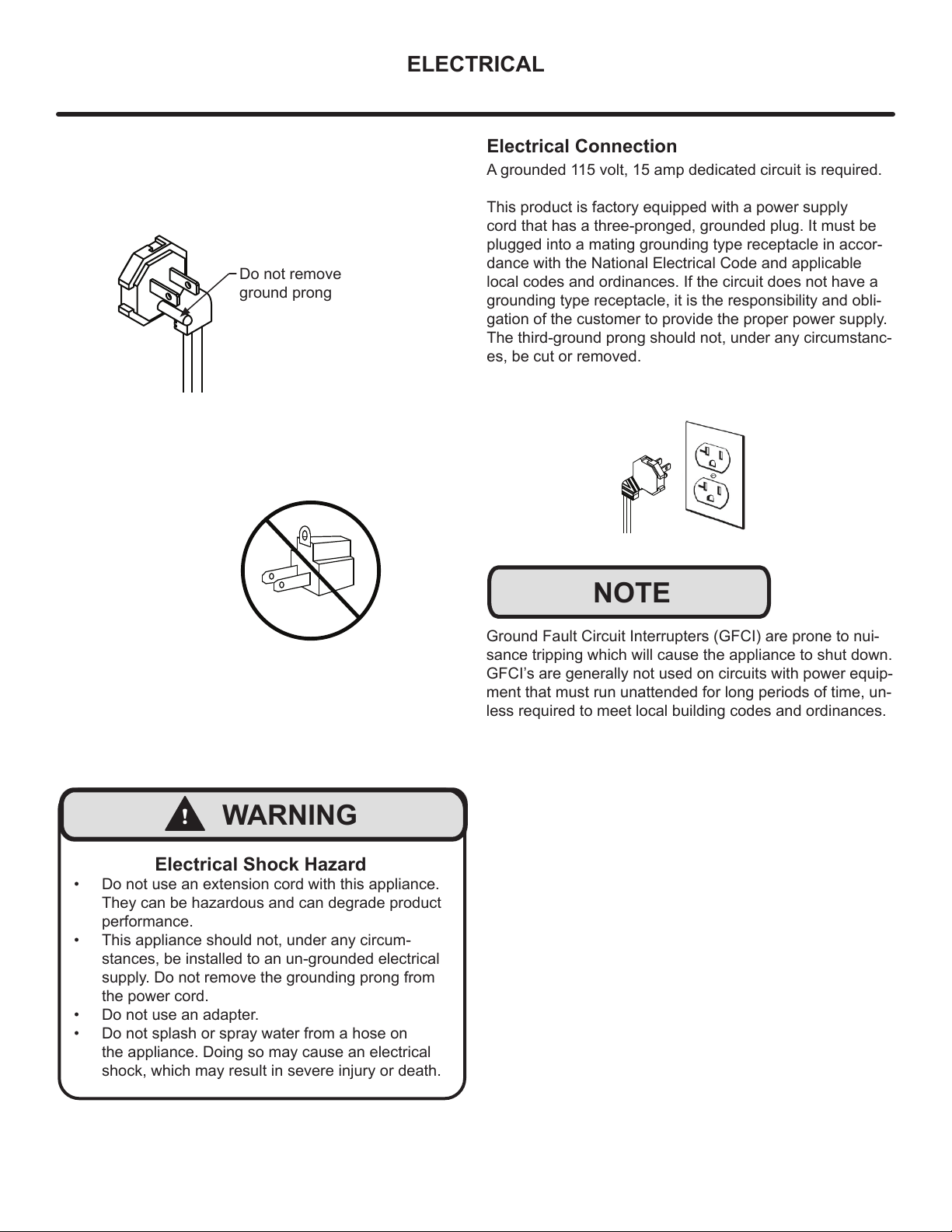

ELECTRICAL
NOTE
Electrical Shock Hazard
• Do not use an extension cord with this appliance.
They can be hazardous and can degrade product
performance.
• This appliance should not, under any circum-
stances, be installed to an un-grounded electrical
supply. Do not remove the grounding prong from
the power cord.
• Do not use an adapter.
• Do not splash or spray water from a hose on
the appliance. Doing so may cause an electrical
shock, which may result in severe injury or death.
!WARNING
Ground Fault Circuit Interrupters (GFCI) are prone to nui-
sance tripping which will cause the appliance to shut down.
GFCI’s are generally not used on circuits with power equip-
ment that must run unattended for long periods of time, un-
less required to meet local building codes and ordinances.
Electrical Connection
A grounded 115 volt, 15 amp dedicated circuit is required.
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accor-
dance with the National Electrical Code and applicable
local codes and ordinances. If the circuit does not have a
grounding type receptacle, it is the responsibility and obli-
gation of the customer to provide the proper power supply.
The third-ground prong should not, under any circumstanc-
es, be cut or removed.
Do not remove
ground prong
6

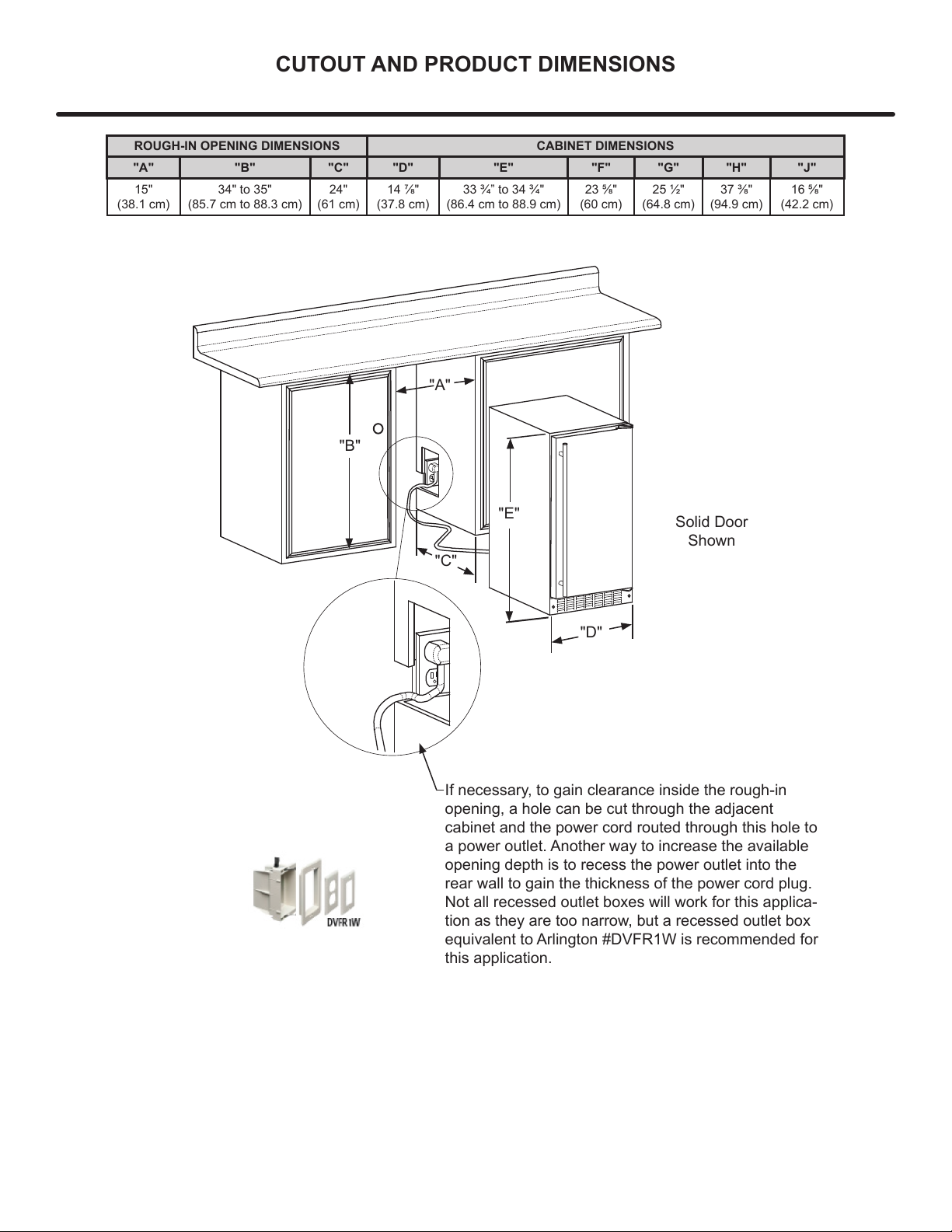

CUTOUT AND PRODUCT DIMENSIONS
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
"A" "B" "C" "D" "E" "F" "G" "H" "J"
15"
(38.1 cm)
34" to 35"
(85.7 cm to 88.3 cm)
24"
(61 cm)
(37.8 cm)
(86.4 cm to 88.9 cm)
(60 cm)
(64.8 cm)
(94.9 cm)
(42.2 cm)
Solid Door
Shown
"A"
"B"
"C"
"D"
"E"
If necessary, to gain clearance inside the rough-in
opening, a hole can be cut through the adjacent
cabinet and the power cord routed through this hole to
a power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.
Not all recessed outlet boxes will work for this applica-
tion as they are too narrow, but a recessed outlet box
equivalent to Arlington #DVFR1W is recommended for
this application.
7
CUTOUT AND PRODUCT DIMENSIONS
PRODUCT DATA
ELECTRICAL
REQUIREMENTS #
PRODUCT
WEIGHT
115V/60Hz/15A 105 lbs
(47.6 kg)
Minimum rough-in opening required is to be larger than the
adjusted height of the cabinet.
A grounded 15 amp dedicated circuit is required. Follow all
local building codes when installing electrical and
appliance.
Glass Door
Shown
"F"
2112"
(54.6 cm)
"D"
"E"
"H"
"J"
"G"
8
SIDE-BY-SIDE AND STACKING INSTALLATIONS
Side-by-Side Installation
Other Site Requirements
Units must operate from separate, properly grounded elec-
trical receptacles placed according to each unit's electrical
specications requirements.
Cutout width for a side-by-side installation is the total of the
widths listed under Cutout Dimensions in each unit's Instal-
lation Guide. Each door can be opened individually (one at
a time) without interference.
Figure 10
However, to ensure unobstructed door swing (opening both
doors at the same time), 1/4" (6.4 mm) of space needs to
be maintained between the units.
Hinge-by-Hinge Installation (Mullion)
When installing two units hinge-by-hinge, 13/16" (22 mm)
is required for integrated models. Additional space may be
needed for any knobs, pulls or handles installed.
Stainless steel models which include the standard stainless
handle will require 4-9/16" (116 mm) to allow both doors to
open to 90° at the same time.
Figure 11
Figure 12
Figure 13
9
Door Reversing Instructions
Tools Needed:
• 1/8” Hex Key
• 5/32” Hex Key
• Phillips Screwdriver
Open door and remove Hinge Pin from the Upper Hinge using a 1/8” Hex Key tool making sure to steady the
Using a Phillips Screwdriver, remove the 6 screws from both the Upper and Lower Hinges and save for later steps
Once the Hinges are removed from the unit, using a Phillips Screwdriver, remove the Bushing Screw and Hinge Pin
Screw and save for later steps
On the Bottom Hinge, reattach the Bushing Screw and Hinge Pin Screw to the opposite side
Lower Hinge Bracket
(Before Reversal)
Upper Hinge Bracket
(After Reversal)
Lower Hinge Bracket
(After Reversal)
5. Using a 5/32” Hex Key, remove the Upper and Lower Hinge Brackets from the door saving all components.
screw into place
on the opposite side of the door (where plugs were removed). Remove the Cam Closer from the Lower-Hinge Bracket
and attach it to the opposite side
DOOR REVERSAL
Hinge Pin
Upper Right Hinge
Orientation
(Before Reversal)
Hinge Pin
Screw
Bushing
Screw
Lower Right Hinge
Orientation
(Before Reversal)
pper Left Hinge
Orientation
(After Reversal)
Upper Left Hinge
Orientation
(After Reversal)
Hinge
Bushing
Cam Closer
Upper Hinge Bracket
(Before Reversal)
10
6. Remove the Toe Kick from the door and attach it to the opposite side
DOOR REVERSAL
Toe Kick Reversal
7. Reattach the Upper and Lower Hinges, and Hinge Brackets to opposite sides. Then install the door.
11
13-
FIlter head 3/8" NPT,
!WARNING
!CAUTION
!CAUTION
12
!CAUTION
Forcing ice through the grid cutter will break the grid cutter
wires.
!CAUTION
Remove all ice
from the evaporator
plate and grid cutter
area that is not
embedded in wires
Clean reminder: CLEAN
NOTE
OFF
dependent on
your water source and usage. Normal ice production will
continue while the "CLEAN" reminder is displayed.
When
another
. If you choose to clean the appliance at
Clean mode:
recommended to clean your ice machine once every six
months. This simple cleaning routine will also ensure
water
Once you have your cleaner:
the
"ON/OFF" icon for 3 seconds. "OFF" will be displayed on
the control.
Use only Marvel-approved ice machine cleaner and follow
all label warnings and directions. Incorrect chemical
warranty.
To clean your ice machine you will need to purchase a
"nickel safe" ice maker cleaner. You can order ice machine
cleaner (part # S41013789) at marvelrefrigeration.com.
machine is ready to be cleaned.
While cleaning is needed, UI will alternate between "CL"
and "ICE" every 3000 cycles to indicate that the unit needs
to be cleaned. Over time, mineral build-up on the cold
evaporator plate can occur which can adversely affect the
quality of your ice. This build-up is dependent on your
water source and usage. Normal ice production will
continue while the "CLEAN" reminder is displayed. The
"CL" clean reminder will reset after your ice machine has
completed the cleaning cycle and will not occur for another
3000 cycles.
13
CARE AND CLEANING
Remove all of
the ice from
the ice bin
Remove the
black reservoir
drain plug from
the bottom of
the reservoir.
Splash shield
brackets
After the cleaning cycle is completed, verify that all build-up
has been removed. If not, repeat the clean cycle procedure.
Clean inside of unit with a clean, damp rag before ice mak-
ing cycle begins.
Replace the splash shield if removed.
Clean cycle time is approximately 45 minutes.
Ice maker will automatically return to ice making once clean
cycle is complete.
Pour cleaning solution slowly
onto the front edge of evaporator
plate behind the grid cutter.
Evaporator
plate
Grid cutter
Splash shield
Lift fascia door up to ac-
cess evaporator plate
Remove ice from bin. Pull plug from the reservoir. Once
reservoir is empty, replace plug. Hold the Clean button tab
for 5 seconds to show "CL" on the display. Lift Fascia door
to access evaporator plate. Lift or remove splash shield to
expose evaporator plate. Using 1-3 ounces of cleaner,
pour cleaning solution slowly on evaporator plate so it
flows down into the fresh water reservoir.
14
15
STAINLESS STEEL MAINTENANCE
Background
Stainless steel does not stain, corrode, or rust as easily as
ordinary steel, but it is not stain or corrosion proof. Stain-
less steels can discolor or corrode if not maintained prop-
erly.
amount of chromium present. It is this chromium that
surface can be damaged or contaminated, which may
result in discoloration, staining, or corrosion of the base
metal.
Care & Cleaning
Routine cleaning of the stainless steel surfaces will serve to
greatly extend the life of your product by removing contami-
nants. This is especially important in coastal areas which
can expose the stainless to severe contaminants such as
It is strongly recommended to periodically inspect and thor-
oughly clean crevices, weld points, under gaskets, rivets,
bolt heads, and any locations where small amounts of liquid
could collect, become stagnant, and concentrate contami-
nates. Additionally, any mounting hardware that is showing
signs of corrosion should be replaced.
Frequency of cleaning will depend upon the installation
location, environmental, and usage conditions.
Choosing a Cleaning Product
The choice of a proper cleaning product is ultimately that
of the consumer, and there are many products from which
to choose. Depending upon the type of cleaning and the
degree of contamination, some products are better than
others.
cleaning of most stainless steel products is to give the sur-
faces a brisk rubbing with a soft cloth soaked in warm water
and a gentle detergent, or mild mixture of ammonia. Rub-
bing should, to the extent possible, follow the polish lines of
the steel, and always insure thorough rinsing after cleaning.
Although some products are called "stainless steel clean-
ers," some may contain abrasives which could scratch the
and some many contain chlorine bleach which will dull,
tarnish or discolor the surface if not completely removed.
After the stainless surfaces have been thoroughly cleaned,
a good quality car wax may be applied to help maintain the
Stainless steel products should never be installed, or stored
in close proximity to chlorine chemicals.
Whichever cleaning product you chose, it should be used
in strict accordance with the instructions of the cleaner
manufacturer.
NOTE
16
If Service is Required:
• If the product is within the rst year warranty period
please contact your dealer or call Marvel Customer
Service at 616.754.5601 for directions on how to obtain
warranty coverage in your area.
• If the product is outside the rst year warranty period,
Marvel Customer Service can provide recommenda-
tions of service centers in your area. A listing of autho-
rized service centers is also available at www.marvelre-
frigeration.com under the service and support section.
• In all correspondence regarding service, be sure to
give the service number, serial number, and proof of
purchase.
• Try to have information or description of nature of the
problem, how long the appliance has been running, the
room temperature, and any additional information that
may be helpful in quickly solving the problem.
• Table "B" is provided for recording pertinent information
regarding your product for future reference.
For Your Records
Date of Purchase
Dealer’s name
Dealer’s Address
Dealer’s City
Dealer’s State
Dealer’s Zip Code
Appliance Serial Number
Appliance Service Number
Date Warranty Card Sent (Must
be within 10 days of purchase).
Table B
OBTAINING SERVICE
17
LIGHT
USER INTERFACE
ROCKER
SWITCH
SERVICE
CORD
WATER SOLENOID
DRAIN SOLENOID
COMPRESSOR
HOT GAS SOLENOID
TRANSFORMER
CONDENSOR FAN
WATER PUMP
GRID CUTTER
RUN
CAPACITOR
BIN
SENSOR
DISCHARGE
SENSOR
WHITE
GREEN
PUMP
PUMP SWITCH
N.O.
HIGH WATER LIMIT
SWITCH N.C.
OUTLET
BLACK
BLACK
SERVICE CORD-
DRAIN PUMP
POWER
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BLACK
BLACK
WHITE
WHITE
RED
BLUE
RED
WHITE
WHITE
GROUND
GROUND
GREEN
GREEN
GROUND
GROUND
GREEN
GREEN
GROUND
BLACK
BLACK
BLACK
WHITE
WHITE
WHITE
YELLOW
PINK
ORANGE
BLUE
BROWN
PURPLE
BLK/YEL
BLK/YEL
BLACK
BLACK
RED
BLUE
BLACK
GREEN/YELLOW
WHITE
OUTPUT
DOOR
BIN
EVAP
COMM
LIGHT
GRAY
GRAY
BLACK
BLACK
COMM.
POWER
WHITE
BLACK
WHITE
RED
RED
P/N 41051002
WIRING DIAGRAM-
SATURN II
41051002
D WOODMAN
4-28-15
DRAIN PUMP
(OPTIONAL)
SERVICE CORD
B
REVISIONS
REV.
DESCRIPTION
DATE
BY
ECN
A
RELEASE TO PRODUCTION
4/30/2015
DWW
11798
B
WAS DOOR SENSOR
6/3/2016
SM
12274
MUST BE RoHS and CALIFORNIA
PROP. 65 COMPLIANT
AGA MARVEL
DO NOT SCALE DRAWING
SHEET 1 OF 1
B
UNLESS OTHERWISE SPECIFIED:
SCALE:
REF.
REV
DWG. NO.
C
SIZE
DRAWING NAME
NAME
DATE
DRAWN
MATERIAL SPEC.
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR:
1
TWO PLACE DECIMAL
.03
THREE PLACE DECIMAL
.010
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
AGA - MARVEL.
ANY REPRODUCTION IN PART OR
AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF NORTHLAND - MARVEL
IS PROHIBITED.
18
Product Liability
E
V
G
The original refrigeration experts since 1892.
19
Warranty Claims
17 14862 05 0527
1 I I I
Year
Warranty Claims
D
ay Factory
use Only
M
Month
20
Other manuals for MLCP215
2
Table of contents
Other Marvel Ice Maker manuals
Marvel
Marvel MA15C Series Manual
Marvel
Marvel MACL215-IS01B User manual
Marvel
Marvel 30iM-BS User guide
Marvel
Marvel 25IM-BB-F User guide
Marvel
Marvel MPCP415-IS01A User manual
Marvel
Marvel ML15CRS1XS Manual
Marvel
Marvel 30iMT Manual
Marvel
Marvel MACP215 Series User manual
Marvel
Marvel 30iM-BB Guide
Marvel
Marvel 25iM-BS User guide
Marvel
Marvel 6CIM-BB-F User guide
Marvel
Marvel MP15CL Manual
Marvel
Marvel 25iM-BB-O User guide
Marvel
Marvel 30iM Manual
Marvel
Marvel 30iM-BB User manual
Marvel
Marvel MO15C Series Manual
Marvel
Marvel MLCR215-SS01A User manual
Marvel
Marvel 15iM Manual
Marvel
Marvel 15AF Manual
Marvel
Marvel 6OCIM-SS-F User manual
