Masibus 1006H User manual

User’s Manual
FLOW INDICATOR TOTALISER
1006H
Masibus Automation & Instrumentation Pvt. Ltd.
B/30, GIDC Electronics Estate,
Sector-25, Gandhinagar-382044, Gujarat, India
[phone] [phone]
Email: [e-mail]
Web: www.masibus.com

Flow Indicator Totaliser 1006H
REF NO: m16Aom101
Issue No: 03
User Manual 2
CONTENTS
1. INTRODUCTION.......................................................................................................4
2. SAFETY AND WARNING PRECAUTIONS..........................................................6
2.1 Safety Precautions..................................................................................................6
2.2 Warning Precautions..............................................................................................6
3. SPECIFICATIONS......................................................................................................7
3.1 Measured input signal..............................................................................................7
3.2 Loop Power Supply Specification ...........................................................................7
3.3 Retransmission Output.............................................................................................7
3.4 Contact Input (Digital input)....................................................................................8
3.5 Contact Output.........................................................................................................8
3.6 Display Unit Specification.......................................................................................8
3.7 Electrical Specification............................................................................................8
3.8 Isolation specification..............................................................................................9
3.9 Environmental Specification....................................................................................9
3.10 Alarm Specification.................................................................................................9
3.11 Display Specification...............................................................................................9
3.12 Communication......................................................................................................10
3.13 Other Specification ................................................................................................10
3.14 Physical Specification............................................................................................10
4. FRONT AND REAR PANEL DESCRIPTION.....................................................11

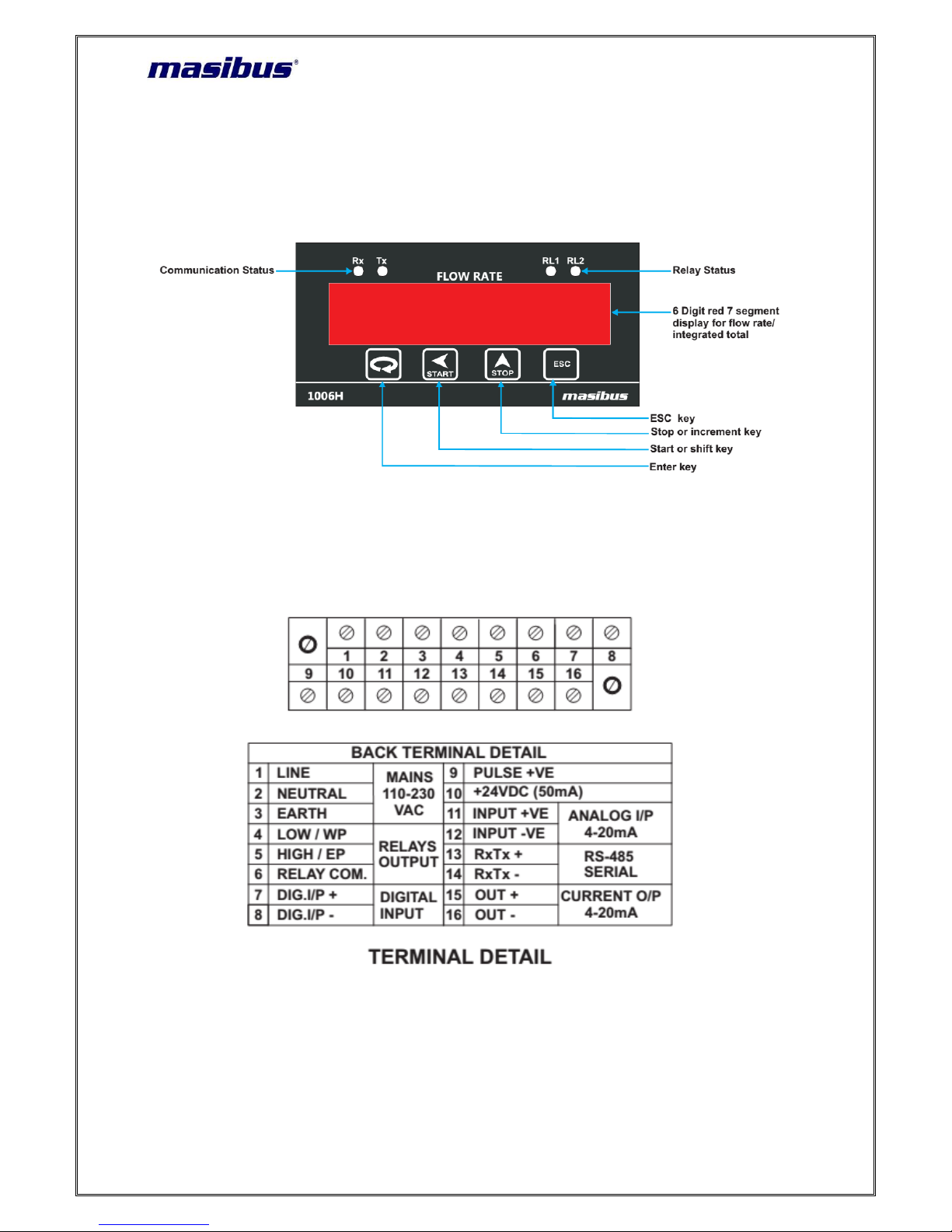

4.1 Front Panel Description .........................................................................................11
4.2 Rear Panel Diagram...............................................................................................11
5. MECHANICAL GUIDELINES ..............................................................................12
5.1 Mounting Details ...................................................................................................12
5.2 Mounting Steps......................................................................................................12

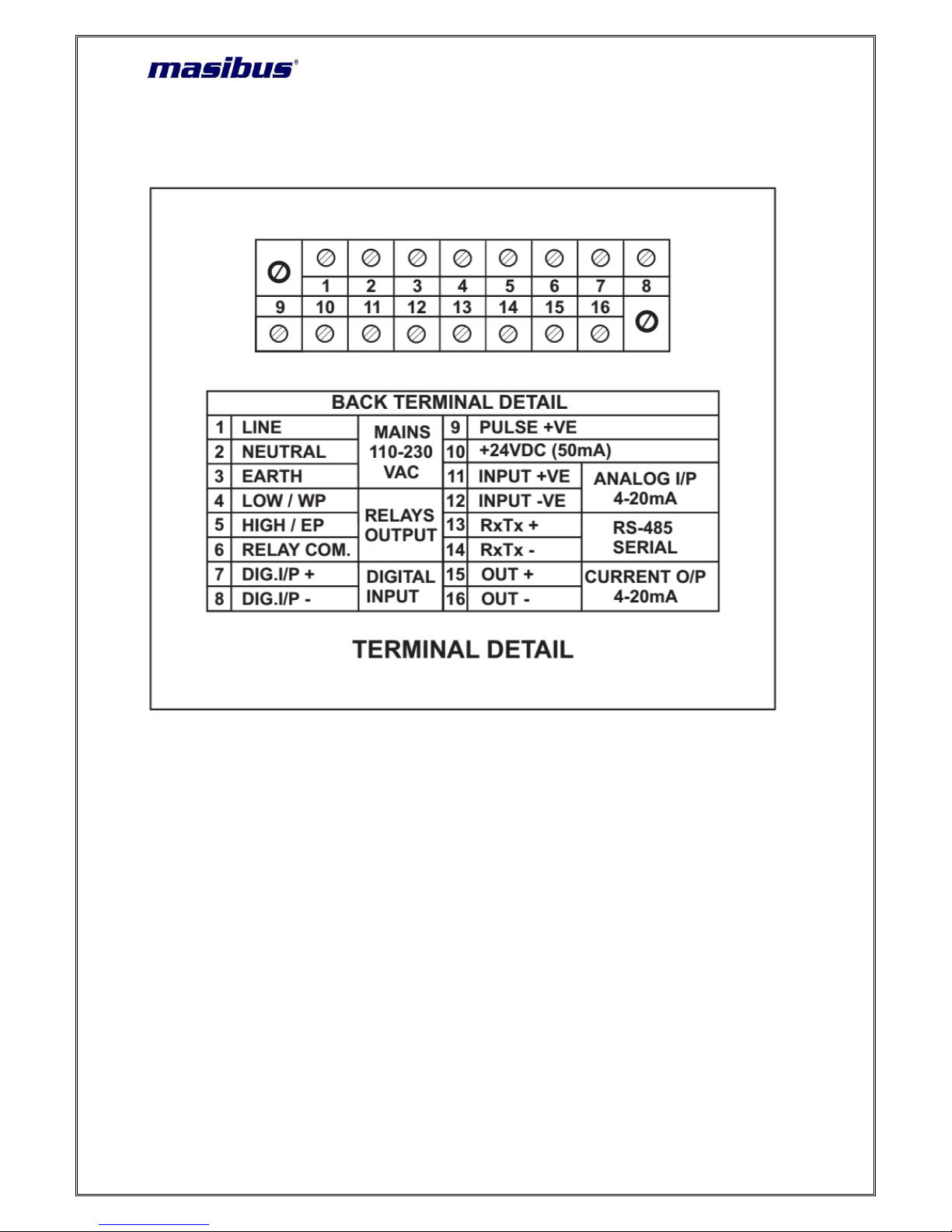

6. TERMINAL CONNECTION DETAILS ...............................................................13
7. WIRING DIAGRAM................................................................................................14
7.1 Wiring Diagram of 1006H.....................................................................................14
7.2 Wiring Diagram and Jumper Setting of Pulse Input..............................................15
7.2.1 NPN Proximity Input Jumper Setting...............................................................15
7.2.2 PNP Proximity Input Jumper Setting................................................................16
8. OPERATING DETAILS..........................................................................................18
8.1 Display Section:.....................................................................................................18
8.2 Keyboard Section...................................................................................................18
8.3 Run Mode...............................................................................................................18
8.3.1 Run Mode Parameters Details ..........................................................................19
8.4 Edit Mode...............................................................................................................20
8.4.1 Program mode...................................................................................................21
8.4.2 Configuration mode..........................................................................................22
8.4.3 Calibration mode...............................................................................................26
8.5 Parameter Flow........................................................................................................27

1
User Manual 3
Flow Indicator Totaliser 1006H
REF NO:m16Aom101
Issue No: 03
9. CALIBRATION PROCEDURE..............................................................................29
9.1 Input Calibration....................................................................................................29
9.2 Output Calibration .................................................................................................29
9.2.1 out zero and out span ........................................................................................29
10. COMMUNICATION GUIDELINES....................................................................30
10.1 Introduction..........................................................................................................30
10.2 Function Code for Modbus..................................................................................30
10.3 Modbus RTU protocol addresses for RS 485 Communication ...........................31
10.3.1 Addresses of 1006H........................................................................................31
11. MISCELLANEOUS ...............................................................................................33
12. Troubleshooting ......................................................................................................34

Flow Indicator Totaliser 1006H
REF NO: m16Aom101
Issue No: 03
User Manual 4
1. INTRODUCTION
Foreword
Thank you for purchasing FLOW INDICATOR TOTALISER 1006H. This manual
describes the basic functions and operation methods of 1006H. Please read
through this user‟s manual carefully before using the product.
Overview
This is a microcontroller based Indicator - Totaliser unit, with very high
performance to price ratio. It is highly versatile, accurate and different from the
conventional indicators.
The instrument is made in 96 x 48 x 110 mm size with DIN standard panel
cutout of 92 x 44 mm.
Front is sealed membrane type to withstand dusty environment. On back
plate screw type terminals are provided for easy connection.
The programming, calibration and operation of the instrument are by four
simple keys and Single displays group for flow rate and batch total.
Operation of the instrument is menu driven with user understandable
prompts. For protecting programmed data password protection facility is
provided. Integrated total, batch total and roll count are cleared by special
password.
The product is made to accept current (4-20 mA, 0-20mA), Voltage (1-
5Volt, 0-5 Volt) input, pulse input & Digital input. It is available as a single input
version only. The instrument is provided with the five-point calibration. The unit
can be calibrated in installed condition itself by front panel keys at predefined
points.
The set Parameters and integrated total are stored in serial EEPROM. No
battery backup is required.
Notice
The contents of this manual are subject to change without notice as a result of
continuing improvements to the instrument‟s performance and functions.
Every effort has been made to ensure accuracy in the preparation of this
manual. Should any errors or omissions come to your attention, however, please
inform MASIBUS Sales office or sales representative. Under no circumstances
may the contents of this manual, in part or in whole, be transcribed or copied
without our permission.

1
User Manual 5
Flow Indicator Totaliser 1006H
REF NO:m16Aom101
Issue No: 03
Trademarks
Our product names or brand names mentioned in this manual are the trademarks
or registered trademarks of Masibus Automation and Instrumentation (P) Ltd.
(herein after referred to as MASIBUS).
Adobe, Acrobat, and Postscript are either registered trademarks or
trademarks of Adobe Systems Incorporated. All other product names mentioned
in this user's manual are trademarks or registered trademarks of their respective
companies.
Checking the Contents of the Package
Unpack the box and check the contents before using the product. If the product is
different from that which you have ordered, if any parts or accessories are
missing, or if the product appears to be damaged, contact your sales
representative.
Product Ordering Code:
The FLOW INDICATOR TOTALISER 1006H unit has a nameplate affixed
to the one side of the enclosure. Check the model and suffix codes inscribed on
the nameplate to confirm that the product received is that which was ordered.
Model
Input Types
Digital
Input
Power Supply
Communic
ation
Relay
Retransmis
sion O/P
Mounting
1006H
X
X
XX
X
X
X
XX
C
4-20mA
N
None
A1
110-230V
AC
N
None
N
NONE
N
None
P0
Panel
D
0-20mA
Y
Yes
A3
24V DC
2
RS485
2
2 Relays
Y
Yes
W1
Wall-IP55
E
1-5V DC
FP
Wall-FLP
F
0-5V DC
N
0-10 KHz
S
SPECIAL*
X -Specify from table
*Consult Factory

Flow Indicator Totaliser 1006H
REF NO: m16Aom101
Issue No: 03
User Manual 6
2. SAFETY AND WARNING PRECAUTIONS
2.1 Safety Precautions
oBefore installation or beginning of any troubleshooting procedures power to all
equipments must be switched off and isolated. Units suspected of being faulty must be
disconnected and removed first and brought to a properly equipped workshop for testing
and repair. Component replacement and interval adjustments must be done by a Masibus
authorized or trained person only.
2.2 Warning Precautions
oIt is recommended that power of these units to be protected by fuses, circuit breakers or
external over current rated at the minimum value possible.
oAll wiring must confirm to appropriate standards of good practice and local codes and
regulations. Wiring must be suitable for voltage, current, and temperature rating of the
system.
oUnused control terminals should not be used as jumper points as they may be internally
connected, causing damage to the unit.
oVerify the ratings of the output devices and the inputs are as specified.
oProvide Power from a single-phase instrument power supply. If there is a lot of noise in
the power line, insert an insulating transformer into the primary side of the line and use a
line filter on the secondary side. As counter measures against noise, do not place the
primary and secondary power cables close to each other.
Note:
oInformation in this manual is subject to change without prior notice or permission
due to continuous improvement.
CAUTION:
High voltage transients may occur when switching inductive loads such as some
contactors or solenoid valves. Through the internal contacts, these transients
may introduce disturbances which could affect the performance of the instrument.
For this type of load it is highly recommended that a “snubber” is connected
across the normally open contact of the relay switching though load. The snubber
recommended consists of a series connected resistor/capacitor (typically
15nF/100 Ohms). A snubber will also prolong the life of the relay contacts. A
snubber should also be connected across the output of a trip output to prevent
false triggering under line transient conditions.

1
User Manual 7
Flow Indicator Totaliser 1006H
REF NO:m16Aom101
Issue No: 03
3. SPECIFICATIONS
3.1 Measured input signal
NUMBER OF INPUTS
1
INPUT TYPE
DC Input
Current Input
*Pulse
Input
Integrated/
Batch Total
0-5 V
1-5 V
0-20
mA
4-20
mA
MEASURING RANGE
0-30000 Range
0 - 999999
ACCURACY
± 0.25% of full scale ± 1 Count
**0.45 %
BURN OUT DETECTION
Available for 1 to 5VDC, 4 to 20 mA, 0 to 10 KHz.
INPUT RESISTANCE
250 Ohms Internal for current Input
320K Ohms for Voltage Input
ALLOWABE SIGNAL
SOURCE RESISTANCE
DC input voltage: 1KΩ or less. Effect from allowable signal
source Resistance: 0.031 % / 100Ω or less
ALLOWABLE INPUT
VOLTAGE
DC voltage: ±20V DC
NOISE REJECTION RATIO
Common Mode: > 100db
Normal mode: > 40db
RESPONSE TIME
Input to relay o/p: < 1 second.
Input to Analog o/p: < 1 second or less, 63 % ( 10 - 90%)
(Time required for o/p to reach 63% of the maximum
excursion when PV changes from 10% to 90%)
RESOLUTION
16 bit
POLARITY PROTECTION
Not provided
MEMORY BACKUP
EEPROM
Note:
Input type is factory set.
* Max. Pulse level<=24V , Min. pulse level >=10V
** ±(0.45% of Reading + 1 Digit)
3.2 Loop Power Supply Specification
LOOP POWER SUPPLY
24VDC ± 5% @ 50mA
3.3 Retransmission Output
NUMBER OF OUTPUT
POINTS
1
OUTPUT SIGNAL
4 to 20 mA DC
ON LOAD RESISTANCE
500Ω or less
OUTPUT ACCURACY
0.25% of full scale +1 count
RESOLUTION
12 bits (5A)

Flow Indicator Totaliser 1006H
REF NO: m16Aom101
Issue No: 03
User Manual 8
3.4 Contact Input (Digital input)
NUMBER OF INPUTS
1
USAGE
Input 1 : Start Batch /Stop Batch
INPUT TYPE
Non- voltage contact input or transistor open collector input
INPUT CONTACT
CAPACITY
24VDC,10mA or more (for non –voltage contact input)
ON/ OFF DETERMINATION
For non-voltage contact input
ON = contact resistance of 1KΩ or less,
OFF = contact resistance of 20KΩ or more
For transistor contact input
ON = 2V or less
OFF = leak current of 100µA or less
MINIMUM RETENTION
TIME FOR STATUS
DETECTION
About 1 Second
3.5 Contact Output
USAGE
Flow alarm / Batch relay
NUMBER OF RELAY CONTACT
OUTPUTS
2 (Flow alarm relays/ Batch relays)
RELAY CONTACT RATING
250VAC/5Amps
RELAY CONTACT TERMINAL
2(Common, NO)
3.6 Display Unit Specification
PROCESS VALUE DISPLAY/
INTEGRATED TOTAL DISPLAY
0.56” 6 digit 7- segment red LED display
PARAMETER DISPLAY
Same Process value display/ integrated total
display
3.7 Electrical Specification
POWER SUPPLY
90 to 260 VAC, 50 / 60Hz ; 24VDC(optional)
POWER
CONSUMPTION
<10Va
WITHSTANDING
VOLTAGE
Between primary terminal and secondary terminal :
1500VAC(For 1 min)
Between primary terminal and ground terminal : 500VDC(for
1 min)
Between ground terminal and Secondary terminal: 500V AC
(for 1 minute).
(Primary terminal: Power supply, relay output)
(Secondary terminal: Analog input/output signal terminals,
contact input terminal)

1
User Manual 9
Flow Indicator Totaliser 1006H
REF NO:m16Aom101
Issue No: 03
3.8 Isolation specification
ISOLATION RESISTANCE
Between power supply terminal and ground terminal: 500
VDC, 50MΩ
MEASURED INPUT
TERMINAL
Isolated from other input/output terminals. Not isolated from
24Vdc supply (Transmitter power supply) and internal circuit.
24V DC SUPPLY FOR
TRANSMITTER
Not isolated from the measured input terminal & internal
circuit, isolated from other input/output terminals.
RETRANSMISSION
OUTPUT TERMINAL
Isolated from other input/output terminals and internal circuit.
CONTACT INPUT
TERMINAL
Isolated from other input/output terminals and internal circuit.
RELAY CONTACT O/P
TERMINAL (DIGITAL INPUT)
Isolated from other input /output terminals and internal
circuit.
RS-485 COMMUNICATION
TERMINAL
Isolated from other input/output terminals and internal circuit.
POWER SUPPLY
TERMINAL
Isolated from other input / output terminals and internal
circuit.
GROUND TERMINAL
Isolated from other input/ output terminals and internal
circuit.
3.9 Environmental Specification
OPERATING TEMPERATURE
0 to 55C
STORAGE TEMPERATURE
0 to 70C
HUMIDITY
30 to 90% RH (non-condensing)
WARM UP TIME
>10 Minute
EFFECT OF AMBIENT
TEMPERATURE
For Voltage Input: 0.005% of FS/ C or less
For analog output: 0.010% of FS/ C or less
3.10 Alarm Specification
ALARM TYPES
Flow high limit, Flow low limit
BATCHING ALARM
Pre warn and set point
SETTING RANGES FOR
PROCESS VALUE
ALARMS
Flow (PV) Alarms:
Min = Zero of individual I/P type
Max = Span of individual I/P type
3.11 Display Specification
PV DISPLAY/
INTEGRATED TOTAL
6 digit red 7 segment display for flow rate/Integrated total
PARAMETER DISPLAY
Same 6 digit red 7 segment display flow rate/Integrated total
STATUS DISPLAY
Red LEDs (for alarm & Batch)

Flow Indicator Totaliser 1006H
REF NO: m16Aom101
Issue No: 03
User Manual 10
3.12 Communication
PROTOCOL
Modbus RTU serial
STANDARD
EIA RS-485
MAX. COMMUNICATION DISTANCE
1200 mtrs. (For 9600 bps RS 485)
COMMUNICATION METHOD
2 wire half duplex (RS 485)
DATA FRAME
N, 8, 1
COMMUNICATION RATE
9600, 19200 bps
MAX. CONNECTABLE
CONTROLLERS/ INDICATOR
32
ADDRESS RANGE
1 to 99
3.13 Other Specification
SQUARE ROOT EXTRACTION
Applicable
DIGITAL FILTER
Applicable
TIME BASE UNIT
Second, minute, hour, day
CONVERSION FACTOR
0.00 to 99.99
FIVE POINT LINEARIZATION
Applicable
LOW FLOW CUT OFF
Applicable
3.14 Physical Specification
MOUNTING TYPE
Panel
BEZEL SIZE (in mm)
48 (H) x 96(W) x 110 (D)

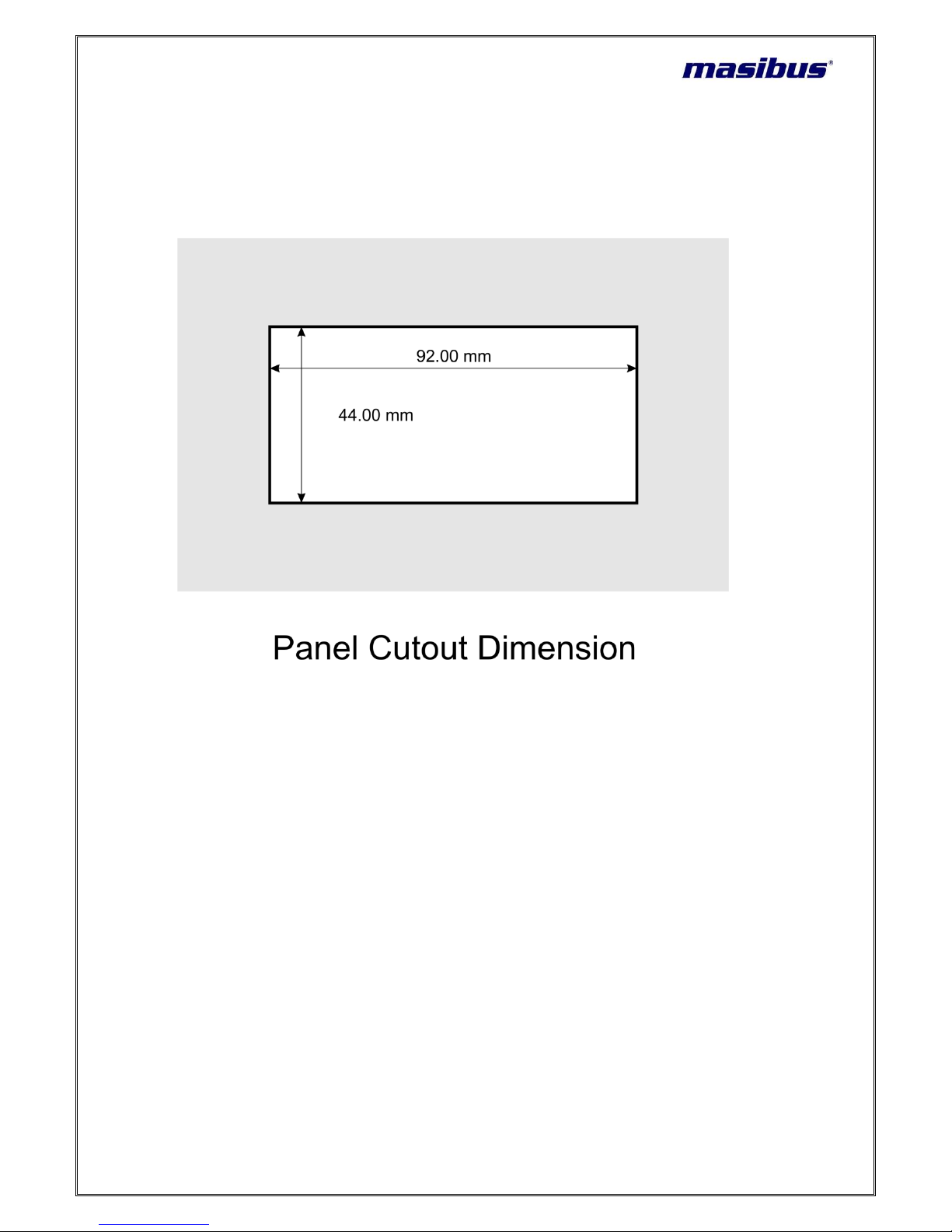

CUT OUT DIMENSION (in mm)
44 (H) x 92(W)
WEIGHT
300 gms
IP CLASS
IP20
ENCLOSURE TYPE
Polycarbonate Plastic
