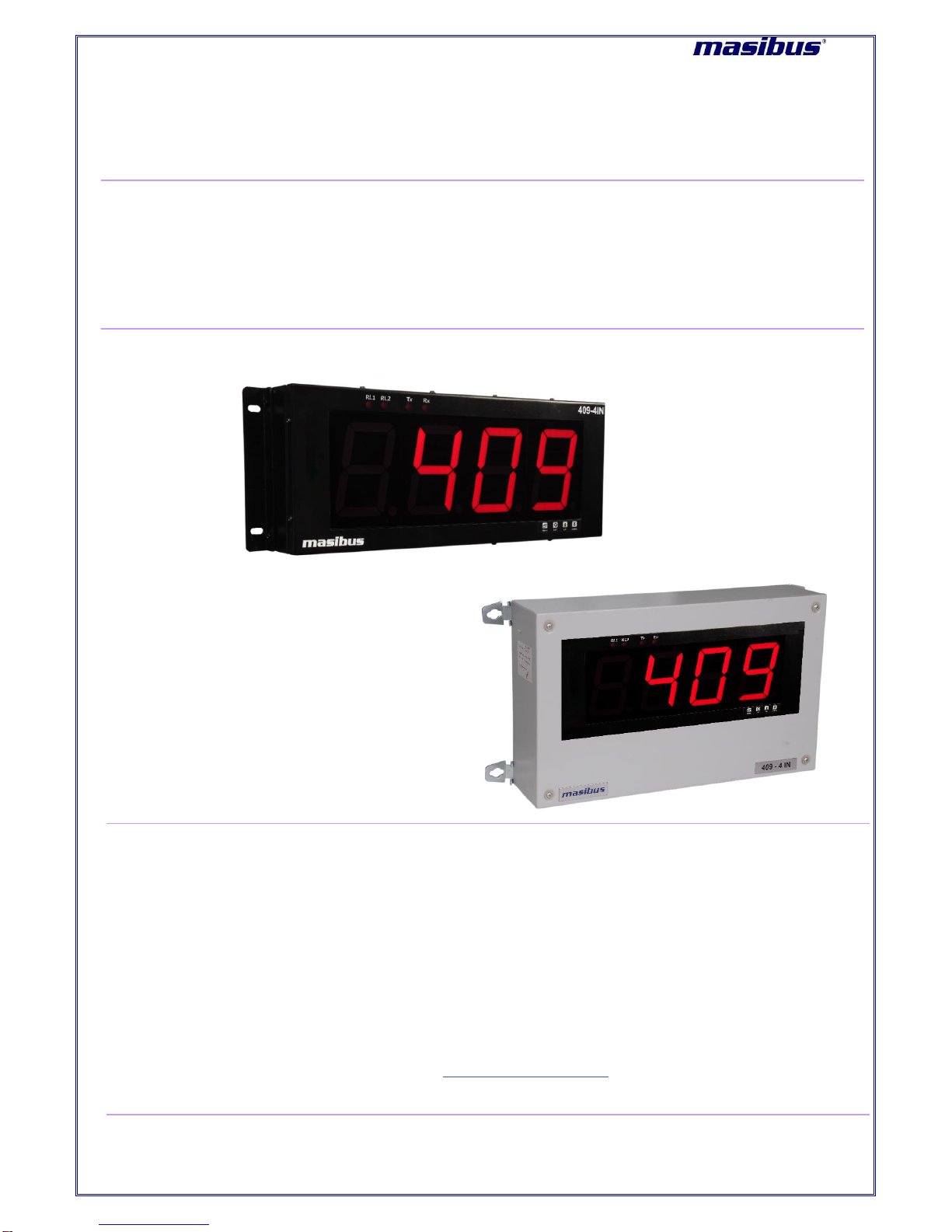

Masibus 409-4IN User manual

Temperature Indicator : 409-4IN
REF NO: m47/om/201
Issue NO: 04
Page 1 of 34
User’s Manual
409-4IN Temperature Indicator
Masibus Automation and Instrumentation Pvt. Ltd.
B/30, GIDC Electronics Estate,
Sector-25, Gandhinagar-382044, Gujarat, India
Phone : [phone].
Fax : [phone].
Email: [email protected]
Web: www.masibus.com

Temperature Indicator: 409-4IN
REF NO: m47/om/201
Issue NO: 04
Page 2 of 34
Contents
1. Introduction .................................................................................................................4
Product Overview/Description ........................................................................................................................................4
Model and Suffix code.....................................................................................................................................................4
Accessory.........................................................................................................................................................................5
2. Safety/Warning Precaution.........................................................................................5
3. Front Panel Description..............................................................................................5
Keyboard and Operation .................................................................................................................................................5
4. Terminal Arrangement Diagram.................................................................................7
5. Menu Layout ................................................................................................................9
Menu Layout ...................................................................................................................................................................9
RUN Time Indication/Function ......................................................................................................................................10
Set Point Setting............................................................................................................................................................10
Configuration Mode ......................................................................................................................................................10
Calibration Mode ..........................................................................................................................................................13
6. CONTROL FUNCTION...............................................................................................15
6.1 ON/OFF Control ....................................................................................................................................................15
6.2 Messages during OPEN SENSOR condition..............................................................................................................16
Retransmission output during OPEN sensor/Diode Open condition .............................................................................17
6.3 Relay Delay..............................................................................................................................................................18
6.4 Control Relay ...........................................................................................................................................................19
7. Calibration Procedure...............................................................................................23
Calibration for Input......................................................................................................................................................23
Calibration for Retransmission......................................................................................................................................24
8. Communication Parameter.......................................................................................25
Introduction...................................................................................................................................................................25
8.1.1 Parameter Address Details For Mtyp : A ............................................................................................................25
8.1.2 Parameter Address Details For Mtyp : b (405-4IN)...........................................................................................27
Exceptional Response....................................................................................................................................................28
9. Technical Specifications...........................................................................................28
Display:..........................................................................................................................................................................28
Input:28
Input Sampling period:..................................................................................................................................................29

Temperature Indicator : 409-4IN
REF NO: m47/om/201
Issue NO: 04
Page 3 of 34
Alarm:............................................................................................................................................................................29
Transmission output......................................................................................................................................................30
Supply voltage:..............................................................................................................................................................30
Power Consumption: .....................................................................................................................................................30
Insulation resistance: ....................................................................................................................................................30
Environment:.................................................................................................................................................................30
Case: 30
Mounting method: ........................................................................................................................................................31
Dimension: ....................................................................................................................................................................31
Panel Cutout:.................................................................................................................................................................31
Weight:..........................................................................................................................................................................31
Communication .............................................................................................................................................................31
Transmitter Output: ......................................................................................................................................................31
Isolation specification: ..................................................................................................................................................31
Special Feature:.............................................................................................................................................................32
10. Appendix....................................................................................................................33
Troubleshooting ............................................................................................................................................................33
Jumper Location for Retransmission Output .................................................................................................................33
Square Root Linearization .............................................................................................................................................34
Load connection ............................................................................................................................................................34

Temperature Indicator: 409-4IN
REF NO: m47/om/201
Issue NO: 04
Page 4 of 34
1. Introduction
Product Overview/Description
409-4IN is a powerful micro-controller based large display process indicator, designed
to accept multiple input types and two programmable set points with individual relays.
Model-409-4IN accepts 21 different types of inputs (all industry standard input) which
are field configurable, facilitates plant operator to use in any application. 409-4IN is
easy to operate and configuration is user friendly.
Model and Suffix code
Check the model and suffix codes to confirm that the product received is one which
was ordered.
MODEL
INPUT
COMMUNICATION
RELAY
RETRANSMISSION
O/P
MOUNTING
PROTECTION
409-4IN
1
E
N
NONE
N
None
N
None
P0
19” Rack (IP20)
2
J
Y
RS485
Y
2 Relays
C
4-20mA
W0
Wall (IP20)
3
K
D
0-20mA
W1
Wall (IP65)
4
T
E
1-5V
5
B
F
0-5V
6
R
G
0-10V
7
S
9
PT-100
C
4-20 mA
D
0-20mA
E
1-5V
F
0-5V
G
0-10V
H
0-2 V
I
0.4 –2V
R
±75mV
U
0-75mV
V
0-400Ω
W
0-6000Ω
M
Serial
RS 485
S
Special
Table 1.

Temperature Indicator : 409-4IN
REF NO: m47/om/201
Issue NO: 04
Page 5 of 34
Accessory
The product is provided with the following accessory. (See the table2below).
Table 2.
2. Safety/Warning Precaution
The product and the instruction manual describe important information to prevent
possible harm to users and damage to the property and to use the product safely.
Understand the following description (signs and symbols), read the text and
Observe Descriptions.
DESCRIPTION OF SIGNS
3. Front Panel Description
Keyboard and Operation
There are four keys for operation of the instruments. For understanding the operation
first of all understand the functionality of keys as shown in Fig.1.
Fig 1. Front Panel for Wall Mount
No
Item name
Part number
Qty
Remarks
1
Mounting Clamps
-
1

Temperature Indicator: 409-4IN
REF NO: m47/om/201
Issue NO: 04
Page 6 of 34
Fig 2. Front Panel for Panel Mount
Name of Part
Symbol
Function
UP key
Increment the Value of any Parameter
User presses during RUN mode to invoke segment testing mode*.
DOWN key
Decrement the Value of any Parameter.
Shows ambient value for T/C Input in RUN mode.
MENU key
Shows different SET Points, if pressed in RUN mode.
In Sub Menu it can be used to get to the next Parameter.
ENTER key
Use as an acknowledgement for Alarm Status.
It is also used to save the parameters to nonvolatile memory, when user
setting a proper data by Increment and decrement key for parameter
configuration.
PV
(Present
Value)
Display
PV
4 digital 4 inch RED Display
Display process value.
Display parameter name when user set parameter.
Display Parameter Value when in Edit mode.
Display error message when an error occurs.
Relay-1
Indication
RL1
ON when Relay-1 is energized & OFF otherwise.
Relay-2
Indication
RL2
ON when Relay-2 is energized & OFF otherwise.
TX Indication
Tx
ON when device is transmitting some Data (RS-485).
RX Indication
Rx
ON when device is receiving some Data (RS-485).
*All digits segments display one after another. example. 1111, 2222, 3333 to 9.9.9.9.
After that unit will be in run mode.

Temperature Indicator : 409-4IN
REF NO: m47/om/201
Issue NO: 04
Page 7 of 34
4. Terminal Arrangement Diagram
Fig 3. Terminal Arrangement for Panel Mount
Fig 4. Terminal Arrangement for Wall mount
4.1 Terminal Description
Terminal
Description
SYMBOL
L/+
Mains Supply
90-270VAC
N/-
E
NC1 Normally close-1
Relay 1
NO1 Normally open-1
C1 Common-1
NC2 Normally close-2
Relay 2
NO2 Normally open-2
C2 Common-2
24V LPS+
Transmitted power
supply
TC- / V- / mV-/LPS-
For Thermocouple,
RTD ,Linear, and mV
Input
TC+/ V+/mV+

Temperature Indicator: 409-4IN
REF NO: m47/om/201
Issue NO: 04
Page 8 of 34
Table 3.
RTD common
For RTD Input Only
(Three wire
Compensation).
D+
Rs-485
Communication
(Serial Input)
D-
Rx+
Retransmission Output
Rx-

Temperature Indicator : 409-4IN
REF NO: m47/om/201
Issue NO: 04
Page 9 of 34

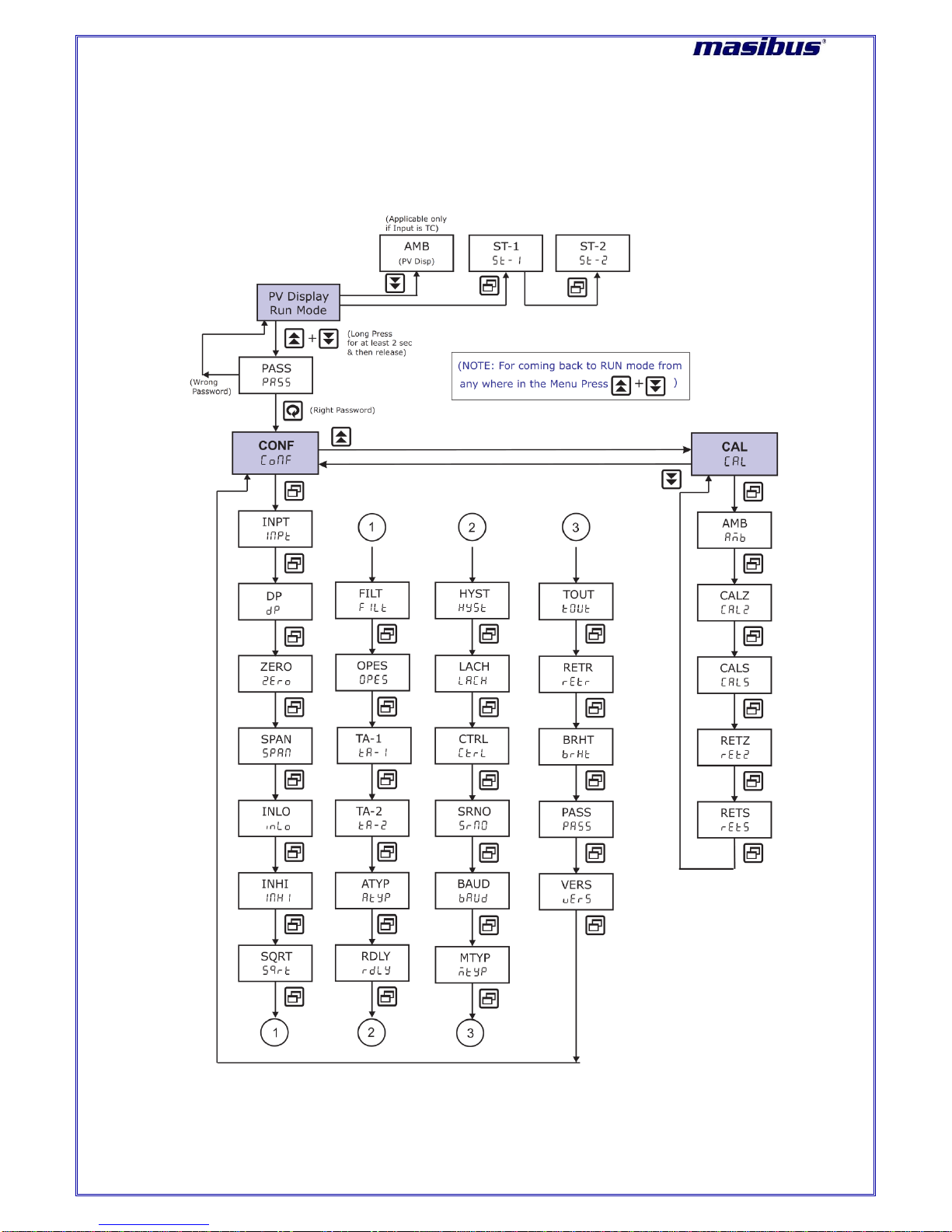

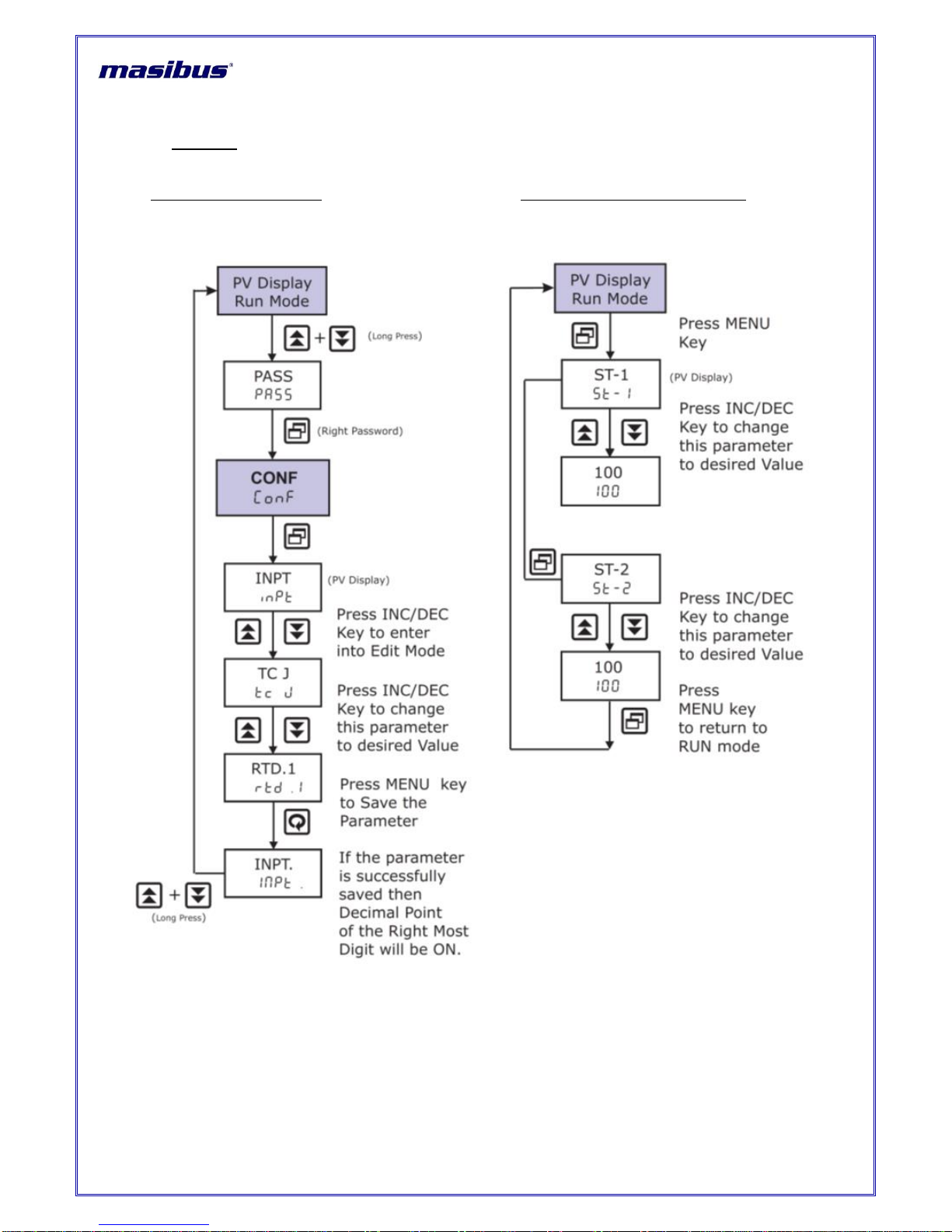

5. Menu Layout
Menu Layout

Temperature Indicator: 409-4IN
REF NO: m47/om/201
Issue NO: 04
Page 10 of 34
RUN Time Indication/Function
Following parameters can view or change during run time.
For Thermocouple input type, Press Decrement key to show ambient temperature.
For Alarm Acknowledgment, Press Enter Key.
Set Point Setting
Configuration Mode
Parameter
(PV display)
Set ting nam e and
descr iptio n
Def au lt
val ue
Sho ws only if
Symbol
Name
ST-1
(st-1)
Set Point 1
Range Depending on PV sensor type
selected
10 0
-
ST-2
(st-2)
Set Point 2
Range Depending on PV sensor type
selected
100
-
CONFI GU RATION PAR AM ETER S
Par ameter
(PV displa y)
Setting Name & Description
Default
Value
Show if Only
Symbol
Name
INPT
(inpt)
INPUT Type
Set PV Input Type
tC e/tC j /tC K /tC t /tC b /tC r /tC
s /rtd.1 /0-.4K/0-6K /1-10/0-10/0-5v /1-
5v / 0-2V/.4-2/1020/1-75/0-
75/serl/4-20/0-20
/
Value
Input Type
Range
0
TC E
-200 to 1000 °C
1
TC J
-200 to 1200 °C
2
TC K
-200 to 1372 °C
3
TC T
-200 to 400 °C
4
TC B
450 to 1800 °C
5
TC R
0 to 1768 °C
6
TC S
0 to 1768 °C
7
RTD.1
-199.9 to 850.0 °C
8
0-.4K
-1999 to 9999
9
0-6K
10
+10V
11
0-10 V0
12
0-5 V
13
1-5 V
1 - 5V
