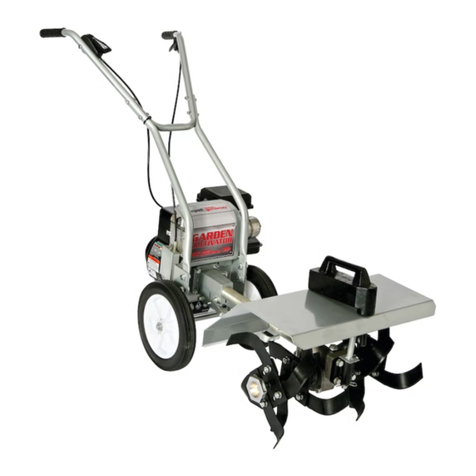

Masport MK II 4 WAY User manual

Issue A June 2009 REF # 750905
OUTDOOR POWER EQUIPMENT
Month and Year of First Manufacture -
Issue A
June 2009
REF # 750905
HOME GARDENER 4 WAY OPC
Part number Model Engine
MASPORT 550905 MK II 4 WAY B & S Series 475

Page2
WhenorderingPLEASEQUOTEPARTNUMBER&Description,NOTIllustrationNo.
Determine right or left hand side from standing in operating position (standing at handle)
HOME GARDENER
MK II 4 WAY
1
2
3
6
4
5
7
8
9
10
11
12
5
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
26a
27
28
29
30
31
32
33
19
34
35
36
37
37
39
40
41
42
43
44
45
46
38

Page3
WhenorderingPLEASEQUOTEPARTNUMBER&Description,NOTIllustrationNo.
Determine right or left hand side from standing in operating position (standing at handle)
HOME GARDENER
MK II 4 WAY
1 550156 Handle-Upper,SilverHG 1
2 550368 Handle Grip, Plastic 2
3 583458 Control-ThrottleAssyWescon 1
4 503604 Screw,PanM6x45 1
5 501764 Nut, M6 Nylocx 6 Thck 5
6 555796 Lever&Cable Assy- Safety 1
7 503604 Screw,PanM6x45 1
8 501764 Nut, M6 Nyloc 6 Thck 1
9 550158 Handle-Lower,RHSilverHG 1
10 550157 Handle-Lower,LHSilverHG 1
11 501815 Screw, Set M6x35 4
12 501703 Washer, Flt 6x14x1.2 4
13 501760 Screw, Set M10x20 4
14 501704 Washer, Flt 10x19x1.6 9
15 501680 Nut, M10 Nyloc 10 Thck 4
16 950382 Chassis Assy, HG 1
17 550010 Wheel & Tyre Assy, HG 2
18 501743 Washer, Flt 14x28x1.8 4
19 530281 Clip-Hairpin,LargeHG 3
20 550367 Spacer- Wheel, Axle 2
__==__
21 550164 Coupling-EngineHG 1
22 503386 Screw,GrubM8x8 1
23 536012 Key- Engine 3/16"SQ x 38 1
24 950376 Housing,DriveCast HG 1
25 550018 LockingClamp- Bolt 1
26 501345 Screw, Set NF 5/16x1.25 Hex 4
26a 501597 Screw, Set M8x20 4
27 503747 Washer, Spg 8 8
28 501744 Washer, Flt 8x17x1.6 8
29 550357 DriveShaft 1
30 550312 OuterTubeAssy-Drive 1
31 550333 Gear Head Assy & Drivers incl 1
500012 Key-Woodruff3/16"x3/4" 2
32 555790 Tine Shield Assy 1
33 550106 Weight- Stabiliser, Cast 1
34 550327 StandAssy-SupportHG incl 1
550319 Spring-Stand 1
__==__
35 550013 TBolt,14-1/2"(370mm) 1
36 550016 Nut-Hand,T Bolt 1
37 950015 Spacer-Tine 2
Item Part Description Qty
No No Item Part Description Qty
No No
38 550062 TineAssy 4
incl items 39 - 45
39 550040 Tine-Curved,RHHG 8
40 550041 Tine-Curved,LHHG 8
41 950009 Plate-Tine 4
42 501597 Screw, Set M8x20 Hex 16
43 501744 Washer, Flt 8x17x1.6 16
44 503747 Washer, Spg 8 16
45 501602 Nut, M8 Hex 16
__==__
46 555797 Switch Box Assy, HG incl 1
555807 Switch-Micro 1
NOTILLUSTRATED
555064 OwnerManual 1
503488 Clamp-Cable,Throttle 1
503489 Screw, Set M5x16 1
550012 Rod Assy 7 - 1/2" (190 mm) 1
550046 Rod Assy 11 - 1/4" (280 mm) 1
550076 DriveAssy,Edger 1
550077 Disk-Edger, HG 1
550078 CultivatingTool 1
550136 RotaryBrush 1
Consumables
503335 Oil, Gear Head 250 ml HG 1
Gear Head Components
502067 Circlip,20EXTDIN471
503416 Plug-1/4"BSPTHexPressureHT
950005 Washer-Thrust
950003 GearShaftWormwheel
950031 Wormwheel-28T
950329 Worm, 20mm Brg
550095 Washer- Shim 0.127 mm
550096 Washer- Shim 0.254 mm
550049 Gasket-Tine Shaft
950331 GearCase-Bushed
950335 Plate-Cover,Front
950007 Cover-Plate,BallRace
550336 Gasket-BearingCoverPlate
550378 Seal, Oil 25x40x10
550379 Seal, Oil 19x35x10

Page4
WhenorderingPLEASEQUOTEPARTNUMBER&Description,NOTIllustrationNo.
Determine right or left hand side from standing in operating position (standing at handle)
HOME GARDENER
MK II 4 WAY
Home Gardener
Edger
Home Gardener
Brush
Home Gardener
Cultivating Tool
