CONSTRUCTION
• Painted textured galvanized steel
cabinet
• 2" foamed-in-place “zero ODP”
urethane insulation
• A large heavy duty rub rail and kick
plate to protect from abuse
• Five white cantilever epoxy-coated
welded wire shelves with price tag
molding per door
• Shelves rated to support 110 lbs. each
• Product stop feature to prevent
product from falling behind shelves
• Ends must be ordered separately
• Standard LED lighting
• Pre-piped drain in bottom of each
section for cleaning purposes (with
removable plug)
DOORS
• Choice of 24" or 30" wide glass doors
• Self-closing door hinge with
adjustable torsion control
• Standard black door and frame
(optional colors available)
REFRIGERATION
• All models designed for remote
refrigeration systems
• Refrigerant: R-404A
• Factory tested refrigeration system
• Heavy-duty copper tube evaporator
coil
• Choice of electric or hot gas defrost
• Pre-mounted expansion valve
• Minimum 4" clearance required
between cabinet back and wall with
a 4" open space at top and one or
both ends
• Temperature ranges:
–TEM models: 34° to 41°F (1°to 5°C)
–TEL models: 0° to -15°F (18° to -26°C)
• R-factor (insulation efciency
rating): 18.75
WARRANTY
• 2 year limited parts and 90 day labor
FEATURES
TEL-4-30
(shown with
ends installed)
TEM/TEL SERIES
Endless Remote Glass Door
Merchandisers With
Top Mounted Coil
OPTIONS
❑ Right or left hand end kits
❑ Custom colors
❑ Additional horizontal lighting
❑ Partitions
❑ Kickplate
❑
Additional 30" cantilever shelves
❑ Baskets
MEDIUM TEMP MODELS
(24" WIDE DOORS)
❑ TEM-3-24 ❑ TEM-5-24
❑ TEM-4-24 ❑ TEM-6-24
MEDIUM TEMP MODELS
(30" WIDE DOORS)
❑ TEM-2-30 ❑ TEM-4-30
❑ TEM-3-30 ❑ TEM-5-30
LOW TEMP MODELS
(24" WIDE DOORS)
❑ TEL-3-24 ❑ TEL-5-24
❑ TEL-4-24 ❑ TEL-6-24
LOW TEMP MODELS
(30" WIDE DOORS)
❑ TEL-2-30 ❑ TEL-4-30
❑ TEL-3-30 ❑ TEL-5-30
Standard
white
Black also
available
STANDARD TEXTURED FINISH
When ordering multi-cabinet
line-ups, please note:
• Pre-wired cabinet-to-cabinet electri-
cal terminal block connectors are
standard
• A 2" thick partition is required
between each endless module if:
– Each utilizes its own condensing
unit or
– One module is a freezer and one
is a cooler
• Joining kits for linking together
modules are standard
• Please allow an additional 1"
clearance for case and assembly
dimensional tolerance stack-up

TEM/TEL SERIES
ENDLESS REMOTE GLASS DOOR MERCHANDISERS
WITH TOP MOUNTED COIL
2
TECHNICAL SPECIFICATIONS
MODEL
120 VOLT, 1 PHASE
230 VOLT, 1 PHASE
LED
LIGHTS HEATERS
FANS FANS DEFROST
MEDIUM TEMP 24" WIDE DOORS
TEM-3-24 0.85 2.74 1.0 N/A N/A
TEM-4-24 1.13 3.57 1.0 N/A N/A
TEM-5-24 1.42 4.48 1.5 N/A N/A
TEM-6-24 1.7 5.23 1.5 N/A N/A
MEDIUM TEMP 30" WIDE DOORS
TEM-2-30 0.57 2.09 1.0 N/A N/A
TEM-3-30 0.85 3.04 1.0 N/A N/A
TEM-4-30 1.13 3.89 1.5 N/A N/A
TEM-5-30 1.42 4.91 1.5 N/A N/A
LOW TEMP 24" WIDE DOORS
TEL-3-24 0.85 5.47 N/A 0.4 5.52
TEL-4-24 1.13 7.22 N/A 0.4 7.16
TEL-5-24 1.42 8.85 N/A 0.6 10.11
TEL-6-24 1.7 10.46 N/A 0.6 13.32
LOW TEMP 30" WIDE DOORS
TEL-2-30 0.57 4.41 N/A 0.4 5.52
TEL-3-30 0.85 6.45 N/A 0.4 7.16
TEL-4-30 1.13 8.53 N/A 0.6 10.11
TEL-5-30 1.42 10.47 N/A 0.6 13.32
ELECTRICAL SHIPPING WEIGHTS
MODEL
DIMENSIONS (in.) DIMENSIONS (mm) NO. OF
DOORS
NO. OF
SHELVES
SHELVING
AREA
SQ. FT.
USABLE
CU. FT.
PRODUCT
FACING
SQ. FT.
NO. OF
INTERIOR
LIGHTSL* D H** L* D H**
24" WIDE DOOR MODELS
TEM/TEL-3-24 725/16 381/4 833/41837 972 2127 3 15 57.7 67.5 31.8 4
TEM/TEL-4-24 961/16 381/4 833/42440 972 2127 4 20 76.7 89.7 42.2 5
TEM/TEL-5-24 11913/16 381/4 833/43043 972 2127 5 25 95.7 111.8 52.6 6
TEM/TEL-6-24 1439/16 381/4 833/43646 972 2127 6 30 114.7 134.0 63.1 7
30" WIDE DOOR MODELS
TEM/TEL-2-30 6115/16 381/4 833/41573 972 2127 2 10 49.5 57.8 27.2 3
TEM/TEL-3-30 923/8 381/4 833/42346 972 2127 3 15 73.8 86.2 40.6 4
TEM/TEL-4-30 12213/16 381/4 833/43119 972 2127 4 20 98.1 114.6 53.9 5
TEM/TEL-5-30 1531/4 381/4 833/43893 972 2127 5 25 122.4 143.0 67.3 6
*Add 2" (51mm) to length for each end or insulated partition. Also allow an additional 1" clearance for case and assembly dimensional
tolerance stack-up. **Height includes junction box.
NOTE: All models furnished with R-404A expansion valve unless otherwise specied.
MODEL
SHIP WT.
LB/KG
MEDIUM TEMP 24" WIDE DOORS
TEM-3-24 1325/602
TEM-4-24 1520/691
TEM-5-24 1720/782
TEM-6-24 2140/973
MEDIUM TEMP 30" WIDE DOORS
TEM-2-30 755/343
TEM-3-30 1435/652
TEM-4-30 1670/759
TEM-5-30 2000/909
LOW TEMP 24" WIDE DOORS
TEL-3-24 1245/566
TEL-4-24 1300/591
TEL-5-24 1720/782
TEL-6-24 2140/973
LOW TEMP 30" WIDE DOORS
TEL-2-30 1085/493
TEL-3-30 1325/602
TEL-4-30 1915/870
TEL-5-30 1955/889
LISTINGS
HOOKUP
Hardwire, remote refrigeration.

3
MODULES REQUIRED FOR 30" WIDE DOOR LINEUPS & BTU PERFORMANCE DATA
NO. OF
DOORS
MODULES REQUIRED
TOTAL OVERALL
LENGTH
WITH ONE PAIR
OF 2" ENDS
+20°F SUCTION MIN.
BTUs (75°F STORE,
55% RH, +35°F AVER-
AGE PRODUCT TEMP.)
-11°F SUCTION MIN.
BTUs (75°F STORE,
55% RH, -3°F AVER-
AGE PRODUCT TEMP.)
-18°F SUCTION MIN.
BTUs (75°F STORE,
55% RH, -12°F AVER-
AGE PRODUCT TEMP.)
2
DOOR
3
DOOR
4
DOOR
5
DOOR
2 1 6515/16 2800 3300 3550
3 1 963/8 3750 4750 5125
4 1 12613/16 4600 6150 6550
5 1 1571/4 5750 7625 8300
6 2 1883/4 6900 9150 9960
7 1 1 2193/16 8050 10,675 11,620
8 1 1 2495/8 9200 12,200 13,280
9 1 1 2801/16 10,350 13,725 14,940
10 2 3101/2 11,500 15,250 16,600
11 2 1 342 12,650 16,775 18,260
12 1 2 3727/16 13,800 18,300 19,920
13 1 2 4027/8 14,950 19,825 21,580
14 1 2 4335/16 16,100 21,350 23,240
15 3 4633/4 17,250 22,875 24,900
16 2 2 4951/4 18,400 24,400 26,560
17 1 3 52511/16 19,550 25,925 28,220
18 1 3 5561/8 20,700 27,450 29,880
19 1 3 5869/16 21,850 28,975 31,540
20 4 617 23,000 30,500 33,200
21 2 3 6481/2 24,150 32,025 34,860
22 1 4 67815/16 25,300 33,550 36,520
23 1 4 7093/8 26,450 35,075 38,180
24 1 4 73913/16 27,600 36,600 39,840
25 5 7701/4 28,750 38,125 41,500
MODULES REQUIRED FOR 24" WIDE DOOR LINEUPS & BTU PERFORMANCE DATA
NO. OF
DOORS
MODULES REQUIRED
TOTAL OVERALL
LENGTH
WITH ONE PAIR
OF 2" ENDS
+20°F SUCTION MIN.
BTUs (75°F STORE,
55% RH, +35°F AVER-
AGE PRODUCT TEMP.)
-11°F SUCTION MIN.
BTUs (75°F STORE,
55% RH, -3°F AVER-
AGE PRODUCT TEMP.)
-18°F SUCTION MIN.
BTUs (75°F STORE,
55% RH, -12°F AVER-
AGE PRODUCT TEMP.)
3
DOOR
4
DOOR
5
DOOR
6
DOOR
3 1 765/16 3750 4750 5125
4 1 1001/16 4600 6150 6550
5 1 12313/16 5750 7625 8300
6 1 1479/16 6900 9150 9960
7 1 1 1723/8 8050 10,675 11,620
8 2 1961/8 9200 12,200 13,280
9 1 1 2197/8 10,350 13,725 14,940
10 2 2435/8 11,500 15,250 16,600
11 1 1 2673/8 12,650 16,775 18,260
12 2 2911/8 13,800 18,300 19,920
13 2 1 31515/16 14,950 19,825 21,580
14 2 1 33911/16 16,100 21,350 23,240
15 3 3637/16 17,250 22,875 24,900
16 4 3881/4 18,400 24,400 26,560
17 1 2 41015/16 19,550 25,925 28,220
18 3 43411/16 20,700 27,450 29,880
19 1 3 4591/2 21,850 28,975 31,540
20 4 4831/4 23,000 30,500 33,200
21 1 3 507 24,150 32,025 34,860
22 1 3 5303/4 25,300 33,550 36,520
23 1 3 5541/2 26,450 35,075 38,180
24 4 5781/4 27,600 36,600 39,840
25 5 6031/16 28,750 38,125 41,500

4

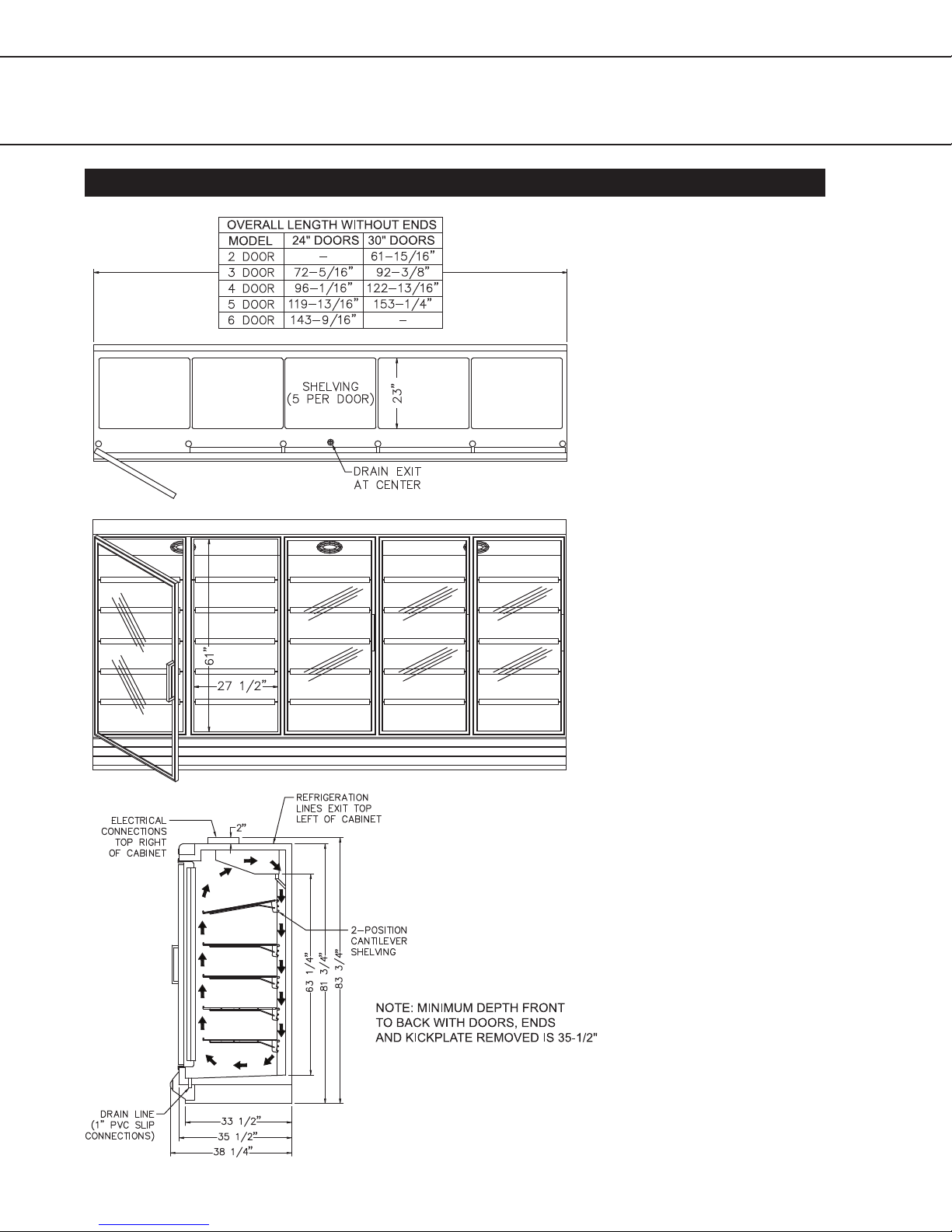

TECHNICAL DRAWINGS
SIDE VIEW
ELEVATION VIEW
PLAN VIEW

5
TEM/TEL SERIES
ENDLESS REMOTE GLASS DOOR MERCHANDISERS
WITH TOP MOUNTED COIL
REQUIRED CONDENSING UNITS
Use this chart to determine the correct condensing unit for your endless lineup.
Unless already indicated, add sufx "B" for one phase or "C" for three phase model.
NO. OF
DOORS
+35°F AVERAGE PRODUCT TEMP.
+20°F SUCTION
75°F AIR CONDITIONED STORE
55% RELATIVE HUMIDITY
-3°F AVERAGE PRODUCT TEMP.
-11°F SUCTION
75°F AIR CONDITIONED STORE
55% RELATIVE HUMIDITY
-12°F AVERAGE PRODUCT TEMP.
-18°F SUCTION
75°F AIR CONDITIONED STORE
55% RELATIVE HUMIDITY
COND. UNIT REQUIRED FOR AIR TEMP.
ENTERING CONDENSER*
COND. UNIT REQUIRED FOR AIR TEMP.
ENTERING CONDENSER*
COND. UNIT REQUIRED FOR AIR TEMP.
ENTERING CONDENSER*
90°F 100°F 110°F 90°F 100°F 110°F 90°F 100°F 110°F
2 MHHZ0071B MHHZ0071B MHHZ0071B MHLZ0071 MHLZ0071 MHLZ0071 MHLZ0091 MHLZ0091 MHLZ0091
3 MHHZ0071B MHHZ0071B MHHZ0071B MHLZ0071 MHLZ0091 MHLZ0091 MHLZ0091 MHLZ0121 MHLZ0121
4 MHHZ0071B MHHX0081B MHHX0081B MHLZ0091 MHLZ0091 MHLZ0121 MHLZ0121 MHLZ0121 MHLZ0121
5 MHHZ0081B MHHZ0081B MHHZ0111 MHLZ0091 MHLZ0121 MHLZ0121 MHLZ0121 MSLZ0151 MSLZ0181
6 MHHZ0111 MHHZ0111 MHHZ0111 MHLZ0121 MHLZ0121 MSLZ0151 MSLZ0151 MSLZ0181 MSLZ0221
7 MHHZ0111 MHHZ0111 MHHZ0171 MHLZ0121 MSLZ0151 MSLZ0181 MSLZ0181 MSLZ0221 MSLZ0221
8 MHHZ0171 MHHZ0171 MHHZ0171 MSLZ0151 MSLZ0181 MSLZ0181 MSLZ0221 MSLZ0221 MSLZ0221
9 MHHZ0171 MHHZ0171 MHHZ0191 MSLZ0181 MSLZ0181 MSLZ0221 MSLZ0221 MSLZ0221 BSLZ0750
10 MHHZ0171 MHHZ0191 MHHZ0191 MSLZ0181 MSLZ0221 MSLZ0221 MSLZ0221 BSLZ0750 BSLZ0750
11 MHHZ0191 MHHZ0191 MHHZ0221 MSLZ0221 MSLZ0221 MSLZ0221 BSLZ0750 BSLZ0750 BSLZ0750
12 MHHZ0191 MHHZ0221 MHHZ0221 MSLZ0221 MSLZ0221 BSLZ0750 BSLZ0750 BSLZ0750 BSLZ1000
13 MHHZ0191 MHHZ0221 MHHZ0251 MSLZ0221 BSLZ0750 BSLZ0750 BSLZ0750 BSLZ1000 BCLZ0750
14 MHHZ0221 MHHZ0251 MHHZ0251 BSLZ0750 BSLZ0750 BSLZ0750 BSLZ1000 BSLZ1000 BSLZ1500
15 MHHZ0251 MHHZ0251 MHHZ0301 BSLZ0750 BSLZ0750 BSLZ1000 BSLZ1000 BSLZ1000 BSLZ1500
16 MHHZ0251 MHHZ0251 MHHZ0301 BSLZ0750 BSLZ1000 BSLZ1000 BSLZ1000 BSLZ1500 BSLZ1500
17 MHHZ0251 MHHZ0301 MHHZ0331 BSLZ0750 BSLZ1000 BSLZ1000 BSLZ1500 BSLZ1500 BSLZ1500
18 MHHZ0301 MHHZ0301 MHHZ0331 BSLZ1000 BSLZ1000 BSLZ1500 BSLZ1500 BSLZ1500 BSLZ1500
19 MHHZ0301 MHHZ0331 MHHZ0331 BSLZ1000 BSLZ1000 BSLZ1500 BSLZ1500 BSLZ1500 BSLZ1500
20 MHHZ0301 MHHZ0331 MHHZ0431 BSLZ1000 BSLZ1500 BSLZ1500 BSLZ1500 BSLZ1500 BCLZ1500
21 MHHZ0331 MHHZ0331 MHHZ0431 BSLZ1000 BSLZ1500 BSLZ1500 BSLZ1500 BSLZ1500 BCLZ1500
22 MHHZ0331 MHHZ0431 MHHZ0431 BSLZ1500 BSLZ1500 BSLZ1500 BSLZ1500 BCLZ1500 BCLZ1500
23 MHHZ0331 MHHZ0431 MHHZ0431 BSLZ1500 BSLZ1500 BSLZ1500 BSLZ1500 BCLZ1500 BCLZ1500
24 MHHZ0431 MHHZ0431 MHHZ0431 BSLZ1500 BSLZ1500 BSLZ1500 BCLZ1500 BCLZ1500 BCLZ1500
25 MHHZ0431 MHHX0441 MHHZ0501 BSLZ1500 BSLZ1500 BSLZ1500 BCLZ1500 BCLZ1500 BCLZ1500
*Condensing unit and line size based on 100' line run.
See the Master-Bilt Condensing Unit & Refrigeration Systems I/O Manual for other conditions.
For other than high capacity condensing units, consult factory.

NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specications subject to change without notice.
1260-3/12-web
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com
BID SPECIFICATIONS
Item no. TEM-_______ and/or
TEL-_______.
Provide__________( ) End-
less Remote Glass Door Merchan-
disers - Top Mounted model no.
TEM-_______ and/or TEL-_______.
Merchandiser to be constructed
of painted textured galvanized
steel with 2" foamed-in-place
“zero ODP” urethane insulation.
Merchandiser may be used as a
stand-alone unit or combined in
a modular endless design.
LED lighting will be standard
on all models.
Merchandiser will contain ve
white cantilever epoxy-coated
welded wire shelves with price
tag molding per door. In addi-
tion, a product stop feature will
prevent product from falling be-
hind shelves.
Other standard features to in-
clude:
• Heavy-duty rub rail and kick
plate
• Pre-wired cabinet-to-cabinet
electrical terminal block con-
nectors
• Standard joining kits when
linking together multi-door
modules
• Pre-piped drain in bottom of
each section with removable
plug for cleaning
Glass doors will be supplied
with self-closing door hinge and
provision for easy adjustment of
torsion and leveling. Merchan-
diser supplied with either 24" or 30"
wide glass doors. Door and frame
provided in standard black nish
with optional colors available.
The refrigeration system will be
remote and will contain a full-
length heavy-duty copper tube
evaporator coil and pre-mounted
expansion valve. There will also
be a choice of electric or hot gas
defrost. All models will use R-404A
refrigerant.
Temperature ranges will be:
• TEM models: 34° to 41°F
(1°to 5°C)
• TEL models: 0° to -15°F
(18° to -26°C)
Merchandiser to be provided with
two year limited parts and 90 day
labor warranty.
