MasterCraft 054-3166-0 User manual

MULTI-CHARGER
FOR 12 TO 18V NI-CD OR LI-ION BATTERIES
054-3169-4
Owner’s Manual
PRODUCT SPECIFICATIONS
Input:
120 V, 60 Hz
Output:
18V DC, 2A for Ni-Cd batteries
20V DC, 2A for Li-ion batteries
Optimum charging
temperature:
0 to 45°C (32 to 113°F)
Battery types:
Mastercraft®12V Ni-Cd (054-3166-0)
Mastercraft®18V Ni-Cd (054-3168-6)
Charging times:
1-hour
Weight:
1 lb 1 oz (0.48 kg)
Need Assistance?
Call us on our toll free customer support line:
1-800-689-9928
Technical questions
Replacement parts
Parts missing from package
Imported by Mastercraft Canada Toronto, Canada M4S 2B8

2
WARNING: Only use the charger
supplied to charge the Mastercraft®12V
Ni-Cd (054-3166-0) or 18V Ni-Cd (054-3168-6).
Charging any other batteries may damage
the charger and possibly cause serious
injury.
Do not store or carry the battery where metal
objects could contact the exposed metal end of
the battery. Do not place the battery in aprons,
pockets, drawers, etc. with loose nails, screws,
keys etc. The battery could short circuit causing
a fire, personal injury or damage to the battery.
Do not attempt to open the battery for any
reason. If the housing of the battery breaks or
cracks, immediately discontinue use and do not
recharge.
Do not charge the battery if it is wet or shows
any evidence of corrosion.
A small leakage from the battery may occur
under extreme usage, charging or temperature
conditions. This does not indicate a failure.
However, if the outer seal is broken and this
leakage gets on your skin, follow these steps:
1. Wash immediately with soap and water.
2. Neutralize with a mild acid such as lemon
juice or vinegar.
3. If liquid gets into your eyes, flush
immediately with clean water for a
minimum of 10 minutes and seek medical
attention.
NOTE: The battery liquid is slightly acidic.
Do not incinerate the battery; it can explode in a
fire.
Do not use an extension cord; plug the charger
cord directly into an electrical outlet.
Use the charger only in a standard
120V, 60Hz electrical outlet.
NOTE: Square wave output inverters may
damage this charger and the battery.
Do not use the charger in wet or damp
conditions. It is intended for indoor use only. Do
not use the charger near sinks or
tubs. Do not immerse the charger in water.
Do not allow the cord to hang over the edge of a
table or counter or touch hot surfaces. The
charger should be placed away from sinks and
hot surfaces.
Do not use the charger to charge any batteries
other than the cordless drill batteries. Other
batteries may explode.
Do not operate charger if the cord or plug is
damaged. Replace the damaged cord and plug
immediately.
Do not operate the charger if it has received a
sharp blow, been dropped or otherwise
damaged in any way. Have a qualified
technician examine the charger and repair it if
necessary. Do not disassemble the charger.
Do NOT charge the batteries when the work
area or the battery temperature is at or below
0°C (32°F) or above 45°C (113°F).
Unplug the charger when not in use and before
cleaning or maintenance.
BATTERY PACK RECYCLING
To preserve our natural resources, please
recycle or dispose of batteries properly.
The batteries charged by this charger may
contain chemicals and metals that are harmful
to the environment. Never dispose of re-
chargeable batteries in your normal household
garbage or in landfill sites as they will add to the
pollution of the environment.
Please call 1-800-822-8837 for the location of
your nearest RBRC battery recycling location.
BATTERY & CHARGER SAFETY
!

3
V
Volts
A
Amperes
Hz
Hertz
W
Watts
kW
Kilowatts
Microfarads
L
Litres
kg
Kilograms
H
Hours
N/cm2
Newtons per square
centimeter
Pa
Pascals
OPM
Oscillations per minute
Min
Minutes
S
Seconds
or a.c.
Alternating current
Three-phase alternating
current
Three-phase alternating
current with neutral
Direct current
No load speed
Alternating or direct
current
Class II construction
Splash-proof
construction
Watertight construction
Protective grounding at
grounding terminal,
Class I tools
Revolutions or
reciprocations per
minute
Diameter
Off position
Arrow
Warning symbol
Wear your safety
glasses

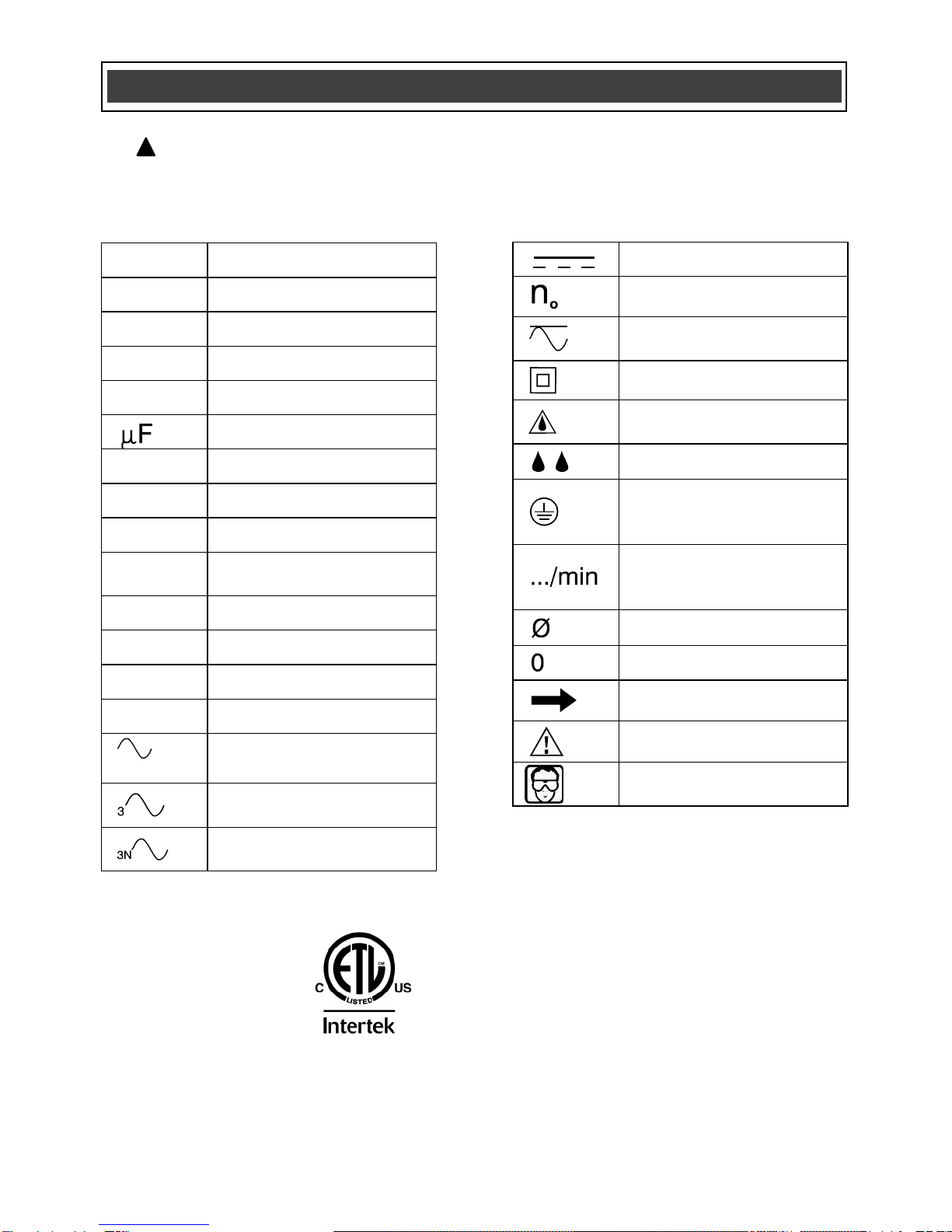

SYMBOLS
WARNING: Some of the following symbols may appear on the charger. Study
these symbols and learn their meaning. Proper interpretation of these symbols will
allow for more efficient and safer operation of this tool.
!
This symbol designates that this
tool is listed with Canadian
requirements by ETL Testing
Laboratories, Inc.
Conforms to UL STD. 1310.
Certified to CAN/CSA C22.2
No. 223-M91.
3042597
DG0724

4
CHARGING THE BATTERY PACK
1. Place the battery charger (1) in a dry
location near a 110–120V 60Hz electrical
outlet (Fig. 1).
NOTE: Square wave output inverters may
damage this charger and the battery.
2. Turn the battery (2) upside down and slide
it onto the charger.
NOTE: Make sure the grooves (3) in the
sides of the battery slide over the matching
tabs on the charger (4) until the battery
latch "clicks" into place.
3. Plug the battery charger into the 110–120V
60Hz wall receptacle.
NOTES:
a) When the charger is plugged into the wall
receptacle and NO battery is on the charger, the
green indicator light (5) will turn ON indicating
the charger is “live”.
b) When a discharged battery is installed on the
charger, the green indicator light will turn OFF
and the red indicator light (6) will FLASH. The
flashing red indicator light indicates the battery
is being charged.
c) If the red indicator light does not come ON,
check to make sure that the battery pack is slid
fully onto the charger and the electrical outlet is
working properly.
d) See Fig. 2 at right for other indicator light
functions.
e) A new battery pack or one that is completely
run down should be charged for 2 hours before
use. After normal use, a battery pack should be
fully charged in about one hour.
f) It is normal for the battery charger to hum and
be warm to the touch during operation.
g) If the battery pack does not charge properly,
check to make sure the electrical outlet is “live”.
h) Do NOT charge batteries when the work area
or the battery temperature is at or below 0°C
(32°F) or above 45°C (113°F).
ASSEMBLY AND OPERATINGASSEMBLY AND OPERATING
Green
Light
Red
Light
Battery
Inserted
Into
Charger
Charging
Status
ON
OFF
NO
Charger
connected
to power
supply
OFF
Flashing
YES
Battery
being
charged
ON
OFF
YES
Battery fully
charged
OFF
ON
YES
Battery
defective or
bad contact
ON
ON
YES
Battery too
hot or too
cold to be
charged
Fig. 2
Fig. 1

5
2-Year Limited Warranty
This Mastercraft product is guaranteed for a period of 2 years from the date of
original retail purchase against defects in workmanship and materials.
Subject to the conditions and limitations described below, this product, if returned to
us with proof of purchase within the stated warranty period and if covered under this
warranty, will be repaired or replaced (with the same model, or one of equal value or
specification), at our option. We will bear the cost of any repair or replacement and
any costs of labour relating thereto.
These warranties are subject to the following conditions and limitations:
a) a bill of sale verifying the purchase and purchase date must be
provided;
b) this warranty will not apply to any product or part thereof which is
worn or broken or which has become inoperative due to abuse,
misuse, accidental damage, neglect or lack of proper installation,
operation or maintenance (as outlined in the applicable owner’s
manual or operating instructions) or which is being used for
industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to
expendable parts or accessories that may be supplied with the
product that are expected to become inoperative or unusable after
a seasonable period of use;
d) this warranty will not apply where damage is caused by repairs
made or attempted by others (i.e. persons not authorized by the
manufacturer);
e) this warranty will not apply to any product that was sold to the
original purchaser as a reconditioned or refurbished product
(unless otherwise specified in writing);
f) this warranty will not apply to any product or part thereof if any
part from another manufacturer is installed therein or any repairs
or alterations have been made or attempted by unauthorized
persons;
g) this warranty will not apply to normal deterioration of the exterior
finish, such as, but not limited to, scratches, dents, paint chips, or
to any corrosion or discolouring by heat, abrasive and chemical
cleaners; and
h) this warranty will not apply to component parts sold by and
identified as the product of another company, which shall be
covered under the product manufacturer’s warranty, if any.
Page 1 of 2

6
!
Rev 1.6 03/08/2012
2-Year Limited Warranty –cont’d
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred.
Neither the retailer nor the manufacturer shall be liable for any other expense, loss
or damage, including, without limitation, any indirect, incidental, consequential or
exemplary damages arising in connection with the sale, use or inability to use this
product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which
may vary from province to province. The provisions contained in this warranty are
not intended to limit, modify, take away from, disclaim or exclude any statutory
warranties set forth in any applicable provincial or federal legislation.
Mastercraft is a superior line of products selected for their workmanship and
materials. These products are designed to meet rigorous quality and performance
standards and are approved by our Quality Assurance laboratory.
TOLL-FREE HELPLINE: 1-800-689-9928
Page 2 of 2
