INSTRUCTION MANUAL
AIR-POWERED
COIL ROOFING NAILER
058-8179-2

TABLE OF CONTENTS
2
AIR-POWERED COIL ROOFING NAILER 058-8179-2
QUICK START GUIDE
TECHNICAL SPECIFICATIONS 3
SAFETY GUIDELINES 4–9
KEY PARTS DIAGRAM 10
IMPORTANT INFORMATION 11–13
TYPES OF NAILS 14
OPERATING INSTRUCTIONS 15–20
MAINTENANCE 21–22
TROUBLESHOOTING 23–25
EXPLODED VIEW 26
PARTS LIST 27–28
WARRANTY 29–30

SAFETY GUIDELINES
4
AIR-POWERED COIL ROOFING NAILER 058-8179-2
Safety guidelines
This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING
EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it
thoroughly before using the product. The symbols listed below are used to indicate this information.
Note- The word “Note” is used to inform the
reader of something he/she needs to know about
the tool.
PERSONAL SAFETY
These precautions are intended for the personal safety of the user and others working with the user.
Please take time to read and understand them.
DANGER!
Potential hazard that will result in serious
injury or loss of life.
WARNING!
Potential hazard that could result in
serious injury or loss of life.
CAUTION!
Potential hazard that may result in
moderate injury or damage to equipment.

SAFETY GUIDELINES
5
AIR-POWERED COIL ROOFING NAILER 058-8179-2
SAFETY GUIDELINES
Note: Carefully read and understand all the instructions in this manual before using the tool. Ensure
that the operator has read and understood these instructions.
DANGER!
Potential hazard that will result in serious injury or loss of life.
•Keep children away from the work area. Do not allow children to handle
power tools.
•Keep air hose away from heat, oil, and sharp edges. Check air hose for
wear before each use and ensure that all connections are proper.
•Do not point the tool towards yourself or other people, even when the tool
has stopped. Keep hands, feet, and all other parts of the body clear from
work area.
•Always ensure that the workpiece is firmly secured leaving both hands free
to control the tool.
•Always ensure that the tool has stopped before putting it down after use, in
the interest of safety and to prevent possible damage to the tool/user.
•Keep proper footing at all times in order to ensure correct balance.
•Do not use oxygen or any other combustible or bottled
gas to power air-powered tools. Failure to observe this
warning can cause explosion and serious personal injury
or death. Use only the compressed air to power air-
powered tools. Use a minimum of 25'(7.6 m) of hose to
connect the tool to the compressor. Failure to comply will
result in serious injury or loss of life.
•Risk of electric shock: Do not expose a compressor to rain. Store it indoors.
Disconnect the compressor from the power source before servicing.
Compressor must be grounded. Do not use grounding adaptors.
Oxygen
Hydrogen
Explosive
Combustible
MC-OM-02

SAFETY GUIDELINES
6
AIR-POWERED COIL ROOFING NAILER 058-8179-2
•Risk of personal injury: Do not direct compressed air from the air hose
toward the user or other personnel.
•Risk for breathing: Never directly inhale the air produced by the compressor.
•Risk of bursting: Do not adjust the pressure switch or safety valve for any
reason. They have been preset at the factory for this compressor’s maximum
pressure. Tampering with the pressure switch or the safety valve may cause
personal injury or property damage.
•Risk of burns: The pump and the manifold generate high temperatures. In
order to avoid burns or other injuries, do not touch the pump, the manifold,
or the transfer tube while the compressor is running. Allow the parts to cool
down before handling or servicing. Keep children away from the compressor
at all times.
•Risk of bursting: Make sure the regulator is adjusted so
that the compressor outlet pressure is set lower than the
maximum operating pressure of the tool. Before starting
the compressor, pull the ring on the safety valve to make
sure the valve moves freely. Drain water from tank after
each use. Do not weld or repair tank. Relieve all pressure
in the hose before removing or attaching accessories. MC-OM-22

SAFETY GUIDELINES
7
AIR-POWERED COIL ROOFING NAILER 058-8179-2
WARNING!
Potential hazard that could result in serious injury or loss of life.
•Do not allow unskilled or untrained individuals to operate the Air-powered
Coil Roofing Nailer.
•Donotuse the Air-powered Coil Roofing Nailer for any task other than that it
is designed to perform.
•Locate the compressor in a well-ventilated area for cooling, at a minimum of
12"(31 cm) away from the nearest wall.
•Protect the air hose and the power cord from damage and puncture. Inspect
them for weak or worn spots every week, and replace them if necessary.
•Always wear hearing protection when using the air compressor. Failure to do
so could result in hearing loss.
•Do not carry the compressor while it is running.
•Do not operate the compressor if it is not in a stable position.
•Do not operate the compressor on a rooftop or an elevated position that
could allow the unit to fall or be tipped over.

SAFETY GUIDELINES
8
AIR-POWERED COIL ROOFING NAILER 058-8179-2
CAUTION!
Potential hazard that may result in moderate injury or damage to
equipment.
•Always ensure that the tool has stopped before connecting it to the air
supply.
•Do not wear watches, rings, bracelets, or loose clothing when using any air
tool.
•Do not overload the tool. Allow the tool to operate at its optimum speed for
maximum efficiency.
• Do not use a tool that is leaking air, with missing or damaged parts, or that
requires repairs. Verify that all screws are securely tightened.
• For optimal safety and tool performance, inspect the tool daily in order to
ensure free movement of the trigger, safety mechanisms, and springs.
•Always keep your air tool clean and lubricated. Daily lubrication is essential
to avoid internal corrosion and possible failures.
• Ensure the floor is not slippery and wear non-slip shoes. Floor should be
kept clean and clear.
• Always follow all workshop safety rules, regulations, and conditions when
using the Air-powered Coil Roofing Nailer.
•Carry the tool by the handle only, keeping the fingers away from the trigger.
Do not carry the tool by the hose, magazine, or any other parts.
•Do not use the tool near or below the freezing condition, as doing so may
the cause tool failure.
•Do not store the tool in a freezing environment to prevent ice formation on
the operating valves of the tool, as doing so may cause tool failure.
•Handling and storage of oil: Use with adequate ventilation. Avoid contact of
oil with eyes, skin, and clothing. Avoid breathing spray or mist. Store the oil
in a tightly closed container in a cool, dry, well-ventilated area free from
incompatible substances.

SAFETY GUIDELINES
9
AIR-POWERED COIL ROOFING NAILER 058-8179-2
Note: Recycle unwanted materials rather than disposing of it as waste. Sort the tools, hoses, and
packaging in specific categories and take to the local recycling center or dispose of it in
environmentally safe way.
CAUTION!
Potential hazard that may result in moderate injury or damage to
equipment.
•Disconnect the tool from the air supply and turn off the
compressor before performing any maintenance, or changing
accessories, when the tool is not in use, when it is being
handed over to another person, and when it is left
unattended. Failure to comply may result in moderate injury
or damage to equipment.
•Use safety goggles and ear protection:
Wear safety glasses with side shields when operating the
tool/compressor and verify that others in the work area are
also wearing safety glasses. Safety glasses must conform to
American National Standards Institute (ANSI Z87.1)
requirements and must provide protection from flying
particles from the front and the sides.
Air-powered tools are loud and the sound can cause hearing
damage. Always wear ear protection to prevent hearing
damage and loss. Failure to comply may result in moderate
injury.
MC-588179-16
MC-OM-01

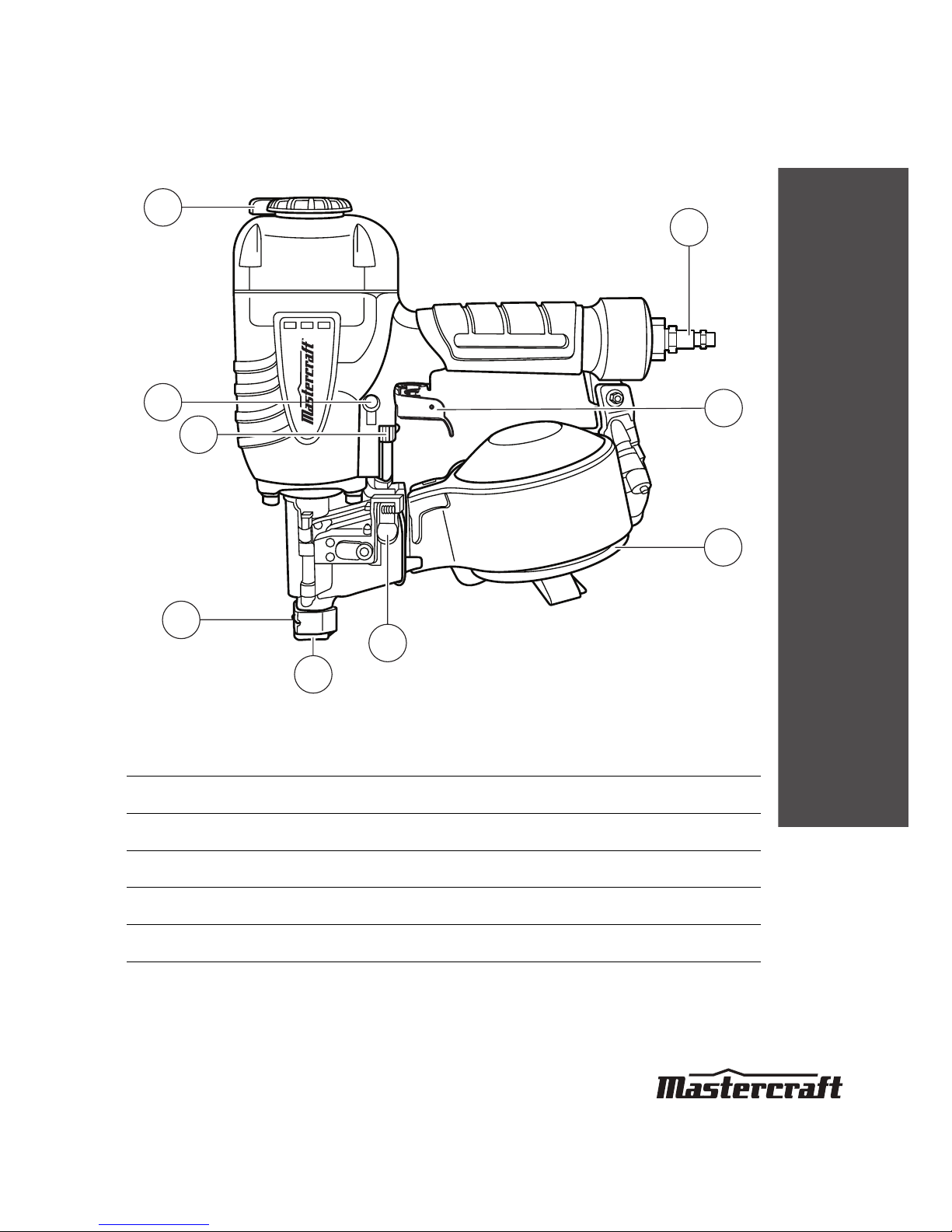

KEY PARTS DIAGRAM
10
AIR-POWERED COIL ROOFING NAILER 058-8179-2
No. Description No. Description
1 Air inlet plug 6 Safety stand
2 Trigger 7 Depth adjustment dial
3 Magazine 8 Selective actuation switch
4 Magazine latch 9 Air deflector
5 Safety tip
MC-588179-01
3
2
1
4
8
9
7
6
5

IMPORTANT INFORMATION
11
AIR-POWERED COIL ROOFING NAILER 058-8179-2
Compatible compressors
GUIDELINES FOR PROPER USE AND OPERATION
Be sure to use a proper air compressor with Mastercraft® air-powered tools. The compressor should
be able to supply a minimal air delivery of 4.7 SCFM @ 90 PSI to ensure the compressor can run
continuously with the Mastercraft®Air-powered Coil Roofing Nailer.
General use
This Mastercraft®Air-powered Coil Roofing Nailer drives 3/4 to 1 3/4" (19 to 45 mm) long full-head
(also known as round-head) nails.The tool has a strong, lightweight die cast aluminum body for well
balanced and easy operation, and a rubber handle for improved control and comfortable grip, even
during extended use. It features a 360º air deflector for air exhaust and a safety stand for improved
operator safety. It is ideal for framing, wall sheathing, roof sheathing, shingles, floor decking, and
similar applications.
Air Compressor
Size and Power 11/2–2 HP 2 1/2 HP 3+ HP
4–6 Gallons Light-duty and
intermittent use
Light-duty and
intermittent use
Light-duty and
intermittent use
8–11 Gallons Light-duty and
intermittent use
Medium-duty and
intermittent use
Medium-duty and
continuous use
15+ Gallons Medium-duty and
intermittent use
Heavy-duty and
continuous use
Heavy-duty and
continuous use
Wood density Nail size Compressor air pressure
>0.6 g/cm3
<1" (25 mm) 90 PSI
≥1" (25 mm) 120 PSI
≤0.6 g/cm3
<1" (25 mm) 75 PSI
≥1" (25 mm) 110 PSI

IMPORTANT INFORMATION
12
AIR-POWERED COIL ROOFING NAILER 058-8179-2
Air system
• Always use clean, dry, regulated, compressed air at 5 to 7 bar (70 to 100 psi).
• Do not exceed the maximum or minimum pressures. Operating the tool at the wrong pressure
(too low or too high) will cause excessive noise or rapid wear, or misfiring.
• It is recommended that a filter-regulator-lubricator be used and be located as close to the tool
as possible.
• If a filter-regulator-lubricator is not installed, place up to 6 drops of pneumatic tool oil into the
air inlet plug before each use.
• If a filter-regulator-lubricator is installed, keep the air filter clean. A dirty filter will reduce the
air pressure to the tool, which will cause a reduction in power, efficiency, and general
performance.
• For optimal performance, install a quick connector to the tool and a quick coupler on the
hose, if applicable.
• Verify that all connections in the air supply system are sealed in order to prevent air leakage.
WARNING!
Potential hazard that could result in serious injury or loss of life.
•Keep hands and other parts of the body away from the tool’s discharge and
working areas when connecting the tool to the air supply. Failure to comply
could lead to serious injury or loss of life.
• Do not use the tool if it is not in proper working order.
• Do not use oxygen or any other combustible or bottled gas to power this tool.
• Do not use this tool in the presence of any flammable liquids or gases.
• Keep hands and other parts of the body away from the firing head during use.
• Do not point the tool towards the operator or other people.
• Do not attempt to clear a jammed nail when the air hose is connected.
•Do not drive a nail on top of an existing nail. Failure to comply could lead to
serious injury or loss of life.

IMPORTANT INFORMATION
13
AIR-POWERED COIL ROOFING NAILER 058-8179-2
Read this Instruction Manual carefully before using the roofing nailer.
• Read and follow all the safety instructions at the beginning of this manual. Inspect the
Air-powered Coil Roofing Nailer prior to each use in order to:
– ensure that the proper power source is being used.
– verify that the tool is in proper working order.
No. Description No. Description
1 Mastercraft®Air-powered Coil Roofing Nailer 6 Regulator (0 to 8.5 bar)
2 Quick connector 7 Filter
3 Quick coupler 8 Cut-off valve
4 Air hose 9 Air compressor
5 Lubricator
257
133
6
8
9
4
MC-588179-02

TYPES OF NAILS
14
AIR-POWERED COIL ROOFING NAILER 058-8179-2
This Mastercraft® Coil Roofing Nailer drives full-head or round-head 3/4 to 1 3/4" (19 to 45 mm)
long nails. The nails are to be collated at 15°.
ACCEPTABLE NAILS
The nailer can be used with a variety of shank types (e.g., ring, smooth, spiral) and a variety of
coatings or nail compositions (e.g., Electro, mechanical, or hot-dipped galvanized or stainless steel).
NAIL TYPE ICONS
These Icons are used to select the proper nails for this specific nailer.
Note: Icons are colour coded, please refer the actual tool for the specific colour.
Length: 3/4 -1 3/4"
(19 to 45 mm) Angle: 15°
WARNING!
Potential hazard that could result in serious injury or loss of life.
• The use of any other types of nails will cause the nailer to jam and could lead to
serious injury or loss of life.
3/4”
1 3/4”
MC-588179-15
MC-588179-08

OPERATING INSTRUCTIONS
15
AIR-POWERED COIL ROOFING NAILER 058-8179-2
Loading Nails
1. Disconnect the tool (1) from the air
supply (2)
(fig A) .
2. Grasp the nailer firmly with one hand
and use the other hand to open the
magazine by operating the magazine
latch (1) with the thumb and index finger
(fig B) .
DANGER!
Potential hazard that will result in serious injury or loss of life.
• Disconnect the tool from the compressed air source before loading or
changing nails.
• Do not point the tool towards the operator or other people while loading or
changing nails.
• Do not hold the tool with the trigger pressed while loading or changing the
nails. Failure to comply will lead to serious injury or loss of life.
MC-588179-17
fig A 1
2
MC-588179-04
1
fig B

OPERATING INSTRUCTIONS
16
AIR-POWERED COIL ROOFING NAILER 058-8179-2
3. Upon releasing the magazine latch (1),
open the movable cover (2)
(fig C) .
4. The magazine cover (1) can now be
opened
(fig D) .
5. Insert a coil of nails (1) with the first nail
into the firing chamber (2) of the nailer.
Close the magazine cover and then close
the movable cover (3)
(fig E) .
(see nail type icon on page 14)
6. Plug in the compressor, turn it on, set
the pressure regulator to 90 psi, attach
one end of the air hose to the
compressor and the other end of the air
hose (1) to the tool (2)
(fig F) .
page 11 (wood density chart)
MC-588179-05
fig C
2
1
MC-588179-06
fig D
1
MC-588179-07
1
fig E
2
3
MC-588179-08
1
fig F 2

OPERATING INSTRUCTIONS
17
AIR-POWERED COIL ROOFING NAILER 058-8179-2
7. Test the driving depth by pressing the
trigger (1) with the safety stand pressed
on a sample piece of wood before
working on the workpiece. If the nails
are being driven too deep or not deep
enough, adjust the regulator in order to
provide more or less air pressure, as
required
(fig G) .
MC-588179-09
1
fig G
WARNING!
Potential hazard that could result in serious injury or loss of life.
• The safety stand must be in contact with the workpiece before activating the
tool.
• Do not operate the tool if the nails are not loaded, as doing so may damage
the tool.
• Do not fire nails into the air, as doing so may cause injury to the operators
or others, apart from damaging the tool.
• Do not load different sized nails into the magazine, as doing so may cause
nails to jam. Failure to comply could lead to serious injury or loss of life.

OPERATING INSTRUCTIONS
18
AIR-POWERED COIL ROOFING NAILER 058-8179-2
Firing modes
The Mastercraft®Air-powered Coil Roofing Nailer is equipped with a selective actuation system
having a switch located immediately adjacent to the trigger mechanism which is pressed for
selecting the actuation mode. The operator can choose between full sequential actuation (the switch
adjacent to the trigger pointing towards the single-nail symbol) or contact actuation (bump) (the
switch adjacent to the trigger pointing toward the two-nail symbol).
CAUTION!
Potential hazard that may result in moderate injury or damage to
equipment.
• If the selected firing mode is not known, always assume that the tool is in
contact actuation (bump) mode. Failure to comply may result in moderate
injury or damage to equipment.
Contact actuation mode Single sequential actuation mode
1. Press the safety stand against
workpiece after setting the firing
mode
(fig H) .
2. Pull the trigger in order to drive the
nail with the safety stand pressed
firmly against the workpiece.
3. If safety stand remains pressed
against the workpiece, successive
nails will fire each time the trigger
is pulled.
1. Pull the trigger after setting the firing mode
(fig I) .
2. Press the safety stand against workpiece.
3. If the trigger remains pressed, successive
nails will fire each time the safety stand is
pressed against the workpiece.
MC-588179-10
fig H
MC-588179-11
fig I

OPERATING INSTRUCTIONS
19
AIR-POWERED COIL ROOFING NAILER 058-8179-2
Nail depth adjustment
The Mastercraft®Air-powered Coil Roofing
Nailer has a depth adjustment dial below the
trigger to adjust the firing depth of the nails.
Note: Refer to the graphic imprinted below
the trigger and adjust the firing depth
accordingly
(fig J) .
CAUTION!
Potential hazard that may result in moderate injury or damage to
equipment.
• If the trigger is pressed a second time, the recoil of the nailer may lift the
safety stand enough to allow a second nail to be fired, even if the operator
has not lifted the tip of the safety stand.
• Operate the tool with the utmost care when it is connected with the air
compressor. Failure to comply may result in moderate injury or damage to
equipment.
MC-588179-12
fig J
DECREASING NAIL DEPTH INCREASING NAIL DEPTH
Turn the depth adjustment dial
counterclockwise direction (with the discharge
area of the tool facing away from the operator)
(fig K) .
Turn the depth adjustment dial clockwise
direction (with the discharge area of the tool
facing away from the operator)
(fig L) .
MC-588179-13
fig K
MC-588179-14
fig L
