Masterzen XPR W7S User manual

Wine Cellars & Coolers
Wine Cellar Model Dimensions and installation Guide
XPR W7S
XPR W24S
XPR W48DT
XPR W40S/
XPR W46SD
XPR W88S/D
XPR W180S/D
XPR W300S/D
Thanks for buying our Wine Cooler, Hope our advanced product will give your wine a
different joyful taste. Before use, please read and follow all safety rules and operating
instructions.

WARNING
The information in this document is subject to modification without any prior notice. Some
models are available in dedicated countries only.
offers no guarantee for our wine cellar if it is being used for any purpose other than that for
which it was specifically designed. We cannot be held responsible for any error in this
manual. is not responsible or liable for any spoilage or damage to wines or any other
contents incidental or consequential to possible defects of the wine cellar. Warranty applies
to the wine cellar only and not to the content of the wine cellar.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
Please don't put such as acidic items, flammable and explosive goods into wine cooler.
This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
DANGER: Risk of child entrapment. Before you throw away your old wine chiller:
- Take off the doors;
- Leave the shelves in place so that children may not easily climb inside;
- When disposing of the appliance, do so only at an authorized waste disposal centre.

R600a WARNINGS:
For your safety observe the following recommendations.
 This appliance contains a small quantity of R600a refrigerant which is environmentally
friendly, but flammable. It does not damage the ozone layer, nor does it increase the
greenhouse effect.
 During transportation and installation, ensure that the tubing of the refrigerant circuit is
not damaged.
 Avoid using or manipulating sharp objects near by the appliances.
 Leaking refrigerant can ignite and may damage the eyes.
 In the event any damage does occur, avoid exposure to open fires and any device which
creates a spark. Disconnect the appliance from the mains power.
 Thoroughly ventilate the room in which the appliance is located for several minutes.
 Notify Customer Service for necessary action and advice.
 The room for installing the appliance must be at least 1 cubic metre per 8 grams of
refrigerant. The refrigerant quantity contained in this appliance is listed above in grams; it is
also noted on the Rating Plate of the appliance.
It is hazardous for anyone other than an Authorised Service Person to carry out servicing
or repairs to this appliance.
- WARNING: Keep ventilation openings in the appliance enclosure or in the built-in
structure clear of obstruction.
- WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
- WARNING: Do not damage the refrigerant circuit.
- WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
- WARNING: If you do not use the machine for a long time, please unplug the power plug
from the socket or switch off the power supply.
- WARNING:This appliance is not intended for use by persons (including children)
with reduced Physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety;
- WARNING:Children should be supervised to ensure that they do not play with the
appliance;
- WARNING:Do not use extension cords or ungrounded (two prong) adapters;
- WARNING:If the supply cord is damaged, it must be replaced by the manufacturer,
Its service agent or similar qualified person in order to avoid hazard.
Allow 24 hours before switching on the wine cellar. During this time we recommend that
you leave the door open to clear any residual odors.

BEFORE LOADING & PLUGGING IN THE WINE CELLAR
Important: All models without front venting (air opening) are strictly for free standing only.
(See technical chart)
Recommendations:
The location you have selected for your wine cellar should:
- be unencumbered and well ventilated;
- be well away from any heat source and direct sunlight;
- not be too damp (laundry, pantry, bathroom etc.);
- have a flat floor;
- have a standard and reliable electricity supply (standard socket to country standards,
linked to the ground), it is NOT recommended to use a multi-socket or extension lead;
- have a surge protector fitted to the electrical outlet;
- Away from the microwave oven. Certain microwave ovens do not have wave
interference shield. When placed within 1 meter vicinity of the wine cabinet, they may affect
the operation of the wine cabinet.
Notes:
- XPR W24, 48DT, XPR W7 model is for built-in ONLY
- XPR W40,XPR W300, models are for free standing ONLY.
- XPR W46, XPR W88, XPR W180 models are Both built-in and free-standing type as per the
drawings thereafter.
Wine cellar should be placed where the ambient temperature is proper (Please view the end
of Manual). If the temperature is above or below this range, it will affect the performance of
the cellar. Placing in cold or hot temperature conditions may cause cellar's temperatures
fluctuating, and it will not reach the ideal one.
Grounding instructions:
The wine cellar must be grounded in case of wire leakage. Grounding reduces the risk of
electrical shock. The wine cellar is equipped with a power cord having a grounding wire and
plug. The wine cellar plug must be plugged into a properly affixed and grounded electrical
outlet.
Note: In locations where there is frequent lightning, it is advisable to use surge protectors.
Improper use of the grounding plug can result in the risk of electric shock. Consult a
qualified electrician or service person if the grounding instructions are not completely
understood.
If the supply cord is damaged, it must be replaced by a qualified person in order to avoid
electrical hazard.

INSTALLING YOUR WINE CELLAR
Unpack and remove all of the protection and adhesive strips from the packaging around and
inside the wine cellar.
The wine cellar must be positioned such that the plug is accessible. Release the power cord.
Move your wine cellar to its final location. The wine cellar should be installed in a suitable
place where the compressor will not be subject to physical contact.
Leveling your wine cellar: Wine cellar must be leveled BEFORE loading your wines.
Your wine cellar is equipped with 4 adjustable feet to facilitate easy leveling. We
recommends that you tighten the back feet to the maximum and adjust the front feet to
level the wine cellar.
INSTALLATION INSTRUCTIONS FOR BUILT IN WINE CELLARS:
(UNDERBENCH OR IN COLUMN) FRONT VENTING WINE CELLARS ONLY.
XPR W40 ,XPR W300 models are free standing only. Any built in voids the
warranty
1. “Built in” wine cellars are front venting but are not designed to be fully integrated behind
a joinery door.
2. Please follow the installation diagram when installing built-in wine cellars. No less than
the minimum installation dimension, or it will affect the venting of cellar.
3. Built-in wine cellars draw air from right of ventilation frame (W20、W35 from the rear) and
expel through left of ventilation frame under the front door.
4. “Built in” wine cellars have a power switch located on the control panel so power point
location is not critical.
5. The wine cellar requires a standard 240 volt/10 amp power point. (Or according to
different countries specifications).
6. The power cord is 2.0m in length and is fixed on the right side at the back when looking
from front of cabinet.
7. As with most appliances of today, the wine cellar has sensitive electronic components
which are susceptible to damage through lightning and electricity supply faults. It is
therefore advised to use a power surge protector to avoid problems of this nature.
8. Air vent on door must be provided for built-in wine cellars when a wood door installed.

In Hot climate zone, an air vent or grid, with a minimum ventilation size of 200mm x 40mm
MUST be cut out at the rear top of the back partitioning or at the top of either side of the
partitioning, allowing cool fresh air full access to flow into the 30mm gap located at the rear
of the cabinet.
This air vent or grid must not be opened on the same side as other appliances such as ovens
or an area that is sealed and without access to fresh cool air. Failing to comply with the
above specifications could result in WARRANTY void.

Dimensions and type of installation
Masterzen XPR
Product Line
Χωρητικότητα
σε φιάλες
Zώνες
θερμοκρασί
ας
Αριθμός
Ξύλινων
Ραφιών
Τύπος
Εγκατάστασης
Πλάτος x Βάθος x
Υψος (cm)
W7S
7
1
Ελεύθερη &
Εντοιχιζόμενη
14,7 x 54 x 82
W24S
24
1
3
Πλήρως
Εντοιχιζόμενη
59,2 x 55,5 x 45,5
W40S
49
1
5
Μόνο
Ελεύθερη
εγκατάσταση
48,5 x 60 x 82
W48DT
42
2
5
Πλήρως
Εντοιχιζόμενη
59,2 x 55,5 x 88,5
W46D
39
2
4
Ελεύθερη &
Εντοιχιζόμενη
59,5 x 57.0 x 82
W88S
90
1
7
Ελεύθερη &
Εντοιχιζόμενη
59,5 x 71.0 x 100
W88D
79
2
5
Ελεύθερη &
Εντοιχιζόμενη
59,5 x 71.0 x 100
W180S
163
1
15
Ελεύθερη &
Εντοιχιζόμενη
59,5 x 71.0 x l72
W180D
154
2
13
Ελεύθερη &
Εντοιχιζόμενη
59,5 x 71.0 x l72
W300S
303
1
18
Μόνο
Ελεύθερη
εγκατάσταση
75 x 71 x 201,5
W300D
270
2
15
Μόνο
Ελεύθερη
εγκατάσταση
75 x 71 x 201,5

INSTALLATION DRAWINGS FOR BUILT IN WINE CELLARS: (UNDERBENCH OR IN COLUMN) FRONT
VENTING WINE CELLARS ONLY.
Note: The appliance must be positioned so that the plug is accessible after installed.
DIMENSIONAL DRAWINGS:
It is built-in model inside cabinet, the cabinet should come with good ventilation space and
no backplane, otherwise it will affect the wine cooler working normally. (Installation drawing
as below)
The ventilation distance at least 50
mm

XPR W24S
XPR48DT
Installation Dimension
W564*H453*D550
The back without a plate
Installation Dimension
W564*H878*D550
The back without a plate

XPR W46
XPR W88

XPR W180
XPR W7S

OPEN ANGLE SIZE DRAWINGS:
XPR W24S
XPR W40

XPR W46
XPR W88 / XPR W180

XPR W300
XPR W7S

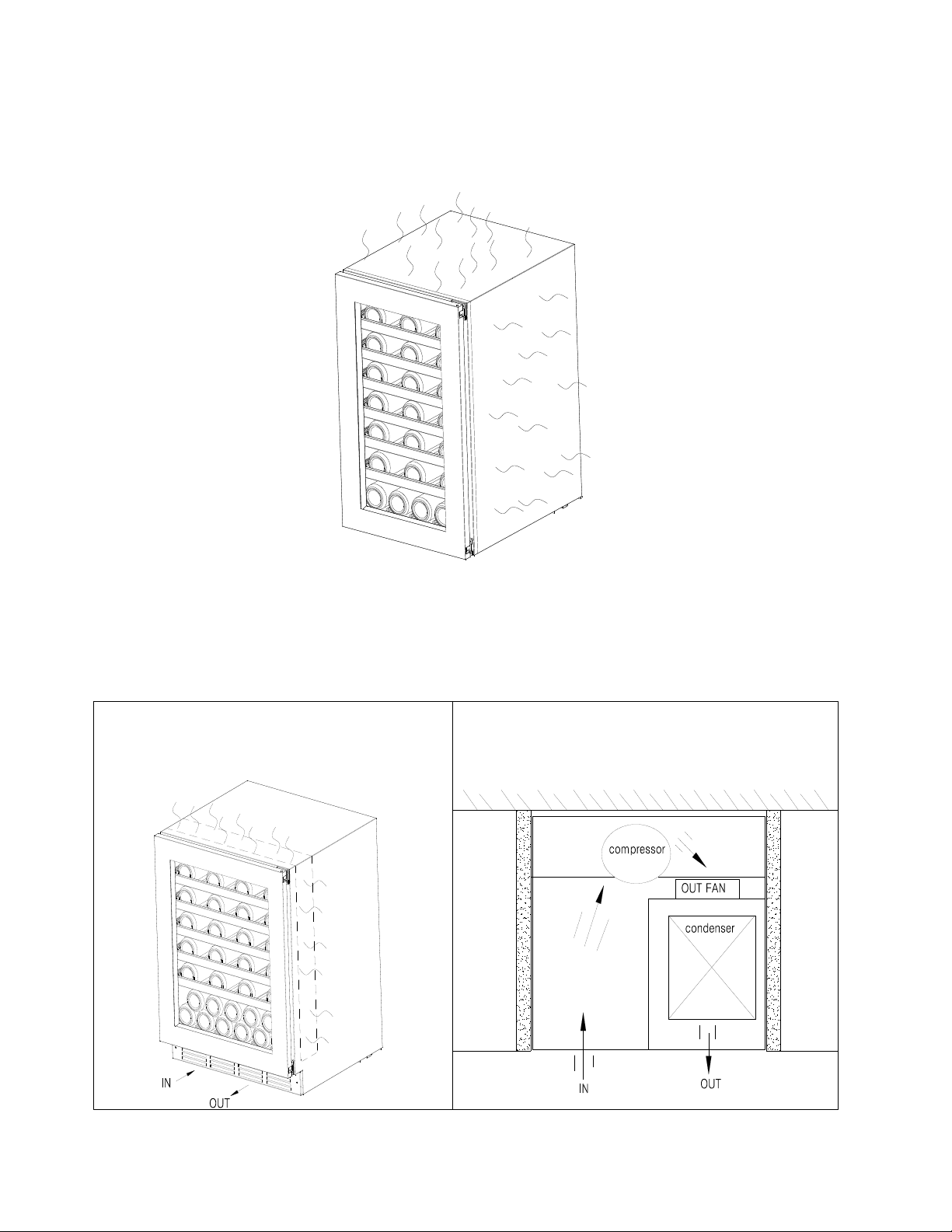

RADIATOR SYSTEM DESCRIPTION
XPR W40,XPR W300,models use lateral condensation cooling mode
XPR W46/88/180 Models use side anti-dew tube and Independent cooling system:

XPR W7S Model use Air cooling system
