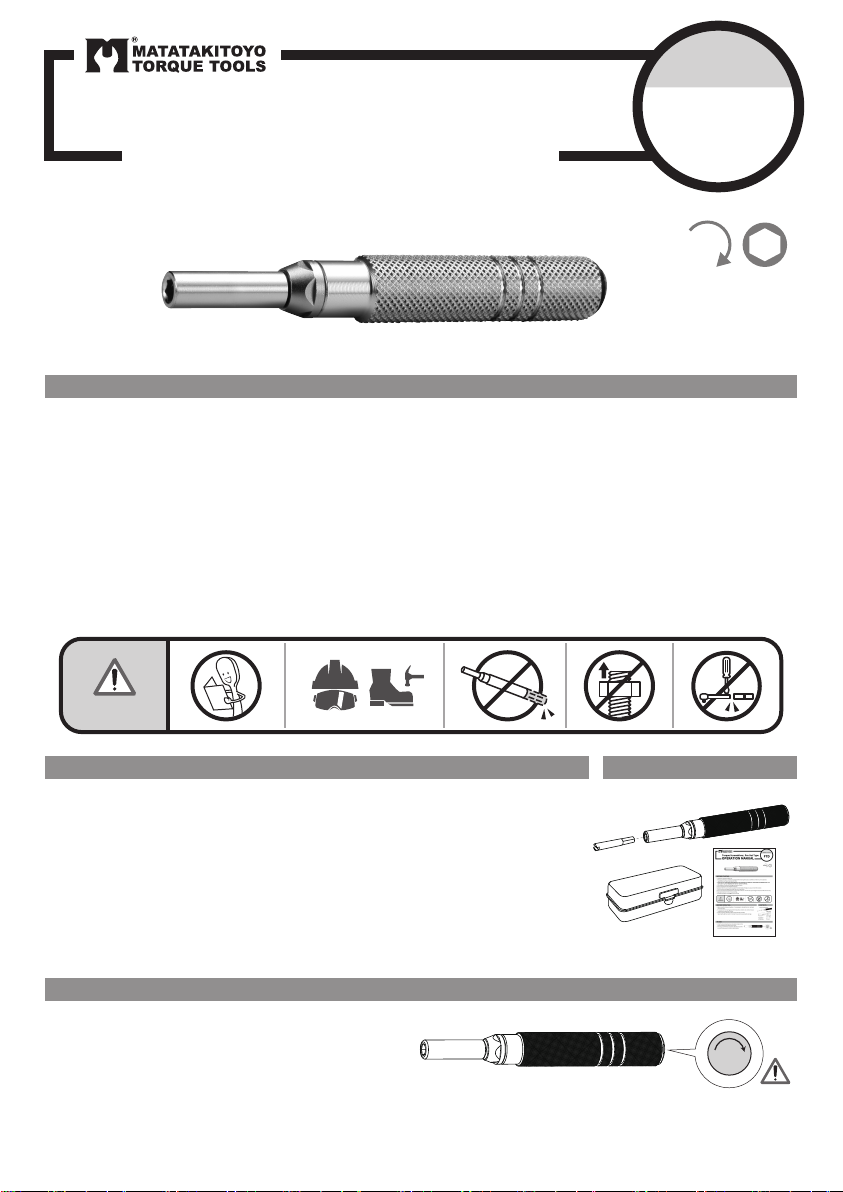

Matatakitoyo Torque Tools FTD-1N User manual

1. Study this instruction before use.
2. This torque wrench as calibrated and tested before leaving the factory is certified to meet the current standard
specification and has an accuracy of ±6%.
3.
THIS TOOL IS A PRECISION MEASUREMENT AND DESIGNED FOR MANUAL TIGHTENING FASTERNERS ONLY. DO
NOT USE IT AS A NUT BREAKER OR FOR ANY OTHER PURPOSE.
4. Over torque will cause tool damage and personal injury.
5. Do not use this tool near rotating machinery.
6. Disassemble this tool or make any adjustments will result of losing accuracy and void the warranty.
7. Do not continuously apply force after hear click or feel shock.
8. Do not use any format of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
9. Use special care at minimum torque setting.
10. Please wear gloves and goggles when working.
1. Before using the torque screwdriver, it is necessary to activate the inner spring to
ensure accuracy.
2. To activate the inner spring, place the bit securely in a bench vise and turn torque
screwdriver clockwise until it clicks.
3. Continue turning clockwise until 20 clicks have been reached.
Ignoring this step can result in improper torque and cause possible damage.
BEFORE STARTING
1. Once the inner spring has been activated, simply turn the
torque screwdriver clockwise until it clicks.
2. The torque screwdriver is precisely calibrated to provide
accurate torque every time when used properly.
TO USE
BEFORE OPERATING CONTENTS
Torque Screwdriver
Supplied in
a metal box. Manual
TORQUE
4
0.35
Nm
Manual
WARNING
OPERATION MANUAL
Torque Screwdriver, Pre-Set Type FTD
Models covered

E-mail:[email protected]om
www.matatakitoyo.com
Made in Taiwan
MATATAKITOYO TOOL CO., LTD.
No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,
Taichung City 42754, Taiwan
TEL : [phone]
Manufacturer
CONVERSION TABLE
MAINTENCE AND STORAGE
SIDE LOADING NOTE
1. When applying torque the screwdriver must be kept perpendicular to
the plane of use (either horizontal or vertical).
2. Inaccuracies in torque readings may occur from applying “Side Load”.
SPECIFICATION
Apr. 2020
02
Edition
1. If this tool has not been used for a period of time, it shall be preloaded several times to allow internal lubricant to recoat.
2. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment.
Do not dip any type of liquid in this tool. This may damage the internal of this tool.
3. This tool should be recalibrated a period of 12 months, or 5,000 cycles, whichever occurs first.
To contact with local vendor, an authorized repair center for supporting. 1 Years
5000 Times
STOP
CLICK
Units to be
converted
1 mN.m
1 cN.m
1 N.m
1 ozf.in
1 lbf.in
1 lbf.ft
1 gf.cm
1 kgf.cm(kp.cm)
1 kgf.m(kp.m)
1
10
1000
7.062
113
1356
0.098
98.07
9807
0.1
1
100
0.706
11.3
135.6
0.01
9.807
980.7
0.001
0.01
1
0.007
0.113
1.356
0.0001
0.098
9.807
0.142
1.416
141.6
1
16
192
0.014
13.89
1389
0.009
0.088
8.851
0.0625
1
12
0.0009
0.868
86.8
0.0007
0.007
0.738
0.005
0.083
1
0.00007
0.072
7.233
10.2
102
10197
72
1152.1
13826
1
1000
100000
0.01
0.102
10.2
0.072
1.152
13.83
0.001
1
100
0.0001
0.001
0.102
0.0007
0.0115
0.138
0.00001
0.01
1
=mN.m =cN.m =N.m =ozf.in =lbf.in =lbf.ft =gf.cm =kgf.cm
(kp.cm)
=kgf.m
(kp.m)
Corresponding unit
Conversion-formula : Units to be converted × Factor = Corresponding unit
Example : Convert 5 lbf.ft into cN.m
Solution : 5 × 135.6 = 678 cN.m
ITEM NO. L ØD Range
FTD-1N 0.1-0.5 Nm4 99.3 13.8 0.032
KG
Accuracy : ± 6%
L
AA ØD
FTD-10I 1-10 in.lb 4 99.3
7.4 7.4 13.8 0.032
Unit : mm
KG
L
ØD
A
MetricSAE
ITEM NO. Range
90°
