QUICK START GUIDE
WORKHOLDING
DYNOGRIP™ VISE
Quick Start Guide

Proper and timely information is key to successfully doing your job. To support your success, Mate provides
all the information you need — at your fingertips — when and wherever you need it.
To get started, scan one of the QR codes below or scan the QuickSpecs™ 2D bar code on the vise itself.
See Using QuickSpecs™ at right.
THANK YOU FOR YOUR PURCHASE
INSTRUCTIONS/
MAINTENANCE
ORDER ONLINE CATALOG

USING QUICKSPECS™
The Mate 52/96 zero point workholding system includes QuickSpecs™, a unique product identification system that provides real-time
access to product information and potential integration into your business systems.
Simply use your smart phone and scan the 2D bar code on the
side of the product. You will have access to all information about
the product — including CAD files, full product instructions and
more — all related to the specific serial number of the item.
Click the Link adjacent to the “Email Link” and use your phone
to email a link to yourself. When you receive the email on your
desktop computer, you will see a link to the on-line repository for
the CAD models.

Pull Studs for 52 or 96 systems
Jaws are not a matched set and can go on
either pusher in either direction
Right Hand Thread Pusher
Indicated with R
Leadscrew assembly
Jaws Centering Pins
2D Bar Code
For quick access to QuickSpecs™
External Hex on left end of vise
52 family 12mm
96 family 16mm
(Only use external hex to torque vise)
VISE OVERVIEW:
6mm internal hex on both ends of
leadscrew for speed travel
Torque maximum listed on each vise
Left Hand Alignment Indicator
Align Thread Pusher with L
Left Hand Thread Pusher
Indicated with L
Arrow indicates direction to close

FIRST USE & JAW INSTALLATION/REMOVAL
Your Mate DynoGrip Self-Centering Vise comes precision tuned and ready to use right out of the box. If your use differs from the standard
installation, please consult the DynoGrip instructions by going to mate.com/wh or for fast access — scan the QR code on page 1 of this guide.
The DynoGrip vise comes with pre-installed locating pins for precision centering. Open jaws and remove the pins before first use and store.
It may be necessary to install or remove the jaws depending on the configuration of your purchase or the specifications of your use.
Below is a quick installation guide for jaw installation or removal.
AA
BB
CC
AA
BB
CC
Push here to install Push here to removeInsert jaw rail first

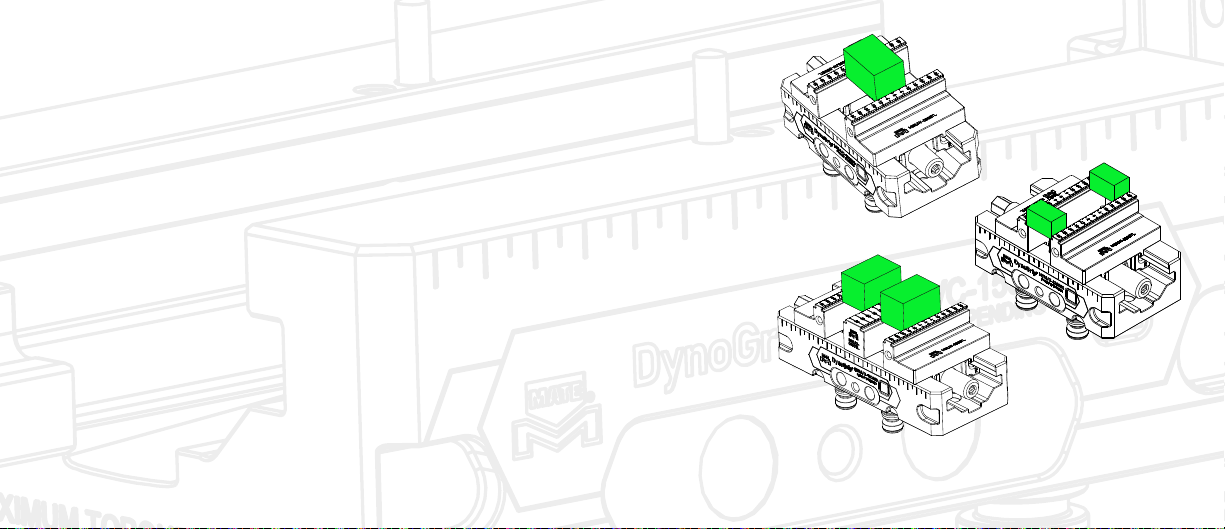

PROPER PART LOADING
Single Station Self-Centering Jaw Configuration:
• It is important to symmetrically load single or multiple parts axially on-center to the vise
to avoid excessive jaw twist
• Individual part clamped sides should be within .15mm (.006”) parallelism for clamping
on smooth jaw surface and within .51mm(.020”) when using the grips to provide
secure part retention
• When loading two or more parts on a 2-jaw vise, the clamped sides should vary in size
by no more than .15mm (.006”) when clamped on smooth jaw surfaces and no more
than .51mm (.020”) when using the grips to provide secure part retention
Double Station Center Jaw Configuration:
• Parts must be loaded on both sides of the center jaw. Symmetric loading still applies
• DynoGrip 52 with a center jaw allows for 2mm clamping size variation between parts*
DynoGrip 96 with a center jaw allows for 3mm clamping size variation between parts*
Jaw Range:
• Extending the jaws beyond the length of the vise body can reduce the effectiveness of
the jaw pull-down feature CORRECT PART LOCATING
* See “Prep for Center Jaw Attachment” for correct setup on page 7 of instructions

Jaws can be used in
either direction for
outward clamping
Left pusher and external hex of
leadscrew go on the “L” side of vise
Hook feature
REVERSE FORCE CLAMPING SETUP
To switch from inward clamping to reverse force clamping:
1. Remove the pushers from the leadscrew
2. Keeping each pusher on the end it was removed from, rotate each pusher so that the top hook feature faces away from the vise center
3. Thread the pushers simultaneously back onto the leadscrew
4. Install the jaws in desired orientation
5. Center the jaws per the vise calibration procedure (see instructions)
