Matt:e SP-EVCP-T User manual

Electric Vehicle Charger
Protection Units
SP-EVCP-T SP-EVCP-R
Installation Manual
V1.0 Oct 2019

Single Phase EV Charger Protection unit
2 | P a g e
Contents
Pro uct Description 3
Warning Notice 3
Safety A vice 3
Intro uction 4
Dimensions & Mounting the unit 5
Electrical Connections 6
Operating Instructions 8
Specifications 9
Warranty 9
Declaration of Conformity 10
PRODUCT ADVISORY NOTICE
This product must be inst lled by competent person in
ccord nce with the IEE Wiring Regul tions, BS7671 (18
th
Edition or l ter) nd current Building Regul tions.
Ensure the electric l supply is disconnected before inst ll tion
or removing the cover of the unit.

Single Phase EV Charger Protection unit
3 | P a g e
Once inst lled, the unit
h s Live M ins Supply (
23
0
v or higher)
within the enclosure. The cover must not be removed until the
supply to the unit h s been isol ted or disconnected.
Pro uct Description
The m tt:e Single Phase Electric Vehicle Charger Protection units (SP-EVCP-
T&R) are esigne for use in omestic welling applications where single
phase PME supplies are fee ing Electric Vehicle Chargers. They shoul NOT
be use on premises with 3 phase supplies
This manual covers the SP-EVCP-T & SP-EVCP-R
The units are not inten e for any purpose other than that efine within
this ocument.
WARNINGS
Please rea an observe the following notices carefully. These warnings must
be observe when installing an operating the Electric Vehicle Charger
Protection units.
All relev nt supplies must be isol ted or disconnected before commencing ny
work. This product must be inst lled by competent person in ccord nce with
the IEE Wiring Regul tions, BS7671 (18
th
Edition or l ter) nd ny relev nt Building
Regul tions nd/or Inst ll tion Regul tions.
S fety Advice
The unit must be inst lled in dry ventil ted loc tion; it must never be covered or
h ve restricted ventil tion.
The SP-EVCP-R nd SP-EVCP-T units re r ted for m ximum 32A.
For any information not containe within this ocument, please contact our
technical support team on 01543 227290 or inf[email protected]o.uk.

Single Phase EV Charger Protection unit
4 | P a g e
Intro uction
The m tt:e of range Single Phase Electric Vehicle Charger Protection units
are esigne to protect Electric Vehicle Charging equipment when installe
onto single phase PME infrastructures .
All units incorporate an electronic etection circuit an 3 pole contactor. The
R version has a Type A RCBO on the incoming si e of the unit.
On etection of fault con itions the electronic circuit isconnects the EV
charger from the incoming supply inclu ing CPC. The isolation contactor is
certifie to BSEN 60947 an complies with the requirements of BS: 7671 18th
E ition.
The m tt:e SP-EVCP technology oes not require earth ro s or measuring
electro es to function correctly.
The unit is esigne to be installe between the istribution boar an the
Electric Vehicle Charger.
The inst ll tion loc tion should be cle n, dry nd well ventil ted.
m tt:e no longer use plastic bags as part of our pro uct packaging.
Wherever possible we utilise reusable bio egra able packaging for
transportation. We ask that you support our efforts to re uce un-necessary
waste an recycle all packaging appropriately. Thank you.

Single Phase EV Charger Protection unit
5 | P a g e

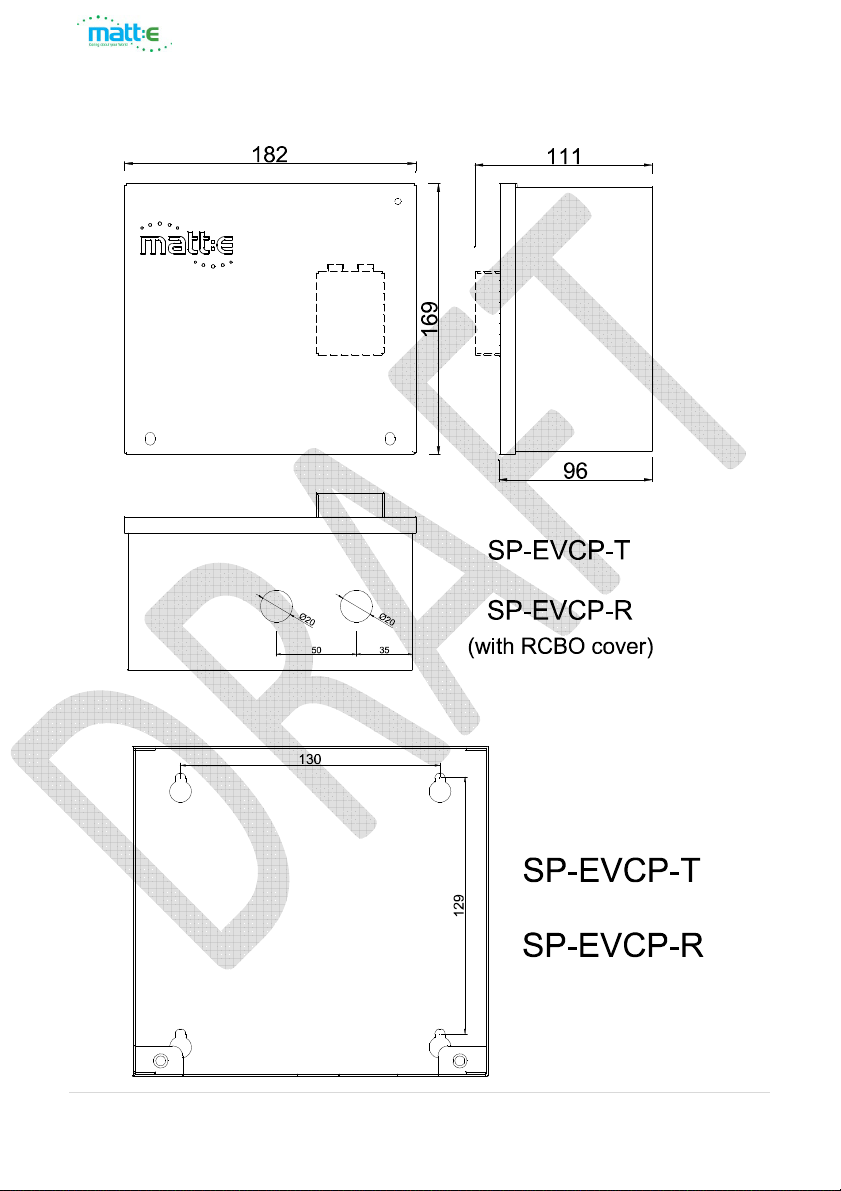

Please refer to the iagram below for the imensions an mounting
arrangements of the unit.

Single Phase EV Charger Protection unit
6 | P a g e
Electrical Connections

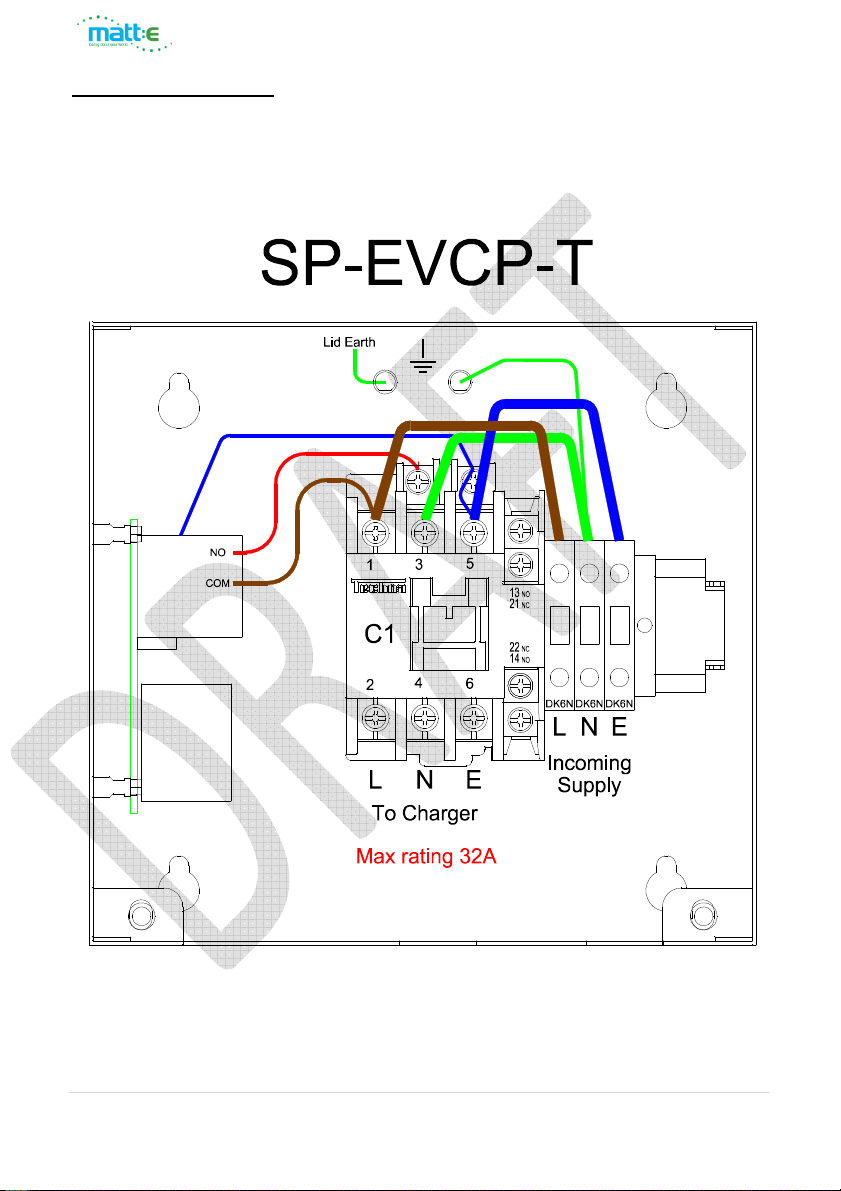

The user wiring connections are in icate in the iagrams below.

Single Phase EV Charger Protection unit
7 | P a g e
Connect the incoming cable from the istribution boar irectly to either the
terminals (-T version) or the RCBO (-R version).
Connect the outgoing cable to the contactor.

Single Phase EV Charger Protection unit
8 | P a g e
THIS PRODUCT IS DESIGNED FOR AN ISOLATED EARTHING
ARRANGEMENT. CHECK BEFORE USING SWA CABLE
On completion of inst ll tion the tightness of ll electric l
connections should be checked before energising the unit.
See specific tions for tightening torques.
Operating Instructions
With the supply switche on the unit will monitor the incoming supply
voltage. If the incoming supply is within limits approximately 5 secon s after
switching on the contactor will energise an connect the loa to the
incoming supply. This elay is to establish the incoming supply is stable
before applying power to the loa .
In the event the SP-EVCP unit etects a fault con ition on the monitore
supply for a perio of 4 secon s the contactor coil will be e-energise which
will open the contactor isconnecting phase, neutral an CPC from the loa .

Single Phase EV Charger Protection unit
9 | P a g e
Specifications
Description Electric Vehicle Ch rger Protection Unit
Input (Volts) Nominal input voltage 230v, 50Hz
M x Lo d 32A - All units
Dimensions 182mm x 169mm x 96 (111)mm
Weight Approximately 2.5 kg
Oper ting Temp -5°C to +40°C
Enclosure Mil Steel Zintec Pow er Coate
Power Consumption 13VA
Ingress Protection IP4X
Document Revision
V1.0 Oct 2019
Termin l C p cities Min Max Torque
Incoming Terminals cable size &
tightening torque 0.5 mm
2
6.0mm
2
1.3Nm
Incoming RCBO cable size &
tightening torque 2.5 mm
2
16.0mm
2
3Nm
Outgoing Contactor cable size &
tightening torque 2.5 mm
2
16,0mm
2
3,5Nm
Warranty
The SP-EVCP units are guarantee for a perio of 2 years from the ate of
manufacture.
This warranty is limite to the replacement of faulty components only.
t: 01543 227290 e: [e-mail] w: www.matt-e.co.uk
matt:e Lt , Unit 5, Common Barn Farm, Tamworth Roa , Lichfiel WS14 9PX

Single Phase EV Charger Protection unit
10 | P a g e
EU Declaration of Conformity (DoC)
Ref : SP-EVCP-10-2019
We
Company name: matt:e Ltd
Postal address: Unit 5 Common Barn Farm Tamworth Road
City Lichfield
Postcode: WS14 9PX
Telephone number: 01543-227290
E-Mail address: [email protected]k
Declare that this DoC is issued under the sole responsibility of the manufacturer.
Apparatus model/Product: SP-EVCP-R SP-EVCP-T
Type: SP-EVCP
Object of the declaration
Electric Vehicle Charger
Protection units SP-EVCP-T SP-EVCP-R
The object of the declaration described above is in conformity with the relevant Union
harmonisation legislation:
Low Voltage Directive (2014/35/EU)
The following harmonised standards and technical specifications have been applied:
EN61439-2 2011 Low-voltage switchgear and controlgear assemblies.
EN60947-3 Low-voltage switchgear and controlgear
EN61009-1 Residual current operated circuit-breakers with integral overcurrent
Signed for and on behalf of: matt:e Ltd
Place of issue Date J Charlton, Director
Lichfield, England 3 Oct 2019
