Maxell MXIP-100 User manual


MXIP
-
100
Intense Pulsed Light Device
PA1777
-
00
Contents
Content of the package 2p.
2p.
Safety Precaution 2p.
Features 5p.
Part Names 6p.
Sites where the device can be used 7p.
Frequency of Use 9p.
Preparation before use 9p.
Operation Instructions 10p.
Maintenance 13p.
Troubleshooting 13p.
Device Disposal 14p.
Specification 14p.
Introduction
User Manual
Thank you for purchasing Maxell product.Please read the user manual in advance and use the product safely.

Danger
Warning
Caution
Danger refers to misuse which might lead to death or serious
injury*1 to a high degree.
Warning refers to misuse which might lead to death or serious
injury*1.
Caution refers to misuse which might lead to injury*2 or
damage*3.
*1: Serious injury refers to blindness or injuries, burnt,
electric shock, bone fracture, poisoned or injury
with after-eect, or resulted in hospitalization or
long-term follow-up consultation.
*2: Injury refers to burnt, electric shock which do not
result in hospitalization or long-term follow-up
consultation.
*3: Damages refers broad damages to houses or
properties and domestic animals/pets.
Main Unit
About the user manual
Disclaimer
User Manual Color Chart
・Contents of this user manual might be changed in the future without prior notice.
・For product improvement, change of appearance or specication might not be announced in advance.
・Except for personal use, any unauthorized copying of part or all parts of this manual is prohibited. Unauthorized
republication is strictly prohibited.
Please strictly follow and use safely.
・Maxell shall not be responsible for any damage caused by res, earthquakes, action of a third party, any accidents, intended
or unintended misuse or other usage under abnormal conditions.
・All explicit and implicit contents not stated in the warranty card are not covered.
・Maxell shall not be responsible for failure due to any damage caused by usage other than described in the instruction
manual.
・This product is not being designed to be any equipment or device which could be concerned with human life such as
medical device, nuclear device, astronomic device, transportation device etc., nor equipment or devices which requires high
reliability. In case this product is used for the above equipment and/or systems, Maxell do not responsible for any injuries or
re accident cause by the failure of this product.

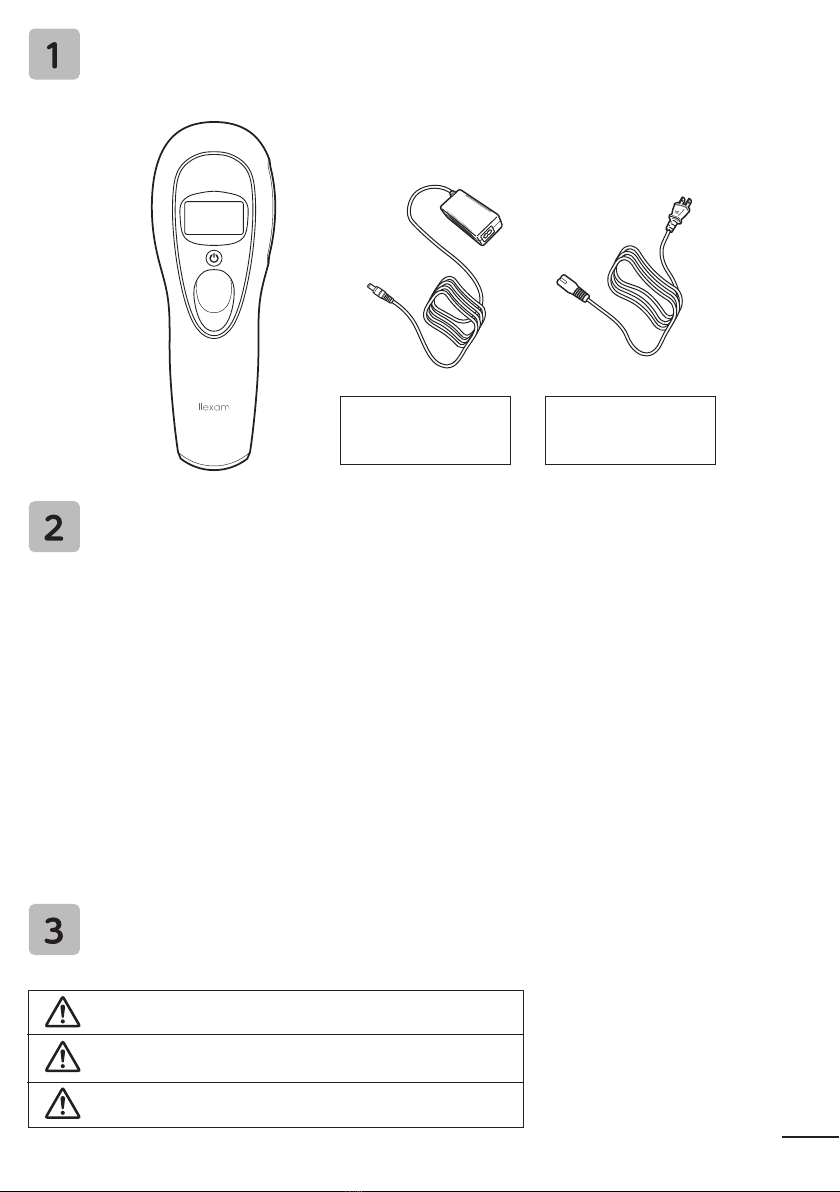

Content of the package
Power Adapter Power Cable
2
Safety Precaution
Introduction

Do not use any voltage other than the specified
power supply voltage
This may cause electric shock or re.
The power input of the AC adaptor of this product is
AC100~240.
Do not damage,forcibly bend,twist,put heavy
objects on,pinch,bundle,or modify the power
cable and power adapter
It may cause smoke or re.
Do not use loose plugs
It may cause electric shock, short circuit or re.
Plug the AC adaptor to AC outlet firmly
Partially plugged AC adaptor may cause to re or electric shock.
Do not modify, disassemble or repair
It may cause smoke,electric shock or injury.
If an abnormality occurs,immediately stop using and disconnect the power plug
It may cause smoke,re, electric shock or injury.
Do not irradiate on hair or clothes
Store in a place out of reach of children
It may cause burn, electric shock or injury.
Do not use over the area that had peeling treatment.
It may cause skin trouble.
It may cause skin trouble.
If you are taking medication continuously,please
consult your doctor before use.
It may cause accidents or physical deterioration.
Do not use directly on eyes
It may damage your eyes.
It may cause accidents or physical deterioration.
The following people do not use this device
・Person being treated by a doctor・People under 18・Pregnant or menstruating・Skin perception disorders・
People with fever.・Person with allergies, person who is prone to rashes caused by cosmetics, clothing, metals,
etc・People with acute diseases, tuberculosis, infectious, malignant tumours, etc.・Person with allergies,
dermatitis, eczema, herpes and other skin diseases・Person whose skin is sensitive to sunlight・Those who
cannot express their intentions・People who are recently consumed alcohol.
Do not use perfume or make-up products immediately
after the treatment.(Excluding cream or lotion for
moisturizing)
It may cause burn or deformation.
Those who use electric medical devices implanted in the body such as pacemakers should keep the main unit away
from these medical devices
Prohibited actions when handling the product.
Caution to re, explosion, high temperature when handling the product.
instruction which must be followed when handling the product.
Warning
Danger
It may cause an accident or poor physical condition.
・Sunburned skin・Dark spots, such as freckles, stains and black moles・Scabs, cuts, rashes, bruises, warts,
pimples, rashes, insect bites・Skin cancer, ringworm, folliculitis, varicose veins・Hemangiomas・Cosmetic
surgery area・Around eyes, eyebrows, lips, neck, abdomen (female only), genital parts, back・Tattoos, and
permanent make-up・On make-up
It may cause an accident or skin trouble.
Do not use in the following areas
The shape of graphic symbol that indicates specic notes is shown in black.
The shape of graphic symbol that indicates specic notes is shown in black.
The shape of graphic symbol that indicates specic notes is shown in black.
Example of symbols
3

Unplug the power plug from the power outlet when not in use
This may cause electric shock, smoke, re.
Regularly check the irradiation part for contamination
Do not drop or throw against something
Do not use while wearing metal ornaments such as necklaces
This may cause malfunction or burn
This may cause malfunction or burn
This may cause malfunction or burn
Do not touch the irradiated site during or immediately after use
This may cause burn
Do not irradiate the same site repeatedly
This may cause burn or injury
Do not use while wearing wet clothes
Do not put into refrigerators
Do not put into a fire
This may cause smoke or re.
Do not use for pets
This may cause burns or injury.
Do not use for any purpose other than that described
in the instruction manual
Do not block the air inlet or outlet ports
This may cause overheat, smoke, fire.
Do not look directly or let others look directly at the
irradiation window
Do not use in a dark room
This may damage your eyes.
This may damage your eyes.
Do not use the product in a humid place such as
bathroom
Immediately stop use if the main unit dropped or
damaged
Continuation of use may cause electric shock, fire or injury.
Check whether the main unit is deformed,cracked or
damaged before use.
This may cause overheat, smoke, fire, malfunction or injury.
This may cause overheat, electric shockor malfunction.
This may cause overheat or malfunction.
This may cause malfunction, injury.
This may cause malfunction.
This may cause malfunction.
This may cause malfunction or injury.
Do not place the product in direct sunlight or outdoor
This may cause overheat or re.
Do not use or store near heating devices such as stoves
This may cause overheat, re or leakage.
Caution
Do not use with wet hands
Always unplug the power plug from the power outlet
when cleaning
When unplugging the power plug,always hold the
plug without pulling the cable
Do not coverthe poweradapterwith a cloth or acover
Heat will accumulate and cause deformation of the case,
fire or electric shock.
Do not splash or soak in water
It may cause electric shock or malfunction.
4
It may cause electric shock, short circuit or re.
It may cause electric shock.
This may cause electric shock.
Do not use a power adapter other than the provided
power adapter
Warning
Do not put into heating appliances such as microwave
ovens or pressure cookers

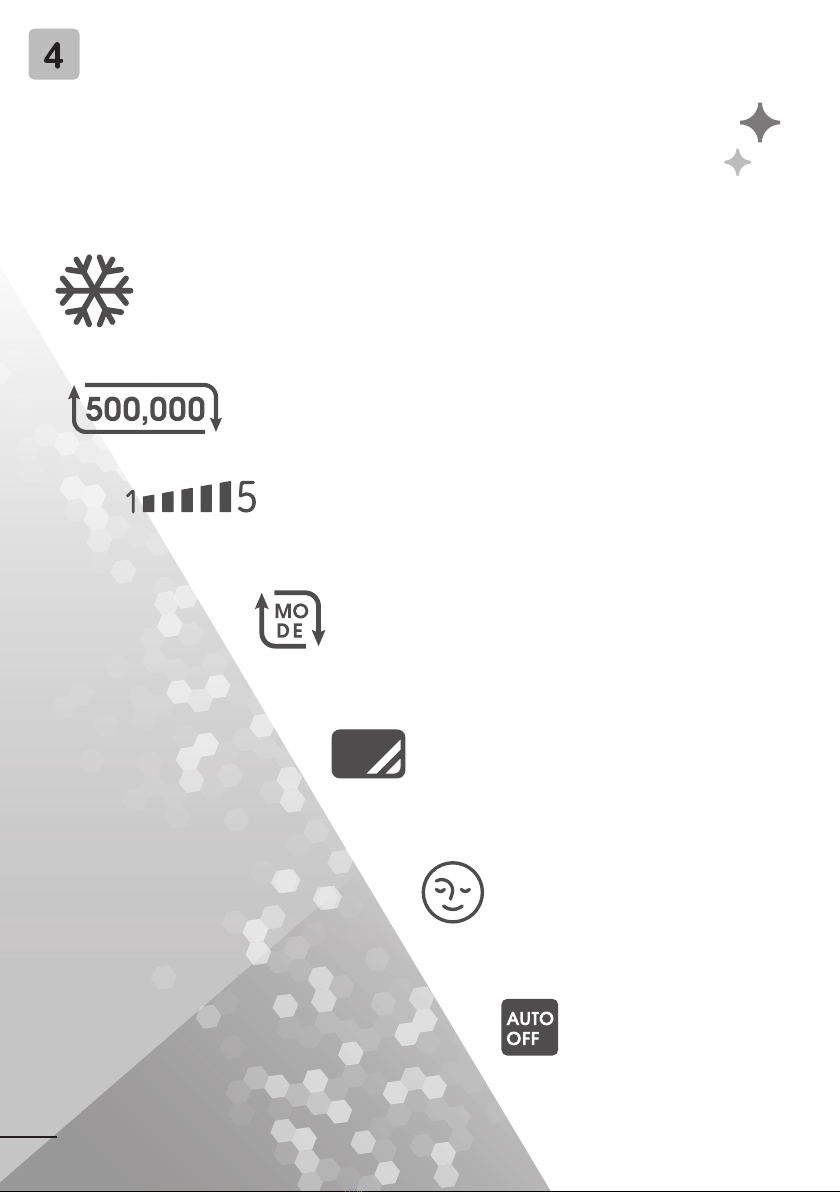

This product is a device that irradiates the skin with light to remove unwanted hair.
A cooling plate is installed around the irradiation window to cool down the skin at the
same time as irradiation.
It lessens the pain and heat during irradiation and gently cares for the skin.
Irradiation times 500,000times
5-Levels Output Setting
The remaining irradiation count, output level, mode,
and irradiation preparation status can be checked on
the LCD display.
LCD Display
Sensors on both sides of the irradiation
window. When the sensor detects skin
contact, the device can irradiate.
The plate gets cold when the power is turned on.
It cools the skin while irradiating.
Cooling Plate
If there is no operation for 3 minutes
with the power on, the power will
turn o automatically .
Auto-off Function
Automatic continuous irradiation.
Irradiate manually each time.
Mode Switching
Continuous Mode
Single Mode
5

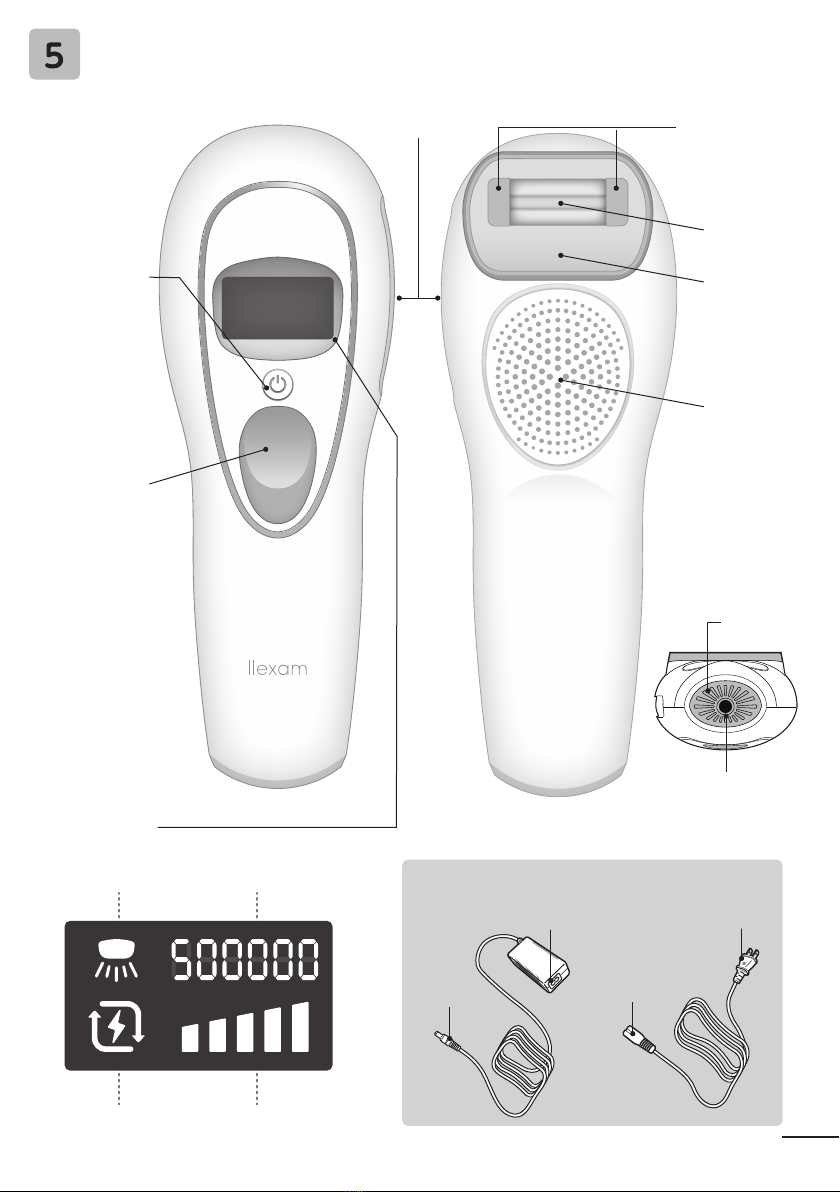

Features
Skin Detection Sensor

Display
Main Unit
Power Adapter Power Cable
Skin Detection
Sensor
Irradiation
Window
Cooling Plate
Air Inlet
DC Jack
Main Unit Bottom
Multi-Function
Button
Irradiation
Ready Display
Mode display Output level
Remaining
Irradiation
Count
Air Outlet
Air Outlet
Adapter socket
DC Plug Adapter
plug
Power Plug
Long Press :
Power ON/OFF
Short Press :
Output level Switch
(1-5)
Power Button
Long Press :
Single Mode/
Continuous Mode Select
Switch
Short Press:
Irradiation
(In Single Mode)
6
Part Names

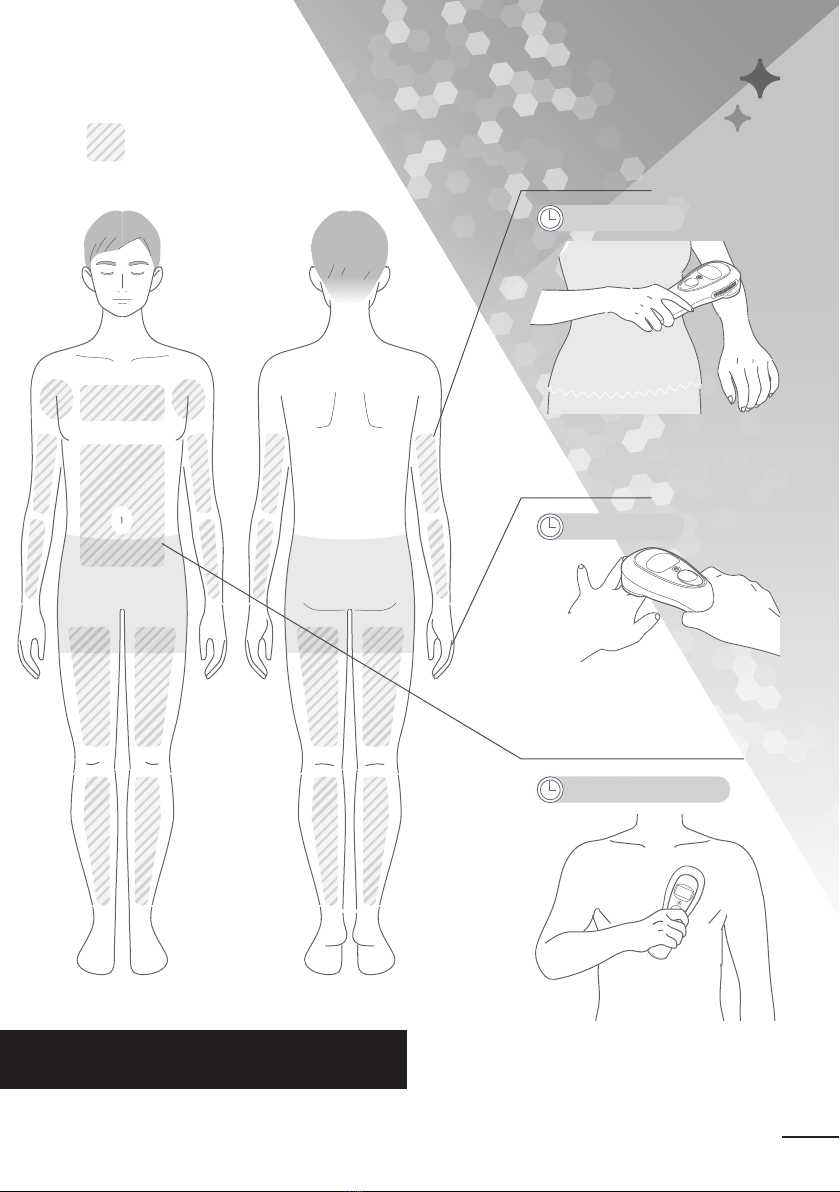

Recommended Treatment Area
Caution
Face
Armpit
Legs
Bikini line
(Female only)
※Do not use above
the cheekbones.
The time is an approximate time when used at level 1.
Areas that cannot be
irradiated.
approx. 1 min
approx. 2 mins
approx. 2 mins
approx. 10 mins
7

Areasthatcanbeirradiated.
The device cannot irradiate without touching the
skin detection sensor.
Finger
Arms
Chest・
Abdomen
(Male Only)
※Do not use on areola.
※Do not use on navel.
approx. 6 mins
approx. 1 min
approx. 3 mins each
8

・Do not irradiate the allergy tested area within a week.
・Stop using if skin irritation occurs (such as redness) and consult a dermatologist if irritation continues after 2 days.
Caution
・The eect depends on the area of use and personal constitution. ・Do not exceed the above frequency of use.
Caution
Check the skin and hair color Removing hair
Remove make-ups Remove the protective film
attached to the display.
Use on bare skin (Remove all
make-up, lotion, cream and perfume)
It may cause skin trouble if used on
make-up.
When using for the rst time, or has not used for a period of time, please perform a allergy test
to make sure that no skin trouble occurs. (See P.10 for how to use)
Be sure to remove hair before using.
Hair growth or hair remaining on the
skin surface can cause burns. Please
do not remove the hair from the root,
such as waxing or pulling out hair
with a tweezer.
If hair growth is no longer seen, it is not necessary to perform the treatment as often as above.
If hair becomes visible again, perform the treatment as needed.
Please check the attached color chart.
Irradiate the area where you want to use once with output level 1.
❶
❷After 48 hours, check the tested area for any abnormalities.
Please consult your doctor if any abnormalities are seen such as redness
week
week
week
once
once
once
1 week
1 or 2 weeks
2 weeks or 1 month
First
5~8
9~12
1~4
Allergy Test
9
Frequency of Use
Preparation before use

Switch
Output Level
Theoutputlevelcanbeswitchedbyshort
pressingthepowerbutton.Selecttheoutput
levelyouareusing.
Turn on the
Power
Press and hold the power button (for 2 seconds) to
turn on the power.
A beep sounds and the display lights up.When the
power is turned on, the setting is single mode and
output is level 1.
Connect Power
Adapter Plug
DC Jack
DC Plug
Adapter Socket Power Plug
Single
Mode
Display
Long Press Output
level1
Outlet
※If you are using the device for the rst time, we
recommend that you start from output level 1.
Level 1
Level 2
Level 3
Level 4
Level 5
・Please keep the room bright when using.・Storage light will be generated when irradiating, please make sure that there are no
people or pets nearby.・Strong light is emitted during use. Be careful not to look directly at the area of use. • When using on face,
please close your eyes.
Caution
Short Press
10
Operating Instructions

It irradiates when the multi button
is pressed.
Move the irradiation position and repeat steps to
The irradiation interval is approx. 1 to 3 seconds. It depends on the
output level.
Single Mode
Single Mode
Make sure there is no gap between the irradiation window and the
area you want to irradiate.
The display ashes while the skin detection sensor is in contact
with the skin.
*If the skin detection sensor is not in
contact with the skin, the device
cannot irradiate.
Flashing
Ready for
irradiation!
Press without gaps
Move the irradiation
position
Press against the area you
want to use.

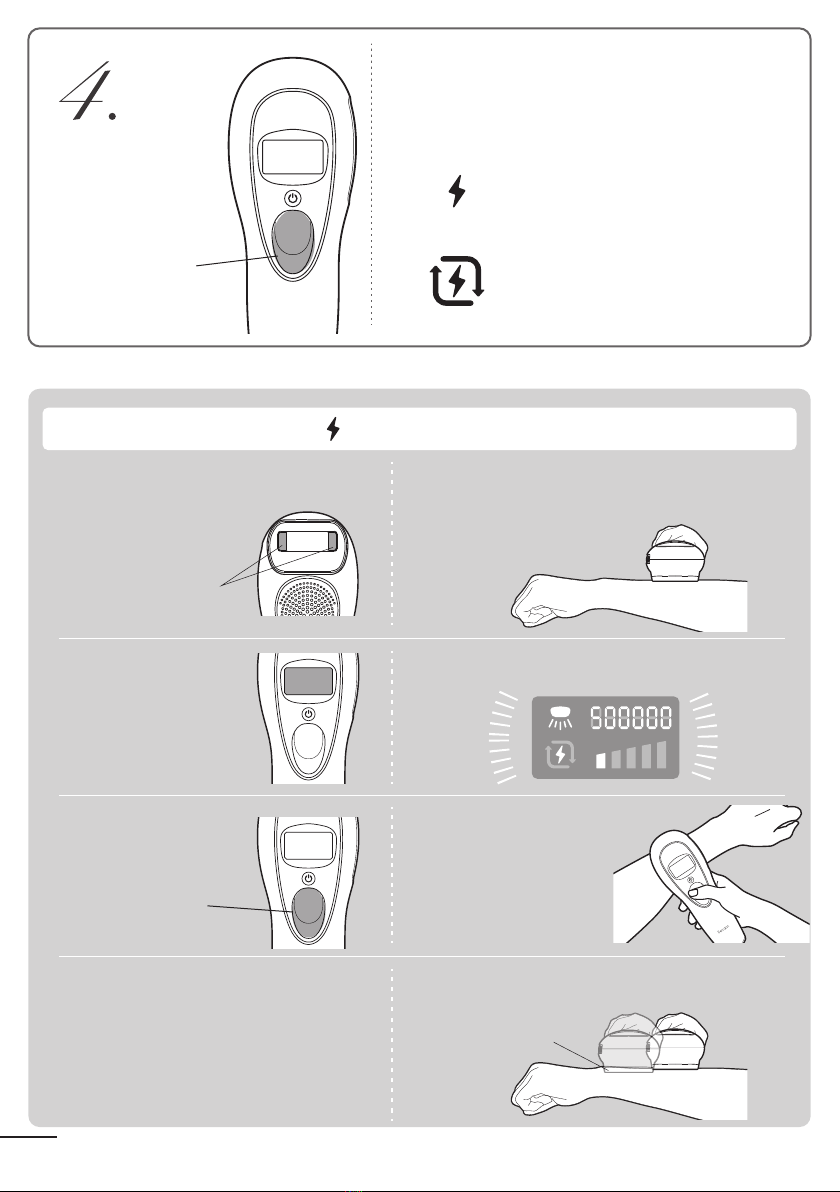

For each mode, see the mode description below to use .
When you want to perform a treatment for a
small area or sensitive area
When you want to eciently care for a wide
area
*Continuous mode is a mode of continuously
irradiated with preset output level.
*The level cannot be changed in continuous
mode.
❶
Ready for
irradiation
❷
Irradiation
❸
Repeat irradiation
❹
Irradiation is ready when the entire display ashes.
❶ ❸
Continuous
irradiation mode
Long Press
Press
The mode can be switched by long pressing the
multi button (for 2 seconds).
Select the mode to use.
11
Switch the
mode

・As the level gets higher, more heat is felt. However, it is not abnormal.
・Smoke and odour may occur due to burning of hair during use.
・Do not continuously irradiate at the same area.
・This product has a cooling function as being used, however, if you are concerned about the heat of your skin or burning
sensation or redness, cool the skin down with a towel soaked with cold water, etc.
・If you experience severe pain, stop using immediately.
Caution
Press and hold the power button (for 2 seconds)
to turn o the power.
Unplug the power plug from the power outlet.
When the skin detection sensor detects the skin, irradiation
will start immediately.
Slide the main unit at the same speed.
Be careful not to overlap the irradiated area.
The irradiation interval is about 1 to 3 seconds. It depends on
the output level.
Continuous Mode
Move the irradiation
position
※When the power is turned o, the temperature inside the main
body is transmitted to the cooling plate, which may cause the
cooling plate to become warm.
Allow time for it to cool down before cleaning.
Caution
Make sure there is no gap between the irradiation window and the
area you want to irradiate.
Press against the area you want to
use
❶If the skin detection sensor is not in contact with the skin, the
device cannot irradiate.
Irradiate automatically
❷
Repeat irradiation
Cool-down Function
❸
Finish
Long Press
・If an irradiation error occurs, "E30" is displayed and the operation will stop for 30 seconds.
・If there is no operation for 3 minutes with the power on, the power will turn o automatically.
・Do not leave it plugged in after use.
・Depending on the ambient temperature, the cooling plate may not cool suciently and may not feel cold.
When the temperature inside the main unit rises, it stops operating and cools down for
20 seconds.
※the timing to cool down depends on the output level and the surrounding environment.
Press without
gaps.
12

CauseProblem Solution
Power is o
The display is not
showing
Not irradiating
Cannot switch
modes
Cannot switch levels
Power turns o
Connect the power adapter and power cable securely
Not using a dedicated power adapter Use the provided power adapter and cable
The time to press and hold the power
button is too short Press and hold the power button (for 2 seconds)
The number of counts of irradiations that can be
used is 500,000
The time to press and hold the multi-
button is too short Press and hold the multi button (for 2 seconds)
The mode is set to continuous
irradiation mode
Press and hold the multi button (for 2 seconds)
to switch to single mode
It is not abnormal
If you are concerned, wipe it o before using
The cool-down
function is repeated
frequently
It is used continuously for a long
period of time and the inside the
main body is generating heat
Stop using the device for a while until it reaches room
temperature
Not operating for 3 minutes
There is an error Unplug the power plug and wait a while
Insert the power plug and turn on the power
The cooling plate is
wet during use Condensation on the cooling plate
Please use within the operating temperature range
Cooling plate does
not cool The ambient temperature is too high
Auto-o function is working
The skin detection sensor is not responding Both skin detection sensors should be in contact with the skin
The remaining counts of irradiation are
insucient
・Always stop operation and unplug the power plug from the power outlet when cleaning.
・Just after use, the irradiation window and cooling plate will still keep the temperature, so please cool
down a little before cleaning.
・Gently wipe off the irradiation window, cooling plate, and main unit with a dry
cloth.
・This product is not waterproof. Do not soak it in water or splash it with water.
・Do not use chemicals such as benzine, thinner and alcohol.
Caution
For parts that are dicult to wipe, wipe them
gently with a cotton swab.
13
Maintenance
Troubleshooting (when problem arise)
If the symptom does not improve, unplug the power plug. After a while, plug it in and turn on the power.

Whendisposing ofthis product,please followthe instructions(localregulations) ofeach localgovernment.
Main Unit
Power Adapter
Dimension
Weight
Input voltage / current
Power consumption
OperationTemperature
Input
Output
Length
LengthPower Cable
W74×H207×D51mm
Approx. 290g
DC12V/4A Max.
Max. 48W
5oC ~ 35oC
AC100-240V 50/60Hz
DC12V/4A Max.
approx. 1.8m
Approx. 1.5m
14
Specification
Device Disposal
Maxell, Ltd.
30-13 Motoyoyogi-Cho, Shibuya-Ku, Tokyo 151-8527
Table of contents
Other Maxell Personal Care Product manuals
