Maxspect Aeraqua Duo User manual

Owner’s Manual
Bedienungsanleitung
Mode d’emploi
Manual de Usuario
Manual do Proprietário
Instrukcja Obsługi
Manuale del proprietario
使用说明书
使用說明書

1
User Memo
Dear Customer,
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
User Memo:
Date of purchase:
Dealer name:
Dealer address:
Dealer website:
Dealer email:
Dealer phone no.:
Please visit us on Facebook or Twitter!
https://www.facebook.com/Maxspect
http://twitter.com/maxspectled
EN

2
Package Content
Please check the content in the package.
x1
x1
x1
x1
x1
x4
x2
38
Spare Parts
x1
EN

3
Precautions
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. DANGER –To avoid possible electric shock, special care should be taken since water is employed
in the use of aquarium equipment. For each of the following situations, DO NOT attempt to repair
by yourself; return the appliance to an authorized service facility for service or discard the
appliance.
a) If the appliance shows any sign of abnormal water leakage, immediately unplug it from the
power source.
b) Carefully examine the appliance after installation. It should not be plugged in if there is water
on parts not intended to be wet.
c) DO NOT operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or has
been dropped or damaged in any manner.
d) To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium stand
and tank to one side of a wall-mounted receptacle to prevent water from dripping onto the

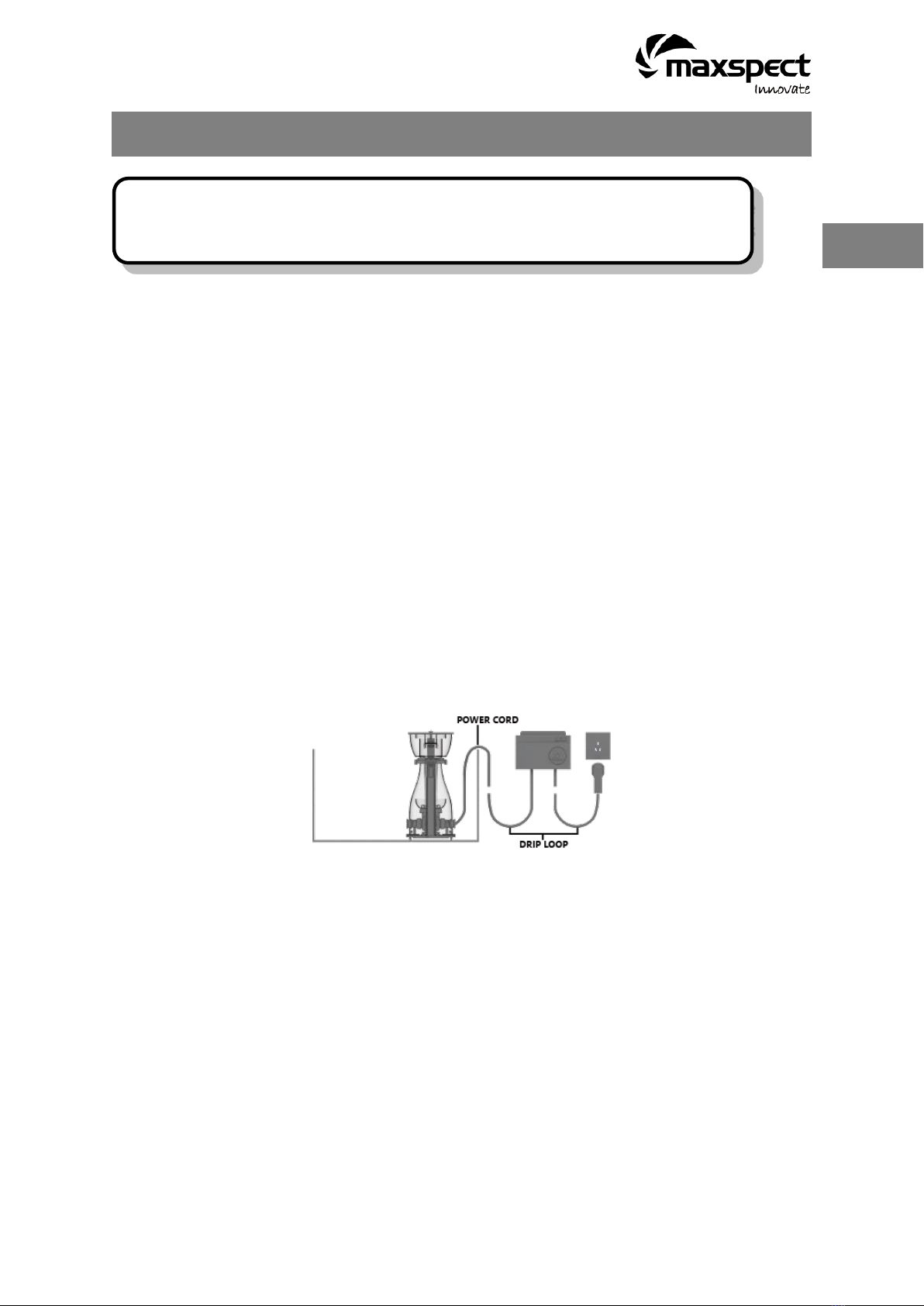

receptacle or plug. A “drip-loop” shown in the figure, should be arranged by the user for each
cord connecting an aquarium appliance to a receptacle. The “drip-loop” is that part of the cord
below the level of the receptacle, or the connector if an extension cord is used, to prevent
water traveling along the cord and coming in contact with the receptacle. If the plug or socket
does get wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker that supplies
power to the appliance. Then unplug and examine for presence of water in the receptacle.
2. Close supervision is necessary when any appliance is used by or near children.
3. To avoid injury, DO NOT contact moving parts or hot parts such as heaters, reflectors, lamp bulbs,
and the like.
4. Always unplug an appliance from an outlet when not in use, before putting on or taking off parts,
and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to
disconnect.
5. DO NOT use an appliance for other than intended use. The use of attachments not recommended
or sold by the appliance manufacturer may cause an unsafe condition.
6. DO NOT install or store the appliances where it will be exposed to the weather or to temperatures
below freezing.
7. Make sure an appliance mounted on a tank is securely installed before operating it.
8. Read and observe all the important notices on the appliance.
9. If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for less amperes
or watts than the appliance rating may overheat.
Before using this Maxspect™ Aeraqua Duo Protein Skimmer please read these
operating instructions carefully. Take special care to follow the safety suggestions
listed below. Afterwards keep this manual handy for future reference.
EN

4
Installation
Remove all the packing materials before assembling.
Important: This plug is used to
indicate the optimal water level.
Do not take out or it will lead to
water leaking.
EN

5
Preview
Preview
Maxspect™ Aeraqua Duo Protein Skimmer is different from most of similar products sell in
the market, it is a brand new design skimmer features with several advantages.
Dual Water Inlets: Aeraqua Duo features dual water inlets(4) which allow the skimmer
sucks water from both sides of the skimmer. Fully close either side of the inlets allows it
sucks water from inside of the skimmer. This makes better water filtration for the
aquarium.
Dual Needle Wheels: Each water inlet features dual needle wheels. One is spinning while
the other one is static. This unique design makes the bubbles generated even smaller and
in higher density compare to most of the traditional skimmers which using needle wheel
technology.
Highly Integrated: Aeraqua Duo is a highly integrated skimmer with both the water level
adjustor(8) and air hose(9) are integrated in the body of the skimmer. This saves more
space for the sump and is more convenient for the maintenance.
Over Flow Sensor: Aeraqua Duo features an over flow sensor(1) which can detect the
water level of the collection cup and send warning signal when necessary.
1.
Over Flow Sensor
5.
Air Hose
9.
Air Hose
2.
Collection Cup
6.
Cup Handle
10.
Dual Bubble Outlets
3.
Quick Release
7.
Drain Hose
11.
Water Outlet
4.
Dual Water Inlets
8.
Water Level Adjustor
1
2
3
4
5
3
4
5
6
9
7
8
10
11
EN

6
Positioning and Commissioning
Positioning

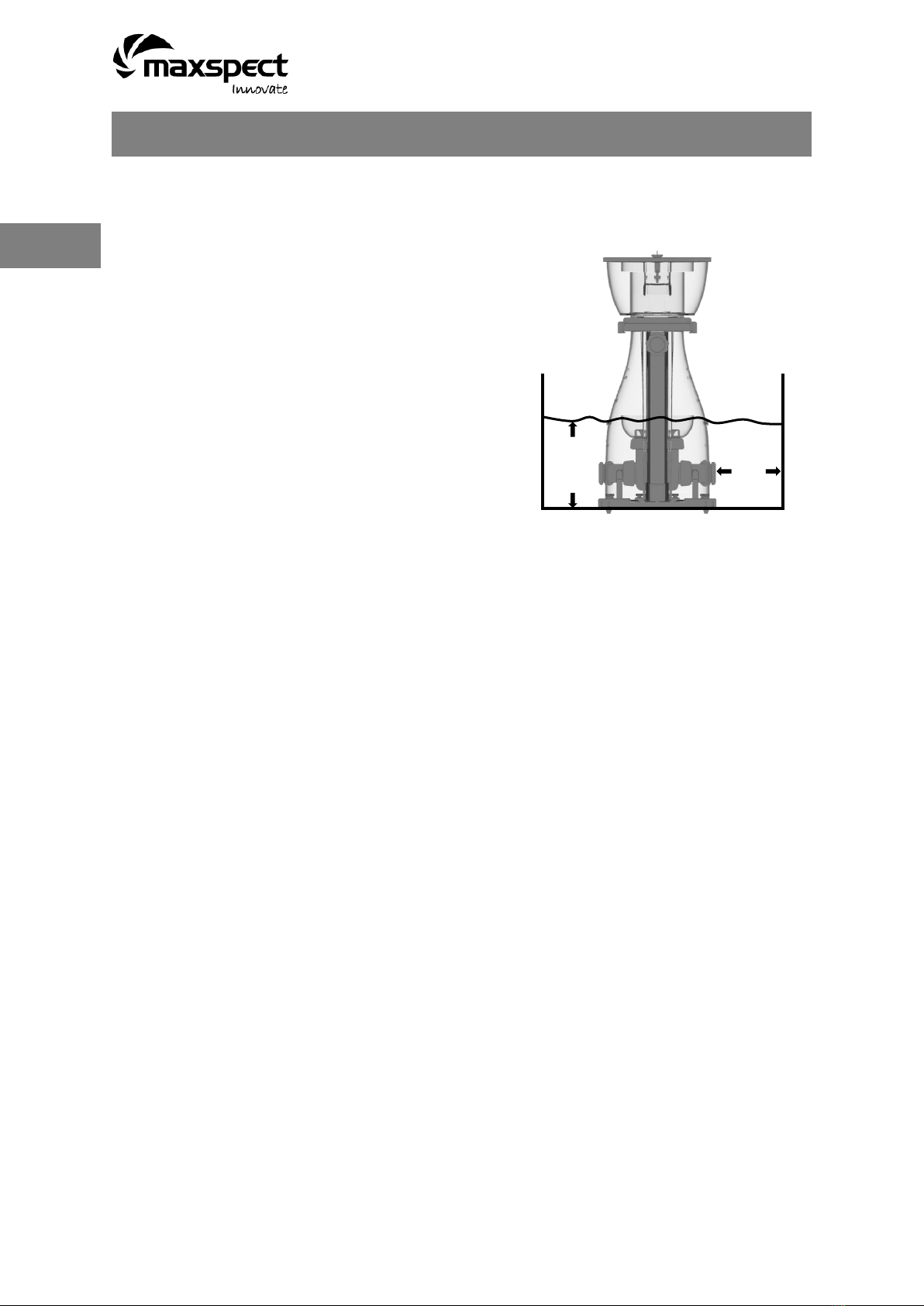

To position the Aeraqua Duo Protein Skimmer in a proper place, there are some rules should
be followed:
Before putting the skimmer into the sump, it is
recommended to clean it with fresh water.
Place the skimmer in a sump compartment where
the water level is in consistent height. An auto
top-up system may be needed to keep the water
level.
Place the skimmer in a place where is free of
debris, gravel, sand, shells and small objects.
The optimal water level of the skimmer is in
between 18-20cm/7.1”-7.9”.
Each side of water inlet requires at least 2cm /1inch
space.
The water outlet requires at least 2cm/1inch space.
For indoor use only.
Commissioning (Break-in)
After positioning the skimmer in the proper place. It is ready to put it into operation.
However, before the skimmer can perform optimally, it requires a break-in period which may
last from minutes to days of time. It depends on many factors such as: the adhesive
residues, fats or other similar impurities left in the skimmer, or chemistry, feeding and
surface tension of the water etc. To tune the skimmer, there are three ways you can choose.
Controller: You can adjust the working speed of the pump by setting parameter through
the controller.
Water Inlets: Both the water inlets are turnable. To each of them you can:
1.Adjust the water volume sucks from outside of the skimmer.
2.Suck water from both inside and outside of the skimmer.
3.Suck water from inside of the skimmer only.
Water outlet: You can control the water volume flowing out of the skimmer by turning the
water level adjustor(8).
The response of any adjustment change is delayed in time. For detailed operation, please
read “Operation” section.
18cm
-
20cm
2cm
EN

7
Operation
Aeraqua Duo Protein Skimmer features three different ways for you to adjust the foaming
performance.
1. Water Inlets
Aeraqua Duo’s unique design allows you to choose the ways of drawing water into the
skimmer by turning the water inlets.
For example, if there is a certain amount of fish and corals.
1) For a 400-750L/100-200gal aquarium, if it means high bio-load to the aquarium, it is suggested
to open 80 percent of one water inlet to draw water from outside of the skimmer while fully
close the other one to make it internal recirculation.
2) For a 750-1,250L/200-325gal aquarium, if it means medium bio-load to the aquarium, it is
suggested to fully open one water inlet to draw water from outside of the skimmer while open
30-50 percent of the other one to draw water from both inside and outside of the skimmer.
3) For a 1,250-1,700L/325-450gal aquarium, if it means low bio-load to the aquarium, it is
suggested to fully open both of the water inlets to draw water from outside of the skimmer.
The suggestion mentioned above is only a general guideline helping to explain the use of
water inlets. Which is suitable for your aquarium will be verified only after carefully tuning
observing of the skimmer.
IMPORTANT: DO NOT FULLY CLOSE BOTH OF THE WATER INLETS AT THE SAME TIME.
2. Water Outlet
You can control the water level by
Turning the water level adjustor.
EN

8
Operation

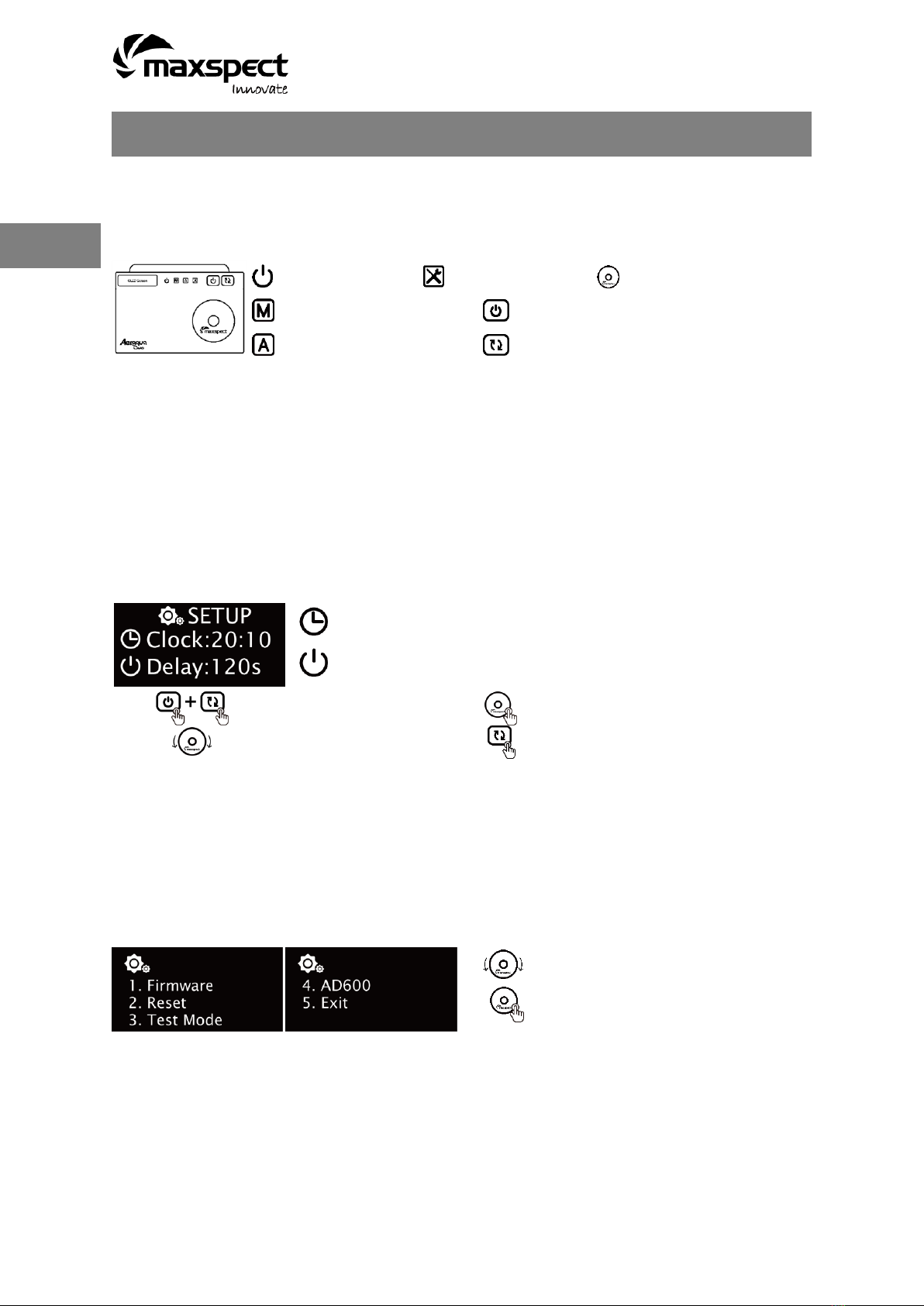

3. Controller
Controller Unit Introduction
Turn ON/OFF the Skimmer
Press the ON/FF button over 3s can turn on or off the appliance. While the appliance is turned
off, the appliance will stop working, the indicators and OLED screen of the controller will be
shut down. However, if the appliance is connected to an ICV6 (sold separately), it can be
activated by the SYNA-G App.
Initialize the Skimmer
Before putting the skimmer into operation, there are some basic settings you need to do for
the system.
1.
Enter setup page.
2.
Switch between settings.
3.
Set parameter.
4.
Save the setting.
Note: Delay Time allows you to set a duration for the appliance, when the appliance is connected to power
it will keep stop working for a period of time and then starts to work. This is useful especially when the
appliance is restored to power after power failure to avoid the overflowing of the collection cup. Available
settings: OFF, 10s(default), 30s, 60s, 120s, 180s, 300s.
System Setup
To enter the System Setup page, first disconnect PSU from the controller unit, then press and
hold the control dial and reconnect the PSU. Keep on holding the control dial until the
system setup page is shown on OLED monitor.
1. Upgrade or downgrade system’s firmware.
2. Reset user setting to default factory setting.
3. This function should only be conducted by the users when told by authorized dealer or customer
representative to perform certain test on the appliance.
4. Model Selection.
5. Reboot the system to the normal operating status.
ON/OFF, Feed Mode Button
Mode Switch, Setup Button
Control Dial
Power Indicator
Manual Mode Indicator
Automatic Mode Indicator
Setting Indicator
Set system clock.
Set the delay time before the appliance getting into
operation.
2.
Apply the function.
1.
Switch between functions.
EN

9
Operation
Switch between Modes
Manual Mode
1.
Enter setup page.
2.
Set parameter.
3.
Save the setting.
Note: Leave without operation for 30s will also save the setting.
Auto Mode
1.
Enter setup page.
2.
Switch between settings.
3.
Set parameter.
4.
Save the setting.
Note: Leave without operation for 30s will also save the setting.
Feed Mode
Overflow Detection
Overflow Warning: Pump turns OFF immediately when the buoy
of the sensor is floating on the water, “FULL” shown on the
display, LED Logo flashing on the controller. Sensor starts to
detect in 10s interval.
Back to Operation: If the buoy is back to its normal
position, the pump will recover to the previous working status. “Full” diapears. LED
Logo is constant on.
Manual Mode: Manually set the working speed of the pump.
Auto Mode: There are at most 8 time points for you to set
different working speeds which will be recycled every 24hrs.
Current working speed.
Working speed indicator.
Current duration.
Working speed indicator.
Current working speed.
Current time.
1.
Enter/Exit the Feed Mode.
2.
Enter setup page.
4.
Set parameter.
5.
Save the setting.
3.
Switch between settings.
EN
Buoy

10
Maintenance
Maintenance of the Appliance
The Maxspect™ Aeraqua Duo Protein Skimmer can be completely disassembled for
maintenance, cleaning and servicing. This is done in the order of the steps described below.
Due to the harsh conditions of a saltwater aquarium and resulting buildup of algae and other
organic matter, it is advisable to clean the pump to ensure the longevity of appliance.
Maxspect recommends doing a cleaning every 6 months or as necessary. If there is calcium
buildup, it may be necessary to soak these parts in a mild acid solution such as vinegar. DO
NOT use strong acids, because these may damage the components. After cleaning,
reassemble the appliance.
2. DO NOT disassemble the static needle wheel (Ref. Step 7).
3.
The housing integrated with static needle wheel must be
installed on the correct side when reassemble the pump.
(Ref. step 7)
1. The base integrated with air intake silencer also
needs to be cleaned while cleaning the skimmer.
1
2
3
4
5
6
7
A
B
EN

11

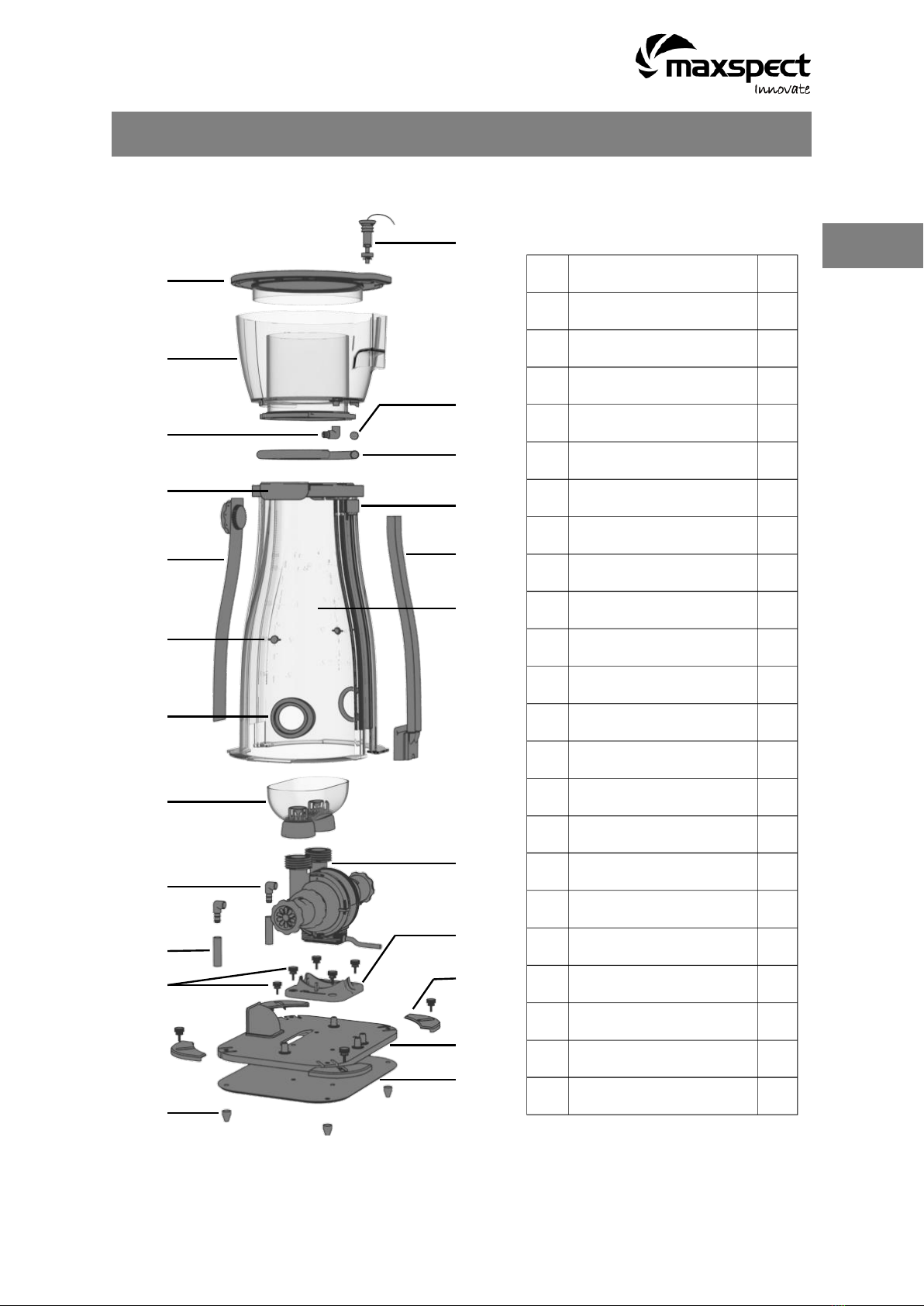

Spare Parts
Skimmer
No.
Name
QTY
1 Cup Cover 1
2 Collection Cup 1
3/9
Hose Connector 3
4 Quick Release 2
5 Water Level Adjustor 1
6 Optimal Water Level Plug 2
7 Water Inlet Seal 2
8 Bubble Cup 1
10
Air Hose 2
11
Pump/Skimmer Base Screw 8
12
Skimmer Pad 4
13
Overflow Sensor 1
14
Drain Hose Plug 1
15
Drain Hose 1
16
Air Intake Connector 1
17
Air Hose 1
18
Skimmer Body 1
19
Pump Body 1
20
Pump Base 1
21
Body Lock 4
22
Skimmer Base 1
23
Back Plate 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
EN

12
Spare Parts
Pump
QTY
2
1
2
2
1
1
Name
Silicon Seal
Rotor Cover
Bearing
Silicon Pad
Stator
Titanium Nut
No.
36
37
38
39
40
41
QTY
2
1
2
2
2
2
Name
Ceramic Bearing
Rotor
Water Inlet Nut
Air/Water Mixer
Needle Wheel Housing
Static Needle Wheel(undetectable)
No.
30
31
32
33
34
35
QTY
2
2
2
1
2
2
Name
Water Inlet Adjustor
Silicon Seal
Silicon Seal
Titanium Screw
Spinning Needle Wheel
Silicon Pad
No.
24
25
26
27
28
29
24
25
26
36
28
29
30
31
30
29
28
27
26
25
24
32
33
34
35
41
40
38
39
39
38
37
36
35
34
33
32
EN

13
Warranty
Maxspect (HongKong) Limited warrants all Maxspect™ Aeraqua Duo Protein Skimmer
products against defects in workmanship for a period of 12-months from the date of purchase.
If a defect exists during the warranty period, Maxspect (HongKong) Limited at its option will
either repair (using new or remanufactured parts) or replace (with a new or remanufactured
unit) the product at no charge.
THE WARRANTY WILL NOT APPLY TO THE PRODUCT IF IT HAS BEEN DAMAGED BY MISUSE,
ALTERATION, ACCIDENT, IMPROPER HANDLING OR OPERATION, OR IF UNAUTHORIZED
REPAIRS ARE ATTEMPTED OR MADE. SOME EXAMPLES OF DAMAGES NOT COVERED BY
WARRANTY INCLUDE, BUT ARE NOT LIMITED TO, USING AFTER-MARKET LED BULBS AND
MODIFICATION OF THE CIRCUITRY, WHICH ARE PRESUMED TO BE DAMAGES RESULTING FROM
MISUSE OR ABUSE.
DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES:
You and any other user of Maxspect (HongKong) Limited products shall not be entitled to any
consequential or incidental damages, including without limitation, loss of use of the unit,
inconvenience, damage to personal property, phone calls, lost income or earnings. This
warranty gives you specific legal rights and you may also have other rights, which vary from
state to state.
MAXSPECT LTD. MAKES NO WARRANTY OR REPRESENTATION, EITHER EXPRESS OR IMPLIED,
WITH RESPECT TO THE PRODUCT'S QUALITY, PERFORMANCE, MERCHANTABILITY, OR
FITNESS FOR A PARTICULAR PURPOSE. AS A RESULT, THIS PRODUCT, IS SOLD "AS IS," AND
YOU THE PURCHASER ASSUME THE ENTIRE RISK AS TO ITS QUALITY AND PERFORMANCE.
IN NO EVENT WILL MAXSPECT LTD BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY DEFECT IN THE PRODUCT OR ITS
DOCUMENTATION.
The warranty, disclaimer, and remedies set forth above are exclusive and replace all others,
oral or written, expressed or implied. At no time will any Maxspect (HongKong) Limited
dealers, agents, or employees be authorized to make any modifications, extension, or
addition to this warranty.
Some states do not allow the exclusion or limitation of implied warranties or liability for
incidental or consequential damages, so the above limitation or exclusion may not apply to
you.
EN

14
Specification
Note: For the latest specifications of the product, please visit: www.maxspect.com
EN

15
Nutzer-Memo
Sehr geehrter Kunde,
vielen Dank für den Kauf dieses Produkts.
Für eine optimale Leistung und Sicherheit, lesen Sie bitte diese Anleitung sorgfältig.
Nutzer-Memo:
Kaufdatum
Händler:
Händleradresse:
Händlerwebsite:
Händler-E-Mail:
Händlertelefon
Bitte besuchen Sie uns auf Facebook oder Twitter!
https://www.facebook.com/Maxspect
http://twitter.com/maxspectled
DE

16
Packungsinhalt
Bitte überprüfen Sie den Lieferumfang auf Vollständigkei.
x1
x1
x1
x1
x1
x4
x2
38
Ersatzteile
x1
DE

17
Sicherheitshinweise
LESEN UND FOLGEN SIE ALLE SICHERHEITSHINWEISE
1. GEFAHR - Um einen möglichen elektrischen Schlag zu vermeiden, sollte besondere Vorsicht
geboten werden, da Wasser bei der Verwendung von Aquariengeräten eingesetzt wird. Für jede
der folgenden Situationen, versuche nicht, selbst zu reparieren; Bringen Sie das Gerät an eine
autorisierte Kundendienststelle zurück oder verwerfen Sie das Gerät.
a) Wenn das Gerät irgendwelche Anzeichen einer anormalen Wasserleckage aufweist, ziehen Sie
es sofort aus der Stromquelle.
b) Das Gerät nach der Installation sorgfältig prüfen. Es sollte nicht eingesteckt werden, wenn es
Wasser auf nicht beabsichtigte Teile gibt.
c) Betreiben Sie das Gerät nicht, wenn es beschädigtes Kabel oder Stecker hat oder wenn es
fehlerhaft ist oder in irgendeiner Weise fallengelassen oder beschädigt wurde.
d) Um die Möglichkeit zu vermeiden, dass der Gerätestecker oder die Steckdose nass wird,
positionieren Sie den Aquarienständer und den Tank auf eine Seite einer Wandsteckdose, um
zu verhindern, dass Wasser auf die Steckdose oder den Stopfen tropft. Eine "Drip-Loop", die in
der Abbildung gezeigt wird, sollte vom Benutzer für jede Schnur angeordnet werden, die ein
Aquariumgerät mit einer Steckdose verbindet. Die "Tropfschleife" ist der Teil des Kabels
unterhalb des Niveaus des Behälters oder der Stecker, wenn ein Verlängerungskabel verwendet
wird, um zu verhindern, dass Wasser entlang der Schnur fährt und mit dem Behälter in
Berührung kommt. Wenn der Stecker oder die Steckdose nass wird, ziehen Sie den Netzstecker
nicht ab. Trennen Sie die Sicherung oder den Schutzschalter, der das Gerät mit Strom versorgt.
Dann trennen und prüfen auf Vorhandensein von Wasser in der Steckdose.
2. Die Überwachung ist erforderlich, wenn ein Gerät von oder in der Nähe von Kindern benutzt wird.
3. Um Verletzungen zu vermeiden, wenden Sie sich nicht an bewegliche Teile oder heiße Teile wie
Heizkörper, Reflektoren, Lampenkolben und dergleichen.
4. Ziehen Sie das Gerät immer aus der Steckdose, bevor Sie es benutzen, bevor Sie es anziehen oder
abnehmen, bevor Sie es reinigen. Niemals das Kabel ziehen, um den Stecker aus der Steckdose
zu ziehen. Fassen Sie den Stecker an und ziehen Sie ihn abziehen
5. Verwenden Sie kein Gerät für andere als den vorgesehenen Gebrauch. Die Verwendung von
Anhängen, die vom Gerätehersteller nicht empfohlen oder verkauft werden, kann zu einem
unsicheren Zustand führen.
6. Installieren oder lagern Sie die Geräte nicht dort, wo sie dem Wetter ausgesetzt sind, oder
Temperaturen unter dem Gefrierpunkt.
7. Stellen Sie sicher, dass ein Gerät, das an einem Tank montiert ist, vor dem Betrieb sicher installiert
ist.
Vor der ersten Inbetriebnahme des Maxspect™ Aeraqua Duo Protein Skimmer sollten Sie
diese Bedienungsanleitung sorgfältig lesen. Bitte beachten Sie die folgenden
Sicherheitshinweise mit großer Sorgfalt.Bewahren Sie diese Anleitung auch zum späteren
Nachschlagen auf.
DE

18
Installation
Entfernen Sie alle Verpackungsmaterialien vor dem Zusammenbau.
Wichtig: Mit dieser Kappe wird der
optimale Wasserstand angezeigt.
Entfernen Sie es nicht, da dies zu
Wasserlecks führen kann.
DE
