Maxtor DIAMONDMAXTM PLUS 5120 90750D3 User manual

HARD DRIVE
PRODUCT
MANUAL
DiamondMax™Plus 5120
92048D8, 91792D7, 91536D6
91280D5, 91024D4, 90750D3

DiamondMax™Plus5120
92048D8, 91792D7, 91536D6, 91280D5,
91024D4 and 90750D3
All material contained herein Copyright © 1999 Maxtor Corporation.
DiamondMax™, DiamondMax™ 4320, DiamondMax™ Plus 2500,
DiamondMax™ Plus 5120 and MaxFax™ are trademarks of Maxtor
Corporation. No Quibble®Service is a registered trademark of Maxtor
Corporation. Other brands or products are trademarks or registered
trademarks of their respective holders. Contents and specifications
subject to change without notice. All rights reserved.
Corporate Headquarters
510 Cottonwood Drive
Milpitas,California 95035
Tel: [phone]
Fax: [phone]
Research and Development
EngineeringCenter
2190 Miller Drive
Longmont,Colorado80501
Tel: [phone]
Fax: [phone]
Part #1410/A

Revisions Manual No. 1410
VER.ONCENOITCESNOITPIRCSED ETAD
AC75397llA.esaelerlaitinI 99/02/30

BeforeYou Begin
Thank you for your interest in the Maxtor DiamondMax™ Plus 5120 AT hard disk drives. This manual provides
technical information for OEM engineers and systems integrators regarding the installation and use of DiamondMax
hard drives. Drive repair should be performed only at an authorized repair center. For repair information, contact
theMaxtorCustomerServiceCenterat800-2MAXTORor408-922-2085.
Before unpacking the hard drive, please review Sections 1 through 4.
CAUTION
Maxtor DiamondMax Plus 5120 hard drives are precision products. Failure to
follow these precautions and guidelines outlined here may lead to
product failure, damage and invalidation of all warranties.
1 BEFOREunpackingorhandlingadrive,takeallproperelectro-staticdischarge(ESD)
precautions,includingpersonnelandequipmentgrounding.Stand-alonedrivesaresensitiveto
ESDdamage.
2 BEFOREremovingdrivesfromtheirpackingmaterial,allowthemtoreachroom
temperature.
3 Duringhandling,NEVERdrop,jar,orbumpadrive.
4 OnceadriveisremovedfromtheMaxtorshippingcontainer,IMMEDIATELYsecurethedrive
throughitsmountingholeswithinachassis.Otherwise,storethedriveonapadded,grounded,
antistaticsurface.
5 NEVERswitchDCpowerontothedrivebyplugginganelectricallyliveDCsourcecableinto
thedrive'sconnector.NEVERconnectalivebustothedrive'sinterfaceconnector.
Please do not remove or cover up Maxtor factory-installed drive labels.
They contain information required should the drive ever need repair.

DIAMONDMAXPLUS 5120PRODUCTMANUAL
i
Contents
Section 1 —Introduction
Maxtor Corporation 1 - 1
Products 1 - 1
Support 1 - 1
Manual Organization 1 - 1
Abbreviations 1 - 1
Conventions 1 - 2
Key Words 1 - 2
Numbering 1 - 2
Signal Conventions 1 - 2
Section 2 —Product Description
The DiamondMax™Plus 5120
Product Features 2 - 2
Functional/Interface 2 - 2
Zone Density Recording 2 - 2
Read/Write Multiple Mode 2 - 2
UltraDMA - Mode 2 2 - 2
Multi-word DMA (EISA Type B) - Mode 2 2 - 2
Sector Address Translation 2 - 2
Logical Block Addressing 2 - 3
Defect Management Zone 2 - 3
On-the-Fly Hardware Error Correction Code (ECC) 2 - 3
Software ECC Correction 2 - 3
Automatic Head Park and Lock Operation 2 - 3
Cache Management 2 - 4
Buffer Segmentation 2 - 4
Read-Ahead Mode 2 - 4
Automatic Write Reallocation (AWR) 2 - 4
Write Cache Stacking 2 - 4
Major HDA Components 2 - 5
Drive Mechanism 2 - 5
Rotary Actuator 2 - 5
Read/Write Electronics 2 - 5
Read/Write Heads and Media 2 - 5
Air Filtration System 2 - 5
Microprocessor 2 - 5
Subsystem Configuration 2 - 6
Dual Drive Support 2 - 6
Cable Select Option 2 - 6
Jumper Location/Configuration 2 - 6
4092 Cylinder Limitation 2 - 6

DIAMONDMAXPLUS 5120PRODUCTMANUAL
ii
Section 3 —Product Specifications
Models and Capacities 3 - 1
Drive Configuration 3 - 1
Performance Specifications 3 - 1
Physical Dimensions 3 - 2
Power Requirements 3 - 3
Power Mode Definitions 3 - 3
Spin-up 3 - 3
Seek 3 - 3
Read/Write 3 - 3
Idle 3 - 3
Standby 3 - 3
Sleep 3 - 3
EPA Energy Star Compliance 3 - 3
Environmental Limits 3 - 3
Shock and Vibration 3 - 4
Reliability Specifications 3 - 4
Annual Return Rate 3 - 4
Quality Acceptance Rate 3 - 4
Start/Stop Cycles 3 - 4
Data Reliability 3 - 4
Component Design Life 3 - 4
EMC/EMI 3 - 5
EMC Compliance 3 - 5
Canadian Emissions Statement 3 - 5
Safety Regulatory Compliance 3 - 5
Section 4 —Handling and Installation
Pre-formatted Drive 4 - 1
Important Notice 4 - 1
Hard Drive Handling Precautions 4 - 1
Electro-Static Discharge (ESD) 4 - 1
Unpacking and Inspection 4 - 2
Repacking 4 - 3
Physical Installation 4 - 3
Before You Begin 4 - 4
Please Read 4 - 4
Handling Precautions 4 - 4
Tools for Installation 4 - 4
Drive Identification Information 4 - 4
Capacity Barriers 4 - 4
Protecting Your Existing Data 4 - 4
General Requirements 4 - 5
System Hardware Requirements 4 - 5
BIOS Requirements 4 - 5

DIAMONDMAXPLUS 5120PRODUCTMANUAL
iii
Ultra Direct Memory Access (UDMA) 4 - 5
OS Requirements for Large Capacity Hard Drives 4 - 5
Hard Drive Identification 4 - 6
Identifying IDE Devices on the Interface 4 - 6
Jumper Settings 4 - 6
Systems Using Cable Select 4 - 6
Relationship to Other IDE Devices 4 - 6
Mounting Drive in System 4 - 7
Attaching Interface and Power Cables 4 - 7
Attaching System Cables 4 - 7
System Setup 4 - 8
Setting the BIOS (CMOS) 4 - 8
BIOS (CMOS) Parameters 4 - 8
Hard Drive Preparation 4 - 10
System Hangs During Boot 4 - 12
Section 5 —AT Interface Description
Interface Connector 5 - 1
Pin Description Summary 5 - 1
Pin Description Table 5 - 2
PIO Timing 5 - 3
DMA Timing 5 - 4
Ultra DMA Timing Parameters 5 - 5
Section 6 —Host Software Interface
Task File Registers 6 - 1
Data Register 6 - 1
Error Register 6 - 1
Features Register 6 - 1
Sector Count Register 6 - 2
Sector Number Register 6 - 2
Cylinder Number Registers 6 - 2
Device/Head Register 6 - 2
Status Register 6 - 2
Command Register 6 - 3
Read Commands 6 - 3
Write Commands 6 - 3
Mode Set/Check Commands 6 - 3
Power Mode Commands 6 - 3
Initialization Commands 6 - 3
Seek, Format, and Diagnostic Commands 6 - 3
S.M.A.R.T. Commands 6 - 3
Summary 6 - 4
Control Diagnostic Registers 6 - 5
Alternate Status Register 6 - 5

DIAMONDMAXPLUS 5120PRODUCTMANUAL
iv
Device Control Register 6 - 5
Digital Input Register 6 - 5
Reset and Interrupt Handling 6 - 6
Section 7 —Interface Commands
Command Summary 7 - 1
Read Commands 7 - 2
Read Sector(s) 7 - 2
Read Verify Sector(s) 7 - 2
Read Sector Buffer 7 - 2
Read DMA 7 - 3
Read Multiple 7 - 3
Set Multiple 7 - 3
Write Commands 7 - 4
Write Sector(s) 7 - 4
Write Verify Sector(s) 7 - 4
Write Sector Buffer 7 - 4
Write DMA 7 - 5
Write Multiple 7 - 5
Ultra DMA 7 - 5
Set Feature Commands 7 - 5
Set Features Mode 7 - 5
Power Mode Commands 7 - 7
Standby Immediate 7 - 7
Idle Immediate 7 - 7
Standby 7 - 7
Idle 7 - 7
Check Power Mode 7 - 7
Set Sleep Mode 7 - 7
Default Power-on Condition 7 - 7
Initialization Commands 7 - 9
Identify Drive 7 - 9
Initialize Drive Parameters 7 - 12
Seek, Format, and Diagnostic Commands 7 - 13
S.M.A.R.T. Command Set 7 - 14
Section 8 —Service and Support
Service Policy 8 - 1
No Quibble Service 8 - 1
Support 8 - 1
Glossary
Glossary GL - 1

DIAMONDMAXPLUS 5120PRODUCTMANUAL
v
Figures
Figure Title Page
2 - 1 PCBA Jumper Location and Configuration 2 - 6

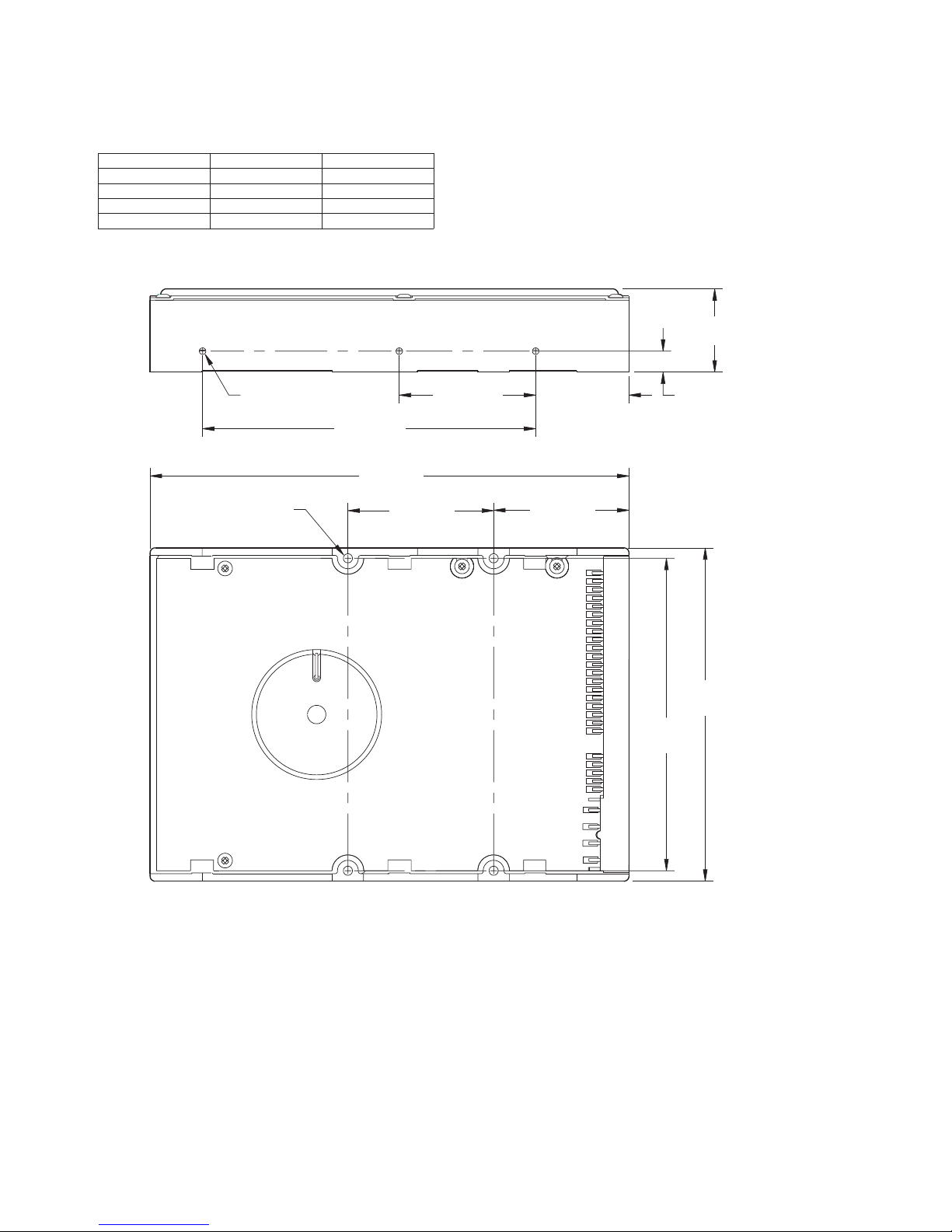

3 - 1 Outline and Mounting Dimensions 3 - 2
4 - 1 Multi-pack Shipping Container 4 - 2
4 - 2 Single-pack Shipping Container (Option A) 4 - 3
4 - 3 Single-pack Shipping Container (Option B) 4 - 3
4 - 4 Master, Slave and Cable Select Settings 4 - 5
4 - 5 5.25-inch Mounting Brackets and Rails 4 - 6
4 - 6 IDE Interface and Power Cabling Detail 4 - 7
4 - 7 Master, Slave and Cable Select Settings 4 - 10
5 - 1 Data Connector 5 - 1
5 - 2 PIO Data Transfer to/from Device 5 - 3
5 - 3 Multi-word DMA Data Transfer 5 - 4
5 - 4 Initiating an Ultra DMA Data In Burst 5 - 5
5 - 5 Sustained Ultra DMA Data In Burst 5 - 6
5 - 6 Host Pausing an Ultra DMA Data In Burst 5 - 6
5 - 7 Device Terminating an Ultra DMA Data In Burst 5 - 7
5 - 8 Host Terminating an Ultra DMA Data In Burst 5 - 7
5 - 9 Initiating an Ultra DMA Data Out Burst 5 - 8
5 - 10 Sustained Ultra DMA Data Out Burst 5 - 8
5 - 11 Device Pausing an Ultra DMA Data Out Burst 5 - 9
5 - 12 Host Terminating an Ultra DMA Data Out Burst 5 - 9
5 - 13 Device Terminating an Ultra DMA Data Out Burst 5 - 10

DIAMONDMAX PLUS 5120 – INTRODUCTION
1 – 9
SECTION 1
Introduction
Maxtor Corporation
Maxtor Corporation has been providing high-quality computer storage products since 1982. Along the way,
we’ve seen many changes in data storage needs. Not long ago, only a handful of specific users needed more than
a couple hundred megabytes of storage. Today, downloading from the Internet and CD-ROMs, multimedia,
networking and advanced office applications are driving storage needs even higher. Even home PC applications
need capacities measured in gigabytes, not megabytes.
Products
Maxtor’s products meet those demanding storage capacity requirements with room to spare. They feature
proven compatibility and reliability. While DiamondMax™ Plus 5120 is the latest addition to our family of
high performance 7,200 RPM desktop hard drives, the 5,400 RPM DiamondMax™ 4320 series hard drives
deliver industry-leading capacity, performance and value for many PC applications.
Support
No matter which capacity, all Maxtor hard drives are supported by our commitment to total customer
satisfaction and our No Quibble®Service guarantee. One call – or a visit to our home page on the Internet
(http://www.maxtor.com) – puts you in touch with either technical support or customer service. We’ll
provide you the information you need quickly, accurately and in the form you prefer – a fax, a downloaded
file or a conversation with a representative.
Manual Organization
This hard disk drive reference manual is organized in the following method:
❏Section 1 – Introduction
❏Section 2 – Description
❏Section 3 – Specifications
❏Section 4 – Installation
❏Section 5 – AT Interface
❏Section 6 – Host Software Interface
❏Section 7 – Interface Commands
❏Section 8 – Service and Support
❏Appendix – Glossary
Abbreviations
ABBRV DESCRIPTION ABBRV DESCRIPTION
ATA AT attachment MB megabyte
bpi bits per inch Mbits/sec megabits per second
CHS cylinder - head - sector MB/sec megabytes per second
db decibels MHz megahertz
dBA decibels, A weighted ms millisecond
DMA direct memory access MSB most significant bit
ECC error correction code mV millivolts
fci flux changes per inch ns nanoseconds
Gacceleration PIO programmed input/output
GB gigabyte RPM revolutions per minute
Hz hertz tpi tracks per inch
KB kilobyte UDMA ultra direct memory access
LBA logical block address(ing) µsec microsecond
LSB least significant bit Vvolts
mA milliamperes
W
watts

DIAMONDMAX PLUS 5120 – INTRODUCTION
1 – 10
Conventions
If there is a conflict between text and tables, the table shall be accepted as being correct.
Key Words
The names of abbreviations, commands, fields and acronyms used as signal names are in all uppercase type
(e.g., IDENTIFY DRIVE). Fields containing only one bit are usually referred to as the “name” bit instead of
the “name” field.
Names of drive registers begin with a capital letter (e.g., Cylinder High register).
Numbering
Numbers that are not followed by a lowercase “b” or “h” are decimal values. Numbers that are followed by
a lowercase “b” (e.g., 01b) are binary values. Numbers that are followed by a lowercase “h” (e.g., 3Ah) are
hexadecimal values.
Signal Conventions
Signal names are shown in all uppercase type.
All signals are either high active or low active signals. A dash character (-) at the end of a signal name
indicates that the signal is low active. A low active signal is true when it is below ViL and is false when it is
above ViH. A signal without a dash at the end indicates that the signal is high active. A high active signal is
true when it is above ViH and is false when it is below ViL.
When a signal is asserted, it means the signal is driven by an active circuit to its true state.
When a signal is negated, it means the signal is driven by an active circuit to its false state.
When a signal is released, it means the signal is not actively driven to any state. Some signals have bias
circuitry that pull the signal to either a true or false state when no signal driver is actively asserting or negating
the signal. These instances are noted under the description of the signal.

PRODUCTDESCRIPTION
2 – 1
SECTION2
Product Description
Maxtor DiamondMax™ Plus 5120 AT disk drives are 1-inch high, 3.5-inch diameter random access storage
devices which incorporate an on-board ATA-4/Ultra DMA controller. High capacity is achieved by a balanced
combination of high areal recording density and the latest data encoding and servo techniques.
Maxtor's latest advancements in electronic packaging and integration methods have lowered the drive's power
consumption and increased its reliability. Advanced giant magneto-resistive read/write heads, an state-of-the-art
head/disk assembly using an integrated motor/spindle design allow up to four disks in a 3.5-inch package.
Exceptionally high data transfer rates, 7,200 RPM spin speed and 9.0 ms access times make these performance
series disk drives especially well-suited to high-end desktop and server applications.
DiamondMax Plus 5120 Key Features
ANSI ATA-4 compliant PIO Mode 4 interface (Enhanced IDE)
Supports Ultra DMA Mode 2 for up to 33 MB/sec data transfers
512 KB buffer with multi-adaptive cache manager
7,200 RPM spin speed
9.0 ms seek time
Zone density and I.D.-less recording
Outstanding shock resistance at 200 Gs
High durability with 50K constant start/stop cycles
Advanced multi-burst on-the-fly Error Correction Code (ECC)
Extended data integrity with ECC protected data and fault tolerant servo synchronization fields
Supports EPA Energy Star Standards (Green PC Friendly) with ATA powering savings commands
Auto park and lock actuator mechanism
Low power consumption
S.M.A.R.T. Capability
Note: Maxtor defines one megabyte as 10
6
or one million bytes and one gigabyte as 10
9
or one billion bytes.

PRODUCTDESCRIPTION
2 – 2
Product Features
Functional / Interface
Maxtor DiamondMax™ Plus 5120 hard drives contain all necessary mechanical and electronic parts to interpret
control signals and commands from an AT-compatible host computer. See Section 3 Product Specifications, for
complete drive specifications.
Zone Density Recording
The disk capacity is increased with bit density management – common with Zone Density Recording. Each
disk surface is divided into 16 circumferential zones. All tracks within a given zone contain a constant
number of data sectors. The number of data sectors per track varies in different zones; the outermost zone
contains the largest number of data sectors and the innermost contains the fewest.
Read/Write Multiple Mode
This mode is implemented per ANSI ATA/ATAPI-4 specification. Read/Write Multiple allows the host to
transfer a set number of sectors without an interrupt request between them, reducing transfer process
overhead and improving host performance.
UltraDMA - Mode 2
Maxtor DiamondMax Plus 5120 hard drives fully comply with the new ANSI Ultra DMA protocol, which
greatly improves overall AT interface performance by significantly improving burst and sustained data
throughput.
Multi-word DMA (EISA Type B) - Mode 2
Supports multi-word Direct Memory Access (DMA) EISA Type B mode transfers.
Sector Address Translation
All DiamondMax Plus 5120 drives feature a universal translate mode. In an AT/EISA-class system, the drive
may be configured to any specified combination of cylinders, heads and sectors (within the range of the
drive's formatted capacity). DiamondMax Plus 5120 drives power-up in a translate mode:
LEDOMLYCDHTPSenoZLmocPWABLXAMYTICAPAC
8D84029386,936136)*()*(464,000,04BM084,02
7D29719227,436136)*()*(677,999,43BM029,71
6D63519267,926136)*()*(690,000,03BM063,51
5D08219208,426136)*()*(614,000,52BM008,21
4D42019148,916136)*()*(827,999,91BM042,01
3D05709188,416136)*()*(840,000,51BM086,7
(*) The fields LZone (Landing Zone) and WPcom (Write Pre-comp) are not used by the Maxtor hard drive
and the values may be either 0 or the values set by the BIOS. All capacities listed in the above table are based
on 106or one million bytes.

PRODUCTDESCRIPTION
2 – 3
Logical Block Addressing
The Logical Block Address (LBA) mode can only be utilized in systems that support this form of translation.
The cylinder, head and sector geometry of the drive, as presented to the host, differs from the actual physical
geometry. The host AT computer may access a drive of set parameters: number of cylinders, heads and
sectors per track, plus cylinder, head and sector addresses. However, the drive can’t use these host parameters
directly because of zoned recording techniques. The drive translates the host parameters to a set of logical
internal addresses for data access.
The host drive geometry parameters are mapped into an LBA based on this formula:
LBA = (HSCA - 1) + HHDA x HSPT + HNHD x HSPT x HCYA (1)
= (HSCA - 1) + HSPT x (HHDA + HNHD x HCYA) (2)
where HSCA = Host Sector Address, HHDA = Host Head Address
HCYA = Host Cylinder Address, HNHD = Host Number of Heads
HSPT = Host Sectors per Track
The LBA is checked for violating the drive capacity. If it does not, the LBA is converted to physical drive
cylinder, head and sector values. The physical address is then used to access or store the data on the disk and
for other drive related operations.
Defect Management Zone (DMZ)
Each drive model has a fixed number of spare sectors per drive, all of which are located at the end of the
drive. Upon detection of a bad sector that has been reassigned, the next sequential sector is used.
For example, if sector 3 is flagged, data that would have been stored there is “pushed down” and recorded
in sector 4. Sector 4 then effectively becomes sector 3, as sequential sectors are “pushed down” across the
entire drive. The first spare sector makes up for the loss of sector 3, and so maintains the sequential order of
data. This push down method assures maximum performance.
On-the-Fly Hardware Error Correction Code (ECC)
5 symbols, single burst, guaranteed
Software ECC Correction
22 symbols, single burst, guaranteed
Automatic Park and Lock Operation
Immediately following power down, dynamic braking of the spinning disks delays momentarily allowing the
read/write heads to move to an inner mechanical stop. A small fixed magnet holds the rotary actuator in
place as the disk spins down. The rotary actuator is released only when power is again applied.

PRODUCTDESCRIPTION
2 – 4
Cache Management
Buffer Segmentation
The data buffer is organized into two segments: the data buffer and the micro controller scratch pad.
The data buffer is dynamically allocated for read and write data depending on the commands received.
A variable number of read and write buffers may exist at the same time.
Read-Ahead Mode
Normally, this mode is active. Following a read request, disk read-ahead begins on the first sector and
continues sequentially until the allocated buffer is full. If a read request is received during the read-ahead
operation, the buffer is examined to determine if the request is in the cache. If a cache hit occurs, read-
ahead mode continues without interruption and the host transfer begins immediately.
Automatic Write Reallocation (AWR)
This feature is part of the write cache and reduces the risk of data loss during deferred write operations. If a
disk error occurs during the disk write process, the disk task stops and the suspect sector is reallocated to a
pool of alternate sectors located at the end of the drive. Following reallocation, the disk write task continues
until it is complete.
Write Cache Stacking
Normally, this mode is active. Write cache mode accepts the host write data into the buffer until the buffer
is full or the host transfer is complete. A command complete interrupt is generated at the end of the transfer.
A disk write task begins to store the host data to disk. Host write commands continue to be accepted and
data transferred to the buffer until either the write command stack is full or the data buffer is full. The drive
may reorder write commands to optimize drive throughput.

PRODUCTDESCRIPTION
2 – 5
Major HDA Components
Drive Mechanism
A brush-less DC direct drive motor rotates the spindle at 7,200 RPM (±0.1%). The dynamically balanced
motor/spindle assembly ensures minimal mechanical run-out to the disks. A dynamic brake provides a fast
stop to the spindle motor upon power removal. The speed tolerance includes motor performance and motor
circuit tolerances.
Rotary Actuator
All DiamondMax™ Plus 5120 drives employ a rotary voice coil actuator which consists of a moving coil, an
actuator arm assembly and stationary magnets. The actuator moves on a low-mass, low-friction center shaft.
The low friction contributes to fast access times and low power consumption.
Read/Write Electronics
An integrated circuit mounted within the sealed head disk assembly (near the read/write heads) provides up
to eight head selection (depending on the model), read pre-amplification and write drive circuitry.
Read/Write Heads and Media
Low mass, low force giant magneto-resistive read/write heads record data on 3.5-inch diameter disks. Maxtor
uses a sputtered thin film medium on all disks for DiamondMax Plus 5120 drives.
Air Filtration System
All DiamondMax Plus 5120 drives are assembled in a Class 100 controlled environment. Over the life of the
drive, a 0.1 micron filter and breather filter located within the sealed head disk assembly (HDA) maintain a
clean environment to the heads and disks. DiamondMax Plus 5120 drives are designed to operate in a typical
office environment with minimum environmental control.
Microprocessor
The microprocessor controls the following functions for the drive electronics:
Command execution
Cache management
Data correction and error recovery
Diagnostic execution
Data sequencing
Head positioning (including error recovery)
Host interface
Index detection
Spin speed control
Seeks
Servo
S.M.A.R.T.

PRODUCTDESCRIPTION
2 – 6
NOITARUGIFNOCREPMUJ05J84J64J44J24J
evalS/retsaM
*metsysevirdelgnisnievirdylnO
*metsysevirdlaudnievirdretsaM
metsysevirdlaudnievirdevalS
C
C
O
tceleSelbaC
*delbasiD
delbanE
O
C
noitatimiLrednilyC2904
*delbasiD
delbanE
O
C
devreseRyrotcaFO
devreseRyrotcaF O
desolC=CtluafeD=*yeK
)dellatsnirepmuj( nepO=O )dellatsnirepmujon(
Figure 2-1
PCBA Jumper Location and Configuration
4092 Cylinder Limitation
On some older BIOS', primarily those that auto-configure the disk drive, a hang may occur when the drive
cylinder value exceeds 4096. The 4092 Cylinder Limitation jumper reduces the capacity in the Identify Drive to
4092 allowing large capacity drives to work with older BIOS'. A software driver is required to access the full
capacity of the drive.
Subsystem Configuration
Dual Drive Support
Two drives may be accessed via a common interface cable, using the same range of I/O addresses. The drives
are jumpered as device 0 or 1 (Master/Slave), and are selected by the drive select bit in the
Device/Head register of the task file.
All Task File registers are written in parallel to both drives. The interface processor on each drive decides
whether a command written to it should be executed; this depends on the type of command and which
drive is selected. Only the drive selected executes the command and activates the data bus in response to
host I/O reads; the drive not selected remains inactive.
A master/slave relationship exists between the two drives: device 0 is the master and device 1 the slave.
When J50 is closed (factory default, figure 2-1), the drive assumes the role of master; when open, the drive
acts as a slave. In single drive configurations, J50 must be closed.
Cable Select Option
CSEL (cable select) is an optional feature per ANSI ATA specification. Drives configured in a multiple drive
system are identified by CSEL’s value:
– If CSEL is grounded, then the drive address is 0.
– If CSEL is open, then the drive address is 1.
Jumper Location/Configuration
Darkened jumper pins indicate factory-installed (default) shunts.

PRODUCTSPECIFICATIONS
3 – 1
SECTION3
Product Specifications
Models and Capacities
Performance Specifications
LEDOM8D840297D297196D635195D082194D420193D05709
ecafretnI/rellortnoCdetargetnI AMDartlU/4-ATA
dohteMgnidocnE 71/61LLR4RPE
evaelretnI1:1
metsySovreS deddebmE
epyT/eziSreffuB MARDSBK215
ecafruSrepsenoZataD61
sdaeH/secafruSataD876543
sksiDforebmuN443322
ytisneDlaerA008,3ni/bM
2
ecafruSrepskcarT )srednilyC( 058,41
ytisneDkcarT225,41ipt
ytisneDgnidroceR552-402ipbk
ytisneDxulF icfk172-712
kcolB/rotceSrepsetyB215
kcarTrepsrotceS42-0304
evirDrepsrotceS 464,000,04677,999,43690,000,03614,000,52827,999,91840,000,51
LEDOM8D840297D297196D635195D082194D420193D05709
semiTkeeS )lacipyt(
kcarT-ot-kcarTsm1
egarevAsm0.9
mumixaMsm02<
ycnetaLegarevA4.81sm
deepSlanoitatoR )%1.0±( 7,2 MPR00
daehrevOrellortnoC sm5.0<
etaRrefsnarTataD
ecafretnImorf/oT
)2edoM-AMDartlU( ces/BM0.33otpu
ecafretnImorf/oT
)2edoM-AMDdrow-itluM/4OIP( ces/BM7.61otpu
aideMmorf/oT ces/BM2.13otpu
emiTtratS )ydaeRevirDot0( lacipytces8.8<
Drive Configuration
LEDOM 8D840297D297196D635195D082194D420193D05709
yticapaCdettamroF
)edoMABLBM(
084,02029,71063,51008,21042,01786,0
01saetybagemenosenifedrotxaM
6
01saetybagigenodnasetybnoillimenoro
9
.setybnoillibenoro

PRODUCTSPECIFICATIONS
3 – 2
Physical Dimensions
1.028 max
[25.9 mm]
.25 ± .01
1.122 ± .02
[28.4 mm]
1.638 ± .005
[41.61 mm]
1.625 ± .02
4.000 ± .01
[101.6 mm]
1.75 ± .02
5.787 max
[146.6 mm]
6 x 6-32
UNCTap
4 x 6-32
UNCTap
4.00 ± .01
[102.1 mm]
3.75 ± .01
[95.25 mm]
Figure 3 - 1
Outline and Mounting Dimensions
RETEMARAPDRADNATSCIRTEM
thgieHsehcni20.1sretemillim9.52
htgneLsehcni87.5sretemillim6.641
htdiWsehcni00.4sretemillim1.201
thgieWsdnuop3.1smargolik95.0

PRODUCTSPECIFICATIONS
3 – 3
Power Requirements
Power Mode Definitions
Spin-up
The drive is spinning up following initial application of power and has not yet reached full speed.
Seek
A random access operation by the disk drive.
Read/Write
Data is being read from or written to the drive.
Idle
The drive is spinning, the actuator is parked and powered off and all other circuitry is powered on.
The drive is capable of responding to read commands within 40 ms.
Standby
The spin motor is not spinning. The drive will leave this mode upon receipt of a command that requires
disk access. The time-out value for this mode is programmable. The buffer is active to accept write data.
Sleep
This is the lowest power state – with the interface set to inactive. A software or hardware reset is required
to return the drive to the Standby state.
EPA Energy Star Compliance
Maxtor Corporation supports the goals of the U.S. Environmental Protection Agency’s Energy Star program
to reduce the electrical power consumption of computer equipment.
Environmental Limits
RETEMARAPGNITAREPOEGAROTS/GNITAREPO-NON
erutarepmeTC°55otC°5)C°04-(erutarepmetwol
,3.105dohtem,E018-DTS-LIMrep)C°17(erutarepmethgih
.snoitidnocdecudni-toh;yrogetaccitamilc
tneidarGlamrehT (ruohrepC°52 )mumixam
ytidimuHevitaleR %59ot%5 gnisnednoc-non( )
bluBteW 72°C )mumixam(
edutitlAteef000,01ot002-teef000,04ot002-
esioNcitsuocA )edomeldI( rewopdnuosegarevaleb5.3
)enohporcim01,9777OSIrep(
EDOM%8±V21%01±V5REWOP
pu-nipS )kaep( Am0092Am063W6.63
keeS )gva( Am087Am533W1.11
etirW/daeR )gva( Am013Am093W7.5
eldI )gva( Am503Am023W3.5
ybdnatS )gva( Am02Am561W1.1
peelS )gva( Am02Am55W25.0
