Yedoo ALLOY WOLFER User manual

ALLOY
WOLFER
WOLFER RS
TREXX
TREXX DISC
User manual

Yedoo
Wolfer 28"/ 20"
Product Number:
12701-Y30
Maximum load:
120 kg / 265 lb
Trexx 26"/ 20"
Product Number:
12702-Y30
Maximum load:
130 kg / 287 lb
Wolfer RS 28"/ 28"
Product Number:
12721
Maximum load:
120 kg / 265 lb
Trexx Disc 26"/ 20"
Product Number:
12722
Maximum load:
150 kg / 330 lb
i
EN 7
CZ 16
DE 25
RU 34
SK 43
FR 52
ES 61
IT 70
HU 79
SV 88
ET 97
PL 106
SL 115
HR 124
Contents
Visit our website www.yedoo.eu
for more language versions.
2

3

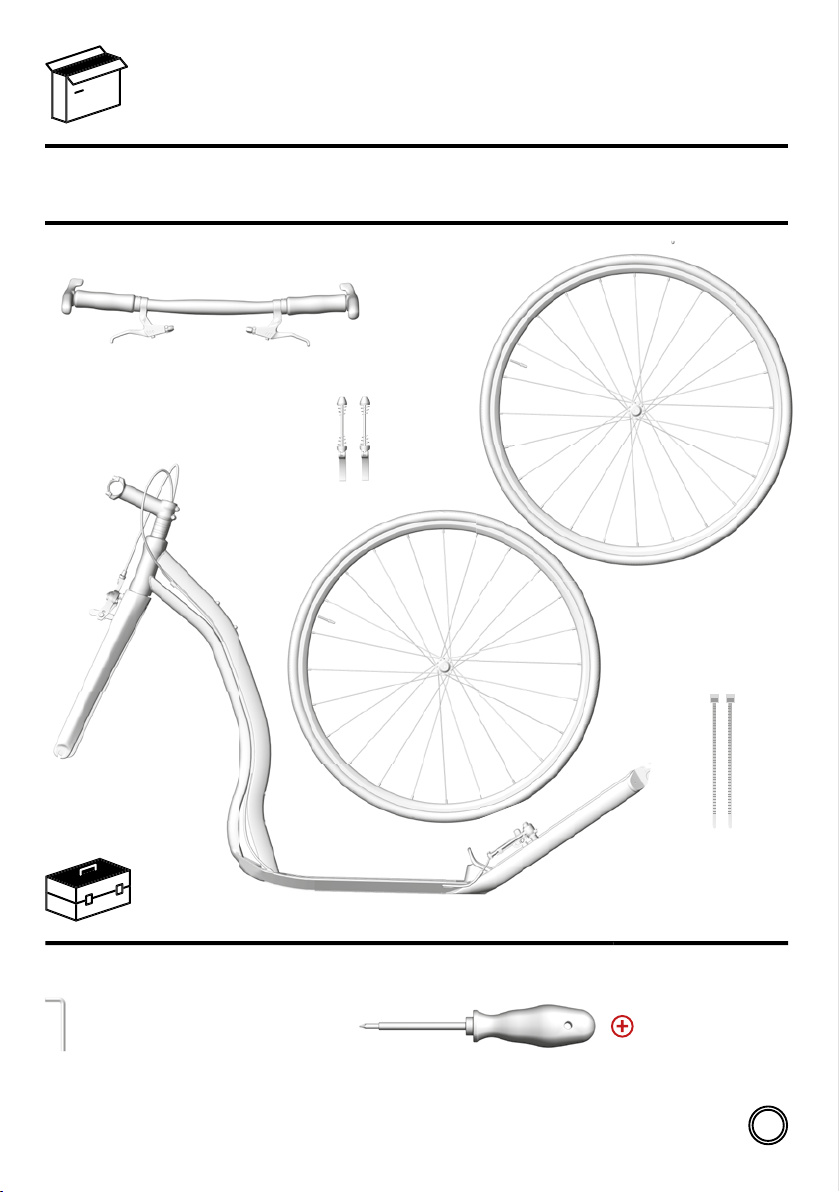

Yedoo Wolfer
3 mm, 4 mm, 5 mm

4
Yedoo Wolfer RS
3 mm, 4 mm, 5 mm

5
Yedoo Trexx
3 mm, 4 mm, 5 mm

6
Yedoo Trexx Disc
3 mm, 4 mm, 5 mm
Torx

EN
7
Introduction
We recommend that you entrust the installation, adjustment
and regular maintenance to a specialist bicycle shop. Improper
intervention can lead to damage of the scooter or to an accident
with serious health consequences.
If you are technically capable, do not worry, this manual
contains all the information you need to help you assemble your
new scooter.
Send your questions, comments and suggestions for
improvement of our products by e-mail to: [e-mail].
Yedoo frames are protected
by a Registered Community
Design(RCD), the commercial
names are protected by
registered trade marks.
More information from the
world of scooters and the list
ofdistributors can be found
at www.yedoo.eu.

8
4a. 4b.
EN
3.
1.

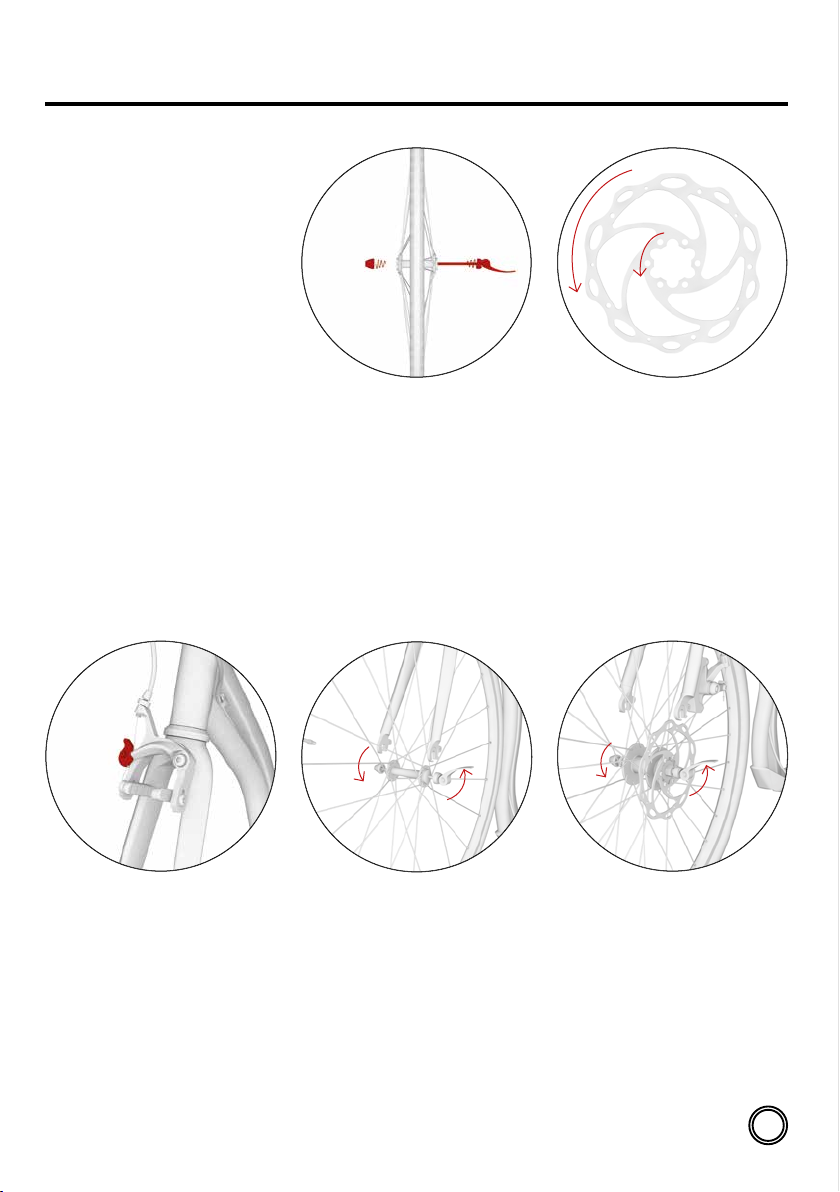

Installing the wheels
Insert the quick release mechanism into
the wheel ensuring that on both sides of
the wheel the narrow ends of the springs
face the centre of the wheel. In case
the quick-release levers are of dierent
length, use the shorter one for the rear
wheel.
The assembly procedure is
the same for all models, it
only diers in details, see
accompanying pictures.
When tightening the
connections do not
exceed the specified
tightening torque.
First, check if the front fork of the
scooter is turned in the proper direction
(the V-brake arms / wheel holders are
facing forward),
For the Wolfer and Wolfer RS models,
release the brake jaws by slightly turning
the lever. In case of the Trexx model,
release the brake wire from the housing
and release the brake arms.
Insert the wheel into the front fork so it
is exactly in the middle.
Caution:
When
inserting the wheel, ensure that the
arrow on the tyre sidewall points in the
direction of rotation when the scooter
is rolling forwards.
Direction
of rotation
2.
Disc brakes - Trexx Disc
Put the separately packaged brake discs
on wheel hubs. Attach the rotor of the
disc brake so that the arrow on the rotor
would correspond to the rotation of the
wheel. Screw the rotor to the hub using
the attached key (torx).
When fastening the screws, make sure
you follow the sequence according to
the picture.
6
3
1
5
2
4
Installation manual

9
EN
6a.5.
Tighten the adjustment nut of the
quick release mechanism to the correct
position. When it is in the correct
position you will feel a noticeable
resistance just before you close the
mechanism completely. Close the quick
release lever in a position where it does
not touch the fork and simultaneously
it cannot be opened accidentally
while riding.
Handlebars installation
Insert the handlebars on the stem
and tighten the screws of the sleeve.
The labels (not shown in a picture)
should be clearly visible from the
front view.
Wolfer,
Wolfer RS
Trexx,
Trexx Disc
7a. 7c.7b.
Installing the rear wheel (V-brake)
Release the brake cable from the guide
(
1
). Put the wheel in one of the two fork
dropouts (see 7b., 7c.) then centre the
wheel and tighten the quick release
mechanism (
2
).
Use the lower position for riding over a
rough terrain. Close the quick release
lever. It should point upwards.
Two-position rear fork enables you to
adjust the height of the footrest above
the ground. The upper fork position,
which reduces the height of the footrest,
is designed for riding on a smooth, flat
surface. Riding will be less physically
demanding. The closed quick release
lever should point downwards.
1
2
5–6 Nm 5–6 Nm
6b.

10
EN
Installation manual
Rear wheel installation (disc brake)
Put the wheel into the upper holder of
the fork, centre the wheel and fasten
the quick-release lever. It is not possible
to use the lower holder with the basic
setup of the scooter.
7d. 8a.
8b. 8d.8c.

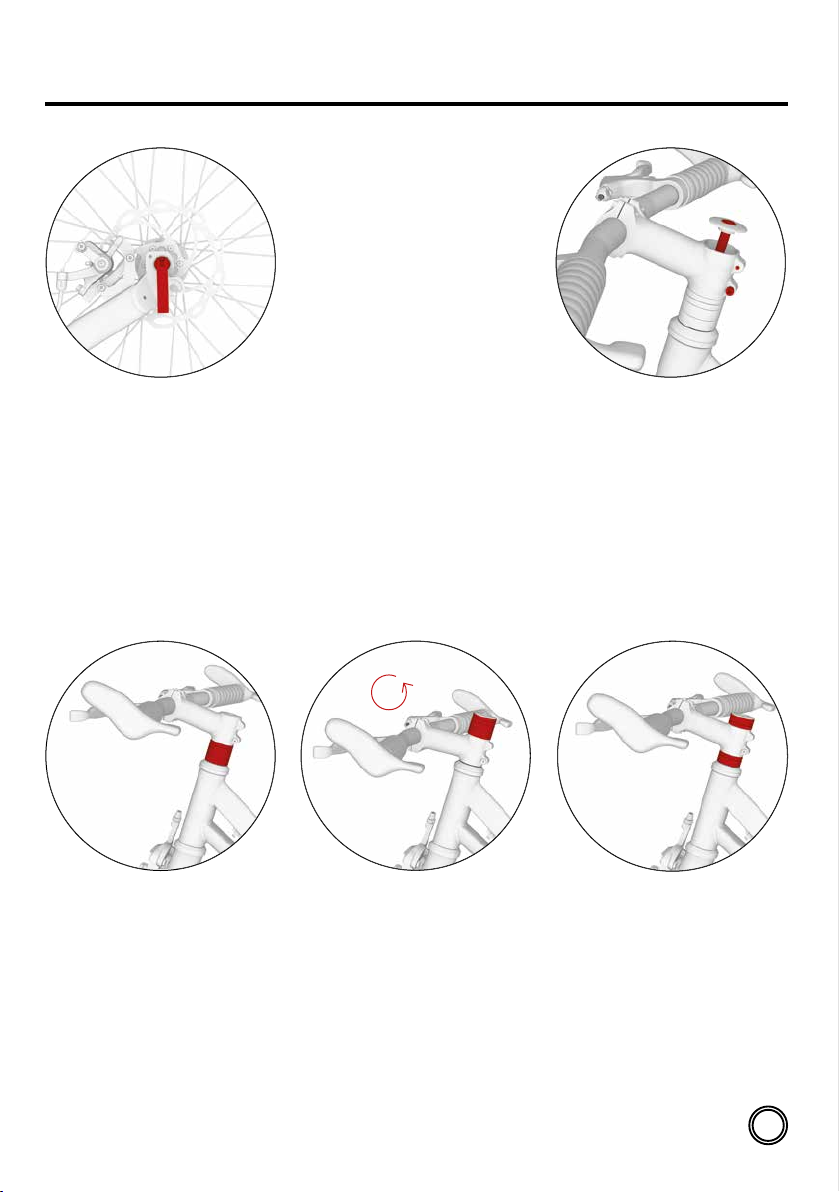

Adjusting the height of the handlebars
Loosen the screws on the stem and
adjust the handlebars to the desired
height using spacer rings. To set the
handlebars to the lowest position,
turn the stem so it points downwards,
see fig. 8c.. After adjusting the
handlebar height, first tighten the head-
set screw (
1
), then the side screws (
2
,
3
).
1
2
3
5–6 Nm
6–8 Nm

11
EN
10b.
10a.
Adjusting the angle of the brake levers
On both brake levers loosen the screw
on the sleeve. For the best results, stand
on the footrest, grab the handlebars and
stretch your fingers so they extend in
a straight line from your hands. Set the
brake levers in this position and tighten
the two mounting screws.
You can adjust the position of the
handlebar ends on the
Yedoo Wolfer
and Wolfer RS
model using the
mounting screws shown on the picture.
9a.
Installing the brake cables
Squeeze the brake lever to the maximum
and insert the end of the brake cable
into the round lug (
1
). Insert the cable
into the groove and tighten the set
screw (
2
) and the nut (
3
). Repeat the
process with the other brake. The rear
brake cable is usually mounted on the
right brake lever and the front brake
cable on the left.
1
2
3
6–7 Nm 6–7 Nm
9b.
Wolfer and Wolfer RS
use special levers
that enable correct change of lever
according to the type of brake. If the
brake lever controls a V-brake (rear
wheel), the brake wire needs to be put
in position (
1
). If the brake lever controls
a front Caliper brake (front wheel), the
brake wire needs to be put in position (
2
).
Setting up the position:
Press the
brake lever slightly, in order to see the
attachment of the brake wire. Turn the
safety pin and move the attachment of
the brake wire to the required position.
By turning the safety pin again, you will
lock the attachment of the brake wire.
9c.
12

12
11b.
Adjusting the front brakes – Wolfer,
Wolfer RS
The entire surface of the brake pads
should fit tightly against the side of
the rim while braking. If not, adjust the
position of the brake pads using the
screws which attach the brake pads
to the arms of the brakes (
1
). The pads
should not touch the tyre and when
the brake levers are released the pads
should be 1–2 mm away from the rim.
The distance of the brake pads can be
adjusted by tightening or releasing of
the brake cable in the anchor bolt (
2
).
If the wheel touches the brake pad at
some point during the rotation, turn the
whole brake mechanism until the brake
arms are evenly spaced from the rim.
To lock the position of the arms, turn the
lever downwards (
1
).
12a.
Adjusting the front brakes – Trexx
Insert the brake cable back into the
guide (
1
) and check the brake pads
during braking, ensuring that their entire
surface fits tightly against the side of the
rim. If not, adjust the brake pads position
with the screw (
2
), which attaches the
brake pads to the shoulders of V-brakes.
The bake pads must not touch the tyre.
1
2 2
11a.
2
1 1 1
Check that the brake pads move away
from the rim suiciently (1–2 mm) when
the brake lever is released. The distance
of the brake pads can be adjusted by
tightening or loosening the brake cable
anchor bolt (
1
). If the brake pads come
into contact with the rim while the wheel
spins, adjust the spacing of the brake
arms symmetrically with the tensioning
bolts (
2
).
Adjusting the rear brake (V-brake)
Insert the brake cable back into the
guide (
1
). Check the brake pads during
braking, ensuring that their entire
surface fits tightly against the side of the
rim. If not, adjust the screw (
2
), which
attaches the brake pads to the shoulders
of the V- brakes. The brake pads must
not touch the tyre.
Check that the brake pads move away
from the rim suiciently (1–2 mm) when
the brake lever is re-leased. The distance
of the brake pads can be adjusted by
tightening or loosening the brake cable
anchor bolt (
1
). If the brake pads come
into contact with the rim while the wheel
spins, adjust the spacing of the brake
arms symmetrically with the tensioning
bolts (
2
).
13a. 13b.12b.
1
11
2 2
2 2
2 2
EN
Installation manual

13
14.
Adjusting the bowden cables (V-brake)
Adjust the position of the cables
and make sure they do not extend
outside the frame of the scooter
(especially in the rear fork area).
Fasten the end of the brake cable in
the lock and secure with the cable tie,
then trim the tie (applies to both front
and rear brake).
15a. 15b.
17.
Anti-slip tapes
In case tapes become worn and
their anti-slip eect is reduced,
we recommend replacing them.
Replacements tapes are available
to buy. See more on www.yedoo.eu.
Attention:
Clean and degrease
the footboard thoroughly before
application.
16a. 16b.
Adjustment of brakes - Trexx Disc
On the front as well as the rear wheel,
check, if the disc of the brake does
not scrape the brake pad. If so, loosen
the adjusting screws (
1
) and set up the
position of both pads so that their entire
surface would be parallel with the disc,
then fasten the adjusting screws again.
The distance between the brake pads
and the disc should be as small as
possible. You can set it up using an
adjustment roller (
2
), which adjusts the
tension of the brake wire. If this is not
enough, you may loosen the wire in the
anchor bolt (
3
).
2
1 1 3
EN

14
EN
1.
2.
3.

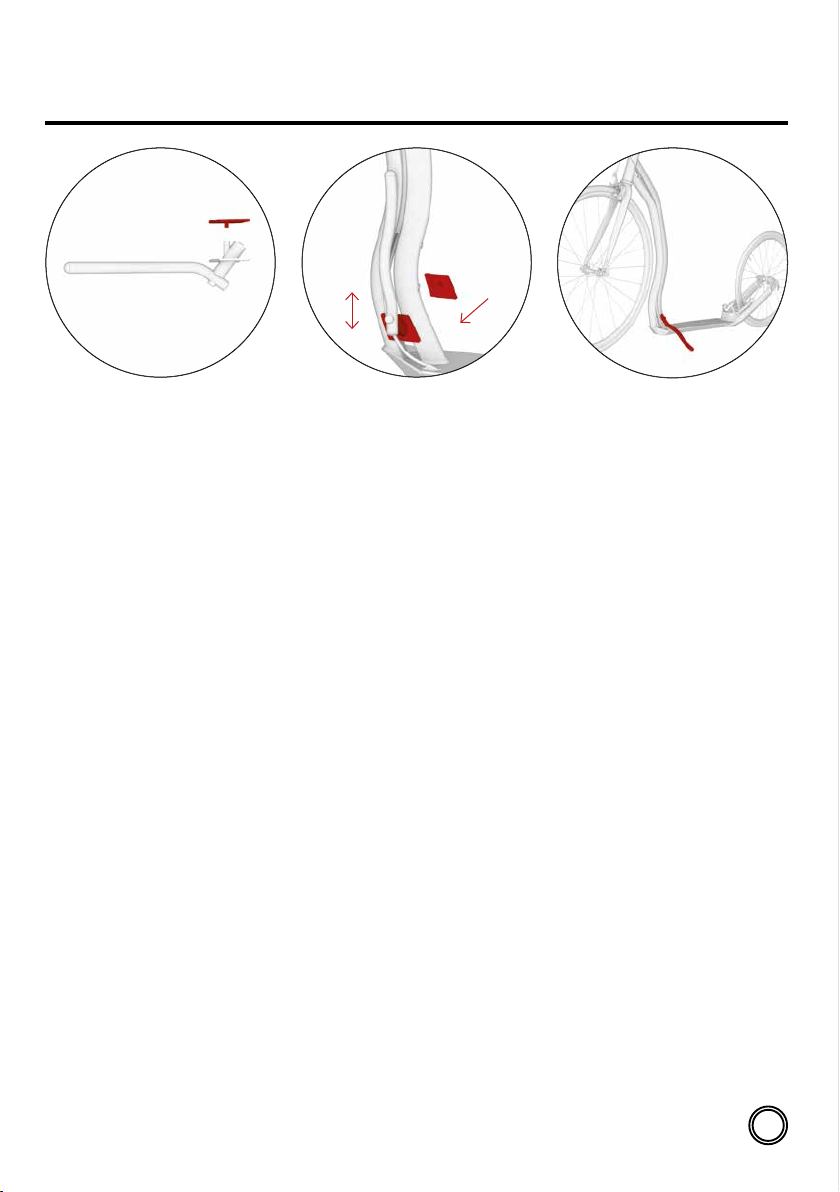

Assembling the stand
The stand is not included. You can
purchase it together with other Yedoo
accessories at your local dealer.
See www.yedoo.eu.
Mount the stand in the area where the
front profile of the frame is spread out.
For the best stability for a given model
choose the right height for mounting
the stand. The stand should not extend
outside the frame of the scooter when in
the riding position.
The maximum capacity of the stand
is about 15 kg. Do not stand on the
parked scooter.
Installation manual

15
EN
Safety recommendations
The scooter in its basic configuration is designed for riding in daylight in
areas designated for sport and recreation, ideally on a smooth, dry surface.
For riding on roads and in the dark you must equip the scooter with
additional safety devices (lights, reflectors etc.) in compliance with
applicable regulations in your country. Observe traic rules, principles
of safe riding and wear personal protective equipment (helmet, bike
gloves, knee and elbow pads, boots, etc.).
Before each ride check your brakes and the overall technical condition
of the scooter. Inflate the tyres to the recommended maximum
pressure (see the side of the tyre). Do not exceed its capacity. The
scooter is designed only for one rider. Do not overload the scooter.
Thescooter isnot intended for jumps or acrobatic riding.
All components designed to decrease the speed (brake pads, rims,
tyres, etc.) get hot while in use. Do not touch any of the parts until they
have cooled down!
Riding instructions
When riding, always grip the handlebar with both hands. While
pushing with one foot, place the other foot on the footboard
of the scooter. Regularly exchange feet. In order to brake, press
the brake levers on the handlebars. Usually you would use the
right lever which controls the rear brake. The front brake should
only be used to supplement the stopping power of the rear
brake. Never squeeze the front brake without also squeezing
the rear brake with equal or greater force.
Warning
: sudden braking
may cause a fall.
Maintenance
Proper maintenance will improve safety and extend the life of your
scooter. Therefore, tighten the screw connections, check the condition
of the quick release mechanisms, check the tyre pressures and
lubricate moving parts (bearings in the wheels and handlebars, brake
lever pins, brake mechanism pivot points, brake cables, etc.) regularly.
Make sure that the applied lubricant does not get on the rims and brake
pads. Grease reduces their eect! If that happens, degrease soiled
areas with, for example, technical gasoline. Check the tyre tread depth
regularly and replace the tyres with new ones with the same parameters
if necessary. If the scooter is not ready to be used, clearly mark it as
such.
Check the condition of self-locking nuts regularly (if they become loose
spontaneously, replace them with new ones).
Check the wheel spokes regularly. Uneven tension of wires in the
spokes may cause their rupture or loss of wheel centering. It is
important to additionally adjust the new scooter after running
in, when the parts have settled against one another (the period is
individual and should not exceed 150 km). Neglect may lead to
destruction of loosened parts.
Keep the scooter clean, if dirty, wipe with a wet cloth. Store it indoors
in a dry shaded place, do not expose to increased humidity or extreme
temperatures in the long term. In case of long-term storage, for example
over winter, keep tyres suiciently inflated or hang the scooter up, so that
they would not be burdened.
The product complies with the relevant EU standards (EN14619) and it
also received certificates of quality and safety by a leading Czech testing
institute (Strojírenský zkušební ústav,s.p.).
The manufacturer and importer in the EU is INTREA – PIKO, s.r.o.,
Sasanková 2657/2, 106 00 Prague 10, Czech Republic, www.yedoo.eu.
Exercise of rights arising
from defective performance
General provisions
Content, scope and duration of the purchaser’s rights arising from
defective performance is governed by the applicable laws of the Czech
Republic, in particular the relevant regulations of the Civil Code (Act No.
89/2012 Coll.) and the Consumer Protection Act (Act No. 634/1992 Coll.).
The rights of the purchaser within these regulations are not aected by
this document or the information contained in it.
Period for exercising of rights arising from defective performance
The purchaser can apply the right from defects in newly bought Yedoo
scooter (hereinafter goods) within a period of 36 months from the day
of receipt. If the buyer defines the defect of the goods legitimately,
the period for exercising rights arising from defective performance is
suspended for the time during which the buyer cannot use the goods.
Specifications of application of rights arising from the defective
performance
Rights arising from the defective performance are applied to the dealer
where the goods were purchased (see details below). We recommend to
submit this document, proof of purchase and a complete scooter free
from any impurities when applying the rights from defects.
The seller will issue a written confirmation of the exercise of rights arising
from defective performance or a confirmation ofrepair.
Specification of rights of defective performance
When assembling the scooter the instructions given in the installation
manual must be followed. The scooter must be used exclusively for
the purpose for which it was made. The scooter must be stored and
maintained according to the provided manufacturer’s instructions. The
manufacturer’s liability does not apply to defects caused exclusively by
improper installation or use of scooters in conflict with the user manual.
Model of the scooter:
Serial number of the frame:
Date of sale:
Vendor:
Stamp and signature:

Úvod
Montáž, seřízení a pravidelnou údržbu doporučujeme svěřit
odbornému cykloservisu. Neodborné zásahy mohou vést
k poškození koloběžky či nehodě s vážnými zdravotními následky.
Pokud jste ale technicky zdatní, ničeho se nebojte a s chutí
sedomontáže pusťte s námi.
Dotazy, připomínky a náměty na zlepšení našich výrobků
námprosím posílejte na e-mail: [e-mail].
Rámy kolobežek Yedoo
jsou chráněny zapsanými
průmyslovými vzory.
Společenství, obchodní názvy
jsou chráněny zapsanými
ochrannými známkami.
Více informací ze světa
koloběžek a seznam distributorů
najdete na www.yedoo.cz.
CZ 16

17
CZ
2.
4a. 4b.
1.
Montáž předního a zadního kola
Do kola vložte rychloupínák tak, aby
na každé straně byla jedna pružinka
se zúžením směřujícím ke středu kola.
Vpřípadě, že jsou rychloupínáky různě
dlouhé, použijte kratší pro zadní kolo.
Postup montáže je pro
všechny modely stejný,
liší se jen v detailech viz
doplňující obrázky.
Při utahování spojů
nepřekračujte uvedený
moment utažení.
Kolo vsaďte do přední vidlice tak,
aby bylo přesně uprostřed.
Pozor:
Vzorek pneumatiky by měl směřovat
dopředu po směru jízdy, viz směrová
šipka na boku pláště.
Montážní návod
Směr otáčení Směr otáčení
Kotoučové brzdy – Trexx Disc
Nasaďte samostatně balené brzdové
kotouče na náboje kol. Rotor diskové
brzdy připevněte tak, aby šipka
zobrazená na rotoru odpovídala
rotaci kola. Přišroubujte rotor k náboji
pomocí přiloženého klíče (torx). Během
dotahování šroubů dbejte na dodržení
posloupnosti dle obrázku.
3.
Nejprve zkontrolujte, zda je přední
vidlice koloběžky natočená ve správném
směru (ramena V-brzdy / úchyty na
kolo směřují dopředu). U modelů
Wolfer, Wolfer RS uvolněte brzdové
čelisti pootočením páčky. U modelu
Trexx uvolněte brzdové lanko z vodítka
auvolněte brzdová ramena.
6
3
1
5
2
4

18
Dvoupolohová zadní vidlice
umožňuje uzpůsobit výšku stupátka.
Horní úchyt vidlice, který sníží výšku
stupátka a zároveň odlehčí stojné noze,
je určen pro jízdu na hladkém a rovném
povrchu. Jízda bude méně fyzicky
namáhavá. Rychloupínací páčku dovřete
směrem dolů.
Spodní úchyt použijte pro jízdu terénem.
Rychloupínací páčku dovřete tak,
aby směřovala nahoru.
7b. 7c.7a.
6a. 6b.
Instalace řídítek
Řídítka nasaďte na představec
a utáhněte šrouby objímky. Nápisy na
řídítkách (nejsou zobrazené na obrázku)
by měly být při čelním pohledu čitelné.
Dotáhněte seřizovací matici
rychloupínáku, těsně před dovřením
rychloupínací páčky byste měli cítit
znatelný odpor. Páčku zavřete na doraz
vtakové pozici, aby se nedotýkala vidlice
a zároveň nemohlo dojít k jejímu
náhodnému otevření během jízdy.
5.
Montáž zadního kola (V-brzda)
Uvolněte brzdové lanko z vodítka (
1
),
vložte kolo do jednoho ze dvou
úchytů vidlice, viz obr. 7.b, 7.c.,
kolo vycentrujte a dotáhněte
rychloupínák (
2
).
1
2
5–6 Nm 5–6 Nm
CZ
Montážní návod
Wolfer,
Wolfer RS
Trexx,
Trexx Disc

19
Montáž zadního kola (disc brzda)
Kolo vložte do horního úchytu vidlice,
vycentrujte a dotáhněte rychloupínák.
Spodní úchyt vidlice není v základním
nastavení koloběžky možné použít.
7d. 8a.
8b. 8d.8c.
Nastavení výšky řídítek
Uvolněte šrouby na představci a nastavte
požadovanou výšku řídítek pomocí
vymezovacích kroužků. Pro nastavení
nejnižší polohy přetočte představec
tak, aby směřoval dolů, viz obr. 8.c.
Po nastavení výšky řídítek nejprve
dotáhněte šroub hlavového složení (
1
),
pak teprve boční šroubky (
2
,
3
).
1
2
3
6–8 Nm
5–6 Nm
CZ

20
10b.10a.
Nastavení sklonu brzdových páček
U obou brzdových páček povolte
upevňovací šroubek na objímce. Správný
sklon brzdových páček nastavíte tak,
že si stoupnete na stupátko, uchopíte
řídítka a natáhnete prsty tak, aby
prodlužovaly přímku ruky. Do této polohy
nastavte páčky a u obou dotáhněte
upevňovací šroubek.
U modelu
Yedoo Wolfer, Wolfer RS
můžete pomocí upevňovacích šroubků
na obrázku upravit také polohu rohů.
9a.
Instalace brzdových lanek
Zmáčkněte brzdovou páčku na
maximum a do kulatého očka (
1
) vložte
konec brzdového lanka. Lanko vložte
do drážky a utáhněte stavěcí šroub (
2
)
a matici (
3
). Stejný postup zopakujte
i na druhé brzdě. Zadní brzdové lanko
se zpravidla upevňuje do pravé brzdové
páčky, přední do levé.
1
2
3
6–7 Nm 6–7 Nm
9b.
Wolfer a Wolfer RS
používají speciální
páčky umožňující správné přepákování
dle typu brzdy. Pokud brzdová páčka
brzdí V-brzdu (zadní kolo), je potřeba
umístit brzdové lanko do polohy (
1
).
Pokud brzdová páčka brzdí přední
Caliper brzdu (přední kolo), je potřeba
umístit brzdové lanko do polohy (
2
).
Nastavení polohy:
Mírně zmáčkněte
brzdovou páčku, abyste viděli na
uchycení brzdového lanka. Otočte
pojistným čepem a přemístěte uchycení
brzdového lanka do potřebné polohy.
Otočením pojistného čepu opět
uzamknete uchycení brzdového lanka.
9c.
CZ
Montážní návod
12
