Maxview MXR0010/KIT User manual

Assembly instructions
Turn on your TV set. Refer to manufacturers instructions to tune your TV into the available digital/HD/3D
channels. Select a tuned-in channel. Next, carry out the following procedures:
1. Turn your aerial to the LEFT until you lose the picture (if alone turn the volume up and turn until you hear a
reduction in sound quality).
2. Remember this position and turn your aerial to the RIGHT until you lose the picture/sound again.
3. Now point the aerial in the centre of these two points and you will receive optimum reception.
Digital & HD reception:
Reception of digital terrestrial TV (DTT) signals is subject to:
1. Use with a DTT set top box or integrated TV with digital tuner/receiver
2. Satisfactory signal quality from DTT transmitter
To receive terrestrial HD channels you will require the following:
1. An HD ready TV 2. Freeview HD receiver or TV with integrated Freeview HD tuner/receiver
3. HD signals must be transmitted in your local area. Visit www.freeview.co.uk for more information.
Safety warnings:
> Before starting installation check structure is sound and check for hidden electrical wiring or plumbing.
> When working on installations outside, beware of overhead power lines.
> Observe safe working practices, tread carefully and ensure adequate lighting is available in loft/roof space.
> Always follow manufacturer’s operating and safety instructions before using tools and/or equipment.
> Ladder safety - always read and follow the manufacturer’s instruction label affixed to the ladder.
> Ensure cable is correctly routed before fixing into position, taking care not to over tighten cable clips.
> This product may contain small parts - keep out of reach of children.
> After installation make regular maintenance checks.
> If in doubt consult a qualified or professional aerial installer.
Contact:
Helpline: [phone]
Email: [e-mail]
Web: www.maxview.co.uk
Maxview reserve the right to change specifications without prior notice
9111316 Iss 2

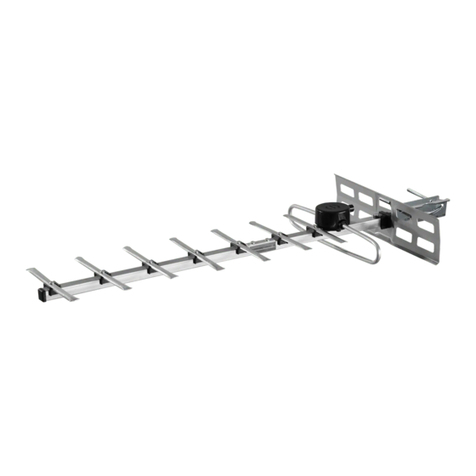

MXR0010/KIT TV Aerial - 10 Element Kit
Model:
Aligning your aerial
Polarisation
Tip: Look at outdoor aerials
in your area to see which
direction to point your
aerial for best reception.
Vertical mounting
recommended for
Relay TV transmitters.
Horizontal mounting
recommended for
Main TV transmitters.
1) Cut cable to required length.
2) Unscrew coaxial plug and
slide screw cap over cable.
3) Strip away approximately
23mm of outer insulation.
4) Gather strands of shielding
braid together and wind back
around the outer insulation.
Remove foil shield.
5) Strip away about half of the
inner insulation around inner
core. Check that none of the
shielding braid is touching
the inner core.
6) Open claw, slide over
screening braid and pinch to
tighten.
7) Re-assemble connector and
cut off inner core wire flush
with plug.
Fitting Coaxial Plug
Inner
Braid
Outer insulator
Screw cap
Plug
Claw
Inner insulator
Note image for reference only
bracket different to the one
included in this kit

1.
Pack contents check
Join the 2 pieces of boom together using the
joining plate, M5 x 20mm screws M5 nuts and
5mm Shake Proof Washers.
2.
3. 4.
Assembly
A. Rear Boom x 1
B. Front Boom x 1
C. Fixing Bracket x 1
D. Swing Arm Boom x 1
E. 10m Coaxial Cable x 1
F. Dipole x 1
G. 6½ Screw x 2
L. No.10 1” Screw x 4
M. M5 Screw x 3
N. Washer x 2
H. Joining Plate x 2
I. Wall Plug x 4
J. Insulator Cap x 1
K. M5 Nut x 3
Screw on firmly the Dipole to the Boom.
Slide on and firmly push down the Reflector onto
the groove of the Reflector Bung.
Attach Swing Arm Boom to the aerial
Boom using a No.6½” Screw.
B
A
JF
H
N
K
M
A5. 6.
Mount Fixing Bracket to suitable wall using the
No.10 1” Screws and Wall Plugs.
Insert Swing Arm Boom into Fixing Bracket and
secure together with a M5 Screw and M5 Nut.
O. Coaxial Plug x 1
P. Cable Clip x 8
E
C
D
O
P
I
L
G
Connecting Coaxial Cable
1.
Thread coaxial cable through Dipole Cap. Strip
away 25mm of outer insulator. Gather outer braid
strands and twist together. Remove 10mm of
inner insulation around inner core.
Loosen the screws on the 2 terminals in the
Dipole. Feed the inner core to one of the
terminals and the twisted braid into the other.
Tighten screws and close Dipole Cap.
Inner
core
25mm
10mm
Outer
braid
Outer
insulator
Inner
insulator
Foil
2.
