Maxview AHG45W/K User manual

Assembly instructions

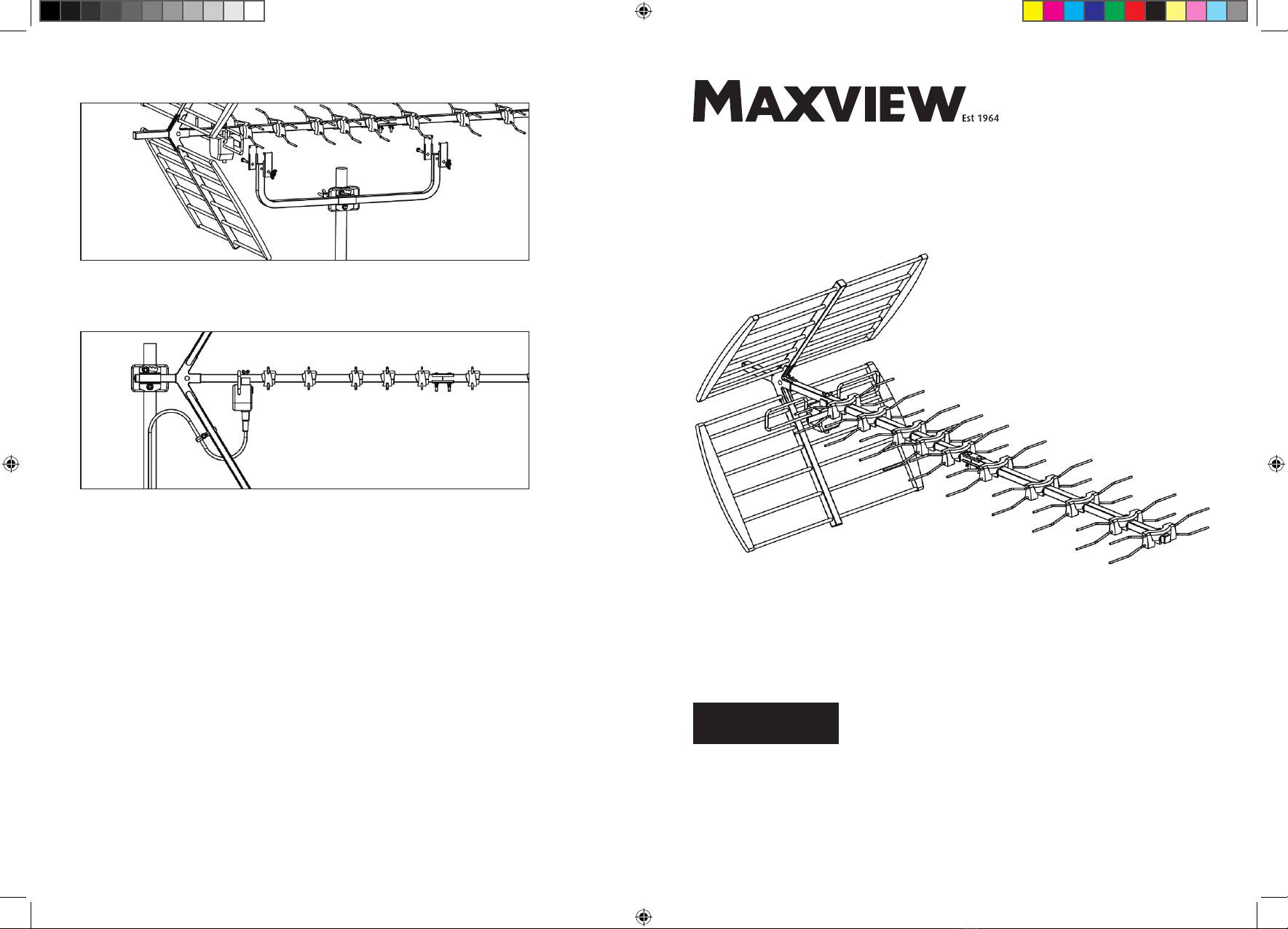

Support Arm mounting
Alternatively you can mount the aerial using the support arm provided as shown above.
Digital & HD reception:
Reception of digital terrestrial TV (DTT) signals is subject to:
1. Use with a DTT set top box or integrated TV with digital tuner/receiver
2. Satisfactory signal quality from DTT transmitter
To receive terrestrial HD channels you will require the following:
1. An HD ready TV
2. Freeview HD receiver or TV with integrated Freeview HD tuner/receiver
3. HD signals must be transmitted in your local area. Visit www.freeview.co.uk for more information.
Safety warnings:
> Before starting installation check structure is sound and check for hidden electrical wiring or plumbing.
> When working on installations outside, beware of overhead power lines.
> Observe safe working practices, tread carefully and ensure adequate lighting is available in loft/roof space.
> Always follow manufacturer’s operating and safety instructions before using tools and/or equipment.
> Ladder safety - always read and follow the manufacturer’s instruction label affixed to the ladder.
> Ensure cable is correctly routed before fixing into position, taking care not to over tighten cable clips.
> This product may contain small parts - keep out of reach of children.
> After installation make regular maintenance checks.
> If in doubt consult a qualified or professional aerial installer.
Cable routing
For best aerial performance we recommend routing the cable as shown.
Contact:
Helpline: [phone]
Email: [e-mail]
Web: www.maxview.co.uk
Maxview reserve the right to change specifications without prior notice
9111208 Iss 2
AHG45W/K High Gain TV Aerial - 45 Element
Model:
AHG45W INSTRUCTIONS ISS 2.indd 1 16/06/2014 10:08

Assembly
Rotate and lock elements in place.
Attach dipole.
Loosen bracket, insert reflectors and tighten wingnut.
Attach to suitable mast using the tilt adjustable mast clamp provided (already attached).
1.
Join boom with joining plates and fasteners.
End Arm mounting
2.
3.
4.
