PRODUCT MODEL SERIES PRODUCT DIMENSIONS
MEW7530W MEW7630W
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice. Ref. W10192049B
10/26/09

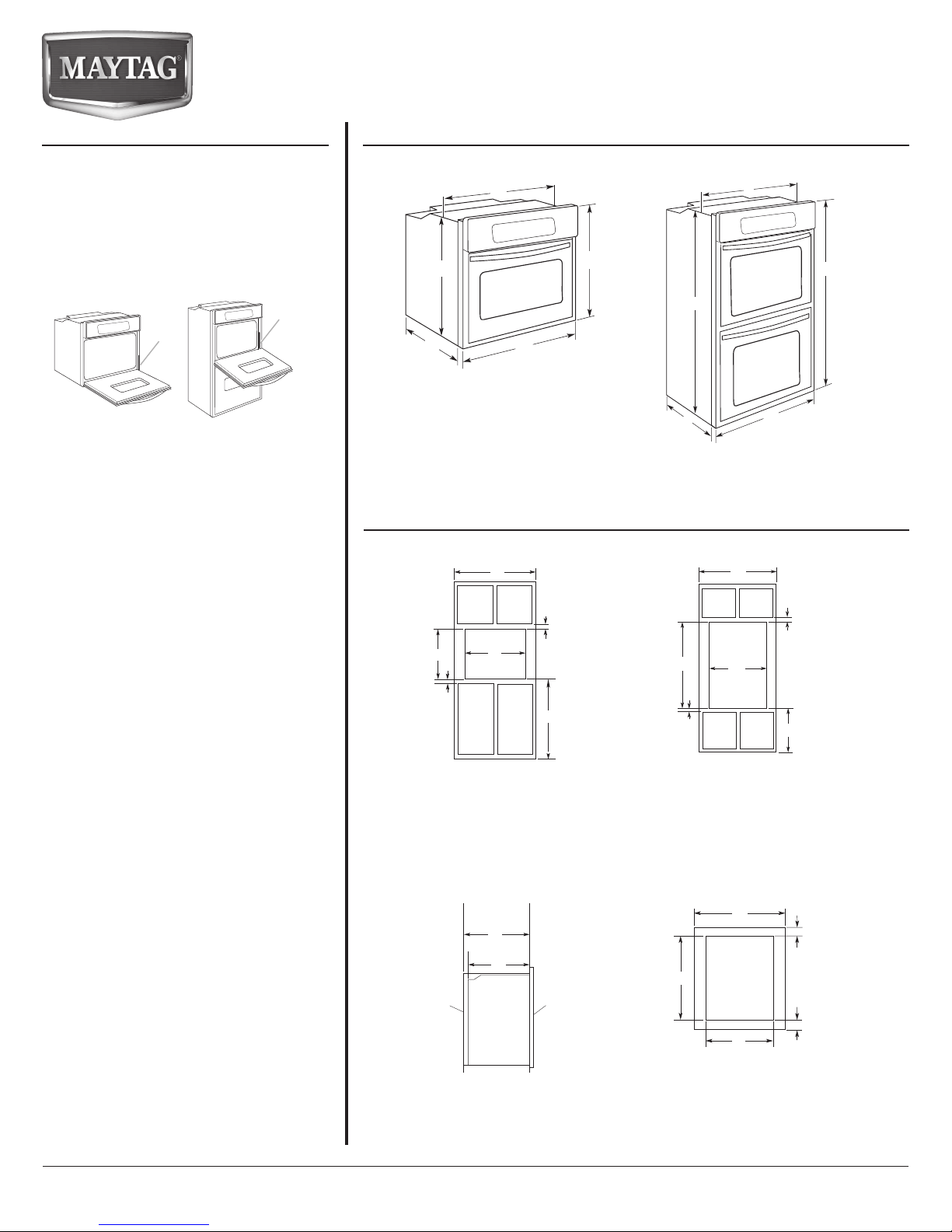

30" (76.2 CM) ELECTRIC SINGLE AND DOUBLE BUILT-IN OVEN
A. 28⁵⁄₁₆" (71.9 cm) max. recessed width
B. 29" (73.7 cm) max. overall height
C. 29³⁄₄" (75.6 cm) overall width
D. 23" (58.4 cm) max. recessed depth
E. 27¹⁄₂" (69.9 cm) recessed height
A
B
C
D
E
A. 28⁵⁄₁₆" (71.9 cm) max. recessed width
B. 51" (129.5 cm) max. overall height
C. 29³⁄₄" (75.6 cm) overall width
D. 23" (58.4 cm) max. recessed depth
E. 49⁹⁄₁₆" (125.9 cm) recessed height
A
B
D
E
C
Single Oven Undercounter
(without cooktop installed above)
A. 30" (76.2 cm) min. cabinet width
B. 1¹⁄₂" (3.8 cm) min. top of cutout to
underside of countertop
C. 5¹⁄₄" (13.3 cm) bottom of cutout to floor
D. 28¹⁄₂" (72.4 cm) cutout width
E. 27³⁄₄" (70.5 cm) min. cutout height
AB
C
D
E
Single Oven Installed in Cabinet
A. 30" (76.2 cm) min. cabinet width
B. 1" (2.5 cm) top of cutout to bottom
of upper cabinet door
C. 32" (81.3 cm) bottom of cutout to floor
D. 28¹⁄₂" (72.4 cm) cutout width
E. 1¹⁄₂" (3.8 cm) min. bottom of cutout to
top of cabinet door
F. 2 7 ³⁄₄" (70.5 cm) cutout height
A
B
D
E
F
C
tenibaCnidellatsnIsnevOelbuoD
A. 30" (76.2 cm) min. cabinet width
B. 1" (2.5 cm) top of cutout to bottom of
upper cabinet door
C. 14³⁄₄" (37.5 cm) bottom of cutout to floor
D. 28¹⁄₂" (72.4 cm) cutout width
E. 1¹⁄₂" (3.8 cm) min. bottom of cutout to
top of cabinet door
F. 4 9 ³⁄₄" (126.4 cm) min. cutout height
A
B
C
D
E
F
nevOelbuoDroelgniS
-weiVediStenibaC
A. 23¹⁄₄" (59.1 cm) min. cutout depth
B. 23" (58.4 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
A
B
C
D
E
Electrical Requirements: Oven must be connected
to the proper electrical voltage and frequency as
specified on the model/serial number rating plate.
The model/serial number rating plate is located at
the bottom of the right-hand mounting rail. See the
following illustrations.
Models rated from 7.3 to 9.6 kW at 240 volts
(5.5 to 7.2 kW at 208 volts) require a separate
40-amp circuit. Models rated at 7.2 kW and below
at 240 volts (5.4 kW and below at 208 volts)
require a separate 30-amp circuit.
A circuit breaker is recommended. Connect directly
to the circuit breaker box (or fused disconnect)
through flexible, armored or nonmetallic, sheathed
copper cable (with grounding wire).
Flexible conduit from the oven should be
connected directly to the junction box. Do not cut
the conduit. The length of conduit provided is for
serviceability of the oven. A UL-listed or CSA-
approved conduit connector must be provided.
If the house has aluminum wiring, follow the
procedure below:
1. Connect a section of solid copper wire to the
pigtail leads.
2. Connect the aluminum wiring to the added
section of copper wire using special connectors
and/or tools designed and UL-listed for joining
copper to aluminum.
Follow the electrical connector manufacturer's
recommended procedure. Aluminum/copper
connection must conform with local codes and
industry-accepted wiring practices.
Single Oven
. Model/serial number plate
Double Oven
A. Model/serial number plate
A
A
