MBW BMS74 User manual

OPERATOR’S SAFETY
AND SERVICE MANUAL
MBW, Inc.
250 Hartford Rd • PO Box 440
Slinger, WI 53086-0440
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.mbw.com
MBW (UK) Ltd.
Units 2 & 3 Cochrane Street
Bolton BL3 6BN, England
Phone: [phone]
Fax: [phone]
MBW FRANCE S.A.R.L.
Phone: [phone]
Fax: [phone]
L18345 / 06.19.P
©MBW, Inc. 2015
Printed in the USA
BMS74, BMS75 &
BMS95
This manual covers the following serial numbers
and higher for each model listed:
BMS74 . . . . . . . . . . . . . . . . . . . . . 0740100
BMS95 . . . . . . . . . . . . . . . . . . . . . 1060300
CONCRETE SPRAYERS:
FOR WATER BASE MATERIALS ONLY

TABLE OF CONTENTS
Safety Information . . . . . . . . . . . . . . . . . . . . . . 1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before Starting & Operating . . . . . . . . . . . . . . . . . . . . 4
Starting Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Stopping Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . 5
Fluid Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Engine Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 5
Engine Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Winterizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Torque Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
BMS 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
BMS 95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . 8
BMS74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
BMS 95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Drum Cart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
OPTIONAL SPRAY EQUIPMENT:. . . . . . . . . . . . . . 16
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust and some of its constituents are
known in the state of California to cause cancer,
birth defects, and other reproductive harm.
WARNING

- 1 -

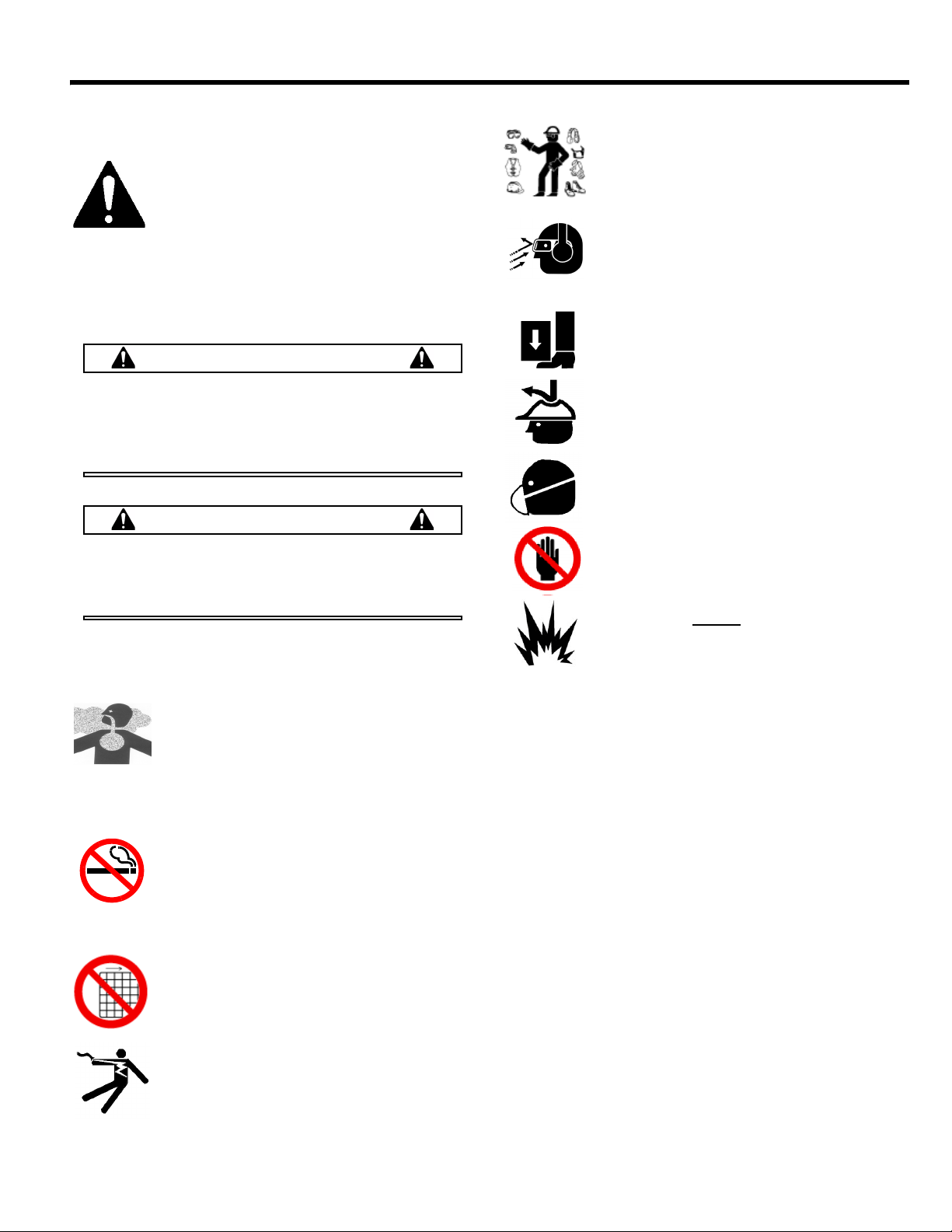

SAFETY INFORMATION
Introduction
This Safety Alert Symbol is used to call attention
to items or operations which may be dangerous
to those operating or working with this
equipment. The symbol can be found
throughout this manual and on the unit. Please read these
warnings and cautions, along with all decals, carefully
before attempting to operate the unit. Make sure every
individual who operates or works with this equipment is
familiar with all safety precautions.
WARNING
GENERAL WARNING. Indicates information
important to the proper operation of the
equipment. Failure to observe may result in
damage to the equipment and/or severe bodily
injury or death.
CAUTION
GENERAL CAUTION. Indicates information
important to the proper operation of the
equipment. Failure to observe may result in
damage to the equipment.
Safety Precautions
LETHAL EXHAUST GAS: An internal
combustion engine discharges carbon
monoxide, a poisonous, odorless, invisible
gas. Death or serious illness may result if
inhaled. Operate only in an area with proper
ventilation. NEVER OPERATE IN A
CONFINED AREA!
DANGEROUS FUELS: Use extreme caution
when storing, handling and using fuels, as
they are highly volatile and explosive in vapor
state. Do not add fuel while engine is running.
Stop and cool the engine before adding fuel.
DO NOT SMOKE!
SAFETY GUARDS: It is the owner's
responsibility to ensure that all guards and
shields are in place and in working order.
IGNITION SYSTEMS: Breakerless, magneto,
and battery ignition systems can cause severe
electrical shocks. Avoid contacting these
units or their wiring.
SAFE DRESS: Do not wear loose clothing,
rings, wristwatches, etc. near machinery.
NOISE PROTECTION: Wear OSHA specified
hearing protection devices.
EYE PROTECTION: Wear OSHA specified
eye shields, safety glasses, and sweat bands.
FOOT PROTECTION: Wear OSHA specified
steel-tipped safety shoes.
HEAD PROTECTION: Wear OSHA specified
safety helmets.
DUST PROTECTION: Wear OSHA specified
dust mask or respirator.
OPERATOR: Keep children and bystanders
off and away from the equipment.
EXPLOSION HAZARD: Use water based
material only. Do Not use flammable material.
REFERENCES: For details on safety rules and regulations
in the United States, contact your local Occupational Safety
and Health Administration (OSHA) office. Equipment
operated in other countries must be operated and serviced
in accordance and compliance with any and all safety
requirements of that country. The publication of these
safety precautions is done for your information. MBW does
not by the publication of these precautions, imply or in any
way represent that these are the sum of all dangers present
near MBW equipment. If you are operating MBW
equipment, it is your responsibility to insure that such
operation is in full accordance with all applicable safety
requirements and codes. All requirements of the United
States Federal Occupational Safety and Health
Administration Act must be met when operated in areas that
are under the jurisdiction of that United States Department.
Safety Decals
Carefully read and follow all safety decals. Keep them in
good condition. If decals become damaged, replace as
required. If repainting the unit, replace all decals. Decals
are available from authorized MBW distributors. Order the
decal set listed on the following page(s).

- 2 -
Read the Operating Instructions before
operating this piece of equipment.
WARNING
18418
Wear approved hearing protection, foot
protection, eye protection and head protection.
STOP
Contents under HIGH PRESSURE! Shut off
engine and relieve pressure before
disconnecting hoses. Always point spray gun in
a safe direction.
Failure to comply could result in serious bodily injury.
SHUT OFF the motor before servicing or clean-
ing.
DO NOT RUN in an enclosed area. The engine
produces carbon monoxide, a POISONOUS
GAS.
Keep unauthorized and untrained people away
from this equipment.
18423
20249
OPERATING INSTRUCTIONS
1.IMPORTANT: All materials must be
thoroughly agitated before spaying.
2.Check fuel level and open fuel valve.
3.Set throttle at idle position.
4.Choke engine. A warm engine may not need
to be choked.
5.Pull starter rope.
6.After starting, open choke gradually and let
engine warm up at idle.
7.To start spraying: open throttle fully.
8.To increase pressure turn T handle, on
pressure relief valve, clockwise. To decrease
pressure turn T counter-clockwise.
9.To stop: return throttle to idle and allow engine
to run for a few minutes before turning off.
10.Turn engine switch to off and close fuel
valve.
11. Clean sprayer thoroughly after every use.
18365
WARNING
Keep handsaway!
15518
ROTATING PARTS
Can crush and cut
- EXPLOSION HAZARD: Use water base
materials ONLY. Use of other material
may void warranty
- All materials must be thoroughly agitated before spraying. - Pump must be properly cleaned immediately after every use. - Follow chemical suppliers procedures for proper cleaning of equipment. - Failure to properly clean sprayer voids warranty
WARNING
18420
DO NOT REMOVE
19791
WARNING
OPERATION OF THIS EQUIPMENT MAY
CREATE SPARKS THAT CAN START FIRES
AROUND DRY VEGETATION. A SPARK
ARRESTER MAY BE REQUIRED. THE
OPERATOR SHOULD CONTACT LOCAL FIRE
AGENCIES FOR LAWS OR REGULATIONS
RELATING TO FIRE PREVENTION

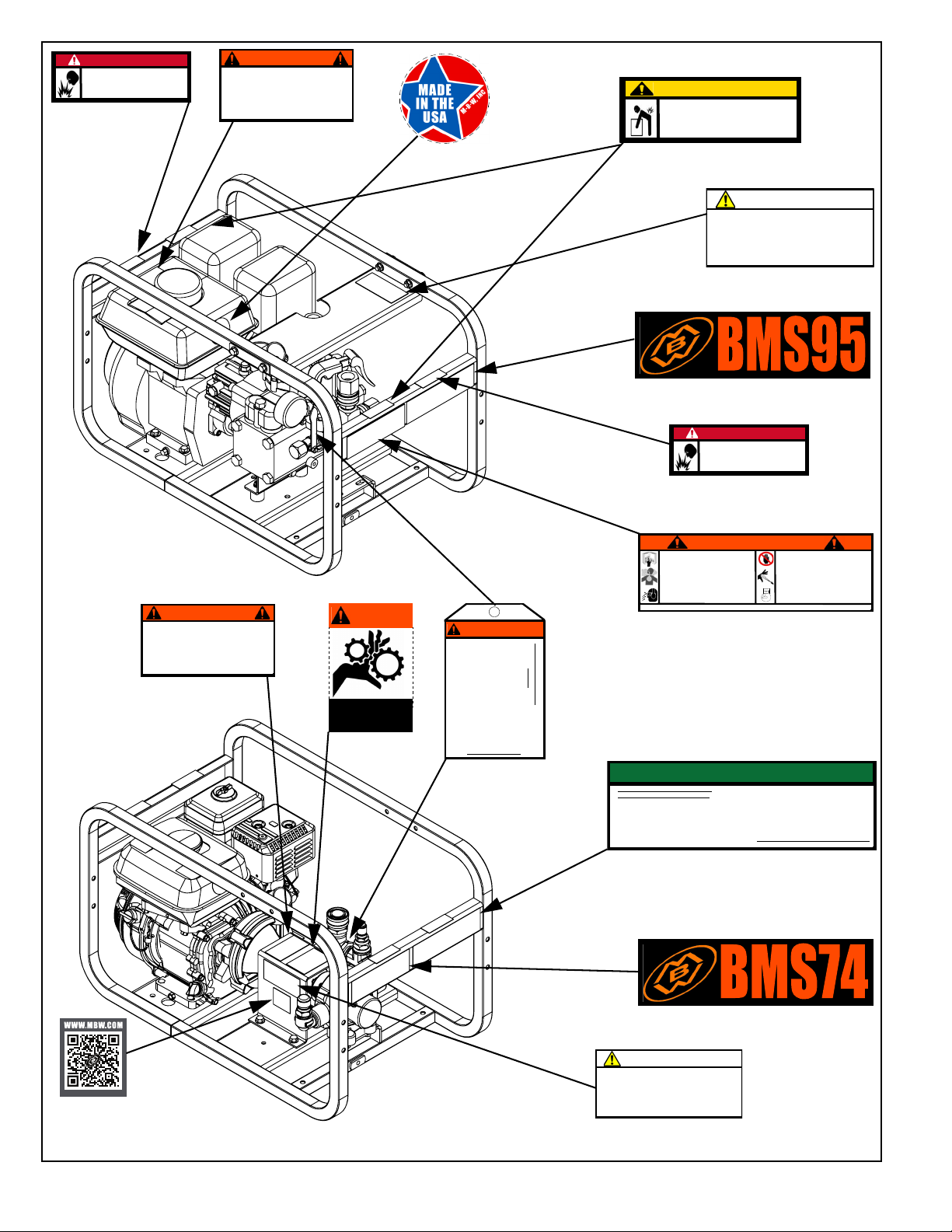

Safety Decals (Decal Set #18344)
EXPLOSION HAZARD: Do not
spray flammable material.
Failure to comply could result in
serious bodily injury.
DANGER
18421
LIFTING HAZARD. Single person lift
could cause injury. Use assistance
when lifting or moving.
Failure to comply could result in serious
bodily injury.
CAUTION
18426
18426
18421
19791
18418
15518
18420
19791
WARNING
OPERATION OF THIS EQUIPMENT MAY
CREATE SPARKS THAT CAN START FIRES
AROUND DRY VEGETATION. A SPARK
ARRESTER MAY BE REQUIRED. THE
OPERATOR SHOULD CONTACT LOCAL FIRE
AGENCIES FOR LAWS OR REGULATIONS
RELATING TO FIRE PREVENTION
19791
18419 - BMS95
18365 - BMS75
12500
WARNING
Operating, servicing and maintaining this equipment
can expose you to chemicals, including engine
exhaust, phthalates and lead, which are known to the
state of California to cause cancer and birth defects or
other reproductive harm. Avoid breathing engine
exhaust. Do not operate equipment in confined areas.
For more information go to www.P65Warnings.ca.gov
21820
18423 - BMS95
20249 - BMS74
18423 - BMS95
20249 - BMS74
EXPLOSION HAZARD: Do not
spray flammable material.
Failure to comply could result in
serious bodily injury.
DANGER
18421
18421
21738
21738
WARNING
Operating, servicing and maintaining this equipment
can expose you to chemicals, including engine
exhaust, phthalates and lead, which are known to the
state of California to cause cancer and birth defects or
other reproductive harm. Avoid breathing engine
exhaust. Do not operate equipment in confined areas.
For more information go to www.P65Warnings.ca.gov
21820
21820
21820

- 3 -
SPECIFICATIONS
Specifications subject to change without notice
BMS74
(W/ 25’ HOSE & WAND)
BMS95
(W/ 25’ HOSE & WAND)
Pump Roller 7560C-R Diaphragm
Solids Content
(high efficiency / max.rating)
(Water Based Materials Only)
25% / 30%
(Water Based Materials Only)
35%
Maximum Flow 7.5 gpm (28.3 lpm) 9.5 gpm (36 lpm)
Maximum Pressure 300 psi (20.7 bar) 550 psi (38 bar)
Adjustable Pressure Settings Yes Yes
Standard Operating Pressure 100 psi (6.8 bar) 100 psi (6.8 bar)
Weight 95 lbs (43 kg) 115 lbs (52 kg)
Dimensions (L x W x H) 27 x 15.5 x 17in.
(69 x 39 x 43cm)
Engine HONDA GX120
7.2 cu. in. (118 cm3)
HONDA GX160
9.9 cu. in. (163 cm3)
Max Engine RPM 3600 rpm 3600rpm
Quick Disconnect Fittings Yes Yes
BMS74/75 BMS95

- 4 -
OPERATION
Introduction
MBW equipment is intended for use in very severe
applications. They are powered by four cycle engines and
are available in different sizes and a selection of engines.
This parts manual contains only standard parts. Variations of
these parts as well as other special parts are not included.
Contact your local MBW distributor for assistance in
identifying parts not included in this manual.
Before Starting & Operating
• Use water based material only. Do not use flammable
material. Failure to comply could result in serious bodily
and or equipment damage and void warranty.
• Thoroughly agitate materials to be sprayed. High solid
content from bottom of container can cause pump failure,
voiding warranty.
• REMEMBER! It is the owner’s responsibility to
communicate information on the safe use and proper
operation of this unit to the operators.
• Review ALL of the Safety Precautions listed on page 1 of
this manual.
• Familiarize yourself with the operation of the machine
and confirm that all controls function properly.
• Know how to STOP the machine in case of an
emergency.
• Make sure hands, feet, and clothing are at a safe distance
from any moving parts.
• OIL LEVEL - Check the oil level in the engine, gear
reducer and pump. For more information see
“Lubrication” under the respective engine’s/pump’s
Owners Manual.
• AIR CLEANER - Check to ensure element is in good
condition and properly installed.
• FUEL SUPPLY - The engines on MBW equipment require
an automotive grade of clean, fresh, unleaded gasoline.
• FUEL FILTER - If clogged or damaged, replace.
• Inspect unit for loose or missing hardware or guards and
cracked or damaged hoses. Tighten or replace any loose
or missing hardware. DO NOT OPERATE SPRAYER with
damaged hoses or missing guards. Replace damaged
hoses or missing guards before operating unit.
• SPRAY GUN - Check spray gun nozzle and all hoses &
fittings to ensure they are free of all debris or blockage.
Starting Engine
1. Check fuel level and open fuel valve.
2. Set throttle at idle position.
3. Choke engine and pull starter rope. A warm engine
may not need to be choked
4. After starting, open choke gradually and let engine
warm up at idle.
Operating
1. All materials to be sprayed MUST be thoroughly
agitated. Failure to properly mix product before
spaying can result in damage to pump voiding
warranty.
2. To start spraying, open throttle fully & squeeze trigger.
3. Follow all manufactures specifications for product
application, cure time and clean-up for all materials
applied with this equipment.
4. Do not allow pump to run dry. Stop engine before the
pump runs out of fluid.
Stopping Engine
1. Return throttle to idle and allow engine to run for a few
minutes before turning off.
2. Turn engine switch to off and close fuel valve.
3. Clean pump after each use. Refer to Cleaning, page
4 for proper cleaning procedure.
WARNING
Failure to clean pump after each use could result
in damage to the pump and personal injury.
CAUTION
Freezing fluids can cause damage to the pump. If
unit is likely to be stored in freezing temperatures,
always exercise the winterizing procedure.
WARNING
Always stop the engine before: Adding fuel.
Leaving the equipment unattended for any amount
of time.
Before making any repairs or adjustments to the
machine.

- 5 -
MAINTENANCE
WARNING
Always exercise the stopping procedure before
servicing or lubricating the unit.
After servicing the unit, replace and fasten all
guards, shields, and covers to their original
positions before resuming operation.
CAUTION
Always verify fluid levels and check for leaks after
changing fluids.
Do not drain oil onto ground, into open streams,
or down sewage drains.
Maintenance Schedule
1. Applies to BMS95 only.
2. Check all hardware after the first 5 hours of use, then follow the maintenance schedule.
Fluid Levels
Engine Maintenance
Refer to the engine owner’s manual for maintenance
intervals and procedures.
Engine Speed
The engine speed is factory preset according to the
specifications section of this manual. Do not tamper with the
governor settings. The governor establishes safe operating
limits which must not be exceeded.
Cleaning
1. Cleaning of pump and equipment, refer to
manufacture’s literature of each chemical being
sprayed for proper cleaning instructions and cleaning
agent. Do not allow spraying solution to dry in the
pump. Failure to properly clean sprayer will void
warranty.
Winterizing
Winterize your sprayer when temperatures may drop
below freezing.
1. Drain and thoroughly clean pump.
2. Fill pump with a 50/50 water and antifreeze mixture.
SYSTEM MAINTENANCE EACH USE WEEKLY EVERY 100
HOURS YEARLY
Engine Refer to engine operator/owner manual X
Oil Check oil levels in engine gear reducer and
pump if applicable X
Pump Clean and flush pump X
Pump Replace diaphragms1X
Hardware Check and tighten hardware as needed2X
SYSTEM ENGINE/GEAR REDUCER PUMP RECOMMENDED
OIL
BMS74 &
BMS75
Engine/Gear reducer refer to
operator/owner manual N/A See manual
BMS95 Refer to engine/pump operator/
owner manual
Refer to pump operator/owner
manual
Hypro formulated
pump oil

- 6 -
SERVICE
Assembly and disassembly should be performed by a
service technician who has been factory trained on MBW
equipment. The unit should be clean and free of debris.
Pressure washing before disassembly is recommended.
• Prior to assembly, wash all parts in a suitable cleaner or
solvent.
• Check moving parts for wear and failure. Refer to the
Replacement section in this manual for tolerance and
replacement cycles.
• All shafts and housings should be oiled prior to pressing
bearings. Also, ensure that the bearings are pressed
square and are seated properly.
• All gaskets and seals should be replaced after any
disassembly.
Torque Chart
BMS 74 & 75
Disassembly
Refer to BMS74, page 10.
1. Detach all hoses.
2. Remove coupler guard (# 2)
3. Remove engine mounting bolts and slide engine out
to disengage coupler.
4. Inspect coupler spider (# 13) for wear. Replace if
necessary.
5. Remove pump (# 7).
6. Remove fittings. Use care not to damage the soft
brass threads.
Assembly
Refer to BMS74, page 10.
1. Assemble couplers (# 11, # 12) on to Engine and
Pump. End of shafts should be flush with front of
coupler. Use antisieze on shafts to insure easy
maintenance in the future. Apply medium strength
Loctite to coupler set screws to prevent screws from
becoming loose.
2. Assemble fittings to pump as shown in diagram. Use
a thread sealing compound on threads to prevent
leaks.
3. Loosely assemble pump to frame.
4. Insert coupler spider into pump coupler.
5. Loosely assemble engine to frame. Take care to align
coupler halves to avoid damage to the spider.
6. Tighten engine and pump mounting bolts.
7. Check for any excessive binding in the coupler by
rotating shafts. If found, correct the problem before
use.
8. Reinstall the coupler guard.
9. When first using pump after assembly, check and
correct any leaks that occur.
BMS 95
Disassembly
Refer to BMS 95, page 12.
1. Detach all hoses
2. Remove hardware that hold engine and pump to the
frame and remove engine and pump as a unit.
3. To separate pump from engine, remove the (4) socket
head cap screws from the pumps mounting flange
and slide the pump of the engine shaft.
4. If removing any fittings, use care not to damage soft
brass threads.
Assembly
Refer to BMS 95, page 12.
1. Press key into engine shaft and apply an antiseize
compound.
2. Slide the engine and pump together after aligning the
keyways.
SIZE GRADE 2 GRADE 5 GRADE 8
1/4-20 49 in•lbs 76 in•lbs 9 ft•lbs
1/4-28 56 in•lbs 87 in•lbs 10 ft•lbs
5/16-18 8 ft•lbs 13 ft•lbs 18 ft•lbs
5/16-24 9 ft•lbs 14 ft•lbs 20 ft•lbs
3/8-16 15 ft•lbs 23 ft•lbs 33 ft•lbs
3/8-24 17 ft•lbs 26 ft•lbs 37 ft•lbs
7/16-14 24 ft•lbs 37 ft•lbs 52 ft•lbs
7/16-20 27 ft•lbs 41 ft•lbs 58 ft•lbs
1/2-13 37 ft•lbs 57 ft•lbs 80 ft•lbs
1/2-20 41 ft•lbs 64 ft•lbs 90 ft•lbs
9/16-12 53 ft•lbs 82 ft•lbs 115 ft•lbs
5/8-11 73 ft•lbs 112 ft•lbs 159 ft•lbs
5/8-18 83 ft•lbs 112 ft•lbs 180 ft•lbs
CONVERSIONS
in•lbs x 0.083 = ft•lbs
ft•lbs x 12 = in•lbs
ft•lbs x 0.1383 = kg•m
ft•lbs x 1.3558 = N•m

- 7 -
3. Using a medium strength thread locker on the
threads of the bolts, fasten the pump to the engine.
4. Use a thread sealant when reinstalling any removed
fittings.
5. Fasten engine and pump subassembly into frame.
6. Reinstall hoses.
Parts Replacement Cycles and Tolerances
Pump Components Refer to your pump manufacturer’s Owner’s Manual.
Engine Components Refer to your engine manufacturer’s Owner’s Manual.
Hardware Replace any worn or damaged hardware as needed. Replacement hardware should
be grade 5 and zinc plated unless otherwise specified.
Safety Decals Replace if they become damaged or illegible.
Seals & Gaskets Replace if a leak is detected and at every overhaul or tear down.

- 8 -
MBW, Inc.
250 Hartford Rd • PO Box 440
Slinger, WI 53086-0440
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.mbw.com
MBW (UK) Ltd.
Units 2 & 3 Cochrane Street
Bolton BL3 6BN, England
Phone: [phone]
Fax: [phone]
Contact Information
MBW FRANCE S.A.R.L.
Phone: [phone]
Fax: [phone]
REPLACEMENT PARTS
The warranty is stated in this book on page 18. Failure to
return the Warranty Registration Card renders the warranty
null and void.
MBW has established a network of reputable distributors/
dealers with trained mechanics and full facilities for
maintenance and rebuilding, and to carry an adequate parts
stock in all areas of the country. Their sales engineers are
available for professional consultation. If you cannot locate
an MBW distributor in your area, contact MBW or one of our
Sales Branches listed below.
When ordering replacement parts, be sure to have the
following information available:
• Model and Serial Number of machine when ordering
MBW parts
• Model and Serial Number of engine when ordering
engine parts
• Part Number, Description, and Quantity
• Company Name, Address, Zip Code, and Purchase
Order Number
• Preferred method of shipping
REMEMBER - You own the best! If repairs are needed,
use only MBW parts purchased from authorized
MBW distributors.

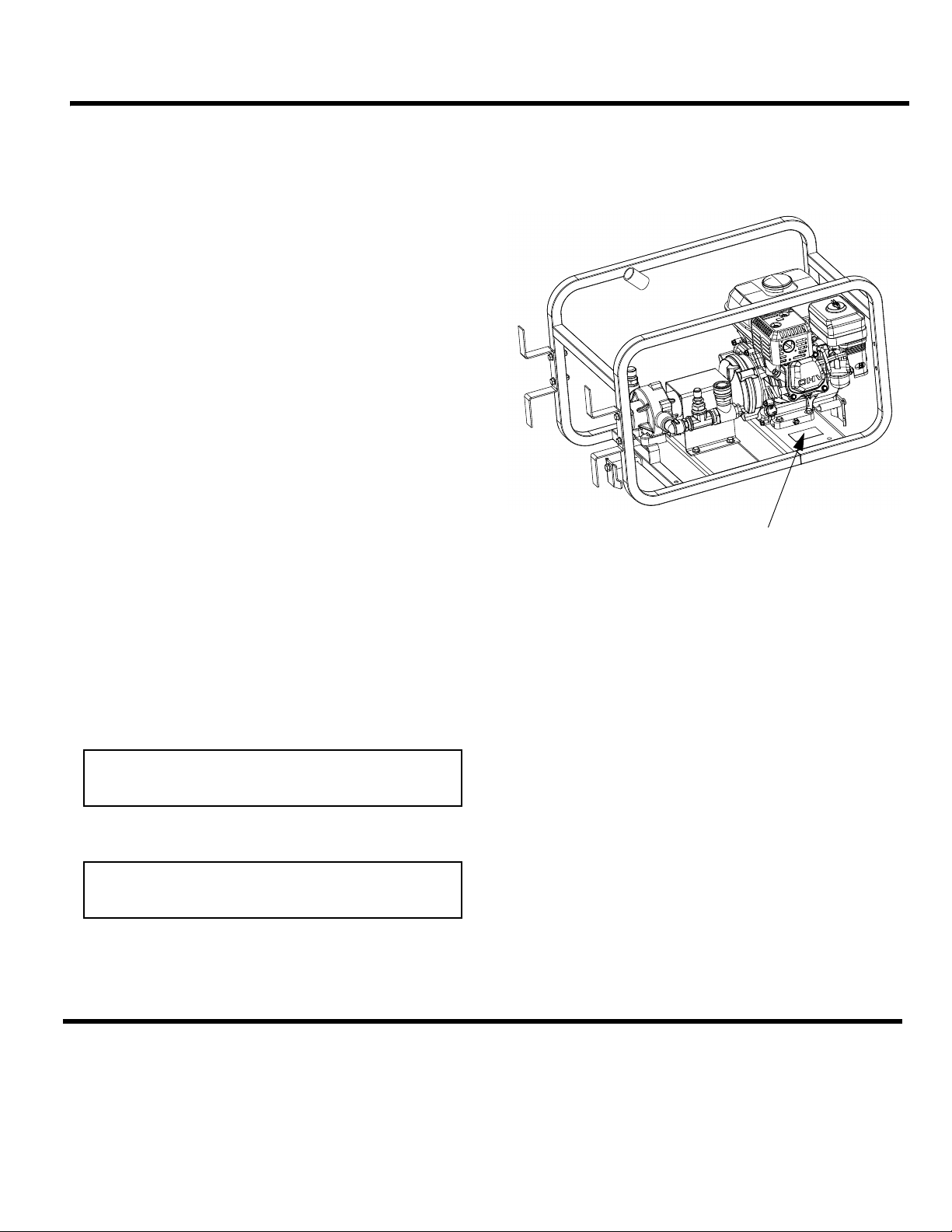

The unit’s serial number can be found in the following
locations:
• The model/serial number decal is located on the top side
of the engine plate on the frame.
Write Model Number here
Write Serial Number here
DECAL
LOCATION

- 9 -
This page intentionally left blank.

- 10 -


   

























 






 






BMS74

- 11 -
ITEM PART NO. DESCRIPTION BMS74 BMS75
1. 00032 KEY STOCK 3/16 SQ. X 1-5/8 LG. 1 1
2. 01161 KEY STOCK, 1/4 SQ. X 1.5 LG. 1 1
3. 18300 FRAME, COATED, SPRAYER 1 1
4. 18309 SHAFT GUARD, COATED, SPRAYER 1 1
5. 18311 HOSE REEL, COATED, SPRAYER 2 2
6. 18313 BARREL MOUNT, COATED, SPRAYER 2 2
7. 18317 HOSE, SUCTION-RETURN, SPRAYER 2 2
8. 18320 25’ HOSE, ASM., (Includes item 23) for serial no. 0740099, 1040399, 1060299 & lower 11
18433 25’ HOSE ASM., (includes items 23 & 29) for serial no. 0740100, 1040400, 1060300 & up 11
19141 50’ HOSE ASM., (includes item 23) for serial no. 0740099, 1040399, 1060299 & lower 11
18435 50’ HOSE ASM., (includes items 23 & 29) for serial no. 0740100, 1040400, 1060300 & up 11
18503 100’ HOSE ASM., (Includes item 23) for serial no. 0740099, 1040399, 1060299 & lower 11
18437 100’ HOSE ASM., (includes items 23 & 23) for serial no. 0740100, 1040400, 1060300 & up 11
9. 18324 PUMP, HYPRO #7560XL-R 1
20246 PUMP, HYPRO #7560C-R 1
10. 18325 ENGINE, HONDA, GX120K1HX2 1 1
11. 18326 PRESSURE RELIEF VALVE 1 1
12. 18327 SPRAY GUN, HYPRO, for serial no. 0740099, 1040399, 1060299 & lower 11
21401 SPRAY GUN ASM., (includes items 30 & 31) for serial no. 0740100, 1040400, 1060300 & up 1 1
13. 18328 COUPLING, ENGINE HALF, SPRAYER 1 1
14. 18329 COUPLING, PUMP HALF, SPRAYER 1 1
15. 18330 COUPLING, SPIDER, 75 DUROMETER 1 1
16. 18331 FITTING, STREET ELBOW, 3/4 NPT 2 2
17. 18332 FITTING, HEX PIPE NIPPLE 1 1
18. 18333 FITTING, FEMALE PIPE TEE 1 1
19. 18334 FITTING, THREAD REDUCER 2 2
20. 18335 QUICK COUPLING, FEMALE, BST-6M 1 1
21. 18336 QUICK COUPLING, MALE, BST-N6 1 1
22. 18337 QUICK COUPLING, MALE, BST-N4M 1 1
23. 18338 QUICK COUPLING, FEMALE, BST-4 (Included with item #8) 11
24. 18339 FITTING, FEMALE ELBOW 2 2
25. 18340 RETURN DROPE TUBE, SPRAYER 1 1
26. 18342 SUCTION DROP TUBE, SPRAYER 1 1
27. 18361 QUICK COUPLING, FEMALE, BST-6 1 1
28. 18362 QUICK COUPLING, MALE, BST-N6M 1 1
29. 18372 QUICK COUPLING, MALE, BST-N4 (Included with item #8) 11
30. 21398 FITTING, REDUCER1/2 TO 3/8 NPT (Included with item #12) 11
31. 21399 QUICK COUPLING, FEMALE, BST-4M (Included with item #12) 11
32. F051806FWS FWLS, 5/16-18 X 3/4 ZP 6 6
33. F051812HCS HHCS, 5/16-19 X 1-1/2 GR5 ZP 4 4
34. F051812FWS FWLS, 5/16-18 X 1-1/2 ZP 4 4
35. F0518FN NUT, FLANGE WHIZ-LOCK 5/16-18 ZP 12 12
36. F05SW WASHER, 5/16 X 3/4 X 15GA ZP 6 6
37. F061628HCS HHCS, 3/8-16 X 3-1/2 GR5 ZP 2 2
38. F06LW LOCKWASHER, 3/8 ZP 2 2
SERVICE PARTS
18452 ROLLER KIT, REBUILD 11
18453 BEARING, ROLLER PUMP (2 REQIRED) 2 2
18914 ROTOR & SHAFT ASSEMBLY BMS75 ONLY 1
20248 ROTOR & SHAFT ASSEMBLY BMS74 ONLY 1

- 12 -
BMS 95










  















 
 
 


















- 13 -
ITEM PART NO. DESCRIPTION QTY
1. 00032 ENGINE KEY 3/16 SQ. X 1-5/8 LG. 1
2. 01444 ENGINE, HONDA GX160KQX 1
3. 17643 SHOCKMOUNT, 1” OD X 1” LONG 2
4. 18300 FRAME, COATED, SPRAYER 1
5. 18311 HOSE REEL, COATED, SPRAYER 2
6. 18313 BARREL MOUNT, COATED, SPRAYER 2
7. 18327 SPRAY GUN, HYPRO, for serial no. 0740099, 1040399, 1060299 & lower 1
21401 SPRAY GUN ASM., (includes items 27 & 28) for serial no. 0740100, 1040400, 1060300 & up 1
8. 18334 FITTING, THREAD REDUCER 1
9. 18335 QUICK COUPLING, FEMALE, BST-6M 1
10. 18336 QUICK COUPLING, MALE, BST-N6 1
11. 18338 QUICK COUPLING, FEMALE, BST-4 (Included with item 20) 1
12. 18339 FITTING, FEMALE ELBOW 1
13. 18340 RETURN DROP TUBE, SPRAYER 1
14. 18361 QUICK COUPLING, FEMALE, BST-6 1
15. 18362 QUICK COUPLING, MALE, BST-N6M 1
16. 18366 PUMP, HYPRO. 9910-D30DGRGI 1
17. 18367 PUMP MOUNT BRACKET, COATED 1
18. 18369 HOSE, HYDRAULIC SUCTION SPRAYER 1
19. 18370 HOSE, HYDRAULIC RETURN SPRAYER 1
20. 18320 25’ HOSE, ASM., (Includes item 11) for serial no. 0740099, 1040399, 1060299 & lower 1
18433 25’ HOSE ASM., (includes items 11 & 21) for serial no. 0740100, 1040400, 1060300 & up 1
19141 50’ HOSE ASM., (includes item 11) for serial no. 0740099, 1040399, 1060299 & lower 1
18435 50’ HOSE ASM., (includes items 11 & 21) for serial no. 0740100, 1040400, 1060300 & up 1
18503 100’ HOSE ASM., (Includes item 11) for serial no. 0740099, 1040399, 1060299 & lower 1
18437 100’ HOSE ASM., (includes items 11 & 21) for serial no. 0740100, 1040400, 1060300 & up 1
21. 18372 QUICK COUPLING, MALE, BST-N4 (Included with item 20) 2
22. 18373 FITTING, STR. ELBOW, 3/4 X 1/2 NPTG-F 1
23. 18374 FITTING, ELBOW, #16 DTX-G-F 1
24. 18375 FITTING, THRD REDUCER, 1 X 3/4 NPT 1
25. 18376 SUCTION DROP TUBE, SPRAYER 1
26. 18378 FITTING, HEX PIPE CAP, 1/2 NPT 1
27. 21199 GUARD, SPRAYER PUMP 1
28. 21398 FITTING, REDUCER, 1/2 TO 3/8 NPT (Included with item 7) 1
29. 21399 QUICK COUPLING, MALE, BST-4M (Included with item 7) 1
30. F042004HCS HHCS, 1/4-20 X 1/2 GR5 ZP 2
31. F0420FN FLANGE WHIZ-LOCK NUT, 1/4-20 2
32. F04LW LOCKWASHER, 1/4 ZP 2
33. F04SW WASHER, TYPE A 1/4 X 9/16 x.054 2
34. F051812FWS FWLS, 5/16-18 X 1-1/2 ZP 8
35. F051812HCS HHCS, 5/16-18 X 1-1/2 GR5 ZP 4
36. F051826HCS HHSC, 5/16-18 X 3-1/4 GR5 ZP 2
37. F0518ELN LOCKNUT, 5/16-18 NYLOC ZP 2
38. F0518FN NUT, FLANGE WHIZ-LOCK 1/16-18 ZP 12
39. F052408SCS SCS, 5/16-24 X 1” 4
40. F05SW WASHER, 5/16 X 3/4 X 15 ga ZP 8
41. F061628HCS HHCS, 3/8-16 X 3-1/2 GR5 ZP 2
42. F06LW LOCKWASHER, 3/8 ZP 2
SERVICE PARTS
18454 KIT, DIAPHRAGM REPLACEMENT, SET OF (3) 1
18455 KIT, VALVE, SET OF (4), WITH O-RINGS 1
18456 KIT, O-RING SET 1
18457 DAMPNER DIAPHRAGM ONLY 1
18458 PUMP OIL, HYPRO, QUART 1
18463 SHAFT SEAL, GEAR REDUCER 1
18755 PRESSURE RELIEF VALVE SEAT (VITON) 1
18756 PRESSURE RELIEF VALVE SEAT (URETHANE)) 1
20978 ACCUMULATOR MANIFOLD 1
20979 D30 AND D50 CONTROL ARM 1

- 14 -
18
19
6
22
25
11
524
15
18
12
13
2
23
9
17
8
19
19
19
19 19 19
10 19 24
26
24
19
28
27
14
4
17
24
21
16
20
3
7
1
20
Drum Cart

- 15 -
ITEM PART NO. DESCRIPTION QTY
1. 07019 WHEEL 2
2. 08324 BUSHING, MACHINERY 1” 2
3. 18387 CART FRAME, WELDMENT DRUM CART 1
4. 18392 DRUM FRAME, DRUM CART 1
5. 18397 DRUM SUPPORT FRAME, DRUM CART 1
6. 18401 SIDE FRAME, WELDMENT DRUM CART 2
7. 18404 AXLE WELDMENT, DRUM CART 2
8. 18408 HANDLE, DRUM CART, COATED 1
9. 18410 RING PIN, LOCKING, #97320A366 1
10. 18411 CASTER, 5.0” SWIVEL PLATE 2
11. 18412 TIE DOWN STRAP, DRUM CART 1
12. 18413 LANYARD, LOOP ENDS, WIRE ROPE 1
13. F0212CP PIN, COTTER 1/8 X 1-1/2 2
14. F051806FWS FWLS, 5/16-18 X 3/4 ZP 8
15. F051812FWS FWLS, 5/16-18 X 1-1/2 ZP 2
16. F051814HCS HHCS, 5/16-18 X 1-3/4 GR5 ZP 4
17. F051820HCS HHCS, 5/16-18 X 2-1/2 GR5 ZP 4
18. F051822HCS HHCS, 5/16-18 X 2-3/4 GR5 ZP 6
19. F0518ELN LOCKNUT, 5/16-18 NYLOC ZP 20
20. F05SW WASHER, 5/16 X 3/4 X 15GA ZP 5
21. F061606FWS FWLS, 3/8-16 X 3/4 ZP 1
22. F061614HCS HHCS, 3/8-16 X 1-3/4 GR5 ZP 2
23. F061622HCS HHCS, 3/8-16 X 2-3/4 GR5 ZP 4
24. F0616ELN LOCKNUT, 3/8-16 NYLOC ZP 7
25. F06SW WASHER, 25/64 X 1 X 1/8 ZP 2
26. F081324HCS HHCS, 1/2-13 X 3 GR5 ZP 2
27. F0813ELN LOCKNUT, 1/2-13 NYLOC ZP 2
28. F08SW WASHER, 9/16 X 1-3/8 X 12GA ZP 2

- 16 -
















 
75,**(5/2&.
1876

Optional Spray Equipment:
- 9’ Spray Wand
- Option Spray Gun

- 17 -
ITEM PART NO. DESCRIPTION QTY
1. 18440 VALVE, BALL, BRASS 3/8 NPT 1
2. 18441 FITTING, THREAD REDUCER, 3/8 NPT TO 1/4 NPT 1
3. 18443 PIPE, ALUMINUM, 1/4 X 36” LG., 1/4 NPT BOTH ENDS 3
4. 18444 FITTING, PIPE COUPLER, 1/4 NPT, BRASS 2
5. 18445 STREET ELBOW, 1/4 NPT, BRASS 1
6. 18446 FITTING, NOZZLE BODY, BRASS 1
7. 18450 NOZZLE, MEDIUM 1
18448 KIT, NOZZLE, (2) FINE, (2) MEDIUM, (2) LARGE SPRAY NOZZLES 1
8. 18447 FITTING, NOZZLE CAP, BRASS 1
9. 21380 SPRAY GUN (OPTIONAL) INCLUDES ITEMS #7 & #10 1
10. 18647 GASKET, NOZZLE SEAL 1
11. 18645 FITTING, THREAD ADAPTER, BRASS, for serial no. 0740099, 1040399, 1060299 & lower 1
12. 19823 FITTING, NOZZLE NUT, BRASS 1
13. 18338 QUICK COUPLING, MALE, BST-4, for serial no. 0740100, 1040400, 1060300 & up 1
14. 21398 FITTING, REDUCER, 1/2 TO 3/8 NPT, for serial no. 0740100, 1040400, 1060300 & up 1
15. 21399 QUICK COUPLING, MALE, BST-4M, for serial no. 0740100, 1040400, 1060300 & up 1
KITS
18442 9’ SPRAY WAND, (includes items: 1 thru 8) for serial no. 0740099, 1040399, 1060299 & lower
21489 9’ SPRAY WAND, (includes items: 1 thru 8, 14 & 15) for serial no. 0740100, 1040400, 1060300 & up
18644 SPRAY GUN, (includes items: 7, 9, 10, 11 & 12) for serial no. 0740099, 1040399, 1060299 & lower
21488 SPRAY GUN, (includes items: 7, 9, 10, 12 & 13) for serial no. 0740100, 1040400, 1060300 & up
18448 NOZZLE KIT, Includes: (2) Fine, (2) Medium & (2) Large Nozzles
- 18449 Fine Nozzle
- 18450 Medium Nozzle
- 18451 Large Nozzle
