McCulloch Trimmy 10 User manual

.~McCULLOCH”
●
I
15
16
?!!!!3
10
1$ 19
-$&I
.be
21 ,0
22
I
SERIAL NUMBER PREFIX -02 I
6
D7
9
8
5
Q&3’
,-,, @
“.
,, \\
0, ‘\
I
/fl
#.‘b
/
o‘\w
‘\
‘A
—1
“w
1v
-“’%—24 -
.- .
A— ma ‘c:: 25
10
/
“’%-25 I
1227102 1
2 227101 1
3 227115
4 227116
5237651
16227650
j/
●❉
7 227702
8 229796
9229782
1
1
1
10 227120
11 227899
12 227123
13 227107
14 227162
15 227108
16 227157
17 227131
18 227111
1
1
1
1
3
1
4
1
1
19 227117 1’
20 225608 1
21 225603 m. 6/0 1,2 1
22 227104 1.
23 227158 3I
24 227161 11
25 227160 91
4
71

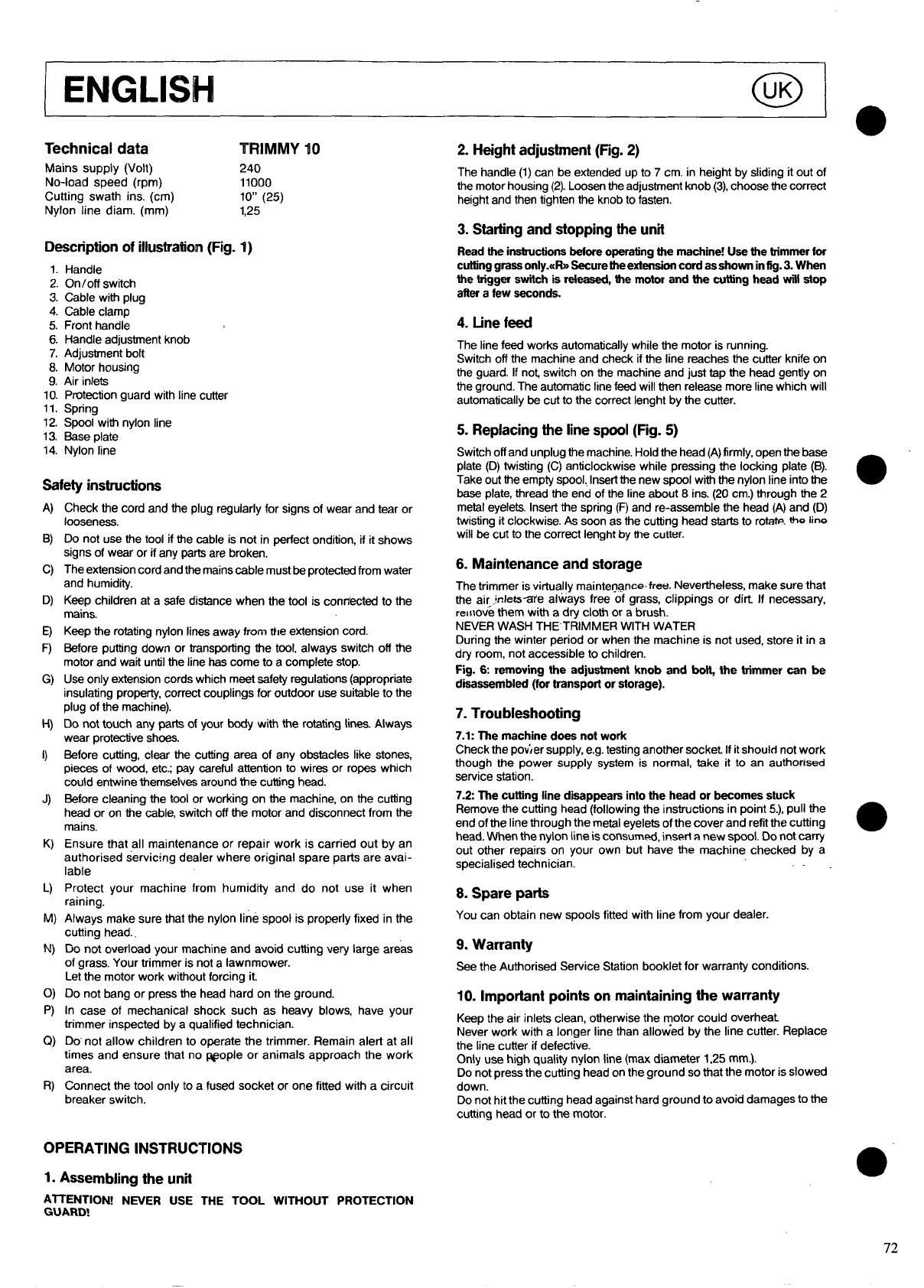

ENGLISH o
UK —
II●
Technical data TRIMMY 10
Mains supply (Volt) 240
No-load speed (rpm) 11000
Cutting swath ins. (cm) 10’ (25)
Nylon line diam. (mm) 1,25
Description of illustration(Fig. 1)
1. Handle
2. On/off switch
3. Cable with plug
4. Cable clamp
5. Front handle
6. Handle adjustment knob
7. Adjustment bolt
8. Motor housing
9. Air inlets
10. Protection guard with line cutter
11. Spring
12. Spool with nylon line
13. *se plate
14. Nylon line
Safety instructions
A)
B)
c)
D)
E)
n
G)
H)
1)
J)
K)
L)
M)
N)
o)
P)
Q)
R)
Check the cord and the plug regularly for signs of wear and tear or
looseness.
Do not usa the tool if the cable is not in perfect ondition,if it shows
signs of wear or ifany partsare broken.
The extensioncord and themainscable mustbe protectedfromwater
and humidity.
Keep children at asafe distance when the tool is connected to the
mains.
Keep the rotatingnylon linesaway from the extension cord.
Before puting down or transporting the tool, always switch off the
motor and wait untilthe line has come to acomplete stop.
Use only extension cords which meet safety regulations(appropriate
insulating property,correct couplings for outdoor use suitable to the
plug of the machine).
Do not touch any parts of your body with the rotating lines. Always
wear protective shoes.
Before cutting, clear the cutting area of any obstacles like stones,
pieces of wood, etc; pay careful attention to wires or ropes which
could entwine themselves around the cutting head.
Before cleaning the tool or working on the machine, on the cutting
head or on the cable, switch offthe motor and disconnect from the
mains.
Ensure that all maintenance or repair work is carried out by an
authorised servicing dealer where original spare parts are avai-
lable
Protect your machine from humidity and do not use it when
raining.
Always make sure that the nylon line spool is properly fixed in the
cutting head..
Do not overload your machine and avoid cutting very large areas
of grass. Your trimmer is not aIawnmower.
Let the motor work without forcing it
Do not bang or press the head hard on the ground.
in case of mechanical shock such as heavy blows, have your
trimmer inspected by aqualified technician.
Do-not allow children to operate the trimmer. Remain alert at all
times and ensure that no ~ople or animals approach the work
area.
Connect the tool only to afused socket or one fitted with acircuit
breaker switch.
2. Height adjustment (Fig. 2)
The handle (1) can be extended up to 7cm. in height by sliding it out of
the motorhousing(2).Loosanthe adjustmentknob (3),choose the correct
heightand then tightenthe knob to fasten.
3. Starting and stopping the unit
Read the instructionsbefore operating the machine! Use the trimmer for
cuttinggrassonly.KR>Secure theextensioncord as shown infig.3. When
the trigger switch is released, the motor and the cutting head wifl stop
after afew seconds.
4. Line feed
The line feed works automaticallywhile the motor is running.
Switch offthe machine and check ifthe line reaches the cutter knife on
the guard. If not,switch on the machine and just tap the head gently on
the ground. The automatic linefeed willthen release more line which will
automatically be cut to the correct Ienght by the cutter.
5. Replacing the tine spool (Fig. 5)
Switchoffand unplugthe machine. Holdthe head (A)firmly,open the base
plate (D) twisting (C) anticlockwise while pressing the locking plate (B).
Take outthe empty spool.,Insertthe new spool with the nylon line intothe ●
base plate, thread the end of the line about 8ins. (20 cm.) through the 2
metal eyelets. Inseri the spring (F) and re-assemble the head (A)and (D)
twistingit clockwise. As soon as the cutting head SWLS to rotate, the line
will be cut to the correct Ienght by the cutler.
6. Maintenance and storage
The trimmer isvirtually maintenance-free. Nevertheless, make sure that
the air ,inlets-are always free of grass, clippings or dirt If necessary,
refnove them with adry cloth or abrush.
NEVER WASH THE TRIMMER WITH WATER
During the winter period or when the machine is not used, store it in a
dry room, not accessible to children.
Fig. 6removing the adjustment knob and bo~ the trimmer can be
disassembled (for fransporf or storage).
7. Troubleshooting
7.1: The machine does not work
Check the poi~er supply, e.g.testinganother socket Ifitshould notwork
though the power supply system is normal, take it to an authorised
service station.
7.2 The cutting fine disappears into the head or becomes stuck
Remove the cutting head (followingthe instructions in point 5.), pull the
end ofthe linethrough the metal eyelets ofthe cover and refitthe cutting
head. When the nylon line isconsumed, insert anew spool. Do notcarry ●
out other repairs on your own but have the machine checked by a
specialised technician.
8. Spare parts
You can obtain new spools fittedwith line from your dealer.
9. Warranty
Seathe Authorised Service Station booklet for warranty conditions.
10. Impotint points on maintaining the warranty
Keep the air inlets clean, otherwise the motor could overheat
Never work with alonger line than allowed by the line cutter. Replace
the line cutter if defective.
Only use high quality nylon line (max diameter 1,25 mm.).
Do not press the cutting head on the ground so that the motor is slowed
down.
Do not hitthe cutting head against hard ground to avoid damages to the
OPERATING INSTRUCTIONS
1. Assembling the unit
cutting head or to the motor.
AITENTIoN! NEVER USE THE TOOL WfTHOUT Protection
GUARD!
72
