McQuay M5WMX 010 GR User manual

ContentsContents
ContentsContents
Contents
Nomenclature ............................................................................................................... 1
Features ........................................................................................................................3
Product Line-up ............................................................................................................ 4
Specifications ............................................................................................................... 5
Operating Range ......................................................................................................... 11
Outlines And Dimensions ........................................................................................... 12
Electrical Data.............................................................................................................. 14
Controller ..................................................................................................................... 16
Wiring Diagrams .......................................................................................................... 17
Refrigerant Circuit Diagram ....................................................................................... 21
Installation ................................................................................................................... 23
Servicing And Maintenance ........................................................................................ 35
Troubleshooting .......................................................................................................... 37
Exploded View And Parts List .................................................................................... 45
Note : Installation and maintenance are to be performed only by qualified personnel who are
familiar with local codes and regulations, and experienced with this type of equipment.
Caution: Sharp edges and coil surfaces are a potential injury hazard. Avoid contact with them.
Warning : Moving machinery and electrical power hazard. May cause severe personal
injury or death. Disconnect and lock off power before servicing equipment.
"McQuay" is a registered trademark of McQuay International. All rights reserved.
c 2006 McQuay International. All rights reserved throughout the world.
Bulletin illustrations cover the general appearance of McQuay International products at the time of publication.
We reserve the right to change design and construction specifications at any time without notice.

1
MWM 010 G R
Brand
M : McQuay
Capacity
010 : 9,000 Btu/h
Series
G : G series
Model Type
R : heatpump
Omitted if Cooling
5 I LA C A-X
Refrigerant
5 : R410A
Model Name
WM : Wall Mounted
System
X : DC Inverter
Electrical
A : 220 - 240V/1Ph/50Hz
Others
A : First issue
Contoller Type
L : Longertech E-scroll
T : OYL E-Scroll
U : OYL DC1P
Market Region
C : Export with CE mark
U : UTL Spec.
Air Treatment Devices & Control
I : Negative Ion with wireless controller
N : NTP with wireless controller
X : Oxygen unit
Indoor
NomencNomenc
NomencNomenc
Nomenclala
lala
laturtur
turtur
turee
ee
e

2
MLC 010 CR
Brand
M : McQuay
Capacity
010 : 9,000 Btu/h
Series
C : C series
Model Type
R : heatpump
Omitted if Cooling
5 O LA C A-X
Refrigerant
5 : R410A
Model Name
LC : Condensing unit
System
X : DC Inverter
Electrical
A : 220 - 240V/1Ph/50Hz
Others
A : First issue
Contoller Type
L : Longertech E-scroll
T : OYL E-scroll U : OYLDC1P
Outdoor
Air Treatment Devices & Control
O : Standard unit
G : Low ambient unit
H : High ambient unit
I : Gold fins
L : Long piping unit
S : With H/L pressure switch
X : Oxygen unit
Market Region
C : Export with CE mark
E : Export without marking
U : UTL Spec.

3
Energy Saving
Total energy saved can be as high as 30% compared to the conventionally controlled units.
Efficient
McQuay DC Inverter series achieve excellent efficient with high EER & COP rating.
Comfortable
Users enjoy better comfort and quietness with inverter technology. When the environmental factors, such as
temperature, humidity, airflow and/or outside ambient conditions, are obtained and processed through a con-
trol algorithm, the compressor motor speed can be varied to optimize the cooling power to create a more
precisely controlled room temperature (i.e. less temperature fluctuation).
R410A Refrigerant (New)
Introducing the new type of refrigerant - R410A which is environmental friendly with Zero Ozone Depletion
Potential (ODP = 0). R410A also provides the higher volumetric capacity and better refrigerating effect per unit
of volume.
Advance Technology
The traditional conventional air conditioners repeat "the start" and "the stop" during the thermostat cycle off and
causes the room temperature to be unstable. Incorporating fuzzy logic control into the McQuay Inverter design
enables greater flexibility in handling the system control.
This result in:
- Powerful, efficient and economical operation.
- Even room temperature control.
- Constant and quiet compressor operation.
- Enhanced system reliability and reduced maintenance costs.
Self Diagnostic
Both indoor and outdoor LED Error Code Indicator helps to simplify the trouble shooting process. Where there's
fault detected during operation, the defect code will be to indicate the faults.

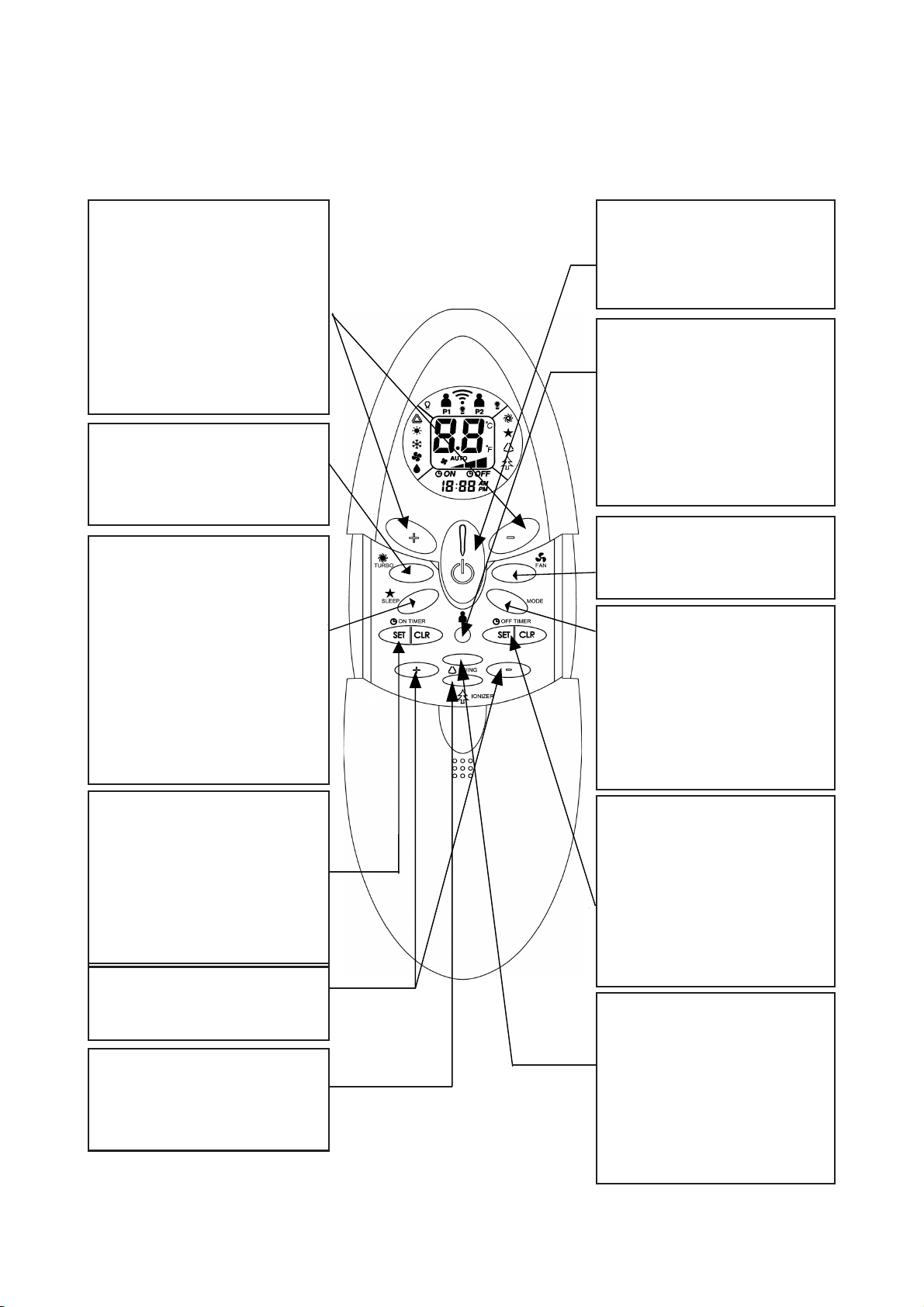

Wireless Remote Control
- The compact LCD transmitter is able to operate the air conditioner unit within the distance of 9 meters.
- Fan motor speed can be set at low / medium / high or automatic.
- Sleep mode automatically increase set temperature since room temperature is lower at night thus
achieving comfort surrounding.
- Airflow direction can be controlled automatically.
- Room temperature is controlled by electronic thermostat.
- The unit can be preset to on and off automatically for maximum of 15 hours by using timer on/off.
- Introducing turbo mode, which allows inverter compressor operates at high power and maximum
speed to achieve required temperature quickly.
FF
FF
Feaea
eaea
eaturtur
turtur
tureses
eses
es

PrPr
PrPr
Product Line-Upoduct Line-Up
oduct Line-Upoduct Line-Up
oduct Line-Up
4
M5WMX Product line-up
M5LCX Product line-up
Handset
Control Module
Marking
ACILAXXXXXX XX
ACNLAXXX XXXXX
ACILAXXXXXX XX
ACNLAXXX XXXXX
ACILAXXXXXX XX
ACNLAXXX XXXXX
ACILAXXXXXX XX
ACNLAXXX XXXXX
Air Filter (Titanium Oxide)
Non-Thermal Plasma (NTP)
CE
Heat Pump Model
010GR015GR020GR025GR
Classification
M5WMX
Nomenclature
Air Purification
Auto Restart
G12
LJID 1.0
Ionizer Filter
Negative Ion
Anti-Microbial Filter
Marking
ACOLAXXXXX
ACOTA X X X X X
ACILAXXXXX
ACITA X X X X X
ACOUA X X XXX
ACOLAXXXXX
ACOTA X X X X X
ACILAXXXXX
ACITA X X X X X
ACOUA X X XXX
ACOLAXXXXX
ACILA XXXXX
ACOLAXXXXX
ACILA XXXXX
Hydrophilic Fin
Gold Fin
Heat Pump Model
010CR015CR020CR025CR
VB 2.0 (Inverter)
Scroll
Rotary
CE
Classification
M5LCX
Nomenclature
Refrigerant
Control
Printed Circuit
Board
Compressor
Fin
Capillary Tube
Electronic Expansion Device
DC Inverter (LJ DSCAA)

SpecifSpecif
SpecifSpecif
Specificaica
icaica
icationstions
tionstions
tions
5
General Data
1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.
5) ALL SPECIFICATION ARE TENTATIVE SPECIFICATION AT THE TIME OF PRINTING. PLEASE CONSULT YOUR DEALER FOR CONFIRMATION.
6) SOUND SPECTRUM FOR MWMX010GR / MWMX015GR IS NOT AVAILABLE AT THE TIME OF PRINTING
Btu/h
W
Btu/h
W
W
W
A
A
V/Ph/Hz
CFM / L/s
CFM / L/s
CFM / L/s
dBA
mm/in
mm/in
mm/in
mm/in
mm/in
mm/in
kg/lb
mm/in
CFM / L/s
dBA
mm/in
mm/in
mm/in
mm/in
mm/in
mm/in
kg/lb
LIQUID mm/in
GAS mm/in
kg/lb
LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
WIRELESS LCD REMOTE CONTROL
INDOOR UNIT
CONTROL AIR DISCHARGE
OPERATION
957.0 / 37.7WIDTH
MEDIUM
NOMINAL COOLING CAPACITY
NOMINAL HEATING CAPACITY
NOMINAL TOTAL INPUT POWER (COOLING)
NOMINAL TOTAL INPUT POWER (HEATING)
M5LCX 015CR
M5WMX 015GR
HEIGHT 337.0 / 13.3
260.0 / 10.2
899.0 / 35.4
38 / 35 / 30
198.0 / 7.8
780 (300 - 1,100)
LOW
9,000 (3,700 - 12,000)
AIR FLOW
SOUND PRESSURE (H/M/L)
300 / 142
250 / 118
200 / 94
HIGH
3,370 (1,172 - 4,980)
NOMINAL RUNNING CURRENT (COOLING)
NOMINAL RUNNING CURRENT (HEATING)
POWER SOURCE
REFRIGERANT TYPE
DEPTH
HEIGHT
WIDTH
M5WMX 010GR
M5LCX 010CR
INDOOR UNIT
OUTDOOR UNIT
MODEL
2,638 (1,084 - 3,517)
CONDENSATE DRAIN SIZE
1,095 (300 - 1,780)
UNIT DIMENSION
12,000 (3,700 - 15,000)
330 / 156
1,270 (290 - 1,950)
5.4
220-240/1/50
UNIT DIMENSION
PACKING
DIMENSION
DEPTH
UNIT WEIGHT
PACKING
DIMENSION
DEPTH
WIDTH
AIR FLOW
SOUND PRESSURE
R410A
6.3
3,517 (1,084 - 4,396)
14,000 (4,000 - 17,000)
4,103 (1,172 - 4,982)
3.8
4.8
11,500 (4,000 - 15,000)
980 (290 - 1,680)
47 52
260 / 123
210 / 99
39 / 36 / 31
270.0 / 10.6
16.0 / 0.63
9.5 / 21.0
800 / 378 900 / 425
FLARETYPE
UNIT WEIGHT
803 / 31.6
38 / 84
PIPE CONNECTION SIZE
320 / 12.6
9.52 / 3/8
6.35 / ¼
250 / 9.8
601 / 23.7
540 / 21.3
700 (+70) / 27.6 (+2.8)
12.7 / ½
6.35 / ¼
OUTDOOR UNIT
REFRIGERANT CHARGE 0.89 / 1.87 0.90 / 1.98
HEIGHT
DEPTH
WIDTH
HEIGHT

6
General Data
1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.
5) ALL SPECIFICATION ARE TENTATIVE SPECIFICATION AT THE TIME OF PRINTING. PLEASE CONSULT YOUR DEALER FOR CONFIRMATION.
6) SOUND SPECTRUM FOR MWMX020GR / MWMX025GR IS NOT AVAILABLE AT THE TIME OF PRINTING
Btu/h
W
Btu/h
W
W
W
A
A
V/Ph/Hz
CFM / L/s
CFM / L/s
CFM / L/s
dBA
mm/in
mm/in
mm/in
mm/in
mm/in
mm/in
kg/lb
mm/in
CFM / L/s
dBA
mm/in
mm/in
mm/in
mm/in
mm/in
mm/in
kg/lb
LIQUID mm/in
GAS mm/in
kg/lb
POWER SOURCE
REFRIGERANT TYPE
INDOOR UNIT
CONTROL AIR DISCHARGE
OPERATION
UNIT DIMENSION
AIR FLOW
LOW
SOUND PRESSURE (H/M/L)
MODEL
1,636
NOMINAL RUNNING CURRENT (COOLING)
NOMINAL RUNNING CURRENT (HEATING)
18,000 (5,000 - 20,000)
7.9
19,000 (5,000 - 22,000)
5,568 (1,465 - 6,155)
21,000 (5,000 - 23,000)
6,155 (1,465 - 6,741)
22,000 (5,000 - 25,000)
HIGH
1,652
5,275 (1,465 - 5,862)
NOMINAL COOLING CAPACITY
NOMINAL HEATING CAPACITY
NOMINAL TOTAL INPUT POWER (COOLING)
NOMINAL TOTAL INPUT POWER (HEATING)
M5WMX 025GR
OUTDOOR UNIT M5LCX 020CR M5LCX 025CR
INDOOR UNIT M5WMX 020GR
1.3 / 2.87
220-240 / 1 / 50
R410A
50 / 110
1.4 / 3.09
12.7 / ½ 15.8 / 5/8
855 (+70) / 33.7 (+2.7)
328 / 12.9
1500 / 708 1600 / 755
500 / 236
420 / 198
49 / 43 / 40
1130.0 / 44.5
6.35 / ¼ 6.35 / ¼
FLARE
405 / 15.9
MEDIUM 440 / 208
HEIGHT
WIDTH
370 / 175
44 / 40 / 35
304.0 / 12.0
1062.0 / 41.8
DEPTH
HEIGHT
WIDTH
DEPTH
UNIT WEIGHT
PACKING
DIMENSION
785 / 30.9
983 / 38.7
SOUND PRESSURE
UNIT DIMENSION
HEIGHT
53 56
WIDTH
CONDENSATE DRAIN SIZE
PIPE CONNECTION
TYPE
SIZE
OUTDOOR UNIT
REFRIGERANT CHARGE
WIDTH
DEPTH
AIR FLOW
PACKING
DIMENSION
HEIGHT
DEPTH
UNIT WEIGHT
2,150
2,200
11.3
550 / 260
8.0
LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
WIRELESS LCD REMOTE CONTROL
6,448 (1,465 - 7,034)
757 / 6.7654 / 25.7
11.8
292.0 11.5
15.0 / 33.1
630 / 297
20.0 / 0.79
378.0 / 14.9
220.0 / 8.7

General Data (With Torque Control)
1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.
5) ALL SPECIFICATION ARE TENTATIVE SPECIFICATION AT THE TIME OF PRINTING. PLEASE CONSULT YOUR DEALER FOR CONFIRMATION.
7
Btu/h
W
Btu/h
W
W
W
A
A
V/Ph/Hz
CFM / L/s
CFM / L/s
CFM / L/s
dBA
mm/in
mm/in
mm/in
mm/in
mm/in
mm/in
kg/lb
mm/in
CFM / L/s
dBA
mm/in
mm/in
mm/in
mm/in
mm/in
mm/in
kg/lb
LIQUID mm/in
GAS mm/in
kg/lb
REFRIGERANT CHARGE 0.80 / 1.76 0.94 / 2.07
OUTDOOR UNIT WEIGHT 38
PIPE CONNECTION
TYPE FLARE
SIZE 6.35 / ¼ 6.35 / ¼
9.52 / 3/8 12.7 / ½
OUTDOOR PACKING
DIMENSION
HEIGHT 601 / 23.7
WIDTH 803 / 31.6
DEPTH 320 / 12.6
WIDTH 700 (+70) / 27.6 (+2.8)
DEPTH 250 / 9.8
OUTDOOR UNIT
OUTDOOR AIR FLOW 800 / 378 900 / 425
OUTDOOR SOUND PRESSURE 47 52
OUTDOOR UNIT
DIMENSION
HEIGHT 540 / 21.3
INDOOR UNIT WEIGHT 9.5 / 21
CONDENSATE DRAIN SIZE 16 / 0.63
INDOOR PACKING
DIMENSION
HEIGHT 337 / 13.3
WIDTH 957 / 37.7
DEPTH 270 / 10.6
INDOOR UNIT
DIMENSION
HEIGHT 260 / 10.2
WIDTH 899 / 35.4
DEPTH 198 / 7.8
200 / 94 210
INDOOR SOUND PRESSURE (H/M/L) 38 / 35 / 30 39 / 36 / 31
REFRIGERANT TYPE R410A
INDOOR AIR FLOW
HIGH 300 / 142 330
MEDIUM 250 / 118 260
LOW
NOMINAL RUNNING CURRENT (HEATING) 4.5 5.0
POWER SOURCE 220-240/1/50
NOMINAL TOTAL INPUT POWER (HEATING) 930 (231 - 1,455) 1,057 (231 - 1,865)
NOMINAL RUNNING CURRENT (COOLING) 3.9 5.3
3,810 (791 - 4,739)
NOMINAL TOTAL INPUT POWER (COOLING) 820 (242 - 1,038) 1,100 (242 - 1,559)
INDOOR UNIT
NOMINAL COOLING CAPACITY 9,500 (2,772 - 11,165) 12,000 (2,772 - 15,114)
2,784 (812 - 3,272) 3,517 (812 - 4,430)
NOMINAL HEATING CAPACITY 11,500 (2,699 - 15,655) 13,000 (2,699 - 16,170)
3,370 (791 - 4,588)
MODEL INDOOR UNIT M5WMX 010GR M5WMX 015GR
OUTDOOR UNIT M5LCX 010CR M5LCX 015CR

8
Components Data
1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
2) ALL SPECIFICATION ARE TENTATIVE SPECIFICATION AT THE TIME OF PRINTING. PLEASE CONSULT YOUR DEALER FOR CONFIRMATION.
mm/in
mm/in
mm/in
cm³
DIAMETER mm/in
THICKNESS mm/in
THICKNESS mm/in
FACE AREA m
2
/ft
2
DIAMETER mm/in
THICKNESS mm/in
THICKNESS mm/in
FACE AREA m
2
/ft
2
pc
mm/in
pc
mm/in
pc
mm/in
MATERIAL
COLOUR
MATERIAL
COLOUR
TITANIUM OXIDE
QUANTITY 1
DIMENSION ( L x W x t ) 248 x 43 x 5 / 9.8 x 1.7 x 0.2
LIGHT GREY
GALVANISED MILD STEEL
1
LIGHT GREY
HIGH IMPACT POLYSTYRENE
248 x 43 x 5 / 9.8 x 1.7 x 0.2
PROPELLER FAN
406.0 / 16.0
DC BRUSHLESS SCROLL
POLYOESTER OIL (POE)
IP33
COMPRESSOR
INDOOR COIL
OUTDOOR COIL
FIN
FIN
OIL AMOUNT
CASING
INDOOR UNIT
OUTDOOR UNIT
FIN PER INCH
TYPE
DIMENSION ( L x W x t )
FILTRATION
DIMENSION ( L x W x t )
TYPE
QUANTITY
717.5 / 28.2
SCR MOTOR
1
IP24
SEAMLESS COPPER
7.0 / 0.276
0.28 / 0.011
GLASS REINFORCED ACRLY STYRENE RESIN
DIRECT
360
INDOOR FAN
MOTOR
OUTDOOR FAN
MOTOR
INDOOR FAN
OIL TYPE
OUTDOOR FAN
Q'TY
MATERIAL
DRIVE
DIAMETER
LENGTH
1
ACRYLO NITRILE STYRENE
DIRECT
97.0 / 3.8
MODEL INDOOR UNIT M5WMX 010GR
CROSS FLOW
TYPE
M5WMX 015GR
OUTDOOR UNIT M5LCX 010CR M5LCX 015CR
TYPE
Q'TY
INDEX OF PROTECTION (IP)
TYPE
TYPE
Q'TY
1
1
INDUCTION
Q'TY
MATERIAL
DRIVE
DIAMETER
INDEX OF PROTECTION (IP)
TYPE
MATERIAL
MATERIAL
TUBE
TUBE
MATERIAL
MATERIAL
ROW
FIN PER INCH
ALUMINIUM (HYDROPHILIC)
0.11 / 0.0043
0.193 / 2.08
2
18
SARANET
SEAMLESS INNER GROOVED COPPER
7.0 / 0.276
0.32 / 0.013
ALUMINIUM (HYDROPHILIC)
0.11 / 0.0043
18
ROW
0.350 / 3.78
2
ANTI-MICROBIAL
QUANTITY
TYPE
386 x 364.3 x 1.5 / 15.2 x 14.3 x 0.06
2

9
Components Data
1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
2) ALL SPECIFICATION ARE TENTATIVE SPECIFICATION AT THE TIME OF PRINTING. PLEASE CONSULT YOUR DEALER FOR CONFIRMATION.
mm/in
mm/in
mm/in
cm³
DIAMETER mm/in
THICKNESS mm/in
THICKNESS mm/in
FACE AREA m
2
/ft
2
DIAMETER mm/in
THICKNESS mm/in
THICKNESS mm/in
FACE AREA m
2
/ft
2
pc
mm/in
pc
mm/in
pc
mm/in
MATERIAL
COLOUR
MATERIAL
COLOUR
1
DIMENSION ( L x W x t ) 248 x 43 x 5 / 9.8 x 1.7 x 0.2
INDOOR FAN
CROSS FLOW
1
ACRYLO NITRILE STYRENE
DIRECT
108.0 / 4.3
LENGTH
TYPE
QUANTITY
QUANTITY
MODEL INDOOR UNIT
TYPE
Q'TY
MATERIAL
DRIVE
DIAMETER
M5WMX 020GR M5WMX 025GR
OUTDOOR UNIT M5LCX 020CR M5LCX 025CR
810.0 / 32.9
INDOOR FAN
MOTOR
TYPE SCR MOTOR
Q'TY 1
INDEX OF PROTECTION (IP) IP54
IP22
OUTDOOR FAN
TYPE
Q'TY
MATERIAL GLASS REINFORCED ACRYL STYRENE RESIN
DRIVE DIRECT
DIAMETER 460.0 / 18
OUTDOOR FAN
MOTOR
TYPE
Q'TY
INDEX OF PROTECTION (IP)
COMPRESSOR
TYPE DC BRUSHLESS SCROLL
OIL TYPE POLYOESTER OIL (POE)
480
OIL AMOUNT
INDOOR COIL
TUBE
MATERIAL SEAMLESS COPPER TUBE
7.0 / 0.276
0.28 / 0.011
FIN
MATERIAL ALUMINIUM (HYDROPHILIC)
0.11 / 0.0043
0.269 / 2.90
ROW 2
FIN PER INCH 18
OUTDOOR COIL
TUBE
MATERIAL SEAMLESS INNER GROOVED COPPER TUBE
7.0 / 0.276
0.32 / 0.013
FIN
MATERIAL ALUMINIUM (HYDROPHILIC)
0.11 / 0.0043
TITANIUM OXIDE
1
DIMENSION ( L x W x t )
0.62 / 6.67
ROW 2
FIN PER INCH 20
DIMENSION ( L x W x t ) 386 x 364.3 x 1.5 / 15.2 x 14.3 x 0.06
SARANET
QUANTITY 2
TYPE ANTI-MICROBIAL
248 x 43 x 5 / 9.8 x 1.7 x 0.2
CASING
INDOOR UNIT HIGH IMPACT POLYSTYRENE
LIGHT GREY
OUTDOOR UNIT GALVANISED MILD STEEL
LIGHT GREY
FILTRATION
TYPE
PROPELLER
1
1
INDUCTION

10
Components Data (With Torque Control)
1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
2) ALL SPECIFICATION ARE TENTATIVE SPECIFICATION AT THE TIME OF PRINTING. PLEASE CONSULT YOUR DEALER FOR CONFIRMATION.
mm/in
mm/in
mm/in
cm³
DIAMETER mm/in
THICKNESS mm/in
THICKNESS mm/in
FACE AREA m
2
/ft
2
DIAMETER mm/in
THICKNESS mm/in
THICKNESS mm/in
FACE AREA m
2
/ft
2
pc
pc
pc
MATERIAL
COLOUR
MATERIAL
COLOUR
TITANIUM OXIDE
QUANTITY 1
CASING
INDOOR UNIT HIGH IMPACT POLYSTYRENE
LIGHT GREY
OUTDOOR UNIT GALVANISED MILD STEEL
LIGHT GREY
FILTRATION
TYPE SARANET
QUANTITY 2
TYPE ANTI-MICROBIAL
QUANTITY 1
TYPE
0.35 / 3.78
ROW 2
FIN PER INCH 18
OUTDOOR COIL
TUBE
MATERIAL SEAMLESS INNER GROOVED COPPER
7 / 0.276
0.32 / 0.013
FIN
MATERIAL ALUMINIUM (HYDROPHILIC)
0.11 / 0.0043
0.193 / 2.08
ROW 2
FIN PER INCH 18
INDOOR COIL
TUBE
MATERIAL SEAMLESS COPPER
7 / 0.276
0.28 / 0.011
FIN
MATERIAL ALUMINIUM (HYDROPHILIC)
0.11 / 0.0043
COMPRESSOR
TYPE DC ROTARY
OIL TYPE Polyoester oil (POE)
OIL AMOUNT 320
OUTDOOR FAN
MOTOR
TYPE PERMANENT SPLIT CAPACITOR INDUCTION
Q'TY 1
MOTOR PROTECTION IP33
OUTDOOR FAN
DRIVE DIRECT
DIAMETER
Q'TY 1
MATERIAL
TYPE
GLASS REINFORCED ACRLY STYRENE RESIN
406 / 16
97 / 3.8
LENGTH 717.5 / 28.2
PROPELLER FAN
INDOOR FAN
MOTOR
TYPE SCR MOTOR
Q'TY 1
MOTOR PROTECTION IP24
INDOOR FAN
TYPE CROSS FLOW
Q'TY 1
MATERIAL ACRYLO NITRILE STYRENE
DRIVE DIRECT
DIAMETER
MODEL INDOOR UNIT M5WMX 010GR M5WMX 015GR
OUTDOOR UNIT M5LCX 010CR M5LCX 015CR

OperOper
OperOper
Operaa
aa
ating Rting R
ting Rting R
ting Rangang
angang
angee
ee
e
Ensure the operating temperature is in allowable range.
Heatpump
11
Caution :
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Coolin
g
Outdoor temp. (°CDB)
Indoor temp.
(
°CWB
)
0
19
35
15
46
24
STD
Outdoor temp. (°CWB)
Indoor temp.
(
°CDB
)
Heatin
g
-9
15 21
6
27
18
STD

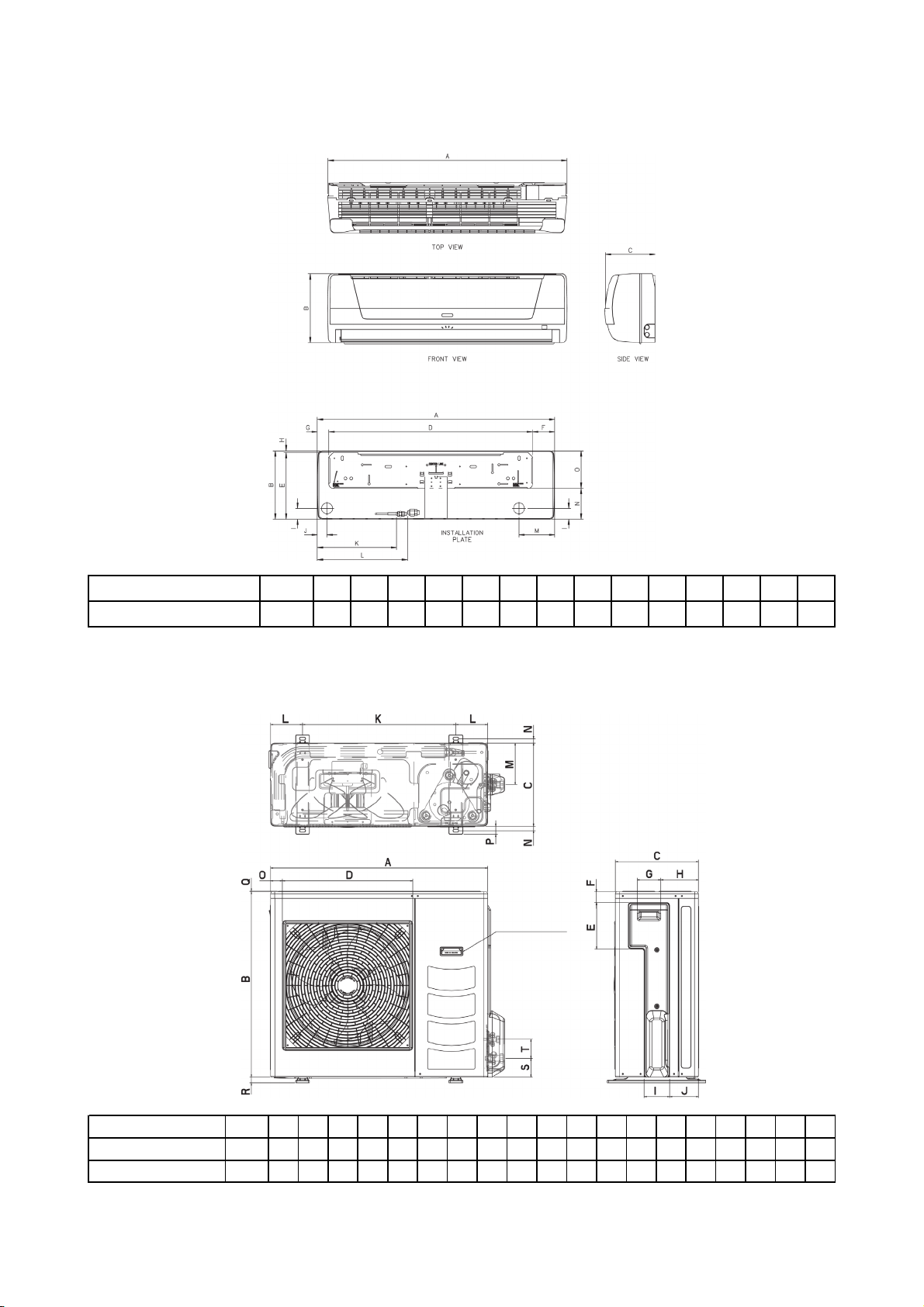

Outlines And DimensionsOutlines And Dimensions
Outlines And DimensionsOutlines And Dimensions
Outlines And Dimensions
12
INDOOR UNIT
MODEL : M5WMX 010GR / 015GR
OUTDOOR UNIT
MODEL : M5LCX 010CR / 015CR
Note : Dimension in mm
Note : Dimension in mm

13
INDOOR UNIT
MODEL : M5WMX 020GR / 025GR
OUTDOOR UNIT
MODEL : M5LCX 020CR / 025CR
Note : Dimension in mm
Note : Dimension in mm
MODEL A B C D E F G H I J K L M N O P Q R S T
855 628 328 508 181 44 93 149 101 113 603 126 164 17 49 32 3 23 73 75
855 730 328 513 182 44 93 149 101 113 603 126 164 17 47 32 3 23 73 75
M5LCX 020 CR
M5LCX 025 CR
M5WMX 020/025 GR
MODEL A B C D E F G H I J K L M N O
1062 304 220 912 294 99 51 8 48 43 354 403 160 138 160
FOR M5LCX025C/CR ONLY

14
Electrical DaElectrical Da
Electrical DaElectrical Da
Electrical Datata
tata
ta
1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) ALL SPECIFICATION ARE TENTATIVE SPECIFICATION AT THE TIME OF PRINTING. PLEASE CONSULT YOUR DEALER FOR CONFIRMATION.
1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) ALL SPECIFICATION ARE TENTATIVE SPECIFICATION AT THE TIME OF PRINTING. PLEASE CONSULT YOUR DEALER FOR CONFIRMATION.
V/Ph/Hz
W
A
W
V/Ph/Hz
W
A
W
V/Ph/Hz
µF
RATED INPUT POWER (COOLING) W
RATED INPUT POWER (HEATING) W
RATED RUNNING CURRENT (COOLING) A
RATED RUNNING CURRENT (HEATING) A
LOCKED ROTOR AMP. A
V/Ph/Hz
W
A
W
V/Ph/Hz
W
A
W
V/Ph/Hz
µF
RATED INPUT POWER (COOLING) W
RATED INPUT POWER (HEATING) W
RATED RUNNING CURRENT (COOLING) A
RATED RUNNING CURRENT (HEATING) A
LOCKED ROTOR AMP. A
6.9 10.0
30
1430 1785
7.0 9.5
CAPACITOR -
1440 1775
MOTOR OUTPUT 75 80
COMPRESSOR
TYPE INVERTER
INSULATION GRADE E
POWER SOURCE 230 / 1 / 50
RATED INPUT POWER 130 140
RATED RUNNING CURRENT 0.58 0.58
POLES 4
OUTDOOR MOTOR
TYPE PERMANENT SPLIT CAPACITOR
INSULATION GRADE E
POWER SOURCE 230 / 1 / 50 230 / 1 / 50
RATED RUNNING CURRENT 0.31 0.40
MOTOR OUTPUT 40 40
INDOOR MOTOR
TYPE SCR
INSULATION GRADE B
POWER SOURCE 230 / 1 / 50
RATED INPUT POWER 60 75
4.4 4.9
40
MODEL INDOOR UNIT M5WMX 020GR M5WMX 025GR
OUTDOOR UNIT M5LCX 020CR M5LCX 025CR
886 1159
3.4 5.4
CAPACITOR -
686 984
MOTOR OUTPUT 25 35
COMPRESSOR
TYPE INVERTER
INSULATION GRADE E
POWER SOURCE 230 / 1 / 50
71
RATED RUNNING CURRENT 0.24 0.31
OUTDOOR MOTOR
TYPE PERMANENT SPLIT CAPACITOR
INSULATION GRADE B
POWER SOURCE 230 / 1 / 50 230 / 1 / 50
RATED INPUT POWER 56
MOTOR OUTPUT 17 17
POLES 4P
40
RATED RUNNING CURRENT 0.19 0.20
INDOOR MOTOR
TYPE SCR
INSULATION GRADE E
POWER SOURCE 230 / 1 / 50 230 / 1 / 50
RATED INPUT POWER 38
MODEL INDOOR UNIT M5WMX 010GR M5WMX 015GR
OUTDOOR UNIT M5LCX 010CR M5LCX 015CR

15
Electrical Data (With Torque Control)
1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) ALL SPECIFICATION ARE TENTATIVE SPECIFICATION AT THE TIME OF PRINTING. PLEASE CONSULT YOUR DEALER FOR CONFIRMATION.
V/Ph/Hz
W
A
W
V/Ph/Hz
W
A
W
V/Ph/Hz
µF
RATED INPUT POWER (COOLING) W
RATED INPUT POWER (HEATING) W
RATED RUNNING CURRENT (COOLING) A
RATED RUNNING CURRENT (HEATING) A
LOCKED ROTOR AMP. A
MODEL INDOOR UNIT M5WMX 010GR M5WMX 015GR
OUTDOOR UNIT M5LCX 010CR M5LCX 015CR
INDOOR MOTOR
TYPE SCR MOTOR
INSULATION GRADE E
POWER SOURCE 230 / 1 / 50 230 / 1 / 50
RATED INPUT POWER 38 40
RATED RUNNING CURRENT 0.19 0.20
MOTOR OUTPUT 17 17
POLES 4P
OUTDOOR MOTOR
TYPE PERMANENT SPLIT CAPACITOR INDUCTION
INSULATION GRADE B
POWER SOURCE 230 / 1 / 50 230 / 1 / 50
RATED INPUT POWER 56 71
RATED RUNNING CURRENT 0.24 0.31
MOTOR OUTPUT 25 35
COMPRESSOR
TYPE DC ROTARY
INSULATION GRADE E
POWER SOURCE 230 / 1 / 50
CAPACITOR -
726 989
4.1 4.5
40
836 929
3.5 4.8

16
ContrContr
ContrContr
Controlleroller
olleroller
oller
G11 Remote Controller
Temperature Setting
•To set the desired room
temperature, press the button to
increase or decrease the set
temperature.
•The temperature setting range is
from 16°C to 30°C
•Press both buttons simultaneously
to toggle the temperature setting
between °C and °F
Turbo Mode
•Press the TURBO button to
achieve the required set
temperature in a short time.
ON Timer Setting
•Press the SET button will activate
the on timer function.
•Set the desired on time by
pressing the SET button
continuously.
•Press the CLR button to cancel the
off timer setting
Sleep Mode
•Press the button to activate sleep
mode. This function is available
under COOL, HEAT & AUTO
mode.
•When it is activated in COOL
mode, the set temperature will be
increased 0.5°C after 30mins, 1°C
after 1 hour and 2°C after 2 hours.
•When it is activated in HEAT
mode, the set temperature will be
decreased 1°C after 30mins, 2°C
after 1 hour and 3°C after 2 hours.
Personalised Setting
•Press and hold the button for 3s to
initiate personalized setting.
•Set the individual setting e.g.
MODE, SET TEMP or FAN
SPEED and leave for 4s to save
•2 groups of settings are allowed to
stored in the handset
Fan Speed Selection
•Press the button until the desired
fan speed is achieved.
Operating Mode
•Press the MODE button to select
the type of operating mode.
•For Cooling only unit, the available
modes are: COOL, DRY & FAN.
•For Heatpump unit, the available
modes are: AUTO, COOL, DRY,
FAN & HEAT.
OFF Timer Setting
•Press the SET button will activate
the off timer function.
•Set the desired off time by
pressing the SET button
continuously.
•Press the CLR button to cancel
the off timer setting
Automatic Air Awing
•Press the SWING button to
activate the automatic air swing
function.
•To distribute the air to a specific
direction, press the SWING button
and wait until the louver move to
the desired direction and press the
button once again.
On/Off Button
•Press Once to start the air
conditioner
•Press again to stop the unit
Clock Time Setting
•Press button + or - to increase or
decrease the clock time.
Ionizer
•Press the button to activate the
negative Ion function, which will
refresh the indoor air effectively.

WW
WW
Wiring Diairing Dia
iring Diairing Dia
iring Diagg
gg
grr
rr
ramsams
amsams
ams
17
INDOOR UNIT
MODEL : M5WMX 010GR/015GR (WITH IONIZER)
OUTDOOR UNIT
MODEL : M5LCX 010CR/015CR

18
INDOOR UNIT
MODEL : M5WMX 010GR/015GR (WITH NON-THERMAL PLASMA)
OUTDOOR UNIT
MODEL : M5LCX 010CR/015CR
