MD SPORTS 44111 User manual

MODEL/MODELO: 44111
Please contact us before returning the product to the store.
Toll Free: 877-885-1635
Por favor póngase en contacto con nosotros antes de
devolver el producto a la tienda.
Número telefónico gratis: 877-885-1635
INSTRUCCIONES DE ARMADO

LIMITED 90 DAYS WARRANTY
1
This product is covered by a limited warranty that is effective for 90 days
from the date of purchase. The warranty covers any defects in parts and
workmanship.
This Limited Warranty gives you specific legal rights and you may also have
other rights which very from one state (province) to another.
If, during the limited warranty period, a part is found to be defective or
breaks, we will offer replacement part at no cost to you, the customer. The
only exceptions to the warranty include main frames, tabletops, playing
surfaces, batteries or tools.
The above warranty will not apply in cases of damages due to improper
usage, alteration, misuse, abuse, accidental damage or neglect.
Attention: Since you build all tables upside down, please inspect table tops
and playing surfaces right away before putting together.
“PLEASE SAVE THESE INSTRUCTIONS
AND PURCHASE RECEIPT!”
A PURCHASE RECEIPT (or other proof of purchase date) will be required
before any warranty service is initiated. All requests for warranty service can
be submitted by email, in writing or by contacting our Consumer service
Department at:
TOLL FREE: 877-885-1635
WEBSITE: www.medalsports.com.tw
*Please do not call our 800 NUMBER as well as email us. This will result in
duplicate orders and charges will occur.
*Please note that all damaged table tops need to be returned to the store.
We do not replace any tabletops or playing surfaces.
PLEASE CONTACT US BEFORE RETURNING THE
PRODUCT TO THE STORE.
THANK YOU VERY MUCH!

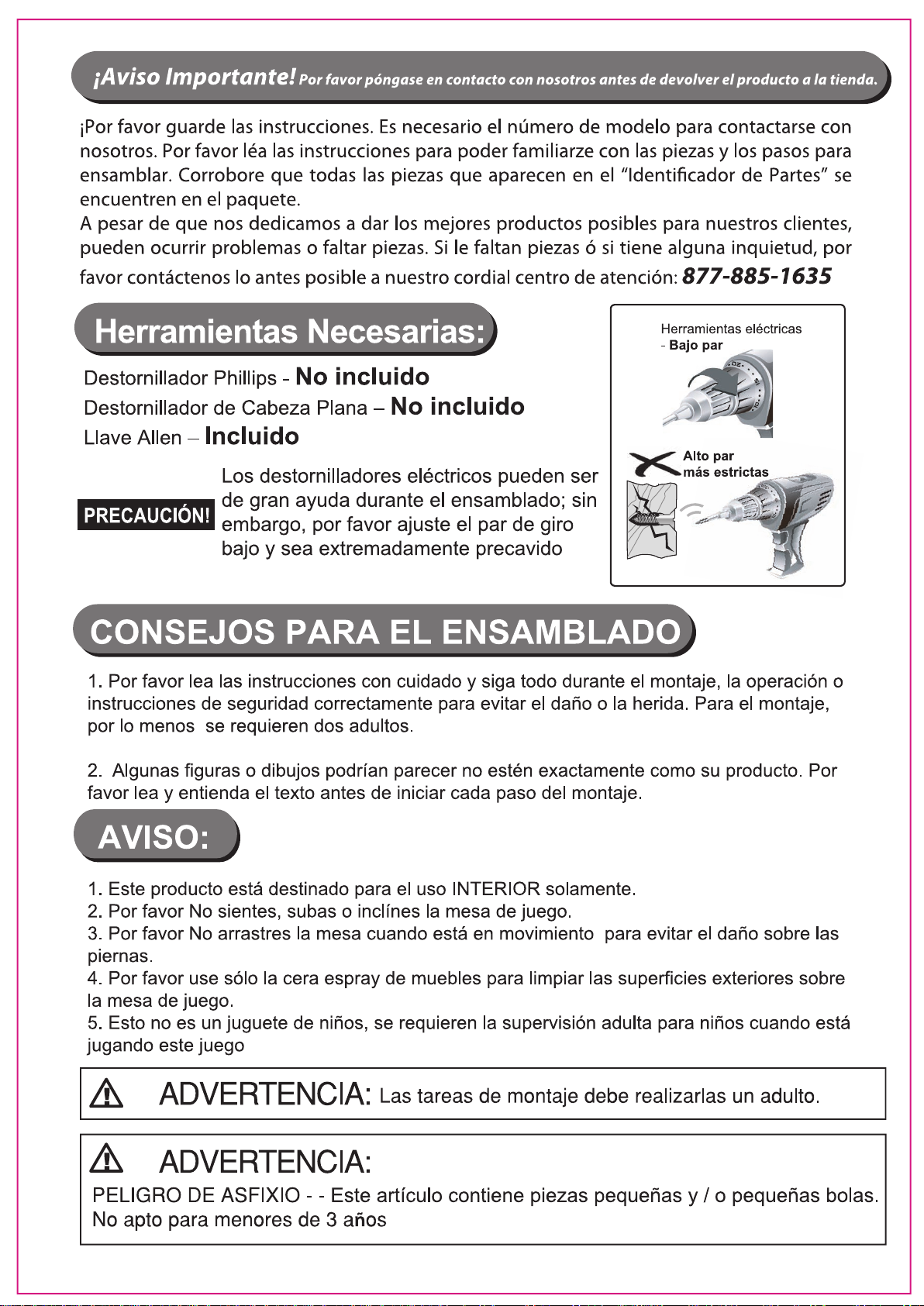

Phillips Screwdriver – Not Included
Standard (Flat Head Screwdriver) – Not Included
Allen Wrench - Included
TOOLS REQUIRED:
ASSEMBLY TIPS:
:

!



!
2
IMPORTANT NOTICE! Please contact us before returning the product to the store.
Please read the instructions carefully, and follow all assembly, operation or safety instructions
properly in order to avoid damage or injury. For the assembly, at least two adults are required.
Some figures or drawings may not look exactly like your product. Please read and understand
the text before beginning each assembly step.
1 -
2 -
Please Keep Your Instructions! Your Model number is necessary should you need to contact
us. Please read through this instruction manual book to familiarize yourself with all parts and
assembly steps. Kindly refer to the parts identifier below and be sure that all parts have been
included.
Although we are dedicated to giving our customers the best product possible, a question may
arise or parts may be missing. If you are missing parts, or, if you have any questions, please
contact our fast and friendly service centre on:
1 - This product is intended for INDOOR use only.
2 - Please Do Not sit, climb or lean on the game table.
3 - Please Do Not drag the table when moving it in order to avoid the damaged on the legs.
4 - Please only use spray furniture polish to clean the exterior surfaces on the game table.
5 - This is not a child's toy, adult supervision is required for children playing this game.
877-885-1635
Power Tools
- Set Low Torgue
High Torque
over tightened
High Torque
over tightened
CAUTION !
Electric Screwdrivers may be helpful during
assembly; however, please set a low torque
and use extreme caution.

6
11
2 3 4 51
7 8 9 10
12 13 14 15
16 17 18 19 20
21 22 23 24 25
44111 PARTS LIST
RIGHT TABLE SURFACE
2 PIECES 6MM WASHER
24 PIECES
WRENCH
1 PIECE M6 NUT
8 PIECES 16MM SPACER
8 PIECES
LEFT TABLE SURFACE
2 PIECES
CURVED OUTER LEG
WITH CAPS
2 PIECES
CURVED INNER LEG
WITH CAPS
2 PIECES
M6 X 47MM BOLT
8 PIECES
M6 X 42MM BOLT
8 PIECES
PLASTIC LEG PANEL
WITH FRAME
2 PIECES
ALLEN KEY
1 PIECE
NET POST
2 PIECES
WHEEL
4 PIECES
END APRON 1.3M
2 PIECES
M5 X 15MM SCREW
119 PIECES LEG BRACKET 12 PIECES
MOLDED PROTECTIVE
CORNER
4 PIECES
LINKAGE TUBE WITH
STOP BRACKET
2 PIECES LINKAGE TUBE 2 PIECES BRACKET 6 PIECES
NET
1 PIECE
SAFTEY STRAP
1 SET
SIDE APRON 1.25M
4 PIECES
3
LOCK PIN
2 PIECES
26 27
OUTER LEG CAP
4 PIECES INNER LEG CAP 4 PIECES
PRE-INSTALLED PRE-INSTALLED

4
FIG. 1
2
1
1
2
9
24
18
Center
Player
Player
1. Find a clean, level place to begin the assembly of your Table Tennis Table. The table will be assembled upside down
and then turned over. This is a heavy game and tuning it over will require at least two strong adults.
2. Remove all of the parts from box and verify that you have all of the listed parts as shown on the Parts List.
Carefully cut or tear the four carton corners so that the bottom of the box can act as your workarea.

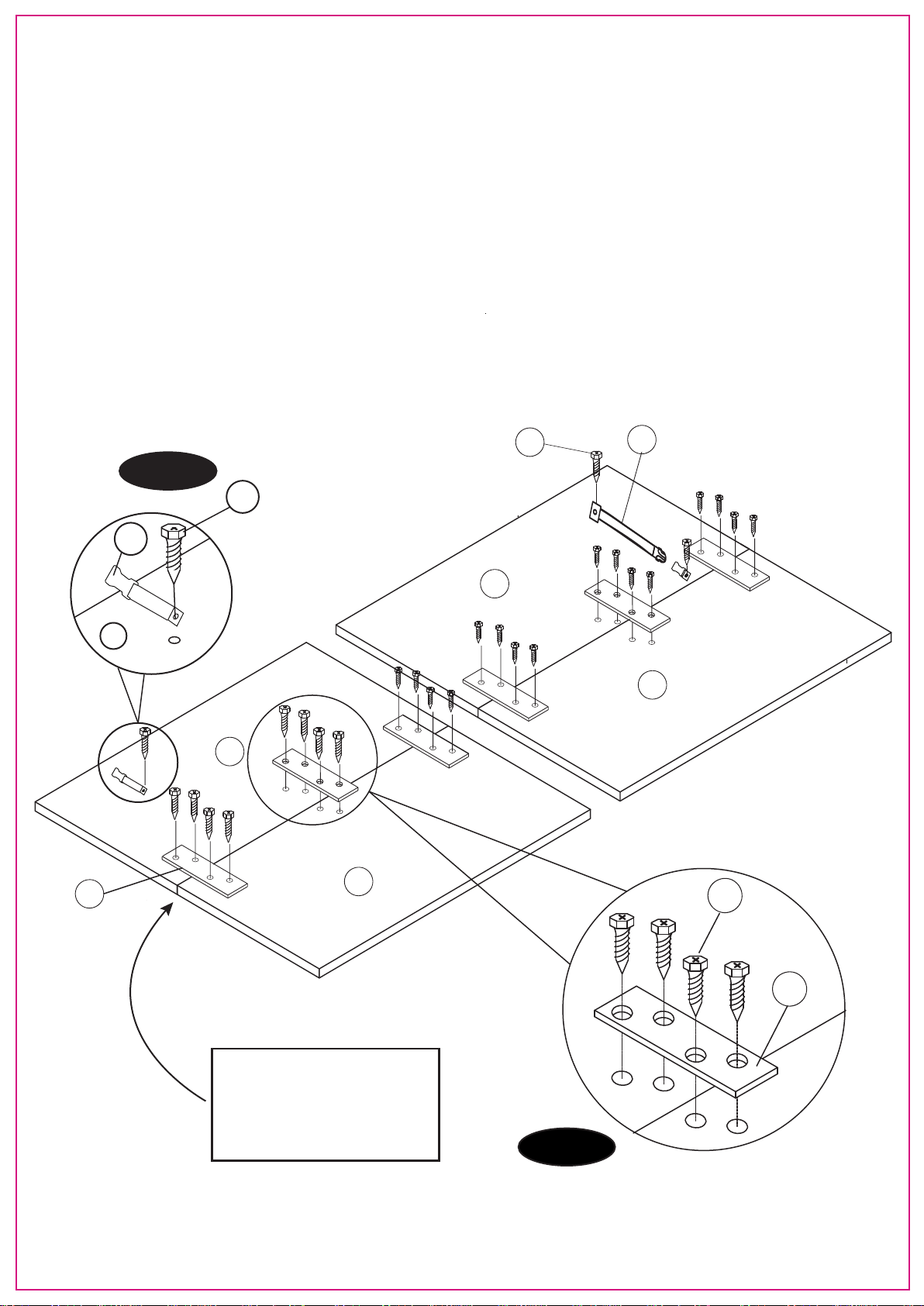

3. Place the Right Table Surface (#1) and Left Table Surface (#2) with the painted surface facing down on a flat surface.
4. Connect together using three Bracket (#9) using twelve Screws (#18). See Fig.1A.
5. Repeat the above steps for another Table Surface.
6. Attach the Safety Strap (#24) using three Screws (#18).
ASSEMBLY INSTRUCTIONS
FIG.1
Note:
Align the inside seams of
each sections so that
pre-drilled holes line up
across from each other. FIG. 1A
18
9
18
24
1

5
6
5
Center
Player
7. Place one Curved Outer Leg (# 5) on the player end of the table half and one Curved Inner Leg (#6) on the center
end of the table half, and then using the Leg Bracket (#19) attach legs to the table with twenty-four Screw (#18).
NOTE: Make sure that the oval cut-out in the Leg Bracket are facing the center of the table for proper installation.
8. Repeat steps for Curved Legs of the other table half.
FIG.2
27
26
FIG. 2
19
18

FIG.3

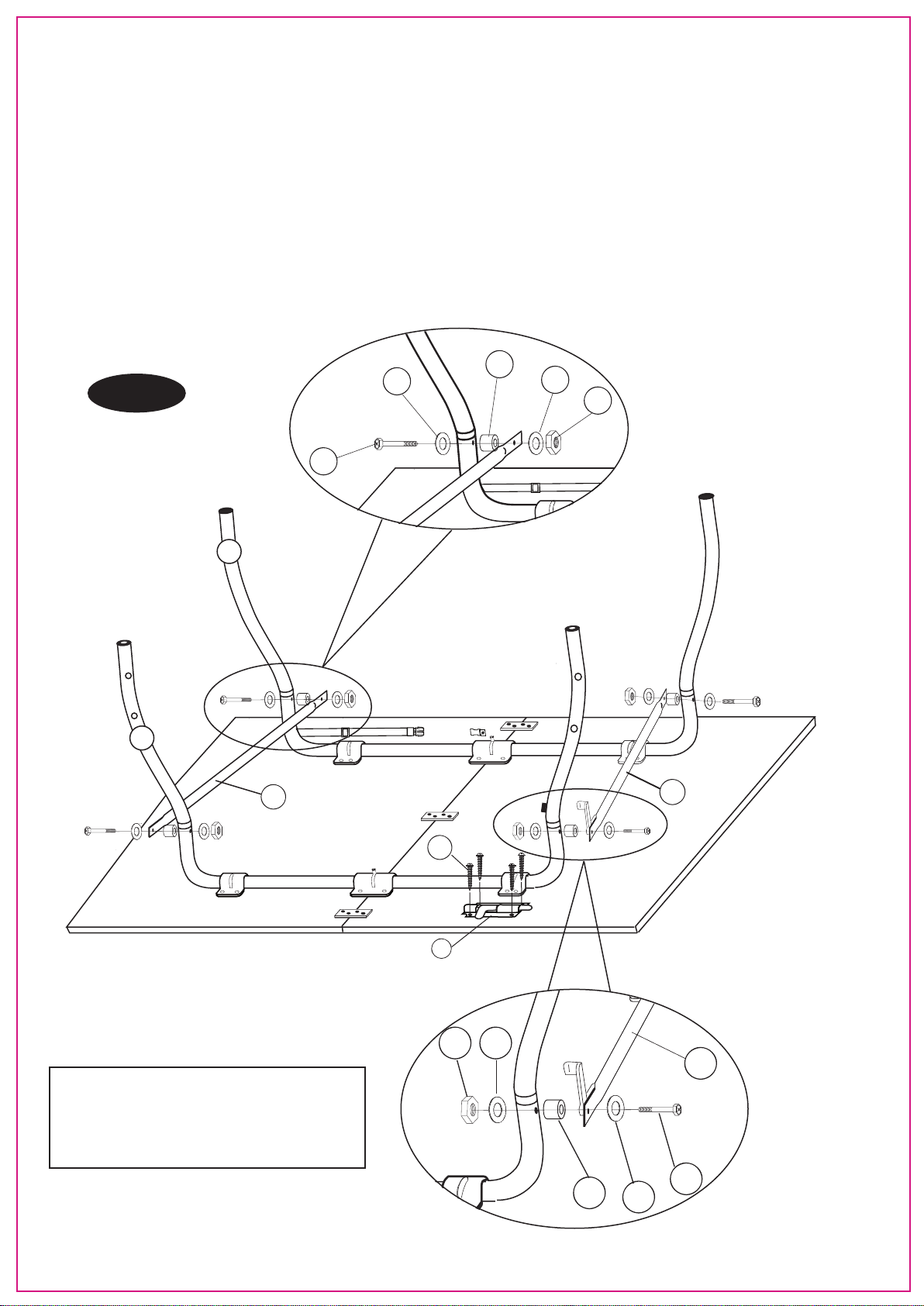

9. Attach one end of the Linkage Tube (#8) to the inside of the Curved Outer Leg (#5) using one Bolt (#3), two Washers
(#4), one Spacer (#14) and one Nut (#13).
10. Repeat the same for the other end of this Linkage Tube, only attaching it to the outside of the Curved Inner Leg (#6).
11. Attach one end of the Linkage Tube with Stop Bracket (#7) to the inside of the Curved Outer Leg (#5) using one Bolt
(#3), two Washers (#4), one Spacer (#14) and one Nut (#13).
12. Repeat the same for the other end of this Linkage Tube, only attaching it to the outside of the Curved Inner Leg (#6).
13. Next attach the Lock Pin (#10) to the bottom of the table using four Screws (#18)
14. Repeat the above steps for the other table half.
14
13
4
3
4
7
14 43
413
Center
18
8
10
7
Player
5
6
6
FIG. 3
Note:
Be careful of the assembly direction on
pictures when you assemble the Linkage
Tube #7 and #8 in order to fit the folding
function.

7
FIG. 4A
17
18
23 22
18
17
23
FIG.4
15. Place the Molded Protective Corners (#17) flush with table corner using twelve Screws (#18). See FIG.4A
16. Place the End Apron (#22) between the Corners(#17) using four Screws (#18) per End Apron. See FIG.4
17. Place the SideApron (#23) flush with table edge at the side of the table using four Screws (#18) per Side Apron.
See FIG.4.
NOTE: Make sure the all Aprons are inside the Molded Protective Corners.
FIG. 4
Center
Player

FIG.5

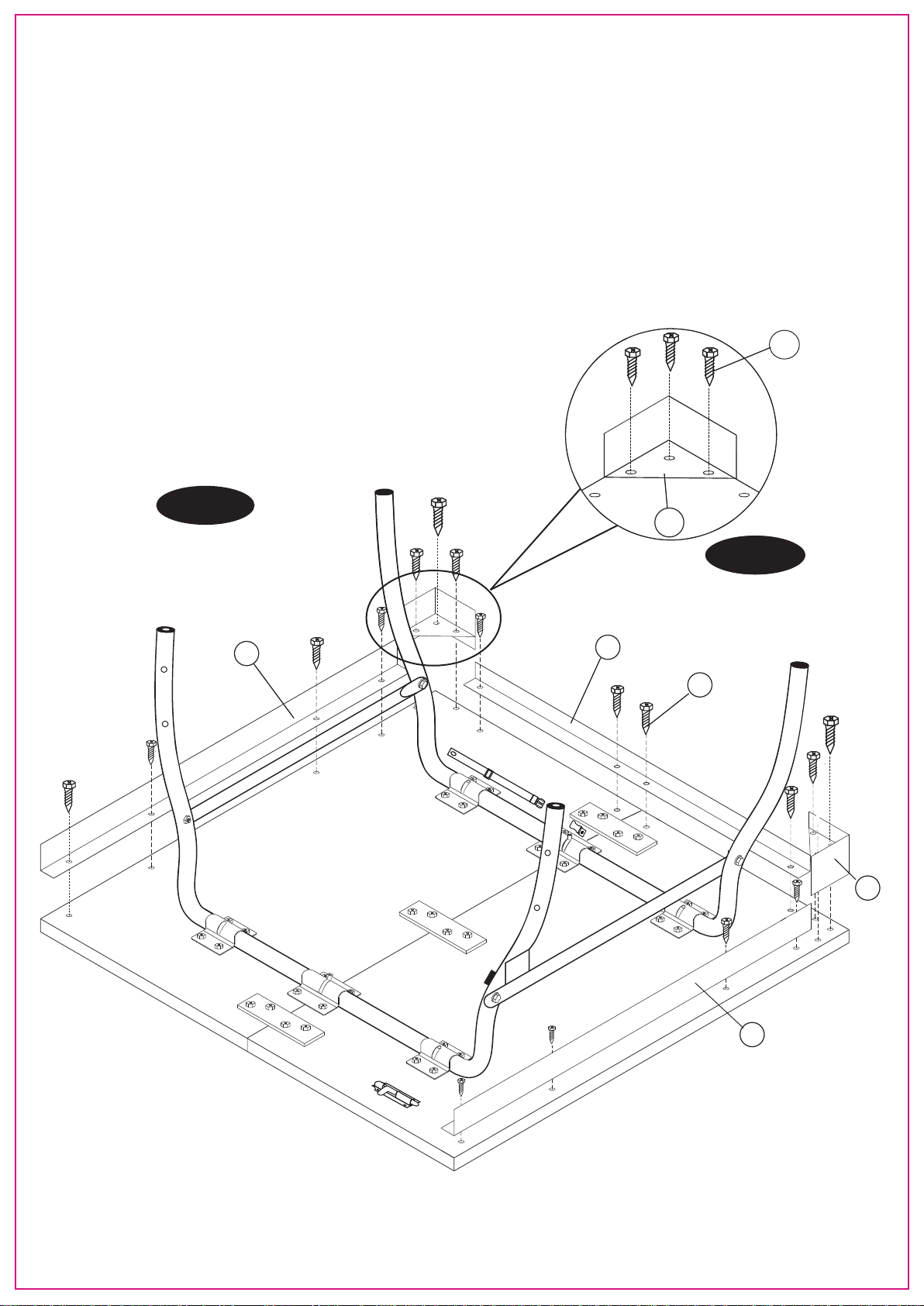

18. Place the Wheel(#25) into the Curved Inner Legs.
19. With the logo upside-down, attach the Plastic Leg Panel (#21) to the Curved Inner Leg (#6) using
two Bolts (#11) and two Washers (#4). NOTE: Do not tighten securely at this time.
20. Repeat the above steps for the other side of this table half.
8
FIG. 5
4
11
6
5
25
21
Center
Player
2
1

9
FIG. 6
FIG.6

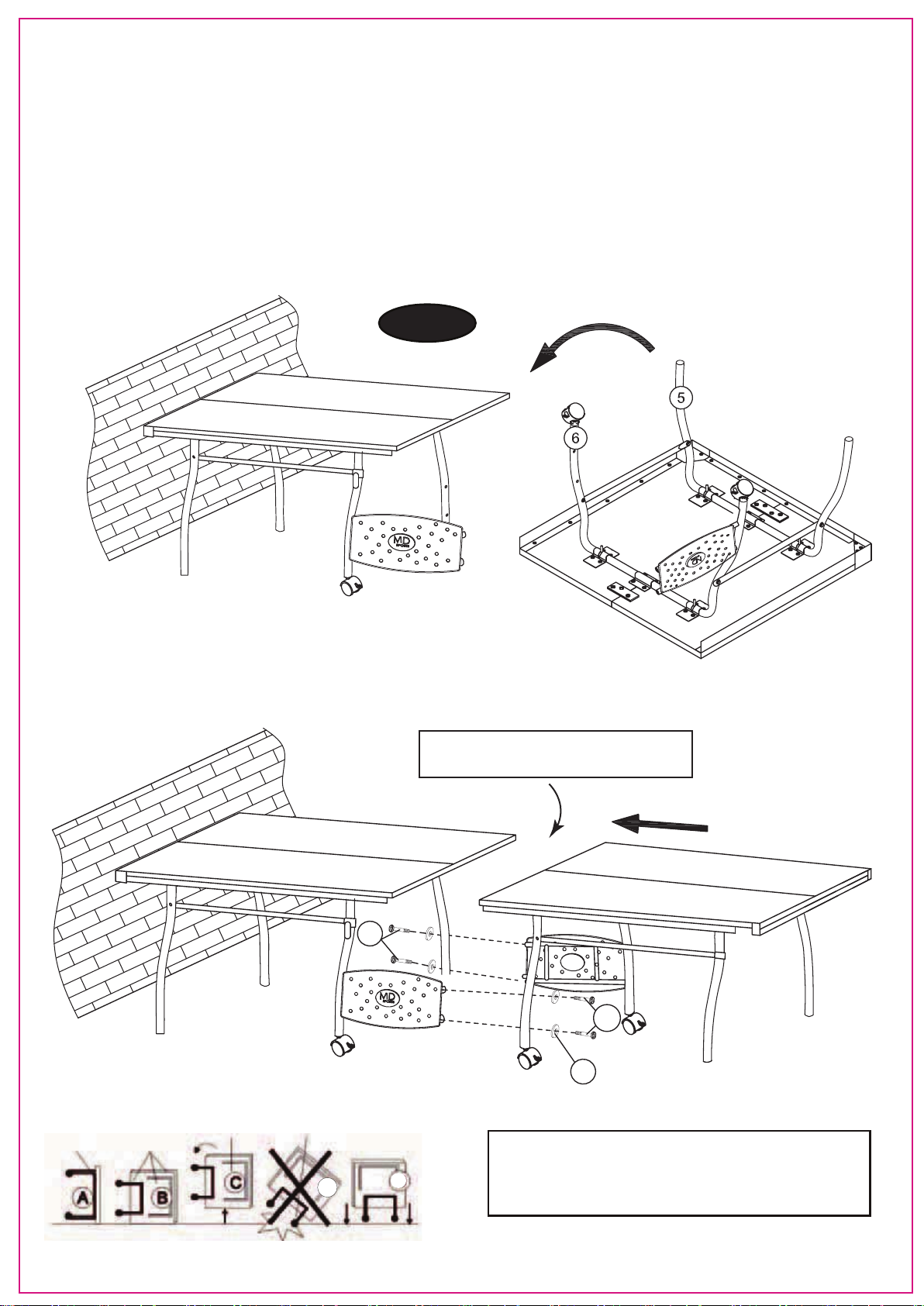

21. Before turning the table over, make sure to push the Curved Inner Leg (#6) towards the center of the table in order
to engage the stop. NOTE: Two adults are required to turn this table over
22. One person should stand at each center of the table and turn the table over completely so that it rests on its legs.
23. Standing at the sides of the table, place the two table halves so they are inches apart.
NOTE: Be careful that you do not push either half backwards as this may cause the legs to fold!
24. Attach the Plastic Leg Panel and Frame (#21) to the opposite table half using two Bolts (#11) and two Washers
(#4).See FIG. 6. Now go back and tighten all the connections.
Caution:
Two strong adults are recommended to
turn the table over as shown.
A. TURN TABLE
ON ITS SIDE
B. FOLD LEGS AND
TABLE HALVES AND
LOCK IN PLACE
C. LIFT TABLE AND
TURN IN THE AIR
D. DO NOT LEAN
TABLE ON ITS LEGS! E. SET TABLE DOWN
EVENLY ON ALL
WHEELS, TO PREVENT
BREAKING LEGS
DE
11
11
4
Note: Please leave 10mm distance
between table centers.

16 FIG. 7A
15
16
16
FIG. 7
15
FIG.7
25. Attach the Net Post (#16) at the middle of the table and slide the net over the post. Stretch
the Net (#15) across the center of the table and slip the net over the post on the opposite side. .
10

27. Folding the table - First fold the side of the table without the net clip. Hold the end securely and lift the table.
Make sure the Lock Pin (#10) is locked. Attach the Safety Strap (#24) to prevent the sides from falling.
Repeat for the other side.
28. To unfold the table - First release the Lock Pin (#10) and Safety Strap (#24). Then pull the bottom of the large leg and
slowly lower the table to the floor.
11
10
26.Engage the Caster (wheels ) Lock.
FIG.8
Note: When the table is in its storage
position, always attach the safety strap
to prevent the sides from falling.
FIG. 8
24
21
2
1
Reverse
1
2

12

13

6
11
2 3 4 51
7 8 9 10
12 13 14 15
16 17 18 19 20
21 22 23 24 25
IDENTIFICADOR DE LAS PARTES
Ruedas
4 piezas
Superficie de
la tabla derecha
2 piezas
Superficie de
la tabla izquierda
2 piezas Tornillos M6 x 47mm 8 piezas Arandelas de 6mm 24 piezas
Pata curvada
exterior con tapa
2 piezas
Pata curvada
interior con tapa
2 piezas
Tubo de conexión
con bloqueador
2 piezas Tubo de conexión 2 piezas Soporte 6 piezas Pasador de bloqueo 2 piezas
Tornillos M6 x 42mm
8 piezas Llave inglesa 1 pieza Tuercas M6 8 piezas Espaciador de 16mm 8 piezas Red 1 piezas
Poste de red
2 piezas
Molde de protección
de las esquinas
4 piezas Tornillos M5 x 15mm
119 piezas Soporte de patas 12 piezas Llave Allen 1 pieza
Panel de pierna plástico
con el marco
2 piezas Tabla de extremo 1.3m 2 piezas Tabla lateral 1.25m 4 piezas Correa de seguridad 1 set
26 27
Pre-instalado Pre-instalado
14
Tapa de la pierna exterior
4 piezas Tapa de la pierna interior 4 piezas

15
FIG. 1
2
1
1
2
9
24
18
INSTRUCCIONES DE MONTAJE
FIG.1
FIG. 1A
18
9
1. Buscar un lugar limpio, nivelado para empezar el montaje su mesa de tenis. La tabla será montado con partes
superior abajo y después darle vuelta como muestra en el dibujo. Este es un trabajo pesado y para darse vuelta
se requerirá por lo meno dos adulto fuerte.
2. Retirar todos los contenidos de la caja y verificar que tenga todas las partes en listado como muestra en el IDEN
TIFICADOR DE LAS PARTES. Cuidadosamente cortar o quitar los cartones de las 4 esquinas, de esta manera la
caja le servirá como un área para trabajo.
3. Ponga la superficie de la tabla derecha (#1) y la superficie de la tabla izquierda (#2) con la parte pintada boca
abajo sobre una superficie plana.
4. Conectar junto usando las 3 soportes (#9) usando 12 tornillos (#18) .Ver figura 1.
5. Repetir los pasos con otras superficie de la tabla.
6. Añadir correas de seguridad (#24) usando 3 tornillos (#18)
Nota:
Alinear las costuras interioresde
cada uno de las secciones para
que pre-perforado los agujeros
queden alineados uno frente al
otro.
Centro
Jugador
Jugador
18
24
1

16
FIG. 2
6
19
5
FIG.2
27
26
7. Ponga una patas curvada exteriores (#5) sobre entremos del jugador y una patas curvada interior (#6) en el centro de la
mesa, y después usando soportes (#19) uniendo las tablas con 24 tornillos (#18).
Nota: asegurar que la parte ovalada del soporte de la pata estén dirigido al centro de la tabla para una instalación
apropiado.
8. Repetir los pasos con patas curvadas de otra mitad de la mesa.
18
Centro
Jugador

FIG.3
FIG. 3
14
13
4
3
4
7
14 43
413
87
5
6
17
9. Atar una terminal del tubo de conexión (#8) hacia parte interior de la pata curvada exterior (#5) usando una tornillo (#3)
dos arandelas (#4), un espaciador (#14) y una tuerca (#13)
10. Repetir los mismo pasos con otro terminal del tubo de conexión, solamente atando hacia parte exterior de la pata
curvada interior (#6).
11. Atando un terminal de este tubo de conexión con bloqueador (#7), en la parte interior de la pata curvada exterior (#5)
usando un tornillo (#3), dos arandelas (#4), un espaciador (#14) y una tuerca (#13).
12. Repetir los mismo pasos con otro terminal de la tubo de conexión, solamente atando en la parte exterior de la pata
curvada interior (#6).
13. Proximo paso, sujetar el pasador del bloqueo (#10) en la parte inferior de la mesa usando 4 tornillos (#18).
14. Repetir los mismo pasos con otra mitad de la mesa.
Centro
Jugador
18
10
Nota:
Tenga cuidado sobre la dirección de montaje
de dibujos cuando está montando el Tubo de
Conexión #7 y #8 para encajar la función de
pliegue.

18
FIG. 4A
17
18
23 22
18
17
23
FIG. 4
FIG.4
15. Colocar el molde de protección de las esquinas (#17) nivelado con las esquinas de la tabla y sujetarlos usando
doce tornillos (#18). Ver Fig. 4A.
16. Colocar una tabla de extremo (#22) entre las esquinas (#17) con cuatro tornillos (#18) por tabla de extremo. Ver
Fig.4.
17. Colocar una tabla lateral (#23) nivelado con el corte de la mesa de las partes laterales de la mesa y sujetando
usando cuatro tornillos (#18) por tabla lateral. Ver Fig.4.
Nota: Asegurar que todos los protectores estén adentro de los moldes de protección de las esquinas
Jugador
Centro

19
FIG. 5
4
11
6
5
25
21
FIG.5
18. Colocar la rueda (#25) dentro de las patas curvadas interior.
19. con los logotipo mirándose hacia abajo, sujetar el panel de pierna plástico (#21) hacia las patas curvada interior
(#6) usando dos tornillos (#11) y dos arandelas (#4). Nota: no apretar demasiado fuerte en este momento.
20. Repetir los pasos para otra lateral de la mesa
Jugador
Centro
2
1
