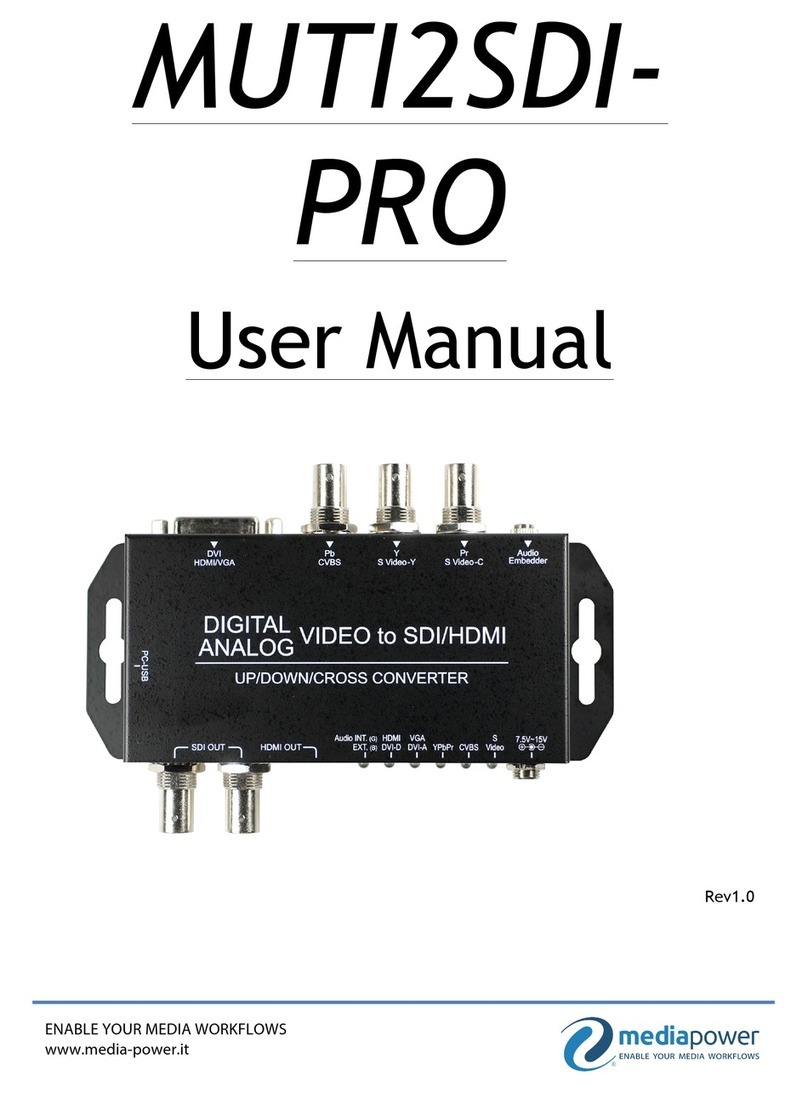

Mediapower MUTI2SDI/HDMI User manual

ANALOG/DIGITAL2
SDI/HDMI
User Manual

Content
Feature ...................................................................................3
Front Panel...............................................................................4
Rear Panel................................................................................4
Side Panel ................................................................................5
DipSwitch/LED Control .................................................................6
Installation ............................................................................. 12
Package Contents ............................................. 錯誤! 尚未定義書籤。
Specifications.......................................................................... 13
Firmware Upload ...................................................................... 14
Appendix Table A ..................................................................... 14

Feature
SDI Supports HD formats :
720p50 & 60
1080i50 & 60
1080p24, 25, 30, 50 & 60
SDI Support 525i & 625i SD D1 format
Auto 3G/HD/SD-SDI detection
Can be split one 3G-SDI displays simultaneously.
Frame rate conversion(1.000/1.001)
External Dipswitch and Usb Configuration
Firmware is upgradable in the field using the integrated USB port
The converter is Plug-and-Play
Support DVI-D, DVI-A, Component, CVBS and S-Video Input0
Support Embedded audio and stereo audio( L/R Audio )

Front Panel
NO
Component
Function
1
SDI Output Port
From your SDI Display Device plug into this ports
2
HDMI output Port
From your HDMI Display Device plug into this port
3
Input Port/ Audio
source LED
The LEDs are indicate Input Ports and Audio Source
5
Dipswitch
Control the Box ( Input Port/Audio/Output Format)
6
Power Jack
The Power adapter plug into here
Rear Panel
NO
Component
Function
1
Phone Jack
From you Audio Device plug into this port
2
Component/CVBS/S-
Video Input Port
From your YPbPr/CVBS/S-Video Device plug into
this port
3
DVI-D/DVI-A Input
Port
From your DVI-D/DIV-A Device plug into this port
1
3
1
5
2
2
3
4

Side Panel
NO
Component
Function
1
USB Port
Upgrade firmware/Control Box From PC
1

DipSwitch/LED Control
NO
Component
Function
1
Input Source
Five of kinds input source be support
( DVI-D/DV-A/YPbPr/CVBS/S-Video)
2
Audio Source
Two of kinds Audio input source
(Embedded audio/L/R Audio)
3
Output format
Control Box to switch Output Format.
Input Source:
MUTI2SDI/HDMI Box can choose one of three standard inputSource by
DipSwitch.
Input Source
Dipswitch Indicates
DVI-D(HDMI)
DVI-A(VGA)
YPbPr
CVBS
S-Video(YC)
USB Control
1
2
3

Audio Source:
MUTI2SDI/HDMI Box can be select audio source from L/R Audio.
Resolution
Dipswitch Indicates
Internal (Default)
L/R Audio
Output Format:
MUTI2SDI/HDMI box can be select 16 of kinds output format.
Resolution
Dipswitch Indicates
Resolution
1920x1080p60
1920x1080i60
1920x1080p59
1920x1080i59
1920x1080p50
1920x1080i50
1920x1080p30
1280x720p60
1920x1080p29
1280x720p59
1920x1080p25
1280x720p50
1920x1080p24
720x480i59

1920x1080p23
720x576i50
LED Indicate:
NO
Component
Function
1
Internal/L/R
Audio
The LED is indicate Audio Source
indicate
2
DVI-D(HDMI)
The LED is indicate DVI-D Signal
indicate
3
DVI-A(VGA)
The LED is indicate DVI-A Signal
indicate
4
YPbPr
The LEDs is indicate YPbPr Signal
indicate
5
CVBS
The LED is indicate CVBS Signal indicate
6
S-Video
The LEDs is indicate S-Video Signal
indicate
1
6
2
3
4
5

1. DVI-D + L/R Audio:
DVI-D + L/R Audio
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
●
○
○
○
○
Un-locked
●
○
○
○
○
MicroVision
●(Blinking)
○
○
○
○
2. DVI-A+ L/R Audio:
DVI-A + L/R Audio

DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
○
●
○
○
○
Un-locked
○
●
○
○
○
3. YPbPr + L/R Audio:
YPbPr + L/R Audio
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
○
○
●
○
○
Un-locked
○
○
●
○
○
4. Composite (CVBS) + L/R Audio:
Composite(CVBS) + L/R Audio

DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
○
○
○
●
○
Un-locked
○
○
○
●
○
MicroVision
○
○
○
●(Blinking)
○
5. S-VIDEO + L/R Audio
Composite(CVBS) + L/R Audio
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
○
○
○
○
●
Un-locked
○
○
○
○
●
MicroVision
○
○
○
○
●(Blinking)
6. Audio Select:
DVI-D + L/R Audio

Internal Audio
●
L/R Audio
●
Installation
MULTI2SDI-PRO installation consists of the following:
1. Disconnect +12DC adaptor to converter.
2. Connect Video Source to the Input Connector.
3. Connect Display Equipment to the output’s connector
4. Connect the +12DC adaptor to the converter.

Specifications
DESCRIPTION
MUTI2SDI/HDMI
SDI Format
SD-SDI, HD-SDI & 3G-SDI
SDI Transition Rate
2.970Gb/s, 10485Gb/s and 270Mb/s
Audio Support
HDMI(DVI-D) : 8-Channel
L/R Audio :
a. only 2 channel and splitter to 8 channel (HDMI/SDI
out)
b. Input impedance = 10K.
c. max input level(Vrms) = 10dBV (9V p-p), or 3.16
Vrms.
Re-Sample Clock
Auto Resample audio clock to 48Khz
Coaxial Cable Type
RG6/RG59(75Ω)
Input Source
HDMI/VGA/YPbPr/CVBS/S-Video
Output Source
2 X SDI + 1 x HDMI (the same time)
Input Format Support
Appendix Table A
Output Format Support
Appendix Table A
Firmware Updates
Via Mini-USB
Output Connector
2 x BNC [SDI]
1 x HDMI
Input Connector
1 x BNC [SDI]
1 x DVI-I [DVI-D + DVI-A]
3 x BNC [YPbPr or YC + CVBS ]
1 x Phone Jack
BNC Connector
3G 75 Ωinter-locked socket

USB Connector
Mini-USB
Dipswitch
Output Format/Audio Source/Input Source
Housing
SECC
Dimension
L:153mm x W:63.3mm xH:26mm
Power Source
Power Adapter: AC 100 ~ 240 V/DC (+9 ~ 15 V)
Operation Temperature
0~50°C [32~114°F]
Storage Temperature
-20~+60°C
Firmware Upload
Firmware is upgradable in the field using the integrated USB port
How to Firmware upgrade:
Step 1.
Open Upload Firmware Program tools.exe and connect box to PC by
USB Cable.
Step 2.
Plug and un-plug “DC adapter”to power on/off the converter box (the
connection check status will be changed to “Connect”)

Step 3.
Plug and un-plug “DC adapter”again (the connection check status will
be changed to “Connected”) and Please click the Open File button to
select the firmware bin file.
Step 4.
Please click “Start’Button to proceed with new firmware programming.
The PASS message will appear when the procedures finished.

Step 5.
Close Upload Firmware Program tools
Appendix Table A
Support Input Format:
720x480i60
720x576i50
720x480 p60
720x576 p50
1280x720p60
1280x720p50
1920x1080i60
1920x1080i50
1920x1080p24
1920x1080p25
1920x1080p30
1920x1080p60
1920x1080p50
640x350p85
640x400p85
720x400p85
640x480p60
640x480p72
640x480p75
640x480p85
800x600p56
800x600p60
800x600p72
800x600p75
800x600p85
848x480p60
1024x768p50
1024x768p59
1024x768p60
1024x768p70
1024x768p75
1024x768p85
1152x864p70
1152x864p75
1280x768pRB
1280x768p60
1280x768p75
1280x768p85
1280x800p60
1280x800p75
1280x800p85
1280x960p60
1280x960p75
1280x960p85
1280x1024p60

1280x1024p75
1280x1024p85
1360x768p60
1366x768p50
1366x768p60
1400x1050p50
1400x1050p59
1400x1050p60
1400x1050p75
1440x900p60
1440x900p75
1440x900p85
1600x1200p50
1600x1200p59
1600x1200p60
1600x1200pRB
1680x1050pRB
1680x1050p60
1920x1200pRB
2048x1052p60
2048x1080p50
2048x1080p59
2048x1080p60
Support Output Format:
HDMI Mode
720x480 i60
720x480 i59.94
720x576 i50
1280x720 p60
1280x720 p59.94
1280x720 p50
1920x1080 i60
1920x1080 i59.94
1920x1080 i50
1920x1080 p60
1920x1080 p59.94
1920x1080 p50
1920x1080 p30
1920x1080 p29.97
1920x1080 p25
1920 x 1080 p24
1920 x 1080 p23.98
