Medic Therapeutics 002-703 User manual



Usage and Maintenance Instructions
Instruction Manual
N.B. This equipment must be installed by a competent person.
Do not exceed the weight limit stated - doing so could put the user at risk.

BEFORE USE
• Carefully remove all packaging. Avoid use of any knives or other sharp
instruments as they may damage the surface of the product.
•
Check the product for any visible damage. If you see any damage or suspect
a default, do not use your product and contact your supplier for support.
INTENDED USE
Your Walker has been designed to assist when walking and carrying small
items of shopping. The bag was designed specifically to fit your Walker,
please only use the supplied bag for your Walker. Do not use or combine
bags and/or baskets from other manufacturers.
When not in use, simply fold the Walker and store. The Walkers are designed
to be used both inside and outside the home.
ASSEMBLY INSTRUCTIONS
Carefully remove all packaging, including the cardboard tubes covering the
knurled tube part of the brake assembly. Check the product thoroughly for
damage or obvious faults.
If you suspect a default, please do not use, and contact your supplier
immediately for service.

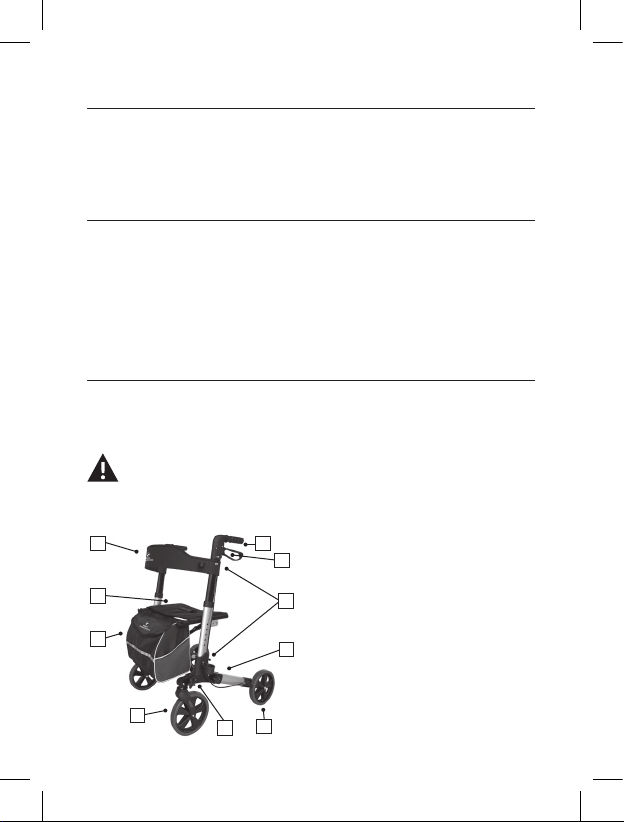

COMPONENTS OF THE WALKER
1 Push handle
2 Brake lever
3 Front wheel folding mechanism knobs
4 Backrest
5 Mesh seat
6 Personal Item Bag
7 Rear wheel folding mechanism knobs
8 Front wheel
9 Rear wheel
10 Cane holder
14
9
6
2
10
5
7
8
3

ASSEMBLY PROCEDURE
PART 1 - UNFOLD YOUR WALKER
1. Undo hook & loop, remove rear wheel folding
mechanism knob. (Figure 1)
2.
Rotate the rear wheel arms backward. (Figure 2)
3. Insert and tighten rear wheel folding
mechanism knobs firmly, ensuring proper
alignment.
4. Remove front wheel folding mechanism knobs.
(Figure 1)
5. Rotate the front wheel arms forward. (Figure 2)
6. Insert and tighten front wheel folding
mechanism knobs firmly, ensuring proper
alignment.
7. Pull the two push handles apart.
8. Open the frame until the crossbar locking
mechanism locks automatically, verify seat is
locked in place by pushing down on both seat
edges. (Figure 3)
Figure 3
Figure 1
Figure 2



ASSEMBLY PROCEDURE
PART 2 - FOLDING
Remove the accessories and lower down the
handle if necessary. Lift the crossbar locking
mechanism to release belt on the mesh seat
to release the crossbar lock. Fold the frame as
shown on left (Figure 4). Push the two push
handles together. Release the front and rear
wheel folding mechanism knobs and rotate
the rear wheel arms inward, replace folding
mechanism knobs and attach hook and loop to
rear legs.
PART 3
Adjusting the height level of the handles to fit
different users. Press the buttons for handgrips
and pull the handgrip upwards or downwards.
As the handle moves, release the buttons. This
automatically locks in the next possible height.
Repeat this process until the desired height is
reached. (Figure 5)
PART 4
Attach the bag to the hook of the seat frame.
The Personal Item Bag can be easily detached
when using. (Figure 6)
Figure 5
Figure 6
Figure 4

OPERATING THE BRAKES
1. To stop, gently apply a gripping pressure to
both brakes simultaneously (Figure 7), this will
slow down and stop your Walker.
2. The brakes on your Walker have a park option
(Figure 8). To operate the park option, push
downwards on both brakes simultaneously.
You will feel the brake make a very slight click.
Your brakes are now in the ‘lock’ position.
3. To unlock, simply pull up the brake again, you
will hear a slight click as the ‘park’ disengages.
BRAKE ADJUSTMENT
Your Walker brake system will require
periodic adjustment. To adjust the brakes,
loosen Nut B and then screw/unscrew Nut
A. When adjusted re-tighten Nut B. If further
adjustment is required then loosen the Locking
Screw and then using a pair of pliers pull the
cable down by approximately a millimeter.
Re-tighten Locking Screw. The brakes can
then be adjusted further by loosening Nut
B and screwing/unscrewing Nut A as before
(Figure 9)
Figure 7
Figure 8
Figure 9
Nut A
Nut B
Cable
Cable
Locking
Screw

REISSUE
If you reissue or are about to reissue this product, please thoroughly check
all components.
This includes:
• Bent or damaged tubes or cracks at the tube joints.
• Loose or worn horseshoe clips
• Elongated adjustment holes.
• Loose handles.
• Loose or worn Wheels and wheel fasteners (where fitted)
• Smooth, worn or split ferrules (rubber tips).
Replace all worn, missing or damaged parts where necessary. If in doubt,
please do not use and immediately contact your supplier for service
support.
CARE AND MAINTENANCE & YOUR OBLIGATION
1. For intended use only as a walking aid. Your Walker should only be used
on standard pavements or at home. It should not be used on rough
terrain or pot-holed surfaces. The use of your Walker on these surfaces
can seriously compromise your safety and may damage your Walker
beyond repair.
2. Keep your Walker clean by wiping down with a damp cloth and mild
detergent. Do not under any circumstances use an abrasive or solvent
based cleaner as this will seriously damage the Walker and void your
warranty.
3. Wipe off all surfaces with a dry cloth and use a water dispersing agent
such as WD40 on all metal joints.
4. Check that all wheels and the folding mechanism function correctly and
that all wheels move freely. Pay particular attention to the front wheels,
ensuring that they rotate freely and without obstruction and that they
are attached securely to the frame.

Withdraw your Walker immediately if any of the wheels become
difficult to turn or do not feel securely attached to the frame or if
you suspect damage or any other fault.
5. Monthly Checks - check that all locking pins are properly secure . Check
that no components are loose. Check the adjustment to your brakes.
Check castors.
6. Do not use any parts or accessories to your Walker manufactured by
another company. To do so will annul your warranty and may seriously
compromise your safety.
7. We suggest that you check your Walker visually every day. We
recommend that you should have your Walker serviced every three
months or less if used by, or issued to, various users.
CLEANING
Clean your Walker using a non-abrasive cleaner or mild detergent and a
soft cloth. Abrasive cleaners e.g. AJAX and/ or abrasive cleaning pads may
seriously damage the product beyond repair and should not be used. Always
ensure that you wipe the equipment dry after cleaning.
MAINTENANCE
Please conduct a safety check of the product at regular intervals or if you
have any Concerns.

PRODUCT SPECIFICATIONS
LIMITED LIFETIME WARRANTY
Your Medic Therapeutics Multifunctional Adjusting Walker is backed by a
limited lifetime manufacturer’s warranty. Medic Therapeutics will repair or
replace your device at any time should it fail due to a defect in material or
workmanship, subject to the certain limitations.
This limited warranty does not cover any damage that results from
unauthorized or improper use, service, or repair. Further, it does not cover
damage caused by accident, impact, negligence, or normal wear and tear.
Should you discover your Medic Therapeutics Multifunctional Adjusting
Walker is not functioning properly, please send your device to our repair
center for evaluation. If your product cannot be repaired or serviced we will
reserve the right to change it for a similar or newer model.
Please note that a flat rate of $35.00 will be charged to cover a service
evaluation fee and return shipping of your device. All warranty claims must
be accompanied by a copy of your proof of purchase from an authorized
retailer. Please send your device, proof of purchase, and a check or money
order in the amount of $35.00 made out to Medic Therapeutics to:
Medic Therapeutics Service Center
3069 Taft Street
Hollywood, FL 33009
Material Aluminium
Material of wheels PP+PVC
Finish Metallic painng
Size(mm) L770*W665*H815-940
Seat Height (mm) 550
Seat width (mm) 475
Front wheel size (mm) 8”
Rear wheel size (mm) 8”
Load (kgs) 136kgs
N.W. (kgs) 8.5kgs
G.W. (kgs): 9.4kgs
