Medion MD85032 User manual

ILLUMINATED GAMING
MOUSE & XL MOUSEPAD
P81038
MOUSE ILUMINADO PARA GAMING
Y ALFOMBRILLA XL P81083 English ...... 07
Español ..... 19
User Manual
Manual
del usuario

Dok./Rev.-Nr. 85032 ML ALDI USA Cover MSN 5006 5995 final
Contents
Overview ................................................................4
Device parts............................................................6
General information...............................................7
Reading and storing the user manual .................. 7
Proper use................................................................... 7
Explanation of symbols ............................................ 7
Safety......................................................................8
General safety instructions ......................................8
Scope of delivery.................................................. 10
Gaming Mouse...................................................... 10
Getting started ..................................................... 10
DPI settings............................................................... 10
System requirements .............................................. 11
Mouse configuration................................................ 11
BASIC SETUP ...............................................................12
MACRO.........................................................................13
ADVANCE.....................................................................13
LED SETUP...................................................................14
Gaming XL Mousepad .......................................... 14
Getting started ..................................................... 14
Lighting settings .................................................. 15
Troubleshooting................................................... 15
Cleaning................................................................ 15
Storage ................................................................. 16
Technical data....................................................... 16
FCC statement ....................................................... 17
Disposal................................................................. 18
Disposing of the packaging................................... 18
Disposing of the product........................................ 18
Service information ............................................. 18
Legal Notice .......................................................... 19

5
A1
2
3
4
B
56 7

4
C
8

5

6
Device parts
Device parts
Mouse (top)
1Left mouse button
2Mouse wheel/middle mouse button
3Right mouse button
4DPI selection button
Mouse (left side)
5Fire button
6Forward button
7Back button
XL Mousepad
8Function button

G
eneral
i
nformat
i
on
7
General information
Reading and storing the user manual
This user manual accompanies this Illuminated Gaming Mouse and Pad Set
(hereafter referred to as the “product”), and contains important
information on setup and handling.
Before using the product, read the user manual carefully, especially the
safety instructions. Failure to do so may result in personal injury or damage
to the product.
Store the user manual for further use. Make sure to include this user manual when
passing the product on to third parties.
Proper use
The product is exclusively designed as an input device for a computer. It is only intended
for private use and not for commercial purposes. The product is not a toy.
Only use the product as described in this user manual. Any other use is considered
improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury incurred
through improper or incorrect use.
Explanation of symbols
If a block of text is marked with one of the warning symbols listed below, the hazard
described in that text must be avoided to prevent the potential consequences from
occurring.
DANGER!
This symbol indicates a hazard with a high level of risk which, if not avoided, will result in
death or serious injury.
WARNING!
This symbol indicates a hazard with a medium level of risk which, if not avoided, could
result in death or serious injury.
CAUTION!
This signal word indicates a hazard with a low level of risk that, if not avoided, could
result in minor or moderate injury.

Safet
y
8
NOTICE!
This symbol warns of possible damage to property.
This symbol gives you useful additional information on assembly or
operation.
The Federal Communications Commission (FCC) requires all commercial
electronic devices to comply with this norm (see section ‘Declaration of
conformity’).
Safety
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL INSTRUCTIONS
General safety instructions
WARNING!
Risk of injury!
Improper handling of the product may increase the risk of
injury.
− This product may be used by children ages eight and
over as well as persons with impaired physical, sensory
or mental capacities, or those lacking experience and
knowledge if they are supervised or have been instructed
on how to safely use the product and understand the risks
associated with operating it,. Children may not play with
the product. Cleaning and user maintenance may not be
performed by unsupervised children.
− Keep the product away from children. Small parts included.
They may cause suffocation if swallowed or inhaled.

S
afet
y
9
− To avoid injury to the eyes, do not look directly into the LED
light source of the optical sensor. Do not look at the LED
light source using optical instruments.
− Turn the product off when on board an aircraft, in a
hospital, in an operating theater or in the vicinity of
electronic medical equipment. The RF signals may interfere
with the functionality of sensitive devices.
− Keep the product at least 8 inches (20cm) away from
pacemakers, as the RF signals could interfere with their
functionality.
− Do not use the product near flammable gases or in a
potentially explosive area (e.g., a paint shop).
NOTICE!
Risk of damage!
Improper handling of the product can damage it.
− Stop using the product if its plastic parts exhibit cracks or
breaks or become deformed.
− Always place the product on a solid and level surface. It can
be damaged if dropped.
− Keep the product away from open fire and hot surfaces.
− Never submerge the product in water or other liquids.
− Do not open the housing; instead, have a qualified
professional perform repairs.
Users are not entitled to compensation for lost data
or for subsequent damages due to data loss.
This product was designed to be operated on a PC.
− Please observe the safety instructions of the computer that
the keyboard is connected to.
SAVE THESE INSTRUCTIONS
Keep the user manual for future reference.

Scope of del
i
ver
y
10
Scope of delivery
NOTICE!
Risk of damage!
Please be cautious when opening the packaging with a
sharp knife or other pointed object because you could easily
damage the product.
− So be careful.
1. Remove the product from the packaging.
2. Check to make sure that all parts are included:
• Gaming Mouse
• Gaming XL Mousepad
• USB Cable for XL Mousepad
• User Manual & Warranty Card
3. Check whether the product or individual parts are damaged. If this is the case,
do not use the product. To contact the manufacturer, use the service telephone
number or email address shown on the warranty card.
Gaming Mouse
Getting started
− Switch on the computer and all peripheral devices (monitor, printer, etc.) and wait
until the operating system has fully started up.
− Connect the mouse to an available USB port on your computer.
− The mouse driver is automatically installed.
The standard windows driver only supports the basic functions of the mouse. For
the extended functions you have to download the mouse software described on
page 11.
DPI settings
− Press the DPI selector button 4to change the DPI resolution.
Each time that you press the DPI selector, the value will change. The following values are
set at the factory: 1200, 1600, 2400, and 3200.
You can adjust the order of the values using the supplied software.
Four values can be preset.

Gett
i
n
g
starte
d
11
Software
Download the mouse software here:
http://cdn.medion.com/downloads/software/illuminated_mouse_MD85032.exe
To configure the mouse you need to download the mouse software. Use the menus to
define the button functions, change the mouse control settings, or to program macros.
− Connect the mouse to your PC or laptop, and wait until the drivers are installed.
− Install the supplied software.
− Start the configuration program.
System requirements
• Operating system: Latest version of Windows®
• 1 x USB port
Mouse configuration

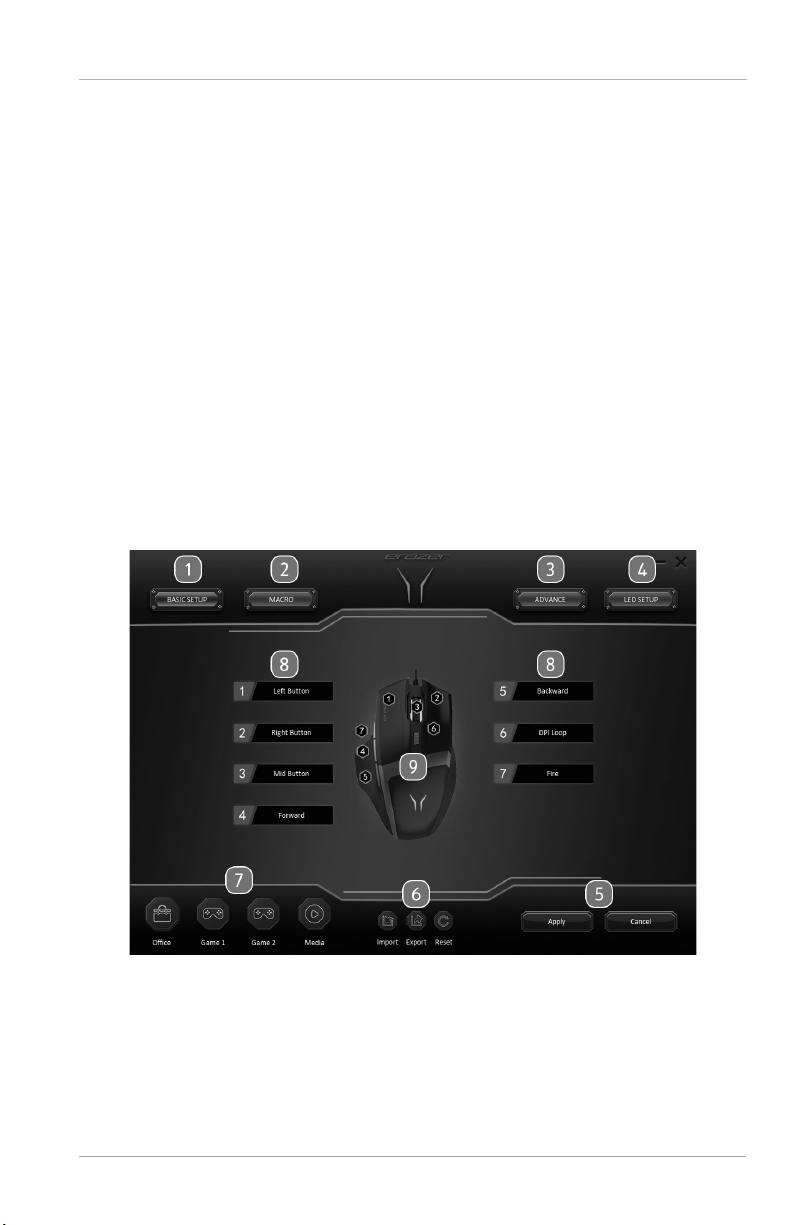

User Interface
1 BASIC SETUP: Basic settings
2 MACRO: Creating and managing macros
3 ADVANCE: Advanced settings
4 LED SETUP: Color settings for the LEDs
5 Apply: Confirm the entry and close the window
Cancel: Cancel the entry

Gettin
g
starte
d
12
6 Import: Import the saved configuration settings
Export: Save the created configuration settings
Reset: Reset the settings
7 Office: Predefined mouse setting for controlling productivity programs
Game 1 / Game 2: Predefined mouse setting for controlling games
Media: Predefined mouse setting for controlling multimedia programs
8 List of buttons: Settings for button assignment
9Mouse overview with all buttons
BASIC SETUP
In the BASIC SETUP menu, you can define the assignments for the individual mouse
buttons and adapt them to your needs.
− Use the menus 1–7 in the middle of the screen to select an assignment for the
respective mouse button.
The mouse configurations are already preset at the factory, and you can call them up
using the Office, Game 1, Game 2 and Media buttons.

Gett
i
n
g
starte
d
13
MACRO
In the MACRO menu, you can program and manage macros.
ADVANCE
Under ADVANCE, you can set the precision of the mouse pointer, the speed of the mouse
wheel, the rate of fire, and the DPI values of the mouse.
− Use the Pointer precision slider to set the mouse pointer precision.
− Use the Wheel speed slider to set the mouse wheel speed.
− Use the Fire Speed slider to set the firing rate of the mouse.
− Select one of the predefined DPI values by clicking on DPI 1, DPI 2, DPI 3, or DPI 4.
− With the DPI slider, you can continuously adjust the DPI value up to 3,200 DPI.

Gamin
g
XL Mousepad
14

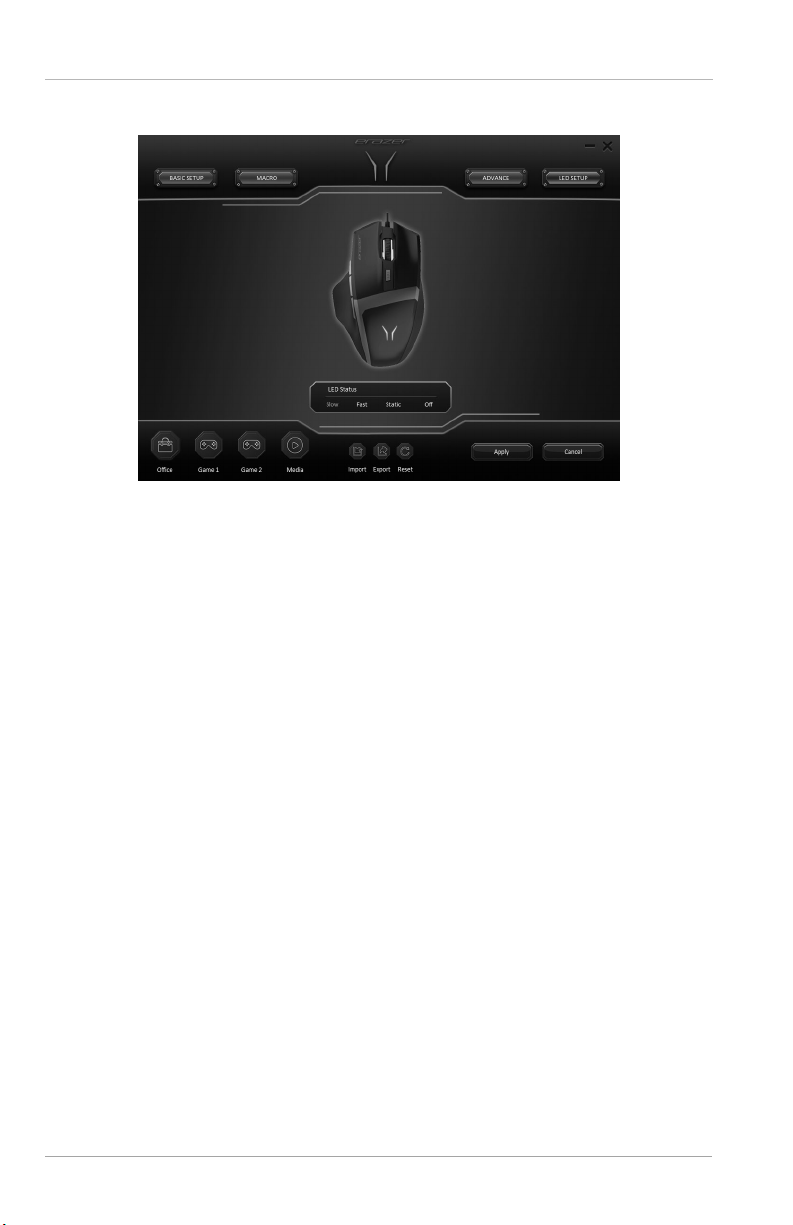

LED SETUP
In the LED SETUP window, you can configure the light speed of the mouse.
− Choose between Slow, Fast, Static, or Off, and then click Apply.
Gaming XL Mousepad
Getting started
− Switch on the computer and all peripheral devices (monitor, printer, etc.) and wait
until the operating system has fully started up.
− Connect the XL Mousepad to an available USB port on your computer.

L
ig
ht
i
n
g
sett
i
n
gs
15
Lighting settings
− Press the switch 8multiple times until you reach the desired lighting setting.
The twelve different color settings can be called up one after the other.
Lighting setting
1Red
2Yellow
3Pale Green
4Dark Green
5Pale Blue
6Dark Blue
7Purple
8White
9One color at a time cycle, slow fade
10 One color at a time cycle, fast fade
11 All colors at the same time cycle
12 All colors at the same time cycle, flash change
− Press and hold the switch for approximately 5 seconds to switch the XL Mousepad
on or off.
Troubleshooting
If the product does not respond after installation, check the following:
− Try using a different USB port on your computer.
− Make sure you are not using the mouse on a glass or reflective surface. Use the XL
mousepad for best results.
Cleaning
NOTICE!
Risk of short circuit!
Water and other liquids that have penetrated the housing
may cause a short circuit.
− Make sure that no water or other liquids penetrate the
housing.
− Never immerse the product in water and other liquids.

S
tora
ge
16
NOTICE!
Risk of damage!
Improper handling of the product may result in damage.
− Do not use any aggressive cleaners, brushes with metal or
nylon bristles, or sharp or metallic cleaning utensils such as
knives, hard scrapers and the like. They could damage the
surfaces.
− Use a damp cloth to wipe off the product. Then let all parts dry completely.
Storage
All parts must be completely dry before being stored.
− Always store the product in a clean, dry place.
− Protect the product from direct sunlight.
− Store the product so that they are not accessible to children.
Technical data
Model: MD85032
System requirement: Latest version of Windows®
Dimensions
Mouse (W x H x L) approx. 3.19 x 1.73 x 5.20 in.
XL Mousepad (W x H x L) approx. 11.81 x 0.12 x 27.56 in.
Product code: 703267
Operating system Current Windows version
USB® is a registered trademark of USB Implementers Forum, Inc.
Microsoft®, Windows®, and other Microsoft product names are registered trademarks of
the Microsoft Corporation.
Mac® is a registered trademark of Apple Inc., registered in the U.S. and other countries.
All other names and products may be trademarks or registered trademarks of their
respective owners.

F
CC
statemen
t
17
FCC statement
This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. Shielded interface
cables, if any, must be used in order to comply with the emission limits.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
You may also find the following booklet, which was prepared by the FCC, to be helpful:
“How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available
from the U.S. Government Printing Office, Washington, D.C. 20402.

D
i
s
p
osa
l
18
Disposal
Disposing of the packaging
DISPOSAL
*NOT RECYCLED
IN ALL AREAS
PLASTIC
TRAY
CHECK
LOCALLY
PAPER
CARD
DISPOSAL
PACKAGING PACKAGING
Sort the packaging before you dispose of it. Dispose of paper and
cardboard by placing them in the recycling and dispose of the
remaining packaging materials in normal waste containers.
Disposing of the product
− When you can no longer use the product, dispose of it in accordance with your local
city and state regulations.
− Please ensure your recycling information applies to local regulations and the EPA
recommendations (www.epa.gov).
Service information
Please contact our Customer Service team if your keyboard ever stops working the way
you want or expect it to. There are several ways for you to contact us:
• In our Service Community, you can meet other users, as well as our staff, and you
can share your experiences and knowledge.
You will find our Service Community at community.medion.com.
• Alternatively, use our contact form at www.medion.com/contact.
• You can also contact our Service team via our hotline or by mail.
Business hours Hotline
Mon – Fri:
09:00 am to 06:00 pm EST
[phone]
Service address
MEDION U.S.A. Inc.
P.O. Box 1076
Highland Park, IL 60035
[email protected]
You can download this and many other sets of operating instructions
from our service portal at www.medion.com/us/.
You will also find drivers and other software for a wide range of
devices there.
You can also scan the QR code on the side of the screen to download
the operating instructions onto your mobile device from the service
portal.

Le
g
al Not
i
c
e
19
Legal Notice
Copyright © 2020
Date: 28. August 2020, 12:25 PM
All rights reserved.
These operating instructions are protected by copyright.
Mechanical, electronic and any other forms of reproduction are prohibited without the
written permission of the manufacturer.
Copyright is owned by the company:
MEDION AG
Am Zehnthof 77
45307 Essen
Germany
Please note that you cannot use the address above for returns. Please always contact our
Customer Service team first.

Le
g
al Not
i
c
e
20
