Meditub 2953WCA Manual

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
WHERE SAFETY MEETS LUXURY
INSTALLATION & OPERATING INSTRUCTIONS
INSTALLATION & OPERATING INSTRUCTIONS
2953WCA
MEDITUB
5701 NW 35 Avenue
Miami, FL 33142
Phone [phone]
Fax [phone]
[email protected]
http://www.meditub.com
MODEL

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
WHERE SAFETY MEETS LUXURY
TABLE OF CONTENTS
THANK YOU FOR CHOOSING MEDITUB WALK-IN BATHTUBS ®.......................................... 2
CONTACT INFORMATION........................................................................................... 2
PRODUCT REGISTRATION* ....................................................................................... 3
SAVE THIS MANUAL! ............................................................................................... 4
UNPACKING THE UNIT.............................................................................................. 5
PRE-INSTALLATION*................................................................................................ 6
INSTALLATION PREPARATION .................................................................................... 7
ELECTRICAL PREPARATION ....................................................................................... 8
INSTALLATION PROCEDURES .................................................................................... 9
DRAIN CONNECTION................................................................................................ 10
CONNECTING THE AUTODRAIN................................................................................... 11
INSTALLATION AND EXTENSION PANELS ...................................................................... 12
FAUCET INSTALLATION............................................................................................. 13
OPERATING SAFETY INSTRUCTIONS............................................................................ 14
OPERATING INSTRUCTIONS ...................................................................................... 16
TUB CONTROLS...................................................................................................... 18
CLEANING AND MAINTENANCE .................................................................................. 19
WARRANTY ........................................................................................................... 20
RETURN POLICY ..................................................................................................... 22
PRODUCT REGISTRATION CARD................................................................................. 23
TABLE OF CONTENTS
TABLE OF CONTENTS

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 3
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 2
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
THANK YOU & CONTACT INFORMATION
THANK YOU FOR CHOOSING MEDITUB WALK-IN
BATHTUBS ®
Our mission is to help you maintain independence over essential bathing needs and improve the quality of life! Meditub Walk-In
Bathtubs®has designed the most accessible, most comfortable walk-in bathtub on the market today! Until recently, if you have
difficulty getting in and out of a bathtub, it was almost impossible for you to take a bath. Meditub Walk-In Bathtubs® specializes
in accessibility and security. Safe transfers in and out of the bathtub are the most critical part of bathing safely. Meditub Walk-In
Bathtubs®is committed to providing a complete bathing experience for the elderly and mobility-impaired.
THANK YOU FOR YOUR PURCHASE!
CONTACT INFORMATION
MEDITUB WALK-IN BATHTUBS
5701 NW 35 Avenue
Miami, FL 33142
Phone [phone]
Fax [phone]
[email protected]
http://www.meditub.com
THANK YOU / CONTACT
PRODUCT REGISTRATION
PRODUCT REGISTRATION
PRODUCT REGISTRATION*
* To ensure that your warranty is registered with Meditub Walk-In Bathtubs™, complete, sign and return this registration card within 30 days of the purchase.NOTE:Your warranty will not be recognized
by Meditub Walk-In Bathtubs™ unless this card is fully completed and returned to: Meditub Walk-In Bathtubs™ – 5701 NW 35th Ave, Miami, FL 33142
IMPORTANT
To ensure that your warranty is registered and confirmed with the manufacturer, please take a few moments to complete, sign and
return the Product Registration Card (below) within 30 days.
WARRANTY CONFIRMATION
By returning this Product Registration Card we confirm the date of purchase for your new product. This confirmation will allow
Meditub Walk-In Bathtubs™ to process any warranty claims.
PURCHASE REGISTRATION
The information provided on Product Registration Card (found on page 23) will be kept on file with Meditub Walk-In Bathtubs™ as
an official Purchase Registration. The completed card should be mailed to :
MEDITUB WALK-IN BATHTUBS
5701 NW 35 Avenue
Miami, FL 33142
Phone [phone]
Fax [phone]
[email protected]
http://www.meditub.com

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 5
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 4
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
SAVE THIS MANUAL
SAVE THIS MANUAL!
GENERAL INFORMATION
READ THESE INSTRUCTIONS COMPLETELY BEFORE INSTALLING THE PRODUCTS. FAILURE TO DO SO COULD RESULT IN AN
IMPROPER INSTALLATION AND COULD VOID THE WARRANTY.
RESPONSIBILITY OF THE INSTALLER
THE INSTALLER MUST INSPECT AND WATER-TEST THE PRODUCT PRIOR TO INSTALLATION TO ENSURE THE UNIT IS FREE
OF DEFECT OR DAMAGE. IN THE EVENT OF A PROBLEM, THE UNIT MUST NOT BE INSTALLED. IF THE CRATE OR THE PRODUCT
HAS BEEN DAMAGED DURING SHIPPING, PLEASE CALL US IMMEDIATELY.
THIS PRODUCT MUST BE INSTALLED BY A LICENSED/CERTIFIED CONTRACTOR
LICENSED PLUMBERS AND ELECTRICIANS SHOULD BE EMPLOYED TO INSURE PROPER INSTALLATION. INSTALLERS
ASSUME ALL LIABILITY FOR THE CORRECT INSTALLATION PROCEDURES. ONLY ACCESSORIES AUTHORIZED BY THE
MANUFACTURER SHOULD BE USED WITH THIS PRODUCT.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! WHEN USING THIS PRODUCT, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
READ AND FOLLOW ALL INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRICAL SHOCK, AND/
OR OTHER INJURIES.
SAVE THIS MANUAL
UNPACKING
UNPACKING
UNPACKING THE UNIT
INSPECTING THE PACKAGING
Inspect the carton. If any damages are noted, photograph the damaged area(s) and notify the deliverer/carrier.
LIFTING / TRANSPORTING
Never lift the walk-in bathtub by the plumbing. Doing so may result in damaging the plumbing and causing a leak.
INSPECTING THE UNIT
Immediately inspect the unit for damage even if there is no carton damage. Once the unit is installed surface damages will be
assumed to be installation related if not reported at this point.
PLACING THE UNIT
Please note that an installer(s) assumes full liability for damages to the walk-in bathtub after the unit is installed in the “cradle”/ niche.

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 7
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 6
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
SAFETY
SAFETY
PRE-INSTALLATION*
* All Walk-In Bath Tubs are 100% water tested at the factory certified to be free of leaks.Transportation and mishandling may cause leaks. It is necessary to test the bathtub while there is access to
all sides of the bathtub.
READ AND FOLLOW ALL INSTRUCTIONS
• Place the tub on a completely flat surface in an area where it may be drained after testing.
• Close the drain and fill the tub until it is above the highest jet. If it’s a soaker fill up to normal water height level.
• Allow the water to stand in tub for 30 minutes and then inspect all plumbing and seals for leaks.
• If tub is jetted, supply electric to unit and run for 10 minutes and inspect for leaks. Inspect the unions around the pump; if leaks
persist from the unions after tightening; loosen the unions and insure the O-ring is seated properly.
NOTE: IF THE PUMPS DO NOT OPERATE, CHECK THE BREAKER TO ENSURE POWER IS ON AND THE CABLE CONNECTING THE
CONTROLS TO THE PUMP IS ATTACHED.
WARNING! DO NOT RUN ANY PUMPS UNLESS THE TUB IS FILLED WITH WATER TO PROPER
LEVEL. DAMAGE DUE TO DRY RUNNING PUMPS IS NOT COVERED UNDER WARRANTY. FAILURE TO
PERFORM THESE TESTS BEFORE INSTALLATION WILL MAKE THE INSTALLER LIABLE FOR FUTURE
REPAIR COSTS.

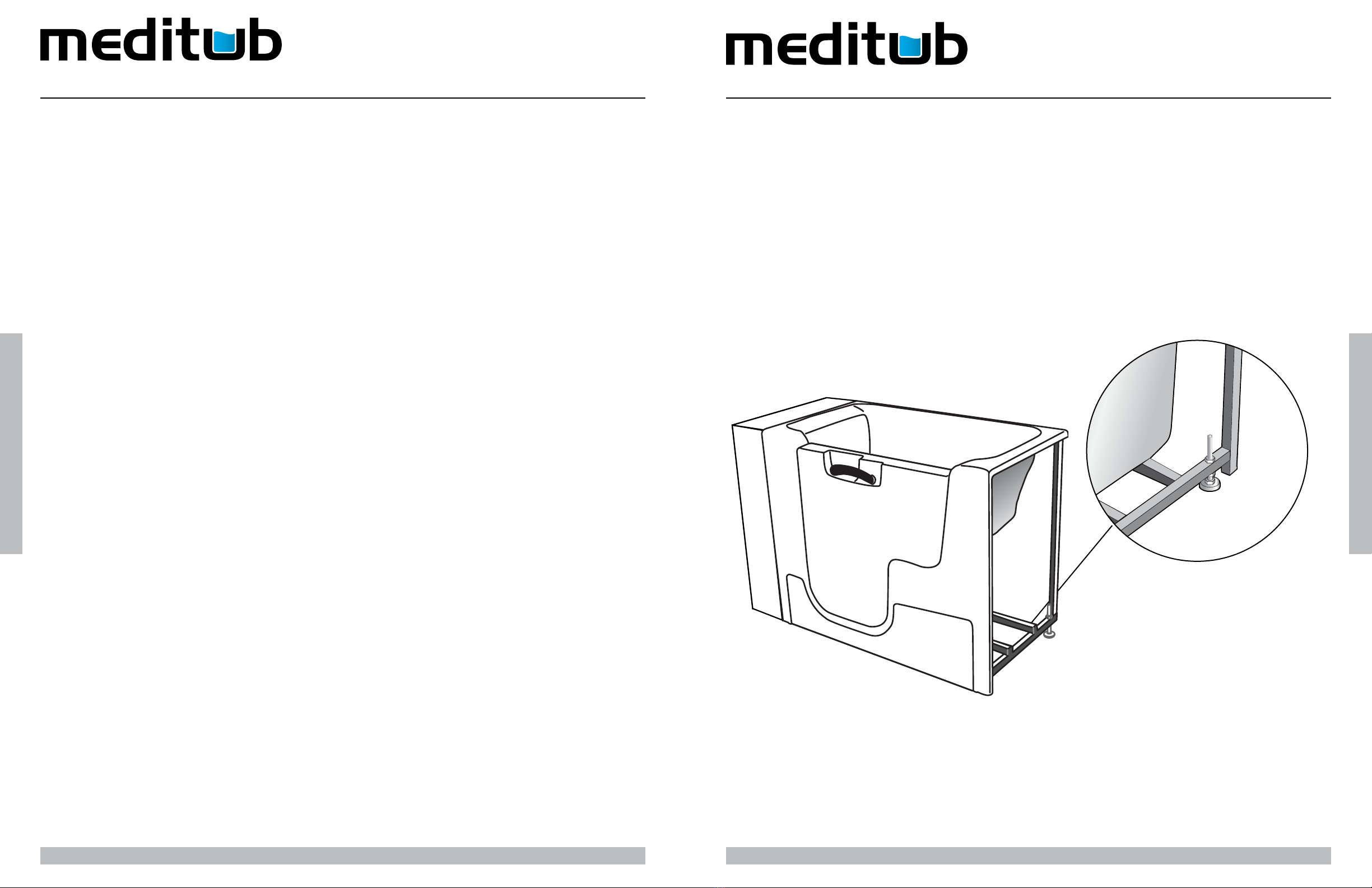

INSTALLATION PREPARATION
1. Check the floor area where the tub is to be installed.
• a. Clean area of any debris or trash.
• b. Use a 5 or 6-foot level and determine if the floor is level. If the floor is not level, adjust all 5 leveling feet to perfectly level the tub.
• NOTE: IT IS IMPORTANT THAT ALL LEVELING FEET ARE COMPLETELY TOUCHING THE FLOOR
AND LEVEL FOR THE DOOR SYSTEM TO WORK PROPERLY.
2. Check to ensure that the drain piping has been “roughed-in” at the proper location.
3. Ensure that the proper electrical service has been installed at the pump location. See electrical requirements in the manual (on
following page).
Model 30x53
Installation Instructions
P: 1-866-633-4882 www.meditub.com
100 East Mineola Avenue, Valley Strem NY 11580
MediTub
Where Safety Meets Luxury

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 9
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 8
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
INSTALLATION PROCEDURES
INSTALLATION PROCEDURES
ELECTRICAL PREPARATION
ELECTRICAL PREPARATION
All electrical wiring must be installed in accordance with the National Electrical Code and with all local codes. All wiring shall be done
by a qualified electrician. Run one, two or three branch circuits (as required) from the main electrical service panel to the pump area
of the framing structure to provide power to the unit.
Electrical components have specific wiring requirements. Refer to the matrix below for the electrical supply requirements for the jet
massage bathtub and factory installed components.
Branch circuits must be rated for 110 – 120 volts. Use 12 Gauge, 3 conductor cable for the circuits. If the length run exceeds 100
feet check with local codes for requirements. Install moisture proof junction box(s) 6” above the floor at the pump end of the framing
for each circuit.
NOTE: DO NOT INSTALL THE JUNCTION BOX(S) WHERE IT CAN BE REACHED WHILE SITTING OR STANDING IN THE TUB OR
TOUCHING THE FAUCETS.
AUTO DRAIN™, LIGHTS, WHIRLPOOL, AIR SPA, COMBO & HEATER ELECTRIAL
REQUIREMENTS
This section lists the factory installed components of the Jet Massage and/or Air Massage Systems.
Systems Electrical Rang
Circuit 1
Dedicated
Circuit
Soaker w / Auto Drain™ 15 Amp GFCI
Soaker w / Light 15 Amp GFCI
Soaker w / Auto Drain™ w / Light 15 Amp GFCI
Jet Massage Or Air Massage
15 Amp GFCI
Jet Massage Or Air Massage w / Light 15 Amp GFCI
Jet Massage Or Air Massage w/ Auto Drain™ 15 Amp GFCI
Jet Massage Or Air Massage w/ Light & Auto Drain™ 15 Amp GFCI
Jet Massage & Air Massage (Dual) 20 Amp GFCI
Jet Massage & Air Massage (Dual) w/ Light 20 Amp GFCI
Jet Massage & Air Massage (Dual) w/ Auto Drain™ 20 Amp GFCI
Jet Massage & Air Massage (Dual) w/ Light & Auto Drain™ 20 Amp GFCI
Whirlpool Inline Heater - Dedicated 15 Amp Circuit
15 Amp GFCI
All electrical connections must be carried out b y a certified electrician in accordance with local electrical requirements and codes.
ELECTRICAL PREPARATION
INSTALLATION PROCEDURES
WARNING! WHEN INSTALLING JET MASSAGE BATH, THE FOLLOWING BASIC PRECAUTIONS
SHOULD BE FOLLOWED.
DANGER! RISK OF ELECTRIC SHOCK. CONNECT ONLY TO SEPARATE CIRCUIT PROTECTED BY A
GROUND FAULT CIRCUIT INTERRUPTER (GFCI) ON PLUG IN UNITS.
NOTE: INSTALLATION MUST PROVIDE ACCESS FOR SERVICING PUMP/MOTOR (ALL TUBS COME WITH AN ACCESS PANEL
FOR THE PUMP/MOTOR).
GENERAL GUIDE-THROUGH
• Install tub waste/overflow according to instructions (see page 10).
• Standard installation - After framing is a complete (see attached diagrams), set product in place to make certain that the tub can
be properly leveled. (Caution: If a walk-in bathtub is not resting on all leveling feet, water will not drain properly and may cause
the door to leak) (see page 7).
• Verify the product’s level by checking tub’s deck surface and ensure all leveling feet are touching the ground (see page 7).
• Electrical connection is made pre-instruction on specified models.
• After plumbing and electrical connections have been made, the tub should be cleaned of dirt and debris.
• Installation is not complete until the tub has been tested in place.

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 11
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 10
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
DRAIN CONNECTION
To ensure safe transit for your walk-in tub, the overflow drain components are
not connected to the unit during the process of production. The following in-
structions are provided for installation purposes: Your walk-in tub is supplied
with a 1 ½” drain pipe overflow. The open and close valve with the turn knob
should be attached to the unit at the 1 ½” pre-drilled opening in the wall of the
unit from the outside. The opposite end of the overflow should be attached to
the 1 ½” pre-drilled opening in the foot well of the unit from the underside. The
chrome turn knob and the drain cover should be attached to the appropriate ends
of the overflow drain from the inside of the unit. Place the chrome cap with stem into
thefloordraintocloseofftheopening.Thecableattachedtotheturnknoboftheoverflowisalsoconnectedtoaleverinsidethefloordrain
whichallowsthedraintobeopenedorclosed.Oncethecomponentsoftheoverflowaresecuredintoplace,turntheoverflowknobtothe
openand closedpositiontoensureproperfunction.Thecap andstemwillmoveupanddown,openingandclosingthedrain (Figure1).
Your walk-in tub also has a door drain to remove excess water from the door after
each use. From the underside of the unit, a hose is connected to the door drain with
a check valve. This hose and valve is to provide a one-way flow from the door drain
to the main drain pipe. The check valve will constrict the water flow away from the
door. Insert the opposite end of the hose into the port on the main drain. Be sure the
port is open before attaching the hose. Secure the hose with clamps or ties. Once
the hose is in place, close the door on the unit, place the handle in the locked posi-
tion, and fill tub with at least 12” of water to test the connection. Once the completion
of the drain components are installed and have been tested for proper function, the unit can be leveled and give a final water test
before installation of unit (Figure 2).
1 1/2” Door Drain Pipe supplied7 1/2”
FIGURE 1
Floor Drain
Incorrect
Flow
Door Drain
Correct
Check Valve
Flow
FIGURE 2
CONNECTING THE AUTODRAIN
HIGH-SPEED AUTODRAIN FOR SOAKING TUB AND/OR AIR SYSTEM
• Drain System requires the connection to a minimum 1 ½ sanitary drain line.
• Use UPC Approved PVC Glue, primer, and Schedule 40 1 ½ ’ pipe.
• Do not change or modify the location and or piping of the Back Flow Preventer.
• The sanitary tee is installed directly above the drain tee with clearance not greater than 1’’.
• Dry fit the drain overflow assembly to the sanitary drainage pipe and check for proper fit.
• Glue the High-Speed Autodrain Fittings, pipe and drain overflow assembly to the sanitary drainage pipe.
NOTE: WATER TIGHT INSTALLATION OF THE WASTE/ OVERFLOW IS THE INSTALLER’S RESPONSIBILITY. DRAIN LEAKAGE IS
EXCLUDED FROM MEDITUB WARRANTY OF THIS PRODUCT.
NOTE: WE HAVE TAKEN RESPONSIBLE PRECAUTIONS TO ENSURE THE HIGH-SPEED AUTODRAIN IS SUITABLE FOR
RESIDENTIAL PLUMBING. IT IS RESPONSIBILITY OF THE INSTALLER TO INSURE THE SANITARY SYSTEM IS ACCEPTABLE
FOR THE USE OF THE HIGH-SPEED AUTODRAIN. WE DO NOT ACCEPT RESPONSIBILITY FOR DAMAGE ARISING FROM THE
USE OF THE HIGH- SPEED AUTODRAIN.*
*-Ensure compliance with local plumbing codes.
110Vt-60hz pump (15 Amp Circuit)
overflow
drain cable
drain cable drain
drain shoe
sanitary tee
drain tee
90° Elbow
reducer 1 1/2-1”
air button (on/off)
back flow preventer
air button (on/off)
diverter valve
jets
overflow
drain cable
drain cable drain
drain shoe
sanitary tee
drain tee
90° Elbow
reducer 1 1/2-1”
back flow preventer
110Vt-60hz pump (15 Amp Circuit)
SOAKER & AIR AUTODRAIN CONNECTION HYDRO & DUAL AUTODRAIN CONNECTION

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 13
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 12
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
FAUCET INSTALLATION
fixing nut fixing nut
fixing nut
hot control handle cold control handle
spout shower head
diverter
rubber washer
fiber washer
valve body
gasket
steel braded 19” hose
steel braded 19” hose
72” shower hose
local water line
hot water
cold water
Mortar
Wall
Bathroom (Waterproof) Sheetrock
Tile
Silicone
6”x1/2”Screw
CUSTOM BUILT WALL SECTION(S)
FOR OPEN END(S) INSTEAD OF
MOLDED PANELS, OR INSTALL
AGAINST CORNER(S) OF FULL WALL.
Optional usage:
two-piece 7-inch
extension panles
ASSEMBLY & PLACEMENT
Verify access to unit’s system from one of the side enclosures

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 15
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 14
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
OPERATING SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRICAL SHOCK OR INJURY
TO PERSONS
WARNING! RISK OF PERSONAL INJURY:
• Use this unit for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.
• To avoid injury, exercise caution when entering or exiting your walk-in tub.
• To reduce the risk of injury, do not permit children or persons with infirmities to use this product unless they are closely
supervised at all times.
• The maximum recommended temperature is 102 F° (38.8 C °). Fifteen minutes per soak is the recommended maximum time at
102 F°, which may induce Hyperthermia which is an increase in body temperature. This can be a serious medical condition and
all bath users are cautioned against lengthy immersion at high water temperatures. Should you become light-headed, dizzy, or
nauseous, immediately get out of the bath and cool off.
• Risk of electric shock; do not permit electric appliances (such as a hair dryer, lamp, telephone, radio or television) within four
feet of this bathtub.
• Never drop or insert any objects into any openings.
• Do not operate this unit without the guard over the suction fittings.
WARNING! RISK OF HYPERTHERMIA AND POSSIBLE DROWNING. People using medications, herbal remedies, sleep aids,
and /or having adverse medical history should consult a physician before using this product.
WARNING! NO FOOD OR ALCOHOLIC BEVERAGES. Use of your bathtub immediately after meals is not recommended. Avoid
alcohol consumption before or during the bathing. Alcoholic beverages can cause drowsiness or hyperthermia resulting in loss of
consciousness or even drowning.
The unit must be connected only to a supply circuit that is protected by a ground-fault circuit-interrupter (GFCI). Such a GFCI should
be provided by the installer and should be tested on a routine basis. To test the GFCI, push the test button. The GFCI should interrupt
power. Push the reset button. Power should be restored. If the GFCI fails to operate in this manner, there may be a ground current
flowing, indicating the possibility of an electric shock. Do not use this massage bathtub. Disconnect the jet massage bathtub and
have the problem corrected by a qualified service representative before using.
To reduce the risk of electrical shock, the dedicated electrical supply circuit(s) must be grounded. To do this, connect the third leg of
the 3-conductor wiring cable to the grounding terminal of the electrical service panel and run continuously to the green grounding
screw on the GFCI or electrical receptacle in the wiring compartment.

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 17
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 16
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
OPERATING INSTRUCTIONS
When entering an Meditub walk-in tub, be sure to close the door, placing the
handle in the down position. Before activating any of the jetting controls, you
must first fill the bath to a water level at least 2 inches above the highest jet
placement. Do not put weight on the door when entering and exiting the tub.
It is recommended to leave the door in the open position when the tub is not
in use.
The pump is operated by the hydro control button, which starts the water flow.
The blower is operated by the air control button which starts the air flow (see
page 18).
Adjust the direction and rate of flow of the jets by moving the nozzle for direction. Turn either the outside ring or the nozzle clockwise
or counterclockwise for flow (some jets adjust the flow with the outside ring and some with the nozzle). Adjust the air pressure flow
of all water jets by using the air volume control (see page 18), which controls air-water mixture.
Meditub walk-in tubs equipped with the chromotherapy lights (ordered separately), feature a dedicated on/off switch. Pressing the
switch off and back on will change the color of light (see page 18).
PURGE CYCLE
All air blowers are equipped with a purge cycle to remove residual water from the lines. The cycle will begin approximately 30
minutes after the unit is turned off and will continue for 1 - 2 minutes.
WARNING: DO NOT PUSH THE BUTTON ONCE THE CYCLE BEGINS. DOING SO WILL CAUSE
EXAMPLE TUB DOOR HANDLE
THE BLOWER TO RESTART ONCE THE PURGE CYCLE ENDS.
IN-LINE HEATERS
If your bathtub is equipped with an in-line heater, it will operate only when the pump is on.
NOTE: THE IN-LINE HEATER IS DESIGNED TO KEEP YOUR WATER WARMER LONGER, BUT IS NOT DESIGNED TO INCREASE
THE WATER TEMPERATURE. HEAT SETTINGS ARE NOT ADJUSTABLE.

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 19
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 18
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
TUB CONTROLS
AROMA CANISTER
EXAMPLE TUB CONTROLS*
1
2
3
4
5
6
HYDRO CONTROL (PUMP)
Used to turn the water jets ON and OFF.
AIR CONTROL (BLOWER)
Used to control the air jets on the system.
1st Press: Blower starts at MAX speed
2nd Press: Blower at MED speed
3rd Press: Blower at MIN speed
4th Press: Blower turns OFF
CHROMO CONTROL (LIGHT)
Used to turn the chromotherapy lights ON and OFF.
Pressing the button repeatedly will cycle through different
color modes.
AIR PRESSURE CONTROL
Used to increase or decrease air pressure flowing through the
water jets.
AROMA CONTAINER
Unscrew to place or replace the aroma canister.
AROMA CANISTER
Placed inside the aroma container. Check frequently and
replace as needed.
1
2
3
4
6
5
*Controls depicted may vary from those found on your unit. Variance is based on the
options purchased during the order process.
CLEANING AND MAINTENANCE
Pump and pipe circulation systems should be flushed before first use and on a monthly basis when product is under normal use.
Below are the recommended procedures for cleaning:
• Donotrunwhirlpooldry.Fillthetubwithhotwater2-3inchesabovethejetsandadd2-3teaspoonsoflowfoaming
detergent such as dishwashing machine detergent
• Turnonwhirlpoolsystemandrunfor10minutes
• Draintubcompletely
• Filltubwithcoldwaterabovejets
• Turnonwhirlpoolsystemandrunfor15minutes
• Draintubcompletely
• Cleaningthesuctioncover:Cleanandremoveanyhairorlintfromthesuctioncover(seeimagebelow).Onamonthlybasis,
unscrew the suction cover and clean away any hair, lint or debris from the cover and housing, then remount the cover in place. Some
suctions are not designed to be removed; only suctions that have screws on the cover, visible from the inside of the tub, can be
removed.
WARNING! NEVER OPERATE THE UNIT WITH THE SAFETY SUCTION COVER OFF.
SUCTION COVER

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 21
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 20
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
WARRANTY
This 10-year bath tub warranty is extended to the first user, to be free from defects in workmanship and material
under normal use and conditions, for a period of 10 years from the date of the original purchase. This warranty
relates to the bathtub shell, frame and finish. The finish’s warranty does not apply to fading, cracking, delaminating
or blistering due to excessive wear, sun fading or scouring due to cleaning. Different warranty periods apply. The
tub and all its components including motors, electronic controls, waste and overflow, fittings and all plated finishes
are covered by a limited one year warranty, subject to verification of the defect or malfunction. All labor and repair-
related services are covered within the first 90 days of purchase. This warranty is non-transferable and applies only
to the original owner as stated on the original purchase order. Notification must be sent via certified mail to 5701 NW
35 Avenue Miami, FL 33142. The manufacturer will not be responsible for any water damage to any structures or any
property for any reason (including but not limited to manufacturer defects or improper installation). Manufacturer
will assume no responsibility for the loss of the system, inconvenience due to loss, damage to real or personal
property or any other consequential damage. Manufacturer will not be liable for any incidental expenses or material
charges in connection with removal or replacement of the purchased part or any part or parts of the system. This
warranty shall not apply to any type of failure resulting from negligence, abuse, misuse, misapplication, improper
installation, alteration or modification, chemical corrosion or improper maintenance. Every walk-in tub must be
installed by a licensed plumber, electrician and/or contractor; Failure to do so will hereby void the warranty. There
will be a charge for replacement parts or the replacement of the entire electrical unit if the defective unit is returned
for any of the reasons listed above.
NOTE: WITHIN THE LIMITED ONE YEAR WARRANTY, THERE WILL BE A PRORATED CHARGE FOR ANY ELECTRICAL AND
PLATED REPLACEMENTS PARTS, INCLUDING SHIPPING AND HANDLING CHARGES.
Manufacturer reserves the sole authority to make any type of warranty changes at any time. The manufacturer will
not be responsible for any warranty information that is being misrepresented by outside sources including dealers,
WARRANTY
WARRANTY
WARRANTY
WARRANTY
retailers, distributors or contractors. Manufacturer does not warranty the installation, plumbing or electrical related
connections, of any of our products including Walk-In Baths, shower pans or shower stalls. Improper or negligent
installation of the product or other components, alterations or medications to the system, may cause the product
or the system to malfunction. Such problems are not covered by warranty. Manufacturer warranties the door seal
for the life of the unit under normal use and conditions. This warranty shall not apply to any failure resulting from
negligence, abuse, misuse, misapplication, alternation, or medication or improper maintenance.
The replacement door seal will be issued to the end user and it will be the responsibility of the end user to determine
the means of installation. Manufacturer will not be liable for any incidental expenses or material charges in connection
with removal or replacement of the door seal.
NOTE: TO THE EXTEND PERMITTED BY LAW, ALL IMPLIED WARRANTIES INCLUDING THOSE OF MERCHANT ABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. Meditub Walk-In Bathtubs AND SELLER HEREBY
DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
Some states/provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation
special, incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty
gives you specific legal rights. You may have other rights, which vary by state/province. All lawsuits must be filed
in Florida. Tub units are for residential use only.

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 23
Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
Page 22
WHERE SAFETY MEETS LUXURY
WHERE SAFETY MEETS LUXURY
PRODUCT REGISTRATION
PRODUCT REGISTRATION
PRODUCT REGISTRATION CARD
The completed card should be cut out or copied, completed, and mailed to:
MEDITUB WALK-IN BATHTUBS
5701 NW 35 Avenue
Miami, FL 33142
RETURN POLICY
Meditub Walk-In Bathtubs®is committed to providing premium customer service. In the event that a product must be returned
due to reasons other than defects, as mentioned in the warranty, the following procedures apply:
Requests for returns and/or exchanges must be made within 30 days of receipt of product. The product must be in its original
packaging and received at Meditub Walk-In Bathtubs®in saleable condition. All returns will receive a 15% restocking fee plus all
freight costs of the original shipment and return shipment to Meditub Walk-In Bathtubs®.
All requests for return must first be approved by Meditub Walk-In Bathtubs®and have an assigned Returned Merchandise
Authorization number (RMA#).
RETURN POLICY
RETURN POLICY
Meditub Walk-In Bathtubs™ Product Registration Card
Name ..................................................................................... Address ............................................................................................................................
City ............................................... State ........................... Zip .............................. Phone ......................................................................................
Date of Purchase........................... Dealer ......................... Address ............................................................................................................................
Installed by ................................... Address ............................................................................................................................ State ...........................
Phone .................................................................................... State........................... Zip...............................
I have read the Meditub Walk-In Bathtubs™ Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the
walk-in bath tub must be done strictly in accordance with instructions and guidelines contained in the Meditub Walk-In Bathtubs™ owner’s manual and
installation guide.
Signature____________________________________________________________Date_______________________________________________

Meditub Walk-In Bathtubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.meditub.com
WHERE SAFETY MEETS LUXURY
INSTALLATION & OPERATING INSTRUCTIONS
INSTALLATION & OPERATING INSTRUCTIONS
WHERE SAFETY MEETS LUXURY
