Medline MOBILE 100 RECLINER User manual

(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
Owner’s Manual
MEDLINE
MOBILE 100 RECLINER
USER:
Before using the Mobile 100 Recliner,
read this manual and save for future reference.
FURN10100BLC/BEC

(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
2
TABLE OF CONTENTS
PROTECTING YOUR INVESTMENT................................................................................................3
SPECIFICATIONS........................................................................................................................... 4
OPERATING PRECAUTIONS..........................................................................................................5
GENERAL WARNINGS...................................................................................................................5
WEIGHT LIMITATIONS................................................................................................................... 5
TILT AND/OR RECLINE OPTION OPERATED BY AN ATTENDANT................................................. 5
SAFETY INSPECTION CHECKLIST.................................................................................................6
ASSEMBLING THE RECLINER.......................................................................................................7
OPERATING INSTRUCTIONS.........................................................................................................10
RECLINING THE CHAIR USING THE POSITION LOCK LEVER...................................................... 10
RECLINING THE CHAIR WITHOUT USING THE POSITION LOCK LEVER......................................10
POSITONING THE ARTICULATING HEADREST ON ALL MODELS................................................ 11
LOCKING AND UNLOCKING THE REAR WHEELS........................................................................ 11
INSTALLING TRAY INTO POSITION............................................................................................... 12
ADJUSTING THE TRAY POSITION................................................................................................. 12
STORING/REMOVING THE TRAY...................................................................................................12
CLEANING THE UPHOLSTERY...................................................................................................... 13
WARRANTY..................................................................................................................BACK COVER

3
(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
PROTECTING YOUR INVESTMENT
PLEASE READ THESE INSTRUCTIONS TO BE SURE ALL PRECAUTIONS ARE BEING TAKEN TO USE THIS
PRODUCT SAFELY AND FOR THE INTENDED USES ONLY.
WARNING
PRIOR TO OPERATING THIS RECLINER YOU MUST REVIEW AND UNDERSTAND THIS MANUAL. IF YOU
ARE UNABLE TO UNDERSTAND THE WARNINGS, CAUTIONS AND INSTRUCTIONS, SEEK ASSISTANCE
BEFORE ATTEMPTING TO USE THIS RECLINER – INJURY OR DAMAGE TO PROPERTY OR THIS RECLINER
MAY RESULT.
SPECIAL NOTES
WARNING/ CAUTION notices as used in this manual apply to hazards or unsafe practices, which could result in
personal injury or property damage.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.
WARNING
Medline’s Mobile 100 Recliner has not been designed and/or tested for seating surfaces or vehicle chairs for
occupant use within any type of vehicle. Medline recommends that at no time or for any reason is the Mobile
100 Recliner to be used in a transport vehicle.
MEDLINE’S POSITION ON RESTRAINTS AND SEAT POSITIONG STRAPS – IT IS AT THE DISCRETION OF
THE MEDLINE MOBILE 100 RECLINER USER AND HIS/HER HEALTH CARE PROFESSIONAL TO DETERMINE
THE SAFEST RESTRAINTS TO BE USED CONSIDERING ALL LIMITATIONS OF THE MOBILE 100 RECLINER
USER.
SAVE THESE INSTRUCTIONS

(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
4
SPECIFICATIONS
MEDLINE MOBILE 100 RECLINER
FURN10100BLC/BEC
PHYSICAL DIMENSIONS
Overall Height: 46 inches (116 cm)
Overall Width: 29 ½ inches (75 cm)
Overall Depth: 39 inches (99 cm)
(Upright)
Overall Depth: 68 inches (172.75 cm)
(Recline)
Seat Width: 20 ½ inches (52 cm)
Seat Depth: 19 ½ inches (49.5 cm)
Seat to Back Height: 34 inches (86.36 cm)
Seat to Floor Height: 19 ½ inches (49.5 cm)
Overall Tray
Length & Width: 17 ½ x23 ½ inches (44.45 x 59.69 cm)
Tray Weight Limitation: 50 pounds
Recliner Weight Limitation: 300 pounds
Recliner Weight: 100.44 pounds
Tray Weight: 7.15 pounds
Recliner Shipping Weight: 111.38 pounds
Tray Shipping Weight: 12.7 pounds

5
(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
OPERATING PRECAUTIONS
GENERAL WARNINGS
• DO NOT sit on the footrest when recliner is extended. The recliner WILL tip and bodily injury may occur.
• DO NOT push or pull footrest to position the recliner.
• DO NOT place hands or feet into any openings when adjusting the recliner. Attendant or care provider should
always verify placement of user’s hands and feet prior to adjusting the recliner. Failure to do so may result in
serious bodily injury.
• Operation of recliner with missing or broken footrest or mechanism guards may result in bodily injury. Periodic
inspection of the footrest guard and scissor mechanism guard MUST be made four (4) times a year. Torn,
cracked or otherwise damaged guards MUST be replaced prior to use. Recliner MUST be removed from
service until replacement guards are installed.
• DO NOT lift the recliner by the footrest. Lifting by means of the footrest may result in injury to the user and/or
damage to the recliner.
• DO NOT use near an open flame or heat source, as all upholstery materials, even though treated with flame
retardant, can ignite when exposed to open flame.
• Rear caster wheels MUST be locked during user transfer to or from recliner and while tilting and/or inclining
(reverse recline).
• DO NOT enter or exit the recliner when footrest is elevated
• DO NOT attempt to stop the recliner while in motion with the wheel locks.
WHEEL LOCKS ARE NOT BRAKES.
• Before attempting to transfer in or out of the recliner, every precaution should be taken to reduce the gap
distance. Turn the recliner toward the object you are transferring onto. When transferring to and from the
recliner, ALWAYS ENGAGE BOTH WHEEL LOCKS. Special care MUST BE taken with people that
have physical limitations, which may require an assistant.
• DO NOT traverse, climb or go down ramps or slopes GREATER than 9 degrees.
• DO NOT use parts, accessories, or adapters other than those authorized by Medline.
WEIGHT LIMITATIONS
WARNINGS
The weight limitation for Medline’s Mobile 100 Recliner is 300 lbs. (113.6 kg).
The tray has a weight limitation of 50 lbs. (18.2 kg)
TILT AND/OR RECLINE OPTION OPERATED BY AN ATTENDANT
WARNINGS
ALWAYS make sure that the recliner is stable BEFORE using the tilt and/or recliner option.
Make sure the patient is properly positioned in the recliner before tilting, reclining or inclining (reverse recline) to
maintain maximum stability and safety.
When returning the occupant of the recliner to the full upright position, more body strength will be required for
approximately the last twenty (20) degrees of incline (reverse recline). Make sure to use proper body mechanics
(use your legs) or seek assistance to avoid injury.

(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
6
Physical limitations of a user and larger occupants of the recliner can present conditions that can injure the
assistant. When in doubt, assure that additional assistants are present before operating the tilt and/or recline
feature.
SAFETY INSPECTON CHECKLIST
NOTE: Once a year or as necessary take your mobile recliner to a qualified technician for a thorough inspection
and servicing. Regular cleaning will reveal loose or worn parts and enhance the smooth operation of your
mobile recliner. To operate properly and safely, your mobile recliner must be cared for appropriately. Routine
maintenance will extend the life and efficiency of the recliner.
NOTE: Initial adjustments should be made to suit your personal body structure and preference.
Thereafter follow these maintenance procedures:
ITEM INITIALLY QUARTERLY ANNUALLY
GENERAL
• Recliner rolls straight (no excessive drag or pull to one side).
√ √
SEAT AND BACK
• Inspect for rips or sagging. Inspect seat upholstery to insure it is fastened to seat
frame.
√ √ √
CASTERS
• Inspect wheel/fork assembly for proper tension by spinning caster; caster should
come to a gradual stop.
• Loosen/tighten locknut if wheel wobbles noticeably or binds to a stop.
CAUTION: As with any vehicle, the casters should be checked periodically for cracks
and wear, and should be replaced.
√
√
√
√
TRIGGER RELEASE LEVER CABLE
• Cables completely release and handles return when released.
√ √
GAS CYLINDERS
• Inspect for leaking oil
√ √
CLEANING
• Clean upholstery and armrests
√ √
FOOTREST GUARD/SCISSOR MECHANISM GUARD
• Inspect for damage (torn, cracked)
√ √

7
(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
ASSEMBLING THE RECLINER
The components of the FURN10100BL series 3-Position Recliner are as follows:
1. Chair Base
2. Reclining Back Assembly
3. Casters, 2 Locking, 2 Non-locking
4. IV Pole Holder
5. Wrench & Hardware
1. Attach the casters to the base, commonly set-up with the locking casters in the back, and secure
with nut and bolts provided.

(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
8

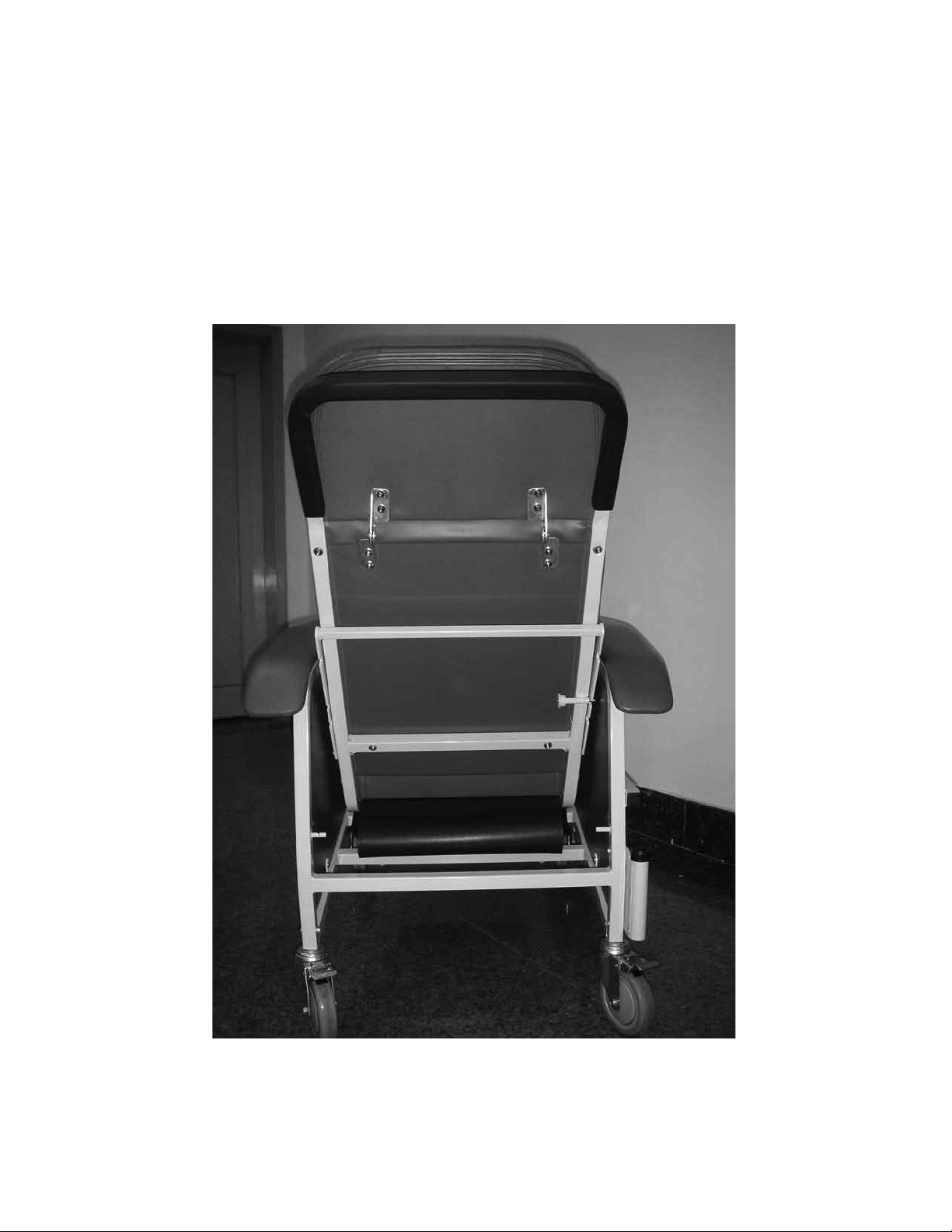

2. Attach the IV Pole holder to the Right rear Caster receiver, the bottom screw is the same fastener that
secures the caster in place.
3. Next, insert the Reclining Back posts into the base receivers (WHITE SQUARE) and secure with Allen
Screws (WHITE CIRCLES).

9
(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
4. If you have the tray assembly, attach it to the right side of the Recliner for stowaway until it
is needed.

(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
10

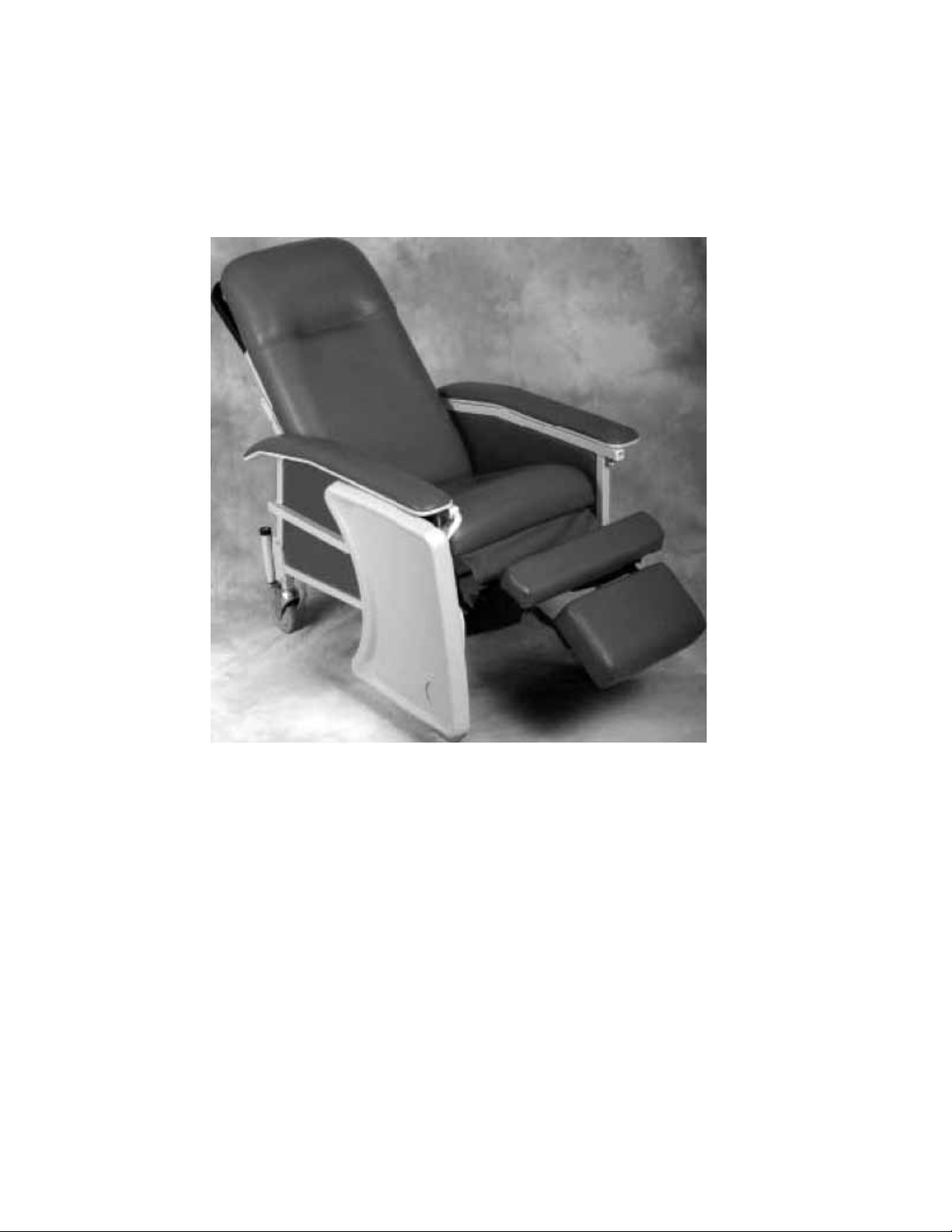

OPERATING INSTRUCTIONS
CAUTION
Ensure that there is adequate room to operate the Medline Mobile 100 Recliner. There must be at least 3 feet
clearance between the top of the recliner back and the surrounding objects, otherwise damage to the recliner
and/or surrounding property may occur.
RECLINING THE CHAIR USING THE POSITON LOCK LEVER
NOTE: The position lock lever reclines the back and locks it into position. The user cannot recline the chair by
pushing on the arms when the position lock lever is in use. Refer to RECLINING THE CHAIR WITHOUT USING
THE POSITION LOCK LEVER in this manual.
WARNING
Ensure that the position lock lever is in the locked position when occupying the recliner, otherwise bodily injury
may occur to the occupant or to an individual standing behind the recliner.
NOTE: Right and left sides are determined by the user’s seated position.
1. Locate the plunger release knob on the right side of the back frame.
2. Pull the knob outward and hold.
3. Pull the position lock lever out.
4. Align one of the notches on the position lock lever with the studs on the inner seat frames.
5. To readjust position of lock lever perform the following:
A. Grasp position lock lever out.
B. Pull up to remove the lock lever from the studs.
C. Adjust the lock lever to a different position.
D. Secure lock lever in place by engaging it in the notches on the studs.
RECLINING THE CHAIR WITHOUT USING THE POSITION LOCK LEVER
1. Locate the plunger release knob on the back assembly. Refer to FIGURE 1
2. Pull the knob outward and hold.
3. Push the position lock lever up against the back assembly frame and release the plunger release knob.
NOTE: The knob will hold the position lock lever in the stored position preventing it from locking into the studs
on the frame.
4. While seated in recliner, grip the armrests and simultaneously lean body weight back and push forward
with your arms.
NOTE: The footrest assembly will elevate automatically as the chair is reclined.
NOTE: The occupant should not be required to exert excessive force to change recline positions. If the
recliner exhibits difficultly in reclining, the position lock lever may be engaged and an attendant should be
called to put position lock lever in the stored position. If recliner still exhibits difficulty in reclining, call a
qualified technician, Medline dealer or Medline Technical Services at the number listed on the back page.
5. An attendant can easily recline the chair from a standing position (beside the chair) by simply grasping the
armrest with one hand; the padded push handle with the other and then pushing down on the push handle.

11
(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
POSITIONING THE ARTICULATING HEADREST
1. To position the articulating headrest, simply grasp the headrest and push or pull it into the
desired position.
LOCKING/UNLOCKING THE REAR WHEELS
1. Push down on the wheel lock mechanism to engage the wheel locks.
2. Release the wheel locks by pushing the other side of the lock mechanism downward.

(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
12
INSTALLING TRAY INTO POSITION
WARNING
The tray has a weight limitation of 50 lbs. (22.68kg)
NOTE: Right and left sides are determined by the user’s seated position.
1. Pull down the plunger release knob under the right armrest of the recliner.
2. Slide tray away from the chair until upper alignment rod is out of the frame.
3. Lift up on the tray and rotate the tray up and over to the opposite arm of the recliner.
4. Insert the alignment rod into the left side frame underneath the armrest.
5. Push the alignment rods completely into the frame until the tray locks into place.
ADJUSTING THE TRAY POSITION
There are seven (7) tray positions on the Medline Mobile 100 Recliner. They range from 9-inches
to 15-inches in 1-1/2-inch increments.
1. Pull down on the plunger release knob below the right armrest of the chair (seated) and push/pull the tray to
the desired position.
2. Ensure tray locks in place.
STORING/REMOVING THE TRAY
WARNING
NOTE: Right and left sides are determined by the user’s seated position.
1. Stand in front of the chair. Grasp the front edge of the tray with your hand.
2. With your other hand, pull down on the plunger release knob located below the left armrest.
3. Perform one (1) of the following:
A. STORING THE TRAY
Slide the tray away from the recliner until left alignment rod is out of the frame.
B. Lift up on the tray and rotate the tray up and over to the opposite arm of the recliner.
The tray is now at 90 degrees.
C. Insert the alignment rod into the right side of the frame underneath the right armrest.
WARNING
DO NOT hold the top edge of the tray while sliding the tray into the stored position – otherwise injury may result.
CAUTION (Pinch point exists between the top edge of the tray and armrest.)
4. While holding the front edge of the tray, push the alignment rod completely into the frame until it locks into
place.
A. REMOVING THE TRAY – Slide the tray away from the recliner until both alignment rods are out of
the frame.

13
(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
CLEANING THE UPHOLSTERY
NOTE: A variety of solvents may be used to clean the upholstery on the recliner dependant upon the severity of
the stain. The following list should be helpful:
• Ordinary dirt stains: Clean upholstery with warm water and mild detergent to remove supercial soil.
• Ground-in dirt stains: Use soft bristle brush and powdered cleaner or similar detergent.
• Tar, asphalt or creosote: These will stain and should be removed as soon as possible. Area can be cleaned
with kerosene or naptha.
• Chewing gum: Scrape off carefully. Remove remainder with kerosene or naptha.
• Paint or shoe polish: Remove immediately. Use a white cloth dampened with kerosene, naptha, or turpentine.
CAUTION
When kerosene or naptha is being used, care should be exercised. Keep away from fire and flame and use only
in a well-ventilated area.
Carefully follow cleaning instructions provided with cleaning products.
DO NOT use paint remover or any liquid brush cleaner.
Excrement: Remove immediately. Clean with 1:10 mix of bleach and water.
NOTE: The wear ability of your chair can be improved by using a quality paste wax periodically.

(GPI248)
Revised: 1/18/2011
FURN10100BLC/BEC
14
WARRANTY
This warranty is extended only to the original purchaser/user of the Product.
This warranty gives you specific legal rights and you may also have other legal rights, which vary from state to state.
Medline warrants this Product to be free from defects in materials and workmanship for a period of three(3)years
from the date of purchase, except that the upholstery is warranted for one(1)year and the front and rear side frames
and cross-braces are warranted for the lifetime of Product. If within such warranty periods the warranted aspect
of the Product shall fail, such Product shall be repaired or replaced, at Medline’s discretion. This warranty does
not include any labor or shipping charges incurred in replacement part installation or repair of any such Product.
Medline’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or
replacement.
For warranty service, please contact the dealer from whom you purchased your Medline Product. In the event you
purchased the recliner directly from Medline please call 1-800-MEDLINE for technical support. Have your serial #,
order # and date of purchase when calling. Do not return products to our factory without our prior consent and Return
Authorization Number (RA#). No credit will be authorized without obtaining a Return Authorization Number first.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS
IF THE SERIAL NUMBER HAS BEEN REMOVED OR DEFACED, PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT,
IMPROPER OPERATION, MAINTENANCE OR STORAGE, COMMERCIAL OR INSTITUTIONAL USE, PRODUCTS MODIFIED
WITHOUT MEDLINE’S EXPRESS WRITTEN CONSENT INCLUDING,BUT NOT LIMITED TO, MODIFICATION THROUGH THE
USE OF UNAUTHORIZED PARTS OR ATTACHMENTS; PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY
COMPONENT WITHOUT THE SPECIFIC CONSENT OF MEDLINE, OR TO A PRODUCT DAMAGE BY CIRCUMSTANCES
BEYOND MEDLINE’S COTNROL, AND SUCH EVALUATION WILL BE SOLEY DETERMINED BY MEDLINE. THE
WARRANTY SHALL NOT APPLY TO PROBLEMS ARISING FROM NORMAL WEAR OR FAILURE TO ADHERE TO THESE
INSTRUCTIONS.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER,
WHETHER EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL
BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED
HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION
OF THE EXPRESSED WARRANTY PROVIDED HEREIN. MEDLINE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES WHATSOEVER. THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL
LAWS AND REQUIREMENTS.
Medline United States Medline Canada Medline Mexico
1-800-MEDLINE (633-5463) 1-800-396-6996 01-800-831-0898
www.medline.com | [email protected] www.medline.ca | [email protected] www.medlinemexico.com | [email protected]
Some products may not be available for sale in Mexico or Canada. Please contact your Account Representative for additional information.
We reserve the right to correct any errors that may occur within this owner’s manual. ©2009 Medline Industries, Inc. Medline is a registered trademark of
Medline Industries, Inc.
Medline Industries, Inc.
One Medline Place
Mundelein, IL 60060
