MegaLite Drama Profile Q2 User manual

USER MANUAL
Table of Contents
Safety Information……………………………………...………………3
Specifications………………………………………...…………………4
Photometrics……………………………………………………………5
Main Power Connection…………………………...…………………..6
DMX-512 Connection……………………………..…………………...6
Main Control Menu……………..…………………………………..….7
Rigging the Fixture……………………………….…………………….8
DMX Profile.....................................................................................9
Cleaning & Maintenance...............................................................10
Parts List.......................................................................................10

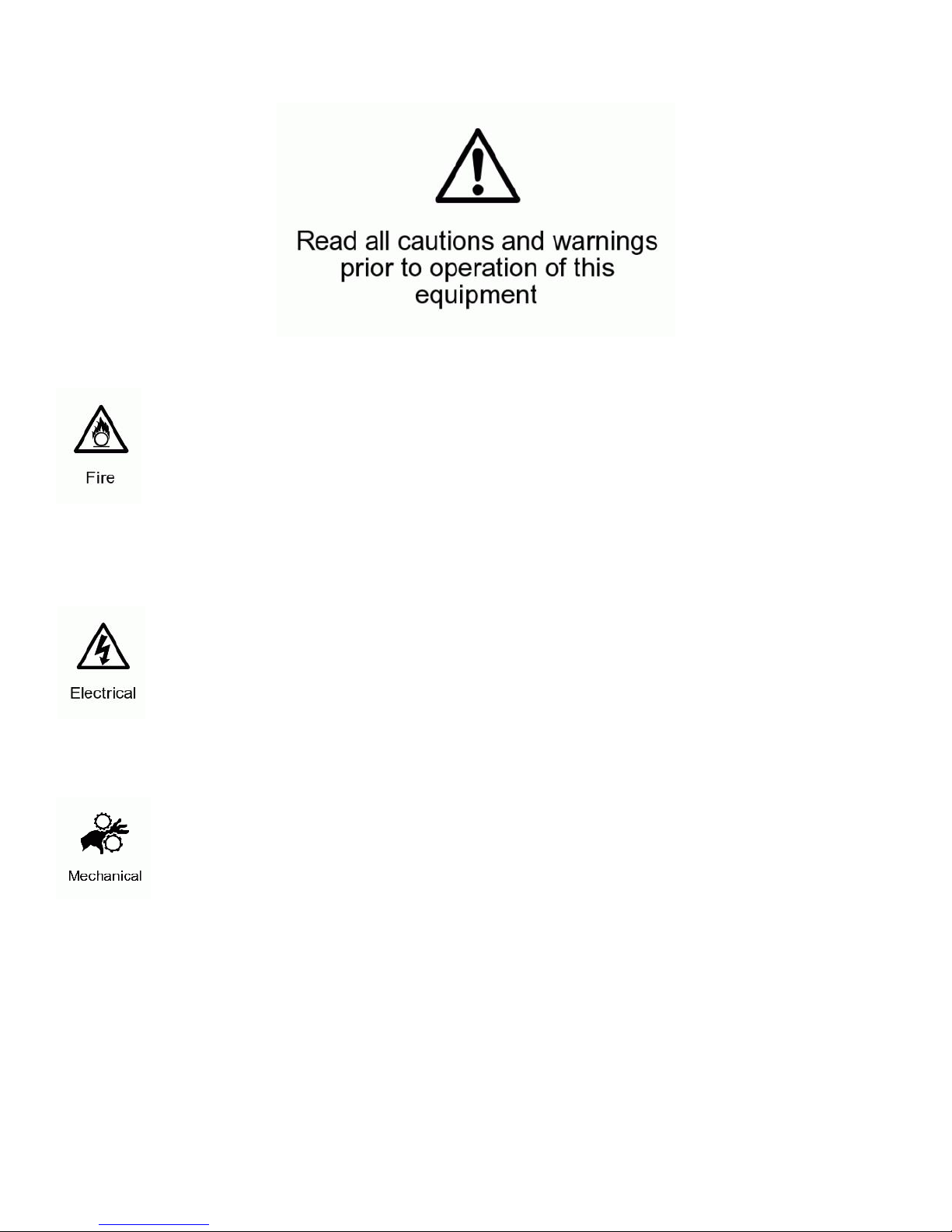

Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured away from unit movement.
6. Maximum surface operating temperature 104º.
Protection Against Electrical Damage
1. Disconnect power before lamp replacement or servicing.
2. For connection to main power supply proceed to page 6.
3. This unit must be earthed. (electronically grounded)
4. Do not expose unit to rain or moisture.
5. Unit must not be left on for a long period of time.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit risk of electrical shock.
3

4
Part Numbers
Fixture
7060Q2 - Drama Profile Q2

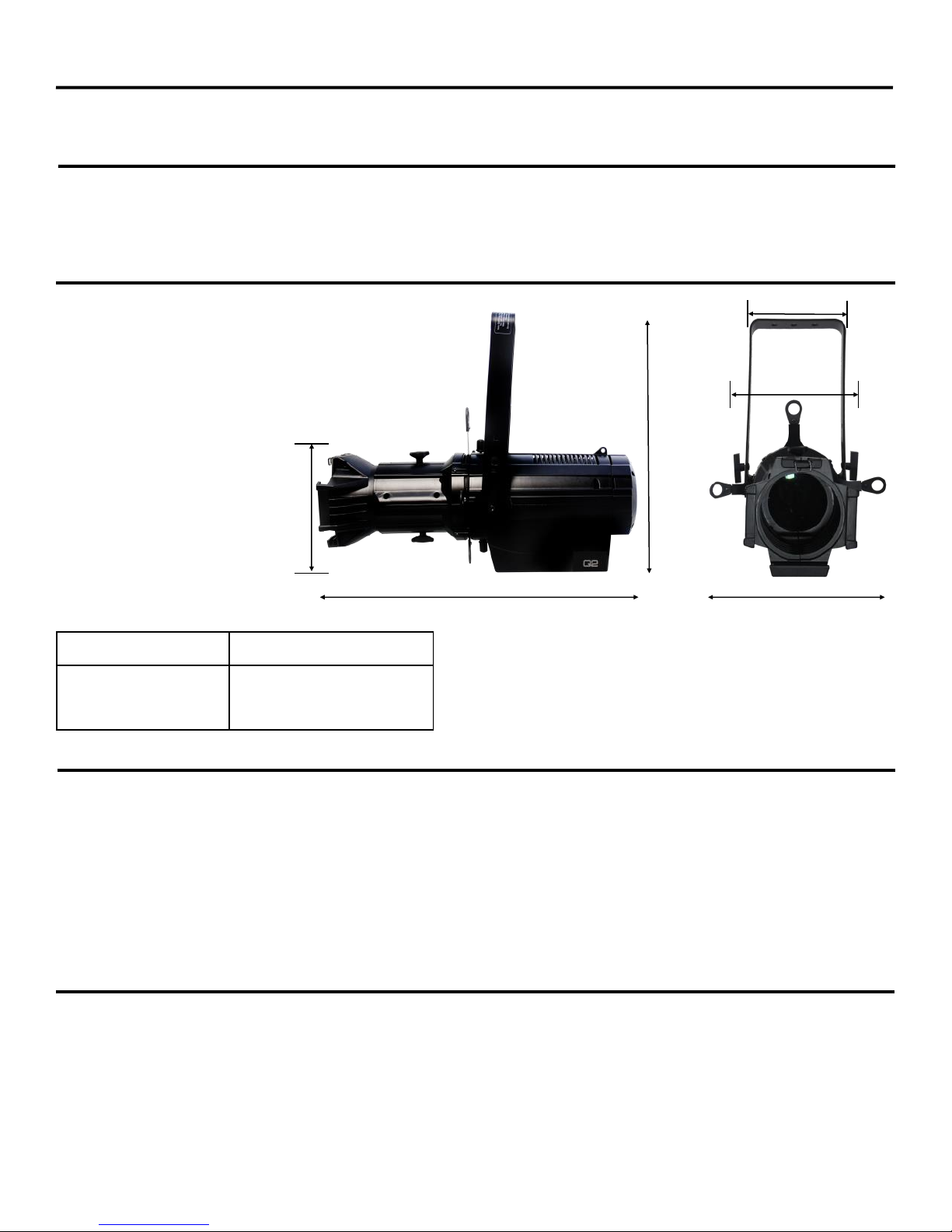

Mechanical Specifications
Fixture Packaged for Shipping
Size: 14.25” x 37” x 19.62”
Weight: 24 lb
Electrical Specifications
Power supply: Auto Switch 100V-240V 50/60 HZ
Power consumption: Watts: 248W
Amps: 2.14
Ballast: Electronic
LED Type: 250W Quad Red, Green, Blue, White
Color Temp: N/A
CRI: N/A
Display: LCD Display
Size: 26.25” x 13” x 13.5”
Weight: 25.5 lb
Specifications
14.25” (blades out)
8.37”
37”
19.62”
10”
10.5”
Control Specifications
Protocol: DMX 512
Display: Stand Alone, Manual Setting
Operating mode: 3 Mode Operation
Mode 1 4 Channel Red, Green, Blue, White
Mode 2 7 Channel Dimmer, Red, Green, Blue, Strobe, Macro
Mode 3 8 Channel Dimmer, Red, Green, Blue, Strobe, Macro, Dim Curve
DMX Connectors: 5-pin XLR in/out connectors
Power Connectors: Power Con Type in/out connectors
Thermal: Maximum ambient temperature 110° F
Maximum surface temperature 140° F
Fastening System: Mounting Yoke
Lens Options: 19,26,36
Gobo Size: Gobo Size 85mm
Image Size 65mm

5

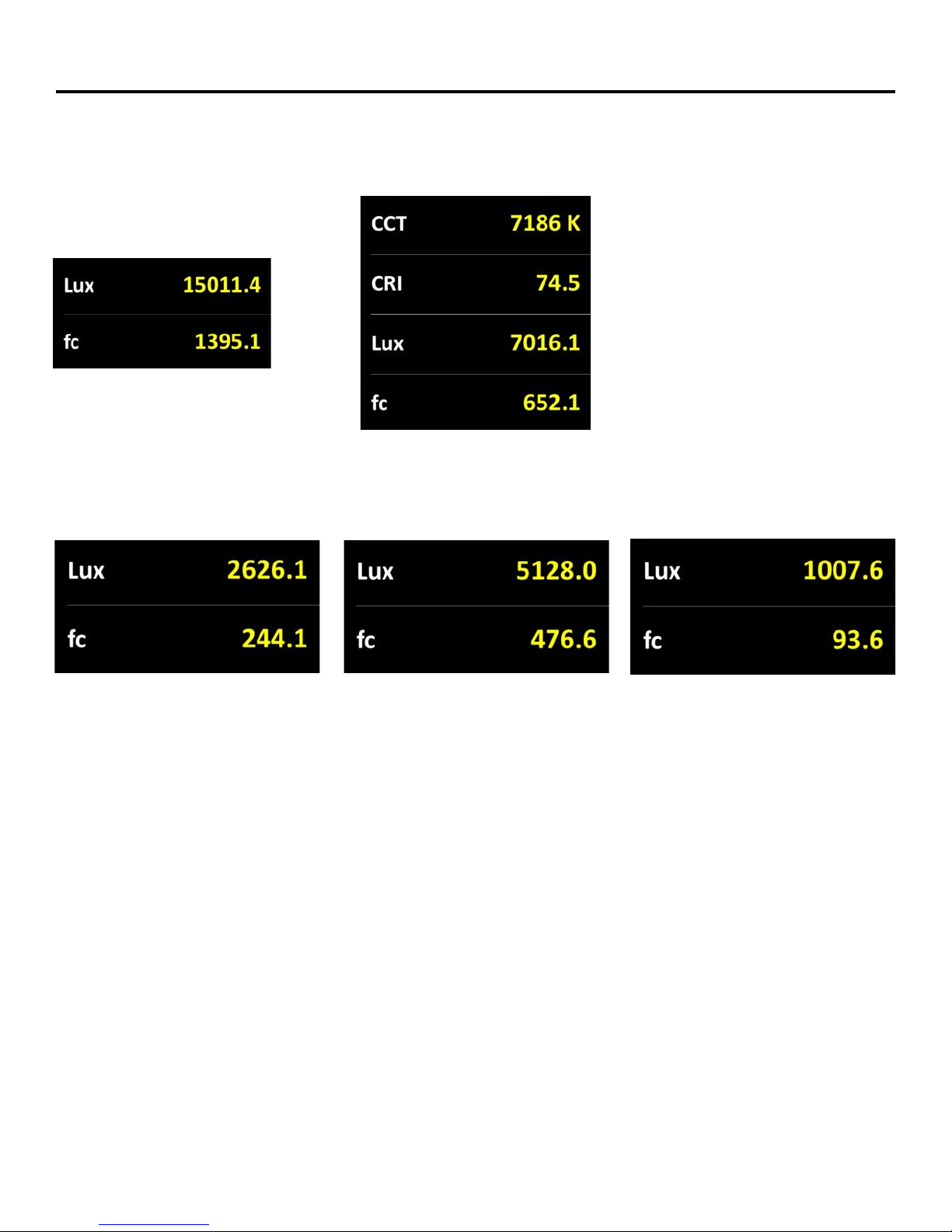

Photometrics
All LED’s ON CW Only
Red Only Green Only Blue Only
@ 10 Feet with 19 degree lens

6

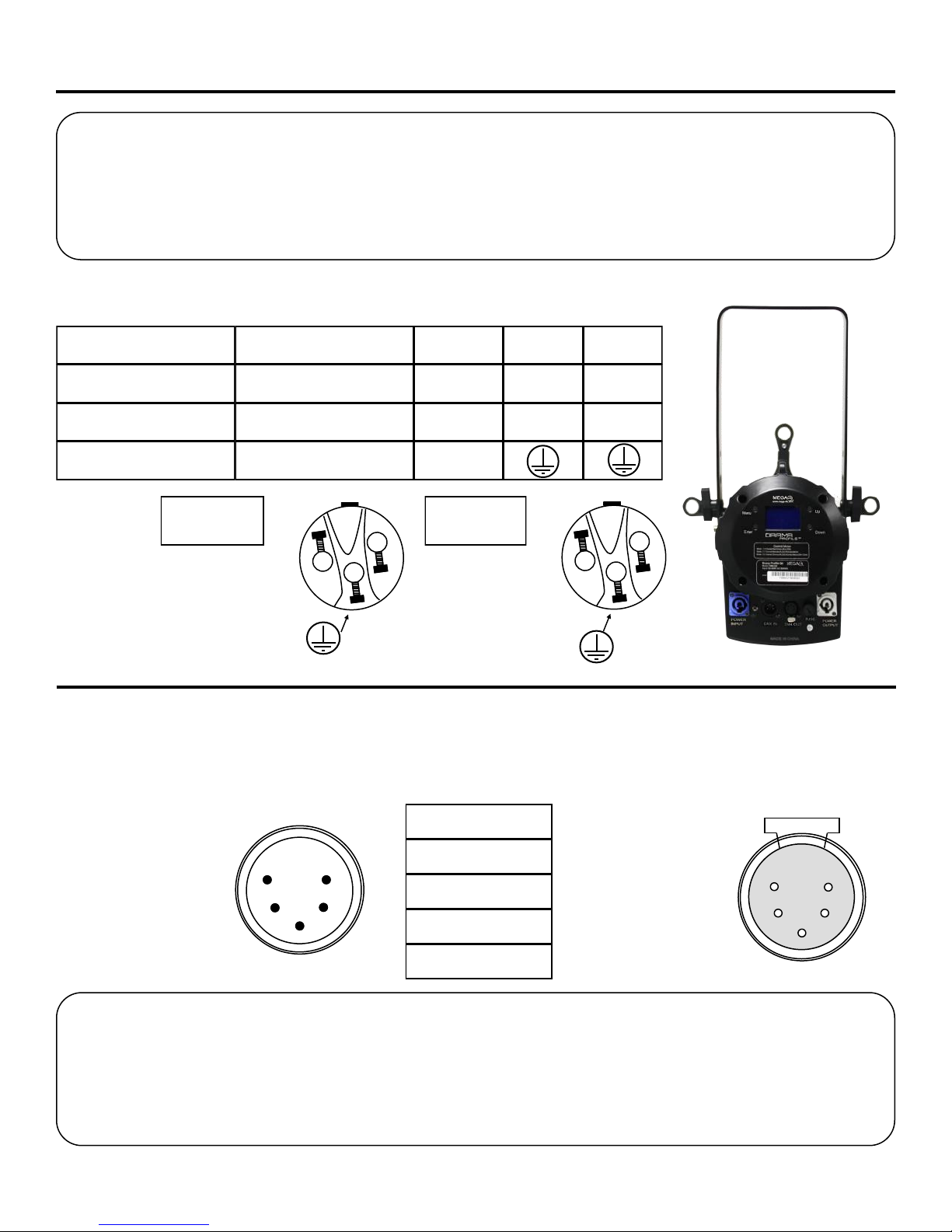

Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit must be earthed. (electronically grounded)
3. Replace fuse only with the specified type and rating.
4. Power link maximum 6 units at 110V
The occupation of the connection-cable is as follows:
This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a
120 Ohm resistor between the (-) and the (+) signal into a 5 pin XLR plug and plug it
in to the last fixture on the signal run. Pre-manufactured terminator plugs are availa-
ble for purchase from your Mega-Lite dealer (P-DMX-T).
L
L
110V
Connection 220V Connection
N
L
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
220V
L
L
DMX-512 Connection
The fixture is equipped with 5 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a
shielded twisted pair cable designed for RS-485 and 5 pin XLR plugs and connectors in order to connect the controller
with the fixture or the fixture with another.
DMX—Input DMX—Output
1. Shield
2. Signal (-)
3. Signal (+)
4. N/A
5. N/A
5
3
4
2
11
2
3
4
5

7
Display Control
Main Control
The control board on the fixture base is your interface to access and
control all the functions on the unit. It’s LCD display gives you a code
view of the options and functions. The following will explain each func-
tion and its options.
Press the Enter button to select Set Up options.
Setup Menu
Main Menu
DMX Address
Information
Personality
Press Enter to select the DMX start address. Use the Up/ Down buttons to select desired start address.
DMX Address
DMX Address
Press Enter to select the DMX operating channel mode. Use the Up/ Down buttons to select 3,4 or 5 Channel Mode. Press Enter
to confirm.
Channel Mode
(4 Ch)
(7 Ch)
(8 Ch)
7 Ch
001
Dimmer
Red
Green
Blue
White
Macro
Strobe
7Ch 54ºC
1 DMX Address
2 Channel Mode
3 Demo Mode
4 Manual Control
Press Enter to select fixtures Pre recorded demo program Demo Mode 1,2 or Off. Press Enter to confirm. (note demo Off must be
selected to go back to other options)
Demo Mode
1 DMX Address
2 Channel Mode
3 Demo Mode
4 Manual Control
4 Ch
Red
Green
Blue
White
Menu
Enter
Up
Down
8 Ch
Dimmer
Red
Green
Blue
White
Macro
Strobe
Dim Curve
Press Enter to select fixture profile operating mode
DMX Address
1 DMX Address
2 Channel Mode
3 Demo Mode
4 Manual Control

8
Rigging the fixture
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-
ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector
has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least one time a year by a skilled person.
Rigging the fixture
Press the Enter button to select Manual control Functions. Select the fixtures LED Color you would like to manually control . Press
Enter to confirm the color setting
(Note: The fixture will recall the set manual control attributes even after the fixture is turned off and on)
Manual Control
1 DMX Address
2 Channel Mode
3 Demo Mode
4 Manual Control
Manual Mode
Red
Green
Blue
White
Red
0-255
Green
0-255
Blue
0-255
White
0-255

9
DMX Profile
Drama Profile Q2 4 Channel Mode
DMX Chanel Function Description Value Init
1LED Color Red LED intensity 0-255 255
2LED Color Green LED Intensity 0-255 255
3LED Color Blue LED Intensity 0-255 255
4LED Color White LED Intensity 0-255 255
Drama Profile Q2 7 Channel Mode
DMX Chanel Function Description Value Init
1Dimmer Dimmer Off to Full 0-255 255
2LED Color Red LED intensity 0-255 255
3LED Color Green LED Intensity 0-255 255
4LED Color Blue LED Intensity 0-255 255
5LED Color White LED Intensity 0-255 255
No Function 0-1
Color fade All (slow to fast) 2-19
Color Chase 1 (slow to fast) 20-39
Color Chase 2 (slow to fast) 40-59
Color Chase 3 (slow to fast) 60-79
Color Chase 4 (slow to fast) 80-99
6Macro Red Fade 100-119 0
Green Fade 120-139
Blue Fade 140-159
White Fade 160-179
Purple Fade 180-199
Yellow Fade 200-219
Cyan Fade 220-229
White Fade 230-249
White 250-255
Strobe (slow to fast) 0-127
7Strobe Strobe Pulse (slow to fast) 128-159 0
Random Strobe 160-255

Drama Profile Q2 8 Channel Mode
DMX Chanel Function Description Value Init
1Dimmer Dimmer Off to Full 0-255 255
2LED Color Red LED intensity 0-255 255
3LED Color Green LED Intensity 0-255 255
4LED Color Blue LED Intensity 0-255 255
5LED Color White LED Intensity 0-255 255
No Function 0-1
Color fade All (slow to fast) 2-19
Color Chase 1 (slow to fast) 20-39
Color Chase 2 (slow to fast) 40-59
Color Chase 3 (slow to fast) 60-79
Color Chase 4 (slow to fast) 80-99
6Macro Red Fade 100-119 0
Green Fade 120-139
Blue Fade 140-159
White Fade 160-179
Purple Fade 180-199
Yellow Fade 200-219
Cyan Fade 220-229
White Fade 230-249
White 250-255
Strobe (slow to fast) 0-127
7Strobe Strobe Pulse (slow to fast) 128-159 0
Random Strobe 160-255
Linear Dimming 0-49
8Dimming Square Law Dimming 50-99 0
Control Invert Square Law Dimming 100-149
S-Type Dimming 150-255

Cleaning and maintenance
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and
electronics checked by an expert every 2 years.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles and other must not show any traces of wearing and must not rotate with unbal-
ances.
4) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any
safety problems have to be removed.
Disconnect from mains before starting maintenance operation!
Caution Danger to life!
We recommend a frequent cleaning of the device. Please use a moist, lint free cloth. Never use alcohol or solvents!
1) The objective lens will require periodic cleaning on usage and environment. Environment with foggers will require
more periodic cleaning as fog fluid tends to build up residues, reducing the light output.
2) The cooling-fans should be cleaned monthly. DO NOT blow high pressure air into fans as incorrect rotation can
damage the fans operation.
3) The gobos, dichroic color filters and internal lenses may be cleaned with soft brush using soapy water.
4) The interior of the fixture should be cleaned using a vacuum.
5) We recommend proper lubrication of the motor wheel. The quantity of the oil must not be excessive in order to avoid
oil run outs when motor wheel rotates
Note: There is no serviceable parts inside the device except for the fuse. Maintenance and service operations are to be
carried out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized
dealers only
Should you have further questions , please contact your dealer.
10
Parts List
7060-LEN-26 26° lens
7060-LEN-36 36° lens
7060-LEN-19 19° lens
7060Q2-PCB-DRI LED Driver Board
7000-BEZ-FRA-RIN Shutter Blade Ring
7060-CON-3PI 3 pin XLR Connection
7060-CON-5PI 5 pin XLR Connection
7060Q2-PCB-DIS-MAI Main PCB and Display
7060-FAN-120-HEA 120mm Fan
7060VW2-POW Power Supply
7060-SEN-HEA-MON Heat monitor PCB
7060-SEN-HEA-CUT Heat monitor cut off power
Accessory
7060-ACC-GOB Gobo Holder (included)
7060-ACC-GEL Gel Holder (included)

Mega-Lite
18668 Highway 16N
Helotes, TX 78023
Ph 210-684-2600 Fax [phone]
www.mega-lite.com / [e-mail]
Warranty Information
Warranty Conditions
-Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty.
-LEDs or Lamps are not guaranteed to match in color temperature or output.
-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor.
If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of
the original invoice.
-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical
means of shipment.
-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS
INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any
warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, inci-
dental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by
product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort
(including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.
- Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Customer Support
Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob-
lem. Please visit our website for any other related technical documents. For service related issue please contact our
service dept.
Monday—Friday 9am to 6pm CST
Voice: 210-684-2600
E-mail: [e-mail]
Specifications in this manual are subject to change.
