MegaLite Outshine Strip Q80 User manual

USER MANUAL
Table of Contents
Safety Information…………………………………………………………..…………………….3
Specifications……………………………………………………………………………………...4
Main Power Connection………………………………………………………………………….5
DMX-512 Connection…………………………………………………………………...………..5
Main Control Menu..............................................................................................................6
DMX Profile.........................................................................................................................8
Rigging the Fixture………………………………………………………………………………..9
Cleaning & Maintenance.....................................................................................................9
Parts List.............................................................................................................................9

3
Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured
6. Maximum surface operating temperature 140º.
Protection Against Electrical Fire
1. Disconnect power before servicing.
2. For connection to main power supply proceed to page 5.
3. This unit must be earthed. (electronically grounded)
4. This fixture must not be left on for long periods of time.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit while it is on, risk of electrical shock.
Ingress Protection
IP 65
Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured
6. Maximum surface operating temperature 140º.
Protection Against Electrical Fire
1. Disconnect power before servicing.
2. For connection to main power supply proceed to page 5.
3. This unit must be earthed. (electronically grounded)
4. This fixture must not be left on for long periods of time.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit while it is on, risk of electrical shock.
The IP rating is commonly expressed as IP (Ingress Protection) is followed by 2 numbers (i.e. 65)
where the numbers define the fixture rating. The first number indicates the size of a particle that can
enter the fixture.. The second number indicates the extent of protection against water entering the
fixture. An IP65 rating in this fixture indicates that dust particles can not enter the fixture. And there is
protection against powerful water spray from entering the fixture from any direction.

4
7225 Outshine Strip Q80
7225-S Outshine Strip Q80, Silver Housing

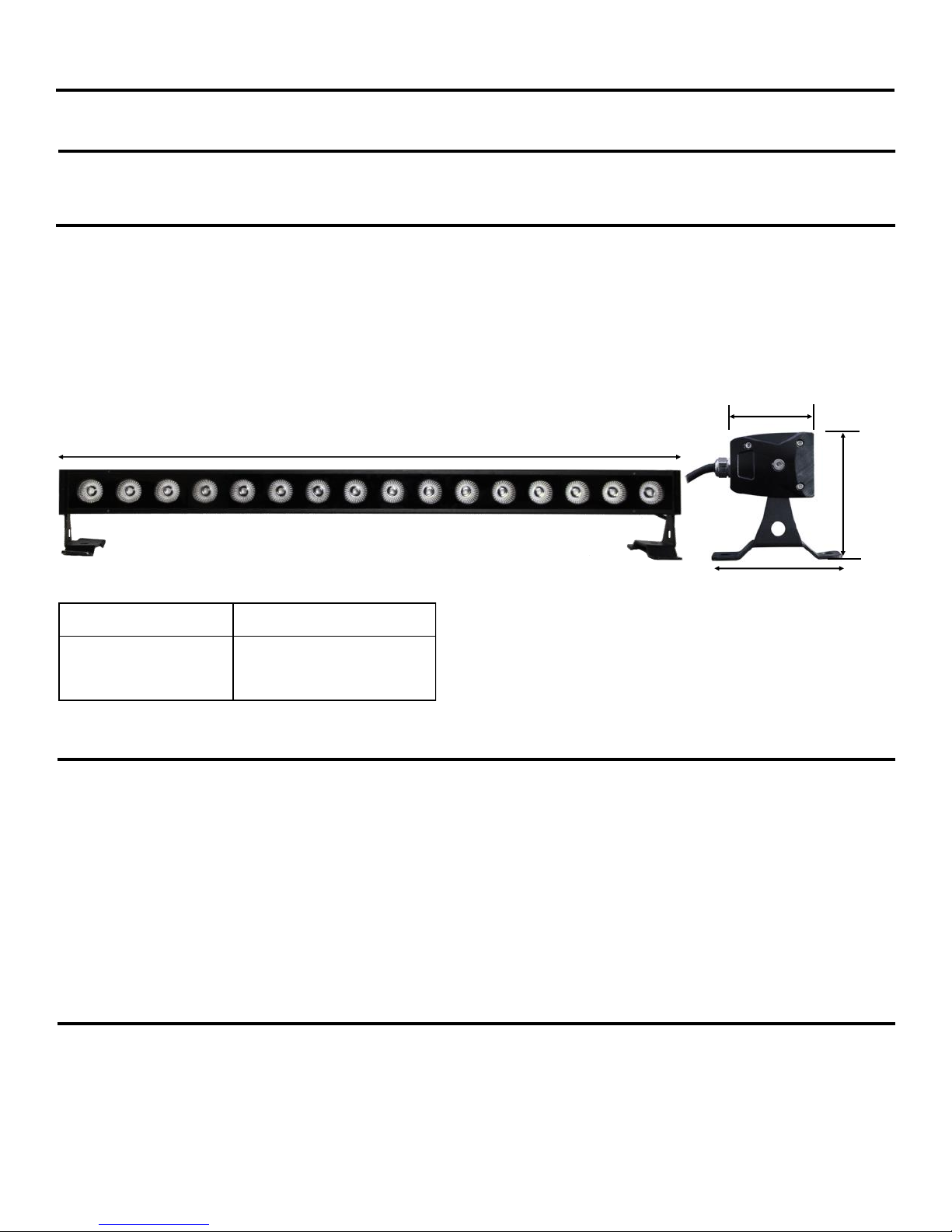

Mechanical Specifications
Fixture Packaging
Size: 39.6” x 7” x 5.5”
Weight: 14lb
Size: 42.25” x 8” x 8.25”
Weight: 16.75lb
Electrical Specifications
Protocol: DMX 512
DMX Modes: Mode 4 Channels R,G,B,W
Mode 5 Channels Dimmer, R,G,B,W, Strobe
Mode 9 Channels Dimmer, R,G,B,W, Strobe, Macro, Macro Speed, Dim Curve
Control Options: Display preset setting
Control & Programming
DMX Connectors: Neutrik 3 pin XLR NC3FXX-HD-D and NC3MXX-HD-D
IP 67 connectors in and out
Power connection: Screw type power cable monted connection to Nema 5-15
Thermal: Maximum ambient temperature 104°
Maximum surface temperature 140°
Fastening System: End Mount mounting Yoke
Display: LCD
Lens Angle: 25º
IP Rating: IP66
LED Quantity: 16 Quad Color LED’s Red, Green, Blue and White
LED Watts: 5W
LED Lifetime: *40 to 80 thousand hours average
Refresh Rate: 6000 Hz
Power Input Voltage: 110V-240 50/60 Hz
Ballast: Electronic auto switching
Power Consumption: Watts: 73
Amps: .99
Part Numbers
Technical Information
5.5”
3.68”
6.5” w/ cable
39.6”
* Average expected LED life per LED manufacture

5
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit has Auto switching power supply. It will respond to 110V or 220V automatically
3. This unit must be earthed. (electronically grounded)
The occupation of the connection-cable is as follows:
This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz
The fixture is equipped with Neutrik NC3FXX-HD and NC3MXX-HD IP 67 3 pin XLR Sockets for DMX input and output.
The sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 3 pin XLR plugs and
connectors in order to connect the controller with the fixture or the fixture with another.
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120 Ohm re-
sistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it in to the last fixture on
the signal run. Pre-manufactured terminator plugs are available for
purchase from your Mega-Lite dealer (P-DMX-T).
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
DMX-512 Connection
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
220V
L
L
1
2
3
2
3
1
DMX—input DMX—output
1. Shield
2. Signal (-)
3. Signal (+)
LN
Main Power Connection

Display Menu
6
UP
DOWN
SETMODE

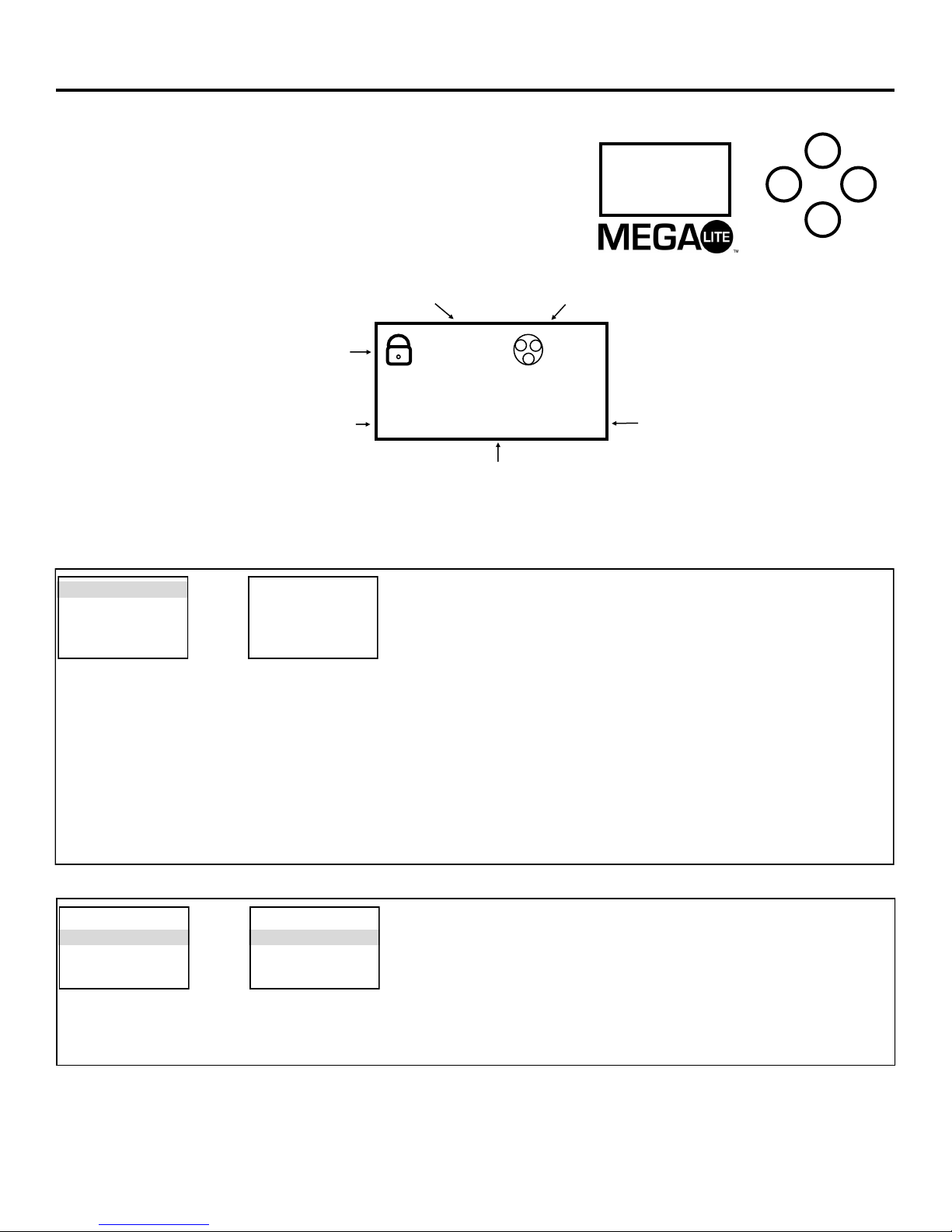

The control board on the fixture base is your interface to access and
control all the functions on the unit. Its LED display gives you a code
view of the options and functions. The following will explain each func-
tion and its options.
1: DMX
2: Slave
3: Auto
4: Program
t04ch
001
V:2.1.1 42ºC
Channel Mode
Software Version
Lock Indicator
DMX Indicator
DMX Start Channel
Fixture Temp
Address: To Change the DMX Start Channel Press SET use the UP and DOWN buttons
to select desired DMX Start Channel
Channel Mode: To Select the fixtures operating channel mode press DOWN so the 2)
Channel is highlighted then press SET. Use the UP and Down buttons to select the fix-
tures operating Channel mode from the options below.
Mode 4Ch=R,G,B,W
Mode 6Ch=Dimmer,R,G,B,W, Strobe
Mode 9Ch=Dimmer,R,G,B,W, Strobe, Macro, Macro Speed, Dimming Curve
DMX
1) Address: 001
2) Channel: 04
1: DMX
2: Slave
3: Auto
4: Program
This function allows the fixture to copy the master unit. Fixture must be addressed to
DMX Start Channel 001.
1: DMX
2: Slave
3: Auto
4: Program

7
1: DMX
2: Slave
3: Auto
4: Program
This function allows the fixture fade between color
1: DMX
2: Slave
3: Auto
4: Program
1: DMX
2: Slave
3: Auto
4: Program
Program: This function gives you control over the pre-programs
Mode: To Select the fixtures pre-program chase (1 to 14). Press SET. Use the UP and
Down buttons to select the fixtures program.
Speed: Select the speed of the pre-program (1 to 100) 1 being the slowest. Press SET.
Use the UP and Down buttons to select the fixtures speed.
Strobe: control the strobe speed of the pre-programs (00 to 99). Press SET. Use the UP
and Down buttons to select the strobe speed.
(note on mode 1 you will not have speed control option but a color option where you can
select the color you want 15 options)
Program
1) Mode: 01
2) Speed: 04
3) Strobe: 00
5: Dimmer
6: Settings
7: Information
Dimmer: This function allows you to create a custom color with different values.
Create the color by adding or removing values from a certain color. Press SET. Use the
UP and Down buttons to select the color you want to adjust. . Press SET. Use the UP
and Down buttons to select the value of each color you would like (000 to 255)
1) Red: 255
2) Green: 255
3) Blue: 255
4) White: 000
Hold: Hold last DMX signal received till new signal
Yes: will lock display, to unlock press and hold
at the same time for 5 seconds
5: Dimmer
6: Settings
7: Information
Curve Select: Select from different dimmer curves Linear,Square Law, Invert Square
Law, S-Type
Dimmer Speed: Fast (responsive to DMX Fader) Smooth (Fade delay)
DMX Fail: Function options if DMX signal is lost
Off: Turns off all DMX values to 0
Hold: Holds last DMX signal received till new signal command
DMX Syc: Syncs fixtures with similar address
Lock: Display Lock
Yes: will lock display, to unlock press and hold Mode and Set at the same time for 3 Sec-
onds
No: will leave display accessible
Factory:
Yes: Returns fixture to original factory setting
No: No Function
Settings
1) Curve Select
2) Dimmer Speed
3) DMX Fail
4) DMX Syc
5) Lock
6)Factory

8
Outshine Strip Q80 DMX Profile
3Ch
DMX Chanel Function Description Value
1LED Color Red LED intensity 0-255
2LED Color Green LED Intensity 0-255
3LED Color Blue LED Intensity 0-255
4Ch
DMX Chanel Function Description Value
1Dimmer Dimmer Off to Full 0-255
2LED Color Red LED intensity 0-255
2LED Color Green LED Intensity 0-255
3LED Color Blue LED Intensity 0-255
6Ch
DMX Chanel Function Description Value
1Dimmer Dimmer Off to Full 0-255
2LED Color Red LED intensity 0-255
3LED Color Green LED Intensity 0-255
4LED Color Blue LED Intensity 0-255
5Strobe Strobe (slow to fast) 0-196
Random Strobe (slow to fast) 197-255
No Function 0-1
Color fade (slow to fast) 2-19
Color Snap (slow to fast) 20-39
Random (slow to fast) 40-59
Yellow 60-79
Purple 80-99
6Macro Aqua 100-119
Orange 120-139
Red Pulse 140-159
green Pulse 160-179
Blue Pulse 180-199
Yellow Pulse 200-219
Aqua Pulse 220-229
White Pulse 230-249
White LED Full 250-255
Outshine Strip Q80 4 Channel Mode
DMX Channel Function Description Value Init
1LED Color Red LED intensity 0-255 255
2LED Color Green LED Intensity 0-255 255
3LED Color Blue LED Intensity 0-255 255
4LED Color White LED Intensity 0-255 255
Outshine Strip Q80 6 Channel Mode
DMX Channel Function Description Value Init
1Dimmer Dimmer 0-255 255
2LED Color Red LED intensity 0-255 255
3LED Color Green LED Intensity 0-255 255
4LED Color Blue LED Intensity 0-255 255
5LED Color White LED Intensity 0-255 255
No Function 0-10
6Strobe Strobe (slow to fast) 11-115 0
Random (slow to fast) 116-255
Outshine Strip Q80 9 Channel Mode
DMX Channel Function Description Value Init
1Dimmer Dimmer 0-255 255
2LED Color Red LED intensity 0-255 255
3LED Color Green LED Intensity 0-255 255
4LED Color Blue LED Intensity 0-255 255
5LED Color White LED Intensity 0-255 255
No Function 0-10
6Strobe Strobe (slow to fast) 11-115 0
Random (slow to fast) 116-255
No Function 0
Program 02 1-19
Program 03 20-39
Program 04 40-59
Program 05 60-79
Program 06 80-99
7Macro Program 07 100-119 0
Program 08 120-139
Program 09 140-159
Program 10 160-179
Program 11 180-199
Program 12 200-219
Program 13 220-239
Program 14 240-255
8Macro Speed No Function 0-10 0
Slow to Fast 11-255
Linear Dimming 0-49
9Dimming Square Law Dimming 50-99 0
Invert Square Law Dimming 100-149
S-Type 150-255

9
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and
electronics checked by an expert every year.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any
safety problems have to be removed.
Note: There is no serviceable parts inside the device except for the LED’s. Maintenance and service operations are to
be carried out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized
dealers or trained professional only.
Should you have further questions , please contact your dealer.
Parts List
7225-MPCB Main PCB card
7225-PS Power Supply
7225-DIS Display
7225-LEDMOD LED Module
7225-LED Replacement LED
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-
ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the fixture has
got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least one time a year by a skilled person.
7225-FG Frontal Glass
7225-MO Mount
Rigging the fixture
Cleaning and Maintenance
Accessories
7225-DC 15 Degree Diffusion Lens
7225-BD Fixed Barn Door

Mega-Lite
18668 Highway 16 N
Helotes, TX 78023
Ph 210-684-2600 Fax [phone]
www.mega-lite.com / [e-mail]
Warranty Information
Warranty Conditions
-Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty.
-LEDs are not guaranteed to match in color temperature or output.
-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor.
If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of
the original invoice and Return Authorization Number given by MSI.
-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical
means of shipment.
-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS
INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any
warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, inci-
dental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by
product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort
(including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.
- Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Customer Support
Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob-
lem. Please visit our website for any other related technical documents. For service related issue please contact our
service dept.
Monday—Friday 9am to 6pm CST
Voice: 210-684-2600
E-mail: [e-mail]
