Meinberg GNSS Multiband Antenna User manual

MANUAL
GNSS MULTI BAND Antenna
Antenna / Converter Unit
May 11, 2022
Meinberg Funkuhren GmbH & Co. KG

Table of Contents
1 Imprint 1
2 Safety Hints Antenna 2
3 Before you start 3
3.1 Scope of delivery ............................................... 3
3.2 Disposal of Packaging Materials ...................................... 4
4 Installation of the GNSS Multiband Antenna 5
5 Technical Specifications GNSS Multiband Antenna 11
5.1 Technical Specifications: MBG S-PRO Surge Protection ....................... 13
5.1.1 MBG S-PRO: Physical Dimensions ............................... 15
5.1.2 Installation and Grounding ..................................... 15
6 RoHS and WEEE 16
7 Declaration of Conformity 17
Date: May 11, 2022 GNSS MULTI BAND Antenna

1 Imprint
1 Imprint
Meinberg Funkuhren GmbH & Co. KG
Lange Wand 9, 31812 Bad Pyrmont, Germany
Phone: + 49 (0) 52 81 / 93 09 - 0
Fax: + 49 (0) 52 81 / 93 09 - 230
Website: https://www.meinbergglobal.com
Email: [email protected]
Date: May 11, 2022
GNSS MULTI BAND Antenna Date: May 11, 2022 1

2 Safety Hints Antenna
WARNING!
DANGER TO LIFE BY ELECTRICAL SHOCK!
Make sure to comply with the occupational health and safety standards when installing the antenna. Never
work without a proper fall protection device!
Do not carry out any installation or maintenance work on the antenna system or cabling when there is a
potential risk of lightning.
Surge Voltage Protector
Due to extremely high currents associated with lightning no surge protection device can provide absolute safety
from the impacts caused by lightning!
2 Date: May 11, 2022 GNSS MULTI BAND Antenna

3 Before you start
3 Before you start
3.1 Scope of delivery
3
5
2
4
6
4x 4x
4x
1
Included in delivery of a Meinberg GNSS Multi Band antenna:
1. GNSS Multi Band antenna
2. Surge voltage protector (optional)
3. 20 m Antenna cable Belden H155
4. Coax cable for surge voltage protector (optional)
5. Retaining tube and clips for Meinberg GNSS Multi Band antenna
6. Mounting kit for Meinberg Meinberg GNSS Multi Band antenna
Carefully unpack the system and all accessories and put them aside. Check the scope of delivery with the pack-
ing list to ensure that no parts are missing. If any of the listed contents are missing, please contact Meinberg
Funkuhren.
Check the system for shipping damage. If the system is damaged or cannot be put into operation, contact
Meinberg Funkuhren immediately. Only the recipient (the person or company receiving the system) can assert
a claim against Freight Forwarder for shipping damage.
Meinberg recommends that you keep the original packaging materials for possible future transport.
GNSS MULTI BAND Antenna Date: May 11, 2022 3

3.2 Disposal of Packaging Materials
The packaging materials we use are fully recyclable:
Material Use for Disposal
————————————————————————————————————————
Polystyrol packaging frame/filling material Recycling Depot
(polystyrene peanuts, bubble wrap)
PE-LD accessories packaging Recycling Depot
Polyethylene
low density
Cardboard shipping packaging, Paper recycling
accessories packaging
————————————————————————————————————————
4 Date: May 11, 2022 GNSS MULTI BAND Antenna

4 Installation of the GNSS Multiband Antenna
4 Installation of the GNSS Multiband Antenna
Danger of death from falling!
- Ensure that you work safely when installing antennas!
WARNING!
Do not mount the antenna without an effective fall arrester!
Danger of death from electric shock!
WARNING!
- Never work without an effective fall arrester!
Do not work on the antenna system during thunderstorms!
- Do not carry out any work on the antenna system or the antenna cable
if there is a risk of lightning strike.
- Do not carry out any work on the antenna system if it is not possible to maintain
the prescribed safe distance to exposed lines and electrical substations.
Selecting the Antenna Location
To avoid difficulties with synchronization, select a location that allows for an unobstructed view of the sky
so as to ensure that enough satellites can be found. The line of sight between the antenna and satellites should
not be obstructed in any way. The antenna must also not be installed under power lines or other electrical
lighting or power circuits.
Installation Conditions for Optimum Operation:
•clear view of 8◦above the horizon or
•clear view towards equator (if clear view of 8◦not possible) or
•clear view between 55th north and 55th south parallels (satellite orbits).
Problems may arise if all of these views are obstructed, as four
satellites must be located to calculate a new position.
GNSS MULTI BAND Antenna Date: May 11, 2022 5

Important Information Regarding Surge Protection
The following illustration is a visual representation of where there is a risk of hazardous voltage surges in
the cable route (from antenna to Meinberg system). The examples below explain how you can protect your
Meinberg system from these.
MBG S-PRO
Clear view of the sky!
LANTIME
MBG S-PRO
Optional
Second surge protector in line
Recommended
First surge protector in line
Case Example 4
M300
Case Example 2
PE busbar
Case Example 3
GPS Multiband
Antenna
Case Example 1
Case Example 1:
An indirect lightning strike near the antenna or coaxial cable may induce transient voltages ("spikes" or "surges").
These spikes can be carried via the coaxial cable to the inside of the building and consequently to the system’s
receiver. It is therefore strongly recommended to have the surge protector installed at the point directly after
the cable enters the building.
Case Example 2:
In the event of a direct lightning strike on the antenna, the resultant transient voltage may be discharged via
the PE busbar (Multi GNSS L1 antenna only). This prevents the transient voltage from being carried to the
coaxial cable and subsequently to the system’s receiver.
Case Example 3:
If the length of the coaxial cable between the antenna and point of entry into the building is rather long (e.g.,
10 meters), there is a greater risk of transient voltages being introduced into the antenna cable as a result of
lightning strike. So the installation of a surge protector immediately after the point of entry into the building
is also strongly recommended here.
Case Example 4:
If the cable leading from the point of entry into the building to the Meinberg system is laid together with
other cables (for example in a cable duct alongside high-voltage cables), transient voltages may "leak" into the
antenna cable, causing damage to your system. To prevent this, a second surge protector can optionally be
installed in the line just before the device.
6 Date: May 11, 2022 GNSS MULTI BAND Antenna

4 Installation of the GNSS Multiband Antenna
Mounting the Antenna
1.
Use the included mounting kit to mount the antenna
at a distance of 50 cm from other antennas, either on
a vertical pole of a diameter of no more than 60 mm,
or directly onto a wall.
The antenna cable should then be connected to the
Type-N connector of the antenna. Feed the other end
of the cable into the building through the wall.
GNSS Multiband
Antenna
Type-N (Female)
Type-N (Male)
Clear view of the sky!
MBG S-PRO
MBG S-PRO
Make sure that the maximum cable length is not exceeded when installing the antenna cable
between the antenna and receiver. The maximum length will depend on the type of cable
used (H-155, RG 58U) and its attenuation factor.
2.
Voltage surges (e.g., caused by lightning strike) may
be transmitted along the antenna cable and cause
damage to the receiver. Using a MBG S-PRO surge
protector can help to protect your receiver against such
surges.
If installed in a waterproof housing, the MBG S-
PRO can be installed outdoors. However, Meinberg
recommends installing the surge protector indoors—as
closely to the entrance point of the antenna cable as
possible—in order to minimize the risk of surge dam-
age (such as that caused by lightning strike).
Connect the other end of the antenna cable to the
female connector of the surge protector.
Type-N (Male)
Type-N (Female)
Outside Wall of Building
Outdoor Installation
Inside a waterproof housing.
Indoor Installation
(Recommended)
Directly after the point at which the
Type-N (Female)
Type-N (Male)
MBG S-PRO
MBG S-PRO
antenna cable enters the wall.
GNSS MULTI BAND Antenna Date: May 11, 2022 7

3.
To ground the antenna cable, connect the surge protec-
tor to a grounding busbar using a grounding conductor
(see illustration).
Once installation is complete, connect the other end of
the antenna cable to the surge protector female con-
nector.
Grounding Conductor
Conductor of diameter approx. 1.5 mm
attached to surge protector
As short as possible
to Grounding Busbar
4.
The next step is to connect the supplied coaxial cable
from the surge protector to the receiver.
Type-N (Female)
Type-N (Male)
SMA (Female)
BNC (Female)
Type-N (Male)
Type-N (Female)
BNC (Male)
Receiver
Antenna Splitter
SMA (Male)
MBG S-PRO
Optional
8 Date: May 11, 2022 GNSS MULTI BAND Antenna

4 Installation of the GNSS Multiband Antenna
Optional Antenna Splitter
Multiple receivers can be connected to one antenna using the antenna splitter. When doing so, be aware
that the total distance, comprising the cable from the antenna to the splitter, and from there to the receiver,
must not exceed the maximum cable length. The splitter may be installed at any location between the surge
protector and the receivers.
Please note for installation purposes that GNSS L1 components cannot be directly connected to or
used with a Meinberg GPS antenna distributor.
Receiver
Antenna Splitter
Antenna
In
Out 3
Out 1
Out 2
Out 4
Distance AB = 280 m (RG58) - Total Length “OK”
Distance AC = 410 m (RG58) - Max. Total Length Exceeded
A
B
C
Compensating for Signal Propagation Delay in the Antenna Cable
————————————-
Die Signal-Übertragungszeit des Satellitensignals wird durch die Länge des Kabels beeinflusst und kann
beim Empfänger eine Verzögerungszeit des Signals hervorrufen.
Damit die angeschlossene Referenzuhr die Signallaufzeit des Antennenkabels kompensieren kann, müssen Sie
entweder die Länge des Antennenkabels in Metern oder die Kompensationszeit in Nanosekunden in den Ein-
stellungen Ihrer Referenzuhr angeben.
Loggen Sei sich dazu im Webinterface Ihres LANTIME-Systems ein und gehen wie folgt vor:
1. Öffnen Sie das Menü "Uhr" →"Status & Konfiguration"
2. Wählen Sie das entsprechende Uhrenmodul aus
3. Klicken Sie auf den Reiter "Verschiedenes"
4. Wählen Sie die Methode aus und tragen den entsprechenden Wert ein.
————————————-
To enable the connected receiver to compensate for the signal propagation delay inherent in the antenna cable,
you will need to enter either the length of your antenna cable in meters or the offset time in nanoseconds into
your receiver.
Antenna Cable Length (m):
The satellite signal reception is delayed as a result of coaxial cable used.
GNSS MULTI BAND Antenna Date: May 11, 2022 9

Cable Delay Usage
RG 58U 5 ns/m For GPS and GNS-UC receivers
H-155 4 ns/m For GNS and GNM receivers
The cable length entered (from antenna to receiver) is used by the system to calculate the delay time and
to automatically compensate for propagation delay. A value of 20 m is set by default.
When using a different type of coaxial cable, please use the "By Delay" option. You will need to calculate the
delay yourself using the information provided in the product specifications provided by the manufacturer of your
coaxial cable.
10 Date: May 11, 2022 GNSS MULTI BAND Antenna

5 Technical Specifications GNSS Multiband Antenna
5 Technical Specifications GNSS Multiband
Antenna

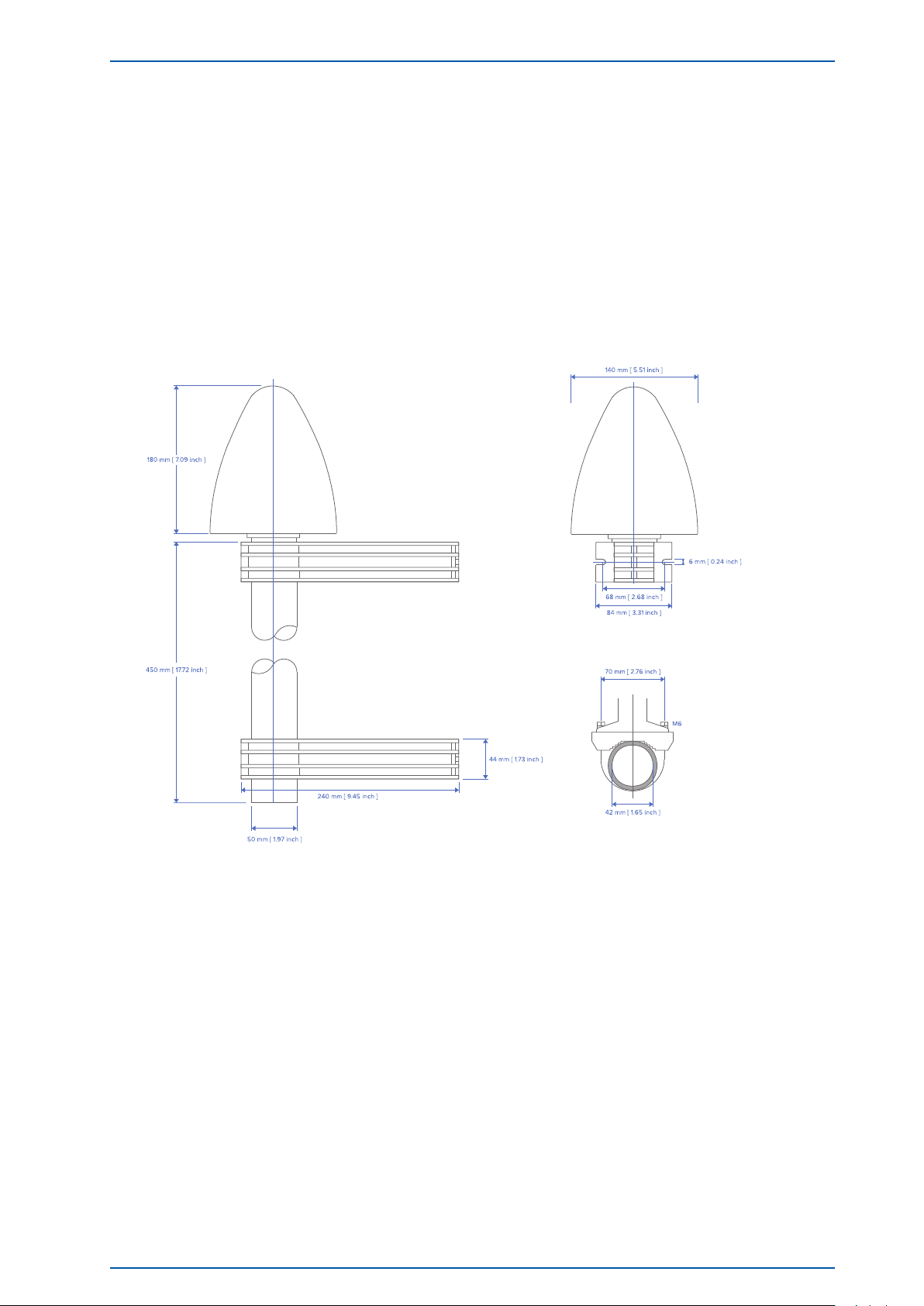

Physical Dimensions:
GNSS MULTI BAND Antenna Date: May 11, 2022 11

Specifications:
Power supply: 5 V - 16 V, 24 mA (via antenna cable)
Antenna-
input GNSS: Antenna circuit insulated, dielectric strenght 1000V
Frequency ranges: 1164 MHz to 1254 MHz and 1525 MHz to 1606 MHz
Overall LNA gain: 37 dB typ, 35 dB min
LNA noise figure: 2.5 dB typ at 25 ◦C
Supported frequency bands:
GPS L1/L2
GLONASS G1/G2/G3
Beidou B1/B2
Galileo E1/E5a+b plus L-band
Out-of-band rejection:
Freq. Band E5/L2/G2 Frequency Gain
< 1050 MHz > 45 dB
< 1125 MHz > 30 dB
< 1350 MHz > 45 dB
Freq. Band L1/E1/B1/G1 Frequency Gain
< 1450 MHz > 30 dB
< 1690 MHz > 30 dB
< 1730 MHz > 40 dB
Connector: N-Norm, female
Form factor: ABS plastic case for outdoor installation
Protection class: IP66
Humidity: 95%
Temperature range: -40 ◦C to +85 ◦C (-40 to 185 ◦F)
Weight: 1.6 kg (3.53 lbs) incl. mounting kit
12 Date: May 11, 2022 GNSS MULTI BAND Antenna

5 Technical Specifications GNSS Multiband Antenna
5.1 Technical Specifications: MBG S-PRO Surge Protection
Adapter plug with replaceable gas discharge tube for coaxial signal connections.
Connector Type: Type-N connector female/female. The MBG S-PRO set includes a surge protector (Phoenix
CN-UB-280DC-BB), a pre-assembled coaxial cable, and a mounting bracket.
The coaxial cable surge protector must be installed on the antenna line. The shielding is grounded using
a conductor that is short as possible. The CN-UB-280DC-BB is equipped with two Type-N female connectors
and has no dedicated input/output polarity and no preferred installation orientation.
Phoenix CN-UB-280DC-BB
Features:
•High RF Performance
•Multiple Strike Capability
•20 kA Surge Protection
•Bidirectional Protection
Installation Method: Connector Type-Specific Adapter Plug
Direction of Action: Line Shield/Earth Ground
Maximum Continuous
Operating Voltage: UC (Wire-Ground) 280 V DC
195 V AC
Rated Current: IN5 A (25 ◦C)
Effective Operating Current: IC at UC ≤1µA
Rated Discharge Current: In (8/20) µs (Core-Earth) 20 kA
In (8/20) µs (Core-Shield) 20 kA
Total Surge Current: (8/20) µs 20 kA
(10/350) µs 2.5 kA
GNSS MULTI BAND Antenna Date: May 11, 2022 13

Max. Discharge Current: Imax (8/20)µs Maximum (Core-Shield) 20 kA
Rated Pulse Current: Ian (10/1000)µs (Core-Shield) 100 A
Impulse Discharge Current: (10/350) µs, Peak Value Iimp 2.5 kA
Output Voltage Limit: At 1 kV/µs (Core-Earth) spike ≤900 V
At 1 kV/µs (Core-Earth) spike ≤900 V
Response Time: tA (Core-Earth) ≤100 ns
tA (Core-GND) ≤100 ns
Input Attenuation: aE, asym. Typically 0.1 dB (≤1.2 GHz)
Typically 0.2 dB (≤2.2 GHz)
Cut-Off Frequency: fg (3 dB), asym. (Shield) in 50 ΩSystem > 3 GHz
Standing Wave Ratio: VSWR in a 50 ΩSystem Typically 1.1 (≤2 GHz)
Permissible HF Power: Pmax at VSWR = xx (50 ΩSystem) 700 W (VSWR = 1.1)
200 W (VSWR = ∞)
Capacitance: (Core-Earth) Typically 1.5 pF
Asymmetric (Shield) Typically 1.5 pF
Surge Current Resistance: (Core-Earth) C1 - 1 kV/500 A
C2 - 10 kV/5 kA
C3 - 100 A
D1 - 2.5 kA
Ambient Temperature: (During Operation) -40 ◦C ... 80 ◦C
Supported Altitude: ≤2000 m (above sea level)
IP Rating: IP55
Housing Material: Nickel-Plated Brass
Colored Nickel
Dimensions: Height 25 mm, Width 25 mm, Depth 67 mm
Connection Type: Type-N Connector 50 Ω
IN Type-N Connector, Female
OUT Type-N Connector, Female
Standards/Regulations: IEC 61643-21 2000 + A1:2008
EN 61643-21 2001 + A1:2009
The original product page of the supplier (see link) of the CN-UB-280DC-BB surge protector is the source
of the specifications above. Please refer to the manufacturer’s product page at the following link for detailed
specifications as well as a variety of product-specific documents:
https://www.phoenixcontact.com/online/portal/gb/?uri=pxc-oc-itemdetail:pid=2818850
14 Date: May 11, 2022 GNSS MULTI BAND Antenna

5 Technical Specifications GNSS Multiband Antenna
5.1.1 MBG S-PRO: Physical Dimensions
67 11
15,8
25
13,4
5.1.2 Installation and Grounding
GNSS MULTI BAND Antenna Date: May 11, 2022 15

6 RoHS and WEEE
Compliance with EU Directive 2011/65/EU (RoHS)
We hereby declare that this product is compliant
with the European Union Directive 2011/65/EU and
its delegated directive 2015/863/EU “Restrictions of
Hazardous Substances in Electrical and Electronic
Equipment”. We ensure that electrical and electronic
products sold in the EU do not contain lead, cad-
mium, mercury, hexavalent chromium, polybrominated
biphenyls (PBBs), polybrominated diphenyl ethers
(PBDEs), bis(2-ethylhexyl)phthalat (DEHP), benzyl
butyl phthalate (BBP), dibutyl phthalate (DBP), or
diisobutyl phthalate (DIBP) above the legal limits.
WEEE status of the product
This product is handled as a B2B (Business to Busi-
ness) category product. To ensure that the product is
disposed of in a WEEE-compliant fashion, it must be
returned to the manufacturer. Any transportation ex-
penses for returning this product (at end-of-life) must
be covered by the end user, while Meinberg will bear
the costs for the waste disposal itself.
16 Date: May 11, 2022 GNSS MULTI BAND Antenna

7 Declaration of Conformity
7 Declaration of Conformity
Konformitätserklärung
Doc ID: GNSS Multiband Antenna-May 11, 2022
Hersteller Meinberg Funkuhren GmbH & Co. KG
Manufacturer Lange Wand 9, D-31812 Bad Pyrmont
erklärt in alleiniger Verantwortung, dass das Produkt,
declares under its sole responsibility, that the product
Produktbezeichnung GNSS Multiband Antenna
Product Designation
auf das sich diese Erklärung bezieht, mit den folgenden Normen und Richtlinien übereinstimmt:
to which this declaration relates is in conformity with the following standards and provisions of the directives:
——————————————————————————————————————————————-
EMV – Richtlinie DIN EN 61000-6-2:2019
EMC Directive DIN EN 61000-6-3:2007 + A1:2011
DIN EN 55032:2015
2014/30/EU DIN EN 55024:2010 + A1:2015
——————————————————————————————————————————————-
Niederspannungsrichtlinie DIN EN 62368-1:2014 + A11:2017
Low-voltage Directive
2014/35/EU
——————————————————————————————————————————————-
RoHS – Richtlinie DIN EN IEC 63000:2018
RoHS Directive
2011/65/EU + 2015/863/EU
——————————————————————————————————————————————-
Bad Pyrmont, May 11, 2022
GNSS MULTI BAND Antenna Date: May 11, 2022 17
