MEITRACK MVT100 User Guide
MEITRACK MVT100 User Guide

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 2 -
Change History
File Name
MEITRACK MVT100 User Guide
Created By
Renny Lee
Project
MVT100
Creation Date
Update Date
2010-08-30
2015-08-20
Subproject
User Guide
Total Pages
13
Version
V5.3
Confidential
External Documentation

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 3 -
Contents
1 Copyright and Disclaimer...............................................................................................................................................................- 4 -
2 Product Overview ..........................................................................................................................................................................- 4 -
3 Product Function and Specifications .............................................................................................................................................- 4 -
3.1 Product Function ................................................................................................................................................................- 4 -
3.1.1 Position Tracking ......................................................................................................................................................- 4 -
3.1.2 Anti-Theft.................................................................................................................................................................- 4 -
3.1.3 Other Functions .......................................................................................................................................................- 4 -
3.2 Specifications......................................................................................................................................................................- 5 -
4 MVT100 and Accessories...............................................................................................................................................................- 5 -
5 Appearance....................................................................................................................................................................................- 6 -
6 First Use.........................................................................................................................................................................................- 6 -
6.1 Installing the SIM Card........................................................................................................................................................- 6 -
6.2 Charging..............................................................................................................................................................................- 6 -
6.3 LED Indicator.......................................................................................................................................................................- 7 -
6.4 Configured by Computer ....................................................................................................................................................- 7 -
6.5 Tracking by Mobile Phone...................................................................................................................................................- 7 -
6.6 Common SMS Commands ..................................................................................................................................................- 9 -
6.6.1 Setting a Combined Function Phone Number –A71 ...............................................................................................- 9 -
6.6.2 Setting the Smart Sleep Mode –A73 .......................................................................................................................- 9 -
7 MS03 Tracking System .................................................................................................................................................................- 10 -
8 Installing the MVT100..................................................................................................................................................................- 10 -
8.1 Installing an I/O Cable.......................................................................................................................................................- 10 -
8.2 Installation/Connection Diagram......................................................................................................................................- 11 -
8.2.1 Power Cable/Ground Wire (PIN1, PIN2) ................................................................................................................- 11 -
8.2.2 Digital Input 1 (PIN4, Negative Triggering/SOSButton) ..........................................................................................- 12 -
8.2.3 Digital Input 2 (PIN5, Positive Triggering) ..............................................................................................................- 12 -
8.2.4 Output (PIN7).........................................................................................................................................................- 12 -
8.2.5 Voltage Formula for the Built-in Battery and Extenal Power Supply......................................................................- 12 -
8.2.6 Analog Input (PIN6)................................................................................................................................................- 12 -
8.3 Mounting the MVT100 .....................................................................................................................................................- 12 -

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 4 -
1Copyright and Disclaimer
Copyright © 2015 MEITRACK. All rights reserved.
and are trademarks that belong to Meitrack Group.
The user manual may be changed without notice.
Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any
purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.
Meitrack Group shall not be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to
economic losses, personal injuries, and loss of assets and property) caused by the use, inability, or illegality to use the product
or documentation.
2Product Overview
The MVT100 is a vehicle tracker that can be used in cars, motorcycles, yachts, and boats. The MVT100’s unique design makes
its appearance cool. The product is easy to install, water resistant (IP66), dustproof, and has built-in antenna. Once installed on
a vehicle, the MVT100 is hard to be noticed. Under typhoon or rainstorm condition, the MVT100 can still works properly
3Product Function and Specifications
3.1 Product Function
3.1.1 Position Tracking
GPS + GSM dual-module tracking
Real-time location query
Track by time interval
Track by distance
Track by mobile phone
Speeding alarm
Direction change report
3.1.2 Anti-Theft
SOS alarm
Polygon geo-fence
External power supply cut-off alarm
GPS blind spot alarm
Low power alarm
Remote vehicle fuel/power cut-off alarm
Towing alarm
Engine or vehicle door status alarm
3.1.3 Other Functions
SMS/GPRS (TCP/UDP) communication (Meitrack protocol)

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 5 -
Built-in 8 MB buffer for recording driving routes
Water resistant (IP66)
Mileage report
Support Over-the-Air (OTA)
Built-in standby battery
Smart power saving mode

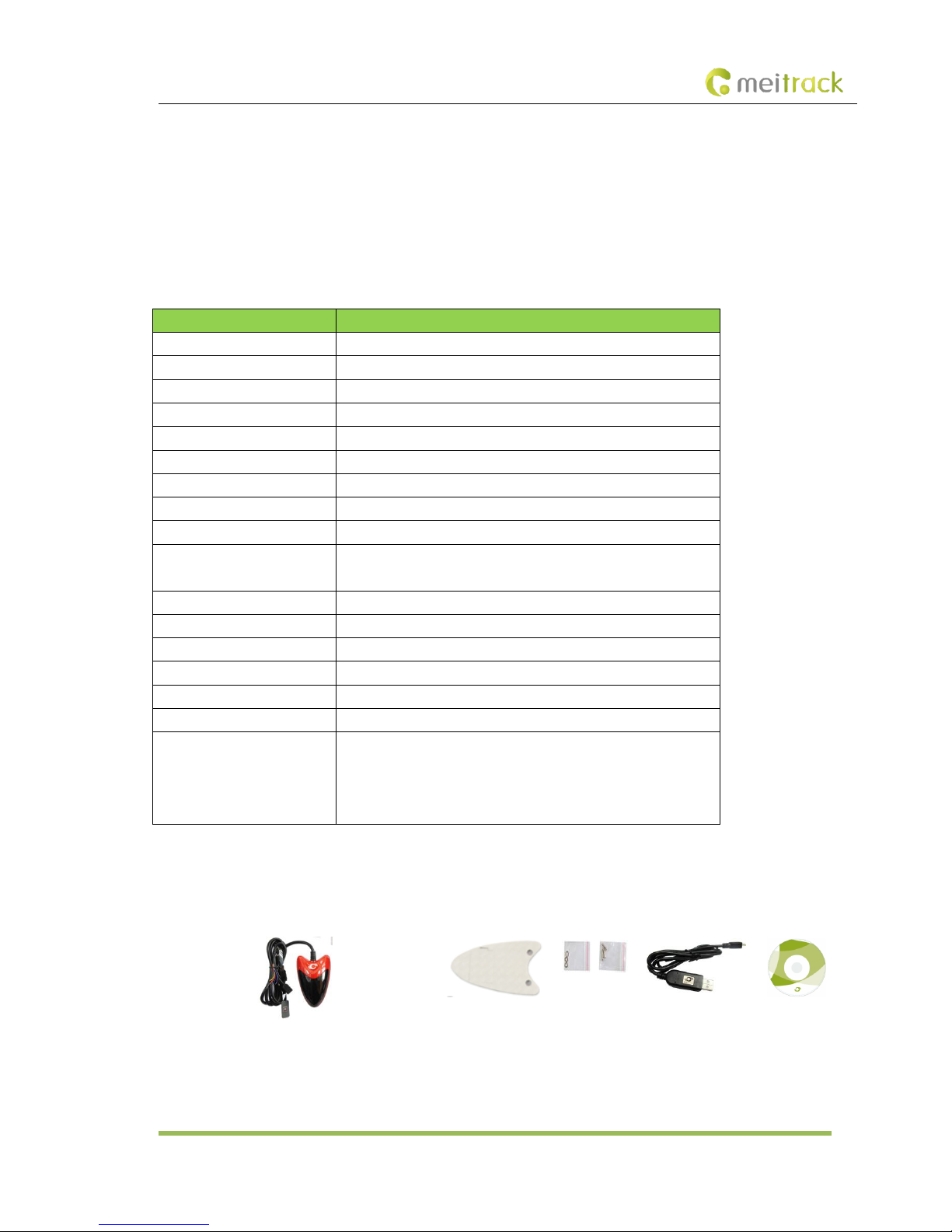

3.2 Specifications
Item
Specifications
Dimension
110 mm x 72 mm x 39 mm
Weight
170g
Input voltage
DC 11 V to 36 V/1.5 A
Standby battery
850 mAh/3.7 V
Power consumption
65 mA standby current
Operating temperature
-20°C to 55°C
Humidity
5% to 95%
Working hour
43 hours in power-saving mode and 10 hours in normal mode
LED indicator
2 indicators showing GSM and GPS status
Button/Switch
1 SOS button (for sending SMSs)
1 power button (next to the SIM card slot)
Memory
8 MB byte
Sensor
3D acceleration sensor (for wake-up by vibration and towing alarms)
GSM frequency band
GSM 850/900/1800/1900 MHz
GPS sensitivity
-161 dB
Positioning accuracy
10m
Antenna
Built-in GSM and GPS antennas
I/O port
2 inputs (1 negative input and 1 positive input)
1 analog detection input
1 output
1 USB port
4MVT100 and Accessories
MVT100 and standard accessories:
MVT100 with a battery, I/O cable, and SOS button
3M sticker
Screws
USB cable
CD

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 6 -
5Appearance
MVT100
I/O port cable
USB port
SOS
button
6First Use
6.1 Installing the SIM Card
To install the SIM card, perform the following operations:

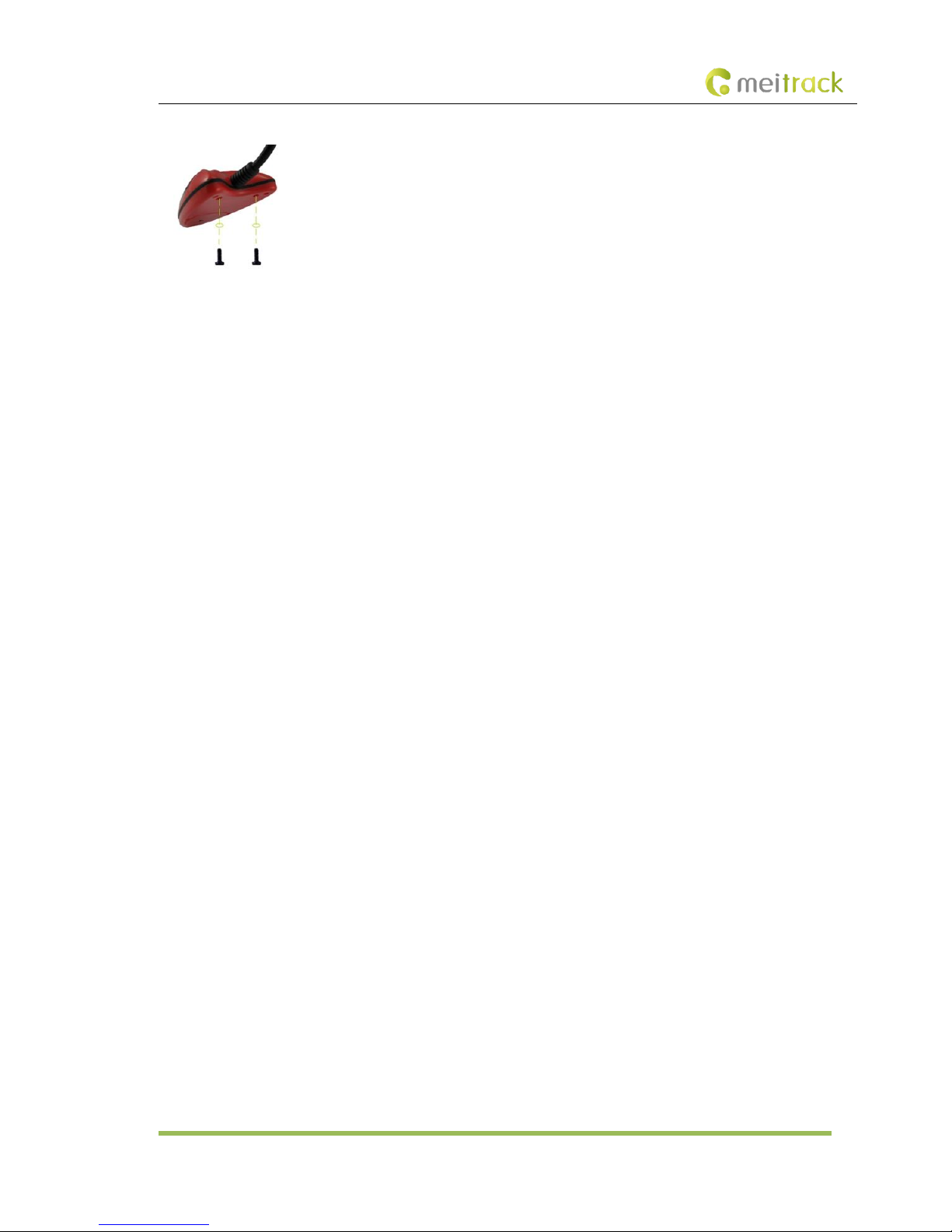

1. Loosen the screws, and remove the cover.
2. Insert the SIM card into the card slot with its gold-plated contacts facing towards the Printed Circuit Board (PCB).
3. Close the cover, and tighten the screws.
Note:
Ensure that the SIM card has sufficient balance.
Ensure that the phone card PIN lock has been closed properly.
Ensure that the SIM card in the MVT100 has subscribed the caller ID service if you want to use your authorized phone
number to call the MVT100.
Power off the MVT100 before installing the SIM card.
6.2 Charging
When you use the MVT100 for the first time, connect the MVT100 GND (-Black) and Power (+Red) wires to 12 V or 24 V
external power supply for charging. Ensure that the MVT100 is charged at least three hours. Eight hours are recommended.
The MVT100 can be installed on a vehicle only after it is configured and tested.

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 7 -
6.3 LED Indicator
To start the MVT100, press and hold down the power button for 3s to 5s, or connect the MVT100 to external power supply (11
V to 36 V).
GPS Indicator (Blue)
Steady on
One button is pressed or one input is activated.
Blink (every 0.1s)
The MVT100 is being initialized or the battery power is low.
Blink (0.1s on and 2.9s off)
A GPS signal is received.
Blink (1s on and 2s off)
No GPS signal is received.
GSM Indicator (Green)
Steady on
A call is coming in or a call is being made.
Blink (every 0.1s)
The MVT100 is being initialized.
Blink (0.1s on and 2.9s off)
A GSM signal is received.
Blink (1s on and 2s off)
No GSM signal is received.
6.4 Configured by Computer
This section describes how to use MEITRACK Manager to configure the MVT100 on a computer.
Procedure:
1. Install the USB driver and MEITRACK Manager.
2. Connect the MVT100 to a PC by using a USB cable.
3. Run MEITRACK Manager. The following dialog box is displayed:
MEITRACK Manager will automatically detect the device, and the Device tab page for default parameters is displayed.
For details about MEITRACK Manager, see the MEITRACK Manager User Guide.
6.5 Tracking by Mobile Phone
Call or send the 0000,A00 command by SMS to the MVT100 SIM card number. The device will reply an SMS with a map link.
Click the SMS link. The location will be displayed on Google Maps on your mobile phone.
Note: Ensure that the MVT100 SIM card number has subscribed the caller ID service. Otherwise, you cannot call the device.

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 8 -
SMS example:
Now,061314 10:36,V,26,0Km/h,96%,http://maps.meigps.com/?lat=22.513781&lng=114.057183
The following table describes the SMS format:
Parameter
Description
Remarks
Now
Indicates the current location.
SMS header: indicates the alarm type.
061314 10:36
Indicates the date and time in MMDDYY
hh:mm format.
None
V
The GPS is invalid.
A = Valid
V = Invalid
26
Indicates the GSM signal strength.
Value: 1–32
The larger the value is, the stronger the
signal is. If the value is greater than 12,
GPRS reaches the normal level.
0Km/h
Indicates the speed.
Unit: km/h
96%
Indicates the remaining battery power.
None
http://maps.meigps.co
m/?lat=22.513781&lng
=114.057183
This is a map link.
Latitude: 22.513781
Longitude: 114.057183
None
If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location.

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 9 -
6.6 Common SMS Commands
6.6.1 Setting a Combined Function Phone Number –A71
SMS sending: 0000,A71,Phone number 1,Phone number 2,Phone number 3
SMS Reply: IMEI,A71,OK
Description:
Phone number: A phone number has a maximum of 16 bytes. If no phone numbers are set, leave them blank. Phone numbers
are empty by default.
Phone number 1/2/3: Set phone number 1/2/3 to the SOS phone number. When you call the tracker by using the phone
number, the tracker will reply an SMS with the location and send geo-fence alarms and low power alarms.
If all combined function phone numbers need to be deleted, send 0000,A71.
When the SOS button is pressed, the tracker dials phone numbers 1, 2, and 3 in sequence. The tracker stops dialing when a
phone number responds.
Example: 0000,A71,13811111111,13822222222,13833333333
Reply: 353358017784062,A71,OK
6.6.2 Setting the Smart Sleep Mode –A73
SMS sending: 0000,A73,Sleep level
SMS Reply: IMEI,A73,OK
Description:
When the sleep level is 0 (default value), disable the sleep mode.
When the sleep level is 1, the tracker enters the general sleep mode. The GSM module always works, and the GPS module
occasionally enters the sleep mode. The tracker works 25% longer in the general sleep mode than that in the normal working
mode. This mode is not recommended for short interval tracking; this will affect the route precision.
When the sleep level is 2, the tracker enters the deep sleep mode. If the tracker is not triggered (by SOS, button changes,
incoming calls, SMSs, or vibration) after five minutes, the GPS module will stop, and the GSM module will enter sleep mode. If
the tracker is triggered, the GPS and GSM modules will be woken up.
Note: In any condition, you can use an SMS command to disable the sleep mode, and then the tracker exits the sleep mode and
returns back to the normal working mode.
Example: 0000,A73,2
Reply: 353358017784062,A73,OK
For details about SMS commands, see the MEITRACK SMS Protocol.

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 10 -
Note:
1. The default SMS command password is 0000. You can change the password by using Meitrack Manager and SMS
commands.
2. The device can be configured by SMS commands with a correct password. After an authorized phone number is set, only
the authorized phone number can receive the preset SMS event report.
7MS03 Tracking System
Visit http://ms03.meiligao.com, enter the user name and password, and log in to the MS03. (Purchase the login account from
your provider.)
For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting
Started").
The MS03 supports the following functions:
Track by time interval or distance.
Query historical traces.
Set polygon geo-fences.
Bind driver and vehicle information.
View various reports.
Send commands in batches.
Support OTA updates.
For details, see the MEITRACK GPS Tracking System MS03 User Guide.
8Installing the MVT100
8.1 Installing an I/O Cable
The I/O cable is an 8-pin cable, including the power, analog input, negative input, and output.
1
Power (+)
2
GND (-)
3
GND (-)
4
Input 1 (-)
5
Input 2 (+)
6
AD 1
7
Output 1
8
9
10
USB port
Pin
Color
Description
1 (Power +)
Red
Positive electrode of the power input, connected to the positive
electrode of the vehicle storage battery. Input voltage: 11 V to 36 V.
12 V is recommended.

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 11 -
2 (GND)
Black
Ground wire, connected to the negative electrode of the vehicle
storage battery or to the negative terminal.
3 (GND)
Black
Ground wire
It can be used as a ground wire connected to an analog sensor.
4 (Input 1)
White
Digital input, negative triggering
SOS button by default, used for asking for help
When the SOS function is not required, input 1 connects to a door
triggering signal cable to detect vehicle door status. (Most Chinese,
Korean, and Japanese cars are negative edge-triggered.)
5 (Input 2)
Purple
Digital input, positive triggering
Detect the vehicle ACC status by default.
Connects to a door triggering signal cable to detect vehicle door
status. (Most Europe and American cars are positive edge-triggered.)
6 (AD)
Blue
Analog input with 12-bit resolution and valid voltage 0–6.6 V
Connects to an external sensor, such as the fuel sensor.
7 (Output)
Yellow
Valid: low level (0 V)
Invalid: open drain
Maximum voltage for output open drain (invalid): 45 V
Maximum current for output low voltage: 500 mA
Connects to an external relay to remotely cut off the vehicle fuel
cable or engine power supply.
8/9/10 USB port
(for configuration)
Green
TTL232 receiving (MVT100 sending)
Orange
TTL232 sending (MVT100 receiving)
Black
TTL232 ground wire
8.2 Installation/Connection Diagram
8.2.1 Power Cable/Ground Wire (PIN1, PIN2)
Connect the power cable (red) and ground wire (black) to the positive and negative electrodes of the vehicle battery
respectively.

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 12 -
8.2.2 Digital Input 1 (PIN4, Negative Triggering/SOSButton)
8.2.3 Digital Input 2 (PIN5, Positive Triggering)
8.2.4 Output (PIN7)
8.2.5 Voltage Formula for the Built-in Battery and Extenal Power Supply
Built-in battery input voltage = (AD4 x 3.3 x 2)/4096
Battery percentage = [(AD4 - 2114) x 100/492] x 100%
External power supply input voltage =AD5/4096 x 3.3 x 16
8.2.6 Analog Input (PIN6)
The AD analog input can connect to a sensor whose output voltage ranges from 0 V to 6.6 V.
AD analog voltage = (AD1 x 3.3 x 2)/4096
8.3 Mounting the MVT100
Use any of the following methods to mount the MVT100:
3M sticker
Screw

MEITRACK MVT100 User Guide
Copyright © 2015 Meitrack Group All rights reserved. - 13 -
Built-in super magnet
If you have any questions, do not hesitate to email us at [email protected].
