KAP PCM 3.1 PAS-TD User manual

D A T E .
www.kaptrade.com
Korea Auto Parts
MODEL.
Instruction Manual
2019.07.10
PCM 3.1 PAS-TD
VIDEO INTERFACE
PCM-31-171026
VW Touareg RCD550 VIDEO INTERFACE
All manuals and user guides at all-guides.com
all-guides.com

Car Compatibility Sheet
VW Touareg RCD550
BRAND MODEL YEAR
Volkswagen Touareg RCD550 2010 -
Touareg RCD550 Monitor
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
Spec
1. Input Spec. (MULTI VIDEO INTERFACE)
•1 x Digital RGB Input (Navigation System source)
•1 x Analog RGB Input (Navigation System output)
•2 x A/V Input (External video source).
•1 x CVBS(REAR CAMERA) Input (Rear camera source)
•1 x CVBS(Front CAMERA) Input (Front camera source)
2. Output Spec.
•2 x CVBS Output (Video out for Installing Headrest Monitor)
•1 x Audio L/R Output
•1 x LCD Output (LCD Operation)
•1 x Virtual Analog Touch (Navigation System source)
•1 x UART Digital Touch (Navigation System source)
3. Power Spec.
•Input Power : 8VDC ~ 24VDC
•Consumption Power : 12Watt, Max
4. Switch Input Mode
•Possible to select CAR model while switching mode by DIP S/W
•By button on the Commander in the car via CAN
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
External Appearance
PROGRAMDIP S/WIMAGELED
Power/CAN TouchDigital
RGB
Analog
RGB
Mode
S/W
AV
(IN/OUT)
LCD-OUT
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
Connector Pin Assignment
1POWER Connect (10Pin)
12345678910
■■■■■■■■
RED BLACK ORANGE GREEN RED ORANGE BLUE RED
ACC GND CAN-H CAN-L REAR VCC N.C REAR DET N.C
FRONT DET
FRONT VCC
No
Color
Connect
1234
2TOUCH Connect (4Pin)
1 2 3 4
■■■■
RED GREEN BLUE WHITE
Y- X- Y+ X+
No
Color
Connect
1234567
3NAVI Connect (7Pin)
1 2 3 4 5 6 7
■■■■■■■
RED GREEN BLUE WHITE BLACK GREEN ORANGE
R DATA G DATA B DATA SYNC GND DVB-T IR DVD IR
No
Color
Connect
123
123456789
10
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
Product Composition
Interface Power Cable SUB Board
A/V Cable Touch FFC Cable - 2 Mode S/W
OSD Board LVDS Cable(800mm) RGB NAVI Cable
OSD Board
All manuals and user guides at all-guides.com
all-guides.com

PCM 3.1 PAS-TD
Car Type Select
Dip Switch Setting
PIN FUNCTION DIP S/W Selection
1 NAVI ON : Not Used
OFF : Used
2 DVB-T(AV1) ON : Not Used
OFF : Used
3 DVD(AV2) ON : Not Used
OFF : Used
4 N.C
5 N.C
6CAR type SEL Bottom Picture
7
8 N.C
OFF : ▲UP
ON : ▼DOWN
Volkswagen
Touareg 6.5” RCD550
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
Mode Change
Mode Change Button
Steering wheel button
•Other button changed to OEM screen
Mode Change Sequence
OEM NAVI
(ROiK-10)
AV1
(DVBT)
AV2
(DVD)
OEM
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
Touch Control
Touch Calibration / DVBT, DVD Control
Press Touch (Anywhere) Press Icon
•Touch the screen for 11 seconds
Method 1 Method 2
OR
•+ Touch according to the
shape coordinates.
Touch Calibration
•OSD menu ▶Utility ▶Calibration
DVBT
DVD
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
OSD Control
OSD(On Screen Display) Control Board
MENU SEL UP DOWN
First Menu Second Menu Third Menu
Mode State
MENU •The OSD screen can be switched ON/OFF
•Return to previous menu
SEL •Select the currently active item
•If the OSD screen is off, mode changes can be made.
UP •Move up from the menu
•Increase the selected item value
DOWN •Move down from the menu
•Decrease the selected item value
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
OSD Control
Config
First Menu Second Menu Third Menu Description
Config
NAVI-RGB
DIGTAL-
INAVI
:
Setting the Connected NAVI Model
DVB-T(DMB) ELT_DVBT20
:Setting the Connected DVB-T Model
DVD
ELT_980XU
Slim
:
Setting the Connected DVD Model
Reset Execute Reset to default value of Config menu
All manuals and user guides at all-guides.com
all-guides.com

PCM 3.1 PAS-TD
OSD Control
Option
First Menu Second Menu Third Menu Description
Option
RearCam-Type
OEM Original Camera
ExtDevice Equipped with external camera
RearCam-Power
ON + 12V continuous supply
AUTO + 12V supply only in Rear camera mode
OFF + 12V off
RearCam-Det
GEAR Detected by CAN
WIRE Detected by Rear-Det Wire
FrontCam-Type
OEM Original Camera
ExtDevice Equipped with external camera
FrontCam-Power
ON + 12V continuous supply
AUTO + 12V supply only in Front camera mode
OFF + 12V off
FrontCam-Det
CAN Detected by CAN
WIRE Detected by Front-Det Wire
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
OSD Control
Option
First Menu Second Menu Third Menu Description
Option
FrontCam-
RcvOpt
ON After RearCam shows FrontCam and
returns to previous state
OFF Disable feature
StreeingWheelBt
n
ON Use the Streeing Wheel Button.
OFF Disable feature
AV OUT
AV1 In the OEM, NAVI, AV1, FRONT, and REAR
modes, the output of AV OUT is set to AV1
.
AV2 In the OEM, NAVI, AV2, FRONT, and REAR
modes, the output of AV OUT is set to AV2
.
USER
In the OEM, NAVI, FRONT, and REAR
modes, output the output of AV OUT to
the final screen.
UI DVB-T (DMB)
ON DVB-T device control UI output function
OFF Disable feature
UI DVD
ON DVD device control UI output function
OFF Disable feature
NAVI COM
HMS
FINE
:
Set up manufacturer of woodworking
device for UART Touch use
OFF Disable feature
Reset Execute Option Menu all Reset
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
OSD Control

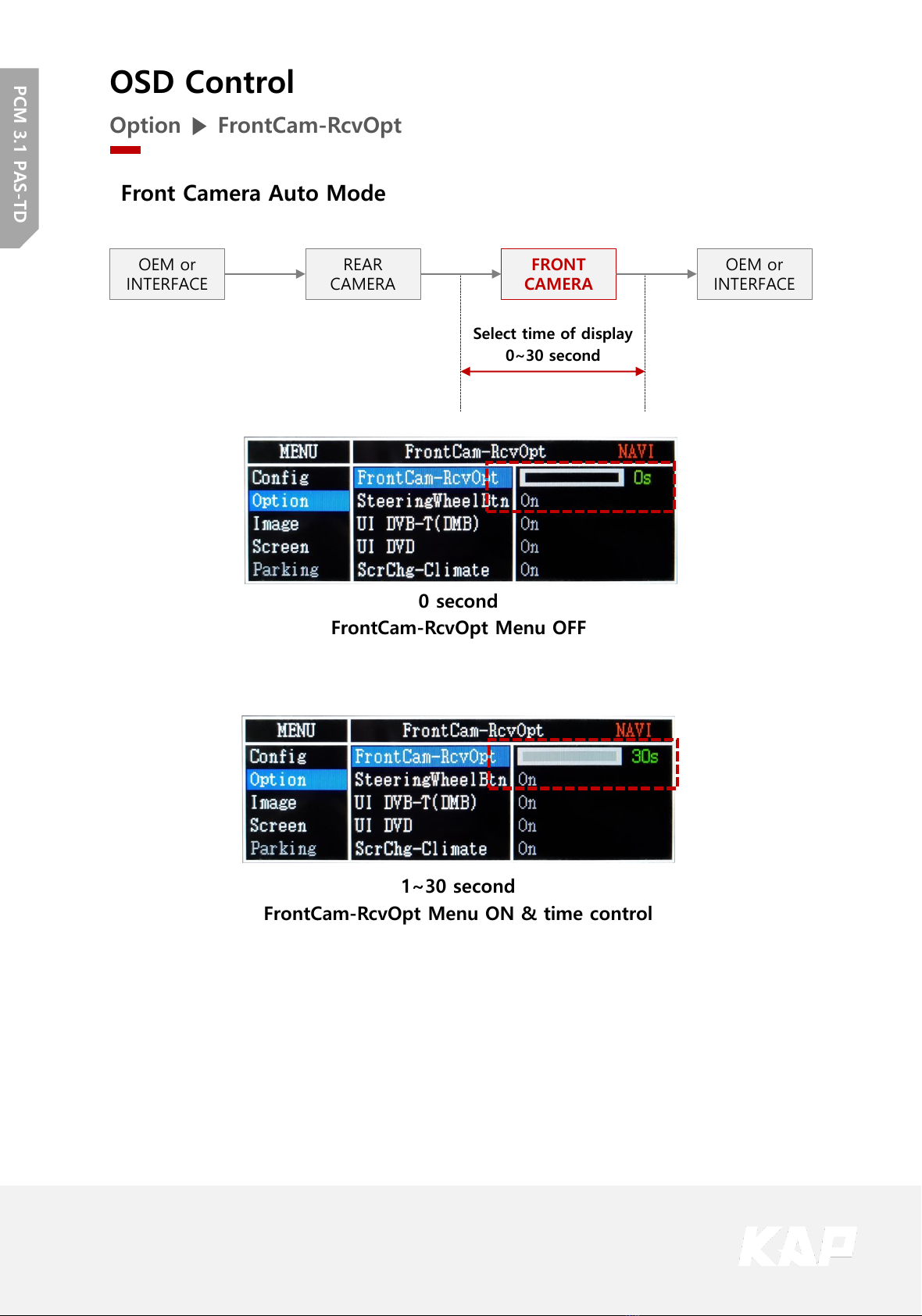

Option ▶FrontCam-RcvOpt
Front Camera Auto Mode
1~30 second
FrontCam-RcvOpt Menu ON & time control
OEM or
INTERFACE
REAR
CAMERA
FRONT
CAMERA
OEM or
INTERFACE
Select time of display
0~30 second
0 second
FrontCam-RcvOpt Menu OFF
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
Contrast
Brightness
Saturation
OSD Control
First Menu Second Menu Third Menu Description
Brightness Adjust the value of brightness
Contrast Adjust the value of contrast
Color-RED Adjust the value of RED
Color-GREEN Adjust the value of GREEN
Color-BLUE Adjust the value of BLUE
Reset Execute Option Menu all Reset
NAVI –RGB Menu
First Menu Second Menu Third Menu Description
Brightness Adjust the value of brightness
Contrast Adjust the value of contrast
Saturation Adjust the value of Saturation
Hue Adjust the value of Hue
Sharpness Adjust the value of Sharpness
Reset Execute Option Menu all Reset
DVD / DVBT / NAVI-AV,REAR,FRONT Menu
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
OSD Control
Screen
First Menu Second Menu Third Menu Description
Screen
Horizontal Output screen horizontal movement
Vertical Output screen vertical movement
Scale X Up
Reduce / increase output screen width
Scale X Down
Scale Y Up
Reduce / Increase Output Screen Height
Scale Y Down
Reset Screen menu all reset
All manuals and user guides at all-guides.com
all-guides.com

PCM 3.1 PAS-TD
OSD Control
Parking
First Menu Second Menu Third Menu Description
Parking
OPS Display
ON Show OPS
OFF Do not show OPS
Line Display
ON Show parking line
OFF Do not show parking lines
Warnings Lang Set warning text language
Horizontal Moving a parking line horizontally
Vertical Moving a parking line vertically
Transparency Parking line transparency
Reset Parking menu all reset
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
OSD Control
Parking –PDC Display / Guide Line ON/OFF
OPS ON Screen OPS OFF Screen
Parking Line ON Screen Parking Line OFF Screen
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
OSD Control
Parking –Change warning message language
All manuals and user guides at all-guides.com

PCM 3.1 PAS-TD
OSD Control
Parking –Adjust the position of parking guideline
•Pressing this Horizontal / Vertical menu, The OSD screen automatically disappears.
•Possible to adjust the position of parking guide line by Keypad in Horizontal /
Vertical menu
•Please adjust from the parking line Screen.
MENU SEL UP DOWN
Press “UP” Button
Press
“MENU”
Button
Press
“SEL”
Button
Press “DOWN” Button
