Meler MICRON+ TPD User manual

ADHESIVE
MELTER
MICRON+TPD
INSTRUCTIONS
MANUAL
MA-5160-ENG 140920
GLUING SOLUTIONS

Published by:
Focke Meler Gluing Solutions, S.A.
Pol. Arazuri-Orkoien, c/B, nº3 A
E-31170 Arazuri - Navarra - Spain
Phone: [phone]
[e-mail] - www.meler.eu
Focke Group
Edition september 2020
© Copyright by Focke Meler
All rights reserved. Its reproduction, diffusion or use by electronic or other
means of all or any part of this document without the express authorization of
its owner is strictly prohibited.
The specifications and information contained in this manual may be modified
without prior notice.
The official language of this manual is only the English language. The
remaining versions of the manual in other languages are mere translations
without any official value or efficacy. In case of discrepancies or contradictions
between the English version of the manual and any other version of the manual
written in another language, the English version will prevail.
MELTERS
EXXXXXX

MA-5160-ENG MICRON+TPD ADHESIVE MELTERTABLE OF CONTENTS
TABLE OF CONTENTS
1. SAFETY GUIDELINES 1-1
General 1-1
Symbols 1-1
Mechanical components 1-2
Electrical components 1-2
Hydraulic components 1-2
Pneumatic components 1-2
Thermal components 1-3
Materials 1-3
Noise emission declaration 1-3
Intended use 1-4
Limited use 1-4
2. INTRODUCTION 2-1
Description 2-2
Modes of operation 2-2
Hot-melt melter identification 2-2
Micron+ TPD series range 2-3
Main components 2-4
Control panel components 2-5
Automatic feeder main components (optional) 2-6
General 2-6

FOCKE MELER GLUING SOLUTIONS TABLE OF CONTENTS
3. INSTALLATION 3-1
Introduction 3-1
Installation requirements 3-1
Free space 3-1
Electrical Consumption 3-2
Compressed air 3-2
Other factors 3-3
Unpacking 3-3
Contents 3-3
Mounting the equipment 3-3
Electrical power connection 3-4
Pneumatic connection 3-4
Hose and applicator connection 3-4
Automatic feeder assembly 3-5
Electrical connections 3-5
Pneumatic connection 3-5
Suction tube connection 3-6
Placing the suction tube 3-6
Parameter Programming 3-6
External I/O connections 3-7
Pressure value reading connection 3-8
Pressure sensor connection 3-8
Description of I/O Connections 3-9
Solenoid valve without manual override 3-10
4. MELTER OPERATION 4-1
General information 4-1
Filling the tank 4-2
Manual starting up the melter equipment 4-2

MA-5160-ENG MICRON+TPD ADHESIVE MELTERTABLE OF CONTENTS
Manual pumping permmision 4-3
Melter equipment display 4-4
General characteristics 4-5
Navigation icons 4-5
Save changes 4-5
Explanation of the screen contents 4-5
Home display 4-6
General temperature status 4-6
Alarms status 4-7
Calendar status 4-7
Adhesive level status 4-7
Pumping status 4-8
Temperature status 4-8
Temperature and Heating Shortcut displays 4-9
Programming of temperatures 4-10
Programming of statuses 4-10
Calendars 4-10
Units and Language Menu 4-11
Date and time configuration 4-11
Alarms and warnings 4-12
Main Menu 4-12
‘1. Heating’ Menu 4-13
1.1 Heating zones 4-13
1.2 Sequential Heating 4-14
1.3 Inhibitions 4-14
1.4 Auto Standby - OFF 4-15
1.5 Extra temperature settings 4-16

FOCKE MELER GLUING SOLUTIONS TABLE OF CONTENTS
‘2. General settings’ Menu 4-17
2.1 Password management 4-17
2.2 Extra settings 4-18
2.3 Configuration of input and output signals 4-19
2.4 Restore default values 4-19
‘3. Statistics’ Menu 4-20
‘4.Charge’ Menu 4-20
Screen 1: Minimum adhesive level sensor 4-20
Screen 2: Automatic adhesive feeder 4-20
Automatic pumping block function 4-21
‘Automatic pumping block’ enabled 4-21
‘Automatic pumping block’ disabled 4-22
‘Turning off after resetting’ function 4-23
‘Turning off after resetting’ enabled 4-23
‘Turning off after resetting’ disabled 4-24
Configuration of turning on and activating pumping 4-24
Wireless communication (Wi-Fi) 4-26
Connection configuration 4-26
Standby function 4-27
Use of the automatic feeder 4-28
Start up and automatic process 4-28
Sensitivity adjustment 4-29
Positioning of the level sensor 4-29
Turning off the melter equipment 4-30
Use of hydraulic pressure display 4-30
Switching on and using the instrument 4-31
Pressure display programming 4-32
Application for PC 4-34

MA-5160-ENG MICRON+TPD ADHESIVE MELTERTABLE OF CONTENTS
5. MAINTENANCE 5-1
Equipment cleaning 5-1
System depressurisation 5-2
Access to pneumatic unit 5-3
Maintenance of the filters 5-3
Changing the pump filter 5-3
Changing the inlet filter 5-4
Cleaning the tank 5-5
Changing adhesive type. 5-5
Cleaning burnt adhesive 5-5
Emptying the tank 5-6
Safety Thermostat 5-6
Automatic feeder maintenance
5-7
Cleaning of the unit 5-7
Pneumatic system 5-7
Control of the load sensor 5-8
Inspection of the aspiration tube 5-8
Filter maintenance 5-8
Control of pneumatic vibrator 5-8
Sensitivity adjustment of the capacitive sensor 5-9
Sensitivity adjustment of the Tank capacitive sensor 5-9
Sensitivity adjustment of the automatic feeder capacitive sensor 5-10
Verification of the Tank sensor regulation 5-10
Remove the equipment from its base 5-11
Verification of the automatic feeder capacitive sensor regulation 5-11

FOCKE MELER GLUING SOLUTIONS TABLE OF CONTENTS
6. TECHNICAL CHARACTERISTICS 6-1
Generals 6-1
Dimensions 6-1
Automatic Feeder 6-3
7. ELECTRICAL DRAWINGS 7-1
8. PNEUMATIC DIAGRAM 8-1
Components list 8-1
7 cm3/stroke pump 8-1
Pneumatic connection for 7 cm3/stroke PUMP 8-2
Pneumatic diagram for 7 cm3/stroke PUMP 8-3
Pneumatic diagram automatic feeder 8-4
9. SPARE PARTS LIST 9-1
A. TANK ASSEMBLY 9-4
B. DISTRIBUTOR UNIT 9-5
C. PUMP ASSEMBLY 9-6
D. PNEUMATIC UNIT ASSEMBLY 7cc 9-7
E. CHASSIS ASSEMBLY 9-8
F. ELECTRONIC ASSEMBLY 9-9
G. ELECTRIC ASSEMBLY 9-10
H. FILTER- SENSOR ASSEMBLY 9-11
I. SUCTION TUBE 9-12
J. VALVE ASSEMBLY 9-13

MA-5160-ENG MICRON+TPD ADHESIVE MELTERTABLE OF CONTENTS
FCC - REGULATORY NOTICES 10-1
RF exposure safety 10-1
Class A device notice 10-1
ISED - REGULATORY NOTICES 10-2
RF exposure safety 10-2
CAN ICES-003 10-2
AVIS DE CONFORMITÉ RÉGLEMENTAIRE - ISED 10-3
Sécurité d'exposition aux RF 10-3
CAN NMB-003 10-3
EC DECLARATION OF CONFORMITY 11-1

FOCKE MELER GLUING SOLUTIONS TABLE OF CONTENTS
This page is intentionally left blank.

MA-5160-ENG MICRON+TPD ADHESIVE MELTERSAFETY GUIDELINES
1-1
1. SAFETY GUIDELINES
General
The information contained in this section applies not only to everyday
equipment operation, but also to any procedure carried out on it, whether for
preventive maintenance or in the case of repairs and the replacement of worn
out parts.
It is very important to observe the safety warnings in this manual at all times.
Failure to do so may result in personal injury and/or damage to the equipment
or the rest of the installation.
Before beginning work on the equipment, read this manual carefully, and in
case of any doubt, contact our Technical Service Center. We are available for
any clarification that you might need.
Keep manuals in perfect condition and within reach of personnel that use the
equipment and perform maintenance on it.
Also provide necessary safety material: appropriate clothing, footwear, gloves
and safety glasses.
In all cases, observe local regulations regarding risk prevention and safety.
Symbols
The symbols used on both the melter/applicator equipment and in this manual
always represent the type of risk we are exposed to. Failure to abide by a
warning signal may result in personal injury and/or damage to the equipment
or the rest of the installation.
Warning: Risk of electrical shock. Carelessness may produce injury or death.
Warning: Hot zone with high temperatures. Risk of burns. Use thermal
protective equipment.
Warning: System under pressure. Risk of burns or particle projection. Use
thermal protective equipment and glasses.
Warning: Important information for the correct use of the system. May include
one or several of the previous hazards, and therefore must be kept in mind to
avoid damage and injury.
Warning: Dangerous area. Risk of entrapment. Carelessness may produce
injury or death.

FOCKE MELER GLUING SOLUTIONS
1-2
SAFETY GUIDELINES
Mechanical components
The hot-melt installation, which is installed to this device, requires moving
parts that can cause damage. Use the equipment correctly, and do not remove
the safety guards while the equipment is in operation; prevent the risk of
possible entrapment due to moving mechanical parts.
Do not use the equipment if the safety devices are not in place or appear to be
inadequately installed.
For maintenance or repair operations, stop the movement of moveable parts
by turning off the main switch.
The device has no moving mechanical parts, so it does not pose risks to
consider in this section.
Electrical components
The system works with single-phase or three-phase current of a certain
power. Never handle the equipment with the power connected, as this may
result in powerful electrical shocks.
The installation must be correctly grounded.
The installation’s power cable conductors must match the required electric
current and voltage.
Periodically inspect the cables to check for crushing, wear and tear, as well as
to prevent tripping and falls as a result of their placement.
Although the system meets EMC requirements, it is inadvisable to use
devices that transmit high levels of radiation, i.e., mobile phones or soldering
equipment in their vecinity.
Hydraulic components
As this is a pressurized system, precautions related to this type of equipment
must be observed.
Before each operation, always make sure that the adhesive circuit is
completely free of pressure. There is a high risk of hot particle projection,
along with the corresponding danger of burns.
Use caution with the residual pressure that may remain in the hoses when the
adhesive cools. When reheated, there is a risk of hot particle projection if the
outputs are left open.
Pneumatic components
Some equipment uses compressed air to 6 bar pressure. Before any
manipulation, please ensure that the circuit has lost fully air pressure. The
risk of projection of particles at high speed can cause injury to a certain
severity.
Extreme precautions with the residual pressure that could be contained in the
circuit, before disconnecting any pneumatic feeding tube.

MA-5160-ENG MICRON+TPD ADHESIVE MELTERSAFETY GUIDELINES
1-3

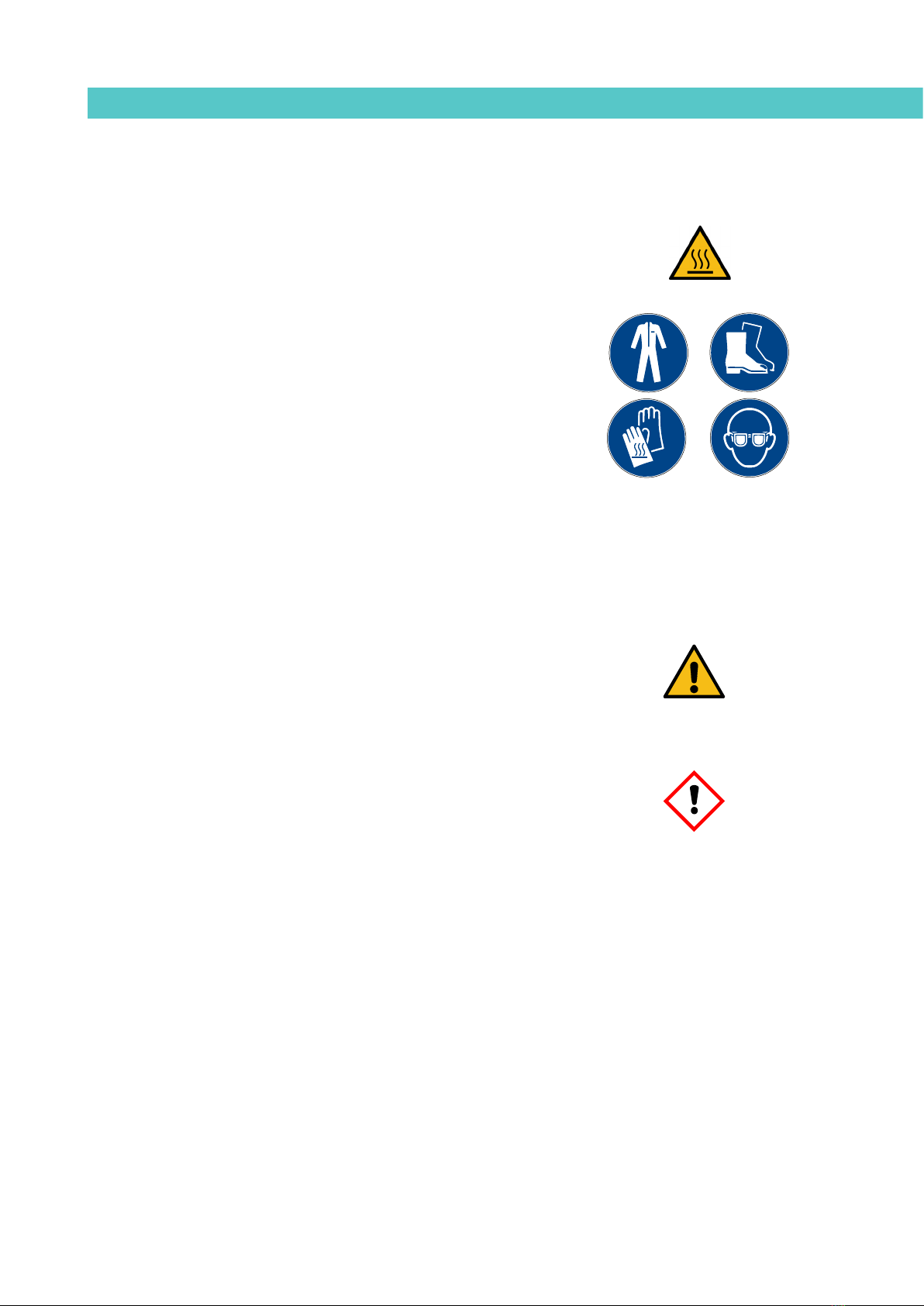

Thermal components
The entire system works with temperatures that can exceed 200°C (392°F).
The equipment must be operated using adequate protection (clothing,
footwear, gloves and protective glasses) that completely cover exposed parts
of the body.
Keep in mind that, due to the high temperatures reached, the heat does not
dissipate immediately, even when the power (in this case, electric) source is
disconnected. Therefore, use caution, even with the adhesive itself. It may
remain very hot, even in a solid state.
In case of burns:
1. If the burn is the result of contact with melted adhesive, do not try to
remove the adhesive material from the skin. Do not try to remove it once
it has solidified either.
2. Cool the affected area down immediately with lots of cold and clean water.
3. Seek medical attention as soon as possible either from the company’s
medical service or the nearest hospital. Provide the medical staff with the
Safety Information Sheet of the adhesive.
Materials
Meler systems are designed for use with hot-melt adhesives. They should
not be used with any other type of material, and especially not with solvents,
which may cause personal injury or damage to internal system components.
Some units are specifically designed to use polyurethane reactive (PUR) hot-
melt adhesives. Using PUR on a unit that is not prepared for that purpose may
cause severe damage to the unit.
When using adhesive, follow the corresponding guidelines found in the
Technical and Safety Sheets provided by the manufacturer. Pay special
attention to the advised work temperatures in order to prevent adhesive
burning and degradation.
Ventilate the work area adequately in order to remove the vapors produced.
Avoid the prolonged inhalation of these vapors.
Always use original Meler components and replacement parts, which
guarantee the correct system operation and service.
Noise emission declaration
The A-weighted emission sound pressure level (LpA) of the unit in operation
does not exceed 70 dB(A) under any circumstances.
The maximum C-weighted sound pressure level (LpCpeak) and the A-weighted
sound power level (LWA) do not exceed values worthy of mention and thus do
not represent a specific risk that must be taken into account.

FOCKE MELER GLUING SOLUTIONS
1-4
SAFETY GUIDELINES

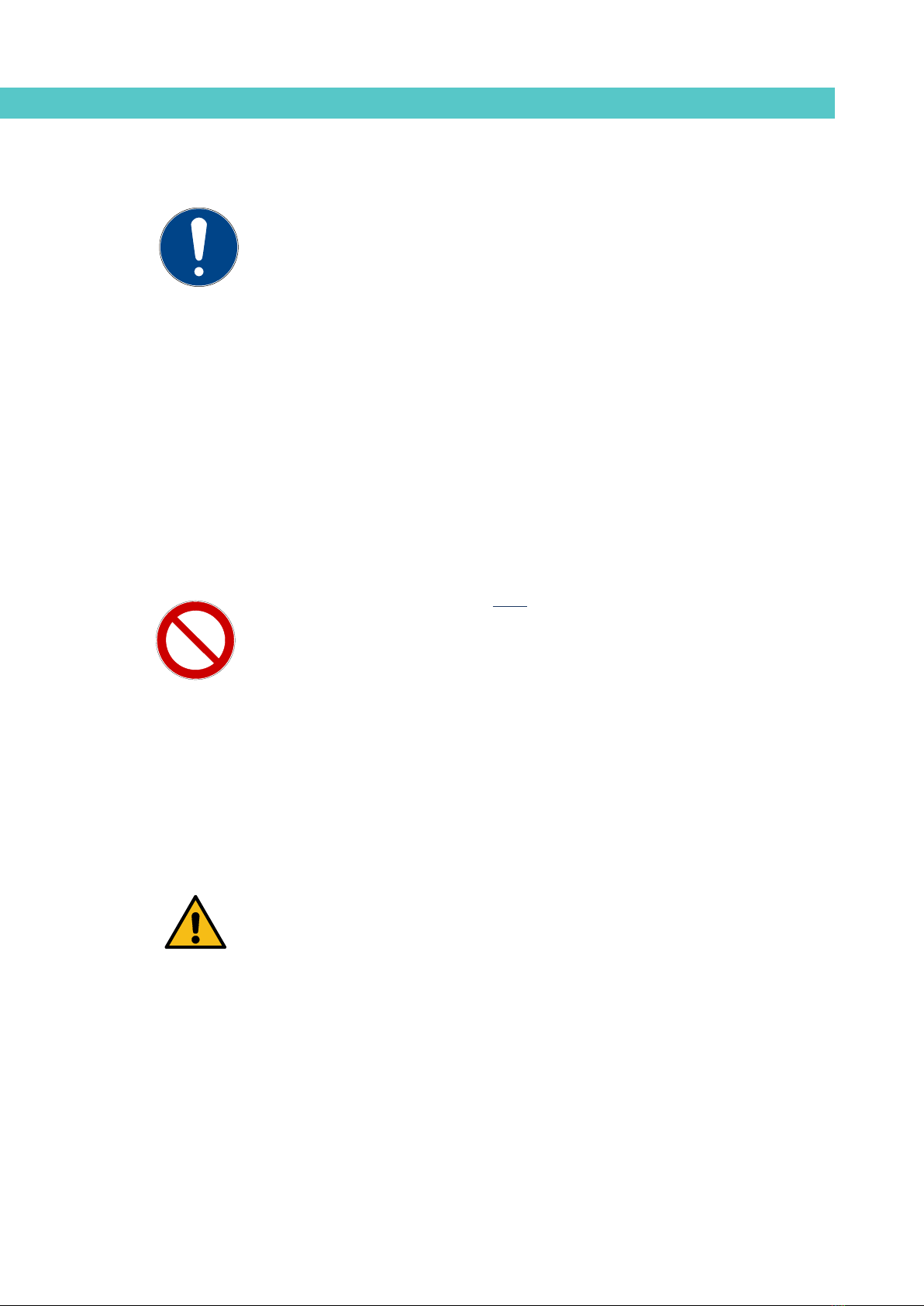

Intended use
The equipment are designed to be used in the following conditions:
• Hot-melt adhesive fusion and pumping at temperatures up to 200 °C
(392 ºF). Consult with Meler technical service to operate with higher
working temperatures.
• Use of equipment with Meler accessories.
• Installation of equipment according to the security regulations
currently in force and the instructions provided in this manual
(anchoring, electrical connection, hydraulic connection, etc).
• Use of equipment in non-explosive, non-chemically aggressive
environments.
• Use of equipment following the safety instructions indicated in this
manual, as well as on the labels accompanying the equipment, using
adequate means of protection during each mode of operation.
Limited use
The equipment should never be used under the following conditions:
• Use with reactive polyurethane or any other material that might cause
safety or health risks when heated.
• Use of equipment in environments where cleaning is necessary using
water jets.
• Use of equipment to heat or melt food products.
• In potentially explosive atmospheres, aggressive chemical
environments or outdoors.
• Use or operation without adequate safety protection.
• If the person in question does not have the necessary training to use
the unit or to apply all of the necessary safety measures.
Note: Do not modify the equipment or use components that were not supplied
by Meler. For any modification of a component of the equipment or part of the
installation, you must firstly consult the After-Sales Service

MA-5160-ENG MICRON+TPD ADHESIVE MELTERINTRODUCTION
2-1
2. INTRODUCTION
In this manual you will find information about the installation, use and
maintenance of the hot-melt adhesive melter in meler’s Micron+ TPD model.
Most of the photographs and illustrations that appear in this manual refer to
the 5-liter ‘Micron+’ standard melter. This model has been used as a reference
for writing this manual as its main characteristics.

FOCKE MELER GLUING SOLUTIONS
2-2
INTRODUCTION
Description
The ‘MICRON+’ are designed for use with ‘meler’ hoses and applicators in hot-
melt adhesive applications. Their different variations – line, coating or swirl-
spray – cover a wide range of applications, being very versatile in all markets
where they are used.
Modes of operation
The unit has the following operating modes:
• READY Mode (Prepared). The melter keeps the components hot at the
programmed working temperature. The pump is kept idle, awaiting an
adhesive pump request.
• RUNNING Mode (in Operation). The unit pumps adhesive, and all
programmed working conditions are correct.
• STOPPED Mode (Pumping disabled). The pump is kept disabled until the
pump is either manually or automatically activated.
• Heating Mode. The unit heats the areas up to the programmed
temperature. The pump is kept disabled.
• STANDBY Mode (Low consumption). The melter remains in standby while
maintaining all active areas at a programmable temperature. The pump
remains disabled.
• WARNING Mode. The melter detects an incorrect operation or warns the
operator about the event. The unit can continue to operate.
• ALARM Mode. The melter detects an operation error or warns the
operator about the event. Depending on the type of alarm, the unit may
continue to operate for a programmed amount of time.
• ERROR Mode. The melter detects an operation error or warns the
operator about the event. The unit cannot continue to operate, and
pumping is stopped immediately. Depending on the type of error, the unit
disconnects heating from all the areas.
• OFF Mode. The unit remains off with no areas heated and the pump
disabled. The power and pneumatic supply from the network to the unit is
maintained.

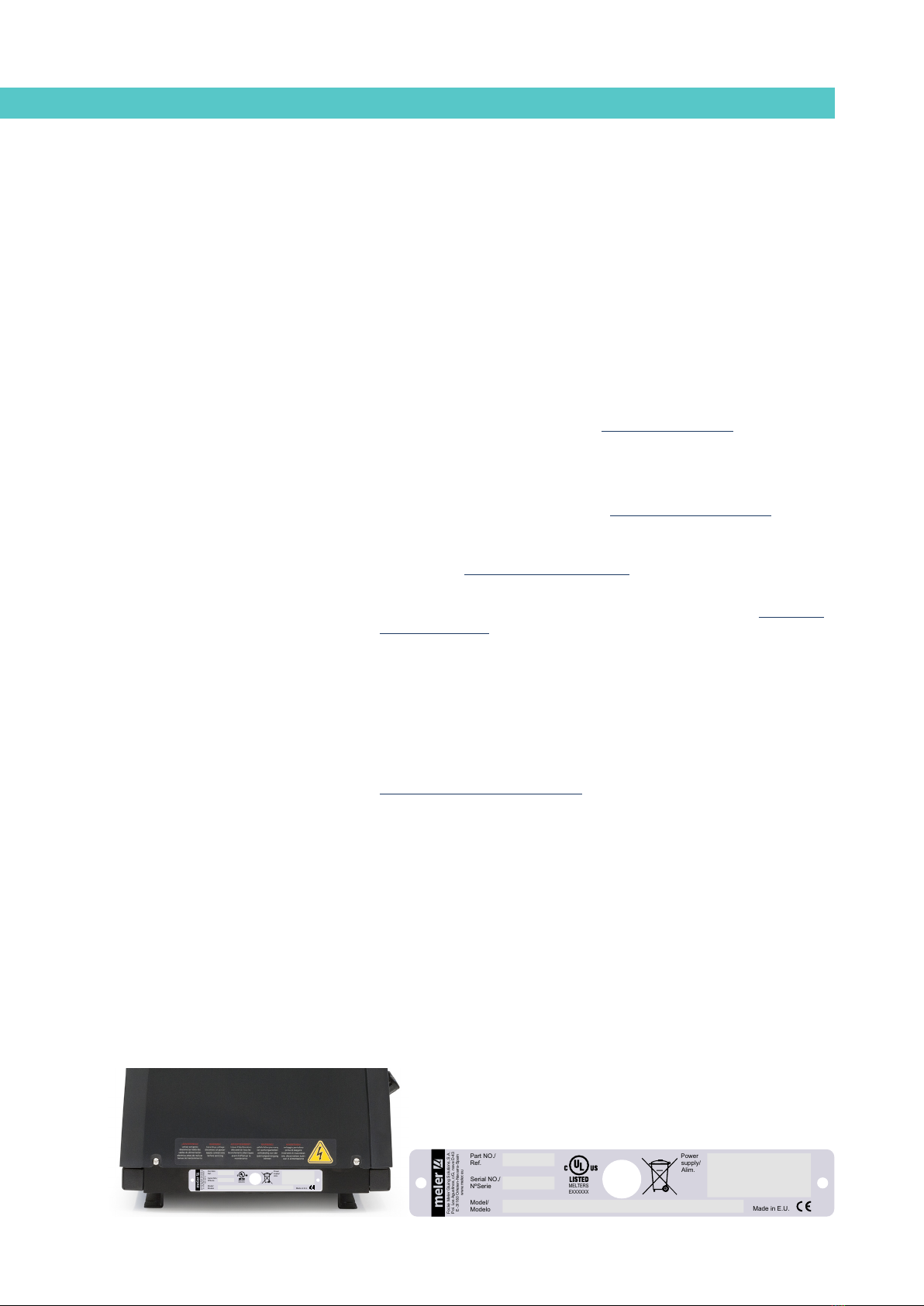

Hot-melt melter identification
When placing orders for replacement parts or requesting help from our
service center, you should know the model and reference number of your hot-
melt melter
This data as well as further technical information can be found on the type
plate, which is attached to the side of the base of the melting unit.
Focke Meler Gluing Solutions, S.A.
Pol. Los Agustinos, c/G, nave D-43
E-31160 Orkoien-Navarra-Spain
www.meler.eu
Part NO./
Ref.
Serial NO./
NºSerie
Model/
Modelo
Power
supply/
Alim.
Made in E.U.
MELTERS
EXXXXXX
FockeMeler Gluing Solutions, S.A.
Pol.Los Agustinos, c/G, nave D-43
E-31160Orkoien-Navarra-Spain
www.meler.eu
Part NO./
Ref.
Serial NO./
NºSerie
Model/
Modelo
Power
supply/
Alim.
Made in E.U.
MELTERS
EXXXXXX

MA-5160-ENG MICRON+TPD ADHESIVE MELTERINTRODUCTION
2-3
Micron+ TPD series range
MICRON+ 5
MICRON+ series
Tank capacity _ 5: 5kg • 10: 10kg
2 M01 200 BP 7 400N
Electrical outputs _ 2 • 4
Sensory type _ M01: Pt100 • N01: Ni120
Maximum temperature _ 200: 200°C
Pump size _ 7: 7cc/stroke
Power supply _ 400: 3N~400V 50Hz + PE
/CG LD2 VP MB TPD UL
Lid _ (in blank): Standard lid • CG: with granulate feeder installed
Level detector _ (in blank): Prepared for floating detector •
LD2: with capacitive detector installed
Pressure proportional system _ (in blank): Not prepared for
proportional valve • VP: Prepared for proportional valve
Communications _ (in blank): No communication •
MB: ModBus • PB: ProfiBus
-
Certifications _ (in blank): CE • UL: UL
Pump type _ BP: piston
Application _ TPD: Tabacco Products Directive

FOCKE MELER GLUING SOLUTIONS
2-4
INTRODUCTION

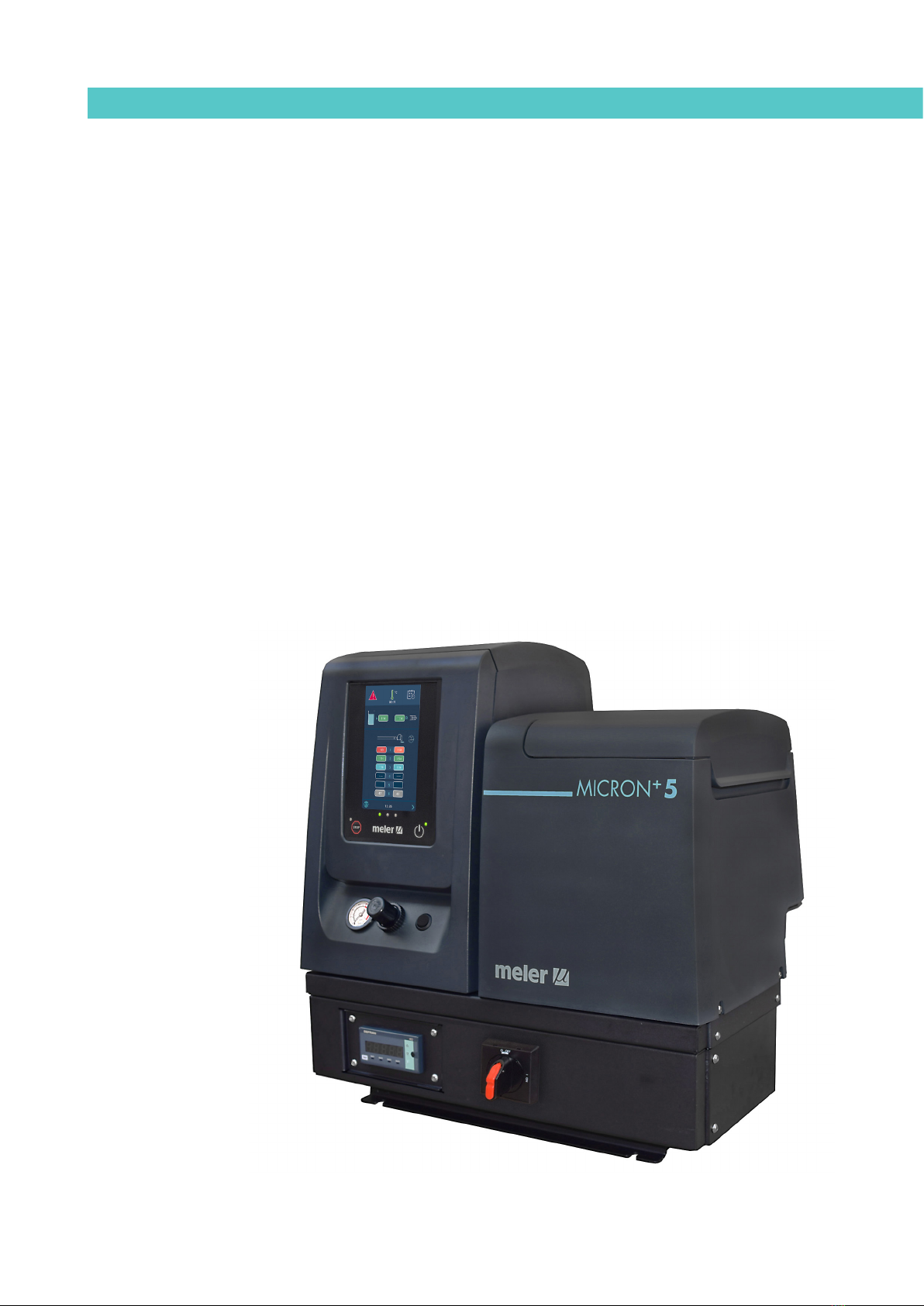

Main components
1. Front control card.
2. Access door to the electric/pneumatic area.
3. Tank access lid.
4. Air pressure gauge.
5. Hydraulic pressure display.
6. Pump air pressure regulator.
7. Main switch.
8. Set of pump drain valve and filter.
9. Hose output distributor (6 hydraulic connections).
10. Compressed air hook-up (Max. 6 bar).
11. Hose electrical connections. (Up to 6 electrical connections).
12. Electrical power connector.
13. External I/O connector.
14. Characteristics plate.
15. Hose output protection.
8 9 13121110
14
1
4 5 6 7
2 3 15

MA-5160-ENG MICRON+TPD ADHESIVE MELTERINTRODUCTION
2-5
Control panel components
1. Touch screen.
2. Status central leds (GREEN, YELOW, RED).
3. RED led ‘pumping OFF’.
4. STOP button ‘manual pumping’.
5. GREEN led ‘power ON’.
6. Touch screen ON/OFF button.
1
2
3
4 5
6

FOCKE MELER GLUING SOLUTIONS
2-6
INTRODUCTION
Automatic feeder main components (optional)
General
1. Flexible Load Tube
2. Rotary fitting
3. Unload Filter
4. Load Sensor
5. Tank access lid
6. Output air supply to the suction area
7. Electric load valve
8. Input air supply (from the grid)
9. Junction box
10. Level sensor amplifier
11. Sensor and power supply connector
12. Pneumatic vibrator
13. Suction area
14. Air feeding tube
16
4
11
12 13 14
2
3
10
4
7
5
8
9
