Memorex MMP8002 Series User manual

1
TABLE OF CO TE TS
Precautions......................................................2
FCCDeclaration..................................................3
EIAGuidelines ...................................................4
LocationofControls...............................................6
ChargingtheBattery...............................................7
Installing the Software ............................................8
• Installing Windows Media Player 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
• Installing Windows Media Player 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Downloading and Transferring Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Operation ......................................................18
• TurningthePowerOn/Off........................................18
• oldSwitch...................................................18
• eadphonesJack..............................................18
• ToListentoMP3s/WMAs........................................19
• ToPausePlayback.............................................20
• To Select/Browse Through the Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
• Forward/ReverseSkip ..........................................21
• igh-SpeedMusicSearch.......................................21
Settings Menu ..................................................22
TroubleshootingGuide............................................29
FormattingthePlayer.............................................31
ResettingtheUnit................................................32
UpdatingtheFirmware............................................32
Specifications...................................................33

2
COPYRIGHT:
• Distributing copies of MP3, WMA, WMA with DRM tracks and/or WMV files without
permission is a violation of international copyright laws.
SAFETY:
• Vibration experienced during walking or exercising will not affect the player.
owever, dropping the player or dropping a heavy object on the player may result
in damage or sound distortion.
• Avoid spilling any liquid onto or into the player.
• Do not leave the player in a location near heat sources; in a location subject to direct
sunlight, excessive dust, sand, moisture, rain or mechanical shock; on an unlevel
surface; or in a car with the windows closed during periods of excessive heat.
ROAD SAFETY:
• Do not use headphones while driving, cycling or operating any motorized vehicle. It
may create a traffic hazard and it is illegal in some areas. It can be potentially
dangerous to play your headset at a high volume while walking, especially at
pedestrian crossings. You should exercise extreme caution or discontinue use in
potentially hazardous situations.
FCC WAR I G:
• This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user could
lose the authority to operate this equipment if an unauthorized change or
modification is made.
PRECAUTIO S
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.

3
FCC DECLARATIO
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: 1) This device may not cause harmful interference, and 2) This device must
accept any interference received, including interference that may cause undesired
operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
OTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
owever, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shield cable must be used with this unit to ensure
compliance with class B FCC limits.

4
Dear Customer:
Selecting fine audio and video equipment such as the unit you’ve just purchased is
only the start of your musical enjoyment. Now it’s time to consider how you can
maximize the fun and excitement your equipment offers. This manufacturer and the
Electronic Industries Association’s Consumer Electronics Group want you to get the
most out of your equipment by playing it at a safe level. One that lets the sound come
through loud and clear without annoying blaring or distortion and, most importantly,
without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher
volumes of sound. So what sounds “normal” can actually be loud and harmful to your
hearing. Guard against this by setting your equipment at a safe level BEFORE your
hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment.
Since hearing damage from loud noise is often undetectable until it is too late, this
manufacturer and the Electronic Industries Association’s Consumer Electronics Group
recommend you avoid prolonged exposure to excessive noise. This list of sound levels
is included for your protection.

5
Decibel
Level Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWI G OISES CA BE DA GEROUS U DER CO STA T EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
A
S
S
O
C
I
A
T
I
O
N
EST. 1924
E
L
E
C
T
R
O
N
I
C
I
N
D
U
S
T
R
I
E
S
EIA
We
LISTENING
For A Lifetime
Want You

LOCATIO OF CO TROLS
6
1
2
3
4
5
6
7
8
9
10
11
12
1. USB Jack (Top of Unit)
(USB CABLE PART O.
CTPCLUSB07088D0-0-00*)
2. Belt Clip (Rear of Unit)
3. Reset ole (Side of Unit)
4. Volume - Button
5. MENU Button
6. Display
7. Power/Play/Pause ®p Button
8. Navigation √/Skip/Search o
Button
9. eadphones Jack
(Top of Unit)
(HEADPHO ES BLACK PART
O. EPEAREDFD001401-0-00,
WHITE PART O.
EPEAREDFD001400-0-00*)
10. OLD Switch (Side of Unit)
11. Volume + Button
12. Navigation ®/Skip/Search n
Button
*Consumer Replaceable Part
(See page 34 to order.)

7
CHARGI G THE BATTERY
This unit has a built-in Li-Polymer rechargeable battery. When the bars in
the battery indicator (in the display) become low (see Figure 1), recharge
the battery as follows.
1. Connect the USB cable to the USB jack on the top of this
unit (as shown) and to the USB port on your computer;“✓
OK to Remove” will appear on the screen. When
charging, the battery indicator will cycle from empty to
full. Once the battery is fully charged, the battery indicator
will stop cycling.
OTES:
• When you disconnect this unit from your computer, this unit will turn on and update the
playlist automatically. It will take several seconds to several minutes to update the
player's library depending on the number of files that you have transferred to the player.
• It takes approx. 1.5 hours to charge the battery from empty to full. When fully charged,
the unit can playback for approx. 12 hours. (Actual playback times may vary.)
• For data transfer, please use the USB cable (included) to connect the unit to
your computer.
Figure 1

8
Software Installation CD (PART O. CTPCDMEMO081001-0-00*)
General Information
This unit is compatible with Microsoft Windows XP ( ome or Professional
Edition with Service Pack 2 or higher) or Vista.
Use the CD to install Windows Media Player (10 or 11).
IMPORTA T OTE:
•For Mac OS X: This unit is also compatible with Mac OS X; however,
Windows Media Player 10 and 11 can not be used with Mac OS X. Mac
OS X will automatically detect this unit when you connect it using the USB
cable. An “Untitled” drive will appear on your desktop. Simply “drag and
drop” the desired audio files from anywhere on your computer into the
“Untitled” drive. Please note that copy-protected files will not play if you
transfer them using the “drag and drop” method. Please refer to Mac OS
X’s owner’s manual for more detailed instructions on how to transfer audio
files to a digital audio unit, and for how to safely eject the digital audio unit
from your computer.
*Consumer Replaceable Part (See page 34 to order.)
I STALLI G THE SOFTWARE

9
WI DOWS MEDIA PLAYER 10 I STALLATIO
Windows Media Player 10 is for use with Windows XP only. See page 12 for how to
install Windows Media Player 11. (Windows Vista users must use Windows Media
Player 11.)
Once you have installed Windows Media Player 10, you can transfer MP3 files, WMA
files and WMA files with DRM 9 or 10 to your player using the “Sync” function.
1. Insert the installation CD-Rom into the CD
Drive, then the installation screen will appear.
If the installation screen doesn't automatically
appear, double-click My Computer then
double-click on the CD drive, then the
installation screen will appear. Click
“Download Windows Media Player”.
2. You will be directed to the Windows Media
Download Center. Select Download (Windows
Media Player), Version (Player 10 [for
Windows XP]) and Language. Then, click
“Download Now”.
At the pop-up window, click “Run” to run
“MP10Setup.exe”. Click “Run” again.
Installation will begin.
OTE: Please install WMP10 or 11,
otherwise the unit may not be detected by
your computer.
3. Read the License Agreement, then click I
ACCEPT.

10

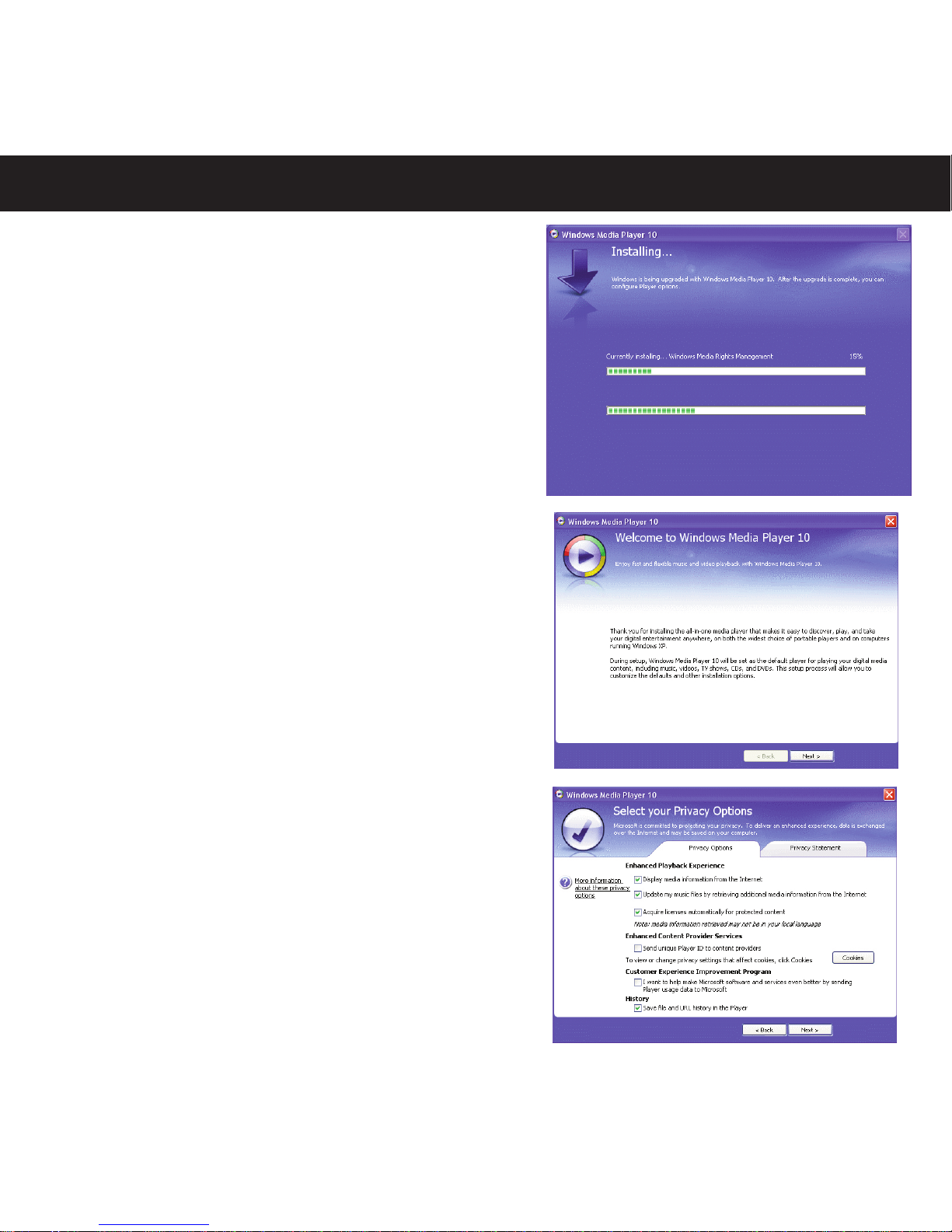

4. Installation will continue.
5. At the Welcome screen, click NEXT.
6. Select the desired privacy options.
WI DOWS MEDIA PLAYER 10 I STALLATIO

11
7. Click on Privacy Statement to view the
Statement, if desired. When finished, click
“Next”.
8. Read the instructions and tick the check
boxes as desired. Then click on More Options
and tick the check boxes as desired.
9. Click “Finish” to finish the installation of
Windows Media Player 10.
WI DOWS MEDIA PLAYER 10 I STALLATIO

12

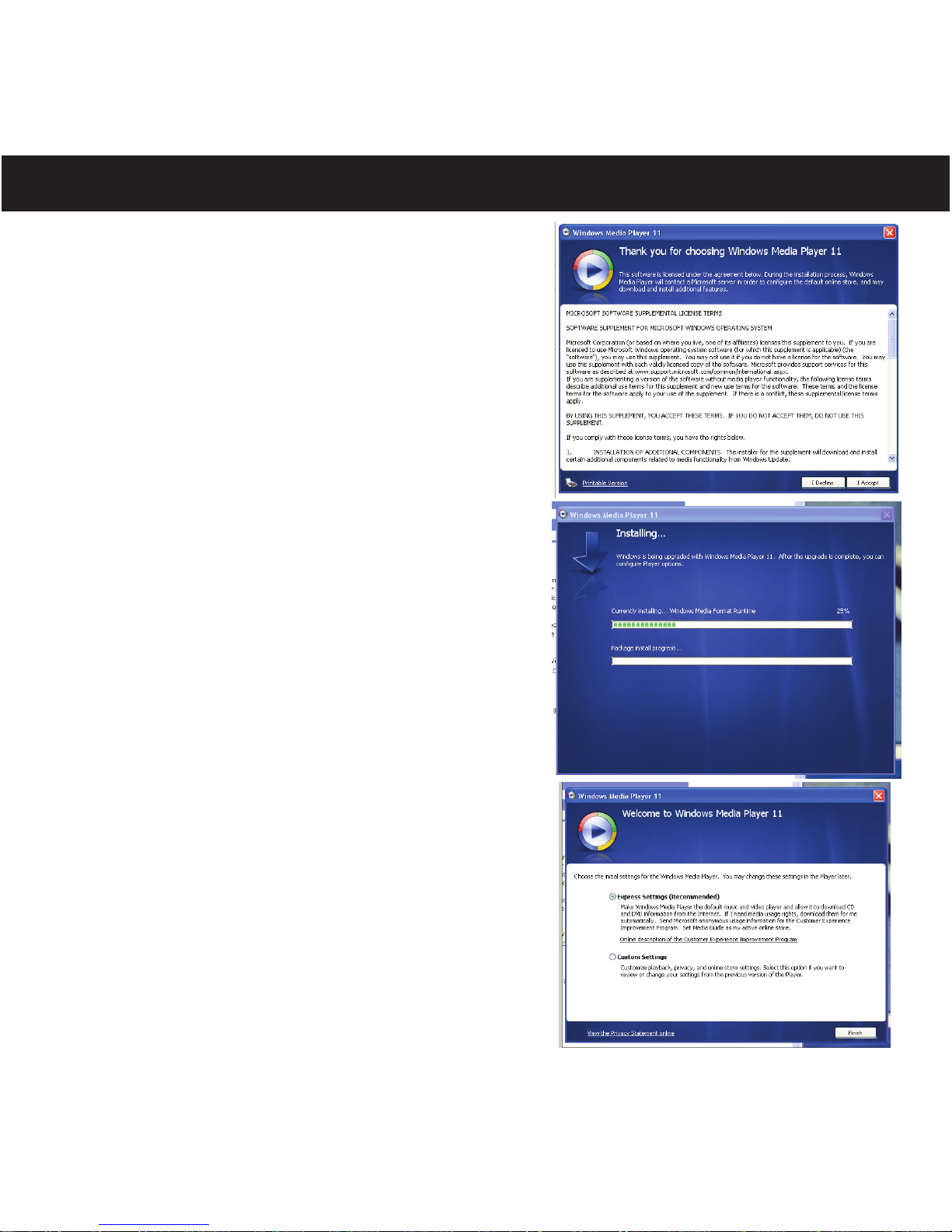

WI DOWS MEDIA PLAYER 11 I STALLATIO
Once you have installed Windows Media Player 11, you can transfer MP3 files, WMA
files and WMA files with DRM 9 or 10 to your player using the “Sync” function.
1. Insert the installation CD-Rom into the CD
Drive, then the installation screen will appear.
If the installation screen doesn't automatically
appear, double-click My Computer then
double-click on the CD drive, then the
installation screen will appear. Click
“Download Windows Media Player”.
2. You will be directed to the Windows Media
Download Center. Select Download (Windows
Media Player), Version (Player 11 [for
Windows XP]) and Language. Then, click
“Download Now”.
At the pop-up window, click “Run” to run
“wmp11-windowsxp-x86-enu.exe”. Click
“Run” again. Installation will begin.
3. A “Validate Your Copy of Windows” screen will
appear. If desired, click on “Microsoft Genuine
Advantage Privacy Statement” to read it.
Click “Validate”.

13
4. Read the License Agreement, then click “I
Accept”.
5. Installation will continue.
6. At the Welcome screen, it is recommended to
select “Express Settings” and then click on
“Finish”. The newly-installed Windows Media
Player 11 will open. You may also see a pop-
up window asking, “A Windows Media Player
update is available. Do you want to update
now?” Follow the on-screen prompts if you
choose to update at this time.
WI DOWS MEDIA PLAYER 11 I STALLATIO

14
TRA SFERRI G FILES
You can download digital music files from the Internet or use
encoding software to convert music that you have on an audio
CD into MP3 or WMA format. Once these files are stored on
your computer you can easily copy them to your player.
If you have already installed WMP (Windows Media Player)
10 or 11, you can transfer music files (MP3, WMA and/or WMA
files with DRM 9 or 10) to the player through the "Sync" function
of WMP 10 or 11. Connect your player to the USB port on your
computer as shown on page 7. Then, follow the procedure on
page 16 to transfer files to the player.
MEDIA FILES SUPPORTED FORMATS
Audio Formats: MP3, MPEG 1/2/2.5 Layer 3 with a bit rate of 32-320 kbps, WMA
files with DRM 9 or 10 with a bit rate of 48-192 kbps
DOW LOADI G A D TRA SFERRI G FILES

15
DOW LOADI G A D TRA SFERRI G FILES (CO T.)
For Windows XP, you can also utilize the previously
installed Windows Media Player 10 software to
convert music on an audio CD into MP3 or WMA
format as follows:
1. Open the Windows Media Player 10 Browser,
then click on the “Rip” icon on the top tool bar.
Insert a Music CD into the CD-Rom drive of
your computer.
2. Click on the “Tools” menu option at the top menu
bar, then click on “Options”; the Option setting
menu will appear. Click on Rip Music and set the
Rip Music to the desired location on your computer. Then,
set the desired format for the newly ripped music (MP3
format or Windows Media Audio format). Adjust the audio
quality as desired. When finished, click “OK” to confirm
the settings.
3. Click on the “Rip Music” icon to start ripping the music to
your computer.
4. When the music tracks are ripped; connect the player to
your computer. Open the “MMP8000 series” window and
open the ripped music location window.
5. To add the transferred/ripped music files/songs to your
player simply drag and drop the MP3 and/or WMA files
into the “MMP8000 series” window.
OTES:
• For Windows Media Player 11 users, please visit the
following link for instructions on how to rip (copy) songs from CDs to your computer:
http://www.microsoft.com/windows/windowsmedia/knowledgecenter/howto/mp11/rip.aspx
•Windows Vista users must use Windows Media Player 11 to convert music on an audio CD
into MP3 or WMA format.

16
TRA SFERRI G MP3/WMA/WMA FILES WITH DRM 9 OR DRM
10 USI G WI DOWS MEDIA PLAYER 10
(FOR WI DOWS XP O LY)
To transfer MP3/WMA/WMA files with DRM 9 or 10 to the player,
follow the procedure described below using the previously installed
WMP (Windows Media Player) 10. Before beginning the procedure,
please connect the unit to the computer as previously described.
1. Open the “Windows Media Player Browser 10” and click
on “Sync”.
2. Click on the “Sync List” pull-down menu to locate the music files
you wish to download. Then make sure to tick the box next to
the files.
3. Select the Portable Device (“MMP8000 serices”) that you
want to copy to from the right side drop-down menu. Click
“Start Sync” to start transferring music files to the player.
4. After finished transferring all the desired files to your unit, “✓OK
to Remove” will appear on the screen. Then you can remove the
player from the computer.
OTES:
•Windows Media Player 11 users, please visit the following link for
instructions on how to sync files to this unit:
http://www.microsoft.com/windows/windowsmedia/knowledgecenter/howto/mp11/sync.aspx
• Windows Vista users must use Windows Media Player 11 to transfer music files to the player.
• If you have any problem with the transfer of DRM9 or 10 music files to the player, follow the instructions
below:
Windows Media Player 10 users, please visit the following link for instruction:
http://support.microsoft.com/kb/922814.
Windows Media Player 11 users, please visit the following link to restore the Windows Media Player 11:
http://www.microsoft.com/downloads/details.aspx?FamilyID=1d224714-e238-4e45-8668-
66114010ca&DisplayLang=en.
DOW LOADI G A D TRA SFERRI G FILES (CO T.)

17
CREATI G A PLAYLIST USI G WI DOWS MEDIA PLAYER 10
Follow the steps below to create a playlist for the Playlist option in the menu, using
WMP (Windows Media Player) 10:
1. Connect your player to the USB port on your computer as shown on page 7. Open
WMP 10.
2. Go to the "Sync" page and click "Set Up Sync". There you can set up the specific
synchronization for this unit.
3. Click "Synchronize Device Automatically" and select the playlist. For example,
select "Music Added in the Last Month" and "Music Played the Most" and click
"OK". WMP 10 will synchronize the selected playlist(s) to this unit automatically.
4. When the synchronization is finished, there will be a new playlist which you can
find in the Playlist option in the menu.
OTES:
• For Windows Media Player 11 users, please visit the following link for instructions
on how to create and use your own customized playlists:
http://www.microsoft.com/windows/windowsmedia/knowledgecenter/howto/mp11/playlists.aspx
•Windows Vista users must use Windows Media Player 11 to create the playlist.
DOW LOADI G A D TRA SFERRI G FILES (CO T.)

18
OPERATIO
Turn the unit on by pressing the Power/
Play/Pause ®p button; the Memorex start
screen will appear in the display temporarily.
Then “Play All” will appear in the display. To turn
the unit off, press and hold the Power/
Play/Pause ®p button; “Shutting Down” will
appear in the display.
1
TUR I G THE POWER O /OFF HOLD SWITCH
With the unit on, slide the OLD switch to the old
position (down); no buttons will function. This is
useful when you do not want the track changed by
accidentally pressing a button. Slide the OLD
switch to the normal (unlocked) position (up) to
cancel the old function.
1
HEADPHO ES JACK
Plug the headphones (included) into the eadphones jack on the top of the unit.

19
OPERATIO (CO TI UED)
1
TO LISTE TO MP3s/WMAs
If it is not already selected, scroll to “Play All” by
pressing the Navigation ®/Skip/Search n 1 or
√/o2button, then press the Power/Play/Pause
®p button 3; playback will start from the first
track saved to the unit and the track’s information
will appear/scroll across the display.
1
2
3
2
To turn the unit off, press and hold the
Power/Play/Pause ®p button; “Shutting Down”
will appear in the display.
OTE:
• See pages 14-17 for information on uploading
MP3 and WMA files to this unit.
4
Turn the unit on by pressing the Power/
Play/Pause ®p button; the Memorex start
screen will appear in the display temporarily.
Then “Play All” will appear in the display.
1
2
3
Press the Volume + 1or-2button to increase or
decrease the volume.
OTE (RESUME): Each time you exit the Music Player mode or turn the unit off, when the
unit is turned back on or you enter the Music Player mode again, scroll to “Now Playing” by
pressing the Navigation ®/Skip/Search nor √/obutton, then press the Power/Play/Pause
®p button; this unit will resume at the beginning of the last track which was playing before
turning the power off or changing mode.
