Memphis VGB0001S User manual

Contents
Grill Clearance to Combustible Materials
2
Grill Island Dimensions
3
Hardware Kit
4
Installation Step 1-6
5-10
WiFi Setup
11

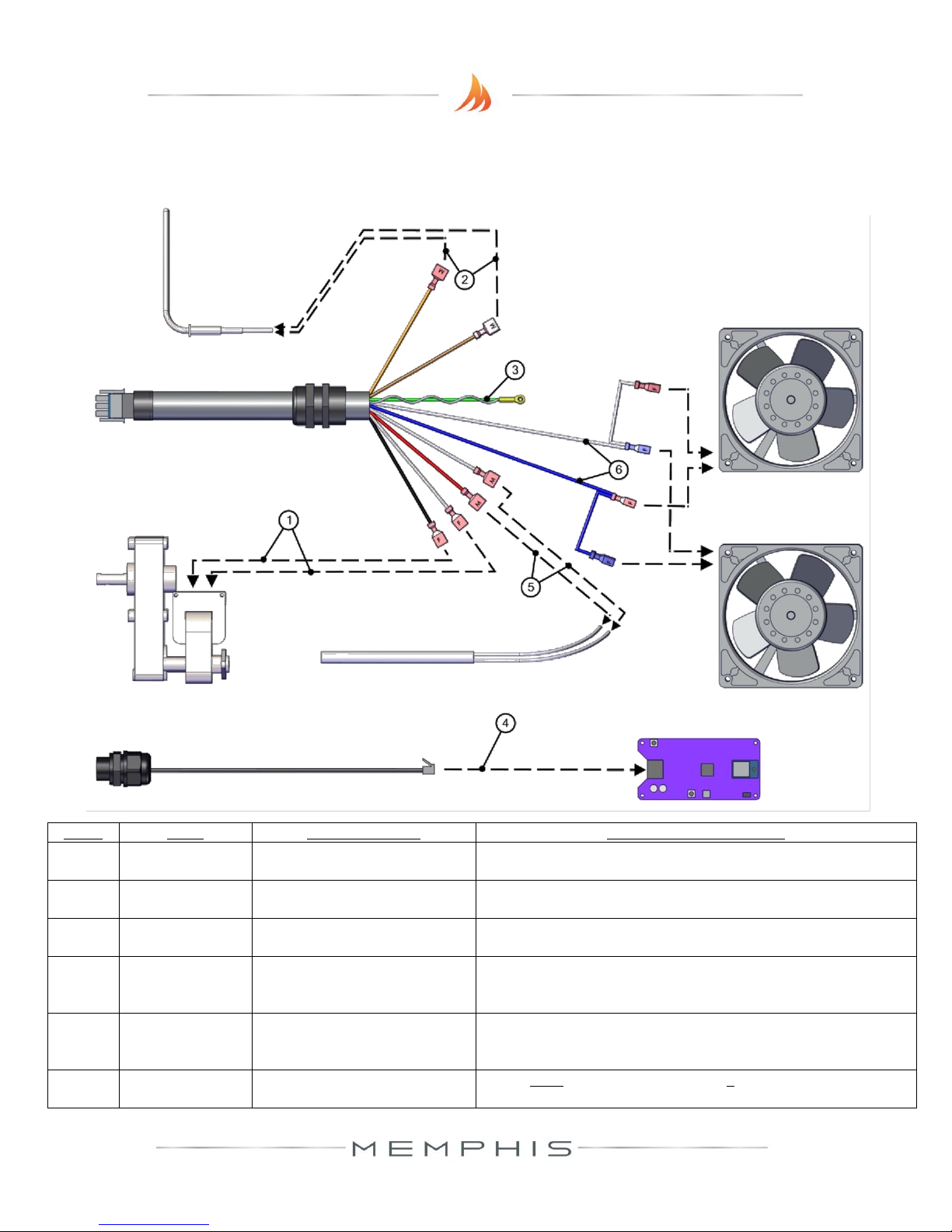

Wiring Diagram
12-13
Memphis Pro Built-In
Model Number VGB0001S
Appendixes and Model-Specific Information

2
DIMESION
METRIC
UNIT WITH OPTIONAL HEAT
SHIELD KIT (VGBHSK)
A
45.8 cm
45.8 cm
B
1.0 cm
1.0 cm
C
5.1 cm
5.1 cm
D
8.9 cm
8.9 cm
E
45.8 cm
0.5 cm
F
76.2 cm
76.2 cm
DIMENSION (US)
UNIT WITH OPTIONAL HEAT SHIELD
KIT (VGBHSK)
A
18”
18”
B
3/8”
3/8”
C
2”
2”
D
3.5”
3.5”
E
18”
1/8”
F
30”
30”
Clearance To Combustible Materials
WARNING: The structure and surrounding objects MUST maintain the specified minimum clearance to
combustible materials.
Built-in structures constructed of wood or other combustible materials may require the use of the OPTIONAL Built- In Heat Shield Kit to maintain
the required clearance to combustible materials. The grill may be supported by either the three support brackets, or the four leveling feet. Please
note that there must be at least 3/8” (1.0cm) clearance between the bottom of the grill and the structure.
Maintain the clearance to combustible materials as specified below.
A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES
(AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE
THAT THIS PRODUCT BE INSTALLED ONLY IN ACCORDANCE WITH THESE
INSTRUCTIONS

3
Built-In Grill Island Dimensions
VGB0001 PRO BUILT-IN
DIMENSION
TOLERANCE
A
30 ¼”
± 1/8”
B
16 ¾”
± 1/8”
C
24 ½”
± 1/8”
D
8 ½”
+ 1/8” -0”
E
6 ½”
+ 1/8” -0”
F
3” to 9’
G
3 ½” MIN
H
12” MIN
J
22”
±1”
K
Standard
Cabinet
Height
VGB0001 PRO BUILT-IN
DIMENSION
TOLERANCE
A
76.9 cm
± .30cm
B
42.6 cm
± .30cm
C
62.9 cm
± .30cm
D
21.6 cm
+.30cm -0cm
E
16.5 cm
+.30 cm -0cm
F
7.7 cm to
2.74 m
G
8.9 cm
H
30.5 cm
J
55.9 cm
±2.54cm
K
Standard
Cabinet
Height
WARNING: See clearance to combustible materials, when designing and constructing a built-in island. Built-In islands must
be built to the specifications listed below.
The owner and/or builder are responsible for consulting local, county and state building codes for securing any necessary
building permits before construction. NOTE: Construction codes vary from locality to locality.
NOTE: Dimensions are to the finished surfaces. Grill cavity
surfaces are to be plumb and level to ensure a proper fit.
ITC Control Location
110/120v* AC supply required
within 10 ft. of the ITC.
NOTE: The location of the ITC is for
illustration purposes only. The grill
is equipped with 10 feet of cable,
allowing it to be mounted in a
variety of locations.
*European 230V
Controller cable way is to
maintain dimensions D and E
throughout its entire path.
The controller cable way may be
located either through the back
of the island’s cavity, or in
either side of the cavity as
depicted below.

4
· 3/8” Open End Wrench,
Socket or Adjustable
Wrench
· Phillips Screw Driver or Drill
· Snips or Heavy Duty Scissors
· Cut Resistant Gloves
1.5 Hours

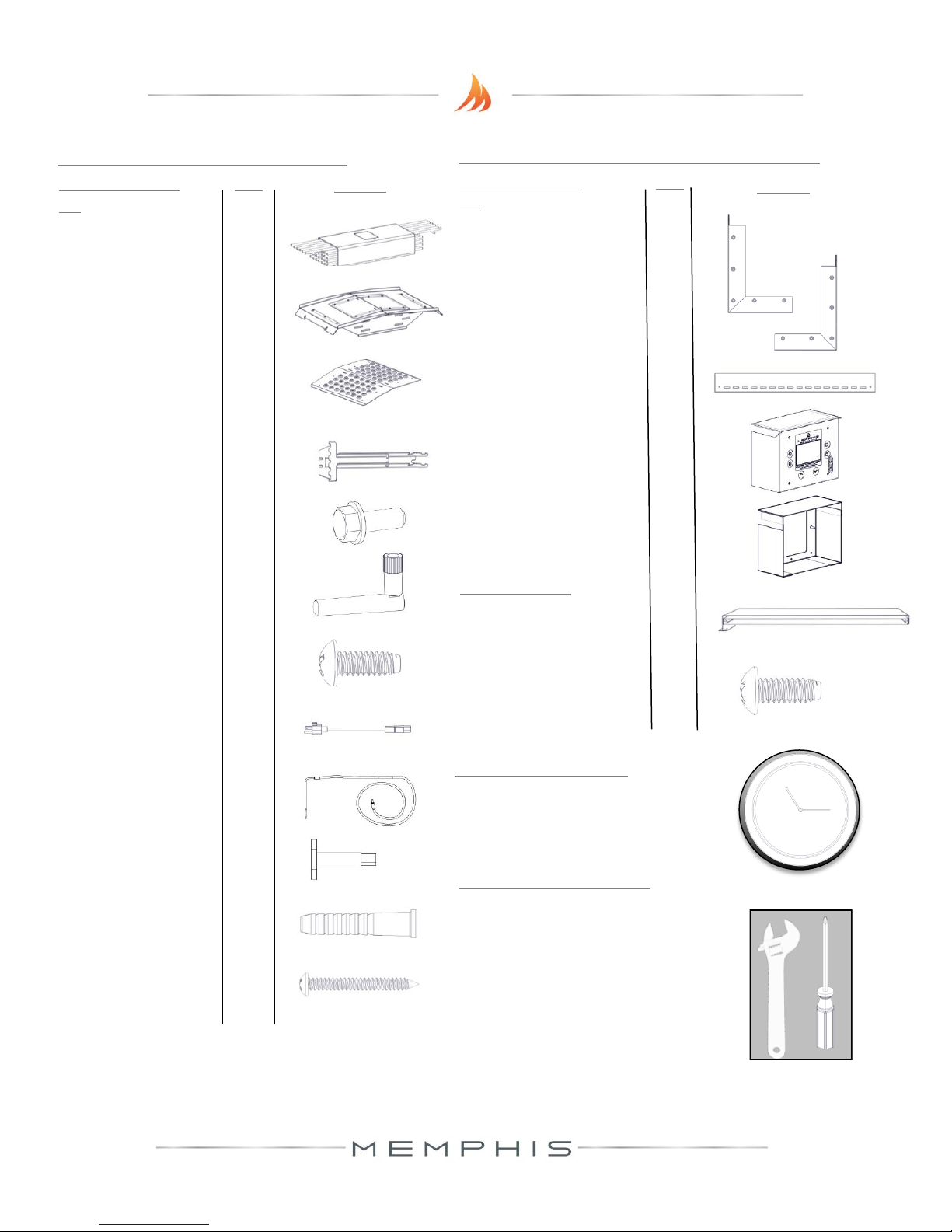

HARDWARE COMPONENTS
TIME REQUIRED
· 3/8” Open End Wrench,
Socket or Adjustable
Wrench
· Phillips Screw Driver or Drill
· Snips or Heavy Duty Scissors
· Cut Resistant Gloves
QTY:
1
1
1
1
10
9
2
1
1
4
2
2
DESCRIPTION/PART
NO.
1) Grate Kit
VG4409
2) Flavorizer
VG4403
3) Direct Flame
Insert
VG4407
4) Genie Tool
VG1594
5) Bracket Bolt
DS2311
6) Antenna
VG9025
7) #10 Screw (SS)
DS2186
8) Power Cord
VG0911
9) Meat Probe
VG0956
10) Leveling Feet
DS4668
11) Concrete Anchor
DS2349
12) #10 SS PH SCREW
DS2350
HARDWARE COMPONENTS CONT.
DESCRIPTION/PART
NO.
13) Left Mounting Bracket
VG0803
14) Right Mounting Bracket
VG0802
15) Rear Mounting Bracket
VG0801
16) Prewired Controller Box
VG1165
17) Controller Box Bracket
VG1065
OPTIONAL
18) HEAT SHIELD
VGBHSK
19) #10 Screw (BLK)
DS2185
QTY:
1
1
1
1
1
2
4
TOOLS REQUIRED

5
INSTALLATION STEP 1: UNPACKING
Grill requires (2) two people for safe assembly
Please note that during shipping some movement may have taken place, so a complete visual
inspection is required. Be sure to inspect entire grill after removing the protective shipping carton.
Report any damage to your local dealer immediately. Shipping damage is not covered under warranty.
Some surfaces may be sharp so wear gloves when assembling. Do not plug in the grill until it's fully
assembled, the plastic protective film is removed from all stainless steel surfaces, and you're ready to
cook. See: “startup procedure” for more details.

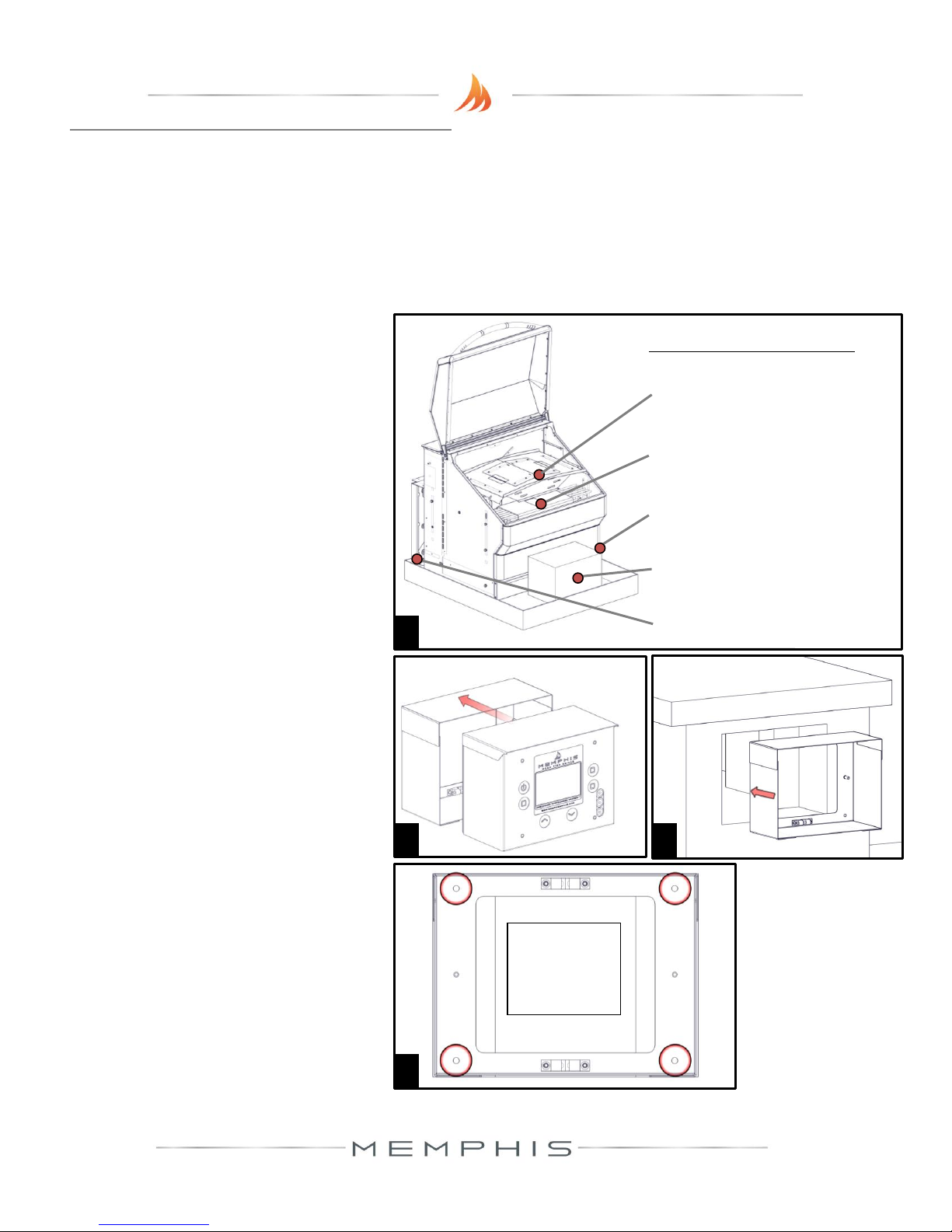

1) Unpack the controller box (16) and
bracket (17) from inside of the grill
hood. Also remove the Flavorizer
(2) and included grates (1) from
inside the grill hood. To remove the
Flavorizer, cut the 4 zip ties holding
it in place. Set aside grates and
Flavorizer until needed.
2) Peel all plastic protective film from
the grill. Be diligent about
inspection as the protective film
will be hard to remove once a grill
is installed and first burned.
3) Detach the controller bracket (17)
from the controller box (16) by
pulling directly backward on the
bracket. This is the same way the
box will detach once installed.
4) Install the bracket into your
structure as shown. The bracket
will require a minimum cavity
opening of 8 1/2” Width, 6 1/2”
Tall, and 3 3/4” Deep.
5) Fasten the bracket using the 4
mounting holes which accept
hardware up to 3/16” wide (not
included). Choose a fastener
appropriate to your island material
type.
Controller Box
Hardware Kit (Ash Pan)
Flavorizer
Grates
Mounting Brackets
Packaging Locations
1
3
4
5
MINIMUM
PASS-THROUGH
OPENING:
4”X 4”

6
Follow the assembly steps listed below, prior
to installation of the unit.

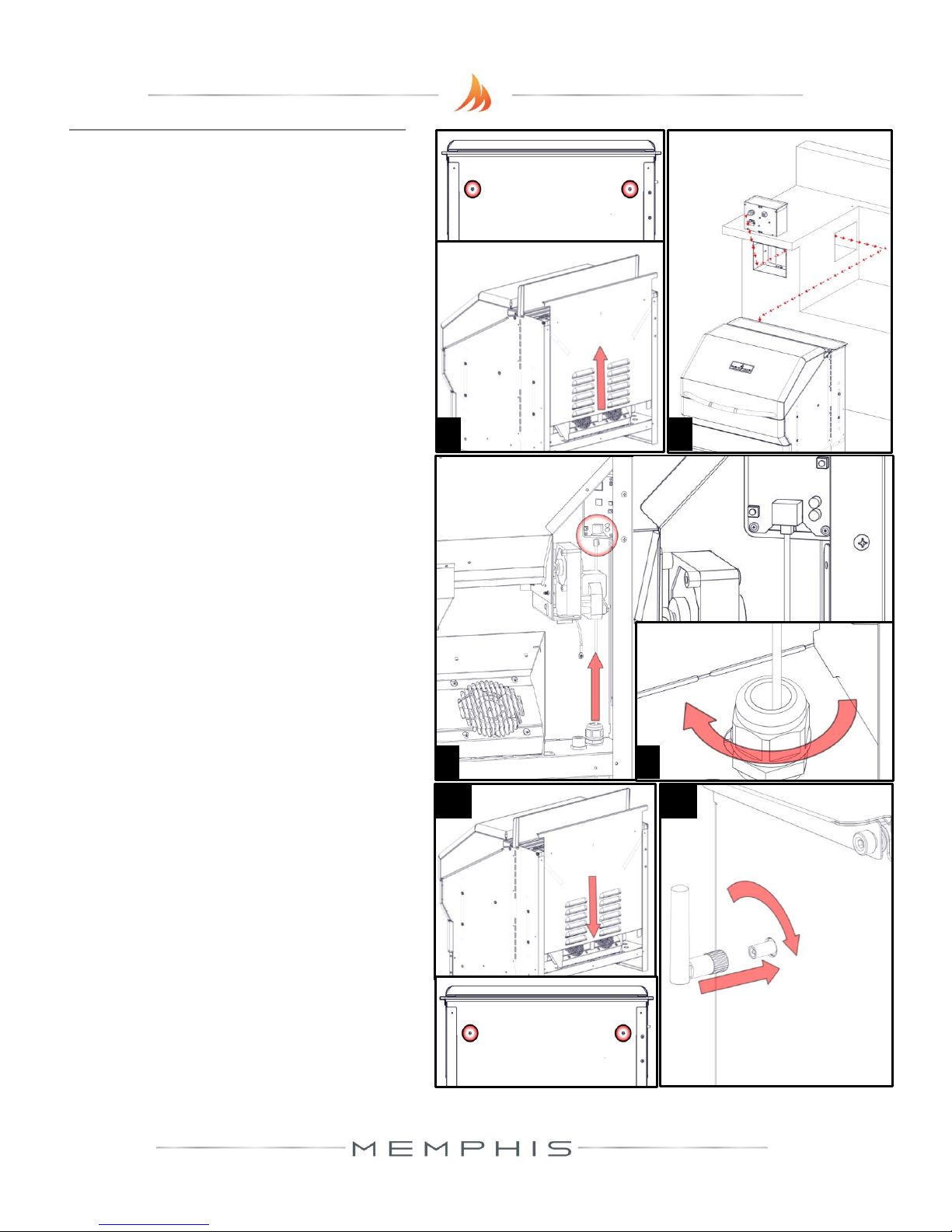

6) Remove the back panel of the grill by
removing the two screws as shown and
then lifting the panel up.
7) The prewired controller box has an
Ethernet cord which must be routed
through the controller cableway and into
the back of the grill body before the
support brackets are installed. To do this,
pass the cord through the strain relief
which is located on the back left side of
the grill. (Looking at the grill from the
front) This strain relief is located next to
the strain relief used for the component
wiring harness.
8) Once the Ethernet cord is passed into the
back of the grill, connect it into the bottom
of the WiFi card as shown. The tab on the
Ethernet cord goes towards the front of the
grill.
9) Tighten the strain relief onto the Ethernet
cord as shown.
10) Replace the back panel by locating its
three bottom tabs into their slots provided.
Replace the two screws which secure the
back panel in place.
11) Install the included antenna into its bulk
head. The bulk head is located on the left
panel of the grill (Looking at the grill from
the front).
INSTALLATION STEP 2: WIRING
6
7
8
9
10
11

7
Follow the assembly steps listed below, prior
to installation of the unit. The unit can be
supported by either the support brackets
(items 13, 14 & 15) or by the four leveling feet
(item 10). Refer to page 4 for item part
numbers, descriptions and quantities.
Note that the support brackets must be
installed with either support method.

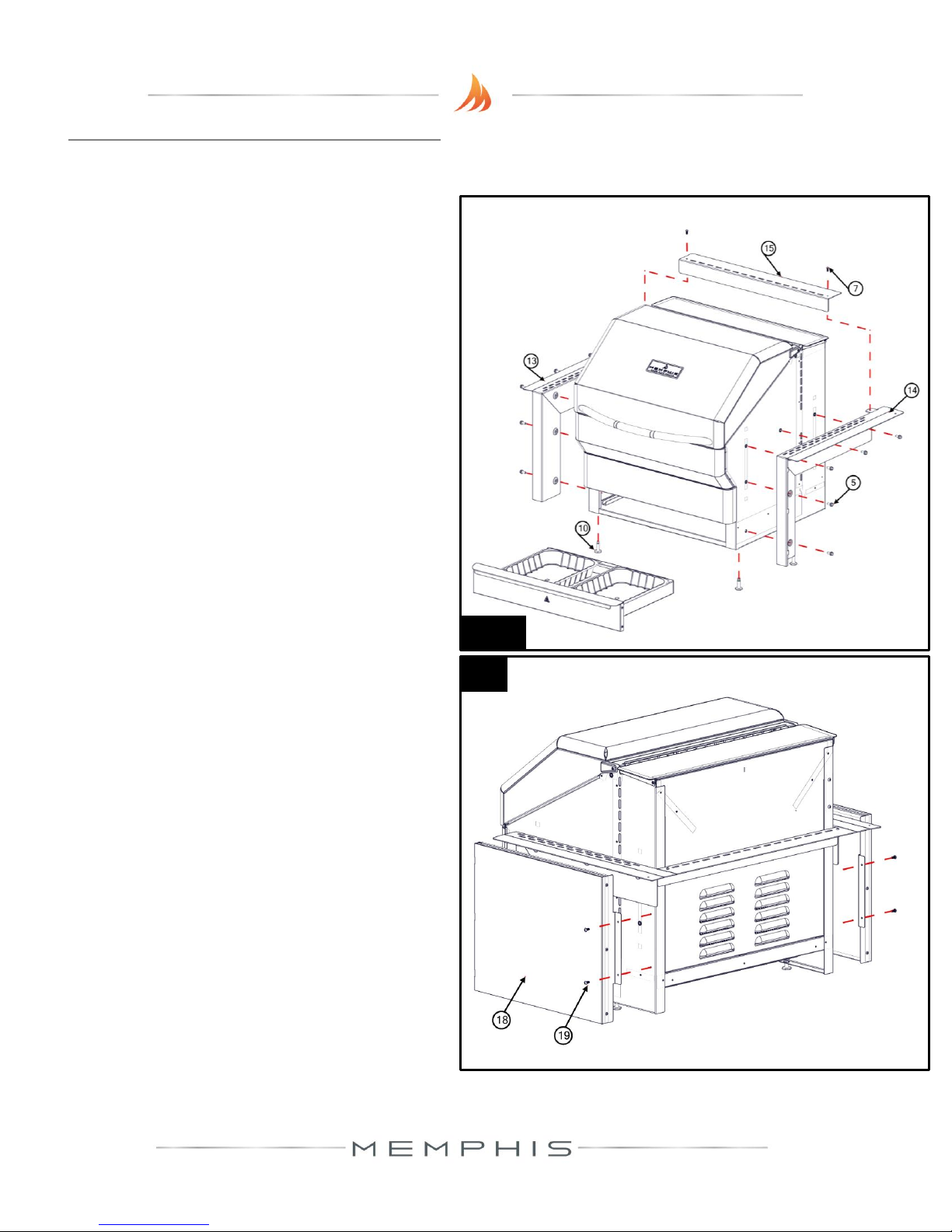

12) Remove the ash/grease drawers from the
unit.
13) Fasten the left and right support brackets
(items 13 and 14) to the unit using the ten
1/4”-20 stainless steel hex bolts (item 5).
14) Fasten the rear support bracket (item 15)
to the left and right support brackets
(items 13 and 14) with two 10-24 x ½”
long stainless steel screws (item 7).
15) This step is only to be done if the grill is
going to be supported by the four leveling
feet (item 10) and not the support
brackets. Thread the four leveling feet
(item 10) into the bottom of the unit.
Optional:
16) To reduce the clearance to combustible
materials, the optional heat shield kit
should be used. Refer to page one to
determine if the heat shield kit is required
for your installation. Follow the assembly
instructions provided with the heat shield
kit to properly fasten the kit to the unit.
INSTALLATION STEP 3: BRACKETS
12-15
16

8

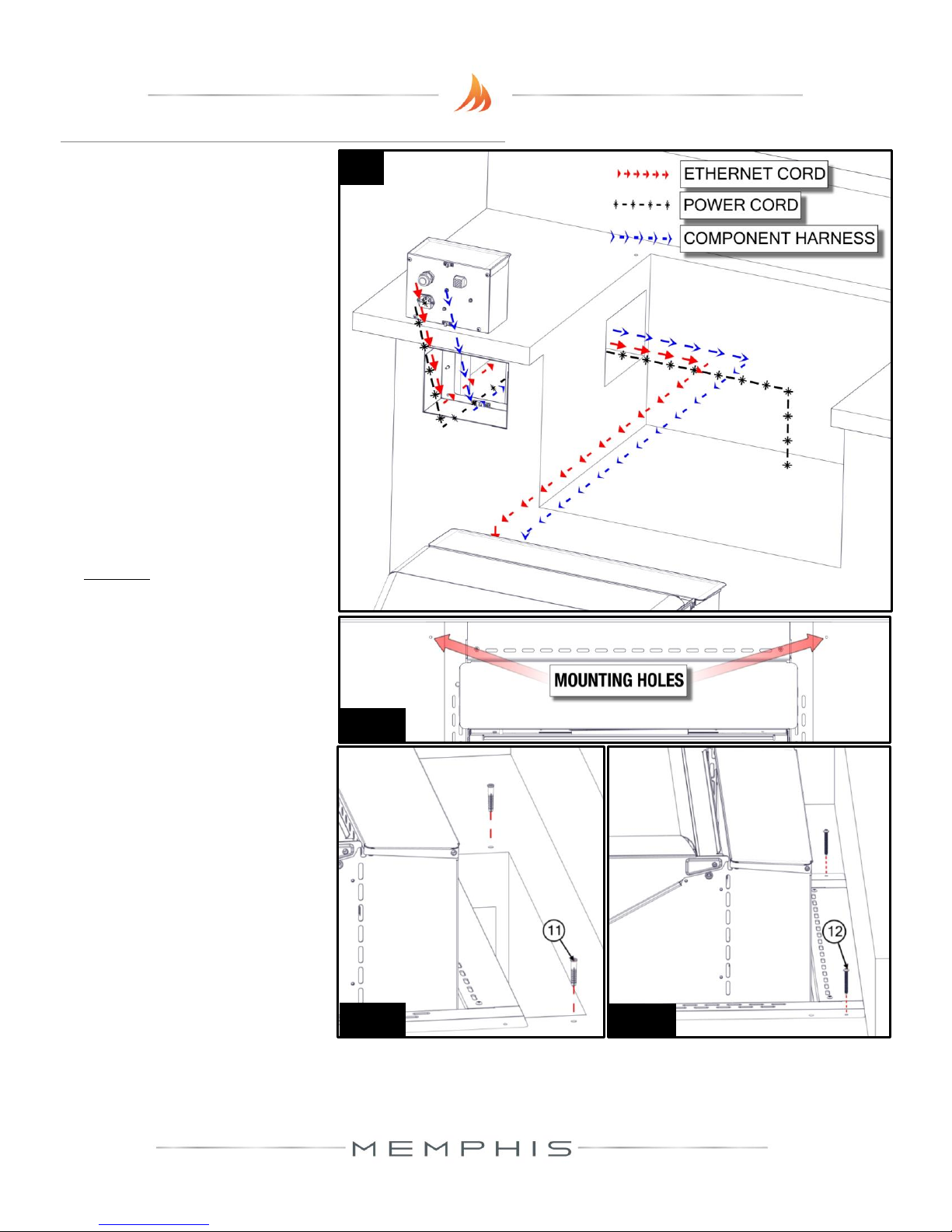

17) Route the component harness
and power cord alongside of
the Ethernet cable previously
routed in the controller
cableway. Connect the ends to
the controller box as shown.
18) Place the unit into the island,
and position it to the desired
depth. Ensure that the vent
holes in the support brackets
are unobstructed.
19) Locate the two mounting holes
found in the back of the left
and right support brackets
(items 13 & 14), and mark the
hole locations onto the island’s
countertop.
20) Carefully slide the unit out of
the island, exposing the
marked holes on the
countertop.
21) Drill two 5/16” holes into the
countertop using a drill bit
appropriate for the material of
the countertop.
22) Insert two concrete anchors
(item 11), into the two 5/16”
holes.
23) Slide the unit back into
position, lining up the
mounting holes in the left and
right support brackets with the
concrete anchors.
24) Fasten the unit into place
using the two 1¾” long
stainless steel screws (item
12). Do not over-tighten.
INSTALLATION STEP 4: GRILL MOUNTING
17
18-19
20-22
23-24

9
Refer to page 5 for item part numbers,
descriptions and quantities
25)Skip this step if grill will be supported
by the support brackets. Adjust the
four leveling feet from the inside of
the ash/grease drawer cavity with a
1/4” socket ensuring that the unit is
level, and that the support brackets
(items 13,14 & 15) come in contact
with the island’s countertop.

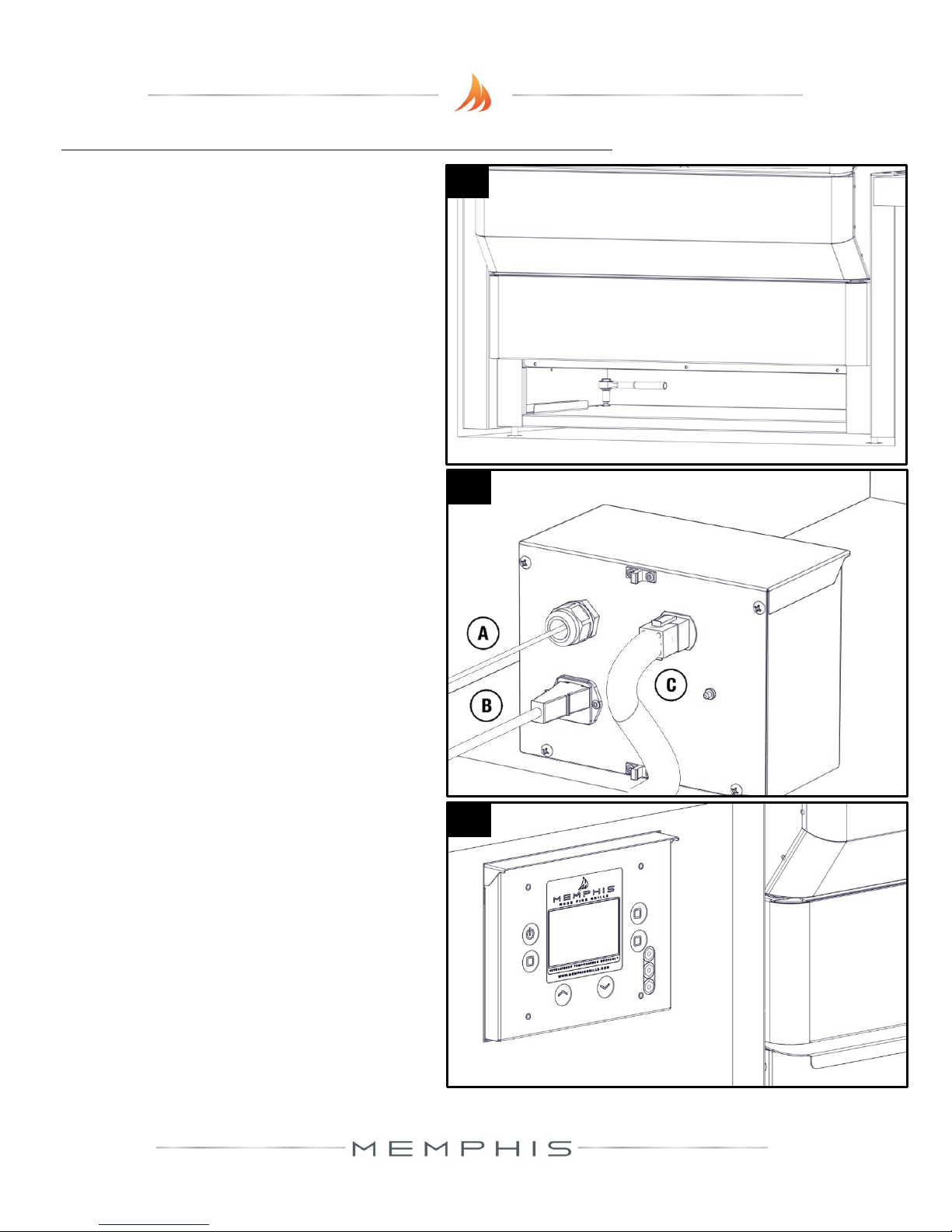

26)Ensure that the controller box has the
following connections into the back
of it.
a. The prewired Ethernet cable.
This cable is pre routed into
the back of the controller box
prior to shipment.
b. The component harness. This
harness carries electricity to
the grills component such as
auger, fans, and igniter.
c. Power cord. Ensure that the IEC
on the back of the controller
box has the included power
cord attached to it as shown.
27)After checking for the connections as
described above, push the controller
box into the pre-installed bracket.
The box will lock into place. To
remove this box for maintenance or
software updates in the future,
simply pull on the controller box and
the ball detents will release.
INSTALLATION STEP 5: CONTROLLER BOX INSTALL
25
26
27

10
Refer to page 5 for item part numbers, descriptions and quantities
28) Insert the three ash/grease drawers back into the unit.
29) Place Flavorizer (item 2) onto the left and right lower brackets found inside the unit.
30) Place the four lower cook grates (item 1) onto the front and rear supports. Place the
long cook grate (item 1) onto the left and right upper brackets found inside the unit.
Vent holes on the mounting brackets must remain unobstructed.
Refer to the manual for first time use instructions.
INSTALLATION STEP 6: FINAL ASSEMBLY
28-30

11
8) Download our app MEMPHIS GRILLS from the IOS App Store. (Search iPhone only)
9) Enter a valid email into the “CUSTOMER ID” field, and create a password that you will use to
login to the app. After logging in, you will receive an email requiring you to confirm your
email address before continuing.
10) Once the confirmation link is followed from your email, return to the app.
11) Once confirmed, you will be able to add your grill.
Enter the exact MAC Address and Name shown
on the grill controller.
Example: MAC: F8:F0:05:F4:A8:12 NAME: MEMPHIS
NOTE: THERE ARE ONLY NUMERICAL 0’S IN THE MAC ADDRESS,
NO APHABETICAL O’S. NICKNAME IS NOT CASE SENSATIVE.
INCLUDE COLONS IN THE MAC ADDRESS AS SHOWN.
ON YOUR GRILL CONTROLLER:
1) A Wi-Fi connection can be set up in minutes on your Memphis Wood Fire Grill. First power the
grill on pressing the top left button on the controller, and from the home screen press the
“MENU” button, then the “DOWN ARROW”, then the “WIFI” button.
2) The “WIFI” screen on your grill contains everything needed to connect your grill to a Wi-Fi
network. First, you will notice that Wi-Fi is off, this is enabled by default for users not wishing
to use Wi-Fi. To turn Wi-Fi on, simply press the button “TURN ON WIFI”.
3) Next, press and hold “SETUP” and the grill will start searching for all nearby Wi-Fi networks.
Once the status field displays “CONNECTING” the grill is ready to be connected to your
network via any Wi-Fi compatible device.
4) Simply go to available Wi-Fi networks on your phone or tablet
and select the network “Memphis Grill xx:xx” NOTE: The
xx:xx characters will be your own unique combination of
letters and numbers, and will match the last 4 digits shown
on the grill controller next to MAC.
5) Once selected, the network will automatically bring you to a
page where all Wi-Fi networks that the grill can connect to
can be displayed. Find all connectable networks by hitting
search, then once displayed you can click on the network
desired and it will auto populate the “SSID” with your
selection. If the network does not require a password,
leave the password field blank.
6) Click “CONNECT” and the page will automatically close.
7) The Wi-Fi setup is now complete. The status on the controller
should now read “WIFI CONNECTED”. The time period from
hitting “CONNECT” to “WIFI CONNECTED” can take up to 3
minutes based on connection strength.
ON YOUR PHONE OR TABLET: (UNDER WIFI SETTINGS)
ON YOUR PHONE OR TABLET: (IN THE MEMPHIS GRILLS APP)
2
4
5
6
9
11
3

12
Item #
NAME
DESCRIPTION
1
USB Port
Used to update your grill, see the “Updating Controller Software” section of the
main manual for information.
2
Meat Probe Wiring
This terminal is used to connect the meat probes to the controller.
3
120/240 Select Jumper
Used when changing the input voltage to the controller, see “120v to 240v
Conversion” section of the main manual for information.
4
AC Load Wire from Filter to
Controller
Carries AC voltage from the filter to the control board, load wire.
5
AC Neutral Wire from Filter to
Controller
Carries AC voltage from the filter to the control board, neutral wire.
6
Filter
Reduces electrical feedback. Line = Outlet Side, Load = Grill Side. L1 = Load L2=
Neutral
7
AC Neutral and Load from IEC to
Filter
A two wire component which has a ferrite choke to eliminate input electrical
disturbances from the grid. Load and Neutral wires.
8
IEC Plug
The same plug terminal used to attach your power cord to your grill. Top down view.
9
Ethernet Cable
Used to connect your grill controller to the Wi-Fi card in the back of the grill.
10
Grounding Wire
In the event your grill experiences a short, the grounding wire will send the voltage
to the 3rd prong of a standard AC outlet.
11
AC Component Wiring
This large plastic connector carries all voltage used for AC components in the grill.
See “Component Wiring Diagram” for a description of all wires in this connector.
12
RTD Wiring (DC)
This small plastic connector carries DC voltage to the RTD.
13
Controller Box Ethernet Cable
Gland
This gland is a weather tight pass-through for the Ethernet cable into the back of
the controller box.
14
Controller Box Plug
This plug is a weather tight quick disconnect for the main wiring harness which
carries all AC,DC, and Ground wires to the grill’s components.
MEMPHIS PRO BUILT-IN
CONTROLLER BOX WIRING
DIAGRAM
LOAD
NEUTRAL
GROUND

13
Item #
NAME
Wire Identification
DESCRIPTION / INSTRUCTION
1
Auger Motor
Wiring
1x Black Wire, 1x White Wire
Attach both spade connectors to their respective terminals on the
top of the auger motor as indicated by the arrows shown above.
2
RTD Wiring
1x Orange Wire, 1x Brown Wire
Attach both spade connectors to the leads extending from the RTD
as shown above.
3
Grounding Wire
Green Wire
The connection point for the ground is located directly below the
auger motor on the vertical panel behind the auger motor.
4
Ethernet Cable
Black Cable with Ethernet End
Attach the Ethernet cable to the terminal on the Wi-Fi card as
shown. Ensure that the wiring does not interfere with the auger
motor’s moving components.
5
Igniter Wiring
1x Red Wire, 1x White Wire
Attach both spade connectors to the leads extending from the
igniter. These leads will extend from the airbox and can be located
in between the two fans.
6
Fan Wiring
1x Blue Wire w/ 2 spade ends,
1x White Wire w/ 2 spade ends
Attach BOTH blue spade connectors to 1 fan and then attach the red
spade connectors to the other fan.
NOTE: ALL TWO WIRE PAIRS FOR A SPECIFIC COMPONENT ARE REVERSABLE
Example: The auger motor wiring can have the either spade connector from
its two wire pair attached to either terminal and the motor will function
normally.
RTD
MEMPHIS PRO BUILT-IN
COMPONENT WIRING
DIAGRAM
FANS
IGNITER
AUGER
MOTOR
WIFI CARD
