Mercia Garden Products 03DTSHPN0806FGD1TW-V1 User manual







 

 
















  



2mm Drill bit
x2 





























































 

















































ANY QUESTIONS?
Scan the QR code to
contact us via our customer
portal.
PLEASE SCAN HERE:


 

8
Some steps within this set of instructions come with an added video guide for your
convenience. These can be accessed via the QR code and used to aid you in constructing that
step. See below for how to use.
You can also nd all the videos on our youtube channel:
https://www.youtube.com/@merciagardenproducts8716/videos
ACCESSING VIDEO GUIDES...
1.Find the QR code within the instruction step...
2. Open camera app...
3. Scan QR code...
4. Watch the video...
On your personal smart device (phone, tablet etc), open your camera app or QR code scanner
app.
To scan the QR code, hold the camera over the QR code so that it can be seen on the screen.
Once the QR code has been registered, follow the prompts on your device to open the video.
(This will vary depending on your device.)
Please note: Ensure to use the back camera of your smart device as this will scan the QR code more
accurately.

The video guide will now be displayed on your smart device.
Parts Needed- No. QTY 1
No. QTY 1
No. QTY 1
Step..... 
Within the instruction step, there will be an icon in the top right that has a QR code in. This
is where the video can be accessed from.
Please note: not every step has a video guide.
Disclaimer: The garden building constructed in the video guides may be
constructed dierently to your building. Please ensure to read your instructions
carefully to avoid error.
ACCESSING VIDEO GUIDES...

 

Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 2468mm
Depth = 2331mm
Height = 2170mm
Base Dimensions:
Width = 2350mm
Depth = 1753mm
1 2 3 4
5 6 7
Door Panel QTY 1
AI-03S11SHDD1180X2075-V1
Single Window Panel QTY 1
AI-03S11SH1TFWC1180X2075-V1
Right Panel QTY 1
AI-03S11SHPGR1707X2119-V1
Left Panel QTY 1
AI-03S11SHPGL1707X2119-V1
Back Panel QTY 2
AI-S11SHPP1180X2015-V1
Floor QTY 2
AI-R11MBF1175X1753-V1
Roof QTY 2
AI-S21MBPR1222X2305-V1

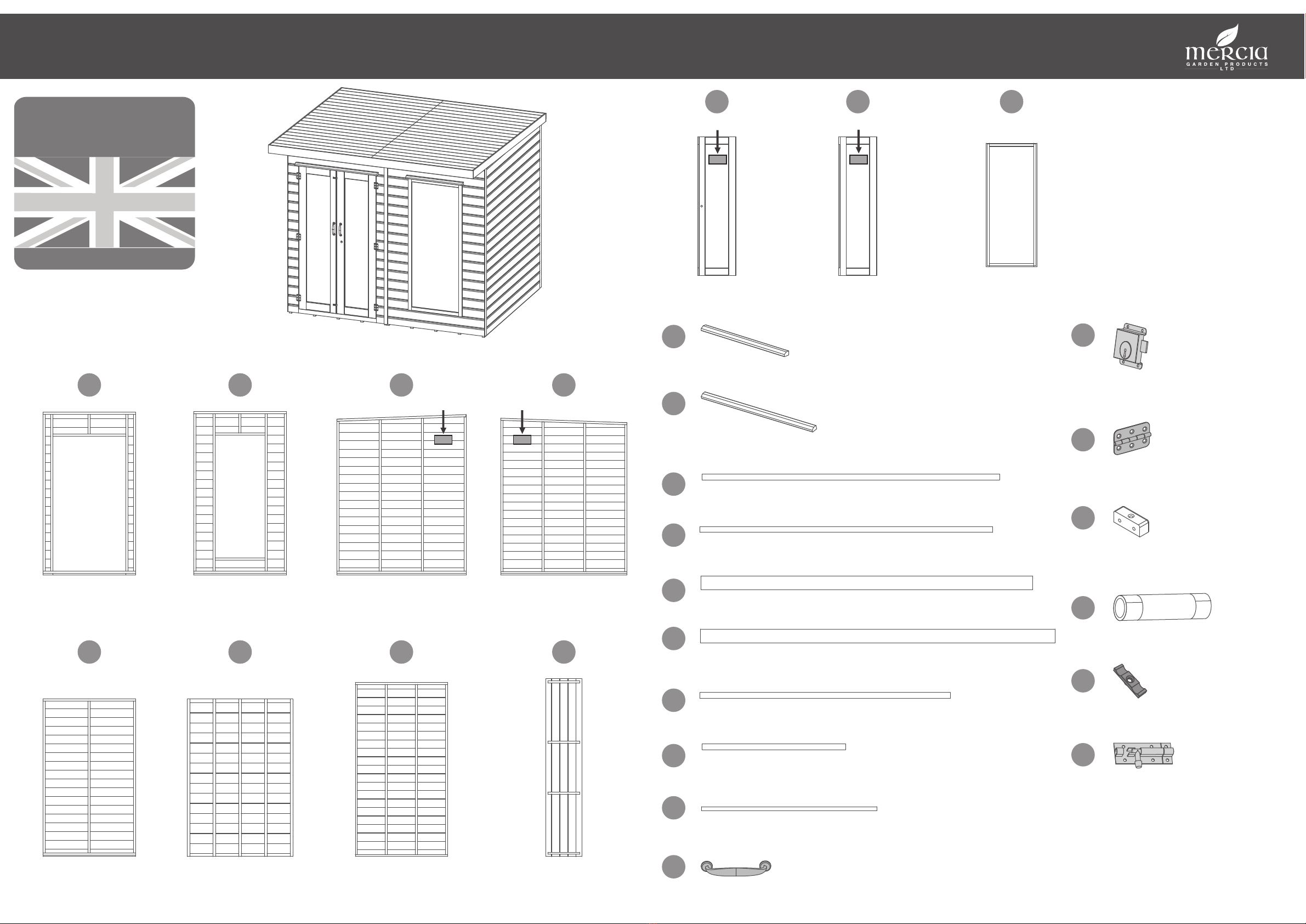

Contents:
8
9 10 11
12
13
17
22
Butt Hinge QTY 6
PI-07-0066
Door Handle QTY 2
PI-07-0081
Turn Button QTY 2
PI-07-0034
18
19
20
21
24
23
Press Lock QTY 1
PI-07-0162
Tower Bolt QTY 2
PI-07-0114
Window Beading Block QTY 8
PI-07-0011
Fitted Window QTY 1
AI-FW653X1582-V1
Felt
Cover Trim - 12x40x2070mm QTY 3
S1240-2070mm
Cover Trim - 12x40x2035mm QTY 3
S1240-2035mm
Fascia - 12x95x2306mm QTY 2
S1295-2306mm
Fascia - 12x95x2468mm QTY 2
S1295-2468mm
Under Roof Panel QTY 1
AI-S11MBURF2440X484-V1
Master Door QTY 1
AI-STDFGMD475X1715-V1
Secondary Door QTY 1
AI-STDFGSD475X1715-V1
14
15
16
Rain Guard - 28x44x680mm QTY 1
RG2844-680mm
Rain Guard - 28x44x990mm QTY 1
RG2844-990mm
Door Frame Strip - 12x40x1740mm QTY 2
S1240-1740MM
Door Frame Strip - 12x40x996mm QTY 1
S1240-996MM
Eaves Frame - 28x28x1222mm QTY 2
FS2828-1222mm
25
26
27
Blue Label
Green Label
Green Label Blue Label

 

Nail Bag
There may be extra screws present in the nail bag
40mm Screw QTY 18
Felt Tacks QTY 110
25mm Screw QTY 22
30mm Screw QTY 95
50mm Screw QTY 86
35mm Bolt QTY 4
10mm Screw QTY 12
Pre Assembly
Before assembling remove the transportation blocks from the bottom of each
panel.
Take care removing the blocks as to not damage the panels. Tap with a at
headed screwdriver and hammer.
Dispose of the blocks once removed.
PLEASE SCAN HERE:
Step 1
Parts needed - No. 1 QTY 1
- No. 9 QTY 1
- No. 10 QTY 1
- No. 21 QTY 2
- No. 23 QTY 6
Pre drill
hole
25mm
screw
30mm
screw
35mm
bolt
23
21
1
9
10
IMPORTANT: Pre-drill before xing screws.
9
10
a
b
Locate the Master Door (No.9) and the
Secondary Door (No.10) into the Door Panel
(No.1) so there is equal spacing on each
side, ensuring the doors interlock as shown.
Locate the hinges to the Master (No. 9) and
Secondary (No. 10) doors and to the door
panel (No. 1) using 3 butt hinges (No. 23)
per door.
Fix the hinges to the doors using 3x25mm
screws and to the Door panel using 3x30mm
screws per hinge, ensure the doors open
and close freely.
Fix the door handles (No. 21) to the outside
of the master and secondary door using the
35mm bolts provided.
4x35mm Bolts
18x25mm Screws
18x30mm Screws
c
a
b
c

 

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
10mm
screw
25mm
screw
22
*Internal View*
Secondary Door
Master Door
b
Pre drill
holes
27
Attach the press lock (No.22) to the
master door with 4x25mm screws,
aligning the barrel with the key hole.
*Ensure the key turns and locks
properly before xing to the door.
Place the Tower Bolts (No.27) roughly
into position at the top/bottom of the
secondary door. With a pencil mark
around the bolt.
After marking the bolt onto the panel,
drill a hole for the barrel bolt to locate
into.
Following the hole being drilled, place
the tower bolts into position and secure
using 4x10mm screws per bolt.
8x10mm Screws
4x25mm Screws
c
Step 2
Parts needed - No. 22 QTY 1
- No. 27 QTY 2
c
a
b
a
Pre drill
hole
50mm
screw
66
Step 3
Parts needed - No. 6 QTY 2
Place the assembled oor panels
(No. 6) upside down onto a rm and
level base. Ensure the base has
suitable drainage, free from areas
where standing water can collect.
Secure the oors together using
10x50mm screws through the oor
bearers in an alternating pattern.
Once xed together turn the oor
back the right way up.
10x50mm Screws

 

Pre drill
hole
50mm
screw
5
4
IMPORTANT: Pre-drill before xing screws.
Step 4
Parts needed - No. 4 QTY 1
- No. 5 QTY 1
Locate the Left Panel(No. 4) and the Back
Panel (No. 5) on top of the Floor as shown.
*Please note that the back panels are
shorter than the side panel.
Fix the panels together at the corners using
4x50mm screws, as shown in the illustration.
Do not secure the building to the oor until
the roof is tted.
4x50mm Screws a
a
a
a
a
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
5
Step 5
Parts needed - No. 3 QTY 1
- No. 5 QTY 1
Locate the Back Panel (No. 5) on top of the
Floor next to the already standing Back
Panel. Secure the back panels together
using 4x50mm screws.
Locate the Right Panel (No. 3) on top of
the oor as shown.
*Please note that the back panels are
shorter than the side panel.
Fix the Back and Right Panels together at
the corners using 4x50mm screws, as
shown in the illustration.
Do not secure the building to the oor
until the roof is tted.
8x50mm Screws
a
a
a
a
a
3
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
3
2
Step 6
Parts needed - No. 2 QTY 1
Locate the Single Window Panel (No. 2) on
top of the Floor at the front of the building,
as shown.
*Please note that the single window panel
is shorter than the side panels.
Fix the Panels together at the corners using
4x50mm screws, as shown in the illustra-
tion.
Do not secure the building to the oor
until the roof is tted.
4x50mm Screws
a
a
a
a
a
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
1
4
2
a
a
a
a
a
a
a
a
a
Step 7
Parts needed - No. 1 QTY 1
Locate the Door Panel (No. 1) on top of the
Floor between the Single Window Panel
(No. 2) and the Left Panel (No. 4), as shown.
*Please note that the Door panel is shorter
than the side panels.
Fix the Panels together using 4x50mm
screws, as shown in the illustration.
Do not secure the building to the oor until
the roof is tted.
8x50mm Screws

 

IMPORTANT: Pre-drill before xing screws.
50mm
screw
Pre drill
hole

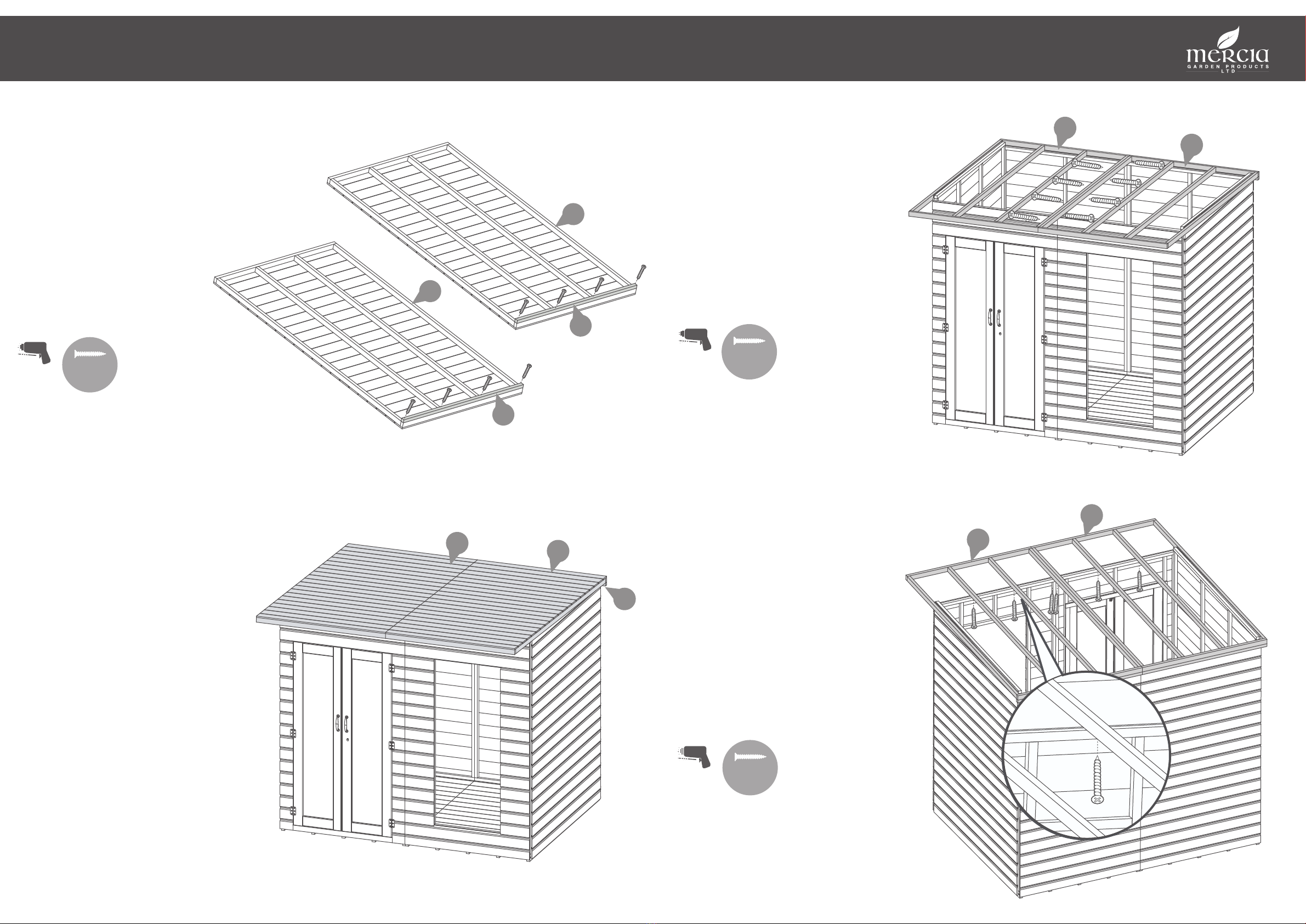

Step 8
Parts needed - No. 7 QTY 2
- No. 20 QTY 2
Fix the Eaves framing (No.20) to
the Roofs (No.7) using 4x50mm
screws per eaves frame, screwing
through the eaves frame and into
the roof framing.
Ensure the eaves framing is ush
to the edges of the roof framing
before securing.
8x50mm Screws
7
20
20
7
IMPORTANT: Pre-drill before xing screws.
77
20
Step 9
Parts needed - No. 7 QTY 2
Place the Roof Panels (No. 7) onto the
top of the building. Align the two Roof
Panels so they sit square, ensuing the
Eaves frames (No. 20) sit at the back of
the building.
*The roof panels should sit on top of
the left and right panels, the roof
panels framing should sit on top of
the back, door and single window
panels.*
Do not secure the building to the
Floor until the roof is tted.
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
7
7
Step 10
Internally, x the two Roof panels
(No.7) together using 50mm
screws. Ensure to stagger the
screws to avoid collision.
*Roof boards not shown for
illustrative purposes.
Do not secure the building to
the Floor until the roof is tted.
8x50mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
7
7
Step 11
Internally, secure the roof panels at
the front and back of the building
using 6x50mm screws.
Screw up through the panel framing
into the framing of the Roof Panel.
*Roof boards not shown for
illustrative purposes.
Do not secure the building to the
Floor until the roof is tted.
12x50mm Screws

 
¡
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
b
Step 12
Once the Roof (No. 6) is aligned and
secure the panels can be secured to the
Floor.
Fix the building into place by screwing
through the panel into the oor making
sure to screw into the oor bearers, using
3x50mm screws per panel.
18x50mm Screws
bbbbbb
b
b
b
Pre drill
hole
30mm
screw
8
IMPORTANT: Pre-drill before xing screws.
Step 13
Parts needed - No. 8 QTY 1
Place the Under Roof Panel (No. 8)
into position on the underside of the
Roof overhang, as shown. Ensure
that it is ush to the front and sides
of the building.
Using a pencil, mark on the under
roof panel where the roof panel
framing is to use as a guide for xing
into place.
Fix the Under Roof Panel (No. 8) in
place using 3x30mm screws per
Roof frame, as shown. Make sure to
screw up through the cladding, in to
the Roof framing.
21x30mm Screws
HANDLE
WITH CARE
1 2
3
4
Felt
tacks
1.
2.
3.
25
Step 14
Parts needed - No. 25 QTY 1
Cut the Felt (No. 25) into 3 sheets measuring
2550mm (L) x 1000mm (W).
Lay the sheets onto the roof as shown in the
diagram, starting at the back and working
towards the front.
*Ensure there is approximately 50mm of
overhang around the building and the
sheets overlap by 100mm.
Secure the Felt into position using felt tacks at
100mm intervals.
110 x Felt tacks
100mm

 

IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
40mm
screw
16
16
17
17
Step 15
Parts needed - No. 16 QTY 2
- No. 17 QTY 2
Fix the fascias (No. 16 & 17) to
the front, back and sides of the
building using 18x40mm
screws.
Ensure the fascia xed to the
back of the roof nishes ush
with the top to enable water
to run o.
18x40mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
11
11
24
Step 16
Parts needed - No. 11 QTY 1
- No. 24 QTY 8
a
b
Place the Window (No.11) face down on a
at surface. Locate eight Window Beading
Blocks (No.24) four down each side, on to
the edges of the Window ensuring they are
ush to the sides, as shown, and x with
1x30mm screw per block.
Locate the Widow centrally into the
Window cut out.
Secure the Window into the panel by
screwing though the Window Beading
Blocks (No.24) into the Panel using
2x30mm screws per block, as shown.
Fix the window beading blocks (No. 24) to
the window before tting the window into
the panel.
24x30mm screws.
a
b
