Mercia Garden Products 06LOG004-V1 Instruction manual

P 1
06LOG004-V1 & 06LOG004VR-V1
06LOG004-V1: 19mm log cabin 2.5x2.7m, single door with single (glass) glazing.
06LOG004VR-V1: 19mm log cabin 2.5x2.7m, with veranda and single door with single (glass) glazing.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
Our buildings are pre treated with a water based treatment**; this only helps to protect
the product during transit and for upto 3 months against mould. To validate your
guarantee and ensure longevity of the product, it is ESSENTIAL the building is treated
with a wood preserver within the rst three months of assembly and thereafter in
accordance with the manufactures recommendations. Care must be taken to ensure
the product is placed on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions, The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for you specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
It is advisable to use a
circular saw when cutting
roof and oor boards.

21 3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
P 2
06LOG004-V1 & 06LOG004VR-V1
Overall Dimensions:
Width = 2615mm
Depth = 2432mm (Without veranda)2918mm (With veranda)
Height = 2546mm
Base Dimensions:
Width = 2305mm
Depth = 1803mm (Without veranda) 2707mm (With veranda)
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building

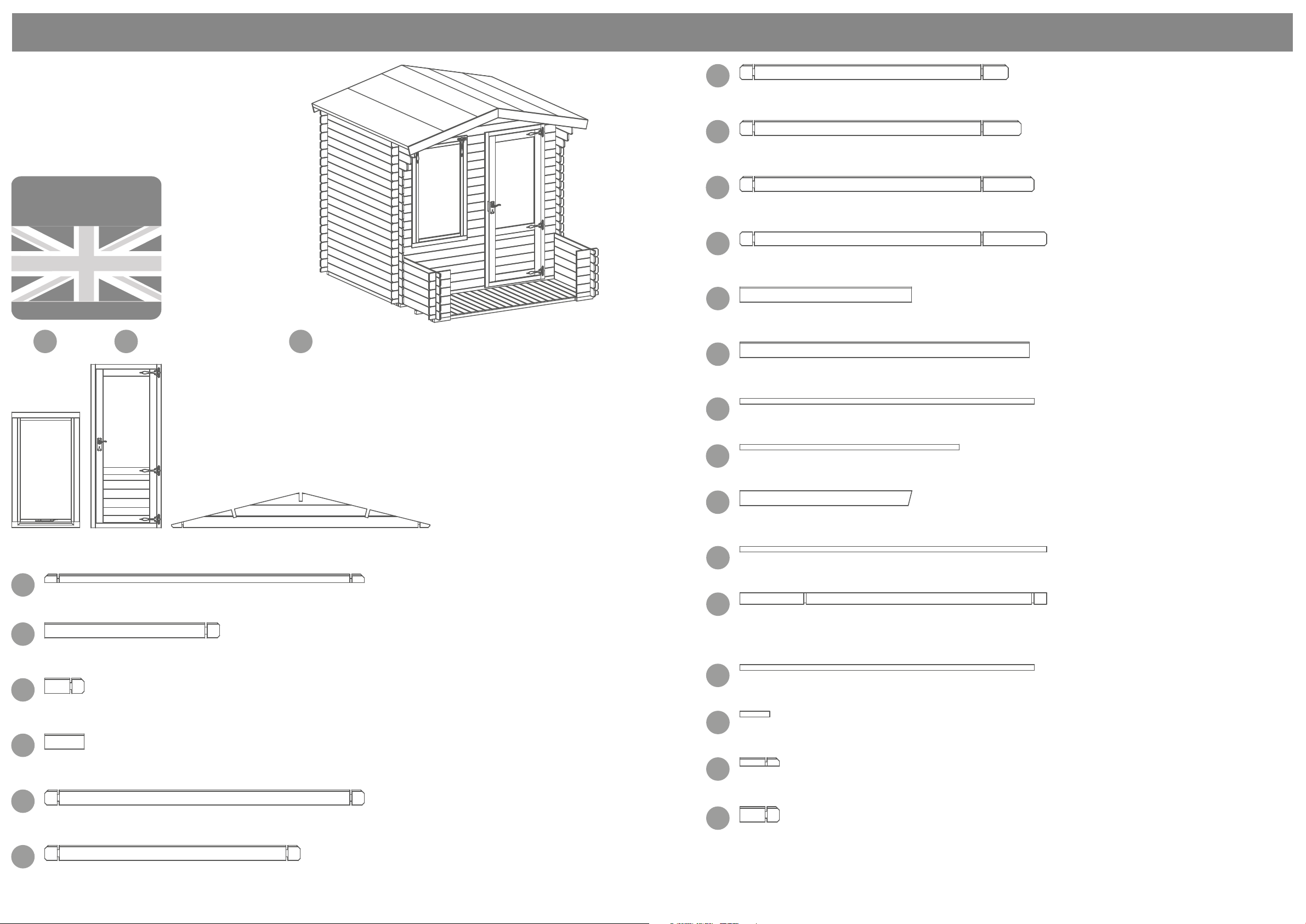

MADE IN GREAT BRITAIN
Window Door 004 Gable 2500mm
QTY 2
Starter Board (S1) - 66x19x2500mm QTY 2
LB19RT66-2500mm
Log Board (B) - 120x19x1370mm QTY 6
LB19-1370mm
Log Board (B) - 120x19x310mm QTY 30
LB19-310mm
Log Board (C) - 120x19x310mm QTY 12
LB19-310mm (No notch)
Log Board (A) - 120x19x2500mm QTY 20
LB19-2500mm
Log Board (A) - 120x19x2000mm QTY 32
LB19-2000mm
Log Board (WA) - 120x19x2100mm QTY 2
LB19-2100mm
Log Board (WA) - 120x19x2200mm QTY 2
LB19-2200mm
Log Board (WA) - 120x19x2300mm QTY 2
LB19-2300mm
Log Board (WAR) - 110x19x2400mm QTY 2
LB19RG110-2400mm
Roof Board - 121x16x1344mm QTY 44
MB16-1344mm
Floor Board - 121x16x2264mm QTY 17
MB16-2264mm
Bearer - 44x44x2304mm QTY 2
F4444-2304mm
Bearer - 44x44x1715mm QTY 9
F4444-1715mm
Fascia - 120x16x1347mm QTY 4
S16120-1347mm (Angled)
Eaves Frame - 44x27x2400mm QTY 2
F2744-2400mm
Purlin - 90x40x2400mm QTY 3
F4090-2400mm
Veranda Components (06LOG004VR-V1 only)
Bearer - 44x44x2304mm QTY 3
F4444-2304mm
Bearer - 44x44x234mm QTY 2
F4444-234mm
Starter (S2) - 66x19x310mm QTY 2
LB19RT66-310mm
Log Board (B) - 120x19x310mm QTY 8
LB19-310mm

Felt Tacks x155
70mm Screw x151
30mm Black Screw x21
Mortice Lock Key Plate Handles (Pair)Felt
Pre-assembly
*Please note:
Each board interlocks at
either end in a staggered pattern.
Before securing ensure that the boards
are tted properly in their respective
tongue’s and groove’s.
Pre drill
hole
30mm
screw
Nail Bag
40mm Screw x520
30mm Screw x15
30mm
screw
25
26
27
28
Casement Stay
P 3
Please retain product label and instructions for future reference
Log Board (BR) - 110x19x310mm QTY 2
LB19RG110-310mm
Log Board (B) - 120x19x1000mm QTY 10
LB19-1000mm
Log Board (BR) - 56x19x1000mm QTY 2
LB19RG56-1000mm
Veranda Floor - 95x12x882mm QTY 22
SR1295-882mm
32 33 34 35
Step 2
Fix the casement stay (No. 36) onto
the window (No. 1) and the casement
stay pins to the window cill using
6x30mm screws per casement stay.
*Ensure the casement stay is centralised
on the window.
6x30mm Black Screws
6x30mm Screws
Depending on Ironmongery choices
Storm Brace - 27x44x2100mm QTY 8
F2744-2100mm
29
30
31
Skirting - 28x28x2400mm QTY 5
FS2828-2400mm
Interior Roof Trim - 27x44x2400mm QTY 3
F2744-2400mm (Bevelled)
80mm Bolt Set x24
Pre drill
hole
30mm
screw 30mm
screw
The Mortice Lock is Reversible
a
b
Step 1
Fit the mortice lock (No. 32) into the recess
in the door (No. 2) and secure using the
screws provided. Attach the key
plate (No. 33) to the door framing with the
screws provided.
Fit the door handles (No. 34) and connect
with the metalbar to the mortice lock
using 8x30mm screws. Ensure the lock
mechanism closes correctly. If not, remove
the lock and turn the catch around using
the small grub screw.
*Please note: This image is for illustrative purposes
and may dier from your choice in product
(regarding ironmongery). Nevertheless the process
of xing the frames is the same.
8x30mm Black Screws
4x30mm Screws
a
b
36

Pre drill
hole
70mm
screw
Pre drill
hole
70mm
screw
Pre drill
hole
IMPORTANT: It is imperative that
you pre-drill before xing screws.
P 4
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Please retain product label and instructions for future reference
17
Step 3
Lay the starters (No. 16 & No. 17)
onto a rm and level surface
(free from areas where standing
water can collect) as shown in the
illustration.
Fix the framing together at each
corner using 8x70mm screws,
ensuring the frame is ush.
8x70mm Screws
Step 4
Following the same method
outlined in Step 3, arrange the
remaining bearers (No. 17) as
shown in the illustration.
*Ensure there is an equal
amount of space between each
frame.
Secure each of the frames in place
using 4x70mm screws per frame,
ensuring the framing remains level.
32x70mm Screws
70mm
screw
Step 5 (See Pre-Assembly)
Place the starter boards (No. 4)
on to assembled base frame
along the longest sides.
*Ensure the notches at either
end of each board are ush
and level with the ends of the
frame.
Fix each of the starter boards to
the frame by screwing through
the notch into the frame as shown
in the illustration.
4x70mm Screws
4
17
16
17
16
17
16
17 17 17 17 17 17 17
94
49

IMPORTANT: It is imperative that you pre-drill before xing screws.
P 5
Please retain product label and instructions for future reference
Step 6 (See Pre-Assembly)
Following the same method
outlined in Pre-Assembly, lay
the rst 6 boards (No’s. 5, 6
8 & 9) onto the starter
boards to create your rst
level.
*Ensure that the boards are
level and ush with each
other as you lay each one.
Fix every third board to the
one below by screwing
through the notch as shown
in the illustration using
1x70mm screw per side.
**Ensure to stagger the screws
so as not to collide with the
previous screw.
16x70mm Screws
Pre drill
hole
70mm
screw

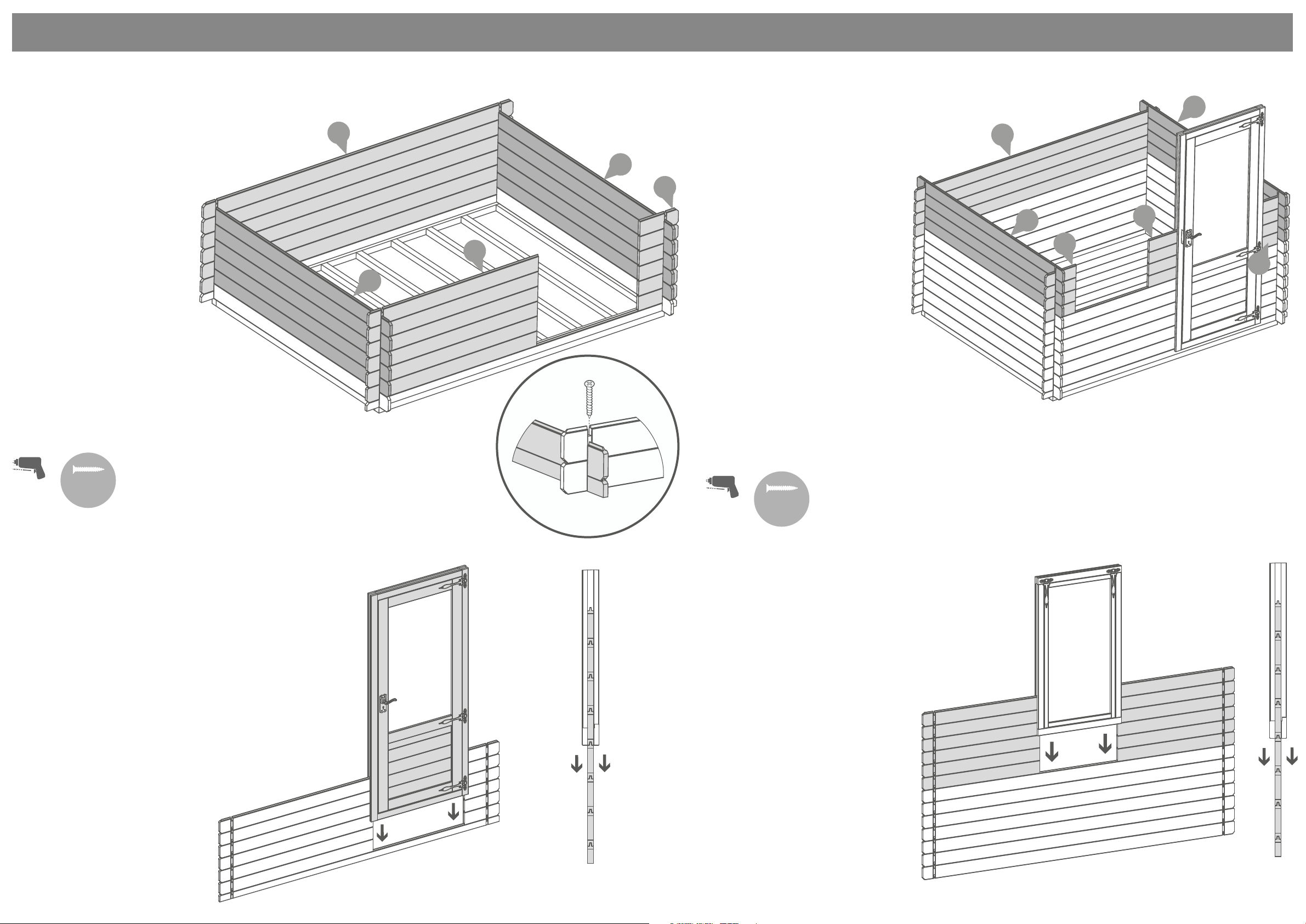

Step 7
Once you have laid 6 log boards (o of the
starter) up the door section, slide the
assembled door frame assembly over the
boards resting the frame on top of the
starter board.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding door position).
Nevertheless the process of tting the door
frame is the same.
**Please Note: The short boards at the
front of the building (either side of
the door and window opening’s)
can be placed either side depending
on your needs.
Please Note: The short boards at the
front of the building (either side of
the door and window opening’s)
can be placed either side depending
on your needs.
Step 8 (See Pre-Assembly)
Following the same method
outlined in Pre-Assembly, lay
the next 4 boards (No’s. 6, 8,
9, 10 & 11) onto the assembly
to create your second
level.
*Ensure that the boards are
level and ush with each
other as you lay each one.
Fix every third board to the
one below by screwing
through the notch as shown
in the illustration using
1x70mm screw per side
(as outlined in Step 7).
**Ensure to stagger the screws
so as not to collide with the
previous screw.
20x70mm Screws
Step 9: Window Frame Fit
Once you have laid the second
level of boards onto the assembly
slide the window(s) between the
smaller boards and rest on to the
longer board.
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may
dier from your choice in product
(regarding window position).
Nevertheless the process of tting
the window is the same.
Pre drill
hole
70mm
screw
***Please Note: The short boards placed
to create the opening’s for the doors &
windows can be placed either side
depending on your needs.
IMPORTANT: It is imperative that you pre-drill before xing screws.
9
9
6
5
8
6
6
9
9
8
7

IMPORTANT: It isimperative that
you pre-drill before xing screws.
IMPORTANT: It isimperative that
you pre-drill before xing screws.
P 6
Please retain product label and instructions for future reference
Step 10 (See Pre-Assembly)
Following the same method
outlined in Pre-Assembly, lay
the next 4 boards (No’s. 6, 7,
8 & 9) onto the assembly.
*Ensure that the boards are
level and ush with each
other as you lay each one.
Fix every third board to the
one below by screwing
through the notch as shown
in the illustration using
1x70mm screw per side
(as outlined in Step 7).
**Ensure to stagger the screws
so as not to collide with the
previous screw.
20x70mm Screws
Pre drill
hole
70mm
screw
IMPORTANT: It is imperative that you pre-drill before xing screws.
6
6
7
9
9
8
6
76
10
8
10
Step 11 (See Pre-Assembly)
Following the same method
outlined in Pre-Assembly, lay
the next 4 boards (No’s. 6, 7,
8 & 10) onto the assembly.
*Ensure that the boards are
level and ush with each
other as you lay each one.
Fixing board No. 10 to the
one below by screwing
through the notch as shown
in the illustration using
1x70mm screw per side
(as outlined in Step 7).
**Ensure to stagger the screws
so as not to collide with the
previous screw.
4x70mm Screws
Pre drill
hole
70mm
screw

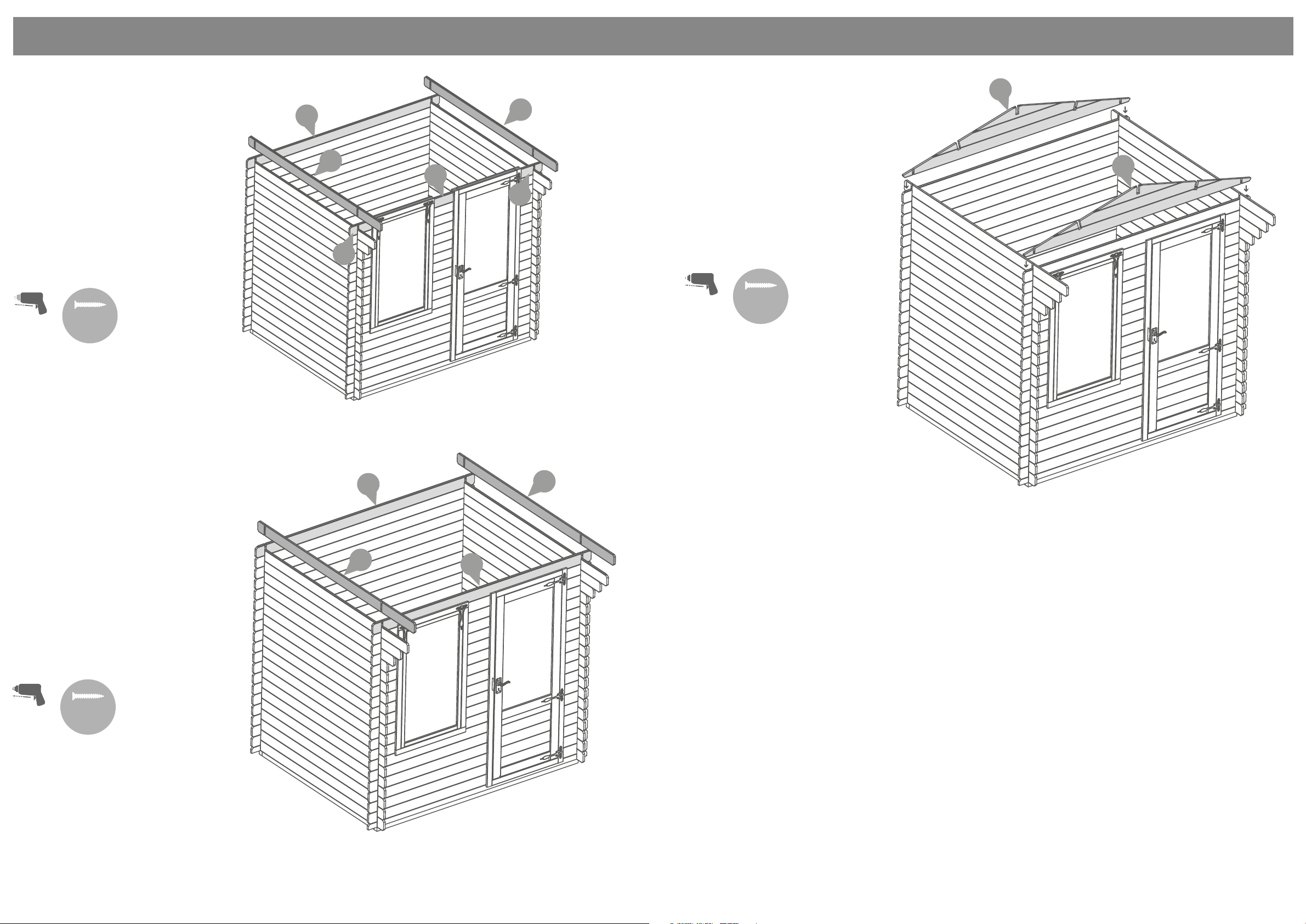

Step 12 (See Pre-Assembly)
Following the same method
outlined in Pre-Assembly
and Step 11, lay the next 4
boards (No’s. 6, 7, 8 & 11)
onto the assembly.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws 6
76
8
11
11
Pre drill
hole
70mm
screw

Please retain product label and instructions for future reference
Step 14 (See Pre-Assembly)
Place the gable tops onto the
assembly. Fix into position by
screwing through the notches
as shown in the illustration.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
Pre drill
hole
70mm
screw
IMPORTANT: It isimperative that
you pre-drill before xing screws.
Step 12 (See Pre-Assembly)
Following the same method
outlined in Pre-Assembly
and Step 11, lay the next 4
boards (No’s. 6, 7, 8 & 12)
onto the assembly.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
Pre drill
hole
70mm
screw
6
7
6
8
12
12
IMPORTANT: It isimperative that
you pre-drill before xing screws.
Step 13 (See Pre-Assembly)
Following the same method
outlined in Pre-Assembly
and Step 11, lay the next 4
boards (No’s. 8 & 13)
onto the assembly.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
Pre drill
hole
70mm
screw
8
13 8
13
3
3
IMPORTANT: It isimperative that
you pre-drill before xing screws.

Please retain product label and instructions for future reference
Pre drill
hole
Step 15: Ridge Bar Fit
Align the ridge bar(s) (No. 20) into the
cut out slots on each gable top ensuring
each ridge bar interlocks the boards.
Secure the ridge bars at each end by
screwing through the bars into the
boards (ensure to pre-drill to avoid
the boards splitting) using 4x70mm
screws per ridge bar.
*Please note: The gable shown is for
illustrative purposes and may dier
in width from your choice in product.
Nevertheless, despite any dierences
the process of xing the ridge bars
is the same.
12x70mm Screws
70mm
screw
20
Step 16
Place the rst two roof board’s
(No. 14) onto the assembly on
each side, making sure the boards
are ush to the end of the roof
purlin. Once in position x to each
purlin using 3x40mm screws.
*Ensure the roof boards meet
at the top of the apex and leave
an overhang at the bottom.
Continue adding the roof boards
along the roof, xing each one into
position using 3x40mm screws,
making sure that each board is
interlocked, ush at the bottom &
meet at the top of the apex.
The last board on each side will
overhang: Using a staight edge
and a pencil mark out a line as
a guide.
Cut along the pencil mark and
remove the excess. Place the
cut down board’s back onto the
roof and secure into place
using 3x40mm screws per
board.
*Please Note: This image is for illustrative
purposes and may dier from your choice in
product. Nevertheless the process of cutting
and tting the last roof boards is the same.
132x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
IMPORTANT: It is imperative
that you pre-drill before
xing screws.
23b 14
14
14

Please retain product label and instructions for future reference
Step 17
Ensuring the roof boards are ush
at the overhanging side and meet
at the apex, x the eaves frames
(No. 19) to the underside of the roof
boards using 9x40mm screws as
shown in the illustration
*Please Note: This image is for
illustrative purposes and may
dier from your choice in
product. Nevertheless the process
of xing the eaves frames is the
same.
18x40mm Screws
40mm
screw
Pre drill
hole
Step 18
Place the rst oor board (No. 15)
inside the building ush to the log
board on one side. Continue adding
the oor boards (internally) making
sure to interlock each individual
board.
*Do NOT secure the boards until
the last board has been measured
and cut.
Following the same method outlined
in Step 16 measure the gap between
the bottom of the tongue (on the last
board placed) and the log board.
Using a straight edge mark out the
measurement onto the last oor
board (No. 15) and cut along the
length removing the excess.
**Please note: Mark the nal board
2mm under the measurement; This
will allow the timber to expand and
contract correctly.
Once all the oor boards are in
position secure each board into
position using 8x40mm screws.
***Please Note: Ensure to screw
through eachof the oor boards
into the oor bearers.
153x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
19
15
15
15
15
15

Please retain product label and instructions for future reference
30mm
screw
HANDLE
WITH CARE
12
3
4
Felt
tacks
Step 21
Cut the felt into ve & strips lay onto
the roof in the order shown in the
illustration.
*Ensure there is approximately 50mm
of overhanging felt each side.
Once the felt is laid out x to the
roof using felt tacks at 100mm
intervals.
*Felt size: 2532mm
152x Felt Tacks
1. 2.
3. 4.
5.
Roof
Internal Roof Trim
Internal
Step 19
Inside the building place an internal
roof trim (No. 31) against the boarding
and align with the roof as shown in the
illustration, ensuring the angled face
follows the roof line.
Once in position x each roof trim
into place using 40mm screws per
roof trim, equally spaced along the
face of the board.
12x40mm Screws
Pre drill
hole
40mm
screw
31
*trim to t
*Measure and cut the
interior roof trims to
t the internal space.
Step 20
Once the oor has been laid arrange the
skirting (No. 30) around the outside edge
of oor (internally), measure and cut down
accordingly to best match the internal
space.
Secure each skirting section into place
using 30mm spaced equally along the
board as shown in the illustration.
*Do NOT x the skirting to the oor
sheets/boards.
33x30mm Screws
30mm
screw
30
30
30mm
screw
Pre drill
hole
*Cut to t
*Internal view

Please retain product label and instructions for future reference
Step 22
Align the fascia’s (No. 18)
with the roof and x into
place using 3x40mm
screws per fascia, making
to screw through the
fascia into the roof purlins
and eaves frame.
*Ensure the angled cuts meet
at the top of the apex.
12x40mm Screws
Pre drill
hole
40mm
screw
29
29
Step 23
Arrange the storm braces (No. 29)
around the building (internally).
Place 2x storm braces per side
xing into place using 2x 80mm
bolts per brace making sure the
washer & nut are tightened from
the outside of the building.
*Ensure the storm braces are
secured at the highest point
possible on each side.
**Storm braces will help your
building expand and contract
properly.
***It is imperative that each
bolt is tightened using a
washer so as not to damage
the log boards.
24x80mm Bolt Sets
Pre drill
hole
80mm
bolt
18
18
18
18 a
b
Veranda Fit
Step 1
Place the rst starter
(No. 21) up to the
building and x to the
building starter using
4x70mm screws.
Attach the smaller
starter frame (No. 21)
to each end of the
larger frame (No. 22)
using 4x70mm screws.
8x70mm Screws
Pre drill
hole
70mm
screw
a
21
22
22
b

Please retain product label and instructions for future reference
Step 2
Following the method outlined
in Step 5 (see main instructions)
secure the starter board (No. 23)
onto the smaller frame using
2x70mm screws ensuring to
screw through the notch into the
framing below.
Place the rst two log boards
(No. 26) onto the starter board
and rest onto the starter frames
as shown in the illustration.
Once in position x the log
board to the inside of the cabin
using 2x40mm screws per side.
*The centre starter frame at this
point is not xed into position,
arrange so there the frame is
central.
4x40mm Screws
2x70mm Screws
70mm
screw
Pre drill
hole
40mm
screw
IMPORTANT: It is imperative
that you pre-drill before
xing screws.
23
26
Step 3
Following the method outlined
in Step 8 (see main instructions)
continue placing the boards
(No’s. 24, 25 & 26) on to the
veranda sides, ensuring to
interlock the boards (xing every
third board by screwing through
the notches with 4x70mm screws).
*Board 37 is the last board to
t on to the assembly.
Ensure to screw through the
boards into the side of the
cabin as shown in the
previous step.
24x40mm Screws
4x70mm Screws
70mm
screw
Pre drill
hole
40mm
screw
26
26
24
24
25
25
34
Step 4
Following the method outlined
in Step 17B (see main instructions)
place the veranda oor boards
(No. 34) onto the assembly and
secure each board into place using
3x40mm screws ensuring to screw
through the boards into the framing
below.
120x40mm Screws
40mm
screw
Pre drill
hole

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
Please retain product label and instructions for future reference
Step 5
Fix the last two log boards (No. 27) onto the veranda
sides using 2x70mm screws through the notches and
2x40mm screws through the boards as shown in the
illustration.
2x40mm Screws
2x70mm Screws
70mm
screw
Pre drill
hole
40mm
screw
27
27
