Mercia Garden Products 0628LOG127-V5 Instruction manual

P 1
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
0628LOG127-V5
0628LOG127-V5 28mm 3x3m corner cabin
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.

2
1
3
4
5
6
7
11
12
13
14
8
9
10
15
16
17
18
19
20
21
23
25
26
27
28
24
22
29
30
P 2
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Short Window Pack*
QTY 2
Single Door Pack*
0628LOG127-V5
Overall Dimensions:
Width = 4482mm
Depth = 3723mm
Height = 2923mm
Base Dimensions:
Width = 3255mm
Depth = 3899mm
Please retain product label and instructions for future reference
Starter Board - 28x66x1621mm QTY 1
LB28RT66-HLR-1621 (1x45 deg cut top, 1x45 deg cut bottom)
Log Board - 28x120x400mm QTY 18
LB28-BGR-400 (1x45 deg cut right)
Log Board - 28x120x400mm QTY 17
LB28-BGL-400 (1x45 deg cut left)
Log Board - 28x60x400mm QTY 1
LB28-HGR-400 (1x45 deg cut right, 60mm height board)
Log Board - 28x70x400mm QTY 1
LB28-HGL-400 (1x45 deg cut right bottom notch, 70mm height board)
Log Board - 28x120x1621mm QTY 1
LB28-J-1621 (1x45 deg cut left, 1x45 deg cut right top notch)
Log Board - 28x120x1621mm QTY 1
LB28-JD-1621 (1x45 deg cut left, 1x45 deg cut right top notch, door notch)
Log Board - 28x66x2028mm QTY 1
LB28RT66-AGR-2028 (1x45 deg cut left)
Log Board - 28x120x2028mm QTY 6
LB28-AGR-2028 (1x45 deg cut left)
Log Board - 28x120x2028mm QTY 1
LB28-J-2028 (1x45 deg cut left 50mm bottom notch)
Log Board - 28x120x2028mm QTY 1
LB28-JD-2028 (1x45 deg cut left 50mm bottom notch, window notch)
Log Board - 28x120x2028mm QTY 1
LB28-ADGL-2028 (1x45 deg cut right, window notch)
Log Board - 28x120x2028mm QTY 7
LB28-AGL-2028 (1x45 deg cut right)
Log Board - 28x64x2028mm QTY 1
LB28-AGHL-2028 (64mm high board, 1x45 deg deep cut right)
Log Board - 28x64x3000mm QTY 1
LB28-AH-3000 (64mm high board)
Log Board - 28x66x3000mm QTY 1
LB28RT66-A-3000
Log Board - 28x120x3000mm QTY 40
LB28-A-3000
Finisher Board - 28x80x1356mm QTY 1
LB28RG80-CGLR-1356 (2x61 deg cut, 1356mm nished)
Finisher Board - 28x80x1005mm QTY 1
LB28RG80-CGR-1005 (2x74 deg cut left, 1005mm nished)
Finisher Board - 28x80x1005mm QTY 1
LB28RG80-CGL-1005 (2x74 deg cut right, 1005mm nished)
Finisher Board - 28x80x717mm QTY 3
LB28RG80-CGL-717 (1x45 deg cut right, 717mm nished)
Finisher Board - 28x80x1228mm QTY 2
LB28RG80-C-1228
Finisher Board - 28x80x717mm QTY 3
LB28RG80-CGR-717 (1x45 deg cut left, 717mm nished)
Log Board - 28x120x639mm QTY 24
LB28-B-639
Log Board - 28x120x639mm QTY 12
LB28-BGR-639 (1x45 deg cut left)
Log Board - 28x120x639mm QTY 12
LB28-BGL-639 (1x45 deg cut right)
*All components for the Windows and Doors are
shown in the Windows and Doors instruction packs.
Roof Truss - 40x70x992mm QTY 3
AI-06LOGC3X3-LRT
Roof Truss - 40x70x992mm QTY 3
AI-06LOGC-RRT

34
35
36
37
38
39
40
42
31
32
33
41
P 3
Please retain product label and instructions for future reference
Bearer - 44x44x2808mm QTY 1
F4444-G-2808-PT
Bearer - 44x44x2720mm QTY 8
F4444-G-2720-PT
Bearer - 44x44x2513mm QTY 1
F4444-G-2513-PT (1x45 deg cut, 2513mm nished)
Bearer - 44x44x2262mm QTY 1
F4444-G-2262-PT (1x45 deg cut, 2262mm nished)
Bearer - 44x44x2011mm QTY 1
F4444-G-2011-PT (1x45 deg cut, 2011mm nished)
Bearer - 44x44x1361mm QTY 1
F4444-H-1361-PT (2x45 deg cut, 1361mm nished)
Bearer - 44x44x1820mm QTY 1
F4444-G-1820-PT (1x45 deg cut, 1820mm nished)
Bearer - 44x44x1864mm QTY 1
F4444-G-1864-PT (1x45 deg cut, 1864mm nished)

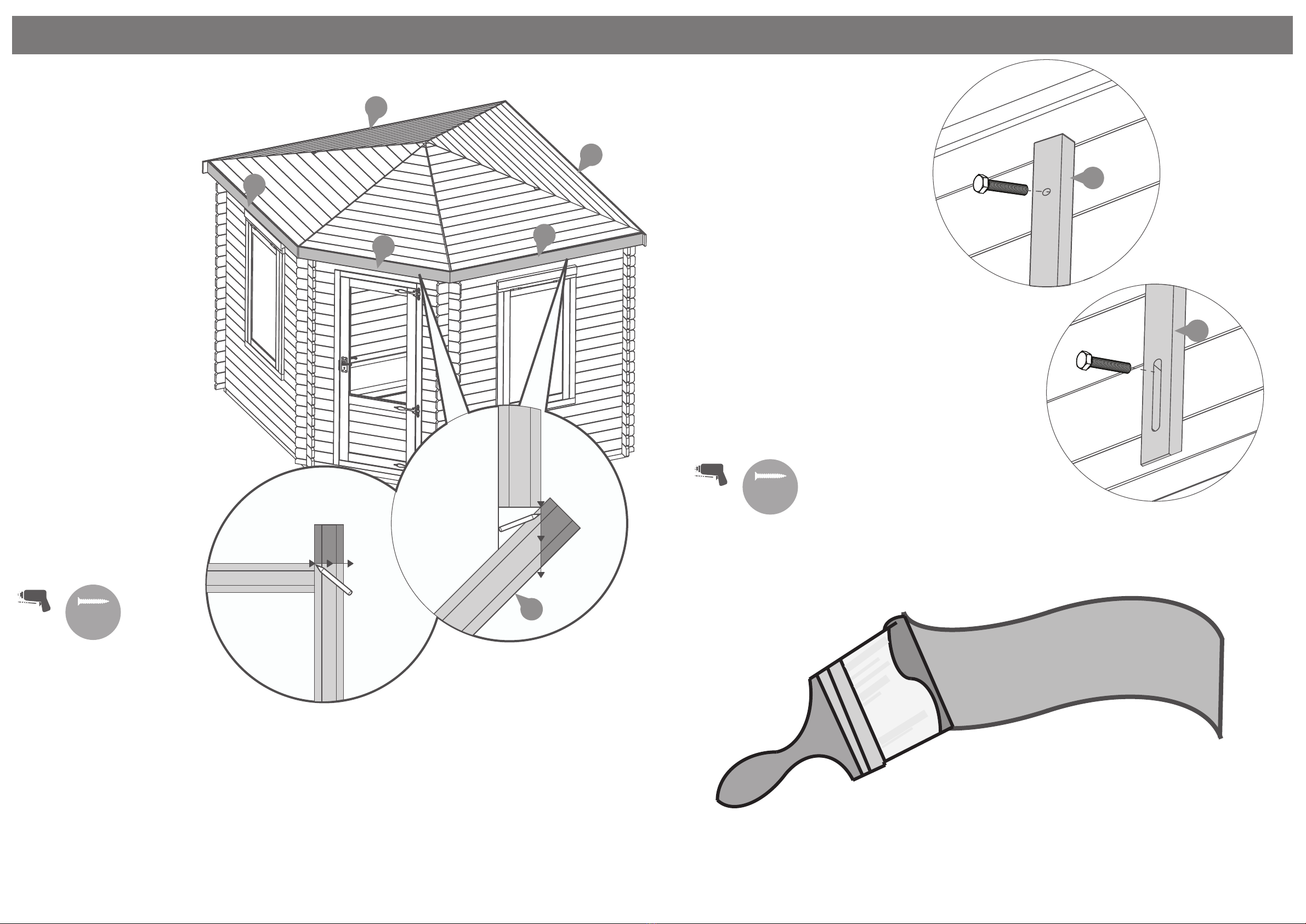

Storm Brace - 27x44x2000mm QTY 8
F2744-2000
44
45 Closure Trim - 16x28x2400mm (approx length) QTY 14
S1628-2400
Fascia - 16x120x3300mm QTY 2
SR16120-3300

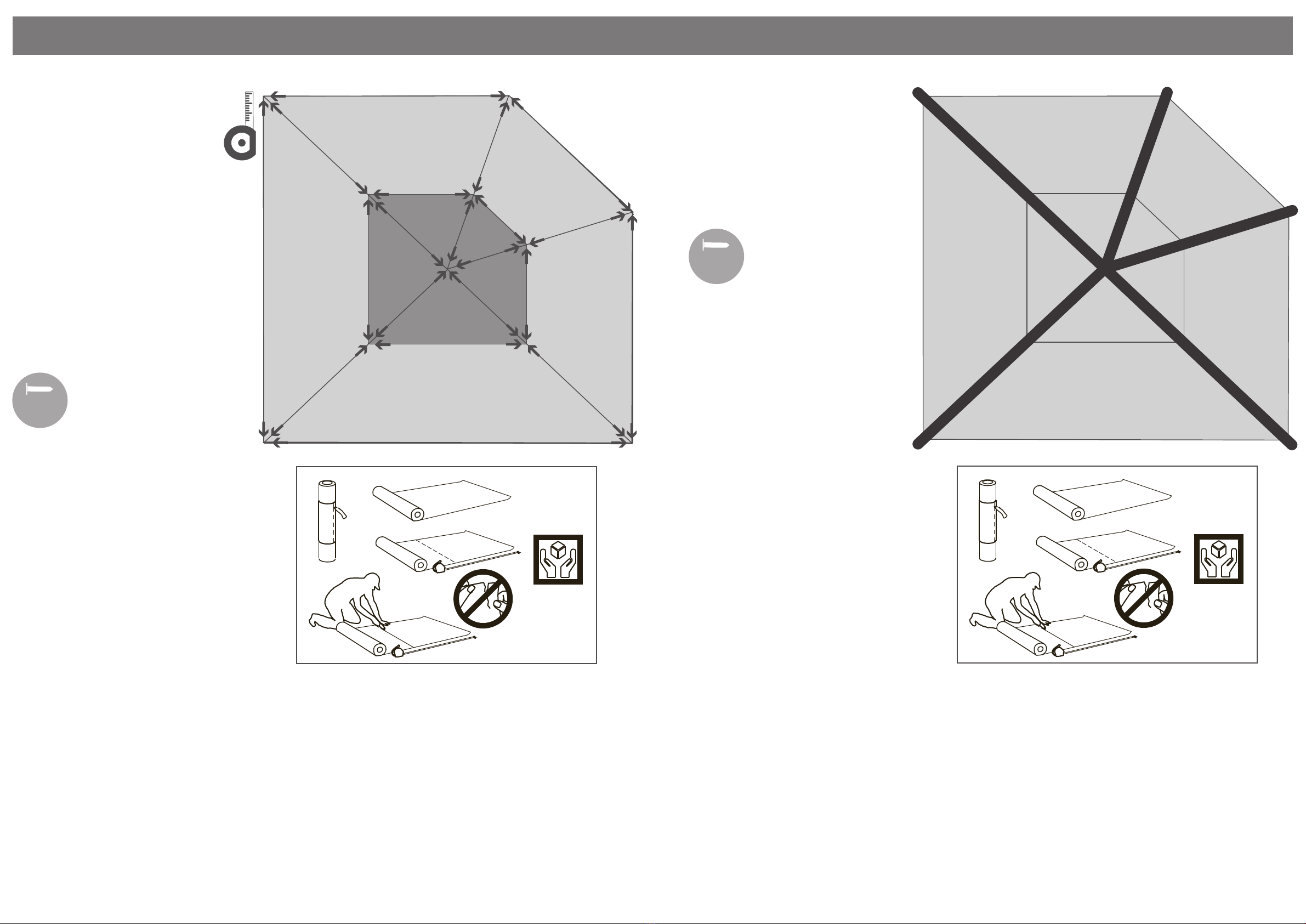

Felt
Roof Truss - 40x70x1710mm QTY 1
AI-06LOGC3X3-FRTR
Roof Truss - 40x70x1710mm QTY 1
AI-06LOGC3X3-FRTL
Roof Truss - 40x70x2259mm QTY 3
AI-06LOGC3X3-CRT Roof Block - 40x90x143mm QTY 1
F4090-143 (54mm shoulder 1x20 deg cut)
47
46
43
Fascia - 16x120x2200mm QTY 3
S16120-2200

P 4
Please retain product label and instructions for future reference
Felt Tacks x850
90mm Screw x11
Nail Bag
40mm Screw x320
30mm Screw x86
120mm Screw x11
70mm Screw x84
70mm Bolt Set x16

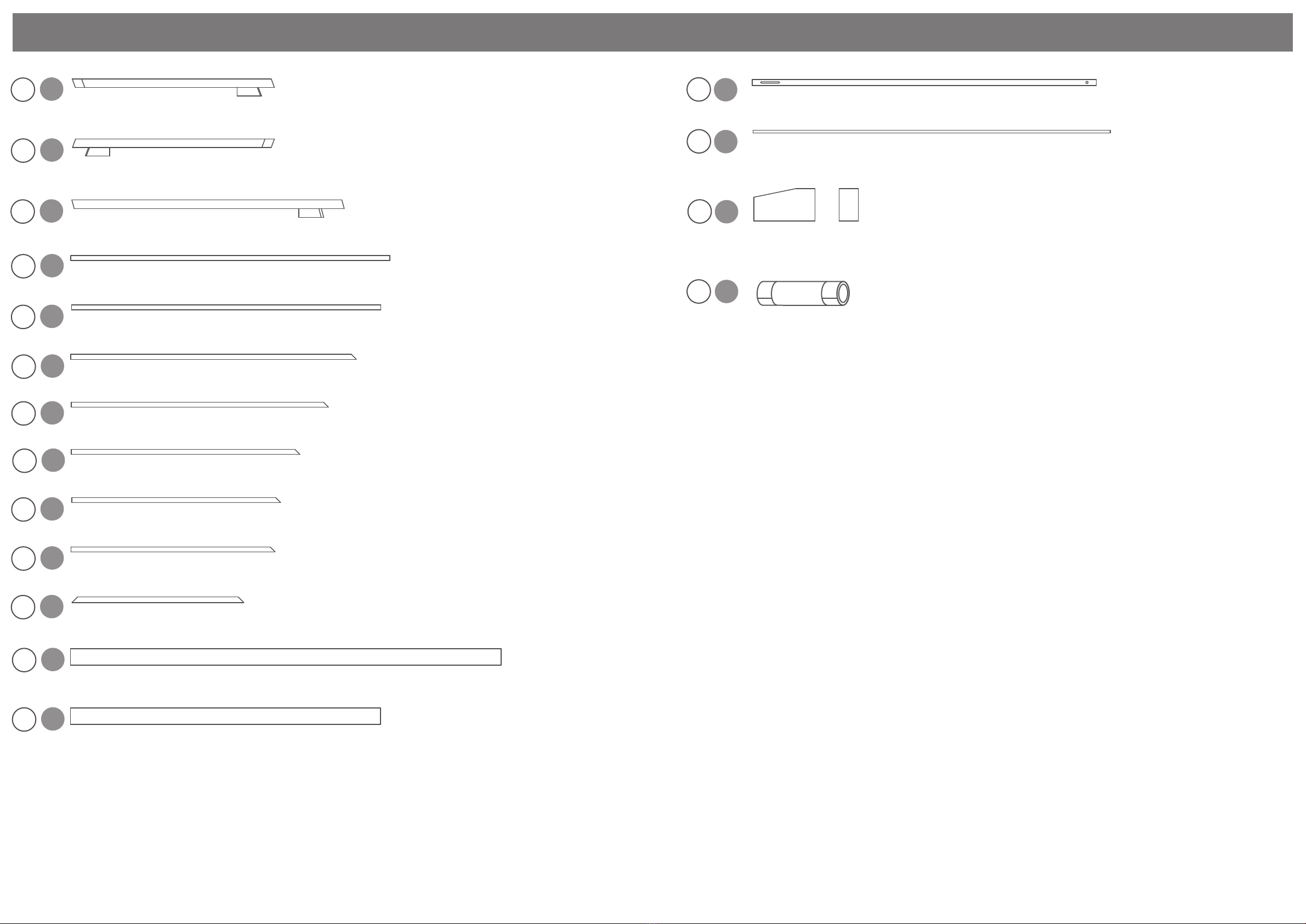

Pre-assembly
*Please note:
Each board interlocks at
either end in a staggered pattern.
Before securing ensure that the boards
are tted properly in their respective
tongues and grooves.
MB16-P-152 QTY 1
MB16-P-362 QTY 1
MB16-P-571 QTY 1
MB16-P-781 QTY 1
MB16-P-990 QTY 1
MB16-P-1200 QTY 1
MB16-P-1409 QTY 1
MB16-P-1618 QTY 1
MB16-P-1828 QTY 1
MB16-P-2037 QTY 1
MB16-P-2247 QTY 1
MB16-P-2456 QTY 1
MB16-P-2666 QTY 1
MB16-P-2875 QTY 1
MB16-P-3085 QTY 1
Floor Board Pack
AI-0628LOG127-V3FBP
MB16-C-2748 QTY 15
MB16-P-2748 QTY 1
MB16-P-2734 QTY 1
MB16-P-2622 QTY 1
MB16-P-2510 QTY 1
MB16-P-2398 QTY 1
MB16-P-2286 QTY 1
MB16-P-2174 QTY 1
MB16-P-2062 QTY 1
MB16-P-1950 QTY 1
MB16RG60-P-1838 QTY 1
Roof Board Pack B QTY 2
AI-06LOG3X3RBP2
Roof Board Pack A QTY 2
AI-06LOG3X3RBP1
MB16-P-88 QTY 1
MB16-P-200 QTY 1
MB16-P-311 QTY 1
MB16-P-423 QTY 1
MB16-P-534 QTY 1
MB16-P-645 QTY 1
MB16-P-757 QTY 1
MB16-P-868 QTY 1
MB16-P-980 QYT 1
MB16-P-1091 QTY `
MB16-P-1203 QTY 1
MB16-P-1314 QTY 1
MB16-P-1426 QTY 1
MB16-P-1537 QTY 1
Roof Board Pack C QTY 1
AI-06LOG3X3RBP3
52
51
50
49
MB16-P-89 QTY 1
MB16-P-225 QTY 1
MB16-P-361 QTY 1
MB16-P-497 QTY 1
MB16-P-634 QTY 1
MB16-P-770 QTY 1
MB16-P-906 QTY 1
MB16-P-1042 QTY 1
MB16-P-1178 QTY 1
MB16-P-1314 QTY 1
MB16-P-1451 QTY 1
MB16-P-1587 QTY 1
MB16-P-1723 QTY 1
MB16-P-1859 QTY 1
MB16-P-1995 QTY 1

P 5
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Please retain product label and instructions for future reference
35
34
40 39
41
38 37 36
Pre drill
hole
70mm
screw

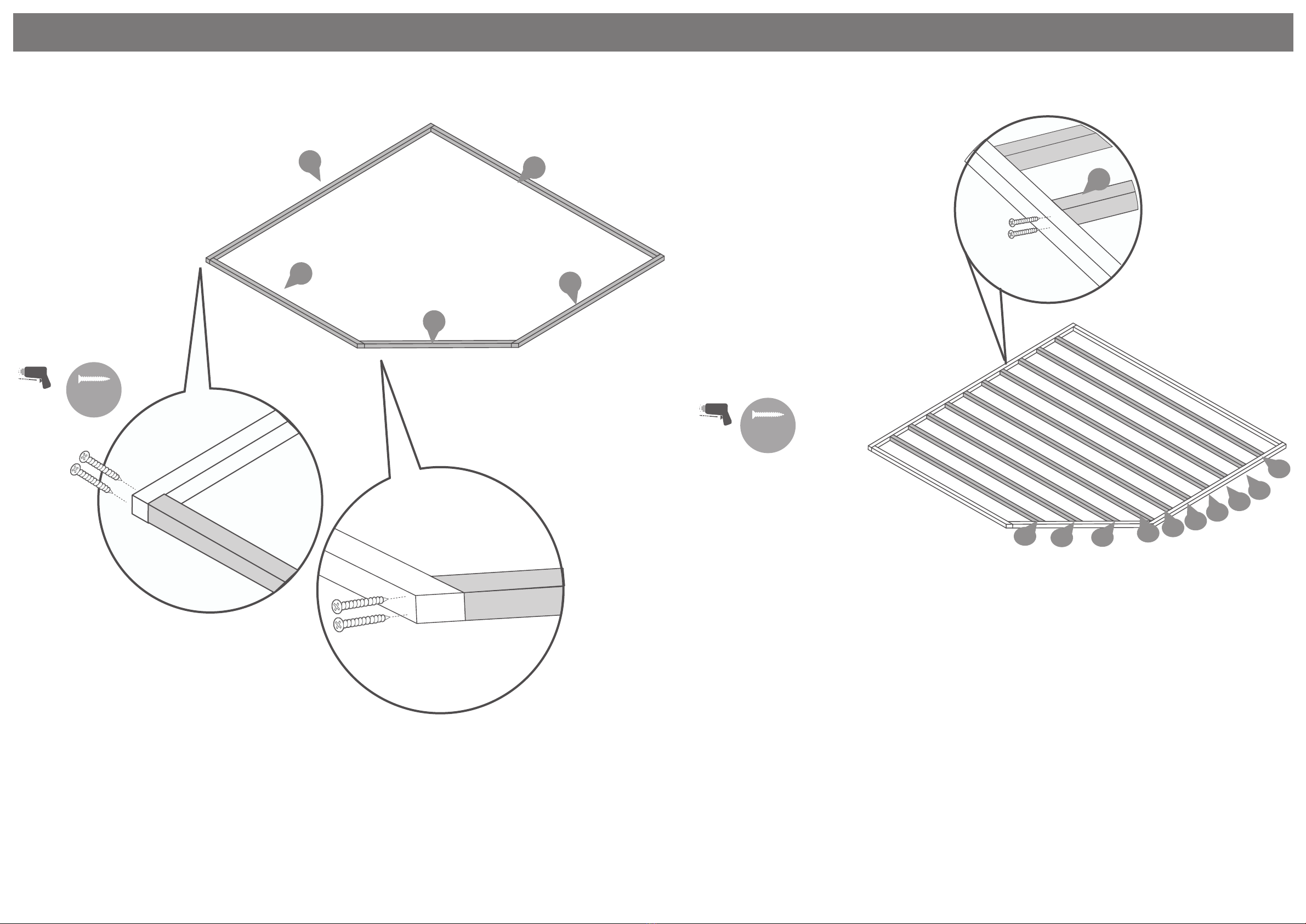

Step 1
Parts needed - No. 34 QTY 1
No. 35 QTY 1
No. 39 QTY 1
No. 40 QTY 1
No. 41 QTY 1
Lay the bearers (No. 34, 35, 39, 40
& 41) onto a rm and level surface
(free from areas where standing
water can collect ) as shown in the
illustration.
Fix the framing together at each
corner using 10x70mm screws,
ensuring the frame is ush.
10x70mm Screws
Pre drill
hole
70mm
screw
Step 2
Parts needed - No. 35 QTY 7
No. 36 QTY 1
No. 37 QTY 1
No. 38 QTY 1
Arrange the remaining framing
(No. 35, 36, 37 & 38) as shown in
the illustration.
*Ensure there is an equal
amount of space between each
frame.
Secure each of the frames in place
using 2x70mm screws for each side
of the bearer, ensuring the framing
remains level.
40x70mm Screws
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
35 35 35 35 35 35
35
Example picture
2 screws per bearer per end.
35
35

Pre drill
hole
P 6
Please retain product label and instructions for future reference

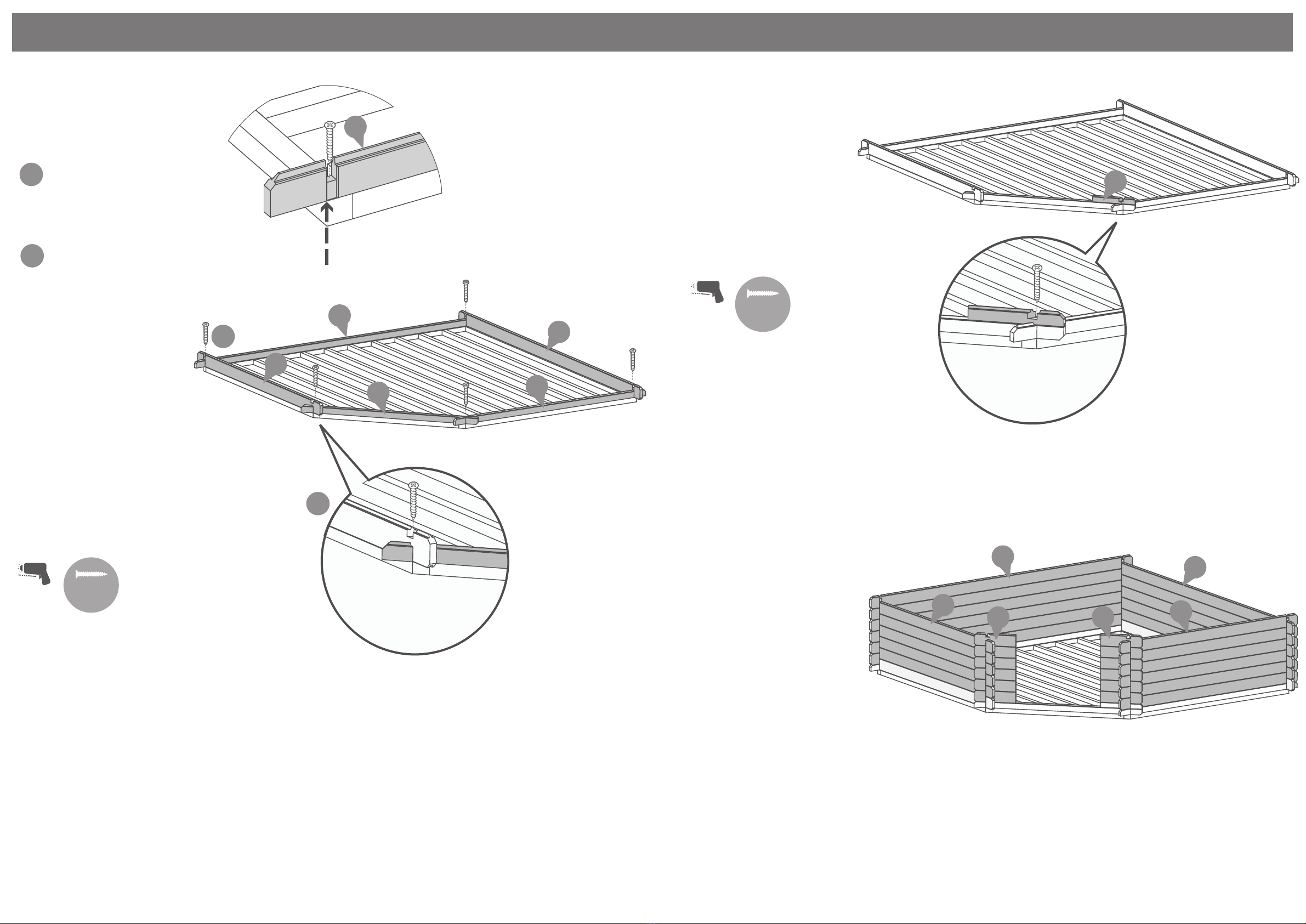

Step 3
Parts Needed - No. 3 QTY 1
No. 13 QTY 1
No. 17 QTY 1
No. 21 QTY 1
No. 22 QTY 1
Place the starter boards
(No’s. 13, 17, 21 & 22 ) on to
assembled base frame along the
longest sides.
To put the nal starter
board (No. 3) in the correct
place you need to lift the end of
the board to the left (No. 17)
and ensure they slot into each
other.
*Ensure the notches at either
end of each board are ush
and level with the ends of the
frame.
Fix each of the starter boards to
the frame by screwing through
the notch into the frame with
1x70mm screw as shown in the
illustration.
5x70mm Screws
70mm
screw
Step 4 (See Pre-Assembly)
Parts needed - No. 6 QTY 1
Make the assembly level by
adding another board (No. 6)
as shown in the diagram.
Fix using 1x70mm screw.
**Ensure to stagger the
screws so as not to collide
with the previous screw.
1x70mm Screws
Pre drill
hole
70mm
screw
21
17
3
22
6
3
IMPORTANT: Pre-drill before xing screws.
a
b
a
bStep 5 (See Pre-Assembly)
Parts needed - No. 4 QTY 6
No. 5 QTY 6
No. 14 QTY 6
No. 17 QTY 5
No. 22 QTY 11
Following the same method
outlined in Pre-Assembly, lay
the rst 6 boards (No’s. 4, 5, 14,
17 & 22) onto the starter
boards to create your rst level.
Please note the right hand side
of the door will be slightly
higher. This will even out when
the rest has been assembled.
*Ensure that the boards are
level and ush with each
other as you lay each one.
IMPORTANT: Pre-drill before xing screws.
22
54
22
17
13
14

P 7
Please retain product label and instructions for future reference
22
22
Step 9 (See Pre-Assembly)
Parts needed - No. 4 QTY 6
No. 5 QTY 6
No. 10 QTY 12
No. 11 QTY 6
No. 12 QTY 6
No. 22 QTY 12
Following the same method
outlined in Pre-Assembly, lay
the remaining boards (No’s. 4, 5,
10, 11, 12 & 22) onto the
assembly to bring the board
level to the top of the window
and door frames.
Please note when you get to the
top of the boards the right hand
boards will be slightly lower.
**Ensure that the boards are
level and ush with each
other as you lay each one.
*Doors can be hung once the
boarding has enclosed the door
frame.
Step 6 (See Pre-Assembly)
Parts needed - No. 4 QTY 6
No. 5 QTY 6
No. 10 QTY 12
No. 11 QTY 6
No. 12 QTY 6
No. 22 QTY 12
Following the same method
outlined in Pre-Assembly, lay
the next 6 boards (No’s. 4, 5, 10,
11, 12 & 22) onto the
assembly to create your second
level.
*Ensure that the boards are
level and ush with each
other as you lay each one.
*Doors can be hung once the
boarding has enclosed the door
frame by 12-13 boards, refer to
door installation instructions, if
not, you can install the door at
step 9.
54
10 10
11 12
22
22
54
10 10
12
11
Step 7 (See Window-Assembly)
Parts needed - No. 1 QTY 2
Refer to window assembly
instructions to assemble
windows.
Step 8
Parts needed - No. 1 QTY 2
Ensure that the lip of the
window frame is located on
the inside of the building .

P 8
Please retain product label and instructions for future reference
Step 11 (See Pre-Assembly)
Parts needed - No. 9 QTY 1
No. 16 QTY 1
No. 18 QTY 1
No. 22 QTY 2
Following the same method
outlined in Pre-Assembly, lay the
remaining boards (No’s. 9, 16, 18
& 22) onto the assembly to bring
the board level above the
window and doors.
*Ensure that the boards are
level and ush with each
other as you lay each one.
Step 10 (See Pre-Assembly)
Parts needed - No. 7 QTY 1
Make the assembly level by
adding another right hand
board (No. 7) as shown in the
diagram.
**Ensure to stagger the
screws so as not to collide
with the previous screw.
Step 13
Parts needed - No. 19 QTY 1
No. 20 QTY 1
Lay the last two boards (No. 19
& 20)onto the front of the
assembly. Fix into position with
2x70mm screws per board by
screwing through the notches.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
22
22
18
916
7
22
22
17
815
20
IMPORTANT: Pre-drill before xing screws.
19
Step 12 (See Pre-Assembly
Parts needed - No. 8 QTY 1
No.15 QTY 1
No. 17 QTY 1
No. 22 QTY 2
Following the same method
outlined in Pre-Assembly, lay
the remaining boards (No’s. 8,
15, 17 & 22 ) onto the assembly
to bring the board level x2
boards above the window and
doors.
*Ensure that the boards are
level and ush with each
other as you lay each one.
Pre drill
hole
70mm
screw

P 9
Please retain product label and instructions for future reference
32
33
31

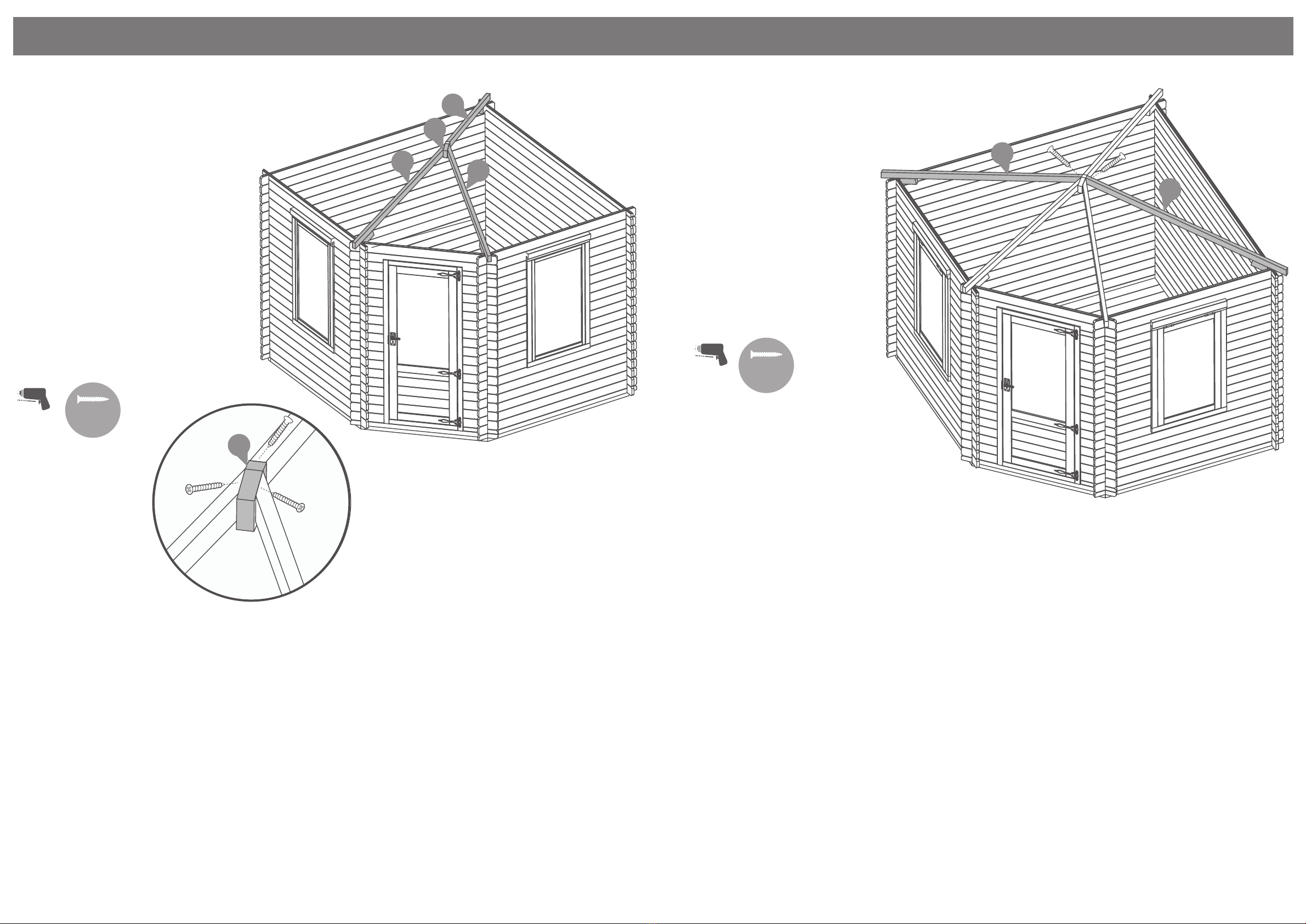

Step 14
Parts needed - No. 31 QTY 1
No. 32 QTY 1
No. 33 QTY 1
No. 46 QTY 1
To begin building the roof structure,
place the front Truss left (No. 32) and
front truss right (No. 31) on the
buidling and attach to the roof block
(No. 46) using 1x70mm screws per
purlin.
Then attach the back long roof truss
(No. 33) to the block in the same
way. Screw down through the purlin
at an angle as shown in the diagram
using 1x70mm screws.
3x70mm Screws
Pre drill
hole
70mm
screw
Step 15
Parts needed - No. 33 QTY 2
Place and x the remaining two
long roof truss’ (No. 33) onto the
building.
Fix using 1x70mm screws per
purlin, screwing down through
the purlin at an angle into the
block as shown in the diagram.
Ensure the angled section
follows the roof block and meets
the front truss’ on either side.
2x70mm Screws
Pre drill
hole
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
33
33
46
46
70mm
screw

Please note: You can adjust the
blocks attached to the roof
truss’ if necessary .
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
P 10
Please retain product label and instructions for future reference

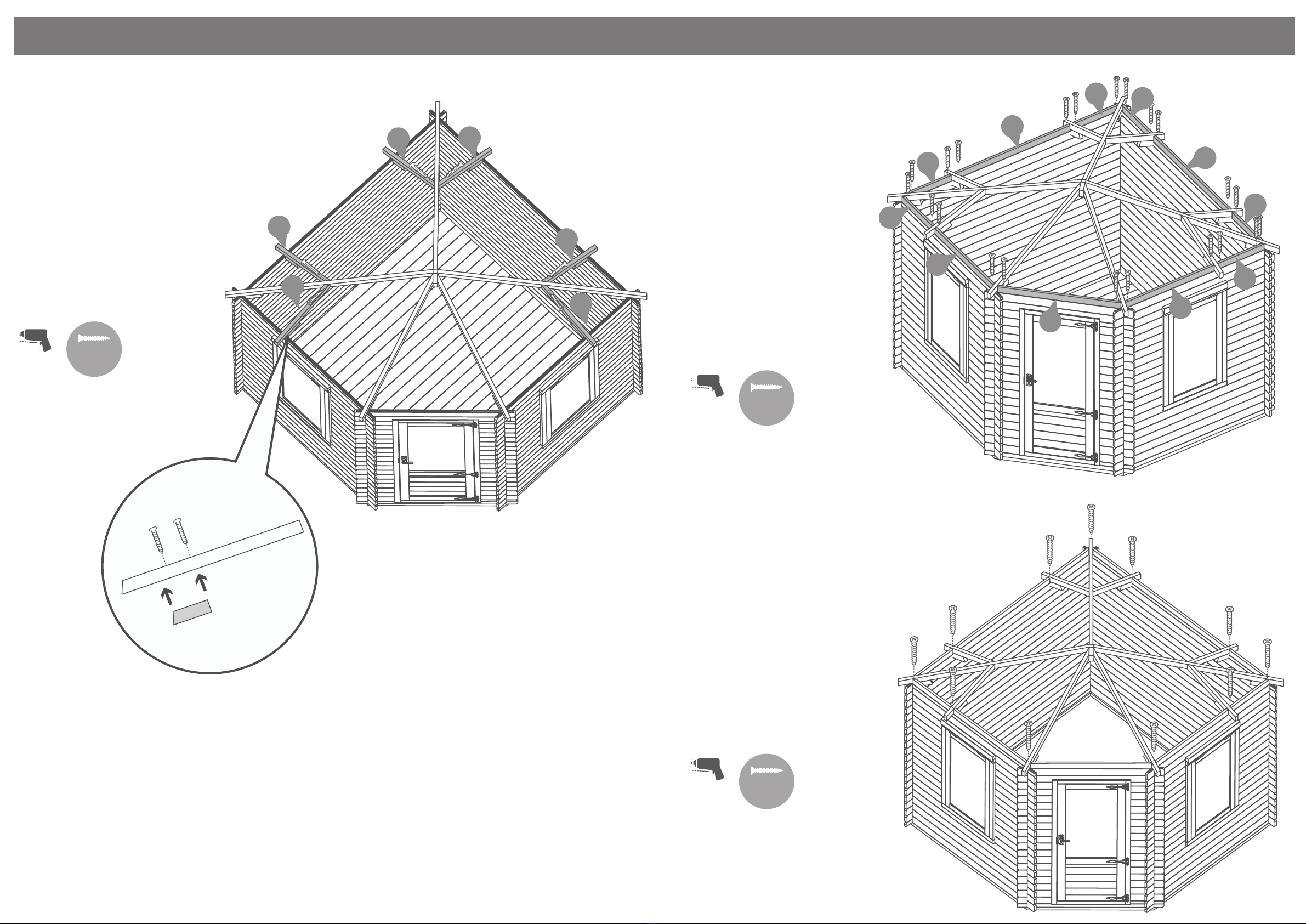

Step 16
Parts needed - No. 29 QTY 3
No. 30 QTY 3
Secure the shortest Roof Truss’ (No’s.
29 & 30) to the long purlins as
shown in the illustration using
1x70mm screws per truss.
*Ensure the angled side of the short
truss is ush with the side of the
long truss. Then make sure the
block under the short truss is ush
against the wall of the building.
6x90mm Screws
Pre drill
hole
90mm
screw
Step 18
You can now x the assembled
roof truss’ to the building,
making sure the attached blocks
sit inside the assembly. Some
adjustment may be required to
ensure the roof structure rests
correctly.
Once in position x to the
building using 1x120mm screw
per purlin as shown in the
diagram.
11x120mm Screws
27
26
28
25
26
23
Step 17
Parts needed - No. 23 QTY 1
No. 24 QTY 1
No. 25 QTY 1
No. 26 QTY 2
No. 27 QTY 3
No. 28 QTY 3
Place the nisher boards (No’s.
23, 24, 25, 26, 27 & 28 )
around the building, locating
each block between the truss’.
Secure each board using
2x70mm screws, ensuring to
stagger the screws to avoid
colliding.
22x70mm Screws
Pre drill
hole
70mm
screw
30
29
30
29
30
29
28
Pre drill
hole
120mm
screw
24 27
27
28

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
P 11
Please retain product label and instructions for future reference
AA
B
C
B
Step 19
Parts needed - No. 50 QTY 2
No. 51 QTY 2
No. 52 QTY 1
Place the rst board from each roof
board pack (A, B, & C ) roof board
onto the roof assembly, working
around the structure, building
each layer of roof boards one by
one.
*HINT: keep the roof board packs
seperate so as not to mix up the
positions.
Once you are happy with the t
of the roof boards x the boards
into place using 2x40mm screws
per board ensuring to x through
the roof board into the truss below.
20x40mm Screws used at this stage
Step 20
Parts needed - No. 50 QTY 6
No. 51 QTY 6
No. 52 QTY 3
Start arranging the roof board
packs (A, B, & C) onto the roof
assembly, working around the
structure, building each layer of
roof boards one by one.
*HINT: keep the roof board
packs seperate so as not to
mix up the positions.
Once you are happy with the t
of the roof boards, x the 2nd,
3rd & 4th boards into place
using 4 screws per board (2
each side of the board) ensur-
ing the screws x through the
roof board into the truss below
as shown in Step 19.
Repeat this so you have 4
boards high screwed down in
total on each of the 5 sides.
50
51
50
51
52
50
51
50
51 52
Pre drill
hole
40mm
screw
Pre drill
hole
40mm
screw
60x40mm Screws used at this stage

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
P 12
Please retain product label and instructions for future reference
Pre drill
hole
40mm
screw
50
51
50
51
52
50 50

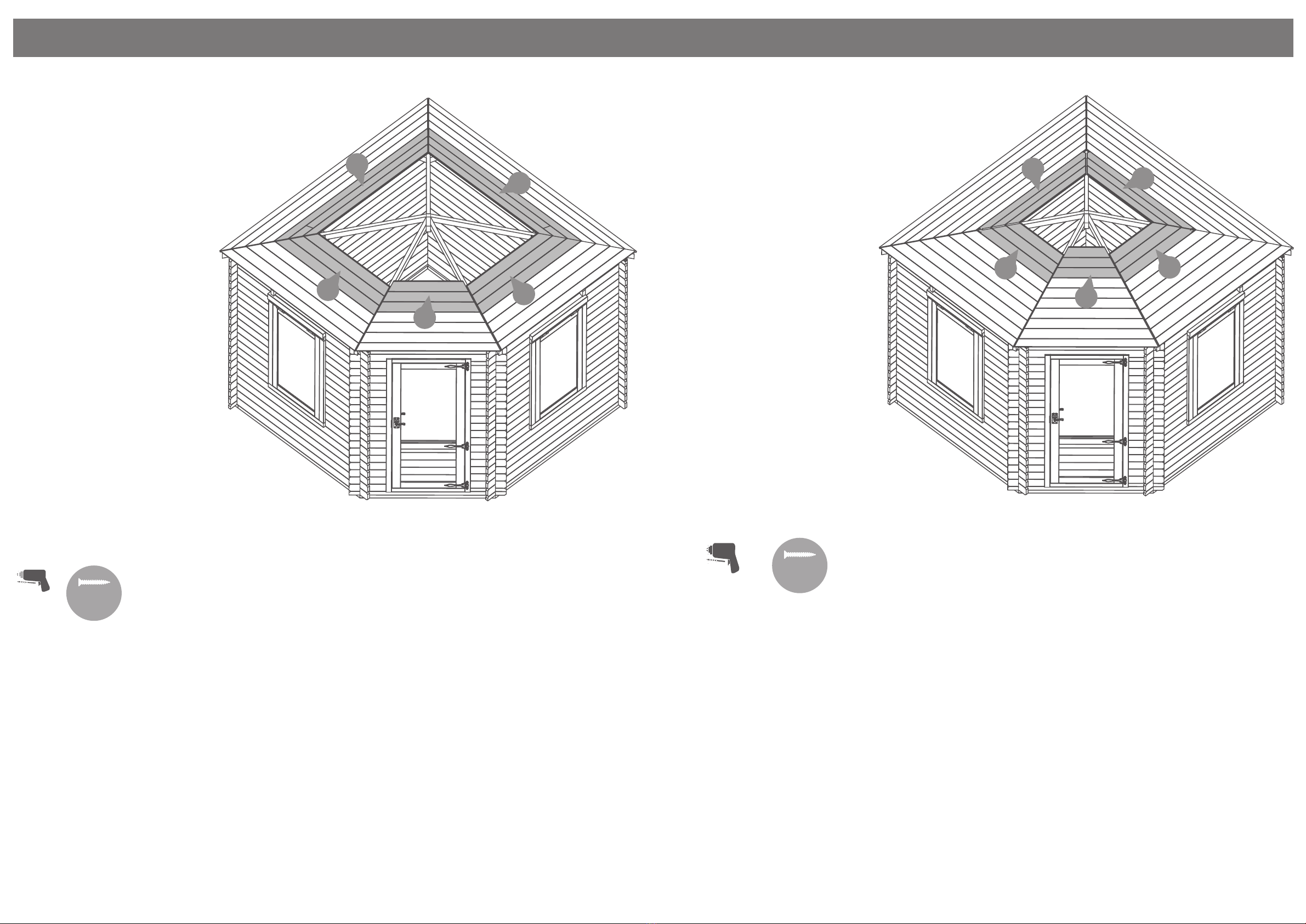

Step 21
Parts needed - No. 50 QTY 6
No. 51 QTY 6
No. 52 QTY 3
Continue arranging the roof
board packs (A, B, & C) onto the
roof assembly, working around
the structure, building each
layer of roof boards one by one.
*HINT: keep the roof board
packs seperate so as not to
mix up the positions.
Once you are happy with the t
of the roof boards, x the 5th,
6th & 7th boards into place
using 4 screws per board (2
each side of the board) ensur-
ing the screws x through the
roof board into the truss below
as shown in Step 19.
Repeat this so you have 7
boards high screwed down in
total on each of the 5 sides.
Step 22
Parts needed - No. 50 QTY 6
No. 51 QTY 6
No. 52 QTY 3
Continue arranging the roof
board packs (A, B & C) onto the
roof assembly, working around
the structure, building each layer
of roof boards one by one.
*HINT: keep the roof board
packs seperate so as not to
mix up the positions.
Once you are happy with the t
of the roof boards, x the 8th,
9th & 10th boards into place
using 4 screws per board (2 each
side of the board) ensuring the
screws x through the roof
board into the truss below as
shown in Step 19.
Repeat this so you have 10
boards high screwed down
in total on each of the 5 sides.
Pre drill
hole
40mm
screw
51 51
52
60x40mm Screws used at this stage
20x40mm Screws used at this stage

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
P 13
Please retain product label and instructions for future reference
Step 24
Parts needed - No. 49 QTY 1
Place the oor board’s (No. 49)
inside the building ush to the log
board on one side. Continue
adding the oor boards (internally)
making sure to interlock each
individual board.
Once all the oor boards are in
position secure each board into
position using 8x40mm screws.
200x40mm Screws
40mm
screw
Pre drill
hole
This is for illustrative purposes only and may dier from your oor.
49
50 50
Pre drill
hole
40mm
screw
Step 23
Parts needed - No. 50 QTY 10
No. 51 QTY 10
No. 53 QTY 4
Continue arranging the roof
board packs (A, B & C) onto the
roof assembly, working around
the structure, building each
layer of roof boards one by one.
*HINT: keep the roof board
packs seperate so as not to
mix up the positions.
Once you are happy with the t
of the roof boards, x the
remaining boards into place
using 4 screws per board (2
each side of the board) ensur-
ing the screws x through the
roof board into the truss below
as shown in Step 19.
Repeat this so you have the rest
of the boards screwed down on
all of the 5 sides.
51 51
52
20x40mm Screws used at this stage

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
P 14
Please retain product label and instructions for future reference
*Internal view
Roof
Closure Trim
Internal
45
*Measure and cut the
closure trims to
t the internal space.
Pre drill
hole
30mm
screw
*trim to t
Step 25
Parts needed - No. 45 QTY 7
Inside the building place the closure
trim (No. 45) against the boarding
and align with the roof as shown in
the illustration.
Once in position x each trim
into place by pre drilling a pilot hole
and using 6x30mm screws per trim,
equally spacing them along the face
of the board.
42x30mm Screws
45
45
30mm
screw
Pre drill
hole
*Cut to t
Step 26
Parts needed - No. 45 QTY 7
Once the oor has been laid arrange the
closure trim (No. 45) around the outside
edge of oor (internally), measure and cut
down accordingly to best match the
internal space.
Secure each trim section into place using
6x30mm spaced equally along the board
as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
42x30mm Screws

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
P 15
Please retain product label and instructions for future reference
HANDLE
WITH CARE
12
3
4
Felt
tacks
Step 27
Parts needed - No. 47
Following the individual triangle
shape(s) of the roof measure and cut
the felt (No. 47) into the according
sizes and lay onto the roof in the
order shown in the illustration.
Secure along the outer edge of each
felt section using felt tacks spaced
out at approximately 100mm
intervals.
*Ensure there is 50mm of
overhanging felt around the base of
the roof.
600x Felt Tacks
1.
3.
2.
4.
5.
6.
7.
8.
9. 10.
Step 28
Parts needed - No. 47
Cut the remaining felt into 5x strips at
200mm wide and approximately
2500mm long and place onto the roof
securing into place following the same
method outlined previously.
250x Felt Tacks
HANDLE
WITH CARE
12
3
4
Felt
tacks

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
IMPORTANT: Pre-drill before xing screws.
P 16
Please retain product label and instructions for future reference
42
42
Step 29
Parts needed - No. 42 QTY 2
No. 43 QTY 3
Attach the rst fascia (No’s. 42) to
one side on the back of the
building, ensuring to trap the felt
between the fascia and the
building.
Secure the fascia into position
using 4x40mm screws, making
sure to x through the fascia into
the roof purlin, fascia block
and/or log boards.
Once in place, mark the excess
fascia with a pencil and then trim
the fascias to follow the shape of
building as shown in the
illustration. Repeat this on the
other back side of the building.
Attach the next size fascia board
(No. 43) to the sides of the
building in the same way.
For the nal fascia above the
door, you will need to measure
and cut the remaining No.43
fascia.
Pre drill
hole
40mm
screw
43 43
Step 30
Parts needed - No. 44 QTY 8
Arrange the storm braces (No. 44)
around the building (internally).
Place 2x storm braces per side
xing into place using 2x 70mm
bolts per brace making sure the
washer & nut are tightened from
the outside of the building.
*Ensure the storm braces are
secured at the highest point
possible on each side.
**Storm braces will help your
building expand and contract
properly.
***It is important that each
bolt is tightened using a
washer so as not to damage
the log boards.
16x70mm Bolt Sets
Pre drill
hole
70mm
bolt
43
43 44
44
