Mercia Garden Products 03DTSHAX0608FGD4MW-V2 User manual
2mm Drill bit
x2
¡
¢
¡
Overall Dimensions:
Width = 2494mm
Depth = 2457mm
Height = 2344mm
Base Dimensions:
Width = 2350mm
Depth = 1753mm
Pack Required:
03DTSHAX0608FGD4MW-V2QTY 1
6x8 Summer House
Pack Required:
03DTSHAX0608FGD4MW-V2 QTY 1
03DTSHAX0208NWPB-V2 QTY 1
Overall Dimensions:
Width = 2494mm
Depth = 3057mm
Height = 2344mm
Base Dimensions:
Width = 2350mm
Depth = 2353mm
8x8 Summer House
Overall Dimensions:
Width = 2494mm
Depth = 3657mm
Height = 2344mm
Base Dimensions:
Width = 2350mm
Depth = 2953mm
Pack Required:
03DTSHAX0608FGD4MW-V2 QTY 1
03DTSHAX0208NWPB-V2 QTY 2
10x8 Summer House
Overall Dimensions:
Width = 2494mm
Depth = 2457mm
Height = 2344mm
Base Dimensions:
Width = 2350mm
Depth = 2390mm
Pack Required:
03DTSHAX0608FGD4MW-V2 QTY 1
03DTSHAX0208WCVPB-V2 QTY 1
6x8 Summer House
with Veranda
Pack Required:
03DTSHAX0608FGD4MW-V2 QTY 1
03DTSHAX0208NWPB-V2 QTY 1
03DTSHAX0208WCVPB-V2 QTY 1
Overall Dimensions:
Width = 2494mm
Depth = 3057mm
Height = 2344mm
Base Dimensions:
Width = 2350mm
Depth = 2990mm
8x8 Summer House
with Veranda
Overall Dimensions:
Width = 2494mm
Depth = 3657mm
Height = 2344mm
Base Dimensions:
Width = 2350mm
Depth = 3590mm
Pack Required:
03DTSHAX0608FGD4MW-V2 QTY 1
03DTSHAX0208NWPB-V2 QTY 2
03DTSHAX0208WCVPB-V2 QTY 1
10x8 Summer House
with Veranda
27
Press Lock QTY 1
PI-07-0018
Ring Pull QT Y2
PI-07-0032
Hinge QTY 6
PI-07-0004
Turn Button QTY 2
PI-07-0182
30
28
29
32
33
Window Blocks QTY 16
PI-07-0011
34
Shed Finial QTY 2
SHED DIAMOND FINIAL
Felt
35
Tower Bolt QTY 2
PI-07-0068
8
910
Secondary Door QTY 1
AI-STDFGSD475X1715-V1
Master Door QTY 1
AI-STDFGMD475X1715-V1
11
Door Gable Top left QTY 1
AI-S11SHADDGTL1150X567-V1
Plain Gable Top left QTY 1
AI-S11SHAGTL1150X567-V1
15 Door Framing 28x28x940mm QTY 1
FS2828-940mm
23 Gable Cover Trims A 12x30x610mm QTY 4
S1230-610mm
25 Cover Trims 12x40x1712mm QTY 7
S1240-1712mm
16 Door Frame Strip 12x40x996mm QTY 1
S1240-996mm
17 Door Frame Strip 12x40x1740mm QTY 2
S1240-1740mm
18 Door Cover Trim 12x43x940mm QTY 1
S1243-940mm
26
Fascia 12x95x1365mm QTY 4
S1295-G-1365mm
19
Ridge Bar 27x70x1703mm QTY 1
F2770-1703mm
Corner Brace QTY 2
PI-07-0012
31
5
4
Window QTY 4
AI-FW540X1132-V1
1
Side Window Panel QTY 2
AI-03S11SH1SFWC879X1717-V1
2
Side Panel QTY 2
AI-S11SHPP879X1717-V1
3
Back Panel QTY 2
AI-S11SHPPTF1150X1669-V1
7
Front Window Panel QTY 2
AI-03S11SH1SFWC680X1669-V1
6
Floor QTY 2
AI-R11MBF1175X1753-V1
Roof QTY 4
AI-S11MBAR1204X1345-V1

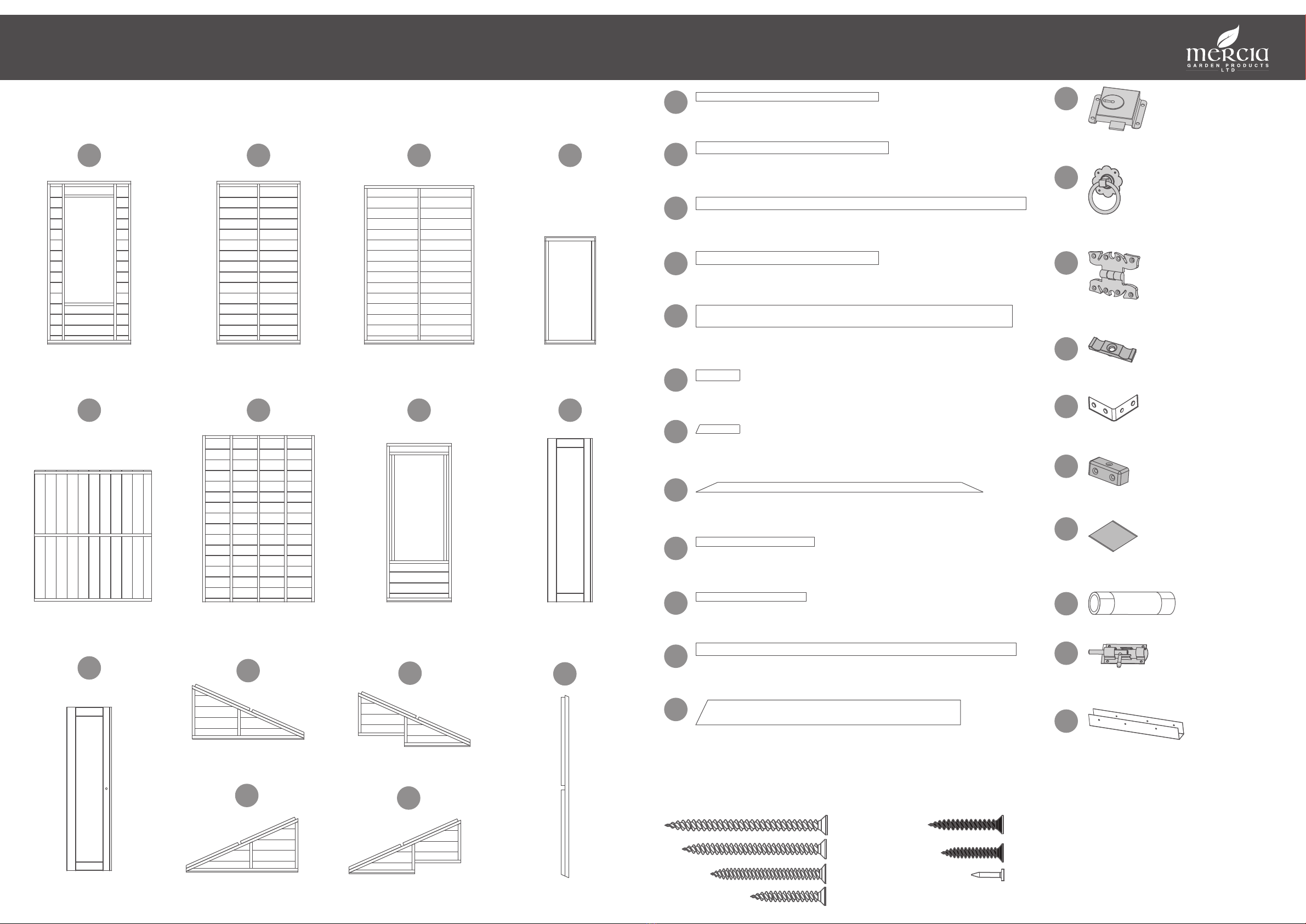

Building Content - Pack A
03DTSHAX0608FGD4MW-V2
Plain Gable Top right QTY 1
AI-S11SHAGTR1150X567-V1
Door Gable Top right QTY 1
AI-S11SHADDGTR1150X567-V1
Roof Truss QTY 2
AI-S21HAXT1256X54-V1
24 Gable Cover Trims B 12x40x500mm QTY 2
S1240-500mm
20
Truss Block B 27x44x140mm QTY 2
F2744-G-160mm (1 x angled cut, 140mm nished length)
22 Truss Brace 27x44x1300mm QTY 2
F2744-G-1340mm (2 x angled cuts, nished length 1300mm)
21
Truss Block A 28x28x150mm QTY 2
FS2828-150mm
36
U Channel QTY 2
PI-07-0013
12
13
14
50mm Screw x 75
40mm Screw x 51
Felt Tacks x 150
30mm Black Screw x 48
60mm Screw x 10
20mm Black Screw x 22
Nail Bag
There may be extra screws present in the nail bag
30mm Screw x 148
Building Content - Pack B
03DTSHAX0208NWPB-V2
37
38
39
25 Cover Trims 12x40x1712mm QTY 2
S1240-1712mm
Floor Extension QTY 2
AI-R11MBF1175X600-V1
Roof Extension QTY 2
AI-S11MBAR600X1345-V1
Plain Panel Extension QTY 2
AI-S11SHPP600X1717-V1
40
Floor Block QTY 8
F2828-400mm
41
36
U Channel QTY 3
PI-07-0013
Ridge Bar 27x70x599mm QTY 1
F2770-599mm
Building Content - Pack C
03DTSHAX0208WCVPB-V2
Veranda Floor QTY 2
AI-R11STVF2380X622-V1
Roof Support - 27x44x1719mm QTY 2
F2744-G-1739mm
Window Cross A - 16x27x500mm QTY 8
WC1627-500mm
Window Cross B - 16x27x1094mm QTY 4
WC1627-1094mm
45
46
44
42 43
Rail QTY 2
AI-03FR600X595-V1
Veranda Strip - 12x95x622mm QTY 1
SR1295-622mm
47
Floor Block - 28x28x400mm QTY 2
F2828-400mm
40
50mm Screw x 20
40mm Screw x 14
30mm Screw x 52
60mm Screw x 4
Nail Bag
There may be extra screws present in the nail bag
Felt Tacks x 25
50mm Screw x 10
40mm Screw x 8
Nail Bag
There may be extra screws present in the nail bag
20mm Screw x 24
10mm Screw x 10
30mm Screw x 10
If 2ft Extension Pack has been purchased,
Please follow Steps labelled 2ft EXTENSION
PACK where present
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
6
50mm
screw
6

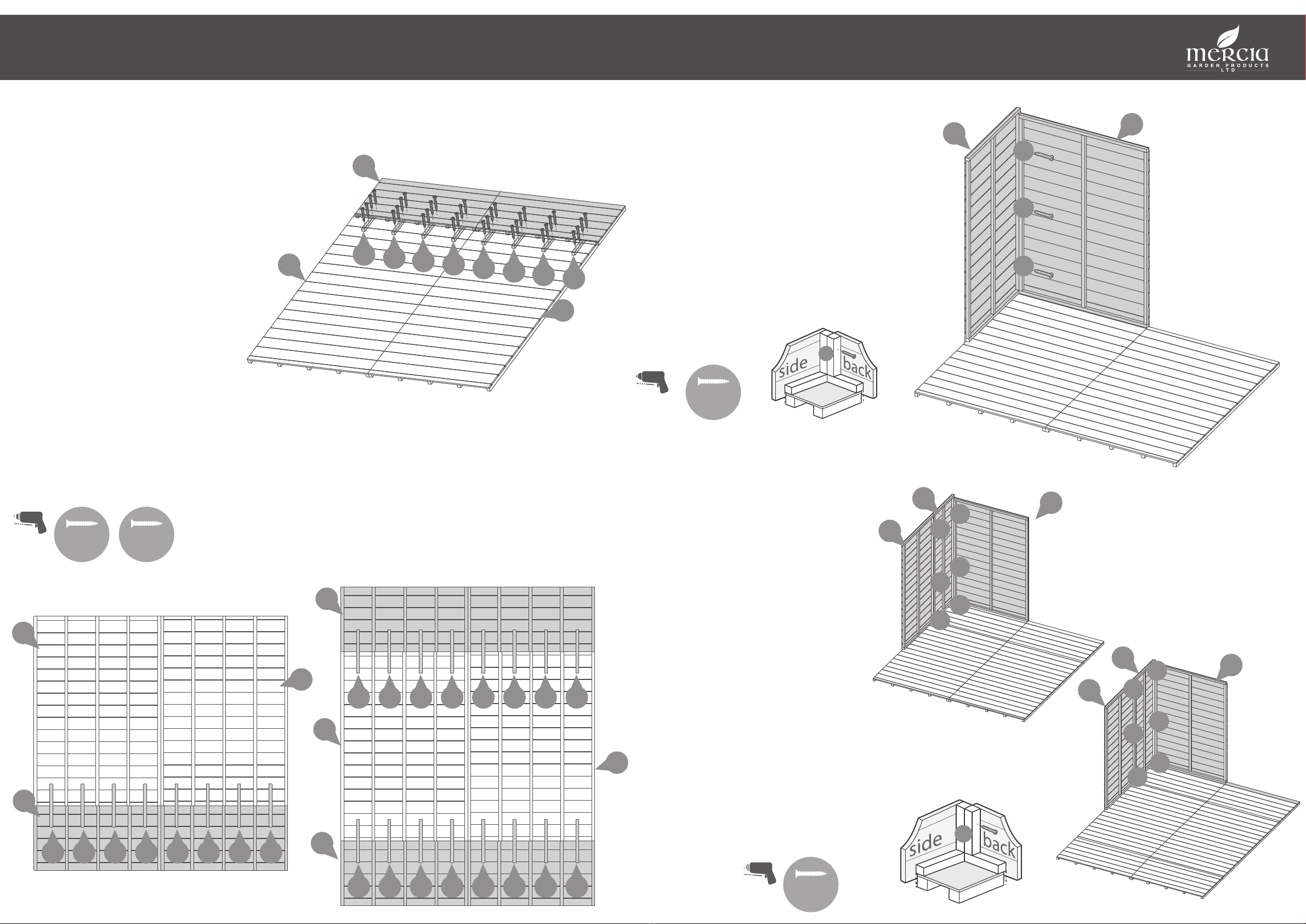

Step 1
Parts needed - No. 6 QTY 2
Place the oor panels (No.6) onto a rm
and level base. Ensure the base has
suitable drainage, free from areas where
standing water can collect.
Secure the oors together using
10x50mm screws through the oor
bearers in an alternating pattern.
10x50mm Screws
2ft EXTENSION PACK
Step 1a
Parts needed
8x8 Summer House - No. 37 QTY 2
10x8 Summer House - No. 37 QTY 4
Place the Floor Extensions (No.37) onto a
rm and level base. Ensure the base has
suitable drainage, free from areas where
standing water can collect.
Secure the oors together using 4x50mm
screws through the oor bearers in an
alternating pattern.
Pre drill
hole
50mm
screw
37
37
8x8 Summer House
4x50mm screws
37
37
10x8 Summer House
8x50mm screws
37
37
IMPORTANT: Pre-drill before xing screws.
¡
8x8 Summer House
10x8 Summer House
2ft EXTENSION PACK
Step 1b
Parts needed - No. 6 QTY 2
No. 37 QTY 2
No. 40 QTY 8
**if you have not yet assembled your Floor
Panels (No.6) or Floor Extensions (No.37)
please refer to step 1 and step 1a.
Locate the assembled Floor Extensions
(No.37) ush and level to the assembled
Floor Panels (No.6) .
To x together, Locate one Floor Block
(No.40) between each Floor bearer,
ensuring equal space between the bearers
and each oor, as shown.
Secure in place using 4x30mm screws per
Floor block (No.40) .
Ensure the oor blocks are equally
spaced between the framing and
equally spread across both oors.
Pre drill
hole
30mm
screw
50mm
screw
6
6
37
40 40 40 40 40 40 40 40
40 40 40 40 40 40 40 40
40 40 40 40 40 40 40 40
40 40 40 40 40 40 40 40
6
6
37
37
37
6
6
32x30mm Screws
64x30mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 2
Parts Needed- No.2 QTY 1
No.3 QTY 1
Place the Side panel (No.2) and the Back
Panel (No.3) onto the oor. Fix at the corner
using 3x50mm screws.
Do not secure the building to the oor
until the roof has been tted.
Position the panels so there is equal spacing
between the oor and cladding on all sides.
The side panels should sit higher than the
Back panels
3x50mm Screws a
a
a
a
23
Please note: The side panels are all interchangeable
and can be positioned in a variety of congurations.
Decide which works best before assembly.
2ft EXTENSION PACK
Step 2a
Parts Needed - No.2 QTY 1
No.3 QTY 1
No.39 QTY 1
Place the Plain panel Extension (No.39)
and the Back Panel (No.3) onto the oor.
Fix at the corner using 3x50mm screws.
Place the Side panel (No.2) onto the oor
and x along the side in alternating
pattern using 3x50mm screws.
Do not secure the building to the
oor until the roof has been tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
The side panels should sit higher than
the Back panels
6x50mm Screws Pre drill
hole
50mm
screw
a
a
a
a
a
a
a
a
a
a
a
a
a8x8 Summer House
10x8 Summer House
2
3
39
2
3
39
Pre drill
hole
50mm
screw
3
IMPORTANT: Pre-drill before xing screws.
Step 3
Parts Needed- No.2 QTY 1
No.3 QTY 1
Place the Side panel (No.2) and the Back
Panel (No.3) along side the standing
panels. Fix in an alternating pattern using
3x50mm screws per panel.
Do not secure the building to the
oor until the roof has been tted.
Position the panels so there is equal
spacing between the oor and
cladding on all sides.
6x50mm Screws
2a
a
a
a
a
a
Please note: The side panels are all interchangeable
and can be positioned in a variety of congurations.
Decide which works best before assembly
a
a
39
a
a
39
a
a
8x8 Summer House
a
a
a
a
a
a
10x8 Summer House
a
a
a
a
a
a
a
Pre drill
hole
50mm
screw
2ft EXTENSION PACK
Step 3a
Parts Needed - No.2 QTY 1
No.3 QTY 1
No.39 QTY 1
Place the Back Panel (No.3) and the Side panel
(No.2) onto the oor. Fix in an alternating
pattern using 3x50mm screws per panel
Place the Plain panel Extension (No.39) onto
the oor. Fix at the corner using 3x50mm screws
Do not secure the building to the oor
until the roof has been tted.
Position the panels so there is equal spacing
between the oor and cladding on all sides.
The side panels should sit higher than the
Back panels.
9x50mm Screws
2
3
2
3
Pre drill
hole
50mm
screw
a
Step 4
Parts Needed- No.1 QTY 2
Place the Side Window panels (No.1)
onto the oor. Fix in an alternating
pattern using 3x50mm screws per panel.
Do not secure the building to the
oor until the roof has been tted.
Position the panels so there is equal
spacing between the oor and
cladding on all sides.
6x50mm Screws
IMPORTANT: Pre-drill before xing screws.
a
a
a
a
a
a
a
a
a
a
a
a
1
1
1
1
8x8 Summer House 10x8 Summer House
2ft EXTENSION PACK
a
a
a
a
a
a
1
1
Please note: The side panels are all interchangeable
and can be positioned in a variety of congurations.
Decide which works best before assembly
£
a
a
a
a
a
a
Pre drill
hole
50mm
screw
2ft EXTENSION PACK
10x8 SUMMER HOUSE ONLY
Step 4a
Parts Needed- No.39 QTY 2
Place the Plain Panel Extensions (No.39) onto the
oor. Fix in an alternating pattern using 3x50mm
screws per panel.
Do not secure the building to the oor until
the roof has been tted.
Position the panels so there is equal spacing
between the oor and cladding on all sides.
6x50mm Screws
39
39
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
8x8 Summer House
10x8 Summer House
2ft EXTENSION PACK
a
Pre drill
hole
50mm
screw

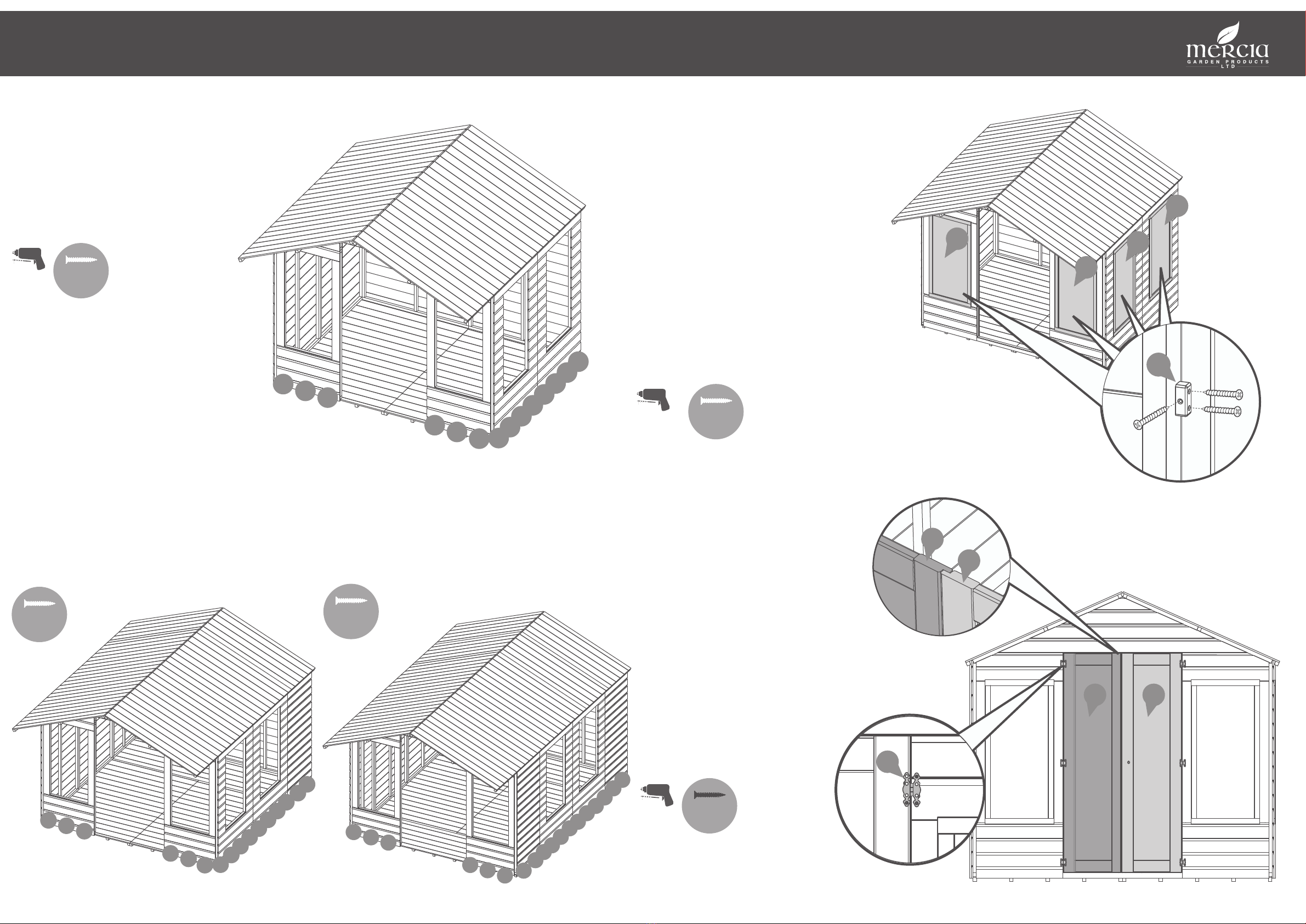

Step 5
Parts Needed- No.7 QTY 2
Place the Front Window panels (No.7) onto
the oor, x the corners using 3x50mm
screws
Do not secure the building to the oor
until the roof has been tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
The Front panels should sit lower than the
Side panels.
6x50mm Screws
7
a
a
a
a
a
a
7
a
a
a
a
a
a
a
a
a
a
a
7
7
7
7
a
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
40mm
screw 15

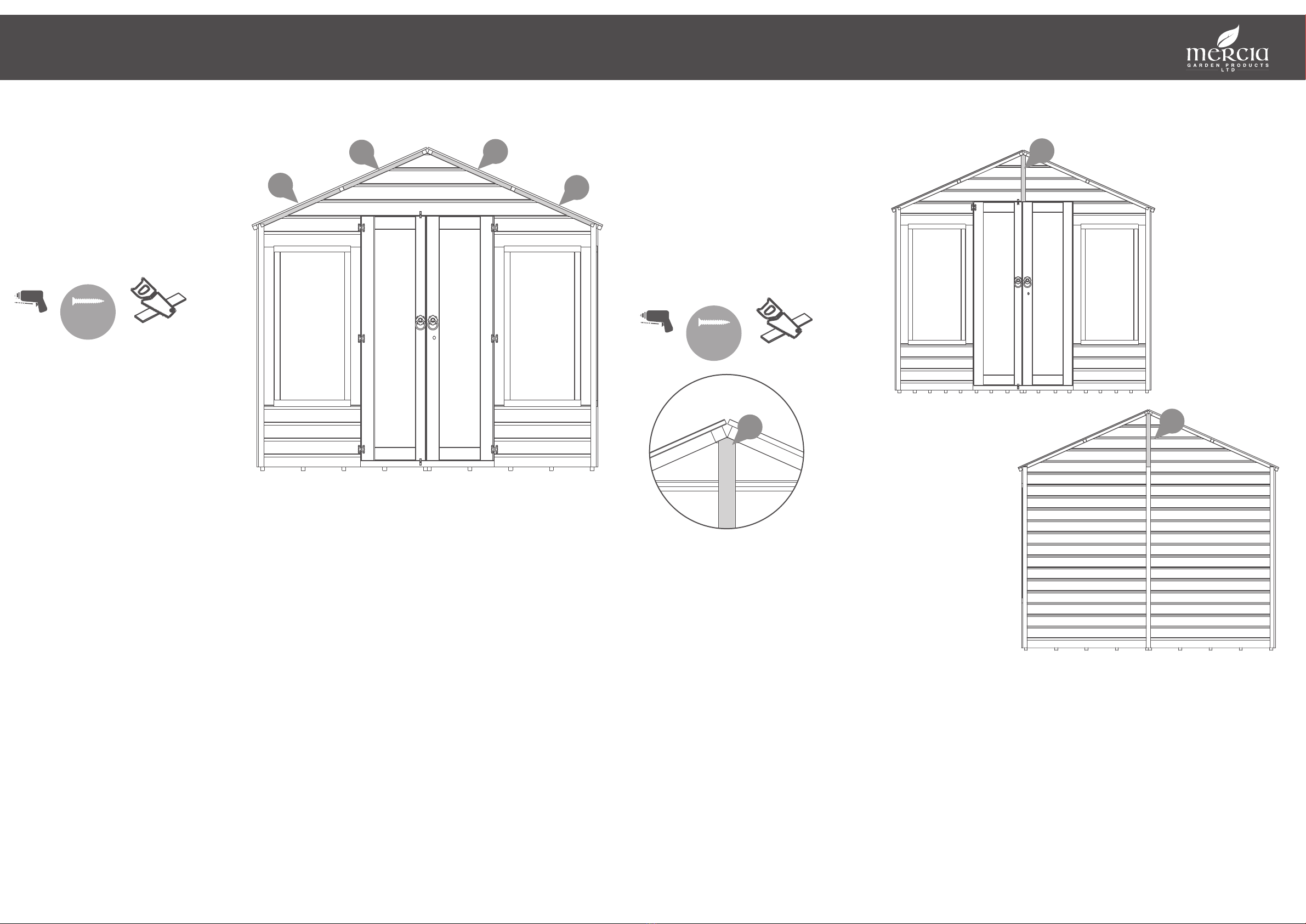

Step 6
Parts Needed- No.15 QTY 1
Place the Door Framing (No.15) onto the
oor, between the Front Window Panels.
Ensure the framing is ush to the Window
Panel framing.
Ensure that the panels are all equally
spaced to the oor before xing the door
framing.
Secure the Door framing to the oor using
3x40mm screws
3x40mm Screws
Step 7
Parts Needed- No.10 QTY 1
No.11 QTY 1
No.12 QTY 1
No.13 QTY 1
Locate the Door Gable Top Left (No.12) up to
the Door Gable Top Right (No.13), ensuring
they are level and ush. Secure together by
screwing through the central framing using
3x40mm screws in an alternating pattern.
Locate the Plain Gable Top Left (No.10) up to
the Plain Gable Top Right (No.11), ensuring
they are level and ush. Secure together by
screwing through the central framing using
3x40mm screws in an alternating pattern.
6x40mm Screws
IMPORTANT: Pre-drill before xing screws.
12
13
10
11
Pre drill
hole
40mm
screw
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 8
Parts Needed- No.10 QTY 1
No.11 QTY 1
No.12 QTY 1
No.13 QTY 1
Place the assembled Plain Gable Top
(No.10 & 11) on top of the Back panels.
Secure in place using 6x50mm screws in
an alternating pattern, going through the
gable framing and into the panel framing
below, as shown.
Place the assembled Door Gable Top
(No.12 & 13) on top of the Front Window
Panels. Secure in place using 4x50mm
screws, going through the gable framing
and into the panel framing below, as
shown.
Ensure Cladding is tted correctly and
ush to the panels before securing.
10x50mm Screws
13
12 10
11
Pre drill
hole
30mm
screw
Step 9
Parts Needed- No.19 QTY 1
No.31 QTY 2
Fix the Corner Braces (No.31) to each
end of the Ridge Bar (No.19) using
2x30mm screws per corner brace.
Fix the Ridge bar to the top of each Gable
using 2x30mm screws per corner brace.
Ensure it is ush to the gable central
framing as shown.
8x30mm Screws
19
24
24
IMPORTANT: Pre-drill before xing screws.
19
24
36
36
36
36
Pre drill
hole
30mm
screw
2ft EXTENSION PACK
Step 9a
8x8 Summer House Parts Needed
- No.41 QTY 1
- No.36 QTY 1
10x8 Summer House Parts Needed
- No.41 QTY 2
- No.36 QTY 2
Fix the Ridge bar Extension (No.41) to the
Ridge Bar (No.19) using U Channels
(No.36), secure the U Channels using
6x30mm screws per U channel
Fix the Corner Braces to each end of the
assembled Ridge Bar using 2x30mm
screws per corner brace.
Fix the Ridge bar to the top of each Gable
using 2x30mm screws per corner brace.
Ensure it is ush to the gable framing as
shown.
8x8 Summer House:
14x30mm Screws
10x8 Summer House:
20x30mm Screws
41
41
41
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 10
Parts Needed- No.14 QTY 2
No.22 QTY 2
IMPORTANT: Pre-drill before xing screws.
14
27mm
aLocate the two Roof Truss’ (No.14) onto
a at and level surface and arrange so
there is a 27mm gap between the two
angled faces, as shown.
Locate one Truss Brace (No.22) onto the
assembled truss’as shown, ensuring the
faces are ush and level.
Make sure that the Truss Brace is under
the gap in the framing of the Roof
Truss, for added support, as shown.
Secure to the assembled Truss using
2x40mm screws per end.
Flip the assembled truss over and repeat
step b for the other Truss Brace (No.22).
8x40mm screws.
a
b
b
14 14
14
22
14 14
IMPORTANT: Pre-drill before xing screws.
40mm
screw
Pre drill
hole

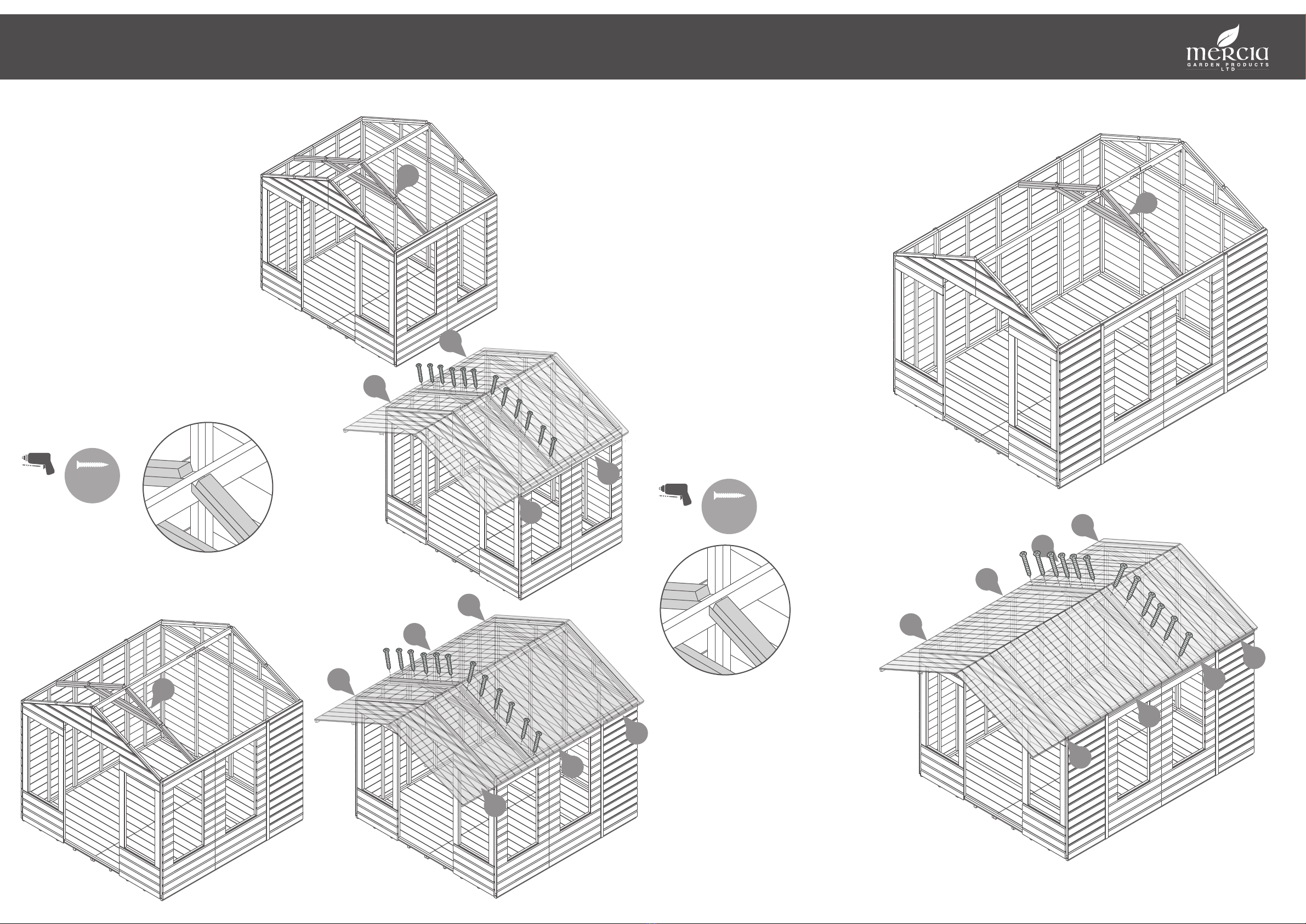

Step 11
Parts needed - No. 5 QTY 4
No. 36 QTY 2
60mm
screw
5
5
5
5
5
5
36
55
a
For 2ft Extension Pack, go to Step
11a.
Place the Roof Panels (No. 5) on top of the
building making sure the framing in the
roof panels sits rmly within the Gable Tops
and on top of the Ridge Bar (No.19).
**Make sure that you have got the roof
panels the correct way round with the
recess at the top of the apex as shown in
the diagram.**
**The edges of the roof panels must be
ush with the outer cladding of the Plain
Gable Top.**
Once the Roofs have been located onto the
building, locate a U-channel (No.36) across
the join between the two adjacent Roof
Panels framing as shown.
Ensure the U channel is equally spaced over
both roofs framing, secure the U channel
using 6x30mm screws per channel.
Repeat for both roof panels
From the top, x directly through the roof
panels (No.5) and into the ridge bar (No.19)
the below using 10x60mm screws.
It is essential that the ridge bar (No.19) and
roof panel (No.5) framing pull together
when xed with 60mm screws. You may
require another person pushing the ridge
bar (No.19) up from below to achieve this.
**Note: Be cautious of the roof panels
before they are secured to the building.
They may need added support until xed.
12x30mm Screws
10x60mm Screws
b
c
a
b
b
c
36
38
5
36 36
538 38
8x8 Summer House
10x8 Summer House
2ft EXTENSION PACK

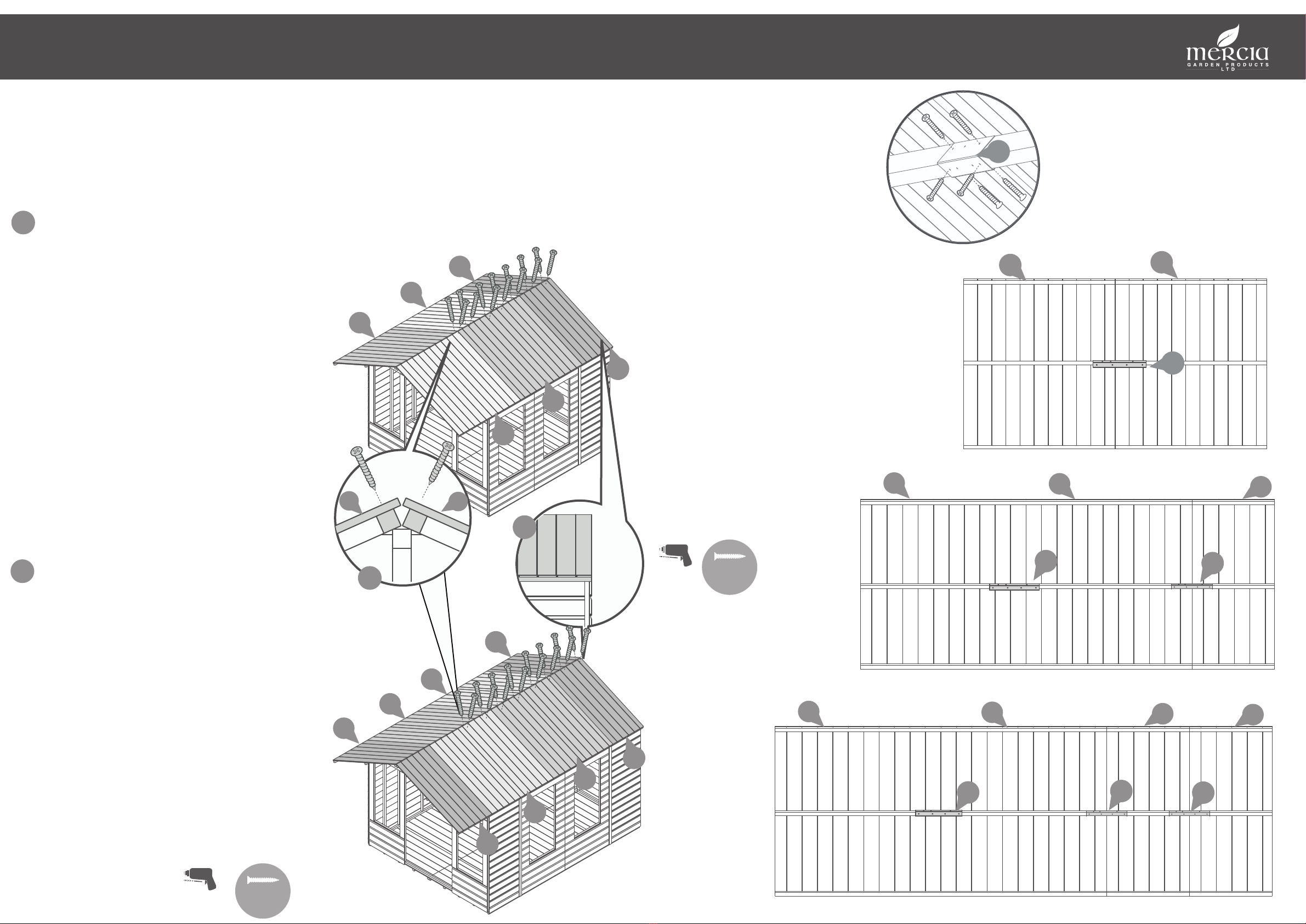

Step 11a
8x8 Summer House Parts Needed
- No.5 QTY 4
- No.38 QTY 2
- No.36 QTY 1
Pre drill
hole
60mm
screw
a
b
Place two Roof Panels (No.5) and Roof extension
panel (No.38) on to one side of the building
making sure the framing in the roof panel sit
rmly within the Gable Top (No.11) and on top of
the Ridge Bar (No.19).
From the top, x directly through the roof panels
(No.5 and No.38) and into the ridge bar (No.19)
below using 5x60mm screws per roof panel.
**Place Roof Extension panels (No.38) to the
back of the building and keep the Roof Panel
(No.5) to the front of the building**
**Make sure that you have got the roof panels
the correct way round with the recess at the
top of the apex as shown in the diagram.**
**The edges of the roof panels must be ush
with the outer cladding of the Plain Gable Top
(No.10).**
Once one side of the roof has been xed to the
ridge bar, lay the next Roof Panel (No.5) on top of
the building, using the xed roofs as a guide and
secure to the ridge bar using 5x60mm screws
Following the lay out of the Roof extensions
already laid on the building, x the remaining roof
extensions onto the building and secure to the
ridge bar using 2x60mm screws per Roof
Extension
It is essential that the ridge bar (No.19) and roof
panels framing pull together when xed with
60mm screws. You may require another person
pushing the ridge bar (No.19) up from below to
achieve this.
(8x8 Summer House)
14x60mm Screws
(10x8 Summer House)
18x60mm Screws
10x8 Summer House Parts Needed
- No.5 QTY 4
- No.38 QTY 4
- No.36 QTY 2
5
5
a
b
36
55
2ft EXTENSION PACK
Step 11a Continued
8x8 Summer House Parts Needed
- No.36 QTY 2
10x8 Summer House Parts Needed
- No.36 QTY 3
Once the Roofs have been placed, Locate a
U-channel (No.36) across the join between
the two adjacent Roof Panels framing as
shown.
Ensure the U channel is equally spaced
over both roofs framing, secure the U
channel using 6x30mm screws per
channel.
Repeat for all roof panels
8x8 Summer House:
24x30mm Screws
10x8 Summer House:
48x30mm Screws
36
36
5
5
30mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
5
5
5
5
5
5
5
5
38
38
38
38
38
38
36
Step 12
Parts needed - No. 14 QTY 2
8x8 Summer house = as below
10x8 Summer House = See Step 12a
Locate your assembled Roof Truss (If
you have not yet assembled your roof
truss please refer to Step 10.) centrally
underneath the join of the two Roof
Panels (No.5) ensuring the joined Roof
Panels sit within the cut out, as shown.
Ensure the Roof Truss sits ush to the
Roof Panels, and the Ridge Bar.
Secure the assembled Roof Truss in
place by screwing through the Roof
Panels into the framing of the Roof
Truss using 6x30mm screws per side.
12x40mm Screws
40mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
14
8x8 Summer House: 38
5
5
5
5
38
14
5
5
5
5
38
2ft EXTENSION PACK
10X8 SUMMER HOUSE ONLY
40mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
Step 12a
Parts needed - No. 14 QTY 2
Locate your assembled Roof Truss (If
you have not yet assembled your roof
truss please refer to Step 10.) centrally
underneath the join of the Roof Panel
(No.5) and The Roof Extension (No.38)
ensuring the joined Roof Panels sit
within the cut out, as shown.
Ensure the Roof Truss sits ush to the
Roof Panels, and the Ridge Bar.
Secure the assembled Roof Truss in
place by screwing through the Roof
Panels into the framing of the Roof
Truss using 6x40mm screws per side.
12x40mm Screws
14
5
38
5
5
5
38
38
Step 13
Parts needed - No. 20 QTY 2
No. 21 QTY 2
Place Truss Block A (No.20) under the top
framing of the panel directly below the
assembled Roof Truss, ensuring the Block is
ush to the cladding of the panel, as shown.
Secure Truss Block A (No.20) in place by
screwing from the outside of the panel
through to the block, using 2x30mm screws.
Locate Truss Block B (No.21) on top of Truss
Block A (No.20), ensuring the angled cut
face is facing upwards, ush to the Roof Truss
assembly as shown.
Secure Block B (No.21) in place using
2x50mm screws.
Repeat this process for the opposite side of
the building.
**Please Note: when Locating Truss Block A
(No.20) onto the window side, the block will
need to be cut to size.
4x30mm screws.
4x50mm screws.
40mm
screw
Pre drill
hole
60mm
screw
IMPORTANT: Pre-drill before xing screws.
*Cut down
to t
21
20
21
20
20
21
8x8 Summer House: 10x8 Summer House:
Step 14
Once the Roof Truss is in place and
secured, x the Roof panels to the
building using 22x40mm screws,
ensuring there is no more than 300mm
between each screw.
Ensure to go through the Roof Panels
and into the framing below.
HINT - Follow the nailing line of the
framing on the roof panel so that you
are more likely to x into the ridge bar
below.
22x40mm Screws
40mm
screw
Pre drill
hole
2ft EXTENSION PACK
40mm
screw
40mm
screw
8x8 Summer House 10x8 Summer House
26x40mm Screws 42x40mm Screws
IMPORTANT: Pre-drill before xing screws.
b
b
b
b
b
b
b
b
b
b
b
b
bb
50mm
screw
Pre drill
hole
Step 15
Once the roof is xed, attach the building
to the Floor with 50mm screws.
Ensure the screws go through the panel
into the Floor framing
30x50mm Screws
2ft EXTENSION PACK
b
b
b
b
b
b
b
b
b
b
b
b
bb
b
b
50mm
screw
50mm
screw
b
b
b
b
b
b
b
b
b
b
b
b
bb
b
b
b
b
8x8 Summer House 10x8 Summer House
34x50mm Screws 38x50mm Screws
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
Step 16
Parts Needed - No.4 QTY 4
No.32 QTY 16
Fix the Window Blocks (No. 32) to the sides,
top and bottom (internally) of the Window
(No.4) as shown with 1x30mm screw per
block.
4 Window blocks should be used per window
Place the Window into the window hole in
the Front and Side Window Panel and x by
screwing though the Window Block (No.25)
into the framing using 2x30mm screws per
block, as shown.
48x30mm screws.
Pre drill
hole
30mm
screw
32
4
4
4
4
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 17
Parts Needed - No.8 QTY 1
No.9 QTY 1
No.29 QTY 6
Fix 3 Hinges (No. 29) to each Door
(No.8 & 9) securing with 4x30mm
black screws per hinge. Position as
shown.
Fix each Door to the building with
4x30mm black screws per hinge.
Ensure the doors interlock as shown
in the diagram, and are able to open
and close freely.
48x30mm Black screws. 29
9
8
9
8
¡
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
20mm
screw
28 28
Step 18
Parts Needed - No.28 QTY 2
No.18 QTY 1
Fix a Ring Pull (No. 28) to the front of
each door using 4x20mm black screws
per ring pull.
Fix the Door Cover trim (No.18) to the
bottom of the door opening, secure to
the framing piece using 3x30mm
screws, ensuring the top of the cover
trim is ush with the framing
8x20mm black screws.
3x30mm screws
28
18
30mm
screw
Step 19
Parts Needed - No.16 QTY 1
No.17 QTY 2
On the inside of the building x the Door
Frame Strips (No.16 and No.17), to the
top and sides of the doors frames. Make
sure that the edges are ush with the edge
of the framing. Fix with 4x30mm screws
per strip.
12x30mm Screws
Pre drill
hole
30mm
screw
16
17 17
16
17
Internal View
IMPORTANT: Pre-drill before xing screws.
27
27
Step 20
Parts Needed - No.27 QTY 1
Fix the Press lock (No.27) to the back
(internally) of the Master door (No. 9)
with 4x20mm black screws. Making sure
to align the key holes.
4x20mm Black screws.
Pre drill
hole
20mm
screw
IMPORTANT: Pre-drill before xing screws.
Internal View
Step 21
Parts Needed - No.35 QTY 2
Attach the tower bolts (No.35) to
the top and bottom of the second-
ary door using 4x20mm screws per
bolt.
*Mark the position of the bolt with
a pencil on the framing and drill a
hole to site the bolts.
8x20mm black screws
Pre drill
hole
20mm
screw 35
35
35
IMPORTANT: Pre-drill before xing screws.
Step 22
Parts Needed- No.30 QTY 2
Fix the Turn Buttons (No.30) above
each door (externally) using 1x20mm
black screw per Turn Button.
2x20mm Black screws.
Pre drill
hole
20mm
screw
30
IMPORTANT: Pre-drill before xing screws.
Step 23
Parts Needed- No.25 QTY 7
Fix the Cover trims (No. 25) to each corner
and over the panel joins, secure using
3x30mm screws per cover trim.
Cover trims may need cutting to size.
Note - the cover trim on the back of the
building will not cover the whole join,
there is a separate Cover Trim for the
Gable Top.
21x30mm Screws.
30mm
screw
25
25
25
25 25
*Cut down
trims to t
Pre drill
hole
25 25
IMPORTANT: Pre-drill before xing screws.
2ft EXTENSION PACK
Step 23a
8x8 Summer House Parts Needed - No.25 QTY 9
10x8 Summer House Needed - No.25 QTY 11
27x30mm Screws (8x8 Summer House)
33x30mm Screws (10x8 Summer House)
8x8
Summer House
10x8
Summer House
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
IMPORTANT: Pre-drill before xing screws.
£
Pre drill
hole
30mm
screw *Cut down
trims to t
23
23 23
23
Step 24
Parts Needed- No.23 QTY 4
Fix the Gable Cover Trims A (No.23)
to the building with 2x30mm screws
per Trim.
The Gable Cover Trims will need to
be cut to t the angle.
8x30mm screws.
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw *Cut down
trims to t
Step 25
Parts Needed- No.24 QTY 2
Fix the Gable Cover Trims B (No.24) to the
front and back of building with 2x30mm
screws per Trim, ensuring to cover the join
between the Gable Tops.
The Gable Cover Trims will need to be cut
to t the angle.
4x30mm screws.
IMPORTANT: Pre-drill before xing screws.
24
24
If the Veranda Pack has been purchased, please
Go to Page 21 and continue from Step 26b.
24
2ft EXTENSION PACK
8x8 Summer House
10x8 Summer House
Step 26
Parts Needed - No.34 QTY 1
Cut the Felt (No. 34) into 3 sheets measuring:
2510mm (L0 x 1000mm (W)
and lay onto the roof in the order shown in the
diagram, making sure there is 50mm of overhang
on each side.
Fix to the buildings using evenly spaced felt tacks.
150 x Felt tacks.
Felt
tacks
1. 2.
3.
Felt Dimensions Required:
3110mm (L) x 1000mm (W)
175 x Felt tacks.
Felt Dimensions Required:
3710mm (L) x 1000mm (W)
200 x Felt tacks.
Felt
tacks
Felt
tacks
34
34
34
100mm
HANDLE
WITH CARE
12
3
4
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 27
Parts Needed - No.26 QTY 4
No.33 QTY 2
Fix the Fascia (No.26) to each end of
the roof, securing with 3x30mm
screws per Fascia. Ensure the screws
go through the roof framing
Fix the Diamond Finials (No.33) to the
Fascias using 2x30mm screws per
nial.
16x30mm Screws.
26
26
26
26
33
33
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
Table of contents
Other Mercia Garden Products Garden House manuals
Mercia Garden Products
Mercia Garden Products 0628AXNE0403HGDD1SW-V1 User manual
Mercia Garden Products
Mercia Garden Products 03DTSHPN0408DSHPB-V1 User manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0806SDFW-V2 User manual
Mercia Garden Products
Mercia Garden Products 03DTSHAX0705HGD2MW-V1 User manual
Mercia Garden Products
Mercia Garden Products 0628LOG175-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTPRMSHPN1008DDOP-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHPN1006FGD2TW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619LOG003-V5 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OSBRA0604SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 02CHY0404-V3 User manual
Mercia Garden Products
Mercia Garden Products 0628RASH0302FBSDNW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01DTSHRAX0705SDNW-V1 User manual
Mercia Garden Products
Mercia Garden Products 03DTSHPN0806PA-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01SHPWOR1010DDOW-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 0628LOG114-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTGRO0705-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products OSB APEX Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHRAX1006SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHOSBRAX0806SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0644RANE5504HGDD8MW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619PNSH1227FBSD-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVAX10DDNWGP-V1 User manual
Mercia Garden Products
Mercia Garden Products 06LOG002-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVRA0806SDFW-V2 User manual
Popular Garden House manuals by other brands
Lemeks
Lemeks Palmako Irene FRK44-4757-1 installation manual
Palmako
Palmako Leif 8.7 installation manual
Rowlinson Garden Products
Rowlinson Garden Products KESTREL PAG28-3232-2FSC installation manual
Palmako
Palmako 4743142053577 installation manual
USP
USP DURAMAX 30325 owner's manual
Luoman
Luoman Lillevilla 93 Assembly and Maintenance
Dunster House
Dunster House Vantage 250 installation manual
Palmako
Palmako FRZB44-6041 installation manual
Lemeks
Lemeks Palmako FR34-4040-3 Assembly, installation and maintenance manual
HUTTON
HUTTON Security Shed Assembly instructions
Absco
Absco 15141RK instruction manual
Forest garden
Forest garden SDA68ON Assembly instruction
Gazebo penguin
Gazebo penguin YOSEMITE instruction manual
Palmako
Palmako FRB28-4925 installation manual
Gartenpro
Gartenpro JUTLAND 18 2320 IL2320 R1 F0 manual
Palmako
Palmako FRX70-5341 installation manual
Dancover
Dancover Modularo WC192086 installation manual
Décor et Jardin
Décor et Jardin Spirit 62222S900 Assembly Notice
