**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building has been treated by the
correct application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
01DTOVPN0705SDFW-V1
DIP TREATED OVERLAP PENT 7X5 SINGLE DOOR FIXED WINDOW
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

P 2
01DTOVPN0705SDFW-V1
50mm Screw x 40
5
Right Gable QTY 1
AI-01R11OVPGR410X1974-V1
Floor QTY 1
AI-R11OSBF1456X2066-V1
Door QTY 1
AI-R11FBMBZBD661X1780-V1
Left Gable QTY 1
AI-01R11OVPGL1410X1974-V1
4
3
67
Roof Sheet QTY 1
PI-03-0257
10
Ridge Bar - 27x44x2020mm QTY 1
F2744-2020mm
12 Door Block - 28x28x140mm QTY 1
F2828-140mm
11 Eaves Frame - 28x28x2110mm QTY 1
F2828-2110mm
13
Front Fascia - 12x60x2134mm QTY 1
S1260-2134mm
Side Fascia - 12x60x1550mm QTY 2
S1260-1550mm
14
Front Cover Trims - 12x40x1969mm QTY 3
S1240-1969mm
15
Back Cover Trims - 12x40x1792mm QTY 3
S1240-1792mm
16
2
1
Door Panel QTY 1
AI-01R11OVSD1180X1972-V1
Window Panel QTY 1
AI-01R11OV1CW896X1972-V1
Plain Panel 1 QTY 1
AI-R11OVPP896X1799-V1
Plain Panel 2 QTY 1
AI-R11OVPP1180X1799-V1
89
23
T Hinge QTY 3
PI-07-0021
Felt QTY 1
PI-01-0013
L-Bracket QTY 2
PI-07-0012
Turn Button QTY 2
PI-07-0034 Hasp and Staple QTY 1
PI-07-0207
24
25
22
21
Door Beading Strip - 12x28x1720mm QTY 2
S1228-1720mm
17
26
Styrene QTY 1
PI-05-0114
Window Cill QTY 1
PI-08-0012
Window Cover Trims - 12x28x533mm QTY 2
S1228-533mm
18
Window Cover Trims - 12x28x564mm QTY 1
S1228-564mm
19
Window Strips - 12x28x544mm QTY 2
S1228-544mm
20
27
Overall Dimensions:
Width = 2134mm
Depth = 1557mm
Height = 2014mm
Base Dimensions:
Width = 2066mm
Depth = 1456mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Felt Tacks x 70
20mm Screw x 8
30mm Screw x 97
Nail Bag
There may be extra screws present in the nail bag

P 3
Please retain product label and instructions for future reference
Step 2
Parts needed - No. 1 QTY 1
No. 9 QTY 1
No. 21 QTY 3
Place the door (No.9) within the
Door Panel (No. 1). Fix the T Hinges
(No. 21) onto the door and Door
Panel as shown (taking into account
on which side of the Door Panel
opening you want the Door to open).
Ensure that the screws go through the
cladding and into the framing behind.
21x30mm Screws
Pre drill
hole
30mm
screw
Opens from the Left Opens from the Right
**PLEASE NOTE** Before tting the
hinges, ensure the door is in the correct
position depending on which side you
want the door to open. See external
illustrations below which show the doors
internal framing.
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
1
9
21
21
21
21
Step 1
Parts Needed - No.7 QTY 1
Place the oor (No.7) on a rm and level base,
ensure the base has suitable drainage free from
areas where standing water can collect. See the
front page for base requirments.
7

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Please retain product label and instructions for future reference
Place the Plain panel 1 (No.5) and the Left
Gable (No.4) onto the oor. Fix the corners
with 50mm screws as shown in diagram.
Do not secure the building to the oor
until the roof is tted.
3x50mm Screws
Pre drill
hole
50mm
screw
a
a
4
5
Step 3
Parts Needed - No.4 QTY 1
- No.5 QTY 1 a
a
Place the Plain panel 2 (No.6) onto the
oor along side the Plain Panel 1. Fix
along the end of the panels in alternating
pattern using 3x50mm Screws.
Place the Window Panel (No.2) onto the
oor. Fix the corner of the Left Gable with
3x50mm screws as shown in diagram.
Do not secure the building to the oor
until the roof is tted.
6x50mm Screws
Pre drill
hole
50mm
screw
Step 4
Parts Needed - No.2 QTY 1
- No.6 QTY 1
2
6
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
13
Pre drill
hole
50mm
screw
Step 5
Parts Needed - No.1 QTY 1
- No.3 QTY 1
a
Place the Right Gable (No.3) and the
Door Panel (No.1) onto the oor. Fix
the Panels together with 3x50mm
screws at each join as shown in
diagram.
Do not secure the building to the
oor until the roof is tted.
9x50mm Screws
8x20mm Screws
Place the ridge bar (No.10) in between the
two gables. Ensure the top corner of the
ridge bar sit ush with the top of the gable.
Fix the ridge bar to the gable using one L
bracket (No.23) for each end and Fix with
4x20mm screws each.
23
20mm
screw
Pre drill
hole
10
Step 6
Parts Needed - No.10 QTY 1
- No.23 QTY 2
**Please note: the front panels
are interchangable and can be
positioned on either side of the
building. Decide which works
best before assembly**

P 5
Please retain product label and instructions for future reference

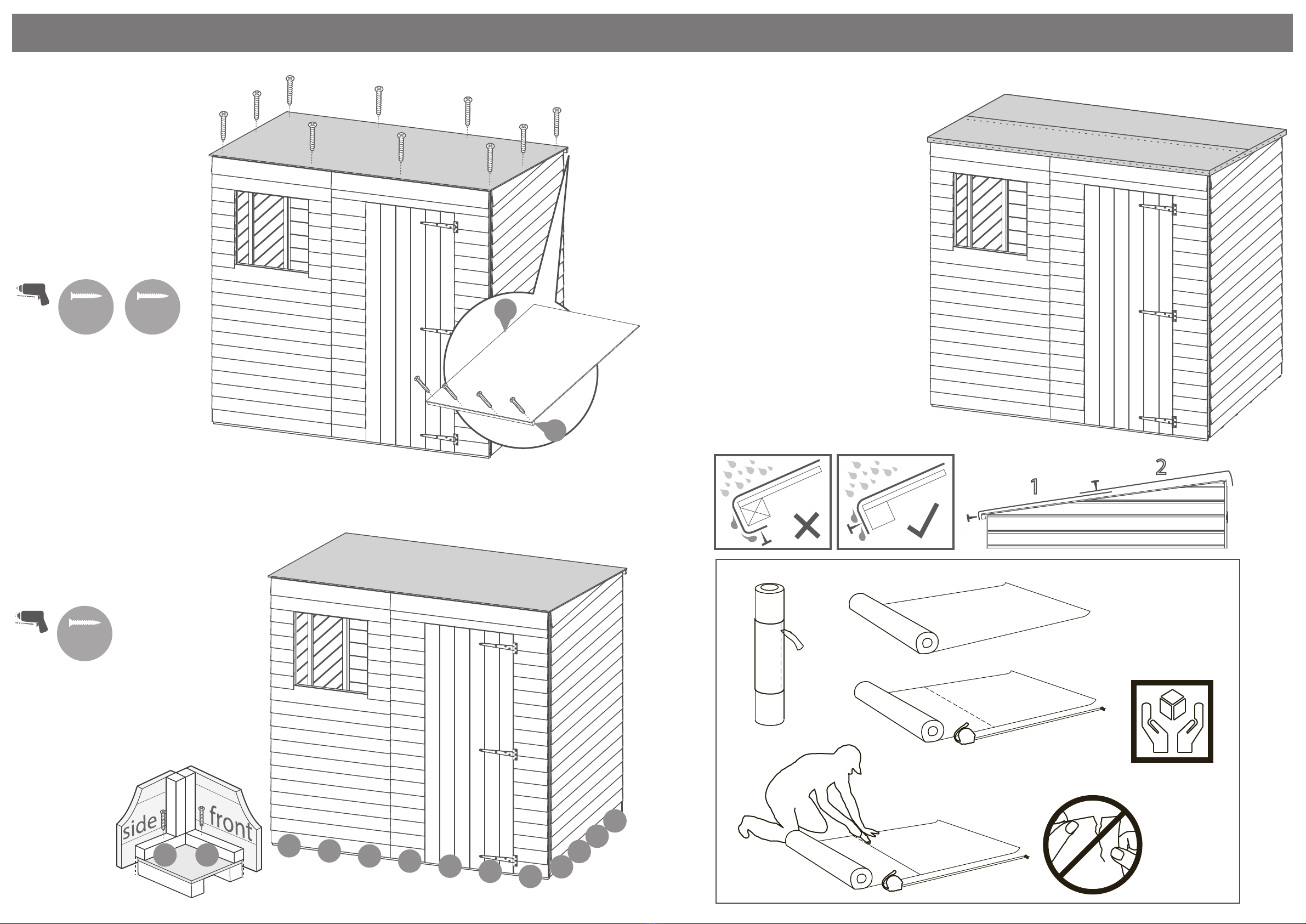

Place the roof sheet (No.8)
onto the bulilding and x in
place with 30mm screws.
10x30mm Screws
4x30mm Screws
Fix the eaves frame (No.11) to
the roof sheet (No.8) using
4x30mm screws for each sheet.
40mm
screw
Pre drill
hole
8
11
30mm
screw
Step 7
Parts Needed - No.8 QTY 1
- No.11 QTY 1
Once the roof is xed attach the
building to the oor with 50 mm
screws.
22x 50mm Screws
50mm
screw
Pre drill
hole
bb bbbb
b
bbb
b
b
b
Step 8
12
HANDLE
WITH CARE
12
3
4
Cut the felt (No.25) into 2x 2210mm
long sheets and lay onto roof as shown
in diagram ensuring there is overhang
around the sides.
70 x Felt Tacks

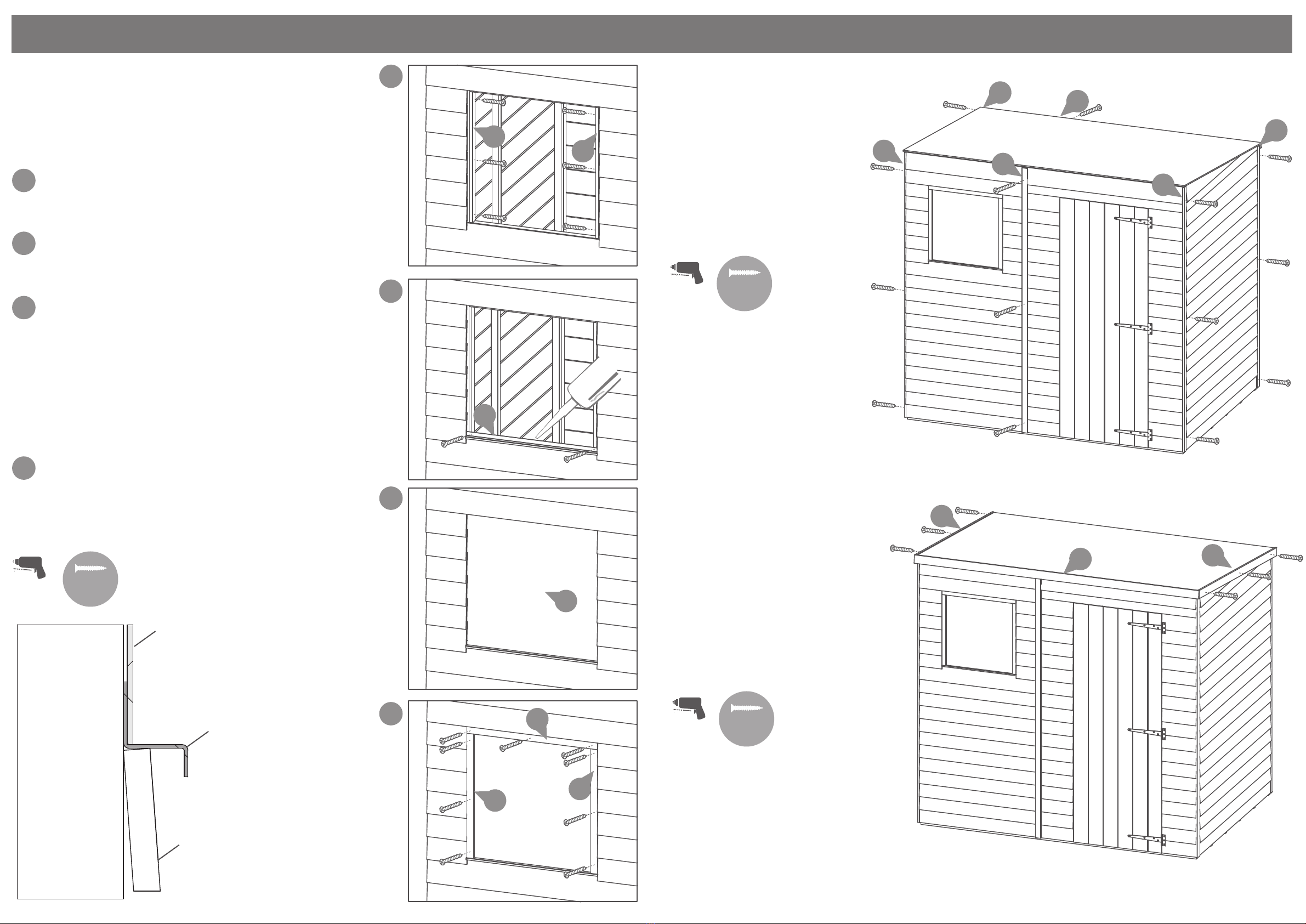

Step 9
Parts Needed - No.25 QTY 1

Fix 2x Window Strips (No.20) to the framing
along the outside edge of the window gap
using 3x30mm screws per strip.
Place the Window Cill (No.27) into the window
panel (No.2) as shown in the illustration. Secure
using 2x30mm screws
Fit the Styrene sheet (No.26) on top of the
window cill (No.27).
*For added weather protection t your
windows using silicone sealant around
the outside edges.
**When positioning the styrene sheets
ensure there is an equal distance on all sides.
Attach the Window Cover Trims (No.18 and
No.19) to either side of the windows and
the centre. Secure into place using 3x30mm
screws per strip.
17x30mm Screws
Pre drill
hole
30mm
screw
a
b
c
20
20
27
a
b
c
d
d
SILICONE
SEALANT
26
18
Styrene
Window Cill
Cladding
Side View
18
19
15 15
15
16
16
16
Pre drill
hole
30mm
screw
14
13 14
P 6
Please retain product label and instructions for future reference
Step 10
Parts Needed - No.18 QTY 2
- No.19 QTY 1
- No.20 QTY 2
- No.26 QTY 1
- No.27 QTY 1
Step 11
Parts Needed - No.15 QTY 3
- No.16 QTY 3
Step 12
Parts Needed - No.13 QTY 1
- No.14 QTY 2
Fix the cover trims (No.15 and
No.16) to each corner and join,
secure using 3x30mm screws per
cover trim.
Pre drill to avoid splitting
18x30mm Screws
Pre drill
hole
30mm
screw
Fix the Fascias (No.13 and No.14)
to the front and the sides of the
roof, secure using 3x30mm screws
per fascia
Pre drill to avoid splitting
9x30mm Screws

22
24
22
24
22
P 7
Please retain product label and instructions for future reference
Pre drill
hole
30mm
screw

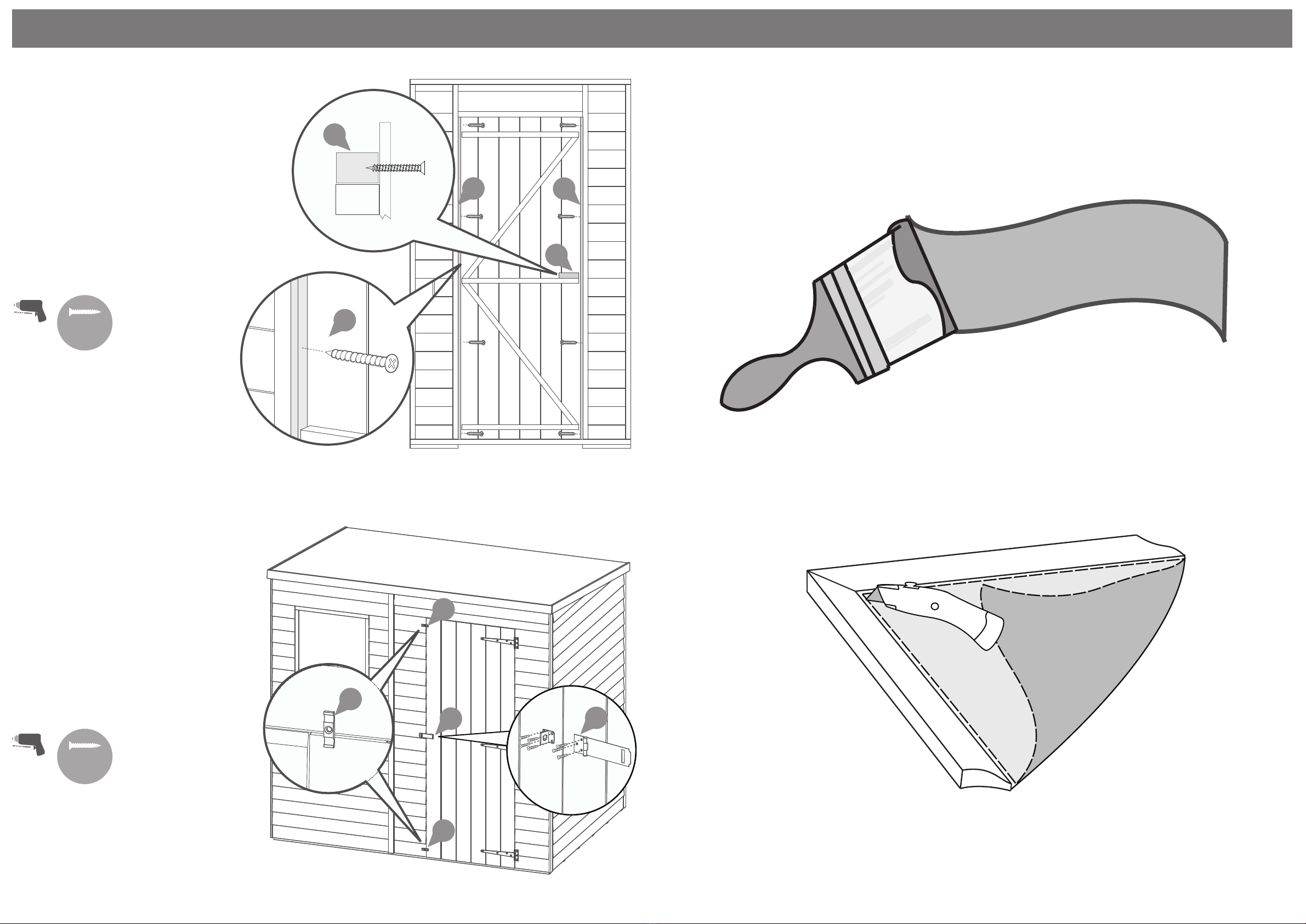

Step 13
Parts Needed - No.12 QTY 1
- No.17 QTY 2
Fix the Door beading strips (No.17) to
the inside of the door panel framing,
secure using 4x30mm screws.
Fix the Door Block (No.12) onto the
inside of the door in ligh with the door
framing as shown, secure using
2x30mm screws through the door
cladding and into the door block
10x30mm Screws
17
17
17
Pre drill
hole
50mm
screw
Step 14
Parts Needed - No.22 QTY 2
- No.24 QTY 1
Fix the Turn Buttons (No.22) to the
door panel, ensuing that the turn
buttons catch the door, secure using
2x30mm screws
Fix the Hasp and Staple (No.24) onto
the door and door panel, secure using
7x30mm screws, ensuring the screws
go through the framing
8x30mm Screws
12
12
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back

P 8




















































2





1












3
4














P 9



















¡




1




2























¡



