Mercia Garden Products 0619PNSH1227FBSD-V1 Instruction manual

P 1
0619PNSH1227FBSD-V1
19MM LOG CABIN, PENT SHED ADD ON, 1.2M X 2.7M, FULLY BOARDED SINGLE DOOR.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. the cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.

P 2
0619PNSH1227FBSD-V1
Overall Dimensions:
Width = 1202mm
Depth = 3043mm
Height = 2378mm
Base Dimensions:
Width = 1104mm
Depth = 2508mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Starter Board - 66x19x1200mm QTY 1
LB19RT66-B-1200
Log Board - 120x19x187mm QTY 18
LB19-B-187
Log Board - 120x19x2700mm QTY 19
LB19-A-2700
Finisher Board - 62x19x1176mm QTY 1
LB19RG62-B-1176
Log Board - 120x19x187mm QTY 18
LB19-C-187
Log Board - 120x19x1200mm Qty 1
LB19-BD-1200 (Single Door Cut Out)
Fully Boarded Single Door Contents:
1
13
14
15
16
18
17
19
20
21
EXAMPLE BUILDING
789
6
Storage Door
Handle QTY 1
PI-07-0033
10
Dead Lock
QTY 1
PI-07-0200
Key Plate
QTY 1
PI-07-0200
Fullly Boarded Single
Door QTY 1
AI-06LOGFBD750X;1900-V1
2
3
4
5
Door Frame Left Upright - 71x70x2065mm QTY 1
AI-0619LOGDUFL-V3
Door Frame Right Upright - 71x70x2065mm QTY 1
AI-0619LOGDUFR-V3
Door Frame Bottom - 71x70x764mm QTY 1
AI-0619LOGSDBF-V3
Door Frame Top - 81x125x884mm QTY 1
AI-0619LOGSDTF-V3
T-Hinge QTY 3
PI-07-0002
Rain Guard QTY 1
RG2844-780 (28x44x780mm)
Shed Extension Contents:
Log Board - 120x19x1200mm QTY 1
LB19-B-1200
Log Board - 120x19x1176mm QTY 19
LB19-B-1176
Starter Board - 66x19x1176mm QTY 1
LB19RT66-B-1176
Bottom Gable QTY 1
AI-0619PNNE0403HGDD3SW-G-V1
11
12a
12b
Top Gable A QTY 1
AI-0619PNNE0403HGDD3SW-G-V1
Top Gable B QTY 1
AI-0619PNNE0403HGDD3SW-G-V1
12C
Top Gable B QTY 1
AI-0619PNSH1221FBSD-G-V1

P 3
Please retain product label and instructions for future reference
25
24
Roof Purlin - 40x90x1202mm Qty 2
F4090-B-1202
Fascia - 120x12x1150mm QTY 2
S12120-1150
Roof Board - 121x12x3296mm QTY 11
MB12-3296
Floor Board - 121x12x2465mm QTY 11
MB12-2465
29
Eaves Frame - 44x27x1103mm QTY 2
F2744-1103
26
27
28
Bearer - 44x44x2508mm QTY 2
F4444-2508-PT
Bearer - 44x44x1016mm QTY 9
F4444-1016-PT
30
31
Storm Brace - 44x27x2000mm QTY 4
F2744-2000
32
Closure Trim - 16x28x2400mm (approx length) QTY 6
S1628-2400
33
Felt
Roof Spacers QTY 5
PI-07-0208 (20x100x2mm)
34
Finisher Board - 54x19x1200mm QTY 1
LB19RG54-B-1200
22
23
‘L’Frame - 44x44x2180mm QTY 1
LF4444-2180
Strip - 16x60x2180mm QTY 1
S1610-2180
35
Felt Tacks x 208
70mm Screw x 52
Nail Bag
60mm Screw x 8
30mm Screw x 83
60mm Bolt Set x 8
There may be extra screws present in the nail bag
30mm Black Screw x 31
80mm Screw x 8
40mm Screw x 146
Pre-assembly
*Please note:
Each board interlocks at either end in a staggered pattern.
Before securing ensure that the boards are tted properly
in their respective tongues and grooves.

For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
P 4
Please retain product label and instructions for future reference

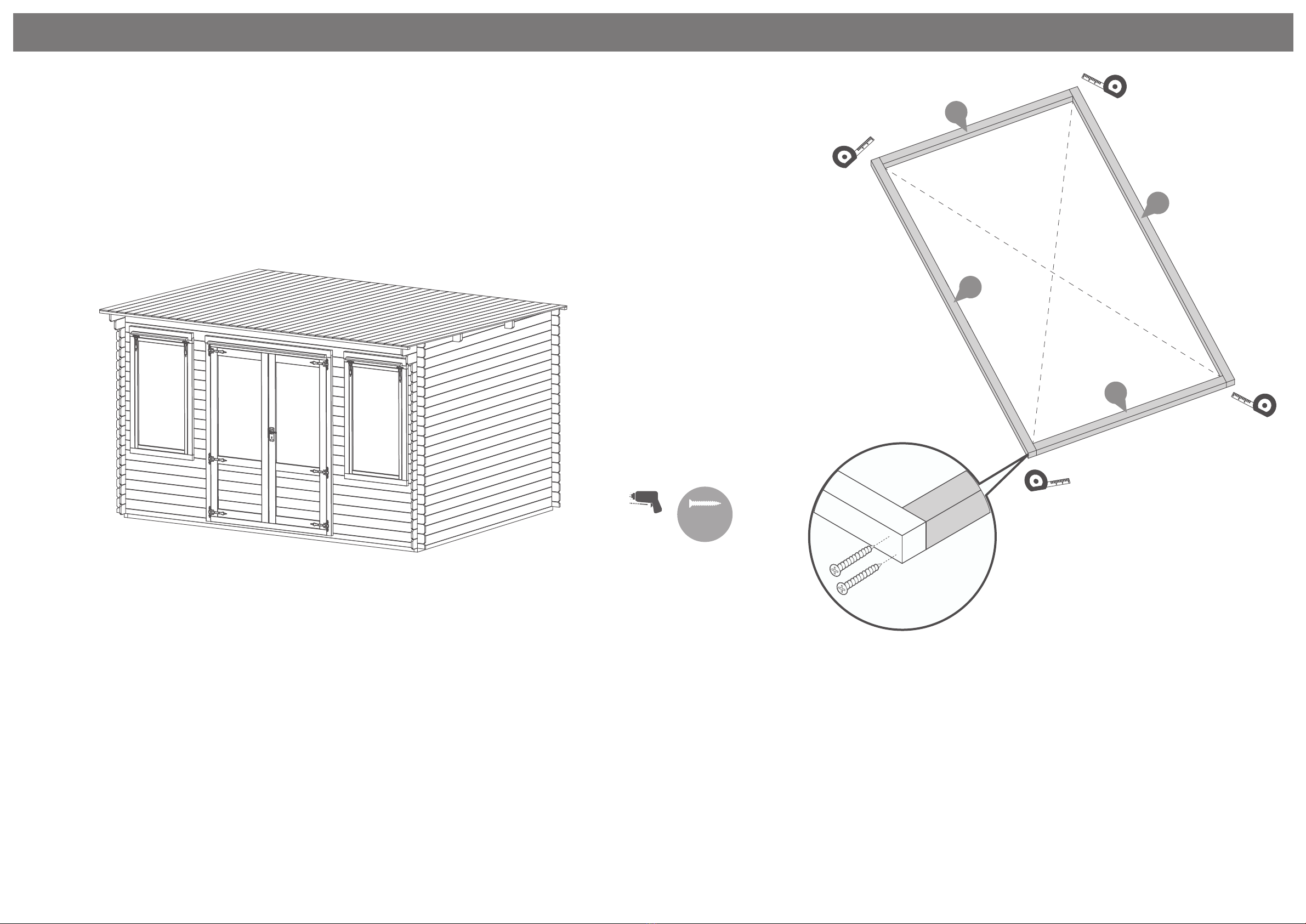

Pre-Assembly
Follow the instructions for the 3m x 4m Log Cabin
(0619PNNE0304HGDD3SW-V1) however DO NOT attach or
cut down the last roof board, Felt or the Fascia trims.
Not attaching these parts allows the extension to be xed in
place.
Your building should look as shown:
(0619PNNE0304HGDD3SW-V1)
Step 1
Parts Needed - No. 24 QTY 2
No. 25 QTY 2
Lay the bearers (No. 24 & 25) onto
a rm and level surface (free from
areas where standing water can
collect) as shown in the
illustration.
Fix the bearers together at each
corner using 2 screws per corner
using 8x70mm screws in total,
ensuring the bearers are ush.
Once fully assembled, ensure the
bearers are square by measuring
from corner to corner as
illustrated, making sure the
measurements are equal.
If the bearers are not aligned
equally, unscrew, adjust and
re-align accordingly.
8x70mm Screws
24
25
25
Pre drill
hole
70mm
screw
24

P 5
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
Step 2
Parts Needed - No. 25 QTY 7
Following the same method
arrange the remaining bearers
(No. 25) inside the assembled
frame.
*Ensure there is an equal amount
of space between each frame.
Secure each of the bearers in place
using 2x70mm screws for each
side of the bearer, ensuring the
bearers remain level.
28x70mm Screws
Pre drill
hole
70mm
screw
25
24
25
25
25
25
25
25
25
25
Step 3
Place the Bearers up against the
bearers of the Log Cabin, ensuring
the bearers sit ush to the back of
the front log board of the log
cabin, as shown in the illustration.
*Please note: There should be a gap
between the back of the bearers
and the log cabin, as shown in the
illustration.
Fix into position using 8x70mm
screws as shown.
*Please note:
You can position the Shed Add on
on either side of the log cabin,
depending which side you attach
the bearers.
8x60mm Screws
Pre drill
hole
60mm
screw
IMPORTANT: Pre-drill before xing screws.

P 6
Please retain product label and instructions for future reference
Step 4
Parts Needed - No. 30 QTY 1
No. 31 QTY 1
Place the ‘L Frame’ (No.31) and the
Strip (No. 30) ush together, creating
a ‘U’ shaped channel, as shown in the
illustration.
Fix together using 6x30mm screws.
6x30mm Screws
31 30
31 30
30mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
15
14
13
Step 5
Parts Needed - No. 13 QTY 1
No. 14 QTY 1
No. 15 QTY 1
Place the starter boards (No. 13 & 15)
on to the assembled base frame
along the front and the back, and
place the rst log board (No. 14) in
the notches as shown.
Locate the ‘U’ Channel (if you have not
yet constructed your ‘U’ channel please
refer to Step 4) so it is ush to the side
of the log cabin’s log boards, and the
‘U’ channel sits around the starter
board (No. 15).
**Please note: The starter board
(No.15) should sit ush to the back of
the back bearer, and the back strip of
the ‘U’ channel should overhang this
bearer, as shown in the illustration.
**Ensure the measurement between
the ‘U’ channel and log cabins log
boards is equal at the top and
bottom of the ‘U’ channel.
13
15

Please retain product label and instructions for future reference
70mm
screw
30mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
Step 6
Parts Needed - No. 13 QTY 1
No. 14 QTY 1
No. 15 QTY 1
Ensure the boards sit square on the base
using the same method used in Step 1.
Measure corner to corner, making sure
the measurements are equal.
Once the boards are square, lift up the log
board (No. 14) and x the starter boards
(No. 13 & 15) in place by screwing
through the notches into the bearer using
1x70mm screw per notch, as shown in
the illustration.
To further secure the boards, x the front
starter board (No. 13) to the front log
board of the log cabin. Screw stright
through the starter board into the log
board behind using 2x30mm screw, as
shown in the illustration.
2x70mm Screws
2x30mm Screws
13
Step 7
Fix the ‘U’ channel in place by
screwing through the ‘L frame’
into the log boards using
6x30mm screws.
**Ensure the measurement
between the ‘U’ channel and
log cabins log boards is equal
at the top and bottom of the
‘U’ channel.
6x30mm screws.
30mm
screw
Pre drill
hole
P 7

P 8
Please retain product label and instructions for future reference
30mm
screw
Pre drill
hole
14
17
16
18
IMPORTANT: Pre-drill before xing screws.

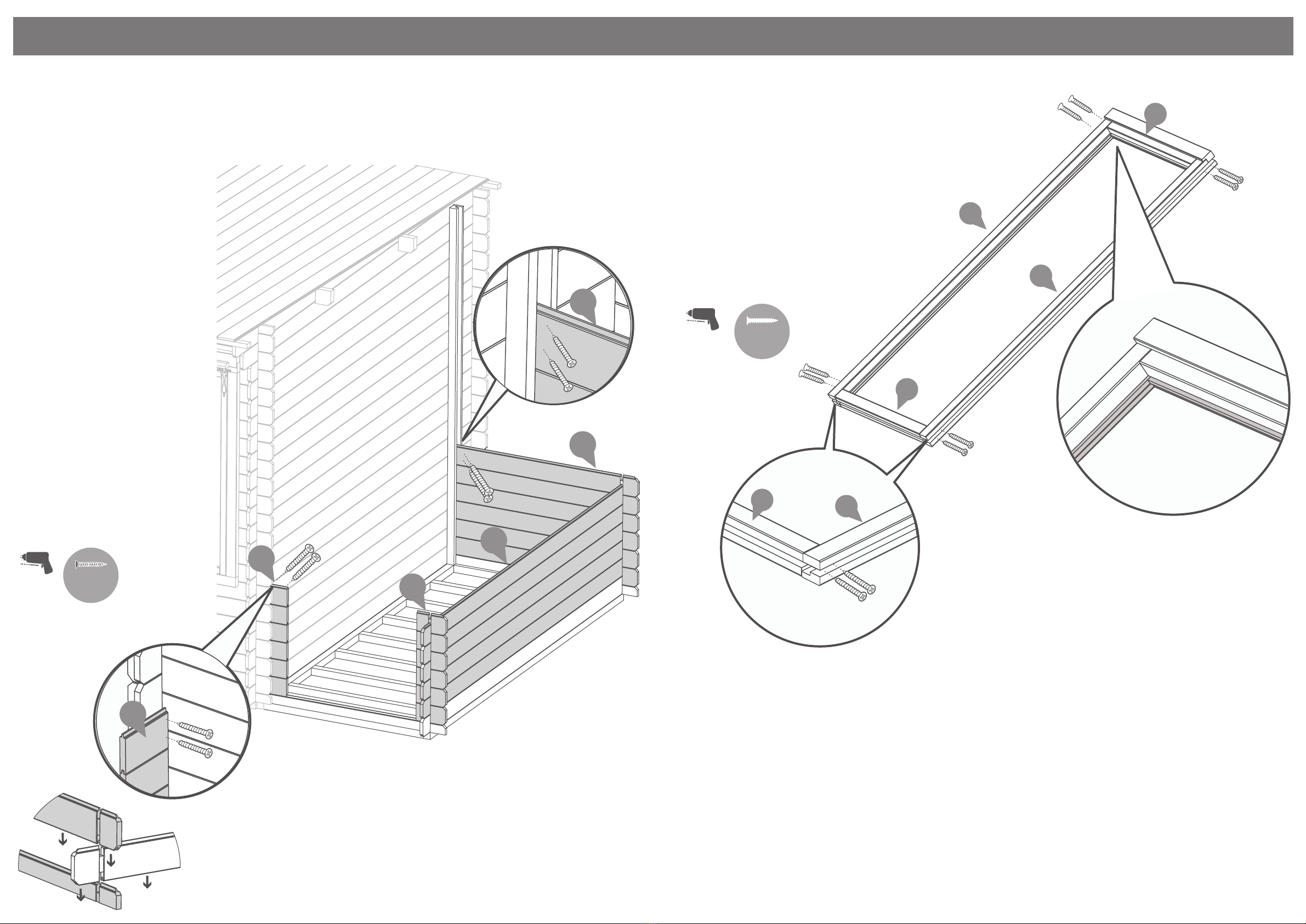

Step 8
Parts Needed - No. 14 QTY 5
No. 16 QTY 6
No. 17 QTY 6
No. 18 QTY 6
Following the method shown in
the illustration, lay the rst 6
boards (No. 14, 16, 17 & 18) o of
the starter boards to create your
rst level, ensuring that the back
log boards (No.16) sit inside the ‘U’
channel.
*Ensure that the boards are level
and ush with each other as you
lay each one.
Secure the front top board (No.18)
by screwing straight through the
log board into the log board of the
cabin behind using 2x30mm
screws, as shown in the illustration.
Secure the back top board (No.16)
by screwing through the Log board
at an angle into the ‘U’ channel,
using 2x30mm screws.
4x30mm screws.
18
16
IMPORTANT : Pre-drill before xing screws.
53
2
5
3
Step 9
Parts Needed - No. 2 QTY 1
No. 3 QTY 1
No. 4 QTY 1
No. 5 QTY 1
Arrange the left, right, top & bottom door
frames (No’s. 2, 3, 4, & 5) onto a rm and level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
Pre drill
hole
80mm
screw
The internal lip of the door
frame should be postioned on
the inside of the building.
4

P 9
Please retain product label and instructions for future reference

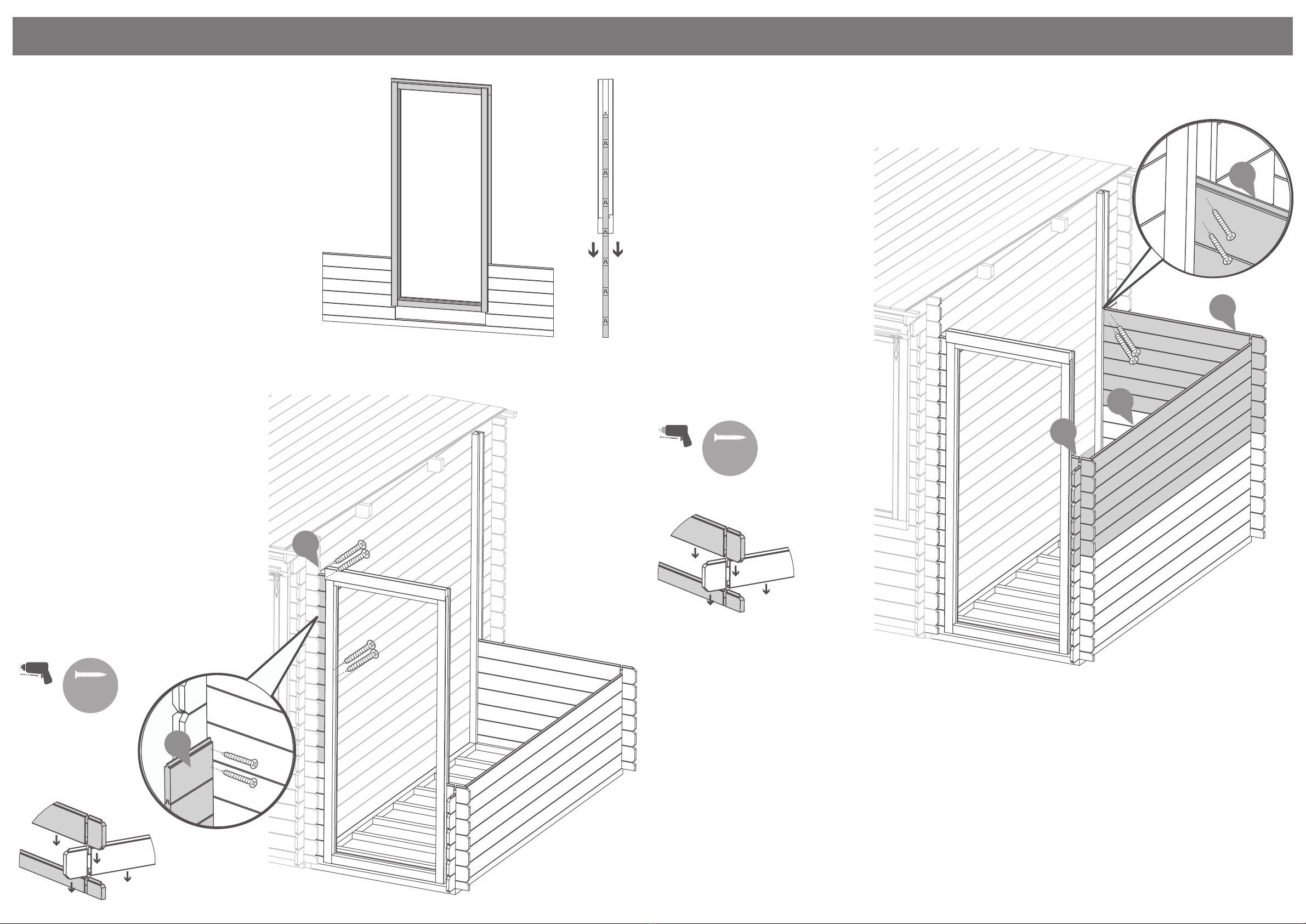

Step 10
Once you have laid 6 log boards (o of the starter)
up the door section, slide the assembled door
frame over the boards resting the frame on top of
the starter board (if you have not yet assembled
the door frame refer to step 9)
*Please note: This image is for illustrative purposes
and may dier from your choice in product
(regarding door position). Nevertheless the
process of tting the door frame is the same.
Step 11
Parts Needed - No. 18 QTY 12
Lay the remaining boards (No.18) onto
the shed between the log cabin and door
frame, ensuring they sit in the groove of
the door frame.
*Ensure that the boards are level and
ush with each other as you lay each
one.
Fix every 6th board (No.18) to the log
board of the log cabin, using 2x30mm
screws as shown in the illustration.
4x30mm screws.
30mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
18
18
14
17
16
IMPORTANT: Pre-drill before xing screws.
30mm
screw
Pre drill
hole
Step 12
Parts Needed - No. 14 QTY 6
No. 16 QTY 6
No. 17 QTY 6
Following the method shown in the
illustration, lay the next 6 boards
(No. 14, 16 & 17) onto the shed to
create your second layer, ensuring
that the back log boards (No.16) sit
inside the ‘U’ channel.
*Ensure that the boards are level
and ush with each other as you lay
each one.
Secure the back top board (No.16)
by screwing through the Log board
at an angle into the ‘U’ channel,
using 2x30mm screws.
2x30mm screws.
16

P 10
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
30mm
screw
Pre drill
hole
Step 13
Parts Needed - No. 14 QTY 6
No. 16 QTY 6
No. 17 QTY 6
Following the method shown in the
illustration, lay a further 6 boards
(No. 14, 16 & 17) onto the shed to
create your third layer, ensuring that
the back log boards (No.16) sit
inside the ‘U’ channel.
*Ensure that the boards are level
and ush with each other as you
lay each one.
Secure the back top board (No.16)
by screwing through the Log board
at an angle into the ‘U’ channel,
using 2x30mm screws.
2x30mm screws.
14
16
16
17
30mm
screw
Pre drill
hole
Step 14
Parts Needed - No. 14 QTY 1
No. 16 QTY 1
No. 19 QTY 1
Following the method shown in
the illustration, lay the next three
boards (No. 14, 16 & 19) , ensuring
that the back log board (No.16)
sits inside the ‘U’ channel.
*Ensure that the boards are level
and ush with each other as you
lay each one.
Fix the top board (No.19) to the
log board of the log cabin, using
2x30mm screws as shown in the
illustration.
Secure the back top board
(No.16) by screwing through the
Log board at an angle into the ‘U’
channel, using 2x30mm screws.
4x30mm screws.
14
19
16
Rubber Mallet
may be required
to t parts.
19
16
IMPORTANT: Pre-drill before xing screws.

P 11
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
70mm
screw

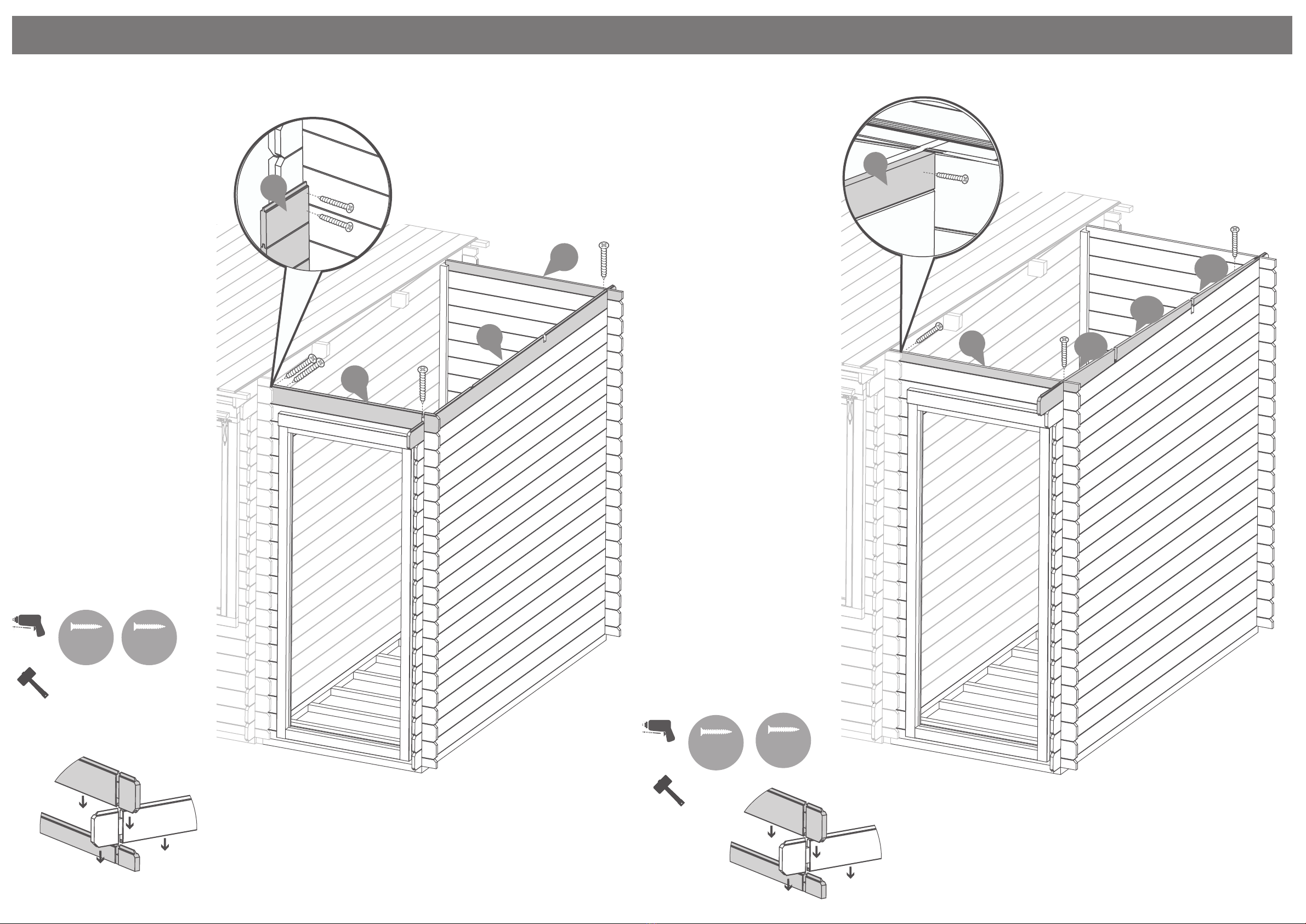

Step 15
Parts Needed - No. 11 QTY 1
No. 20 QTY 1
No. 21 QTY 1
Following the method shown in
the illustration, place the Bottom
Gable (No. 11), nisher board
(No. 21) and the the remaining
Log board (No.20) onto the
Shed, ensuring that the back log
board (No.21) sits inside the ‘U’
channel.
*Ensure that the boards are
level and ush with each other
as you lay each one.
Fix the top board (No.20) to the
log board of the log cabin, using
2x30mm screws as shown in the
illustration.
Fix each board to the one below
by screwing through the notch
as shown in the illustration using
1x70mm screw per corner.
**Ensure to stagger the screws
so as not to collide with the
previous screw.
2x70mm Screws
2x30mm screws.
Pre drill
hole
21
11
20
30mm
screw
20
Rubber Mallet
may be required
to t parts.
IMPORTANT: Pre-drill before xing screws.
70mm
screw
Step 16
Parts Needed - No. 12a QTY 1
No. 12b QTY 1
No. 12c QTY 1
No. 22 QTY 1
Following the method shown in
the illustration, place Top Gable A
(C ,Top Gable B (No. 12b), Top
Gable C (No. 12c) and the
remaining Finisher board (No.22)
onto the log cabin.
*Ensure that the boards are
level and ush with each other
as you lay each one.
Fix the top board (No.22) to the
log board of the log cabin, using
1x30mm screw as shown in the
illustration.
Fix Top Gable A (No. 12a) to the
board below by screwing
through the notch as shown in
the illustration using 1x70mm
screw.
Fix Top Gable C (No. 12c) to the
board below by screwing
through the end of the board as
shown in the illustration using
1x30mm screw.
**Ensure to stagger the screws
so as not to collide with the
previous screw.
1x70mm Screws
2x30mm screws.
Pre drill
hole
22
30mm
screw
12b
12a
22
Rubber Mallet
may be required
to t parts.
12c

P 12
Please retain product label and instructions for future reference
23
Pre drill
hole
70mm
screw

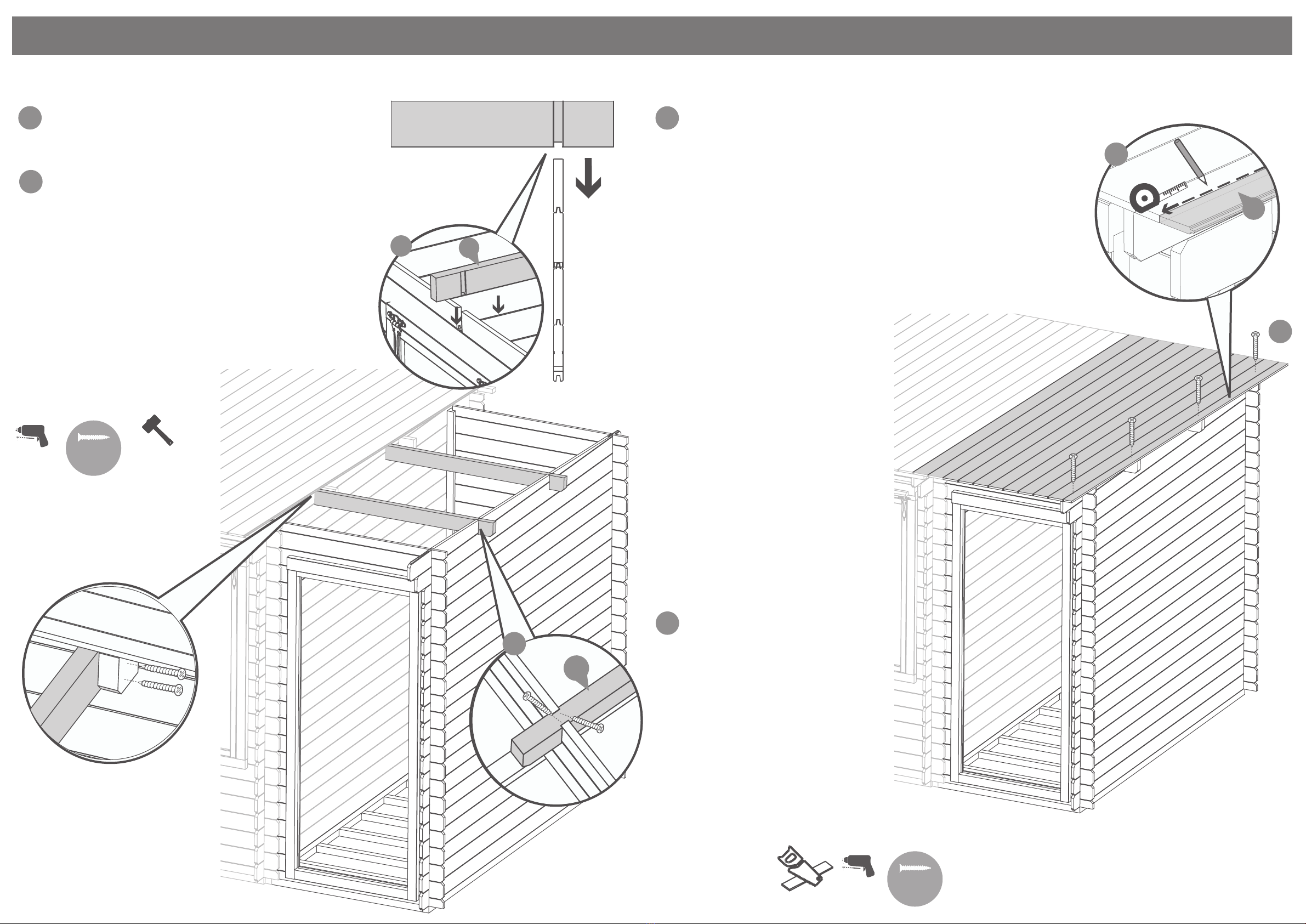

Step 17
Parts needed - No. 23 QTY 2
Align the Roof Purlins (No.
23) into the cut out slots on the
gable top ensuring they interlock.
Secure the roof purlins at
each end by screwing through the
purlins into the gable below, and
through the purlin into the Log
cabins purlin, as illustrated, using
2x70mm screws per end.
*Please note: The gable shown is for
illustrative purposes and may dier in
width from your choice in product.
Nevertheless, despite any dierences
the process of xing the purlins is the
same.
8x70mm Screws
a
b
a
IMPORTANT: Pre-drill before xing screws.
23
b
IMPORTANT: Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
40mm
screw
Pre drill
hole
*Cut to t
Step 18
Parts needed - No. 27 QTY 11
Place the remaining roof board from
the Log Cabin onto the roof. Fix in place to
the Purlin, front and back of the cabin,
using 3x40mm screws.
Place the rst roof board (No. 27) onto the
shed add on, making sure the boards are
ush to the end of the roof purlin. Ensure
there is an even amount of overhang
between the log boards and roof board at
the front and back of the cabin. Once in
position x to the purlins, front and back of
the shed add on using 3x40mm screws.
Ensure the roof boards are not laid too
close together, use the spacers (No. 35)
provided to create a 2mm gap. Adjusting
the spacing between the boards allows
the wood to swell in damp weather.
Continue to add roof boards onto the roof.
Once in position x to the purlin, front and
back of the log cabin using 4x40mm srews
per roof board.
You have been issued with 11 roof boards,
but in reality you may only need to use 10.
*Please note: the roof boards on the shed
add on will sit short of the roof boards on
the log cabin
The last board will overhang onto
the log cabin. Using a straight edge and a
pencil, mark out a line as a guide.
Cut along the pencil mark and remove the
excess. Place the cut down board’s back
onto the roof and secure into place using
4x40mm screws per board.
*Please Note: This image is for illustrative
purposes and may dier from your choice in
product. Nevertheless the process of cutting
and tting the last roof board(s) is the same.
48x40mm Screws
a
a
b
27
b

P 13
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
Step 19
Parts Needed - No. 29 QTY 2
Ensuring the roof boards are ush at the
overhanging side, x the eaves frames
(No. 29) to the underside of the roof
boards using 4x30mm screws as shown
in the illustration
*Please Note: This image is for illustrative
purposes and may dier from your choice
in product. Nevertheless the process of
xing the eaves frames is the same.
8x30mm Screws
30mm
screw
Pre drill
hole
29
Pre drill
hole
30mm
screw
7
IMPORTANT : Pre-drill before xing screws.
1
Step 20
Parts Needed - No. 1 QTY 1
No. 7 QTY 3
Once the roof is xed, place the door
(No. 1) onto a at surface and x 3x9
inch T-hinges (No.7) to the door using
5x30mm black screws per hinge.
Locate the door into the door frame on
the shed, ensuring there is equal spacing
on each side between the door and door
frame.
Secure into position by screwing
through the T-hinges (No.7) using
4x30mm black screws per hinge,
making sure the doors open & close
freely without restriction
*Ensure to screw into the framing and
not into the channel.
27x30mm Black Screws

P 14
Please retain product label and instructions for future reference
Step 21
Parts Needed - No. 8 QTY 1
No. 9 QTY 1
No. 10 QTY 1
Fit the Dead lock (No. 9) into the recess
in the boarded door (No. 1) and secure using
the 2x30mm screws provided. Attach the Key
Plate (No. 8) to the door framing with 2x30mm
screws.
Fit the door handle (No. 10) to the front
of the door using 4x30mm black screws, as
shown in the illustration.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding ironmongery). Nevertheless
the process of xing the door is the same.
4x30mm Black Screws
4x30mm Screws
a
Pre drill
hole
30mm
screw
a
b
30mm
screw
b
10
8
9
IMPORTANT: Pre-drill before xing screws.
40mm
screw
Pre drill
hole
*Cut to t
28
Step 22
Parts Needed - No. 28 QTY 11
Place the rst oor board (No. 2) inside
the shed add on ush to the log board on
one side. Continue adding the oor boards
(internally) making sure to interlock each
individual board.
You have been issued with 11 oor boards,
but in reality you may only need to use 10.
*Do NOT secure the boards until the last
board has been measured and cut.
Following the same method outlined
previously measure the gap between the
bottom of the tongue (on the last board
placed) and the log board.
Using a straight edge mark out the
measurement onto the last oor board (No.
27) and cut along the length removing the
excess.
The oor board around the ‘U’ channel will
also need to be notched to t.
Measure around the protruding ‘U’ channel
and mark onto the oor boards.
Once marked, cut into the oor boards to
create the desired notch and place the
board back into position.
**Please note: Mark the nal board 2mm
under the measurement; This will allow the
timber to expand and contract
correctly.
Once all the oor boards are in position
secure each board into position using
7x40mm screws per board.
***Please Note: Ensure to screw through
each of the oor boards into the oor bearers.
77x40mm Screws
a
a
b
b
IMPORTANT: Pre-drill before xing screws.

P 15
Please retain product label and instructions for future reference
Closure Trim
Internal
23
*Measure and cut the
closure trims to
t the internal space.
Closure Trim
Internal
32
*Measure and cut the
closure trims to
t the internal space.
Pre drill
hole
30mm
screw
*trim to t

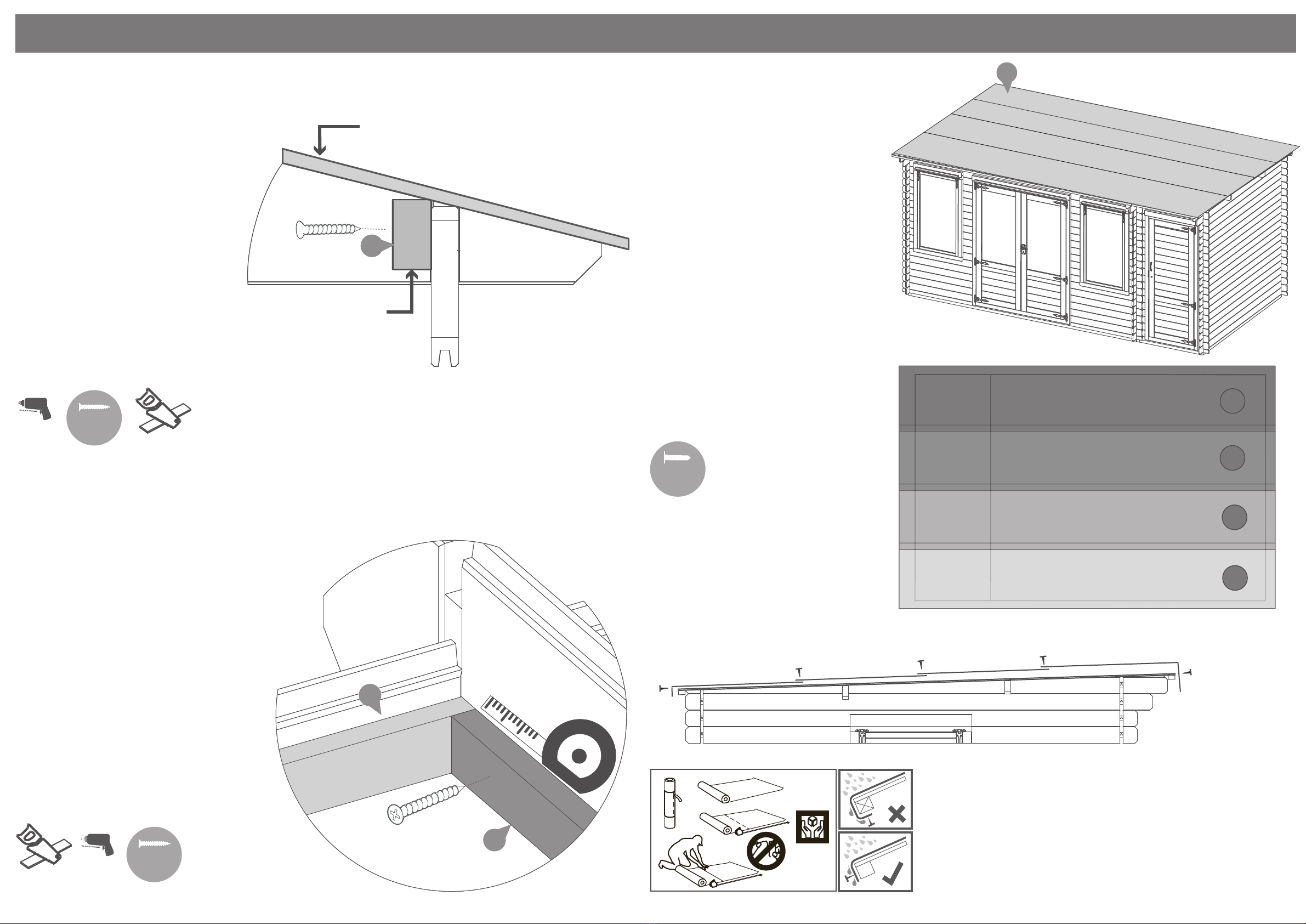

Step 23
Parts needed - No. 32 QTY 3
Inside the building place the closure
trim (No. 32) against the boarding and
align with the roof as shown in the
illustration.
*Measure and cut the closure trims to
t the internal space.
Once in position x each trim into
place by pre drilling a pilot hole and
using 6x30mm screws per trim,
equally spacing them along the face
of the board.
18x30mm Screws
RoofRoof
IMPORTANT: Pre-drill before xing screws.
2332
32
30mm
screw
Pre drill
hole
*Cut to t
Step 24
Parts needed - No. 32 QTY 3
Once the oor has been laid arrange the
closure trim (No. 32) around the outside
edge of oor (internally), measure and cut
down accordingly to best match the
internal space.
Secure each trim section into place using
6x30mm spaced equally along the board
as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
18x30mm Screws
IMPORTANT: Pre-drill before xing screws.
HANDLE
WITH CARE
12
3
4
Felt
tacks
Step 25
Parts needed - No. 34
Cut the felt into four strips cut to the
dimensions:
5400mm (L) X 1000mm (W)
Lay onto the roof in the order shown
in the illustration Ensuring there is
approximately 50mm of overhang
each side.
Once the felt is cut, x to the roof
using felt tacks at 100mm intervals.
*Please Note: This image is for
illustrative purposes and may dier
from your choice in product.
Nevertheless the process of cutting anf
tting the felt is the same.
208x Felt Tacks
1
2
3
34
1. 2. 3. 4.
4

P 16
Please retain product label and instructions for future reference
40mm
screw
Pre drill
hole
Step 26
Parts Needed - No. 26 QTY 2
Attach the fascia’s (No. 26), including the
remaining fascias from the Log cabin, around
the building (ensuring to trap the felt in
between the fascia’s) securing into place
using 3x40mm screws per fascia.
Ensure the fascia at the back of the log
cabin sits level or lower than the felt to
allow water to run o.
*Once in place mark the excess fascia with a
pencil and trim the fascias to follow the
shape of building as shown in the
illustration.
21x40mm Screws
IMPORTANT: Pre-drill before xing screws.
26
Pre drill
hole
60mm
bolt
33
33
Step 27
Parts needed - No. 33 QTY 4
Arrange the storm braces (No.33)
around the building (internally),
Placing 2xStorm braces per side, xing
into place using 2x 60mm bolts per
brace ,making sure the washer & nut
are tightened from the outside of the
building.
*Ensure the storm braces are secured
at the highest point possible on each
side.
The storm braces will need to be
altered during the buildings life as the
moisture content within the log boards
changes. The boards will expand
during periods of high moisture
(Winter) and shrink during periods of
low moisture (Summer.)
**Storm braces will help your building
expand and contract properly.
***Important: Ensure each bolt is
tightened using a washer so as not to
damage the log boards.
8x60mm Bolt Sets

Please retain product label and instructions for future reference
Step 28
Parts Needed: No. 6 QTY 1
Attach the Rain Guard (No. 6) to the
Window frame, xing in place onto
the framing above the window using
3x70mm screws per guard.
3x70mm Screws.
70mm
screw
Pre drill
hole
6
6
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
SILICONE
SEALANT
It is ESSENTIAL to seal around all window framing with
sillicone sealant (not included) to minimise water ingress.
