Mercia Garden Products 0634RANE0504HGDD2SW-V1 Instruction manual

P 1
0634RANE0504HGDD2SW-V1
34MM LOG CABIN, REVERSE APEX, NO EXTRAS, 5X4M, HALF GLAZED DOUBLE DOORS, TWO SHORT WINDOWS.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
It is advisable to use a hand
saw when cutting roof and
oor boards.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts
To identify the xings
required for each step use a
measuring tape.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.

P 2
Please retain product label and instructions for future reference
0634RANE0504HGDD2SW-V1
Overall Dimensions:
Width = 5040mm
Depth = 4140mm
Height = 2724mm
Base Dimensions:
Width = 4808mm
Depth = 3808mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN

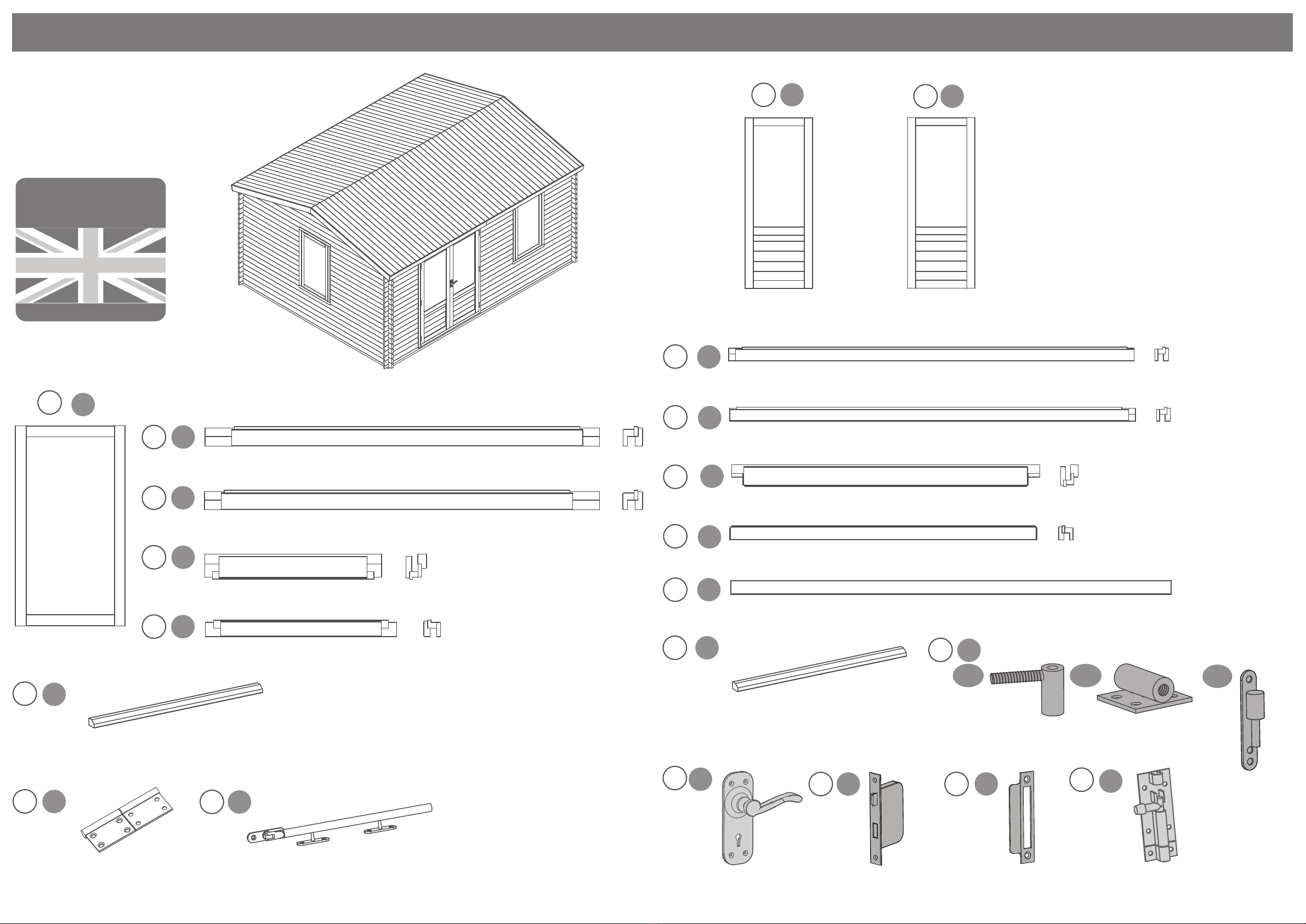

Window Contents:
Rain Guard QTY 2
RG2844-710 (28x44x710mm)
2
1
3
4
Window QTY 2
AI-06LOGDGW684X1244-V3
5
Window Frame Left Upright - 71x70x1412mm QTY 2
AI-0634OGWUFL-V3
Window Frame Right Upright - 71x70x1412mm QTY 2
AI-0634LOGWUFR-V3
Window Frame Top - 84x125x805mm QTY 2
AI-0634LOGWTF-V3
Window Frame Bottom - 71x70x805mm QTY 2
AI-0634LOGWBF-V3
8
Casement Stay QTY 2
PI-07-0187
Flag Hinge QTY 4
PI-07-0211
Double Door Contents:
10
9
11
12
Mortice Lock
QTY 1
PI-07-0017
Key Plate
QTY 1
PI-07-0017
Handles (Pair)
QTY 1
PI-07-0188
Adjustable Hinge QTY 6 PI-07-0209
Tower Bolt
QTY 2
PI-07-0114
Master Door QTY 1
(Morticed for lock)
AI-06LOGDGMD750X1900-V3
13
14
15
17
17a 17c
18 19 20 21
Secondary Door QTY 1
AI-06LOGDGSD750X1900-V3
Door Frame Left Upright - 71x70x2065mm QTY 1
AI-0634LOGDUFL-V3
Door Frame Right Upright - 71x70x2065mm QTY 1
AI-0634LOGDUFR-V3
Door Frame Top - 84x125x1632mm QTY 1
AI-0634LOGDDTF-V3
Door Frame Bottom - 71x70x1508mm QTY 1
AI-0634LOGDDBF-V3
Door Strip - 16x60x1880mm QTY 1
S1660-1880mm
16
Rain Guard QTY 1
RG2844-1520 (28x44x1520mm)
17b
6
7

P 3
Please retain product label and instructions for future reference
29
30
33
34
35
36
37
38
39
40
31
32
Gable - 4000mm QTY 2
AI-0634RANE0504HGDD2SW-G-V1
Starter Board - 34x66x5000mm QTY 2
LB34RT66-A-5000
Log Board - 34x120x4000mm QTY 25
LB34-A-4000
Log Board - 34x120x893mm QTY 30
LB34-B-893
Log Board - 34x120x2535mm QTY 6
LB34-B-2535
Log Board - 34x120x893mm QTY 12
LB34-C-893
Log Board - 34x120x1625mm QTY 24
LB34-B-1625
Log Board - 34x120x5000mm QTY 19
LB34-A-5000
Finisher Board - 34x45x5000mm QTY 2
LB34RG45-A-5000
Roof Board - 16x121x2114mm QTY 92
MB16-2114
Floor Board - 16x121x3739mm QTY 44
MB16-3739
Bearer - 44x58x3808mm QTY 4
F4458-3808-PT
Bearer - 44x58x2288mm QTY 28
F4458-2288-PT
Purlin - 45x120x5004mm QTY 3
F45120-A-5004
Eaves Frame - 27x44x2502mm QTY 4
F2744-2502
Fascia - 16x120x2118mm QTY 4
S16120-G-2118 (Angled)
Fascia - 16x120x2520mm QTY 4
S16120-2520
Storm Brace - 27x44x2000mm QTY 8
F2744-2000
41
42
Log Board - 34x120x5000mm QTY 1
LB34-AD-5000
Log Board - 34x120x4000mm QTY 1
LB34-AD-4000
Closure Trim - 16x28x2400mm (approx length) QTY 16
S1628-2400
Felt
43
Roof Spacers QTY 5
PI-07-0208 (20x100x2mm)
44
23
24
25
26
27
28
22
Felt Tacks x 350
70mm Screw x 38
40mm Screw x 876
30mm Screw x 194
Nail Bag
There may be extra screws present in the nail bag
80mm Screw x 24
90mm Screw x 125
80mm Bolt Set x 16

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Please retain product label and instructions for future reference
Pre-assembly
*Please note:
Each board interlocks at either end in a staggered pattern.
Before securing ensure that the boards are tted properly in
their respective tongues and grooves.

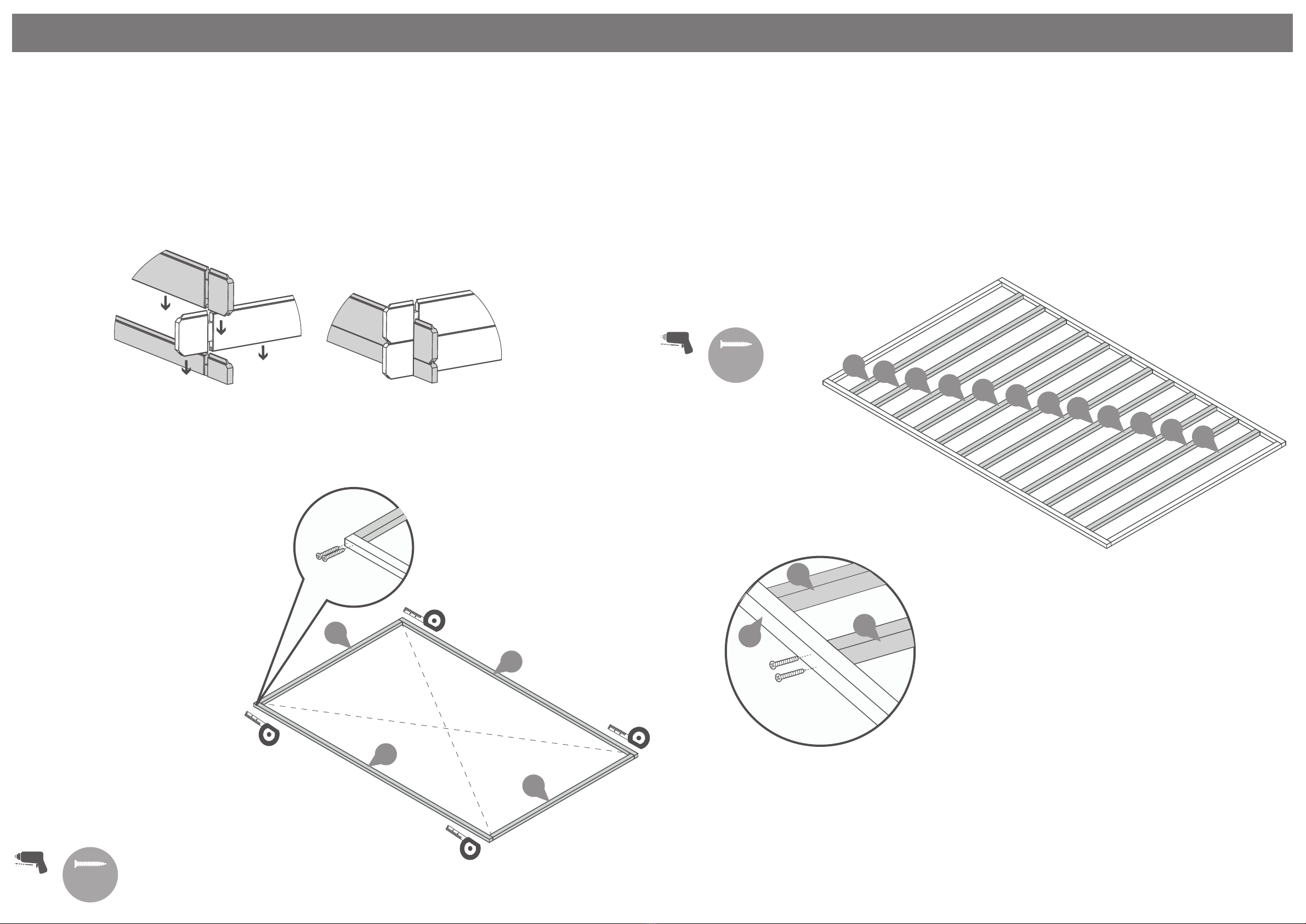

Step 1
Parts Needed - No. 35 QTY 2
No. 36 QTY 2
Lay the bearers (No’s. 35 & 36) onto a
rm and level surface (free from
areas where standing water can
collect) as shown in the illustration.
Fix the bearers together at each
corner screwing 2 screws per corner
using 8x90mm screws, ensuring the
bearer is ush.
Once fully assembled, ensure the
bearers are square by measuring
from corner to corner as illustrated,
making sure the measurements are
equal.
If the bearers are not aligned equally,
unscrew, adjust and re-align
accordingly.
8x90mm Screws
Pre drill
hole
90mm
screw
35
35
IMPORTANT: Pre-drill before xing screws.
*Ensure the 58mm side of the
bearer is laying on the base, so
that you can screw the bearers
together on the 44mm side.
Example picture
2 screws per bearer per end
36
36
Pre drill
hole
90mm
screw
Step 2
Parts Needed - No. 36 QTY 12
Following the same method arrange 12
bearers (No. 36) inside the assembled
frame.
*Ensure there is an equal amount of
space between each frame.
Secure each of the frames in place using
2x90mm screws for each side of the
bearer, ensuring the bearers remain
level.
48x90mm Screws
IMPORTANT: Pre-drill before xing screws.
Example picture
2 screws per bearer per end
36
35
36
36
36
36
36 36 36 36 36 36 36
36
36

P 5
Please retain product label and instructions for future reference
Pre drill
hole
90mm
screw

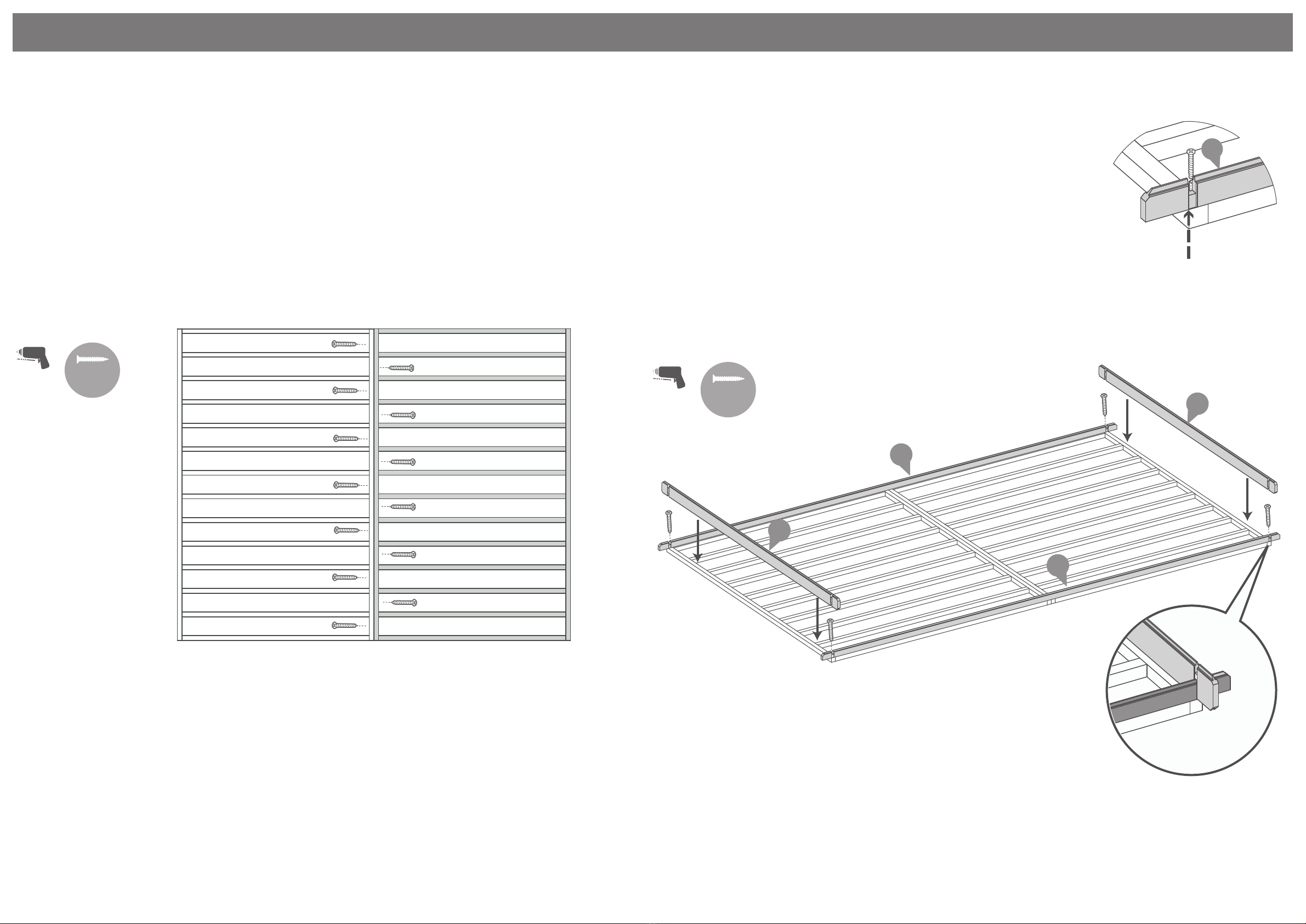

Step 3
Parts needed - No. 35 QTY 2
No. 36 QTY 14
Following the same methods
outlined in Step 1 and Step 2,
build another base section.
*Ensure there is an equal amount
of space between each frame.
Secure the base sections together
using 13x90mm screws, ensuring
to x in an alternating pattern so as
not to collide screws.
69x90mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 4
Parts Needed - No. 23 QTY 2
No. 24 QTY 2
Place the starter boards (No’s. 23) on to assembled base frame along the longest
sides and place the rst two log boards (No.24) in the notch as shown.
Ensure the boards sit square on the base using the same method used in Step 1.
Measure corner to corner, making sure the measurements are
equal.
Once the boards are square, lift up the log board (No.24) and x the starter
boards in place.
Fix each of the starter boards to the frame by screwing through the notch into the
frame as shown in the illustration.
4x70mm Screws
23
24
23
23
24

P 6
25
24
26
29
IMPORTANT: Pre-drill before xing screws.
24
Rubber Mallet
may be required
to t parts.

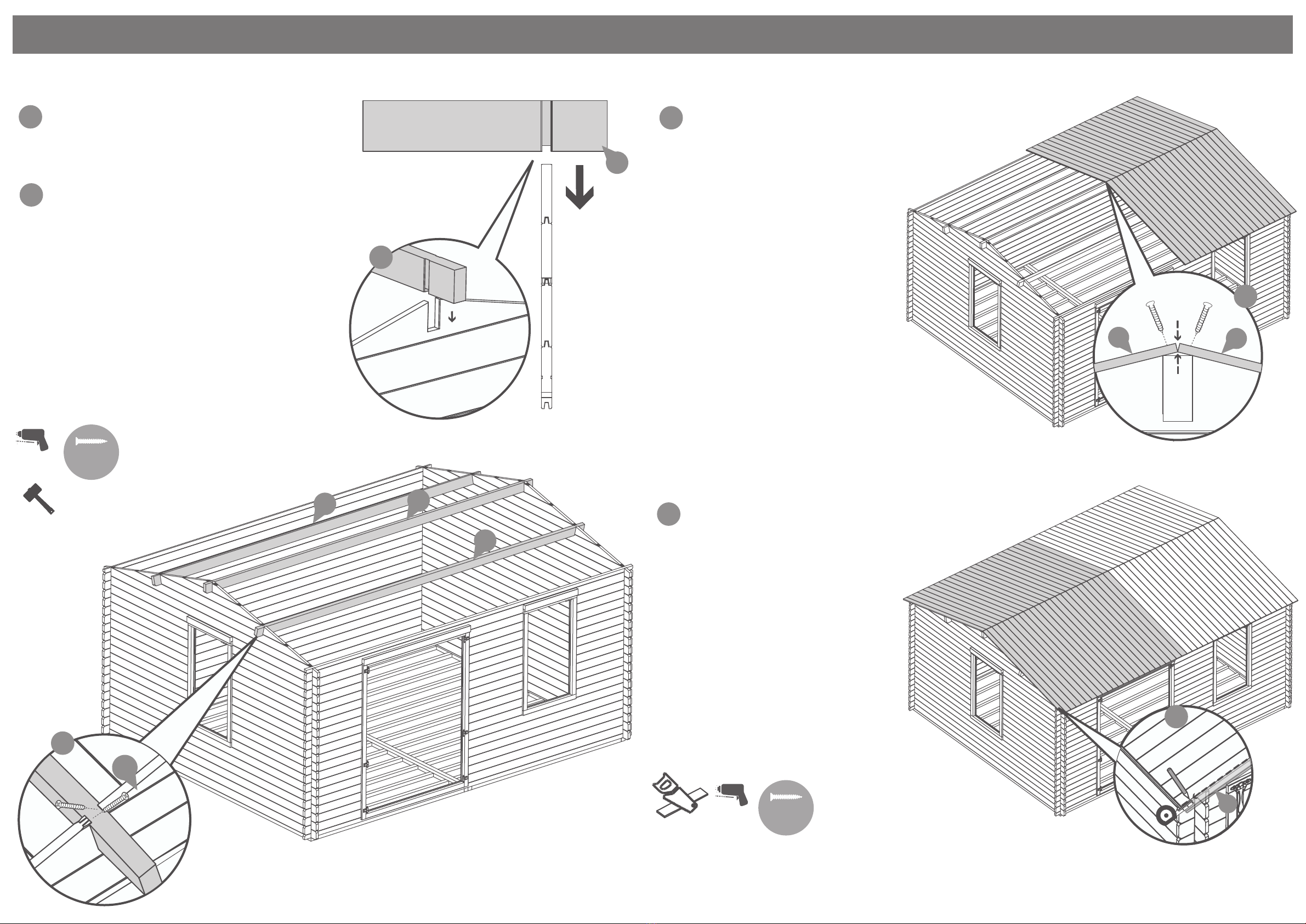

Step 5
Parts needed - No. 24 QTY 10
No. 25 QTY 6
No. 26 QTY 6
No. 29 QTY 6
Following the method shown in the
illustration, lay the rst 6 boards
(No’s. 24, 25, 26 & 29)
Start by placing the front and back
boards, interlocking them with the
side boards. Then place the next side
boards, interlocking with the front
and back boards. Continue this
method until you have placed 6
boards o of the starter boards on
each side, as shown in the
illustration.
This will create your rst level.
*Ensure that the boards are level
and ush with each other as you lay
each one.
Step 6
Parts Needed - No. 11 QTY 1
No. 12 QTY 1
No. 13 QTY 1
No. 14 QTY 1
Arrange the left, right, top & bottom door
frames (No’s. 11, 12, 13 & 14) onto a level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
Pre drill
hole
80mm
screw
13
14
11
12
IMPORTANT : Pre-drill before xing screws.
The internal lip of the door
frame should be positioned on
the inside of the building.
14 12
Please retain product label and instructions for future reference

P 7
Please retain product label and instructions for future reference
17a
9
10
17
17b
a
b
IMPORTANT : Pre-drill before xing screws.
Secondary Door Master Door
17

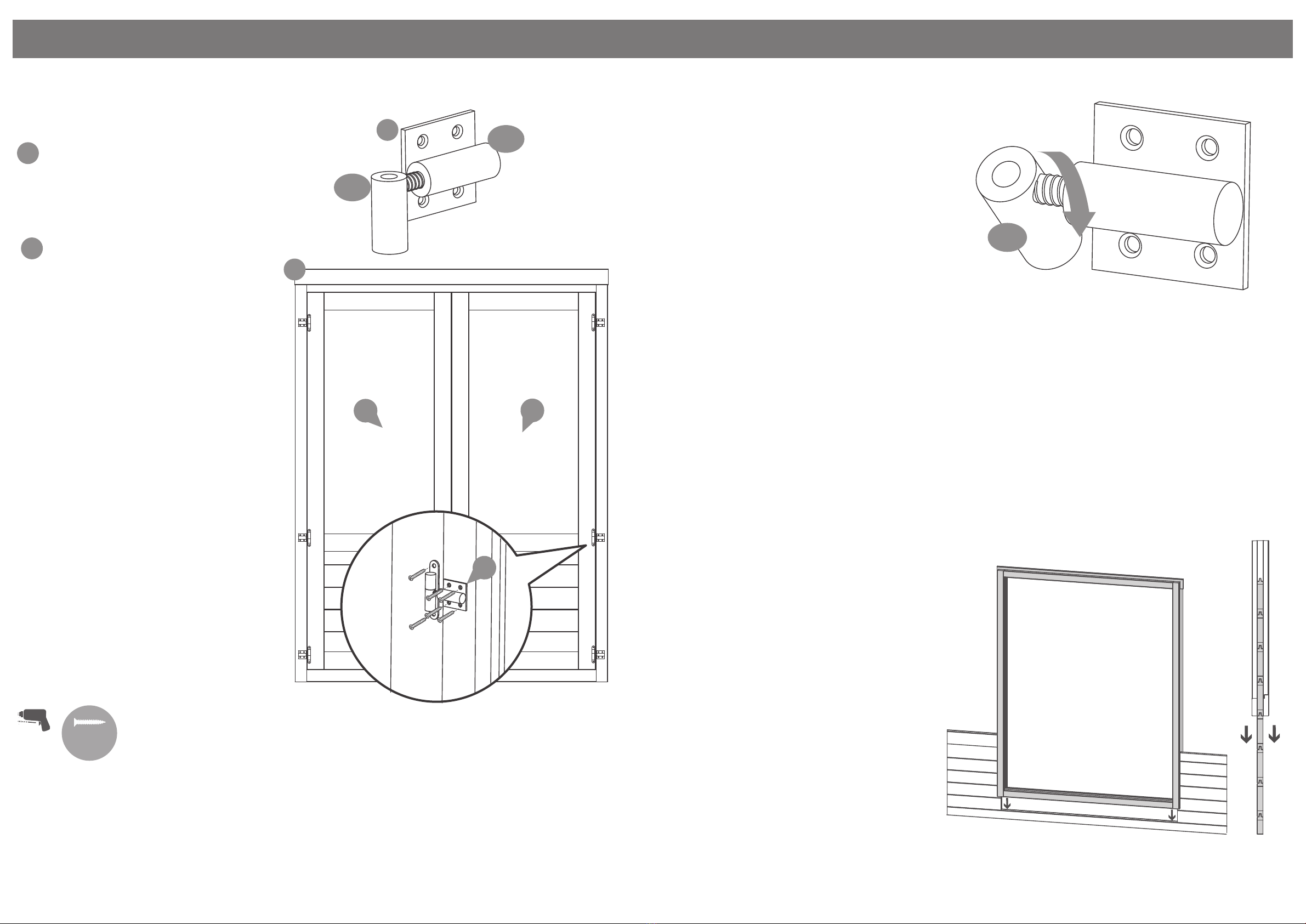

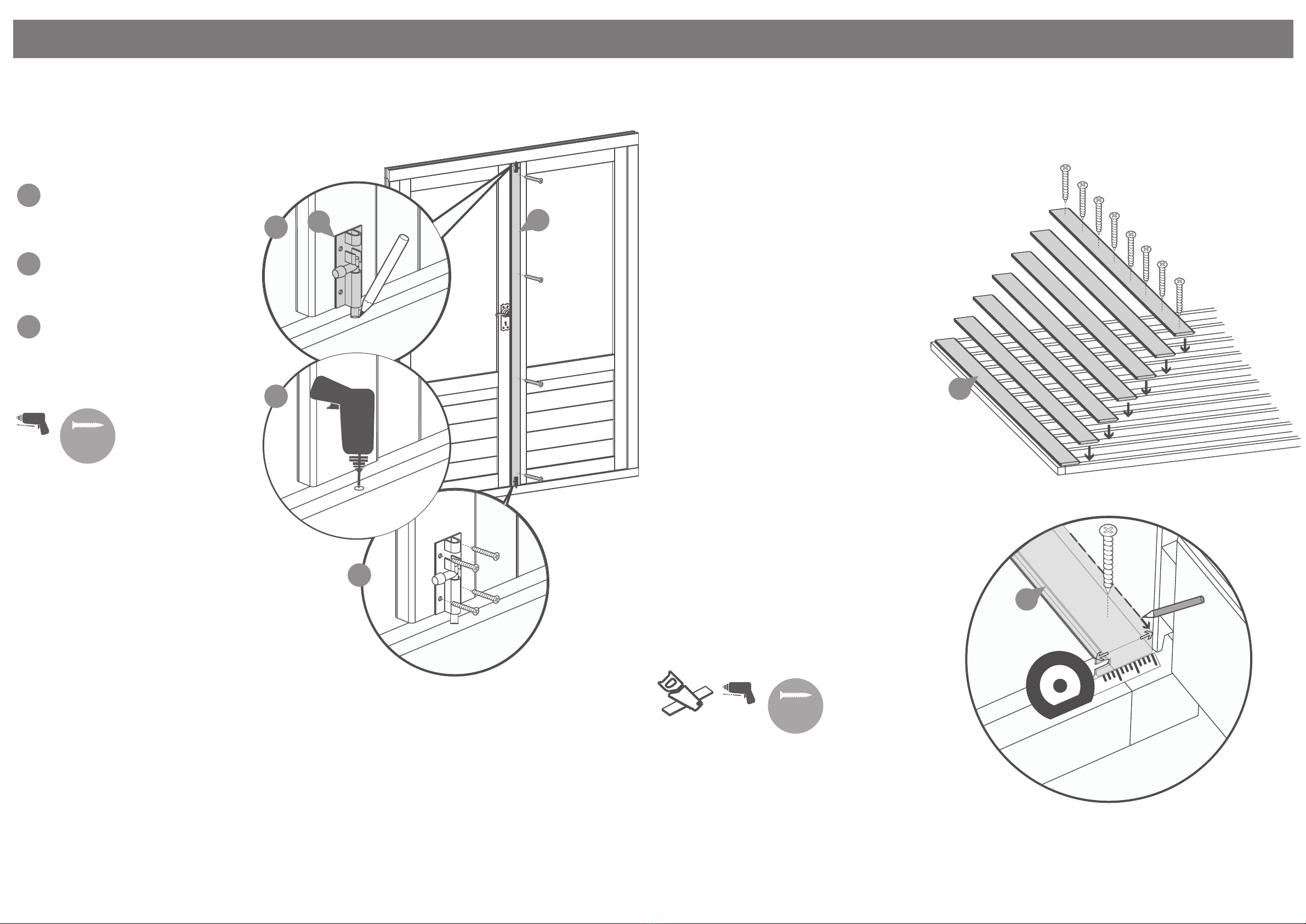

Step 7
Parts Needed - No. 9 QTY 1
No. 10 QTY 1
No. 17 QTY 6
The Adjustable Door Hinge (No.17)
comes in three parts.
Fasten No. 17a into 17b as shown in the
illustration.
Place the master and secondary
doors (No’s 9 & 10) onto a at surface and x
the Adjustable door hinge (No.17c) to the
doors using 3x30mm screws per hinge.
Fix 3 x Adjustable Door Hinges (No. 17a &
b) into position onto the door frame using
4x30mm screws per hinge.
*Ensure the hinges are tted to the exter-
nal of the door frame so the doors open
outwards from the log cabin.
Locate the doors into the hinges ensuring
there is equal spacing on each side between
the doors and door frame, and that the
doors open & close freely without restric-
tion.
It is important to t the doors within the
frames at this stage so that you can establish
the position of the hinges. The hinges come
in three parts. Remove the doors from the
frame after tting.
**Ensure to screw into the framing and not
into the channel.
42x30mm Screws
Pre drill
hole
30mm
screw
a
b
Step 8
To adjust and align your doors:
1. Lift up the doors to separate the two parts of
the hinge.
2. Turn the rotating barrel (No.17a) in / out to
move the postion of the doors either in or away
from each other.
3. You can then place the door(s) back on to the
hinge and check whether they require more /
less adjustments, if further adjustments are
required repeat number 2.
17a
Step 9
Once you have laid 6 log boards (on top of the
starter board) up the door section, slide the
assembled door frame (without main doors)
over the boards resting the frame on top of
the starter board. (If you have not yet assem-
bled your door frame, please refer to Step 6)
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding door position). Neverthe-
less the process of tting the door frame is the
same.
**Please Note: The short boards at the
front of the building (either side of the door and
window opening’s) can be placed either side
depending on your needs.

P 8
Please retain product label and instructions for future reference
Rubber Mallet
may be required
to t parts.
25
24
29
27
28
Step 10
Parts needed - No. 24 QTY 6
No. 25 QTY 12
No. 27 QTY 6
No. 28 QTY 12
No. 29 QTY 6
Following the method shown in the
illustration, lay the next 6 boards
(No’s. 24, 25, 27, 28 & 29) onto the
log cabin to create your second
level.
*Ensure that the boards are level
and ush with each other as you lay
each one.
*Please Note: The short boards
placed to create the opening’s for the
doors & windows can be placed either
side depending on your needs.
28
25
2
4
IMPORTANT : Pre-drill before xing screws.

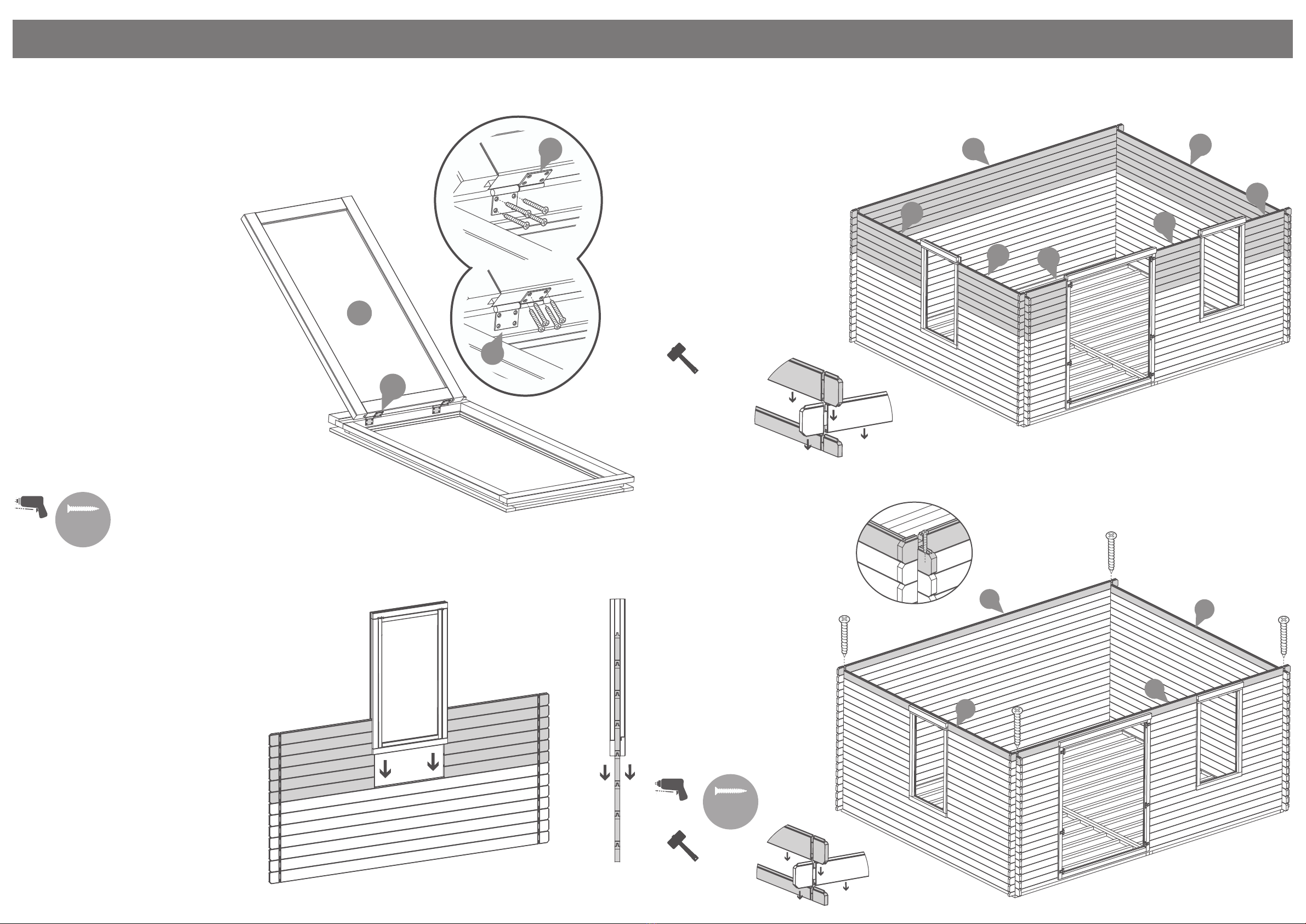

Step 11
Parts Needed - No. 2 QTY 2
No. 3 QTY 2
No. 4 QTY 2
No. 5 QTY 2
Arrange the left, right, top & bottom window
frames (No’s. 2, 3, 4,& 5) onto a rm and level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the window framing.
Use this method to assemble 2 window frames.
16x80mm Screws
Pre drill
hole
80mm
screw
5
3
53
The internal lip of the window
frame should be positioned on
the inside of the building.

P 9
Please retain product label and instructions for future reference
Pre drill
hole
30mm
screw
IMPORTANT : Pre-drill before xing screws.
1
7
7
7
Step 12
Parts Needed - No. 1 QTY 2
No. 7 QTY 4
Position the window (No. 1) so that it
sits centrally within the window frame.
Fix the female part of the ag hinge
(No. 7) to the window using 4x30mm
screws, attach the male part of the ag
hinge (No. 7) to the window frame
using 4x30mm screws ensuring that
the window can open and close freely.
*Ensure to attach the hinge to the
horizontal frame of the window*
Repeat this method for both windows
**It is important to t the windows
within the frame at this stage so
that you can establish the position
of the hinges. The hinges come in
two parts. Remove the window from
the frame after tting.
32x30mm Screws
Step 13
Once you have laid the second level of
boards onto the log cabin slide the
windowsbetween the smaller boards and
rest on to the longer board. (If you have
not yet assembled your window frames,
please refer to Steps 11)
*Ensure the boards are level with each
end.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding window position).
Nevertheless the process of tting the
window is the same.
Step 14
Parts needed - No. 24 QTY 6
No. 25 QTY 12
No. 27 QTY 6
No. 28 QTY 12
No. 29 QTY 6
Following the method shown in
the illustration, lay the next layer
of boards (No’s. 24, 25, 27, 28 &
29) onto the log cabin to bring
the board level to the top of the
window and door frames.
*Ensure that the boards are level
and ush with each other as you
lay each one.
IMPORTANT: Pre-drill before xing screws.
25
24
29
27
28
28
25
Rubber Mallet
may be required
to t parts.
32
29 24
31
Step 15
Parts needed - No. 24 QTY 1
No. 29 QTY 1
No. 31 QTY 1
No. 32 QTY 1
Following the method shown in
the illustration, lay the next
boards (No’s. 24, 29, 31 & 32)
Fix into position by screwing
through the notches as shown
in the illustration.
*Ensure that the boards are
level and ush with each other
as you lay each one.
4x70mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
70mm
screw
Rubber Mallet
may be required
to t parts.

P 10
Please retain product label and instructions for future reference
22
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
22
Step 16
Parts needed - No. 22 QTY 2
Place the gables (No. 22) onto the
log cabin.
Fix into position by screwing
through the notches using
1x70mm screw per notch, as
shown in the illustration.
*Ensure that the boards are level
and ush with each other as you
lay each one.
4x70mm Screws
Rubber Mallet
may be required
to t parts.
30
30
Step 17
Parts needed - No. 30 QTY 2
Place the Finisher boards (No. 30)
onto the log cabin.
Secure into position at either end
by screwing through the notch
into the board below using
1x70mm screw per notch.
*Ensure that the boards are level
and ush with each other as you
lay each one.
4x70mm Screws
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.

P 11
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
Step 18
Parts needed - No. 37 QTY 3
Align the Roof Purlin(s) (No. 37)
into the cut out slots on each gable top
ensuring each roof purlin interlocks
the boards.
Secure the roof purlins at each
end by screwing through the purlins
into the boards (ensure to pre-drill to
avoid the boards splitting) using
4x70mm screws per roof purlin.
*Please note: The gable shown is for
illustrative purposes and may dier in
width from your choice in product.
Nevertheless, despite any dierences the
process of xing the roof purlins is the
same.
12x70mm Screws
70mm
screw
37
37 37
37
a
b
a
Rubber Mallet
may be required
to t parts.
37
b
33
Step 19
Parts needed - No. 33 QTY 92
Place the rst two roof board’s
(No.33) onto either side of the log cabin,
making sure the boards are ush to the end
of the roof purlin. Once in position x to each
purlin using 3x40mm screws.
*Ensure the roof boards meet at the top of
the apex and leave an overhang at the
bottom.
Continue adding the roof boards along the
roof, xing each one into position using
3x40mm screws, making sure that each
board is interlocked, ush at the bottom &
meet at the top of the apex.
Ensure the roof boards are not laid too close
together, use the spacers (No. 44) provided
to create a 2mm gap. Adjusting the spacing
between the boards allows the wood to swell
in damp weather.
You have been issued with 92 roof boards,
but in reality you may only need to use 90.
The last board on each side will
overhang past the end of the Purlins: Using a
straight edge and a pencil mark out a line as
a guide.
Cut along the pencil mark and remove the
excess. Place the cut down boards back onto
the roof and secure into place using 3x40mm
screws per board.
*Please Note: This image is for illustrative
purposes and may dier from your choice in
product. Nevertheless the process of cutting
and tting the last roof boards is the same.
276x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
23b 33
33
a
b
a
b

Please retain product label and instructions for future reference

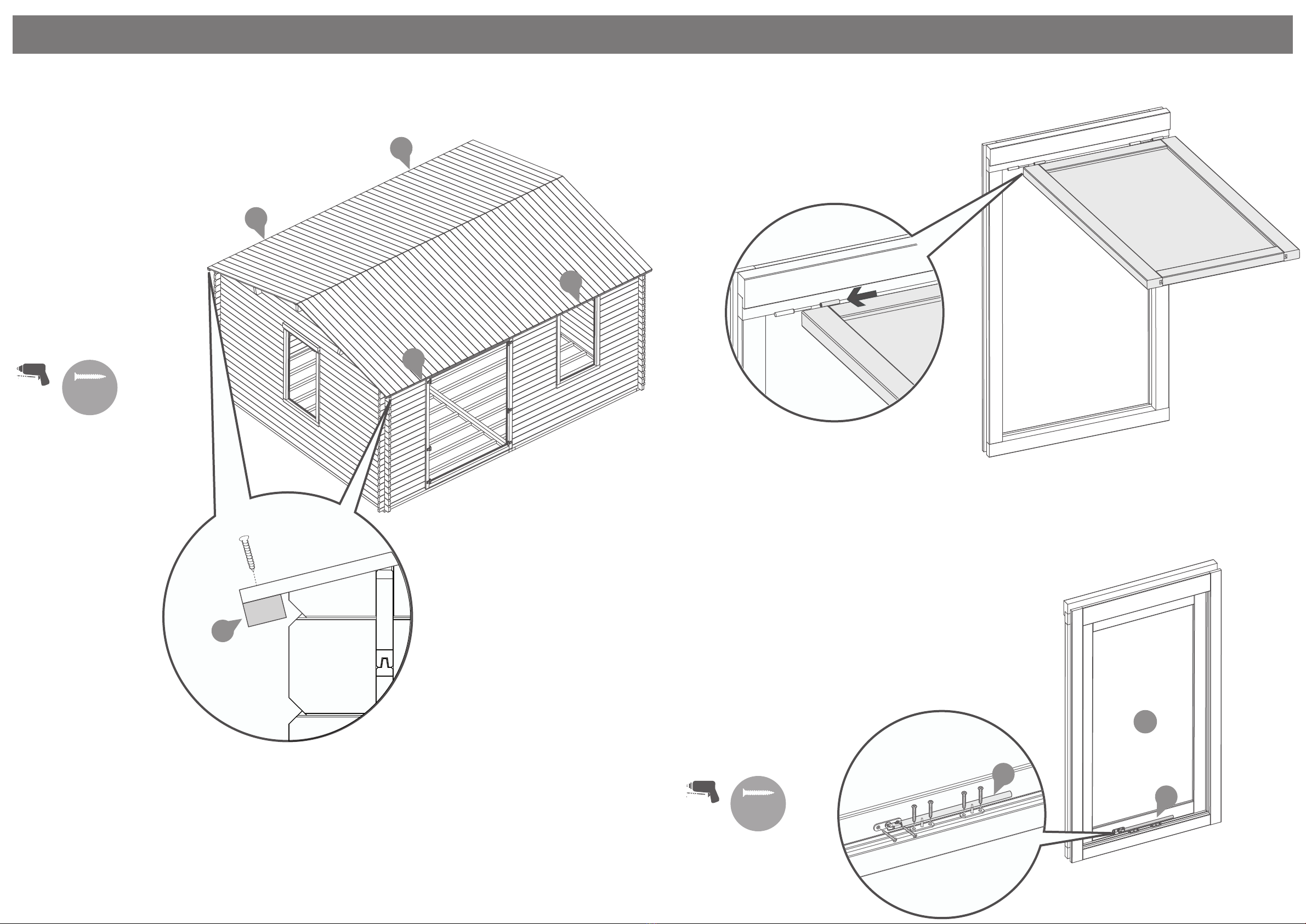

IMPORTANT: Pre-drill before xing screws.
28
38
38
Step 20
Parts needed - No. 38 QTY 4
Ensuring the roof boards are ush
at the overhanging side and meet
at the apex, x the Eaves Frames
(No. 38) to the underside of the
roof boards using 9x40mm
screws as shown in the
illustration.
*Please Note: This image is for
illustrative purposes and may dier
from your choice in product.
Nevertheless the process of xing
the eaves frames is the same.
36x40mm Screws
40mm
screw
Pre drill
hole
38
38
38
Step 21
Lift each window onto the already existing
hooks on the window frame, ensuring the
hook and bands connect.
*Some adjustment may be required to
align properly.
Pre drill
hole
IMPORTANT : Pre-drill before xing screws.
30mm
screw
8
1
8
Step 22
Parts Needed - No. 8 Qty 2
Fix the casement stay (No. 8) onto the
window (No. 1) and the casement stay
pins to the window framing using
6x30mm screws.
*Ensure the casement stay is centralised
on the window and the pins are in line
with the pin recievers before xing in
place.
Use this method to t one casement stay
to each window.
12x30mm Screws
P 12

Please retain product label and instructions for future reference
Step 23
Lift each door onto the already existing
hooks on the door frame, ensuring the hook
and bands connect.
*Some adjustment may be required to
align properly.
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
Step 24
Parts Needed - No. 18 QTY 1
No. 19 QTY 1
No. 20 QTY 1
Fit the Mortice lock (No. 19) into the
recess in the master door (No. 9) and secure
using the screws provided. Attach the Key
plate (No. 20) to the secondary door (No. 10)
with 4x30mm screws.
Fit the door handles (No. 18) and
connect with the metalbar to the mortice
lock using 8x30mm screws. Ensure the lock
mechanism closes correctly. If not, remove
the lock and turn the catch around by pull-
ing the spring loaded latch and turning it
180 degrees.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding ironmongery). Neverthe-
less the process of xing is the same.
Once components have been tted, try closing
doors to ensure the doors can be closed and
the lock works.
If your doors do need adjusting please look at
Step 8.
12x30mm Screws
a
b
30mm
screw
The Mortice Lock is Reversible
a
b
20 19
10 9
18
P 13

Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
Step 25
Parts Needed - No. 15 QTY 1
No. 21 QTY 2
Attach the Door Strip (No. 15) to the
back of the secondary door using
4x40mm screws as shown.
Once xed, place the Tower Bolts
(No. 21) roughly into position and with a
pencil mark the around the bolt.
After marking the bolt onto the
frame, drill a hole for the barrel bolt to
locate into.
Following the hole being drilled,
place the tower bolts into position and
secure using the screws provided.
12x40mm Screws
c
Pre drill
hole
40mm
screw
21
IMPORTANT : Pre-drill before xing screws.
15
b
a
c
b
a
34
Front
Side
34
Step 26
Parts neeeded - No. 34 QTY 44
Place the rst oor board (No. 34) inside the
building ush to the log board on one side.
Continue adding the oor boards (internally)
making sure to interlock each individual
board.
*Do NOT secure the boards until the last
board has been measured and cut.
Following the same method as before
measure the gap between the bottom of the
tongue (on the last board placed) and the
log board.
Using a straight edge mark out the
measurement onto the last oor board
(No.34) and cut along the length removing
the excess.
**Please note: Mark the nal board 2mm
under the measurement; This will allow the
timber to expand and contract correctly.
You have been issued with 44 roof boards, but
in reality you may only need to use 43.
Once all the oor boards are in position
secure each board into position using
12x40mm screws.
***Please Note: Ensure to screw through each
of the oor boards into the oor bearers.
528x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
P 14

Please retain product label and instructions for future reference
Roof
Closure Trim
Internal
23
*Measure and cut the
closure trims to
t the internal space.
Roof
Closure Trim
Internal
42
*Measure and cut the
closure trims to
t the internal space.
Pre drill
hole
30mm
screw
*trim to t
Step 27
Parts needed - No. 42 QTY 8
Inside the building place the closure
trim (No. 42) against the boarding and
align with the roof as shown in the
illustration.
*Measure and cut the closure trims to
t the internal space.
Once in position x each trim
into place by pre drilling a pilot hole
and using 6x30mm screws per trim,
equally spacing them along the face
of the board.
48x30mm Screws
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
23
23
42
42
30mm
screw
Pre drill
hole
*Cut to t
Step 28
Parts needed - No. 42 QTY 8
Once the oor has been laid arrange the
closure trim (No. 42) around the outside
edge of oor (internally), measure and cut
down accordingly to best match the inter-
nal space.
Secure each trim section into place using
6x30mm spaced equally along the board
as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
48x30mm Screws
Felt
tacks
Step 29
Parts needed - No. 43
Cut the felt into ve strips following
the dimension stated below and lay
onto the roof in the order shown in
the illustration.
*Ensure there is approximately
50mm of overhanging felt each
side.
Once the felt is laid out x to the
roof using felt tacks at 100mm
intervals.
Felt measurements:
1-5 = 5104mm (L) X 1000mm (W)
350x Felt Tacks
1
2
5
3
4
HANDLE
WITH CARE
12
3
4
1.
2.
3.
4.
5.
43
P 15

Please retain product label and instructions for future reference
P 16
Step 30
Parts Needed: No. 6 QTY 2
No. 16 QTY 1
Attach the Rain Guards (No.6) to the
window frame, xing in place onto the
framing above each window using
3x70mm screws per guard.
Attach the Rain Guard (No.16) to the
door frame, xing in place onto the
framing above the Door using 4x70mm
screws.
10x70mm Screws.
70mm
screw
Pre drill
hole
6
6
16
6
IMPORTANT: Pre-drill before xing screws.
40
40
40
40
39
39
39
39
Pre drill
hole
40mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 31
Parts needed - No. 39 QTY 4
No. 40 QTY 4
Align the fascias (No. 39 & 40) with the
roof and x into place using 3x40mm
screws per fascia, making sure to screw
through the fascia into the roof purlins
and eaves frame.
*Ensure the angled cuts meet at the top
of the apex.
24x40mm Screws

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
Please retain product label and instructions for future reference
P 17
Pre drill
hole
80mm
bolt
41
41
IMPORTANT: Pre-drill before xing screws.
Step 32
Parts needed - No. 41 QTY 8
Arrange the storm braces (No. 41) around
the building (internally). Place 2x storm
braces per side xing into place using 2x
80mm bolts per brace making sure the
washer & nut are tightened from the
outside of the building.
*Ensure the storm braces are secured at
the highest point possible on each side.
The storm braces will need to be altered
during the builings life as the moisture
content within the log boards changes.
The boards will expand during periods of
high moisture (winter) and shrink during
periods of low moisture (summer)
**Storm braces will help your building
expand and contract properly.
***Important: Ensure each bolt is
tightened using a washer so as not to
damage the log boards.
16x80mm Bolt Sets
