Mercia Garden Products 03DTSHCV1008HGD4MW-V2 User manual
DIP TREATED SHIPLAP CURVED 10FT X 8FT HALF GLAZED DOUBLE 4 MEDIUM WINDOWS
2mm Drill bit
x2
ANY QUESTIONS?
Scan the QR code to
contact us via our customer
portal.
PLEASE SCAN HERE:
8
Some steps within this set of instructions come with an added video guide for your
convenience. These can be accessed via the QR code and used to aid you in constructing that
step. See below for how to use.
You can also nd all the videos on our youtube channel:
https://www.youtube.com/@merciagardenproducts8716/videos
ACCESSING VIDEO GUIDES...
1.Find the QR code within the instruction step...
2. Open camera app...
3. Scan QR code...
4. Watch the video...
On your personal smart device (phone, tablet etc), open your camera app or QR code scanner
app.
To scan the QR code, hold the camera over the QR code so that it can be seen on the screen.
Once the QR code has been registered, follow the prompts on your device to open the video.
(This will vary depending on your device.)
Please note: Ensure to use the back camera of your smart device as this will scan the QR code more
accurately.
The video guide will now be displayed on your smart device.
Parts Needed- No. QTY 1
No. QTY 1
No. QTY 1
Step.....
Within the instruction step, there will be an icon in the top right that has a QR code in. This
is where the video can be accessed from.
Please note: not every step has a video guide.
Disclaimer: The garden building constructed in the video guides may be
constructed dierently to your building. Please ensure to read your instructions
carefully to avoid error.
ACCESSING VIDEO GUIDES...
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN

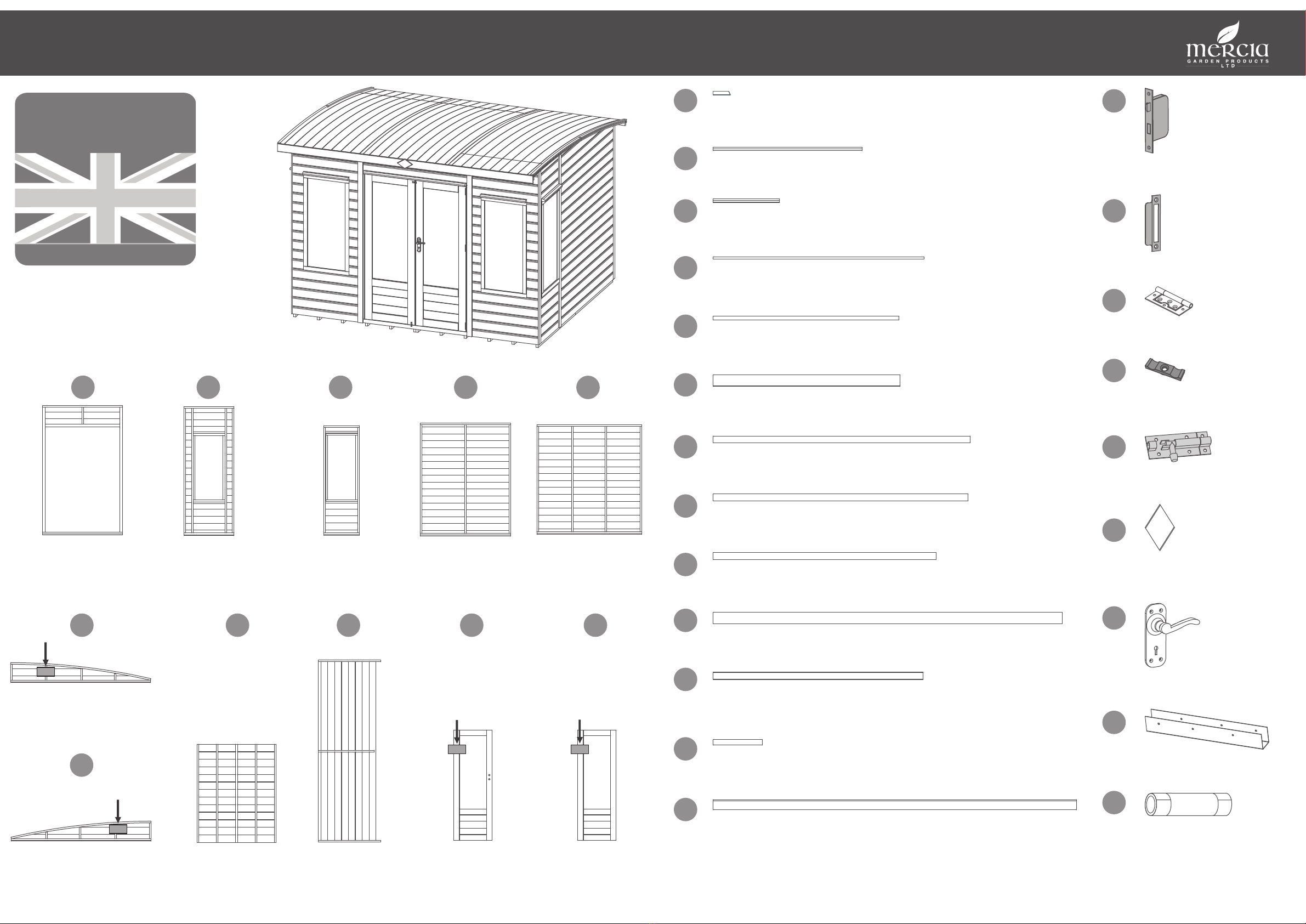

Overall Dimensions:
Width = 2962mm
Depth = 3036mm
Height = 2158mm
Base Dimensions:
Width = 2350mm
Depth = 2912mm
21 345
6 98
7
Door Panel
QTY 1
AI-03S22SHDD1298X2095-V1
Front Window Panel
QTY 2
AI-03S21SH1FSFWC812X2095-V1
Right Gable
QTY 1
AI-S21SHCGTR2272X323-V1
Green Label
Side Window Panel
QTY 2
AI-03S21SH1FSFWC572X1782-V1
Left Gable
QTY 1
AI-S21SHCGTL2272X323-V1
Blue Label
Back Panel
QTY 2
AI-S21SHPP1461X1832-V1
Side Panel
QTY 2
AI-S21SHPPTF1700X1782-V1
Roof
QTY 3
AI-S21MBCR1012X2950-V1
Master Door
QTY 1
AI-PRMHGMD600X1715-V1
Green Label
Secondary Door
QTY 1
AI-PRMHGSD600X1715-V1
Blue Label
Building Content:
Roof Block - 28x28x140mm QTY 6
FS2828-G-160mm (angled)
Door Rain Guard - 28x44x1210mm QTY 1
RG2844-1210mm
Window Rain Guard - 28x44x540mm QTY 4
RG2844-540mm
Roof End - 83x12x2950mm QTY 3
MB12RT83-2950mm
Door Beading - 17x12x1711mm QTY 2
S1217-1711mm
Roof Trim - 30x12x1510mm QTY 8
S1230-1510mm
Fascia - 95x12x1518mm QTY 2
SR1295-1518mm
Front Cover Trim - 56x12x2088mm QTY 4
S1256-2088mm
Side Cover Trim - 56x12x2070mm QTY 2
S1256-2070mm
Rear Cover Trim - 56x12x1810mm QTY 3
S1256-1810mm
Ridge Bar - 90x40x2834mm QTY 3
F4090-2834mm
Door Bar - 60x16x1705mm QTY 1
S1660-1705mm
Floor Block - 44x27x400mm QTY 8
F2744-400mm
Door Handle QTY 1
PI-07-0001
U Channel QTY 2
PI-07-0013
Mortice Lock QTY 1
PI-07-0017
Hinge QTY 6
PI-07-0023
Key Plate QTY 1
Turn Button QTY 2
PI-07-0034
Tower Bolt QTY 2
PI-07-0114
Finial QTY 1
Shed Diamond Finial
10 11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Felt
27
28
29
30
31
32
33
Floor
QTY 4
AI-S21MBF1456X1175-V2
Green Label
Blue Label
Blue Label
Green Label
50mm Screw x 113
40mm Screw x 46
Felt Tacks x 160
30mm Screw x 297
80mm Screw x 12
Nail Bag
There may be extra screws present in the nail bag
Pre Assembly
Before assembling remove the transportation blocks from the bottom of each
panel.
Take care removing the blocks as to not damage the panels. Tap with a at
headed screwdriver and hammer.
Dispose of the blocks once removed.
PLEASE SCAN HERE:
30mm
screw
Pre drill
hole
Join the hinges (No.27) to the door frames
(No.10 & 11) using 40mm screws. Ensure
hinges are attached using the outer plate
of the hinge.
Fit the doors to the Door Panel (No.1) with
40mm screws making sure to use the
inner plate of the hinge.
Fit the Mortice Lock (No.25) into the
recess and x in place with the screws
provided. Fit the Key Plate (No. 26) to the
opposite door using the screws provided.
Fix the Door Handles (No.31) and the
metal bar (spindle) using 8x30mm screws.
Ensure the mortice lock closes correctly. If
not, remove lock and turn the catch
around using the small grub screw.
8x30mm screws
36x40mm screws
The Mortice Lock is Reversible
26
25
1
a
b
c
b
a
c
27
Step 1
Parts Needed - No. 1 QTY 1
- No. 10 QTY 1
- No. 11 QTY 1
- No. 25 QTY 1
10
11
27
40mm
screw
IMPORTANT: Pre-drill before xing screws.
- No. 26 QTY 1
-No. 27 QTY 6
- No. 31 QTY 1
31
Step 2
Parts Needed - No. 15 QTY 2
- No. 22 QTY 1
- No. 29 QTY 2
30mm
screw
Pre drill
hole
Fix the Door Bar (No. 22) to the
inside of the Secondary Door
using 6x30mm screws as shown
in the illustration.
Fit the Door Beading (No. 15) to
the inside of the door frame
using 8x30mm screws, ensuring
that they sit ush with the frame
and the door.
Place the Tower Bolts (No.29)
roughly into position at the
top/bottom of the Door
beading. With a pencil mark
around the bolt.
After marking the bolt onto the
strips, drill a hole for the barrel
bolt to locate into.
Following the hole being drilled,
place the tower bolts into
position and secure using
4x10mm screws per bolt.
Ensure doors open and close
freely.
22x30mm screws
22
15
15
29
d
e
e
d
IMPORTANT: Pre-drill before xing screws.
15
29
22
Pre drill
holes
29
Pre drill
hole
30mm
screw
8
IMPORTANT: Pre-drill before xing screws.
23
8
Step 3
Parts Needed - No. 8 QTY 2
- No. 23 QTY 8
Secure the oor (No. 8) to the Floor Blocks
(No.23) using 8x30mm screws per oor.
Repeat this for one other oor panel.
16x30mm Screws
23
23
23
23
23
23
23
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 4
Parts Needed - No. 8 QTY 2
Secure the oor (No. 8) to the assembly from
Step 3, using 8x30mm screws per oor.
Repeat this to create two assembled oors.
16x30mm Screws
8
8
Place the assembled oor panels (No.8) on to a
rm and level base. Ensure the base has suitable
drainage, free from areas where standing water
can collect.
Secure the oors together using 8x50mm screws
through the oor bearers in an alternating pattern.
8x50mm Screws
Step 5 IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
Pre drill
hole
50mm
screw
Step 6
Parts Needed - No. 4 QTY 2
- No. 5 QTY 1
Fix the Back panels (No.4) side by side
using 4x50mm screws, x the corners of
the back panel (No.4) and the Side Panel
(No.5) using 3x50mm screws.
Do NOT secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
7x50mm Screws
54
4
IMPORTANT: Pre-drill before xing screws.
a
a
a
a
a
a
a
a
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
5
Step 7
Parts Needed - No. 5 QTY 1
Place Side Panel (No. 5) onto the oor
next to the back panel. Fix the two panels
together at the corners using 3x50mm
screws.
Do NOT secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
3x50mm Screws
a
a
a
a

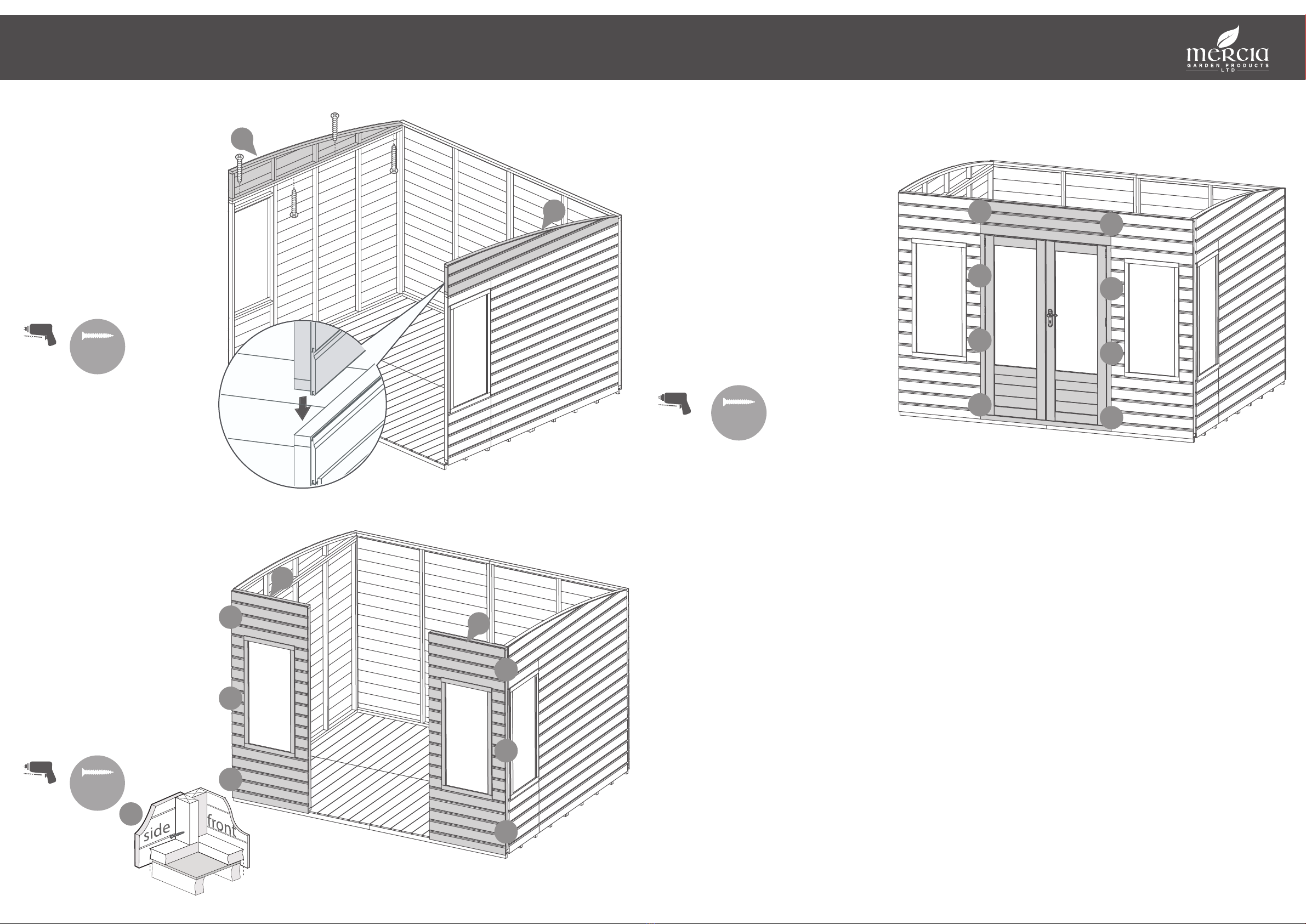

Step 8
Parts Needed - No.3 QTY 2
Fix the Side Window Panels (No.3) to the
already standing Side Panels (No.5) by
screwing through the framing using
8x50mm screws.
Ensure to stagger screws to avoid colliding.
Repeat this with the second Window and
Side panel but the opposite way round, as
shown in the diagram.
Do NOT secure the building to the oor until
the roof is tted.
Position the panels so there is equal spacing
between the oor and cladding on all sides.
8x50mm Screws
Pre drill
hole
50mm
screw
3
IMPORTANT: Pre-drill before xing screws.
a
a
a
a
3
Pre drill
hole
50mm
screw
Step 9
Parts Needed - No. 6 QTY 1
- No. 7 QTY 1
Place the Left Gable (No.6) and
Right Gable (No.7) on top of the
side panels, ensuring the boards
interlock.
Secure in place using 4x50mm
screws per gable top, screwing in
an alternating pattern.
8x50mm Screws
6
7
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
Step 10
Parts Needed - No.2 QTY 2
Fix the Front Window Panels (No.2)
together with the Side Window
Panels (No.3) corners with 50mm
screws as shown in the illustration.
Do NOT secure the building to the
oor until the roof is tted.
Position the panels so there is
equal spacing between the oor
and cladding on all sides.
6x50mm Screws
2
2
IMPORTANT: Pre-drill before xing screws.
a
a
a
a
a
a
a
Step 11
Parts Needed - No.1 QTY 1
Place the assembled door panel
(No.1)
onto the oor in-between the already
standing Front Window Panels
(No.2)
.
Fix the panels together at the corners
using 4x50mm screws per side.
Do NOT secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
8x50mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
a
a
a
a
a
a
a
a
50mm
screw
Pre drill
hole
80mm
screw
Place the rst Ridge Bar (No.21) inside
the building, centralise it with the
vertical gable framing. Align the back
edge of the ridge bar with the top of
the gable. Once in place mark the
position on both sides of the building
with a pencil.
Place the top edge of the roof support
block (No. 12) ush to the pencil mark
and secure in place using 2x50mm
screws per block.
*Repeat this process on both sides for
the remaining Ridge Bars.
Place the Ridge Bar(s) on top of the
attached blocks and secure through
the outside of both gables using
2x80mm screws per side.
12x50mm Screws
12x80mm Screws
a
b
Step 12
Parts Needed - No. 12 QTY 6
- No. 21 QTY 3
12
21
IMPORTANT: Pre-drill before xing screws.
a
21
b
*Hint: When tting the Ridge Bar, pencil mark the
centre of the Ridge Bar and follow down onto the
gable at a right angle, this will give you a guide to
x the support bars in place.
Step 13
Parts Needed - No. 9 QTY 3
- No. 24 QTY 3
Place the three roofs (No.9) together.
Please note that one of the Roof Panels
MUST go the opposite way to the other two
Roof Panels.
Then slot the three Roof End (No.24) pieces
on to the Roof Panels where shown in the
diagram.
Fix the Roof Ends (No.24) to the top and
bottom Framing within the Roof Panels
using 2x30mm per end.
12x30mm Screws
30mm
screw
Pre drill
hole
9
24
9
24
24
IMPORTANT: Pre-drill before xing screws.
Place the Roof Panels (No. 9) on top of
the building. Join together the centre
framing on the underside of the roofs
by using the two U Channels (No.32)
as shown in the diagram.
Please note that there will be a space
between the framing within one of
the U Channels.
Place the centre framing within the
Roof Panels (No. 9) in front of the
middle Ridge Bar and secure together
with 9x50mm screws as shown in the
diagram.
Ensure the screws line up with the
roof support bars.
16x30mm Screws
9x50mm Screws
9
Pre drill
hole
Step 14
Parts Needed - No.9 QTY 3
- No.32 QTY 2
30mm
screw
32
32
9
21
IMPORTANT: Pre-drill before xing screws.
a
b
b
a
a
9
9
50mm
screw
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.

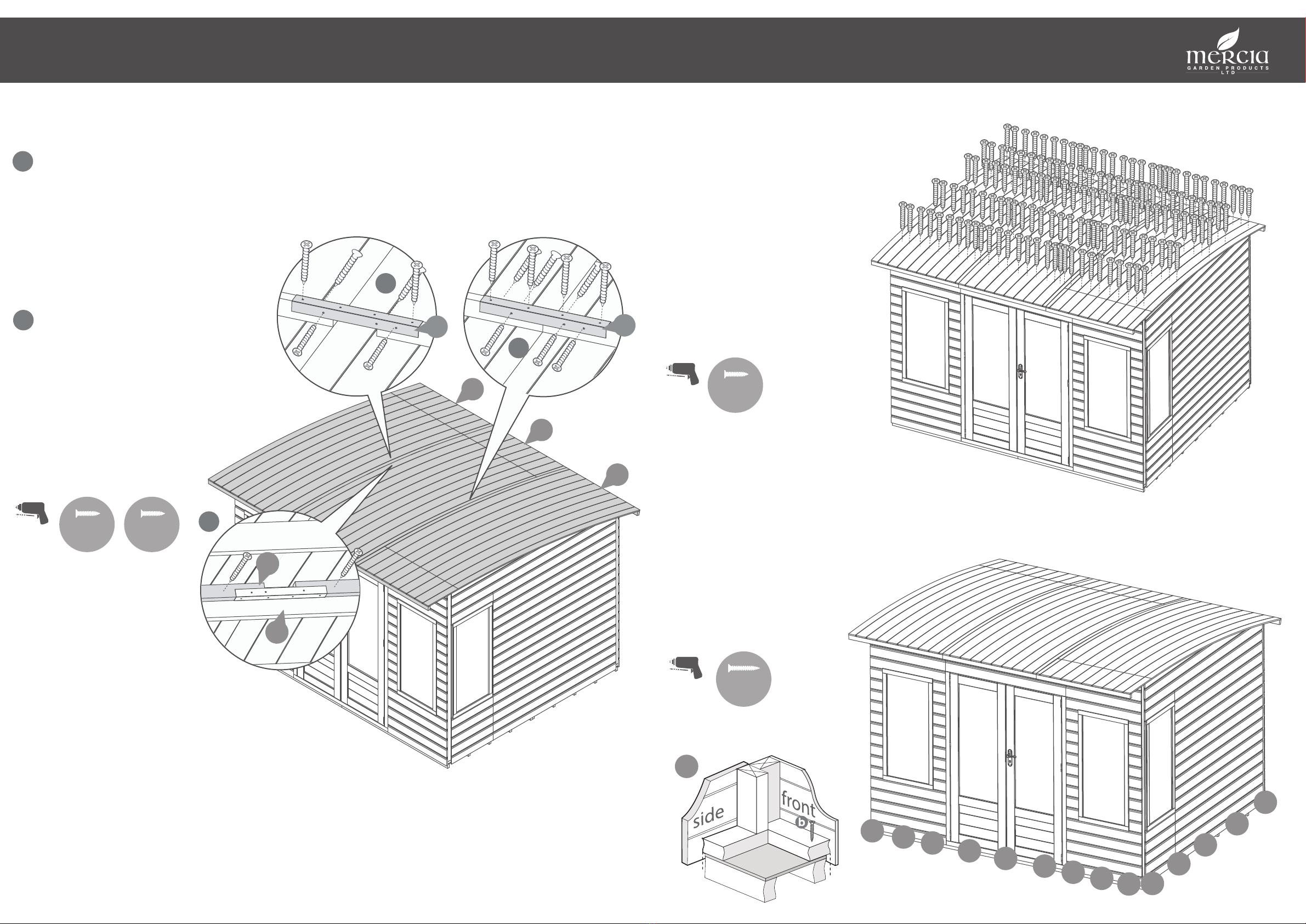

Step 15
Fix the Roof Panels to the Framing
within the Panels and the Ridge
Bars where they meet (internally)
using 5x30mm screws per board.
HINT - Follow the nailing line of the
framing on the roof panel so that
you are more likely to x into the
ridge bar below. Also use a straight
piece of timber as a guide to help
keep the screw positions in a
straight line.
150x30mm Screws
50mm
screw
Pre drill
hole
b
b
b
bb
b
bb
b
b
b
b
b
b
IMPORTANT: Pre-drill before xing screws.
b
Step 16
Once the roof is xed, attach the building to
the oor with 50mm screws.
Ensure the screws go through the panel into
the oor framing.
28x50mm Screws
Felt
tacks
1.
2.
4. 3.
Step 17
Parts Needed - No.33 QTY 1
Cut the felt (No.33) into 4 strips meas-
uring:
3140mm (L) X 1000mm (W) and lay
onto the roof in the order shown in the
illustration, leaving approximately
50mm of overhanging felt around the
building.
Secure the felt to the building with
160x felt tacks at 100mm intervals
160 x Felt Tacks
100mm
33
16
16
16
16
30mm
screw
Pre drill
hole
16
IMPORTANT: Pre-drill before xing screws.
16
*Cut down
trims to t
Step 18
Parts Needed - No.16 QTY 8
Sandwich the felt either side
between the roof and the roof trims
(No. 16), xing each strip to the roof
with 3x30mm screws. The roof trims
will need to be cut to t.
24x30mm Screws
16
16
16
40mm
screw
Pre drill
hole
17
30 17
IMPORTANT: Pre-drill before xing screws.
Step 19
Parts Needed - No. 17 QTY 2
- No. 30 QTY 1
Fix the fascia’s (No. 17) to the front of
the building using 4x40mm screws.
Attach the nial (No. 30) over the join
in the fascia’s with 2x40mm screws.
10x40mm Screws
HANDLE
WITH CARE
1 2
3
4
30mm
screw
Pre drill
hole
19
18
18 18
18
20
Step 20
Parts Needed - No. 18 QTY 4
- No. 19 QTY 2
- No. 20 QTY 3

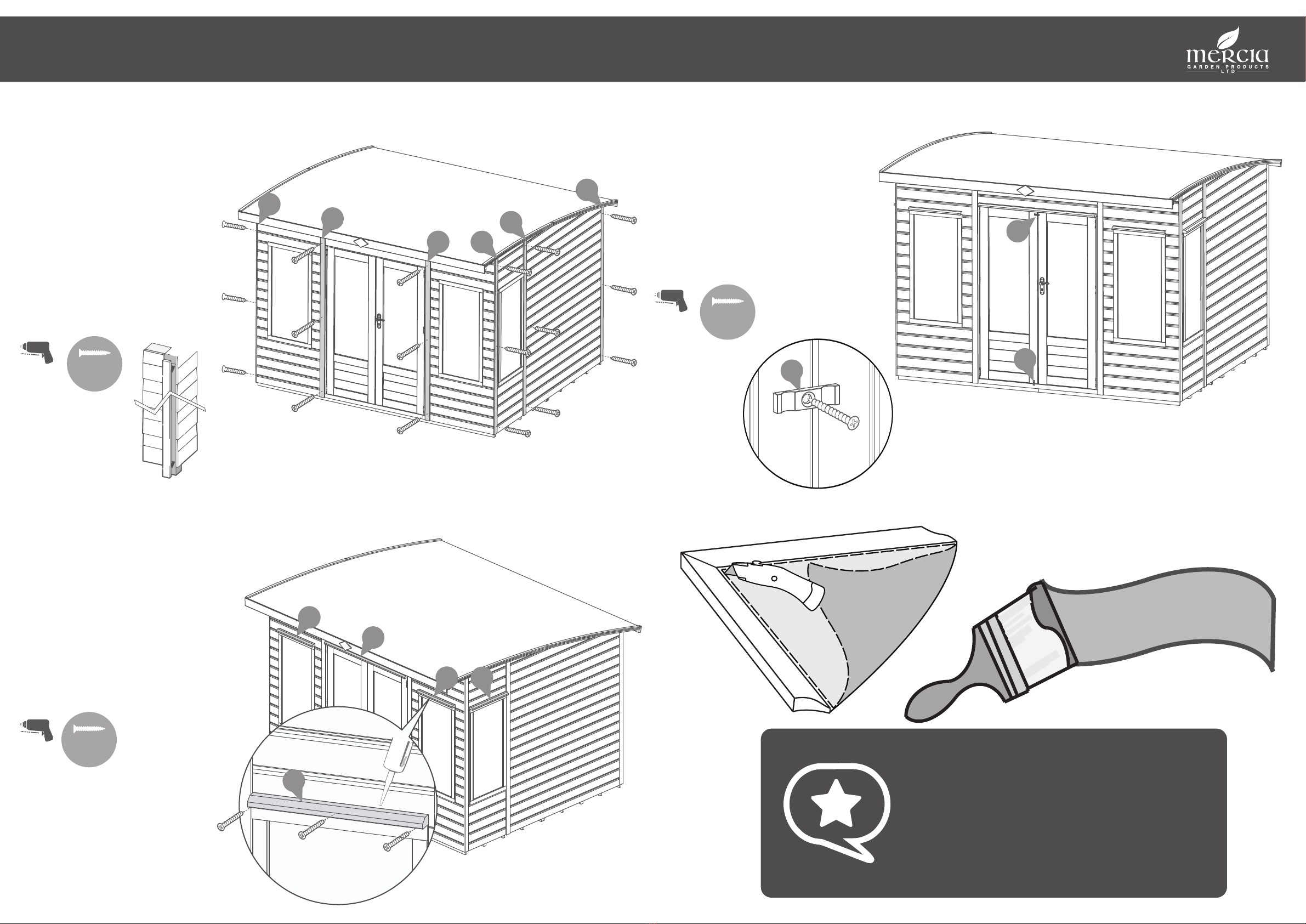

Attach the front (No.18), side
(No.19) and rear (No.20) cover
trims to the building, xing each
trim using 3x30mm screws.
Ensure a trim is tted to each
corner of the building and over
panel joins.
27x30mm Screws
IMPORTANT: Pre-drill before xing screws.
50mm
screw
Pre drill
hole
*Seal each rain guard with silicone
sealant before xing to the building.
14
14
SILICONE
SEALANT
IMPORTANT: Pre-drill before xing screws.
Step 21
Parts Needed - No. 13 QTY 1
- No. 14 QTY 4
Fix the Large Rain Guard (No. 13)
above the door using 4x50mm
screws.
Attach the Window Rain Guards
(No.14) above each window using
3x50mm screws per Rain Guard.
16x50mm Screws
14
13
14
Secondary Door
Locking Door
30mm
screw
Pre drill
hole
28
28
28
IMPORTANT: Pre-drill before xing screws.
Step 22
Parts Needed - No. 28 QTY 2
Fix the turn button’s (No. 28) to the
top and bottom of the Secondary
Door using 2x30mm screws.
*These turn buttons help keep your
doors straight during high and low
levels of moisture content in the air.
2x30mm Screws
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
Want to share your experience with us?
Leave us a review on Feefo, TrustPilot or Google.
Your reviews help other people nd and trust our
business, as well as helping to play an important role
in our growth and improvement!
¡
¡
¡
ANY QUESTIONS?
Scan the QR code to
contact us via our customer
portal.
PLEASE SCAN HERE:
¢
¢£
¡
£
1
2
3
4
5
6
7
8
9
¤
¥
¤
2
1
¦
3
4
¥
£
¦
¡
¥
12
£
¦
¡
This manual suits for next models
1
Table of contents
Other Mercia Garden Products Outdoor Storage manuals
Mercia Garden Products
Mercia Garden Products 01OBS0406-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619LOG005-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTOSBP0602DD-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 01GRA0301-V3 User manual
Mercia Garden Products
Mercia Garden Products 07PORHEL1010-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 05PTPALLOG0306-V1 User manual
Mercia Garden Products
Mercia Garden Products 01OSBA0604SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01TDM1006DDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DDPENT1006-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products Dorma Playhouse Instruction manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0806SDFW-V1-NW User manual
Mercia Garden Products
Mercia Garden Products 01DTSHRAX1008SDNW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTOSBA1006DDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03COR0707-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OSBP0602SD Instruction manual
Mercia Garden Products
Mercia Garden Products Staffordshire 10PTDRK0806-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTBIK0703-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0806DDFW-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 05DTOVAX0307DD-V1 User manual
Mercia Garden Products
Mercia Garden Products 01MS0808SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 05DTOVPN0306DD-V1 User manual
Mercia Garden Products
Mercia Garden Products 01OVLPRA1006SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products ESDXL21PT045 User manual
Mercia Garden Products
Mercia Garden Products SHIPLAP 01DTSHRAX1008SDFW-V1 Instruction manual
Popular Outdoor Storage manuals by other brands
Arrow
Arrow ED65 Owner's manual & assembly instructions
Lifetime
Lifetime 60387 Assembly instructions
Rowlinson Garden Products
Rowlinson Garden Products Security Shed Assembly instructions
Keter
Keter OutStanding STORE IT OUT Assembly instructions
TMG
TMG TMG-MS0408 product manual
G&T SALES

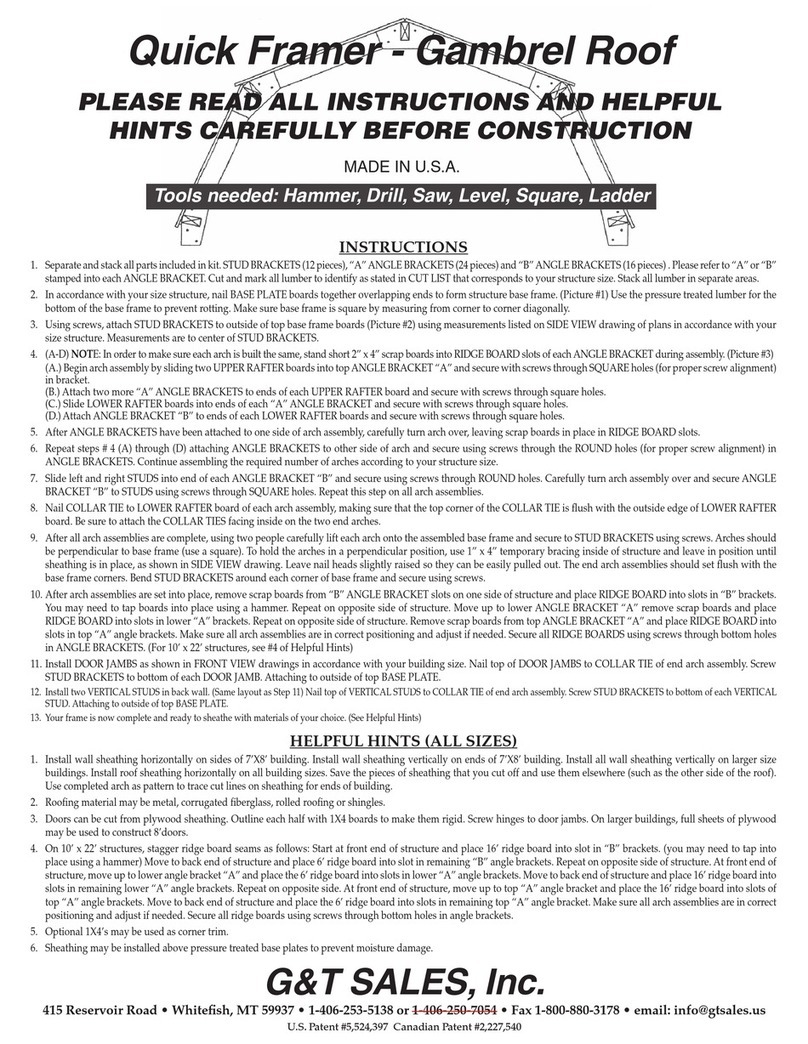

G&T SALES Quick Framer Gambrel Roof instructions
Gazebo penguin
Gazebo penguin W1608-12 Assembly instructions
Riverlea
Riverlea Duratuf KIWI SHEDS MK4C Assembly instructions
Dunster House
Dunster House P3-2010SH installation manual
TMG
TMG TMG-MSC20-RD12 product manual
Arrow Storage Products
Arrow Storage Products CG86 Owner's manual & assembly instructions
Duratuf
Duratuf PG96 Assembly instructions
Riverlea
Riverlea DURATUF Sentry SL2015 Assembly instructions
Riverlea
Riverlea Duratuf Guardian Sheds GL57 Assembly instructions
Arrow Storage Products
Arrow Storage Products EG1012AB Owner's manual & assembly guide
Guardi
Guardi GARDEN BOX M Construction manual
Palmako
Palmako ELO16-273 installation manual
Arrow Storage Products
Arrow Storage Products FKYS01 Owner's manual & assembly guide
