MERIT INDUSTRIES Megatouch Combo Jukebox User manual

merit industries, inc. PM0378-07
FOR TECHNICAL ASSISTANCE:
CONTACT YOUR LOCAL DISTRIBUTOR
For a list of distributors, visit the Merit Industries, Inc. Web site
www.meritind.com

Table of Contents
Terms and Conditions ..............................................................................p. 1
Important Notes for Linked FORCE Classic Games..............................p. 1
Site Preparation.........................................................................................p. 2
Sound Zones......................................................................................p. 2
Planning the Installation...................................................................p. 2
Checking the Phone Line.................................................................p. 2
Sharing a Phone Line .......................................................................p. 2-3
Description.................................................................................................p. 3
Power Switches.................................................................................p. 3
Rear Compartment............................................................................p. 3
CPU Section.......................................................................................p. 3
Single Board Computer (SBC).........................................................p. 3
Tune Central......................................................................................p. 3
Subwoofer/Amplifier.........................................................................p. 5
Speakers............................................................................................p. 5
Coin Mech/Bill Acceptor...................................................................p. 5
Remote Control.................................................................................p. 5
Internet Technologies.......................................................................p. 5, 7-8
Installation .................................................................................................p. 8
Installing the Hard Drive...................................................................p. 8
Connecting a Phone Line .................................................................p. 8
Installing Speakers...........................................................................p. 9-12
Linking to Other Games ...................................................................p. 12
Connecting a Microphone................................................................p. 13
Connecting an External Audio Source ...........................................p. 13
Connecting to Tune Central.............................................................p. 13
TouchTunes® Operator Setup.................................................................p. 14
First Time Installation/Phone Settings............................................p. 14-16
Sound Test.........................................................................................p. 16-17
Programming and Enabling the Remote........................................p. 17
Enabling Tune Central......................................................................p. 18
Saving Settings .................................................................................p. 17
General Care and Maintenance................................................................p. 18
Screen Calibration............................................................................p. 18
Degaussing Your Monitor ................................................................p. 19
Monitor Adjustment Procedure .......................................................p. 19-20
General Circuit Board Handling Information
................................
..
p. 20

Table of Contents
Cleaning the Cabinet ........................................................................p. 20
Cleaning the Touchscreen Monitor.................................................p. 20
Cleaning the Fans and Vents...........................................................p. 20
Changing the Marquee .....................................................................p. 20
Linking Games...........................................................................................p. 21
Megatouch FORCE™ Software Instructions..........................................p. 22
Game Name and Score Needed for Initial Replay..................................p. 22
Main Menu..................................................................................................p. 23-24
Credits/Pricing Menu................................................................................p. 25
Quick Price Setup.............................................................................p. 25
Coin-In Menu......................................................................................p. 26
Coinless Coin Op Menu....................................................................p. 27-28
Games Menu..............................................................................................p. 28
Game Setup.......................................................................................p. 28-29
Hi Scores Menu .........................................................................................p. 29
View/Clear Hi Scores ........................................................................p. 29
Books Menu...............................................................................................p. 30
Books Display....................................................................................p. 30
Cash Settlement................................................................................p. 31
System Menu .............................................................................................p. 32
Diagnostics Menu......................................................................................p. 33
Presentation Menu ....................................................................................p. 34
Operator’s Presentation ...................................................................p. 34
Sales Person’s Presentation............................................................p. 34
Operator Ad Screens........................................................................p. 35
Promotion Menu........................................................................................p. 35
My Merit..............................................................................................p. 35-36
Merit Money.......................................................................................p. 36
Promo Credits....................................................................................p. 36
DIP Switch Settings in FORCE Games....................................................p. 37
Troubleshooting Guide.............................................................................p. 38-43
Replacement Parts List ............................................................................p. 44
Warranty
.....................................................................................................p. 45
Software License Agreement...................................................................p. 46
English...............................................................................................p. 46-47
French................................................................................................p. 48-49
German...............................................................................................p. 50-51

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
NOTE: You should have already made arrangements to receive a hard drive for
the unit prior to delivery. The jukebox will not function without the hard drive.
PM0378-07 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL 1
Terms and Conditions
Beginning March 1st, 2005, the Merit Megatouch Combo Jukebox™ and all linked games
must be kept up to date, loaded, and operating the latest full software upgrade in order for
both music and games to be available. If the software is no longer kept current after this
date, the unit can be run either as a game-only or music-only device.
To switch the unit to work as a game-only or music-only device once it is no longer running
the current software, press the SETUP button in the game and touch the TouchTunes®
button on the Main Menu. You will then be prompted to choose either the “Game Only” or
“Music Only” option. If you choose the “Game Only” option, a message stating that this may
be in violation of the terms of the operator’s agreement with TouchTunes® will display.
Touch YES to continue with setting the unit to game-only or NO to return to the previous
screen. If you choose the “Music Only” option, the TouchTunes® Menu will again be fully
operational.
Terms and conditions are subject to change.
Important Notes for Linked FORCE Classic Games
FORCEClassic gameswill notdisplay theTouchTunes® OperatorSetup properly;therefore,
the Setup should be run on the Jukebox and not the Classic game. Also, FORCE Classic
games running FORCE 2004 software will not have the same TouchTunes® features as
the Jukebox.

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
2 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL PM0378-07
Site Preparation
In determining the location for your
Megatouch Combo Jukebox™, keep in mind
that it must be connected to a suitable,
grounded electrical outlet. Since the unit is
acomputerizeddevice,itshouldhaveasepa-
rate circuit, if at all possible. If a separate
circuit is not available, care should be taken
toprovidea clean andconstantvoltage. As
a basic guideline, never connect the unit to
a circuit that also supplies power to freez-
ers, coolers or other high power-consum-
ing and electrical noise-generating equip-
ment. Familiarity with standard wiring prac-
tices, as recognized by a government
agency in your area, is necessary.
Make sure the unit is not exposed to any
moistureorexcessive heatandthatthere is
enough space to ensure proper ventilation.
The unit should also be located on a sturdy,
level surface. When the two leg levellers
are extended and even, the unit should re-
main stable.
NOTE: All units using the music li-
censed by TouchTunes® must be
placedinpublic,commercial,business
establishments.
Sound Zones
Asound zoneisconsidered tobe anysetof
speakersthatare controlledasasingle unit.
A single set of speakers with the same vol-
ume control would be configured as ZONE
1,withan additionalspeakerset configured
as ZONE 2. The (2) speakers included with
the Megatouch Combo Jukebox™ will be
configured as ZONE 1.
Planning the Installation
Consider the following as you decide on
jukebox and/or speaker placement:
·volume required in the area
·the stereo image. The sound stage of
sound zones can vary depending on
speaker placement.
NOTE: Sometimes the physical layout
of a location makes it almost impos-
sibletocreateagoodstereoimage. For
example, if a location has many small
interconnected rooms or if a location
is very long and narrow. Under these
circumstances, it may be more advan-
tageous to operate all speakers in
mono. This would enable you to cover
small rooms with one speaker instead
oftwo and makeplacement much easier
to determine.
Checking the Phone Line
Theunit requiresan analog telephone line to
communicate daily with the TouchTunes®
server. Once connected, the unit will call
out once daily based on a specified time
frame determined by the operator and typi-
cally during closed hours. The telephone
line connection is necessary to ensure soft-
ware program updates and music down-
loads. For security reasons, the unit will be
deactivatedifit fails toconnecttothe server
within 30 days after a phone connection is
lost.
A dedicated phone line is not necessary, as
you should be able to share an existing lo-
cation phone line. However, depending on
the quality of the existing line in the location,
the type of phone services it supports, and
the other equipment making use of the line,
you may or may not be able to make use of
this existing telephone line.
NOTE: It is crucial that the jukebox have
access to a noise-free telephone line. If
you connect the jukebox to a substan-
dard line, it will result in communica-
tions problems including repeated call
failures and slow downloads. This will
impact your ability to add songs to the
jukebox and receive new software up-
dates, as well as cause additional main-
tenance for you. It is best to get this
correct during installation to avoid
recurring problems.
Sharing a Phone Line
In most cases, the jukebox can success-
fullysharethe existingphonelinewith other

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
PM0378-07 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL 3
devices, such as phones, fax machines, or
alarm systems. However, some devices,
such as computerized telephones, lottery
terminals, and ATMs, can cause problems
on a shared line. You can usually resolve
these conflicts by contacting the operator
of the other equipment and coordinating call
and answer times.
Sharing the Line with an Alarm
System
Most current Alarm Systems communicate
over telephone wiring. These locations
shouldhave thetelephone line from the ser-
viceentry goingtothe inputside ofthealarm
and the telephones connected to the phone
side of the alarm.
Sharing the Line with a Digital Phone
System
If a location has a digital phone system, the
jukebox telephone line must be connected
to the analog line in front of the phone sys-
tem.
Description
The Megatouch Combo Jukebox™ mea-
sures 72” H X 27” W X 30” D and has three
key-lockedcompartments: thePC shelfsec-
tion (front door), the coin box door, and the
rear door. It is equipped with a coin mech
and bill stacker, and an optional credit card
swipe is also available.
In addition to the supplied speakers, the unit
canbe connectedto an existing sound sys-
tem or a Remote Sound System purchased
from Merit Industries. The Remote Sound
System includes an additional amplifier,
subwoofer, and (2) satellite speakers.
Power Switches
The unit is equipped with two main power
switches. The switch on the outside of the
unit affects the game only. The interior
switch is mounted above the cooling fan on
theleft side (if you arefacing therear ofthe
unit)andisaccessiblethroughthereardoor.
This switch affects both the game and the
jukebox. The interior switch should
remain on at all times unless the unit
is being moved or serviced, since turn-
ing off the jukebox component will prevent
communication with the TouchTunes®
server.
NOTE: The power switch on the Single
Board Computer (see Figure 1) should
always remain on.
Rear Compartment
Therear compartmentof the unit allows ac-
cesstotherear ofthemonitorandthetouch-
screen controller, as well as the interior
power switch.
CPU Section
The CPU section houses the motherboard,
I/O board, power supply, hard drive,
centronics connector, and main harness.
These components are accessible through
the front door. See Figure 1.
Single Board Computer (SBC)
Thesingleboard computer(SBC)isthe main
jukebox component and is located on the
firstshelf insidetheunit (seeFigure 1). The
SBC is equipped with a sound card, a 56
Kbps modem, slots for a 10GB hard drive
and64MB flashmemory (as needed), a fan,
anda 120/240VAC PowerSupply Unit. See
Figure 2 for SBC audio specifications.
Tune Central™
Jukeboxes connected to Tune Central™
give players access to the entire
TouchTunes®library ofover100,000 songs.
Tune Central™ is a stand-alone unit (see
Figure 3) measuring 5 3/8” H X 3 1/2” W X 8
1/8 D and weighing approximately 12lbs.
The unit must be connected to an electrical
outletand oneof theMega-Link portson the
jukebox.

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
FIGURE 2 - SINGLE BOARD COMPUTER AUDIO PERFORMANCE
Microphone channel gain 20 dB at full volume (balanced)
AUX channel gain 0 dB at full volume
AUX input overload voltage 1 Vrms minimum
Max. output level (all RCA outputs) 1.0 Vrms, 600 Ohms (unbalanced)
Max. output level (RJ-45 outputs) 7.0 Vrms, 150 Ohms (balanced)
Total Harmonic Distortion (THD) = 0.1% from 10 HZ–20 kHz
Frequency response = ± 0.5 dB from 10 Hz–20 kHz (tone flat)
Noise output = 64 uVrms (90 dB S/N) at max volume
Volume increment = 2 dB
Volume range = 80 dB
FIGURE 1 - MEGATOUCH COMBO JUKEBOX - FRONT VIEW
CPU
SECTION
SUBWOOFER
SINGLE
BOARD
COMPUTER
AMPLIFIER
4 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL PM0378-07

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
PM0378-07 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL 5
ETHERNET
CONNECTOR
FAN
STATUS
LIGHTS POWER
CONNECTOR
FRONT VIEW REAR VIEW
TUNE CENTRAL
ID NUMBER
FIGURE 3 - TUNE CENTRAL™ UNIT
Subwoofer/Amplifier
The subwoofer and amplifier are located in
the base of the unit and are accessible
through the front door. See Figure 1.
Speakers
Two satellite speakersare included with the
unit, as well as 100 feet of speaker wire.

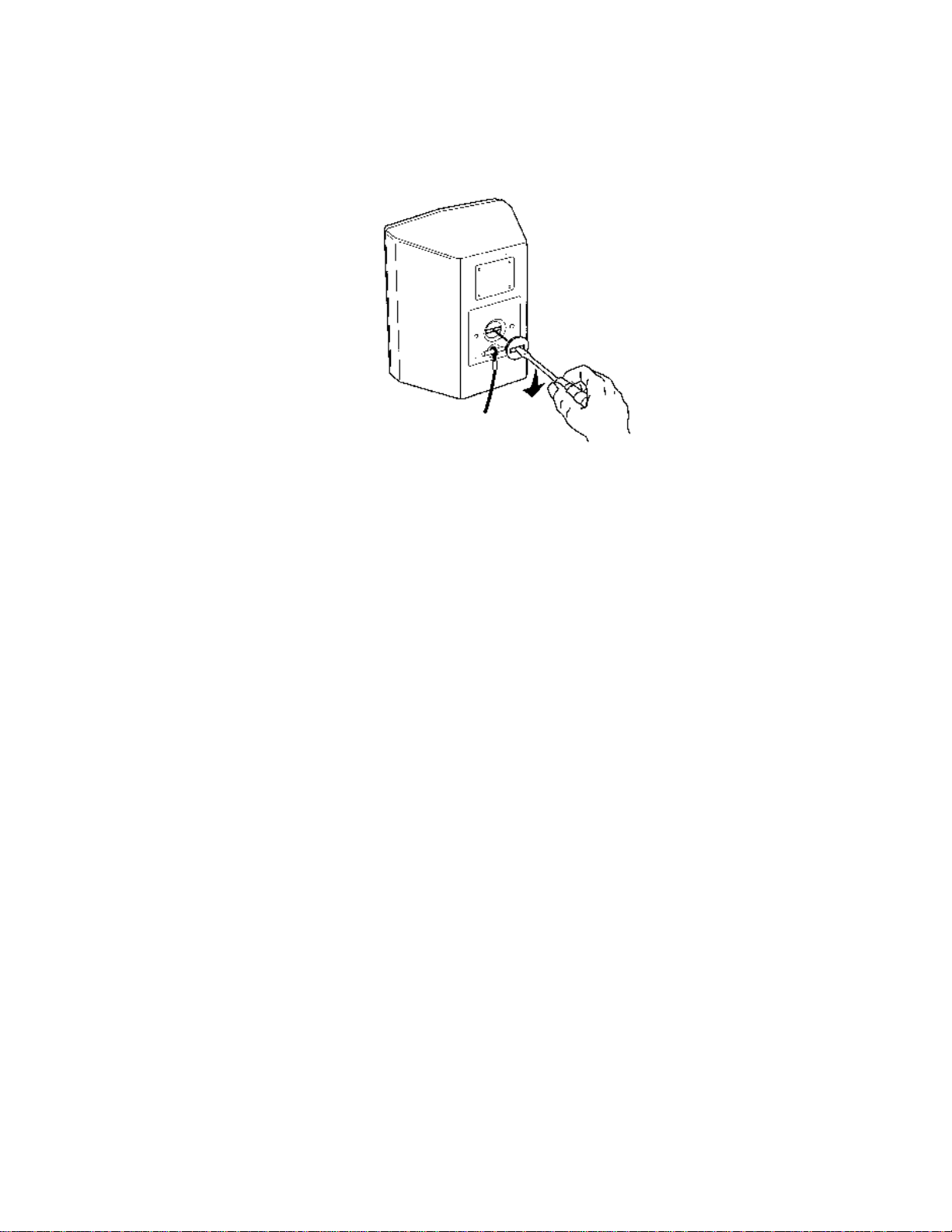

See the ‘Installation’ section for speaker
placement and mounting information.
Coin Mech/Bill Acceptor
Both the coin mech and bill acceptor are
located inside the front door (see Figure 4),
and the access area is key-locked for se-
curity purposes. The coin bag can is ac-
cessed by sliding out coin bag bracket (see
Figure 4).
Remote Control
NOTE: Any changes or modifications
to the remote not expressly approved
byMeritIndustriescouldvoid theuser’s
authority to operate the equipment.
Theremotecontrolenableslocationperson-
nel to control certain jukebox functions with-
out having access to the Jukebox Operator
menu. The remote control is powered by
(2) 1.5V AA batteries (included).
Theremotecontrol isRF-based,which elimi-
nates the need to point it directly at the juke-
box when using it. The effective range will
vary depending on the type of the obstruc-
tions between the remote and the jukebox.
For example, concrete and metal provide
more of a barrier than wood or plaster. The
remote control can also be affected by in-
terference from other RF-based devices. If
two TouchTunes® jukeboxes are installed
inclose proximityto one another, the remotes
may conflict if both have the same remote
control ID. You will customize the remote ID
and enable the remote while setting up the
game.
Figure 5 shows the functionality of the re-
mote control keys.
NOTE: Unless you are connecting more
than one set of speakers to the unit,
you will only be working with ZONE 1
settings.
Internet Technologies
TouchTunes® jukebox components allow
customerinteraction viauserinterface with
animated graphics on the monitor
touchscreen. Jukebox Operators are able
to “order” on a 24-hour basis any individual
music title (including the newest releases)
from a remote central library. The selection
will be “delivered” via TouchTunes’ propri-
etary telecommunications downloading net-

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
FIGURE 5 - REMOTE CONTROL KEYS
Remote Control Key Functionality
P1Give promotional credit Does not apply in this software.
P2 Reserved for future use.
P3Skip song
Quickly press and release this button to stop
playing the current song and immediately skip
forward to the next song in the queue. Support for
this feature is enabled/disabled on theSystem
Settings screen. To empty the song queue, press
and hold P3 for 5 seconds.
Zone 1 Volume Raises and lowers the volume of zone 1 speakers
within the limits set on the Mixer Settings screen.
Zone 2 Volume (if applicable) Raises and lowers the volume of zone 2 speakers within the limits set on the Mixer Settings screen.
This feature is always available.
MIC Volume Raises and lowers the volume of the microphone
within the limits set on the Mixer Settings screen.
JUKE ‘PAUSE’
Pauses the currently playing song. The jukebox
screen will display the message “Jukebox is
Paused” and switch to the auxiliary sound source
(if connected) or a microphone (if enabled). To
unpause, press this button again and the jukebox
will resume playing song.
6 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL PM0378-07
FIGURE 4 - JUKEBOX DOOR - COIN BOX/BILL ACCEPTOR LOCATION
BILL
ACCEPTOR
COIN BAG
BRACKET

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
work,includingMP3, MMP,andgraphics for-
mats stored within the memory of the juke-
box on location. At 11:1 compression ratio,
approximately 2,000 songs can be stored
on the 10 GB, ATA/IDE Hard Drive. The op-
erating system information can be stored on
theharddriveora64MBFlashMemoryCard,
as needed.
Jukebox Communications
The jukebox calls out once a day with an
“I’m alive” call, typically during a location’s
off hours in order to avoid phone conflicts.
Ifyou’ve placedorders for new songs, two
to three song files will download per hour
(based on average phone line speed), with
a33.6Kbpsor 56Kbpsmodemusedtocom-
municate with the server.
56 Kbps (V.90) modems are capable of
transmitting 33.6 Kbps to the server and re-
ceiving approximately 42 Kbps from the
server if digital lines are available on the ISP
(InternetServiceProvider) side. Thismeans
that this throughput cannot be achieved on
“Typhoon”. The modem basically acts much
like a D2A and A2D converter pair, convert-
ingdigitalsignals sotheycanbe transmitted
analogously on copper wires (with limited
bandwidth) and back to digital.
TouchTunes® Server and Database
TouchTunes® maintains two servers to
handle jukebox communications and data.
Two terabytes of disk space allow for an
extensive library of music selections and
for TouchTunes® to receive uploaded log
files from the jukebox network. One server
is used as a backup to the other.
Therearetwo pathwaysthatjukeboxes use
toconnecttotheserver. Approximately80%
of the jukeboxes connect to the
TouchTunes® server through the use of an
Internet provider. These boxes dial a local
POP (point of presence) radius server, which
verifies the user name and password pro-
grammedintothe jukebox. Fromthere,com-
municationis accomplishedusingthe Internet
backbone.
Theothermethodofconnectiontotheserver
isthrough adirect-dial tollfree number. This
also requires the jukebox to verify its user
name and password to gain access to the
TouchTunes server.
Internet Service Providers
TouchTunes® uses UUNET™ and AT&T™
to handle Internet access for jukeboxes. In
somecases, jukeboxeshavedifficulty com-
municating due to a problem with the ISP
(Internet Service Provider) network and not
TouchTunes®. TouchTunes® monitors ISP
traffic and congestion, makes changes to
thejukebox asrequired, and will even notify
the ISP when problems are noted with their
services.
Local Point of Presence (POP)
The jukebox will call a local phone number
to connect to the Internet. TouchTunes®
makes every effort to ensure the jukebox is
making a local call.
Jukeboxes that do not have a local POP to
access the Internet are using a toll free di-
rectdial-uptoaccesstheTouchTunes®net-
work. It is not uncommon for jukeboxes
using the direct dial to experience periods
wherethey getabusy signal. Thisisdue to
the volume of jukeboxes using the direct
access.
TouchTunes®has experiencedbetter com-
municationresultsusingtheInternetforcom-
munication and makes every effort to have
jukeboxes communicate in this manner.
How It All Works
New jukeboxes are programmed to call out
using the toll free number, but the phone
numberinformation initiallyprogrammed into
the installation screen on the jukebox is far
from accurate. The first step requires
TouchTunes®to send a small command to
PM0378-07 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL 7

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
FIGURE 6 - SINGLE BOARD COMPUTER CONNECTIONS
REMOTE
CONTROL
BOARD
PHONE LINE
ETHERNET
HUB
SPEAKERS
the jukebox in order to capture the phone
number information through caller ID. After
the accurate information is obtained,
TouchTunes®will search for a local ISP for
the jukebox and program it using that infor-
mation. If the jukebox determines there is a
problemwith theISP,it willrollback tothetoll
freenumberto communicatewiththe server.
In this event this happens, the jukebox will
upload its files and logs, but will not down-
load music. Typically, ISP issues are solved
within a day’s time.
Installation
Once you’ve selected a suitable location,
you are ready to install the Megatouch
Combo Jukebox™.
Installing the Hard Drive
NOTE: You should have already made
arrangements to receive a hard drive
for the unit prior to delivery. The juke-
box will not function without the hard
drive.
To install the hard drive:
1. Make sure the interior powerswitch
is turned OFF and that the unit is un-
plugged from its power source.
2. Unlock and open the front door to ac-
cess the SBC (see Figure 1).
3. Insertthe 10GBhard drive into the ‘Re-
movable Hard Disk’ slot (see Figure 6)
until it is fully seated, then hand-tighten
the hard drive bracket spring-loaded
screw into the tapped hole. Keep in
mind that the hard drive is sensitive to
impact and must be handled with care.
NOTE: Push the hard drive into the slot
gently, as the mating pins/connector
may be slightly out of alignment.
Connecting a Phone Line
4. Connect one end of the supplied phone
line to the phone connector located on
the back of the unit (see Figure 7).
5. Connect the other end of the phone
line to a phone jack. If necessary, use
the supplied phone coupler and/or
phone splitter.
8 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL PM0378-07

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
COUNTER
VOLUME
CONTROLS
MEGA-LINK
CONNECTORS
PHONE
CONNECTOR
HUB
FIGURE 7 - REAR VIEW OF JUKEBOX - CONNECTOR/VOLUME CONTROL LOCATIONS
Installing Speakers
Follow the instructions below to install the
(2)supplied speakersonceyou’ve decided
on an appropriate location.
NOTE: The supplied speakers will be
configured as ZONE 1 in the
TouchTunes® software.
Connecting Speakers
6. Cut the supplied speaker wire into (2)
lengths as needed.
7. Connectone endof a length of speaker
wire to the input terminals on one of
the speakers and take note which
sidesof thewire are connected to the
(+) and (-) connectors. See Figure 8.
8. Connect the other end of the speaker
wire to the subwoofer so the (+) and
(-) speaker connectors run to the (+)
and (-) subwoofer connectors. See
Figure 8.
NOTE: To avoid short-outs, make sure
allstrandsoftheexposedwireareprop-
erly connected to the speakers and
subwoofer.
9. Repeatsteps 8-9 toconnect the other
speaker.
10. Secure the speaker wire using the
wireclamponthesubwoofersoitcan-
not easily be dislodged from either the
speakers or the subwoofer. See Fig-
ure 8.
Mounting the Speakers with the
lnvisiBall™ Mounting System
The InvisiBall™ is a unique method of
mounting a speaker. It is designed to be
unobtrusive, theft deterrent, and simple to
install.
NOTE: Your installation of this
Commercial Sound Solution must be
conform with local building codes.
Please consult with a licensed
contractor or professional engineer on
any installation in which the speakers
are mounted on a ceiling or wall. JBL
Professional is not responsible for
damage resulting from the improper
installation of any bracket or speaker.
11. Install the InvisiBall™ mount on the
wall with the (4) screws. Be certain
that the wall will support the speaker.
See Figure 9.
PM0378-07 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL 9

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
FIGURE 9 - MOUNTING INVISIBALL™ TO WALL
FIGURE 8 - CONNECTING SUPPLIED SPEAKERS
Sub-Woofer
Right Speaker Left Speaker
WIRE CLAMP
12. Place a wide-tipped, slotted screw-
driver in the slot of the plastic
InvisiBall™ knock-out plug and push
downward, thereby breaking the plug
out of the back of the speaker. See
Figure 10. Scrape away any residual
plastic to ensure the ball will fit in the
hole.
13. Grab the logo badge on the speaker
grill with your fingernails and pull it
straight out as shown in Figure 11.
14. Insert the supplied hex key into the
hole exposed by the removed logo
badge, then lightly push and slowly
rotate the hex key until you feel it fall
into place. Loosen the InvisiBall™
clamp as shown in Figure 12.
15. Mount the speaker on the InvisiBall™.
See Figure 13.
16. Tighten the clamp just enough to hold
thespeaker whileyou position it in the
desired orientation (see Figure 14).
10 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL PM0378-07

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
OPTIONAL
SAFETY
CABLE
FIGURE 10 -REMOVING KNOCK-OUT PLUG
FIGURE 11 -PULLING OUT LOGO BADGE
FIGURE 12 - LOOSENING INVISIBALL ™ CLAMP
PM0378-07 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL 11

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
FIGURE 13 - MOUNTING SPEAKER ON INVISIBALL™
FIGURE 14 - TIGHTENING INVISIBALL™ CLAMP
12 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL PM0378-07
When the speaker is in the preferred
position, tighten the clamp firmly and
replace the logo badge. Be sure not
to overtighten.
Connecting an Existing Sound System
17. To connect an existing amplifier and
speakers to the unit, connect the cor-
responding ends of the RCA connec-
tors (white to left, red to right) to the
left and right ZONE 2 outputs on the
Single Board Computer inside the unit.
18. Connecttheothercorrespondingends
of the RCA connectors to the left and
right inputs on your existing stereo
amplifier.
Linking to Other Games
The (2) Mega-Link® ports on the unit will
accommodate (2) more games through the
use of additional standard Ethernet cables
(available at your local computer store) or
individualMega-Link®kits. Linking morethan
(2) games would require the use of an
Ethernet hub connected to the ‘HUB’ port on
the game (see Figure 6). Keep in mind
that each game must be running the
same software version. If you are not
linkingadditional games,skip to the next sec-
tion.
NOTE: The ‘HUB’ port on the unit can
only be used to connect an additional
Ethernet hub.

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
PM0378-07 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL 13
NOTE: You will need to adjust the moni-
tor settings on any games after they are
linkedtodisplaytheTouchTunes®Op-
erator Setup. Enter the TouchTunes®
Setup Screen on the game and then
adjust the monitor settings so the
graphics are displayed properly. This
will not affect the monitor settings of
the game screens.
To link to additional games:
19. Make sure all games (except
FORCE Classic games) that are to
be linked have the Hi Resolution
feature enabled in order to prop-
erly display the current Touch-
Tunes® interface. Press the SETUP
button inside the game and enter the
System Menu, then touch the Options
icon. Page through the options and
make sure the Hi Resolution feature is
checked. If it is not enabled, certain
TouchTunes®features willnotbe avail-
able.
NOTE: It is recommended that you per-
form a touchscreen calibration after
enabling Hi Resolution.
NOTE: The TouchTunes® interface will
not display properly in FORCE Classic
games if the Hi Resolution feature is
enabled. Certain TouchTunes® fea-
tures will therefore not be available in
any linked FORCE Classic games be-
cause they are only accessible in Hi
Resolution mode.
20. Turn off all games that will be con-
nected to the Megatouch Combo Juke-
box™.
21. Connect one end of the Ethernet cable
to one of the Mega-Link® connectors
on the unit (see Figure 7).
22. Connect the other end of the Ethernet
cable to the Ethernet coupler on the
back of the game (the Ethernet coupler
is the one on the left if you are facing
the back of the game).
23. Repeat for an additional game if de-
sired.
NOTE: Do not use the Ethernet hub in-
side the unit for linking other games.
Connecting a Microphone
24. If desired, connect a microphone to the
MIC IN connector on the SBC and pass
the cable through the slots at the bot-
tom of the access panel.
Connectingan ExternalAudio Source
25. If desired, connect the left and right
RCA connectors running from an ex-
ternal audio source, such as a CD or
tape player, to the LINE IN connectors
on the SBC.
26. Replace the access panel.
Connecting to Tune Central™
If you will not be running Tune Central™,
skip ahead to the next section.
27. Choose an appropriate location for the
TuneCentral™unit. It shouldbeplaced
on a flat surface away from heat
sources such as vents or amplifiers.
28. Connect the supplied power source to
the power connector on the front of
the Tune Central™ unit (see Figure 3)
and the supplied power cable to the
power source. Then plug the power
cable into a suitable grounded outlet.
Use the same guidelines as those
foundinthebeginning oftheSite Prepa-
ration section on Page 2 to choose an
electrical outlet.
29. Connect one end of a customer-sup-
plied standard Ethernet cable to the
Ethernet connector on the Tune Cen-
tral™ unit (see Figure 3) and the other
end to one of the Mega-Link connec-
tors on the jukebox (see Figure 7).

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
FIGURE 15 - FRONT VIEW OF JUKEBOX - SETUP BUTTON LOCATION
SETUP
BUTTON
SUBWOOFER
CALIBRATE
BUTTON
14 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL PM0378-07
TouchTunes® Operator Setup
The following instructions are only to guide
youthrough thesetup procedure. For com-
plete software instructions, see the
TouchTunes® Software Manual.
NOTE: If you are linking more than one
game, you will only need to set up the
TouchTunes® software on one game.
The set up will then be reflected on all
games.
FirstTime Installation/Phone Settings
30. Plugin andturn onboth theinternal and
external power switches on the unit.
Keep in mind that while the game will
boot up in approximately one minute,
thejukeboxwill takeseveralminutes to
load.
NOTE:It is normalforthe subwoofer to
produce 2-5 thumping noises when the
unit is first turned on.
31. When the Calibration Screen appears,
follow the instructions on the screen.
You will then be taken to the Game
Menu.
NOTE: Because the TouchTunes® soft-
ware has not been set up yet, the screen
will display a “Jukebox Error - Check
Diagnostics” message at the bottom of
the screen when turned on for the first
time.
32. Pressthe SETUPbutton in the unit (see
Figure 15) to bring up the Main Menu.

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
FIGURE 17 - PHONE SETTINGS SCREEN
FIGURE 16 - INSTALL SCREEN
PM0378-07 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL 15
33. Touch the ‘TouchTunes’ button on the
MainMenu, thenthe‘TouchTunes Setup’
button. The INSTALL screen will ap-
pear. See Figure 16.
34. Take note of the information on the
screen and press NEXT. The PHONE
SETTINGSScreenwill appear. SeeFig-
ure 17.
35. Set the time during which the jukebox
can use the phone line to call out to the
TouchTunes® server. Time is speci-
fied using a 24-hour clock (i.e. 00:00
equals midnight).
NOTE: The more time you make avail-
able, the more songs the jukebox will
be able to download at one time (a
single songs takes about 20 to 25 min-
utes to download). The busiest time for
the server is between 4 AM and 8 AM
Eastern time. If you can set your unit to
call outside this time, you may get bet-
ter throughput. It is suggested you set
CALL FROM to one half hour after the
location is locked up for the night (i.e.,
thetime the lastpersonleaves and locks
the front door) and set CALL TO to one
half hour before the first person enters
the location. Once a song file begins
downloading, it will continue through
to completion, which may exceed the
end time specified. The half-hour
buffer should prevent phone conflicts.
36. Enable the WAIT FOR DIALTONE op-
tionto turnondial tonedetection. If this
featureisleft off,thejukeboxwill auto-
matically start dialing after a two-sec-
onddelay. For voicemail compliance, it
isrecommended youleavethis feature
off in order to solve dialing problems
on the phone line. When voice mail is
installed, the jukebox modem may not
be able to recognize the dial tone fol-
lowing the voice mail signal because in
many cases, the dial tone is intermit-
tent due to message beeps.
Ifit isnecessary atyour locationto dial
the number 9 to gain access to an out-
side line, turn on DIAL 9 FOR EXTER-
NAL LINE. If a different outgoing pre-
fix needs to be dialed, use the EDIT
button in the CUSTOM DIAL PREFIX
box to bring up a numeric keypad for
entering the prefix.
If the location has call waiting, you
should enter the prefix to disable it. In
most cases this is *70. You may need
to add a pause to the end of this se-
quence, as sometimes there is a delay
before the dial tone returns. Use the #
keyto entera pause. Forexample, the
sequence *70## disables call waiting
andthenpausestwicebeforecontinu-
ing to dial.
Select the type of phone line that is
installed at the location by settingTONE
DIALING to ON orOFF.

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
FIGURE 19 - JUKEBOX OPERATOR MENU
FIGURE 20 - SOUND MIXER SCREENFIGURE 18 - TELECOM DIAGNOSTIC
SCREEN
16 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL PM0378-07
37. UsetheEDITbuttonsto enterthe name,
type, phone number, and time zone of
your location. Once all the information
has been entered, theINSTALLbutton
will appear.
NOTE: If you enter an incorrect phone
number, it could result in unnecessary
charges on the location’s phone bill.
38. Touch the INSTALL button.TheENTER
PASSWORD screen will appear.
39. Entertheregistrationpasswordforthe
jukebox and touch OK. The unit will
now dial out and attempt to connect to
the TouchTunes® server.
NOTE: The password should have been
sent to you by fax prior to delivery of
the jukebox. If you did not receive your
password, call TouchTunes® at 1-888-
711-5853.
40. The TELEPHONE DIAGNOSTIC screen
(see Figure 18) appears, enabling you
to monitor the progress of the call. A
successful call should take about ten
minutes to complete. If the call fails,
you will see an error message indicat-
ing the nature of the problem that oc-
curred.
After a successful call is completed,
you will be returned to the Main Menu.
NOTE: Some of the messages may ap-
pear on the screen for an extended pe-
riod of time during the initial call to
the server. Do NOT reboot the machine.
41. Exit out of the Main Menu. If the
TouchTunes icon does not appear on
the Main Game Menu, reboot BOTH the
game and Single Board Computer by
turning off the interior and exterior
power switches and turning them on
again. Once both the game and juke-
box are loaded again, press the SETUP
button inside the game to access the
Main Menu.
Sound Test
42. From the Main Menu, press the
‘TouchTunes’ button, then ‘TouchTunes
Setup.’ The jukebox will now display
the Jukebox Operator menu. See Fig-
ure 19.
43. On the Jukebox Operator menu, touch
SOUND MIXER. The SOUND MIXER
screen appears. See Figure 20.

COPYRIGHT © 2003 MERIT INDUSTRIES, INC.
FIGURE 21 - SYSTEM SETTINGS SCREEN
PM0378-07 MEGATOUCH COMBO JUKEBOX™ OWNER’S MANUAL 17
44. In the SOUND TEST box, touch TEST.
Listen to the test at all speaker posi-
tions to ensure everything is function-
ing properly. If you encounter a sound
problem, refer to the Troubleshooting
Guide.
Programming and Enabling the
Remote
45. To set the remote ID, press the JUKE
PAUSEand lower MIC VOLUME but-
tons on the remote at the same time
until the light on the LAMP button is
solid.
46. PressanycombinationoftheP1,P2,or
P3 buttons three times to customize the
ID(for example: P2–P1 –P3or P3–P1
– P1). The default setting is P1 – P1 –
P1).
47. Return to the Jukebox Operator menu
and touch the SYSTEM SETTINGS
button. The System Settings screen
appears. See Figure 21.
48. Touch LEARN, located next to Learn
remote control ID.
49. Watch the monitor. When prompted,
press any key on the remote control.
The monitor will return to the System
Settings Screen.
50. To allow the remote control to skip a
song that is playing (P3 button), set
Enable skip mode on remote to
ON.
51. Touch BACK to return to the Jukebox
Operator menu.
52. Enter the SOUND MIXER screen and
touchthe TESTbutton to run the sound
test. As the unit is playing, raise and
lower the volume with the remote to
ensure it is working.
NOTE: If you change the remote ID, you
must have the jukebox relearn the ID
through the System Settings screen.
