Mesh SEG-4G User manual

Industrial SG-IoT/4G LTE
IoT Segment Gateway
Outdoor IP66
(SEG-4G)
Provision your nodes in 30 seconds. You can
choose from 25/50/100/150/250 nodes con-
figurations, powered via PoE, AC, DC or Solar.
Range is up to 5KM radius and available in
ranges of up to 1KM Point-to-Point line of site.
Backhaul options also include Ethernet or
4G LTE Cellular options.
Node Management
Simply manage node authorization lists. This is the list
that allows the nodes to connect and interact with each
other. It’s especially useful for securing down a private
network.
∞MAPS CMS Optimized
SEG is optimized to run with ∞MAP, the World’s First
Self-Learning IoT Management Platform.
∞MAPS is a powerful IoT Management Platform
developed specifically to manage, and monitor large
volumes of IoT Devices, People and Things.
∞MAPS One
SEG are available in a plethora of configurations, and
have dierent ∞MAPS Lite applications on the cloud
such as Lighting Controls, Parking Lot Management,
Access Control, Solar Car Park Monitoring, Hydroponic
Farming, Mine Safety, etc. ∞MAPS One applications can
also be customized for specific functions.
3rd Party Open API
Give you full access to SEG without learning the com-
plex algorithms to keep the network up and running.
Connect ∞MESH network to any CMS using the simple
to use Open API.

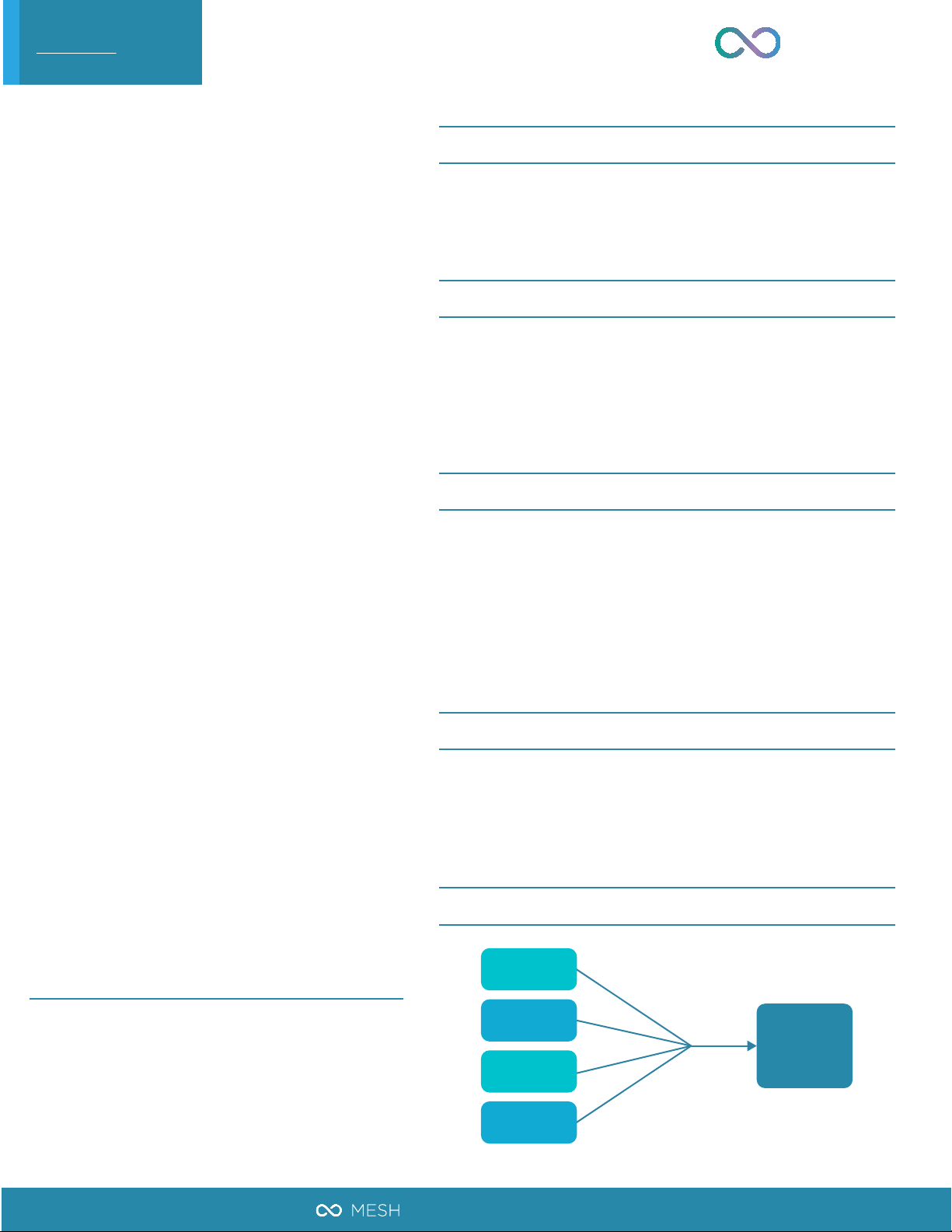

API Language / Transport
XML
JSON
WS
WSS
http
https
MESH
http://www.8mesh.com/
SEG-4G
4G Gateway
1
Aug 15, 2019

PoE Adapter
100-240V Input
4G LTE
Dual SIM
PoE Input
12-24 VDC
Type N
Connector
5dBi
Antenna
Mounting
Strap
IP66
SEG 4G
Gateway
Real-Time Monitor of Node Activity
Monitor Node network states, and all on-board sensor
data such as power meter readings, ambient light
intensity, motion sensor and ambient temperature.
Choose whether to update your servers, or log
directly on the SEG.
Network Settings
Mesh Network Protocol : SG-IoT 2.4GHz USM
Band
LAN - 10/100 FE DHCP Server Enabled
System Settings
Set both Local and UTC Time Settings for system that
requires global coverage, this helps to manage time
stamps and local time of operations without having to
calculate on server or CMS sides. Remote reboot, and
network settings.
SEG 4G Gateway Set
MESH
http://www.8mesh.com/
SEG-4G
4G Gateway
4G/3G LTE Newtwork
4G Available for dierent regions.
LTE-FDD B1/B3/B7/B8/B20/B28A
B2/B4/B5/B12/B13/B14/B66/B71
B1/B3/B8/ B18/B19/B26
LTE-TDD B38/B40/B41
WCDMA B1/B5/B8
B2/B4/B5
2
Aug 15, 2019

Specifications
MESH
http://www.8mesh.com/
Note:
Please verify your carrier prior to ordering.
Mobile Networks: 4G LTE, 4G HSPDA, 3G, WCDMA, Cat M and Cat 1.
Plug Socket: Model EU, CN, US
SEG-4G
4G Gateway
4G Backhaul
Temperature Sensor
2 Sim Card Slot, Micro Sim and Mini Sim
North America, Europe, Middle East, Africa and Asia-Pacific
SSL or TLS - 256bit Encryption
0-125 C
12-24V Passive PoE
5W Peak
2Hr UPS Battery Backup with PoE Injector
NEMA 7Pin Controller with PoE outputWC-PoE
UPS Power Backup
Sim Card
Cellular Available
Protocol
Security
Input Power
AC Power Adapter
Power Consumption
Additonal
Accessories
Operating Modes
Warranty
∞MAPS Cloud, ∞MESH API
3 Years
Antenna 9DB, 2.4Ghz, Fiber Glass Long Range
WSS/TCP-IP
SG-IoT TREE / 2.4GHz; 802.15.4
25 / 50 / 100 / 150 / 250
Protocol/Frequency
Nodes
Radius
Point-to-Point Range
SEG-25 / SEG-50 / SEG-100 / SEG-150 / SEG-250Model
10
24dBm Long Range TX power
13
5DB 2.4GHz
AES 128
Max Hop
Power Level
Channels
Antenna
Security
5km ~ 10km
Up to 500m ~ 1km line of sight
100 ~ 240VAC Power Adapter
3
Aug 15, 2019

Installation Instructions
4G LTE Network Indicator
Hardware Overview
IoT SEGMENT GATEWAY
2.4Ghz Antenna Interface
Power/∞Cloud Indicator
MESH
http://www.8mesh.com/
SEG-4G
4G Gateway
SIM1 Indicator
SIM2 Indicator
SIM1 Slot
SIM2 Slot
Ethernet Port
Power / ∞Server
OFF: No Power
FLASH GREEN: Gateway Booting Up
SOLID GREEN: Gateway Booted Up
FLASH BLUE: Connecting to ∞Server
SOLID BLUE: Connected to ∞Server
4G Network
SIM1 Indicator
SIM2 Indicator
OFF: No SIM Card Installed
FLASH GREEN: Connecting to 4G Network
SOLID GREEN: Connected to 4G Network
OFF: No SIM Card Installed
FLASH GREEN: Inactive
SOLID GREEN: Active
OFF: No SIM Card Installed
FLASH GREEN: Inactive
SOLID GREEN: Active
NOTE: It takes about 3 mins for SEG Gateway to boot up
and connect to 4G network
4
Aug 15, 2019

Additional Accessories
MESH
http://www.8mesh.com/
SEG-4G
4G Gateway
9 DB Long-Range
Fiberglass
2.4GHz Antenna
2HR UPS Battery Backup
Uninterupted Power Supply
24V with PoE Injector
NEMA - 7 Pin Controller
with 12V AUX
PoE Output - 2 Meter RJ45
5
Aug 15, 2019
