Metabo HPT AC 18DA User manual
Designed for operating in USA & Canada only.
When this product is used in areas other than the USA & Canada,
we cannot guarantee the product quality and performance.
Model
Modèle
Modelo AC 18DA
Cordless Caulking Gun
Pistolet à calfeutrer sans fil
Pistola inalámbrica para caulking
Without charger and battery
Sans chargeur et batterie
Sin cargador y baterfa
SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL
WARNING
IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury!
This manual contains important information about product safety. Please read and understand
this manual BEFORE operating the power tool. Please keep this manual available for other
users and owners before they use the power tool. This manual should be stored in safe place.
INSTRUCTIONS DE SECURITE ET MODE D’EMPLOI
AVERTISSEMENT
Une utilisation INCORRECTE OU DANGEREUSE de cet outil motorisé peut entraîner la mort
ou de sérieuses blessures corporelles!
Ce mode d’emploi contient d’importantes informations à propos de la sécurité de ce produit.
Prière de lire et de comprendre ce mode d’emploi AVANT d’utiliser l’outil motorisé. Garder ce
mode d’emploi à la disponibilité des autres utilisateurs et propriétaires avant qu’ils utilisent
l’outil motorisé. Ce mode d’emploi doit être conservé dans un endroit sûr.
INSTRUCCIONES DE SEGURIDAD Y MANUAL DE INSTRUCCIONES
ADVERTENCIA
¡La utilización INAPROPIADA O PELIGROSA de esta herramienta eléctrica puede resultar
en lesiones de gravedad o la muerte!
Este manual contiene información importante sobre la seguridad del producto. Lea y
comprenda este manual ANTES de utilizar la herramienta eléctrica. Guarde este manual para
que puedan leerlo otras personas antes de utilizar la herramienta eléctrica. Este manual debe
ser guardado en un lugar seguro.
00BookAC18DANA.indb100BookAC18DANA.indb1 2022/03/1015:09:212022/03/1015:09:21
2
English
IMPORTANT SAFETY INFORMATION
Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before
operating or maintaining this power tool.
Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety
rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs,
and by observing appropriate safety procedures.
Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which
contain the operation and maintenance instructions.
Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power
tool and in this Instruction Manual.
NEVER use this power tool in a manner that has not been specifically recommended by metabo HPT.
MEANINGS OF SIGNAL WORDS
WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.
CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or
may cause machine damage.
NOTE emphasizes essential information.
SAFETY
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust.
Power tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away while
operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed
(grounded) power tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges
and refrigerators.
There is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions.
Water entering a power tool will increase the risk
of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool.
Keep cord away from heat, oil, sharp edges
or moving parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the
risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
00BookAC18DANA.indb200BookAC18DANA.indb2 2022/03/1015:09:212022/03/1015:09:21
3
English
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication.
A moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection.
Protective equipment such as a dust mask, non-
skid safety shoes, hard hat or hearing protection
used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energising power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on.
A wrench or a key left attached to a rotating part of
the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times.
This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used.
Use of dust collection can reduce dust-related
hazards.
h) Do not let familiarity gained from frequent
use of tools allow you to become complacent
and ignore tool safety principles.
A careless action can cause severe injury within a
fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application.
The correct power tool will do the job better and
safer at the rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off.
Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures reduce the risk
of starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation.
If damaged, have the power tool repaired
before use.
Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier
to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed.
Use of the power tool for operations different
from those intended could result in a hazardous
situation.
h) Keep handles and grasping surfaces dry,
clean and free from oil and grease.
Slippery handles and grasping surfaces do not
allow for safe handling and control of the tool in
unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by
the manufacturer.
A charger that is suitable for one type of battery
pack may create a risk of fire when used with
another battery pack.
b) Use power tools only with specifically
designated battery packs.
Use of any other battery packs may create a risk
of injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small
metal objects, that can make a connection
from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help.
Liquid ejected from the battery may cause
irritation or burns.
e) Do not use a battery pack or tool that is
damaged or modified.
Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire,
explosion or risk of injury.
00BookAC18DANA.indb300BookAC18DANA.indb3 2022/03/1015:09:222022/03/1015:09:22
4
English
f) Do not expose a battery pack or tool to fire or
excessive temperature.
Exposure to fire or temperature above 265 °F may
cause explosion.
g) Follow all charging instructions and do
not charge the battery pack or tool outside
the temperature range specified in the
instructions.
Charging improperly or at temperatures outside
the specified range may damage the battery and
increase the risk of fire.
6) Service
a)Have your power tool serviced by a
qualified repair person using only identical
replacement parts.
This will ensure that the safety of the power tool is
maintained.
b) Never service damaged battery packs.
Service of battery packs should only be
performed by the manufacturer or authorized
service providers.
– WARNING –
To reduce the risk of injury, user must read
instruction manual.
SPECIFIC SAFETY RULES AND SYMBOLS
1. Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring.
Cutting accessory contacting a “live” wire may make
exposed metal parts of the power tool “live”and could
give the operator an electric shock.
2. ALWAYS wear ear protectors when using the tool
for extended periods.
Prolonged exposure to high intensity
noise can cause hearing loss.
3. NEVER touch moving parts.
NEVER place your hands, fingers or other body parts
near the tool’s moving parts.
4. NEVER operate without all guards in place.
NEVER operate this tool without all guards or safety
features in place and in proper working order. If
maintenance or servicing requires the removal of a
guard or safety feature, be sure to replace the guard
or safety feature before resuming operation of the
tool.
5. Use right tool.
Don’t force small tool or attachment to do the job of a
heavy-duty tool.
Don’t use tool for purpose not intended —for
example— don’t use circular saw for cutting tree
limbs or logs.
6. NEVER use a power tool for applications other
than those specified.
NEVER use a power tool for applications other than
those specified in the Instruction Manual.
7. Handle tool correctly.
Operate the tool according to the instructions
provided herein. Do not drop or throw the tool.
NEVER allow the tool to be operated by children,
individuals unfamiliar with its operation or
unauthorized personnel.
8. Keep all screws, bolts and covers tightly in
place.
Keep all screws, bolts, and plates tightly mounted.
Check their condition periodically.
9. Do not use power tools if the plastic housing or
handle is cracked.
Cracks in the tool’s housing or handle can lead to
electric shock. Such tools should not be used until
repaired.
10. Holder and accessories must be securely
mounted to the tool.
Prevent potential injuries to yourself or others. Holder
and accessories which have been mounted to the
tool should be secure and tight.
11. Hold the tool firmly.
12. Keep motor air vent clean.
The tool’s motor air vent must be kept clean so that
air can freely flow at all times. Check for dust build-up
frequently.
13. NEVER use a tool which is defective or operating
abnormally.
If the tool appears to be operating unusually, making
strange noises, or otherwise appears defective, stop
using it immediately and arrange for repairs by a
metabo HPT authorized service center.
14. NEVER leave tool running unattended. Turn
power off.
Don’t leave tool until it comes to a complete stop.
15. Carefully handle power tools.
Should a power tool be dropped or struck against
hard materials inadvertently, it may be deformed,
cracked, or damaged.
16. Do not wipe plastic parts with solvent.
Solvents such as gasoline, thinner benzine, carbon
tetrachloride, and alcohol may damage and crack
plastic parts. Do not wipe them with such solvents.
Wipe plastic parts with a soft cloth lightly dampened
with soapy water and dry thoroughly.
17. ALWAYS wear eye protection that meets the
requirement of the latest revision of ANSI
Standard Z87.1.
00BookAC18DANA.indb400BookAC18DANA.indb4 2022/03/1015:09:222022/03/1015:09:22
5
English
18. ALWAYS wear a mask or respirator to protect yourself
from dust or potentially harmful particles generated
during operation.
19. ALWAYS firmly grip the handle while operating.
20. Definitions for symbols used on this tool
V ..................volts
---.................direct current
no................no load speed
inch/min.......inch per minute
oz.................ounce
21. Because the cordless power tool operates by battery
power, be aware of the fact that it can begin to operate
at any time.
22. Do not use in locations where inflammable materials
such as lacquer, paint, benzene, thinner or gasoline
are present.
23. When working at elevated locations, clear the area
of all other people and be aware of conditions below
you.
24. NEVER operate from an unstable footing, such
as when on a ladder or step ladder.
Doing so may cause an injury.
25. Do not use the product if the tool or the battery
terminals (battery mount) are deformed.
Installing the battery could cause a short circuit that
could result in smoke emission or ignition.
26. Keep the tool’s terminals (battery mount) free of swarf
and dust.
○
Prior to use, make sure that swarf and dust have not
collected in the area of the terminals.
○
During use, try to avoid swarf or dust on the tool from
falling on the battery.
○
When suspending operation or after use, do not leave
the tool in an area where it may be exposed to falling
swarf or dust.
Doing so could cause a short circuit that could result
in smoke emission or ignition.
IMPORTANT SAFETY INSTRUCTIONS
FOR BATTERY CHARGER
WARNING
Death or serious bodily injury could result from
improper or unsafe use of battery chargers.
To avoid these risks, follow these basic safety
instructions:
READ ALL INSTRUCTIONS
1. This manual contains important safety and operating
instructions for battery charger Model UC18YFSL.
2. Before using battery charger, read all instructions
and cautionary markings on (1) battery charger, (2)
battery, and (3) product using battery.
3. To reduce risk of injury, charge metabo HPT
rechargeable battery multi volt type series and BSL18
series. Other type of batteries may burst causing
personal injury and damage.
4. Use of an attachment not recommended or sold by
the battery charger manufacturer may result in a risk
of fire, electric shock, or injury to persons.
5. To reduce risk of damage to electric plug and cord,
pull by plug when disconnecting battery charger.
6. Make sure cord is located so that it will not be stepped
on, tripped over, or otherwise subjected to damage or
stress.
7. An extension cord should not be used unless
absolutely necessary. Use of improper extension
cord could result in a risk of fire and electric shock.
If extension cord must be used make sure:
a. That blades of extension cord are the same
number, size, and shape as those of plug on
battery charger:
b. That extension cord is properly wired and in good
electrical condition; and
c. That wire size is large enough for AC ampere
rating of battery charger as specified in Table 1.
Table 1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS
AC Input Rating Amperes* AWG Size of Cord
Equal to or
greater than but less
than Length of Cord, Feet (Meter)
25 (7.5) 50 (15) 100 (30) 150 (45)
0 2 18 18 18 16
2 3 18 18 16 14
3 4 18 18 16 14
*
If the input rating of a battery charger is given in watts
rather than in amperes, the corresponding ampere
rating is to be determined by dividing the wattage
rating by the voltage rating–for example:
1,250 watts = 10 amperes
125 volts
8. Do not operate battery charger with damaged cord or
plug-replace them immediately.
9. Do not operate battery charger if it has received a
sharp blow, been dropped, or otherwise damaged in
any way; take it to a qualified serviceman.
00BookAC18DANA.indb500BookAC18DANA.indb5 2022/03/1015:09:222022/03/1015:09:22
6
English
CAUTION ON LITHIUM-ION BATTERY
To extend the lifetime, the lithium-ion battery equips with
the protection function to stop the output.
In the cases of 1 to 3 described below, when using this
product, even if you are pulling the switch, the motor may
stop. This is not the trouble but the result of protection
function.
1. When the battery power remaining runs out, the
motor stops.
In such case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this
case, release the switch of tool and eliminate causes
of overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the
battery power may stop.
In this case, stop using the battery and let the battery
cool. After that, you can use it again.
Furthermore, please heed the following warning and
caution.
WARNING
In order to prevent any battery leakage, heat generation,
smoke emission, explosion and ignition beforehand,
please be sure to heed the following precautions.
1. Make sure that swarf and dust do not collect on the
battery.
○
During work make sure that swarf and dust do not fall
on the battery.
○
Make sure that any swarf and dust falling on the
power tool during work do not collect on the battery.
○
Do not store an unused battery in a location exposed
to swarf and dust.
○
Before storing a battery, remove any swarf and dust
that may adhere to it and do not store it together with
metal parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a
nail, strike with a hammer, step on, throw or subject
the battery to severe physical shock.
3. Do not use an apparently damaged or deformed
battery.
4. Do not use the battery for a purpose other than those
specified.
5. If the battery charging fails to complete even when a
specified recharging time has elapsed, immediately
stop further recharging.
6. Do not put or subject the battery to high temperatures
or high pressure such as into a microwave oven,
dryer, or high pressure container.
7. Keep away from fire immediately when leakage or
foul odor are detected.
8. Do not use in a location where strong static electricity
generates.
9. If there is battery leakage, foul odor, heat generated,
discolored or deformed, or in any way appears
abnormal during use, recharging or storage,
immediately remove it from the equipment or battery
charger, and stop use.
10. Do not disassemble battery charger; take it to a
qualified serviceman when service or repair is
required. Incorrect reassembly may result in a risk of
electric shock or fire.
11. To reduce risk of electric shock, unplug charger from
receptacle before attempting any maintenance or
cleaning. Removing the battery will not reduce this
risk.
IMPORTANT SAFETY INSTRUCTIONS
FOR USE OF THE BATTERY AND
BATTERY CHARGER
You must charge the battery before you can use the power
tool. Before using the model UC18YFSL battery charger,
be sure to read all instructions and cautionary statements
on it, the battery and in this manual.
REMEMBER: USE ONLY metabo HPT BATTERY TYPES
BSL18 SERIES. OTHER TYPES OF BATTERIES MAY
BURST AND CAUSE INJURY!
Follow these instructions to avoid the risk of injury:
WARNING
Improper use of the battery or battery charger
can lead to serious injury. To avoid these
injuries:
1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged
or is completely worn out. The battery can explode in
a fire.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger’s
air vents. Electric shock or damage to the battery
charger may result.
5. NEVER charge outdoors. Keep the battery away
from direct sunlight and use only where there is low
humidity and good ventilation.
6. NEVER charge when the temperature is below 32°F
(0°C) or above 104°F (40°C).
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the
battery or the battery charger.
9. NEVER use a booster transformer when charging.
10. NEVER use DC power to charge.
11. NEVER store the battery or battery charger in places
where the temperature may reach or exceed 104°F
(40°C) such as inside metal box or car.
12. NEVER expose the battery or battery charger to rain
or wet conditions.
13. ALWAYS operate charger on standard household
electrical power (120 volts). Using the charger on any
other voltage may overheat and damage the charger.
14. ALWAYS wait at least 15 minutes between charges to
avoid overheating the charger.
15. ALWAYS disconnect the power cord from its
receptacle when the charger is not in use.
00BookAC18DANA.indb600BookAC18DANA.indb6 2022/03/1015:09:222022/03/1015:09:22
7
English
10. Do not immerse the battery or allow any fluids to flow
inside. Conductive liquid ingress, such as water,
can cause damage resulting in fire or explosion.
Store your battery in a cool, dry place, away from
combustible and flammable items. Corrosive gas
atmospheres must be avoided.
CAUTION
1. If liquid leaking from the battery gets into your eyes,
do not rub your eyes and wash them well with fresh
clean water such as tap water and contact a doctor
immediately.
If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well with
clean water such as tap water immediately.
There is a possibility that this can cause skin irritation.
3. If you find rust, foul odor, overheating, discolor,
deformation, and/or other irregularities when using
the battery for the first time, do not use and return it to
your supplier or vendor.
WARNING
If an electrically conductive foreign object enters the
terminals of the lithium ion battery, a short-circuit may
occur resulting in the risk of fire. Please observe the
following matters when storing the battery.
○
Do not place electrically conductive cuttings,
nails, steel wire, copper wire or other wire in the
storage case.
○
Either install the battery in the power tool or
store by securely pressing into the battery
cover until the ventilation holes are concealed to
prevent short-circuits (See Fig. 3).
REGARDING LITHIUM-ION BATTERY
TRANSPORTATION
When transporting a lithium-ion battery, please observe
the following precautions.
WARNING
Notify the transporting company that a package
contains a lithium-ion battery, inform the company
of its power output and follow the instructions of the
transportation company when arranging transport.
●
Lithium-ion batteries that exceed a power output
of 100 Wh are considered to be in the freight
classification of Dangerous Goods and will
require special application procedures.
●
For transportation abroad, you must comply with
international law and the rules and regulations
of the destination country.
Wh
Power Output
2 to 3 digit number
Fig. 1
SAVE THESE INSTRUCTIONS
AND
MAKE THEM AVAILABLE TO OTHER USERS
AND
OWNERS OF THIS TOOL!
00BookAC18DANA.indb700BookAC18DANA.indb7 2022/03/1015:09:222022/03/1015:09:22
8
English
FUNCTIONAL DESCRIPTION
NOTE
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance
of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety
instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own
power tool.
NAME OF PARTS
1. Cordless Caulking Gun
Hook
Release button
Protrusion
Piston
(for cartridges)
Rack handle
Pin
Battery
(sold separately)
Trigger switch
LED light
Name plate
Motor
Holder nut
Dial
Rack (push-out rod)
(300 ml holder)
300 ml holder
Fig. 2
2. Battery
(optional accessories…sold separately) 3. Battery Charger
(optional accessories…sold separately)
Ventilation holes
Latch
Terminals
Battery cover
Battery Nameplate
Pilot lamp
Guide rail
Cord
Ventilation holes
<BSL1830C>
Fig. 3
<UC18YFSL>
Fig. 4
00BookAC18DANA.indb800BookAC18DANA.indb8 2022/03/1015:09:222022/03/1015:09:22
9
English
SPECIFICATIONS
1. Cordless Caulking Gun
Model AC18DA
Motor DC motor
Dispensing speed 0–33 inch/min (0–14 mm/s)
Maximum dispensing force 674 lbs (3,000 N)
Battery Type Li-ion battery Model BSL1830C (3.0 Ah)
Voltage DC 18 V
Weight 5.1 lbs. (2.3 kg) (BSL1830C attached)
2. Battery Charger
Model UC18YFSL
Input power source Single phase: AC 120 V 60 Hz
Charging time
(At a temperature of 68°F (20°C)) BSL1830C: Approx. 45 min
Charging voltage DC 14.4–18 V
Charging current DC 3.5 A
Weight 1.1 lbs. (0.5 kg)
NOTE: The charging time may vary according to temperature and power source voltage.
00BookAC18DANA.indb900BookAC18DANA.indb9 2022/03/1015:09:232022/03/1015:09:23
10
English
ASSEMBLY AND OPERATION
1. Connect the charger’s power cord to a receptacle.
When the power cord is connected, the charge
indicator lamp will blink in red. (At 1-second intervals)
WARNING
Do not use the electrical cord
if damaged. Have it repaired
immediately.
2. Insert the battery to the battery charger.
Firmly Insert the battery into the battery charger as
shown in Fig. 6.
Battery
Guide rail
Pilot lamp
Fig. 6
3. Charging
When inserting a battery in the charger, the pilot lamp
will light up continuously in red.
When the battery becomes fully recharged, the pilot
lamp will blink in red. (At 1- second intervals.) (See
Table 2)
(1) Lamp indication
The indications of the pilot lamp will be as shown
in Table 2, according to the condition of the battery
charger or the battery.
APPLICATIONS
○
Applying in ducts, kitchens and bathrooms, exterior
walls, etc.
○
Filling joints of exterior walls or tile
○
Reinforcing airtightness and waterproofing
○
Joining and attaching plate glass, and repairing
aquariums

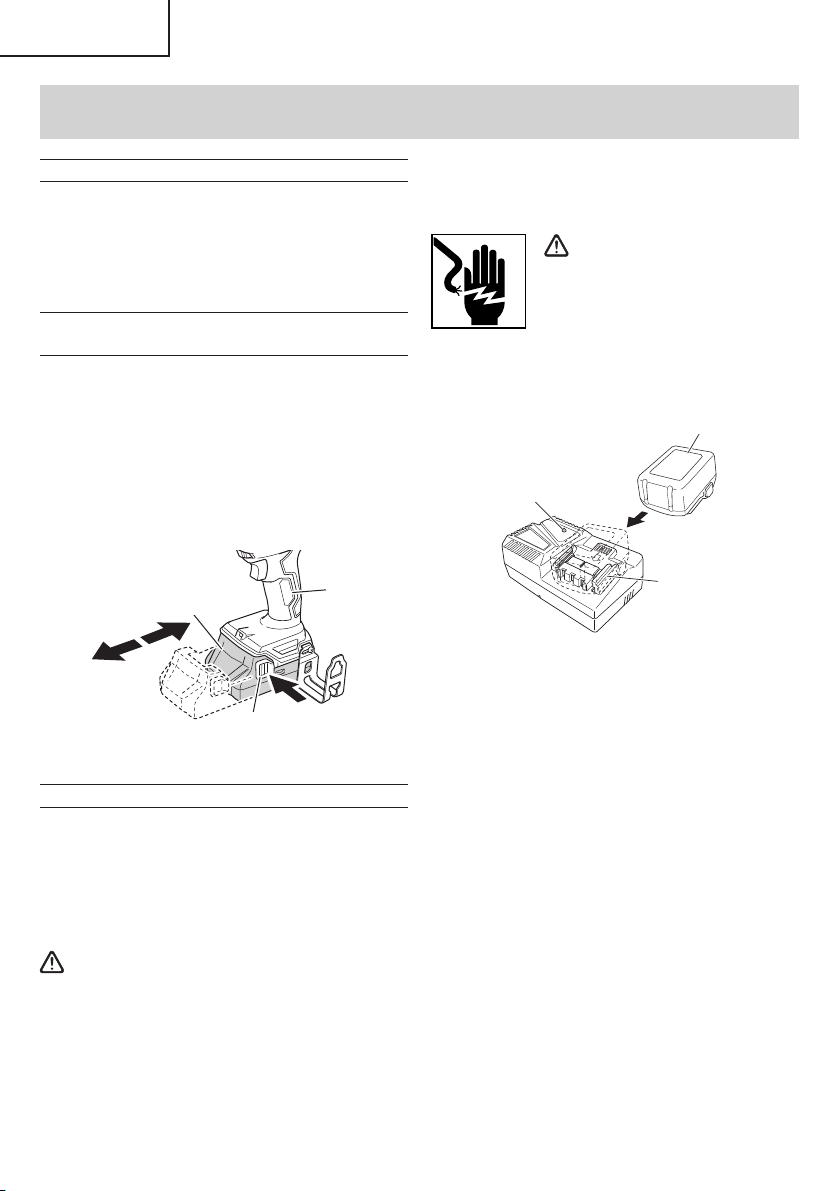

INSTALLING AND REMOVING THE
BATTERY
○
How to install the battery.
Align the battery with the groove in tool handle and
slip it into place.
Always insert it all the way until it locks in place with a
little click, If not, it may accidentally fall out of the tool,
causing injury to you or someone around you (Fig. 5).
○
How to remove the battery.
Withdraw battery from the tool handle while pressing
the latch (2 pcs) of the battery (Fig. 5).
Latch
Handle
Battery
Pull out
Push
Insert
Fig. 5
CHARGING METHOD
NOTE
Before plugging into the receptacle, make sure the
following points.
○
The power source voltage is stated on the nameplate.
○
The cord is not damaged.
WARNING
Do not charge at voltage higher than indicated
on the nameplate.
If charged at voltage higher than indicated on
the nameplate, the charger will burn out.
00BookAC18DANA.indb1000BookAC18DANA.indb10 2022/03/1015:09:232022/03/1015:09:23
11
English
Table 2
Indications of the pilot lamp
Pilot lamp
(red)
Before
charging Blinks Lights for 0.5 seconds. Does not light for
0.5 seconds. (offfor 0.5 seconds) Plugged into power source
While
charging Lights Lights continuously
Charging
complete Blinks Lights for 0.5 seconds. Does not light for
0.5 seconds. (offfor 0.5 seconds)
Overheat
standby Blinks Lights for 1 second. Does not light for
0.5 seconds. (offfor 0.5 seconds)
Battery overheated.
Unable to charge.
(Charging will commence
when battery cools)
Charging
impossible Flickers Lights for 0.1 seconds. Does not light for
0.1 seconds. (offfor 0.1 seconds) Malfunction in the battery or
the charger
5. Remove the battery from the battery charger.
Supporting the battery charger with hand, pull out the
battery from the battery charger.
NOTE
Be sure to pull out the battery from the battery
charger after use, and then keep it.
Regarding electric discharge in case of new
batteries, etc.
As the internal chemical substance of new batteries
and batteries that have not been used for an extended
period is not activated, the electric discharge might
be low when using them the first and second time.
This is a temporary phenomenon, and normal time
required for recharging will be restored by recharging
the batteries 2–3 times.
How to make the batteries perform longer
(1) Recharge the batteries before they become
completely exhausted.
When you feel that the power of the tool becomes
weaker, stop using the tool and recharge its battery.
If you continue to use the tool and exhaust the electric
current, the battery may be damaged and its life will
become shorter.
(2) Avoid recharging at high temperatures.
A rechargeable battery will be hot immediately after
use. If such a battery is recharged immediately after
use, its internal chemical substance will deteriorate,
and the battery life will be shortened. Leave the
battery and recharge it after it has cooled for a while.
(2) Regarding the temperature of the rechargeable
battery.
The temperatures for rechargeable batteries are
as shown in the Table 3, and batteries that have
become hot should be cooled for a while before being
recharged.
Table 3
Rechargeable
batteries Temperatures at which the battery
can be recharged
BSL1830C 32°F–122°F
(0°C–50°C)
(3) Regarding recharging time (At 68°F (20°C))
Table 4 Charging time
Charger
Battery UC18YFSL
BSL1830C Approx. 45 min
NOTE
The recharging time may vary according to the
ambient temperature.
4. Disconnect battery charger from the receptacle.
CAUTION
Do not pull the plug out of the receptacle by
pulling on the cord.
Make sure to grasp the plug when removing from
receptacle to avoid damaging cord.
00BookAC18DANA.indb1100BookAC18DANA.indb11 2022/03/1015:09:232022/03/1015:09:23
12
English
WARNING
●
The hook is not for hanging the tool on your
person.
To avoid injury, do not hang the tool from your
belt, trousers or any other part of your body.
●
Do not use the hook in high places.
Doing so could result in unexpected accidents
such as dropping the tool.
●
When using the hook, make sure the tool is
placed in a stable location where it won’t slip off
or be dislodged by wind.
CAUTION
Install securely the hook. Unless the hook is
securely installed, it may cause an injury while
using.

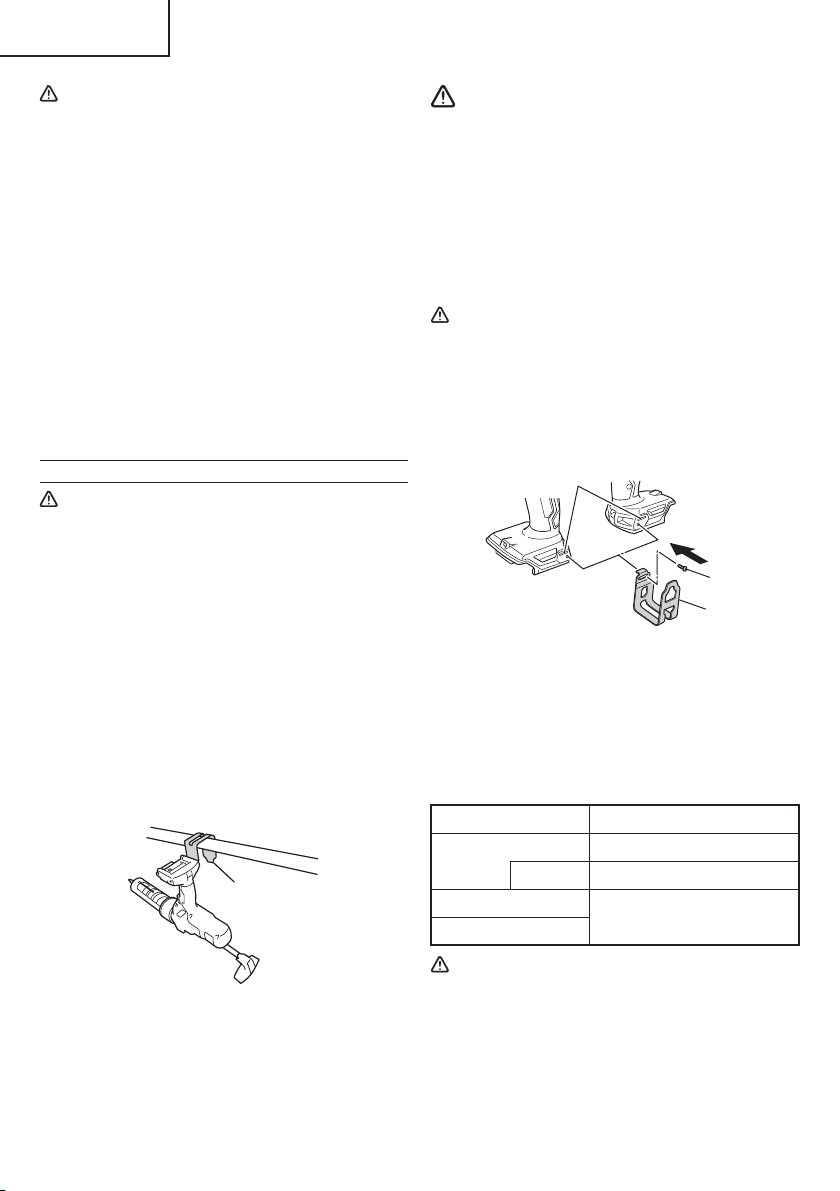

(1) Installing the hook.
Install securely the hook in the groove of power tool
and tighten the screws to fix the hook firmly. (Fig. 8)
Groove
Screw
Hook
Fig. 8
4. Types of sealing materials
There are three types of sealing materials that the
tool can use.
Refer to Table 5 for the appropriate holder for the
sealing material you are using.
Table 5
Sealing material Holder
Cartridges 300 ml holder
for joists 800 ml holder (sold separately)
Sausages 600 ml holder (sold separately)
Buckets
CAUTION
Before use, refer also to the directions on the
packaging of the sealing material to ensure that
you use it correctly.
NOTE
Do not make the diameter of the cut cross-section
of the nozzle 3 mm or smaller. Doing so may cause
leakage of sealing material on the piston side or
damage to the cartridge.
CAUTION
●
When the battery charger has been continuously
used, the battery charger will be heated, thus
constituting the cause of the failures. Once the
charging has been completed, give 15 minutes
rest until the next charging.
●
If the battery is charged while it is heated
because it has been left for a long time in a
location subject to direct sunlight or because
the battery has just been used, the pilot lamp of
the charger lights for 1 second, does not light for
0.5 seconds (offfor 0.5 seconds).
The battery will not be recharged. In such a
case, let the battery cool before charging.
●
When the pilot lamp flickers (at 0.2-second
intervals), check for and take out any foreign
objects in the charger’s battery connector. If
there are no foreign objects, it is probable that
the battery or charger is malfunctioning. Take it
to your authorized Service Center.
PRIOR TO OPERATION
CAUTION
To avoid serious accident, ensure the switch is
in the OFF position, and pull out the battery.
1. Check the work area environment
Check the work area to make sure that it is clear of
debris and clutter.
Clear the area of unnecessary personnel. Ensure that
lighting and ventilation is adequate.
2. Power switch
Ensure that the switch is in the OFF position.
3. Using the hook
You can use the hook to briefly set aside the tool
during operation.
You can change the hook’s position to the left or right.
Hook
Fig. 7
00BookAC18DANA.indb1200BookAC18DANA.indb12 2022/03/1015:09:232022/03/1015:09:23
13
English
5. Exchanging the piston
The piston can be mounted to the rack by simply
screwing it in. No screws or tools are required, so it
is easy to exchange the piston even in the middle of
working. (Fig. 9)
The piston to be used depends on the sealing
material. Refer to Table 6 for the corresponding
pistons.
Piston (for cartridges)
Piston (for sausages)
Piston (for buckets)
Rack (push-out rod)
Fig. 9
Table 6
Holder Cartridges Sausages Buckets
300 ml Included as
standard
(Included with
300 ml holder)
——
600 ml Included
with 600 ml
holder
Included
with 600 ml
holder
800 ml For joists
(Included with
800 ml holder) ——
6. Exchanging the holder
< Removing the 300 ml holder >
(1) Hold the holder nut and turn the holder in the direction
of the arrow to remove it from the main body. (Fig. 10)
Holder nut
300 ml holder
Fig. 10
(2) Loosen the screw at the rear of the rack handle and
remove the rack handle from the rack. (Fig. 11)
Rack handle
Screw
Rack
Fig. 11
(3) While pressing the release button to release the lock,
pull the rack out from the front side of the main body.
(Fig. 12)
With piston still
attached to rack
Rack
Release button
Fig. 12
When installing, perform the reverse of the removal
procedure.
< Attaching the 600 ml holder >
(1) Attach the piston that corresponds to the sealing
material to be used by screwing it into the rack.
(2) While pressing the release button to release the
lock, insert the rack from the front side of the main
body. Insert it so that the teeth of the rack are facing
downwards. (Fig. 13)
Make the rack teeth
point downward
Release button
Fig. 13
00BookAC18DANA.indb1300BookAC18DANA.indb13 2022/03/1015:09:242022/03/1015:09:24
14
English
(3) Attach the rack handle to the rack with the screw.
(4) Attach the 600 ml holder by inserting it into the holder
nut and turning it in the direction of the arrow until it
comes into contact. (Fig. 14)
600 ml holder Holder nut
Fig. 14

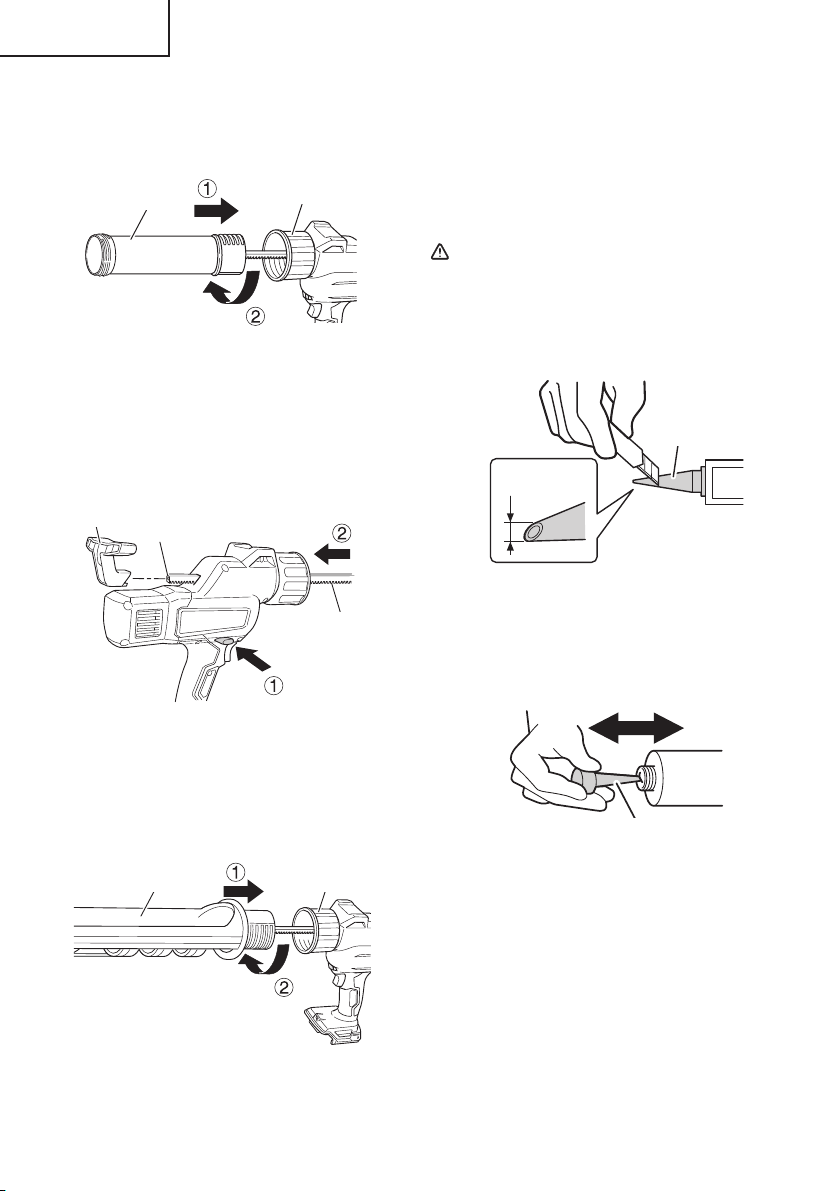

< Attaching the 800 ml holder >
(1) While pressing the release button to release the lock,
insert the rack from the front side of the main body.
Insert the rack so that the teeth are facing downward
and the female threads are on the rack-handle side.
(Fig. 15)
Rack handle Female-threaded
side of rack
Make the rack teeth
point downward
Fig. 15
(2) Attach the rack handle to the rack with the screw.
(3) Attach the 800 ml holder by inserting it into the holder
nut and turning it in the direction of the arrow until it
comes into contact. (Fig. 16)
800 ml holder Holder nut
Fig. 16
(4) Screw the piston onto the rack.
NOTE
When removing the 800 ml holder, remove the piston
from the rack before removing the holder, as the
piston will get stuck when the holder is removed.
7. Loading the sealing material
CAUTION
Please also check the information on the sealing
material package before use.
< Cartridges >
(1) Cut offthe tip of the nozzle at an angle. (Fig. 17)
Nozzle
3 mm or larger
Fig. 17
(2) Remove the nozzle and use the cut end to break the
membrane inside the cartridge, then return it to its
original position. (Fig. 18)
Nozzle
Fig. 18
00BookAC18DANA.indb1400BookAC18DANA.indb14 2022/03/1015:09:242022/03/1015:09:24
15
English
(3) While pushing the release button on the main body
to release the lock, pull the rack handle backward to
bring the piston closer to the main-body side. (Fig. 19)
Rack handle
Release button
Fig. 19
(4) Load the cartridge into the holder. (Fig. 20)
Cartridge
Holder Rack handle
Fig. 20
< Sausages >
(1) Press the release button on the main body to release
the lock, then pull the rack handle backward to bring
the piston closer to the main-body side. (Fig. 19)
(2) Place the sausage in the 600 ml holder and cut the
closed-offportion at the tip. (Fig. 21)
Sausage
600 ml holder
Fig. 21
(3) Combine the holder cap and the nozzle, and attach
them to the holder.
Cut the tip of the nozzle to 3 mm or more before use.
(Fig. 22)
Nozzle
Holder cap
3 mm or larger
Fig. 22
< Bucket >
Prepare the sealing material in advance so that it is ready
for use, according to the sealing material's instruction
manual.
(1) Place the tip of the 600 ml holder into the container
that the sealing material is in.
While pressing the release button to unlock, pull
the rack handle to suction up the sealing material.
(Fig. 23)
Rack handle
Bucket
600 ml holder
Release button
Fig. 23
(2) Combine the holder cap and nozzle and attach them
to the holder. Cut the tip of the nozzle to 3 mm or
more before use. (Fig. 22)
NOTE
After suctioning up, lightly wipe any sealing material
that is adhered the edge of the holder before
attaching the holder cap.
00BookAC18DANA.indb1500BookAC18DANA.indb15 2022/03/1015:09:252022/03/1015:09:25
16
English

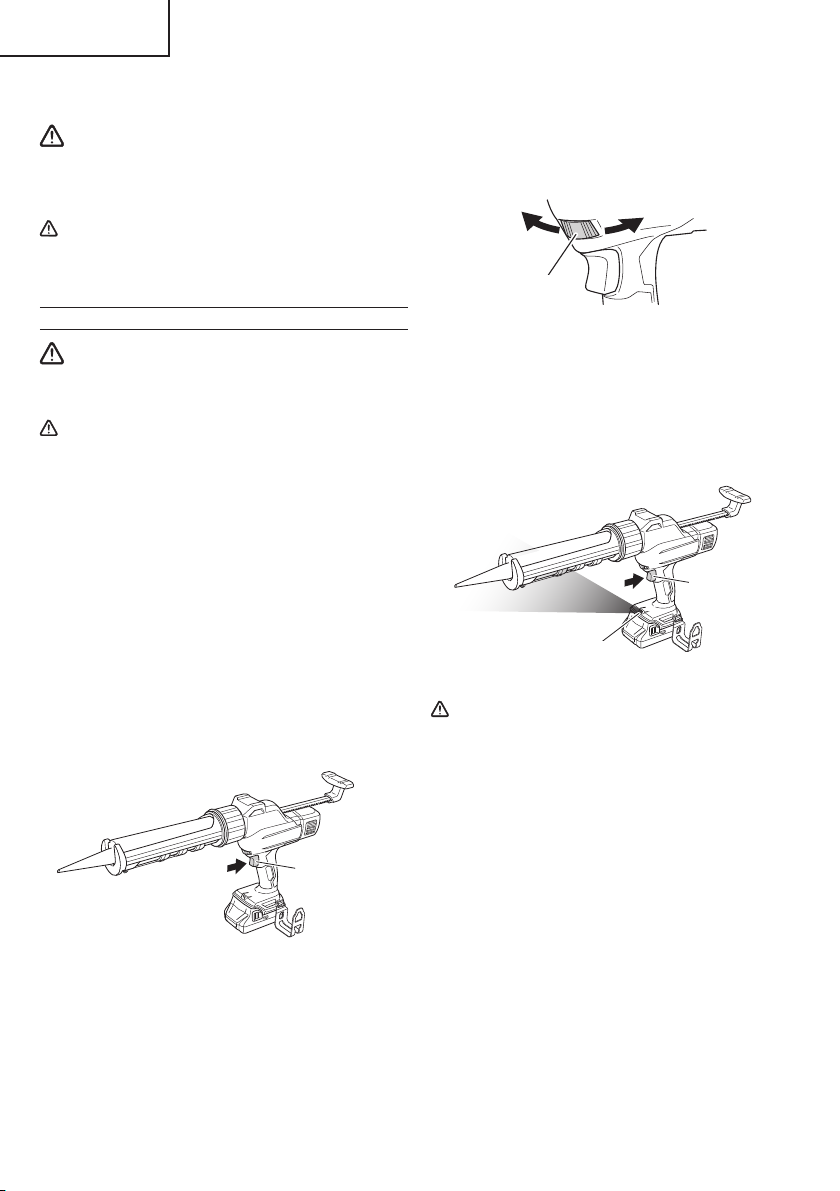

8. Check battery insertion
WARNING
If the battery is inserted while the power switch
is in the ON position, the power tool will start
operating immediately, inviting serious accident.
CAUTION
Until the battery locks in place with a little click,
if not, it may accidentally fall out of the tool
causing injury to you or someone around you.
OPERATION
WARNING
During use, hold the tool body securely with
both hands.
CAUTION
●
Do not put an unreasonable burden on the
tool that causes the motor to lock, such as
attempting to use hardened sealing material.
Remove hardened sealing material, as it may
cause malfunction.
●
Keep your hands away from moving parts while
using the tool.
There is a risk of pinching your fingers.
●
Wear safety glasses while working.
1. Switch operation
Pull the trigger switch to push the piston out. At first,
pull the switch just a little, and start slowly. (Fig. 24)
When the switch is released, the piston will back up
slightly before stopping. This prevents the sealing
material remaining at the end of the nozzle from
dripping.
Trigger switch
Fig. 24
2. Dial
The dial can be used to set the maximum push-out
speed to six levels. (Fig. 25)
Use it while also adjusting the amount that the switch
is pulled to achieve the optimum speed, depending
on the hardness of the sealing material and the
temperature.
NOTE
If the cross-section of the nozzle is small (3 mm or
smaller) or if the sealing material is pushed out at a
fast speed at low temperature, there is a possibility of
sealing material leakage to the piston side.
Dial
Fig. 25
3. How to use the LED light
While the switch is pulled, the LED light will
automatically light up the tip portion of the tool.
(Fig. 26)
The LED light will automatically turn offthe switch is
released.
Trigger switch
LED light
Fig. 26
CAUTION
●
Do not expose directly your eye to the light by
looking into the light.
If your eye is continuously exposed to the light,
your eye will be hurt.
●
Wipe offany dirt or grime attached to the lens of
the LED light with a soft cloth, being careful not
to scratch the lens.
Scratches on the lens of the LED light can result
in decreased brightness.
4. Work tips
○
Start at low speed, and see how hard the sealing
material is and how well it pushes out.
The speed is controlled by the dial and the amount
that the switch is pulled.
○
Support the bottom of the holder with your hand.
○
When the sealing material adheres to the holder,
wipe it offwith a cloth.
00BookAC18DANA.indb1600BookAC18DANA.indb16 2022/03/1015:09:262022/03/1015:09:26
17
English

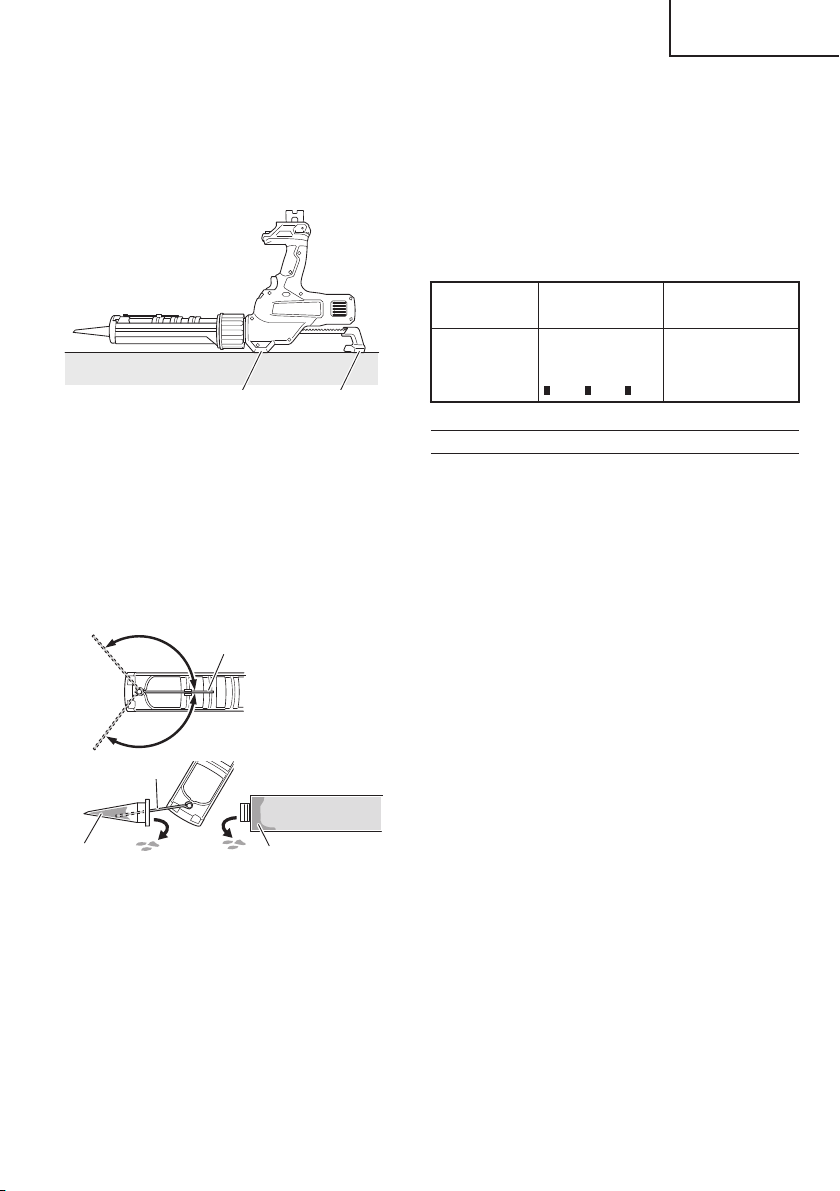

< Temporarily setting the tool down while working >
It can be placed-upside down on the protrusion that is on
the top of the main body. (Fig. 27)
NOTE
Place it on a stable surface.
Protrusion Rack handle
Fig. 27
< Reusing used cartridges >
Rotate the end of the pin attached to the bottom of the
holder sideways to detach it, use it to scrape out and
remove any hardened parts from the nozzle or cartridge,
then reattach it to the holder. (Fig. 28)
NOTE
Be careful not to scratch the inside of the container
with the pin.
Pin
Hardened sealing material
Hardened
sealing material
Pin
Fig. 28
5. LED light warning signals
This product features functions that are designed
to protect the tool itself as well as the battery. While
the switch is pulled, if any of the safeguard functions
activate during operation, the LED light will blink as
described in Table 7. When any of the safeguard
functions are triggered, immediately remove your
finger from the switch and follow the instructions
described under corrective action.
Table 7
Safeguard
Function LED Light
Display Corrective Action
Overload
Protection
On 0.1 second/off
0.5 second Remove the cause
of the overload.
OPERATIONAL CAUTIONS
Resting the unit after continuous work
After use for continuous works, rest the unit for 15 minutes
or so when replacing the battery. The temperature of
the motor, switch, etc., will rise if the work is started
again immediately after battery replacement, eventually
resulting in burnout.
00BookAC18DANA.indb1700BookAC18DANA.indb17 2022/03/1015:09:262022/03/1015:09:26
18
English
MAINTENANCE AND INSPECTION
WARNING
Be sure to turn offthe switch and pull out the battery before doing any inspection or maintenance.
1. Check the Screws
Loose screws are dangerous. Regularly inspect them
and make sure they are tight.
CAUTION
Using this power tool with loosened screws is
extremely dangerous.
2. Maintenance of the motor
The motor unit winding is the very “heart” of the
power tool. Exercise due care to ensure the winding
does not become damaged and/or wet with oil or
water.
3. Check for Dust
Dust may be removed with a soft cloth or a cloth
dampened with soapy water.
Do not use bleach, chlorine, gasoline or thinner, for
they may damage the plastics.
4. Inspection of terminals (tool and battery)
Check to make sure that swarf and dust have not
collected on the terminals.
On occasion check prior, during and after operation.
CAUTION
Remove any swarf or dust which may have collected
on the terminals.
Failure to do so may result in malfunction.
5. Lubrication
The bearings in this tool have been sufficiently
lubricated with quality lubricating oil, taking into
account the expected life of this tool under normal
operating conditions. As a result, no further
lubrication is necessary.
6. Disposal of the exhausted battery
WARNING
Do not dispose of the exhausted battery. The
battery must explode if it is incinerated. The
battery is recyclable. At the end of it’s useful
life, under various state and local laws, it may
be illegal to dispose of this battery into the
municipal waste stream. Check with your local
solid waste officials for details in your area for
recycling options or proper disposal.
7. Storage
Storing in a place below 104°F (40°C) and out of the
reach of children.
NOTE
Storing lithium-ion batteries
Make sure the lithium-ion batteries have been fully
charged before storing them.
Prolonged storage (3 months or more) of batteries
with a low charge may result in performance
deterioration, significantly reducing battery usage
time or rendering the batteries incapable of holding a
charge.
However, significantly reduced battery usage time
may be recovered by repeatedly charging and using
the batteries two to five times.
If the battery usage time is extremely short despite
repeated charging and use, consider the batteries
dead and purchase new batteries.
8. Service and repairs
All quality power tools will eventually require servicing
or replacement of parts because of wear from normal
use. To assure that only authorized replacement
parts will be used, all service and repairs must
be performed by a metabo HPT AUTHORIZED
SERVICE CENTER, ONLY.
CAUTION
In the operation and maintenance of power tools,
the safety regulations and standards prescribed
in each country must be observed.
Important notice on the batteries for the
metabo HPT cordless power tools
Please always use one of our designated genuine
batteries. We cannot guarantee the safety and
performance of our cordless power tool when used
with batteries other than these designated by us, or
when the battery is disassembled and modified (such
as disassembly and replacement of cells or other
internal parts).
00BookAC18DANA.indb1800BookAC18DANA.indb18 2022/03/1015:09:272022/03/1015:09:27
19
English
ACCESSORIES
WARNING
ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement
parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not
sure whether it is safe to use a particular replacement part or accessory with your tool.
The use of any other attachment or accessory can be dangerous and could cause injury or mechanical
damage.
NOTE: Accessories are subject to change without any obligation on the part of the metabo HPT.
STANDARD ACCESSORIES
AC18DA
(NN)
Hook ........................................................................................................................... 1
Safety glasses ............................................................................................................ 1
Battery, battery charger, plastic case and battery cover are not contained.
OPTIONAL ACCESSORIES
1. 600 ml holder set (Code No. 378712M)
2. 800 ml holder set (Code No. 378613M)
3. Battery (BSL1830C)
4. Battery charger (UC18YFSL)
5. Battery cover (Code No. 329897)
00BookAC18DANA.indb1900BookAC18DANA.indb19 2022/03/1015:09:272022/03/1015:09:27
20
Français
INFORMATIONS IMPORTANTES DE SÉCURITÉ
Lire et comprendre toutes les précautions de sécurité, les avertissements et les instructions de fonctionnement dans ce
mode d’emploi avant d’utiliser ou d’entretenir cet outil motorisé.
La plupart des accidents causés lors de l’utilisation ou de l’entretien de l’outil motorisé proviennent d’un non respect des
règles ou précautions de base de sécurité. Un accident peut la plupart du temps être évité si l’on reconnaît une situation
de danger potentiel avant qu’elle ne se produise, et en observant les procédures de sécurité appropriées.
Les précautions de base de sécurité sont mises en évidence dans la section “SÉCURITÉ” de ce mode d’emploi et dans
les sections qui contiennent les instructions de fonctionnement et d’entretien.
Les dangers qui doivent être évités pour prévenir des blessures corporelles ou un endommagement de la machine sont
identifiés par AVERTISSEMENTS sur l’outil motorisé et dans ce mode d’emploi.
NE JAMAIS utiliser cet outil motorisé d’une manière qui n’est pas spécifiquement recommandée par metabo HPT.
SIGNIFICATION DES MOTS D’AVERTISSEMENT
AVERTISSEMENT indique des situations potentiellement dangereuses qui, si elles sont ignorées, pourraient entraîner
la mort ou de sérieuses blessures.
PRÉCAUTION indique des situations dangereuses potentilles qui, si elles ne sont pas évitées, peuvent entraîner de
mineures et légères blessures ou endommager la machine.
REMARQUE met en relief des informations essentielles.
SÉCURITÉ
AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX CONCERNANT LES OUTILS
ÉLECTRIQUES
AVERTISSEMENT
Lire toutes les consignes de sécurité, instructions, illustrations et spécifications fournies avec le présent
outil électrique.
Le non-respect de toutes les instructions ci-dessous peut entraîner une décharge électrique, un incendie et/ou de
graves blessures.
Conservez tous les avertissements et toutes les instructions pour vous y référer ultérieurement.
Le terme “outil électrique”, utilisé dans les avertissements, se réfère aux outils électriques (câblé) ou aux outils à
piles (sans fil).
1) Sécurité de l’aire de travail
a) Maintenir l’aire de travail propre et bien
éclairée.
Les endroits encombrés ou sombres sont
propices aux accidents.
b) Ne pas utiliser d’outils électriques en
présence de liquides, gaz ou poussière
inflammables, au risque de provoquer une
explosion.
Les outils électriques créent des étincelles
susceptibles d’enflammer la poussière.
c) Ne pas laisser les enfants et les visiteurs
s’approcher de vous lorsque vous utiliser un
outil électrique.
Les distractions peuvent faire perdre le contrôle.
2) Sécurité électrique
a) Les prises de l’outil électrique doivent
correspondre à la prise secteur.
Ne jamais modifier la prise.
Ne pas utiliser d’adaptateurs avec les outils
électriques mis à la masse.
Les prises non modifiées et les prises secteurs
correspondantes réduisent les risques de choc
électrique.
b) Eviter tout contact avec les surfaces mises
à la masse telles que les tuyaux, radiateurs,
bandes et réfrigérateurs.
Le risque de choc électrique est accru en cas de
mise à la masse du corps.
c) Ne pas exposer les outils électriques à la
pluie ou à des conditions humides.
Si l’eau pénètre dans l’outil, cela augmente les
risques de choc électrique.
d) Ne pas utiliser le cordon à tort. Ne jamais
utiliser le cordon pour transporter ou
débrancher l’outil électrique.
00BookAC18DANA.indb2000BookAC18DANA.indb20 2022/03/1015:09:272022/03/1015:09:27
