Metos Induction Designer Series User manual

Installation, Operation and Maintenance Manual
Part Number 4532287 Rev 5 12/15
Induction Designer Series
Hold-Line Built-In Heat Retaining Models
Original Instructions
models
HO/IN 3200-GN

READ THIS MANUAL
nWarning
Read this manual thoroughly before installing,
operating, or performing maintenance on the
equipment. Failure to follow instructions in this manual
can cause property damage, injury or death.
This manual must always be available for reference at
the place of operation.
This manual is intended for kitchen consultants, cabinet
designers, fabricators, installers, owners and operators of
our appliances.
Owners, consultants, fabricators and designers:
In order for the induction appliance to function safely
and normally, you must read and understand all
specific and critical requirements when designing the
location and the counter for the appliance.
Installers, operators and staff:
For your safety and safety of the others, you must
observe all safety instructions during installation,
operation and maintenance of the equipment.
Should you require technical assistance, call your factory
authorized service agent or distributor. Always have your
model and serial number available when you call.
Your Factory Authorized Service Agent
Service Agent Telephone Number
Your Local Equipment Supplier
Supplier Telephone Number
Model Number
Serial Number
Date of Installation
ABOUT THIS MANUAL
Throughout this manual, the induction appliance model
indicated on the cover page is referred to as appliance,
induction appliance or equipment.
A period (.) is used in this manual as the decimal separator.
Original measurements are in metrics. Measurements in
imperial are provided for reference.
Not ALL models, options and accessories are available in all
geographical regions. Please consult your local equipment
supplier for the availability of the specific products in your
region.
INSPECT THE SHIPMENT
Thoroughly inspect the equipment upon delivery.
Immediately report to the delivery carrier, any damage that
occurred during transportation and request for a written
inspection report from a claim inspector.
Your shipment might include small packages of fasteners
or silicone strips for installation. Keep all packages.
KEEP THE PACKING SLIP
The packing slip attached to the shipment contains
detailed information on all components. Keep the packing
slip for reference.

Part Number 4532287 Rev 5 12/15 3
Safety Notices
Safety Notices
DEFINITIONS
DANGER
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury. This applies to the most
extreme situations.
nWarning
Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
,Caution
Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
Notice
Indicates information considered important, and is used
to address practices not related to physical injury. For
example, messages relating to property damage.
NOTE: Indicates useful, extra information about the
procedure you are performing.
Reference: ANZI Z535.6-2011
SAFETY SYMBOLS AND WARNINGS ON THE APPLIANCE
This symbol alerts you to a hazardous situation
that WILL or COULD cause serious bodily harm
or death. Be alert and implement relevant safety
precautions.
DANGER - HIGH VOLTAGE
This dangerous voltage warning symbol
indicates a risk of electric shock and hazards
from dangerous voltage.
Electromagnetic Field
Warning
RISK OF FIRE OR ELECTRIC SHOCK! DO NOT OPEN!
To reduce the risk of fire or electric shock, do not remove or
open cover. No user serviceable parts inside.
Refer servicing to qualified personnel.
CAUTION ATTENTION
DISCONNECT FROM SUPPLY CIRCUIT BEFORE OPENING
DISCLAIMERS
DANGER
Disregarding any safety instructions may cause harm
to people, the surroundings, and the equipment. The
manufacturer and/or authorized representative are not
responsible for any damages or personal injury caused
by failure to observe any safety instructions. Risks
involved when disregarding safety instructions include,
but not limiting to:
• Death or injury caused by electric shock.
• Burn injury caused by contacting overheated cooking
surface, cookware, or oil and grease.
• Damage to the equipment caused by using
unsuitable cookware.
DANGER
Do not install or operate equipment and/or accessories
that have been misused, abused, neglected, damaged,
or altered from that of original manufactured
specifications.
DANGER
Contact the manufacturer if you intend to make any
changes on the equipment. For safety reasons, always
use genuine parts and accessories approved by the
manufacturer or authorized representative. Refer to the
warranty documents for your equipment.
DANGER
Owners and operators are cautioned that maintenance
and repairs must be performed by an authorized service
agent using only genuine replacement parts. The
manufacturer will have no obligation with respect to any
product that has been improperly installed, adjusted,
operated or not maintained in accordance with national
and local codes and/or installation instructions provided
with the product or any product that has its serial
number defaced, obliterated or removed, and/or which
has been modified or repaired using unauthorized parts
or by unauthorized service agents.
DANGER
Improper installation, adjustment, alteration, service,
or maintenance of this appliance or installation of
a damaged appliance can result in DEATH, INJURY,
EQUIPMENT DAMAGE, and void the warranty.

4 Part Number 4532287 Rev 5 12/15
Safety Notices
DANGER
All utility connections and fixtures must be maintained
in accordance with local and national codes.
nWarning
Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
Never use flammable oil soaked cloths or combustible
cleaning solutions for cleaning.
nWarning
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mentalcapabilities,orlackofexperienceandknowledge,
unless they have been given supervision concerning
use of the appliance by a person responsible for their
safety. Do not allow children to play with this appliance.
nWarning
This product contains chemicals known to the State
of California to cause cancer and/or birth defects or
other reproductive harm. Operation, installation, and
servicing of this product could expose you to airborne
particles of glass-wool or ceramic fibers, crystalline
silica, and/or carbon monoxide. Inhalation of airborne
particles of glass-wool or ceramic fibers is known to the
State of California to cause cancer. Inhalation of carbon
monoxide is known to the State of California to cause
birth defects or other reproductive harm.
nWarning
Authorized Service Representatives are obligated to
follow industry standard safety procedures, including,
but not limited to, local/national regulations for
disconnection / lock out / tag out procedures for all
utilities including electric, gas, water and steam.
Notice
This appliance is not approved or authorized for home
or residential use, but is intended for commercial
applications only. The manufacturer and/or authorized
representative will not provide service, warranty,
maintenance or support of any kind other than in
commercial applications.
Notice
Routine adjustments and maintenance procedures
outlined in this manual are not covered by the warranty.
NOTE: Proper installation, care and maintenance are
essential for maximum performance and trouble-free
operation of your equipment. Visit our website
www.mtwkitchencare.com for manual updates,
translations, or contact information for service agents in
your area.
CORRECT DISPOSAL OF THIS PRODUCT
This marking shown on the product
indicates that the product should not be
disposed as household waste or regular
commercial waste. Instead it shall be
handed over to the applicable collection
point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed correctly,
you will help prevent potential harm to the environment
or human health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information regarding recycling of the
product, please contact your local city office or your waste
disposal service.
DANGER
Induction appliances, sent for disposal, can be brought
back into operation and their use must be avoided.
NOTE: The appliance is built with common electrical,
electromechanical and electronic parts. No batteries are
used.
NOTE: The owner and operator are responsible for the
proper and safe disposal of the appliance.

5
Safety Notices
Definitions.................................................................................................................................................3
Safety symbols and Warnings on the Appliance ........................................................................3
Disclaimers................................................................................................................................................3
Correct Disposal of This Product.......................................................................................................4
Table of Contents
Section 1
General Information
Description of Product.......................................................................................................7
Application .........................................................................................................................7

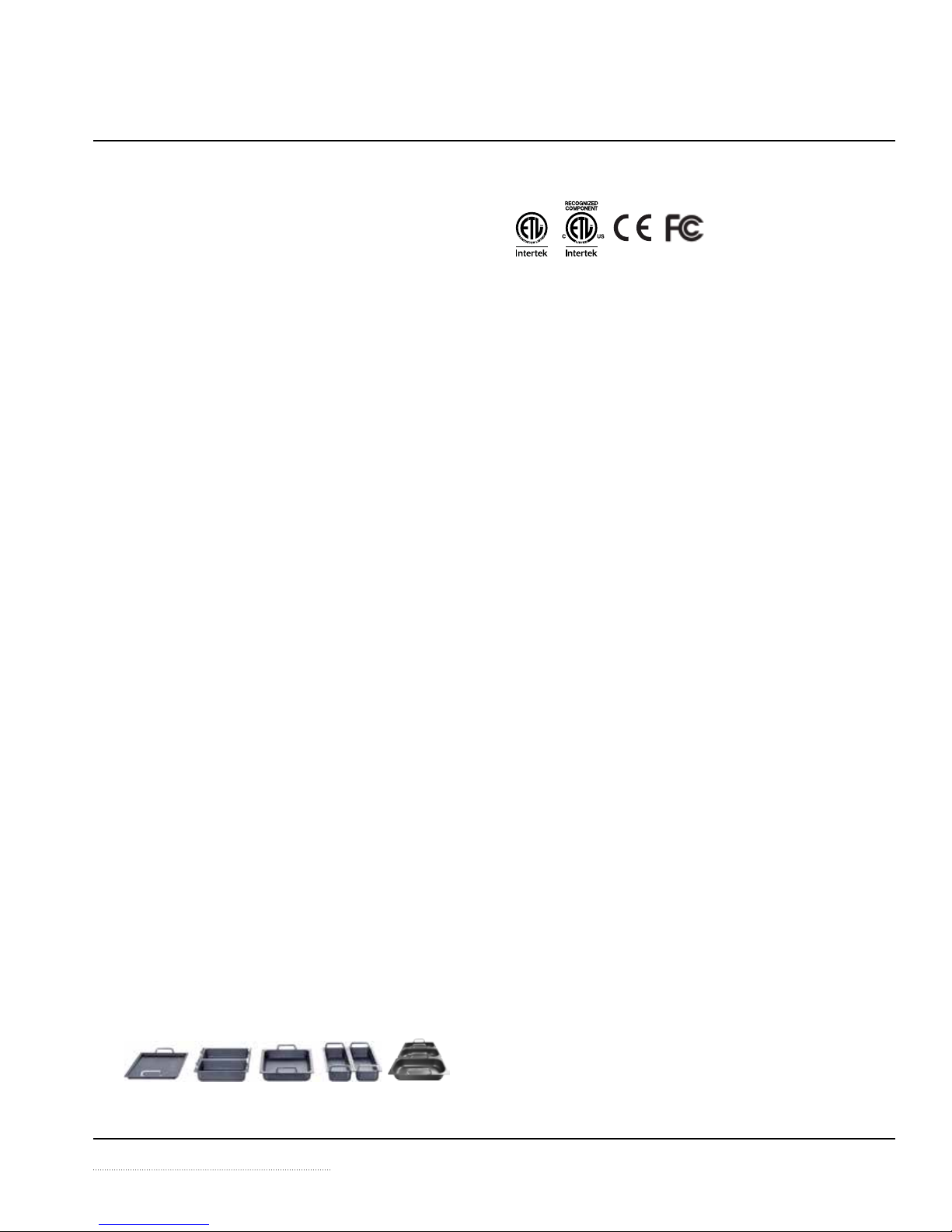

Compliances .......................................................................................................................7

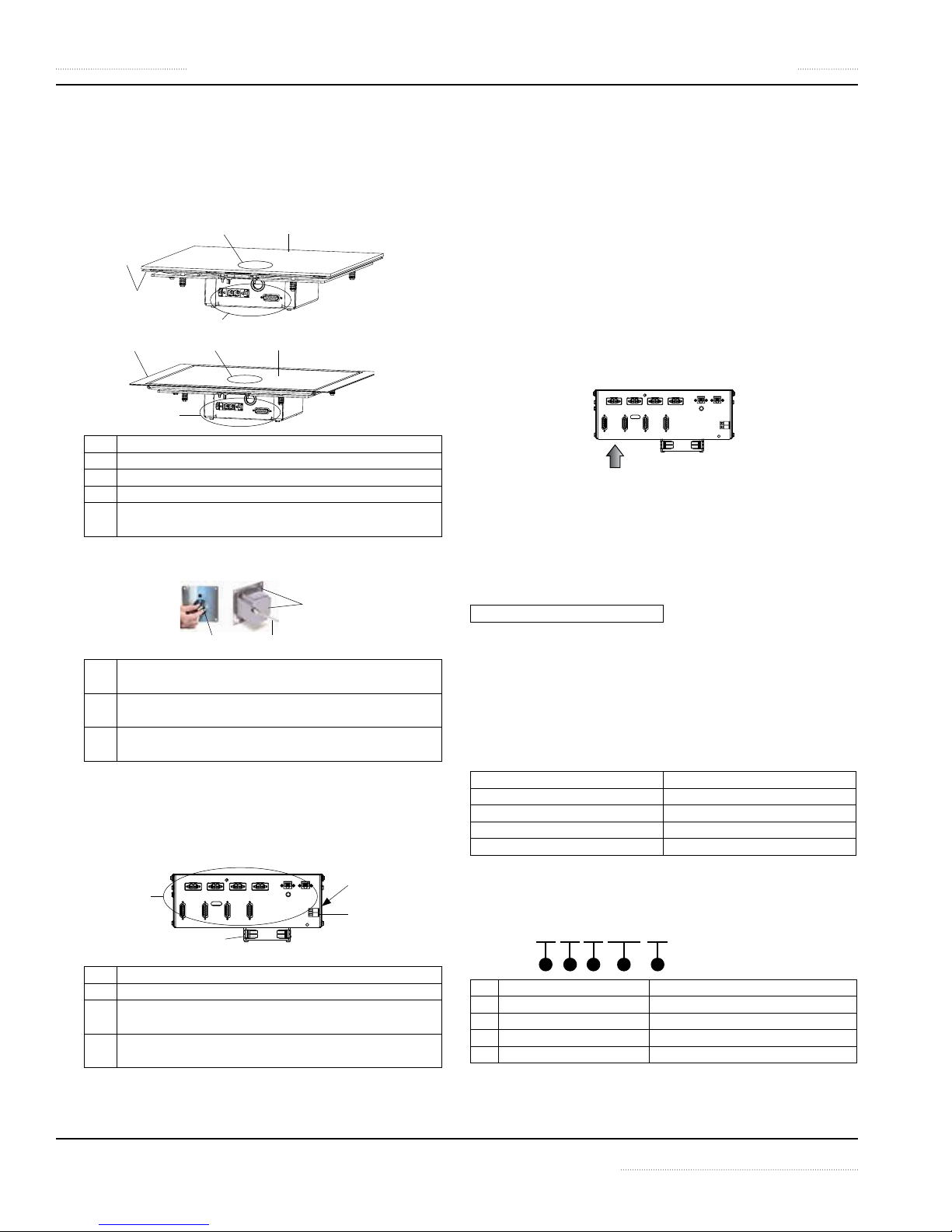

Components and Features ................................................................................................ 8
Serial Plate Location ..........................................................................................................8
Model Number.................................................................................................................... 8
Serial Number..................................................................................................................... 9
Accessories..........................................................................................................................9
Section 2
Installation
Important Installation Safety and Electrical Requirements ................................................. 11
Installation safety—Disclaimer ...................................................................................................... 11
Installation Safety—Clearance and Ventilation........................................................................ 11
Personal Protection ............................................................................................................................ 12
Installation Safety—Electrical......................................................................................................... 12

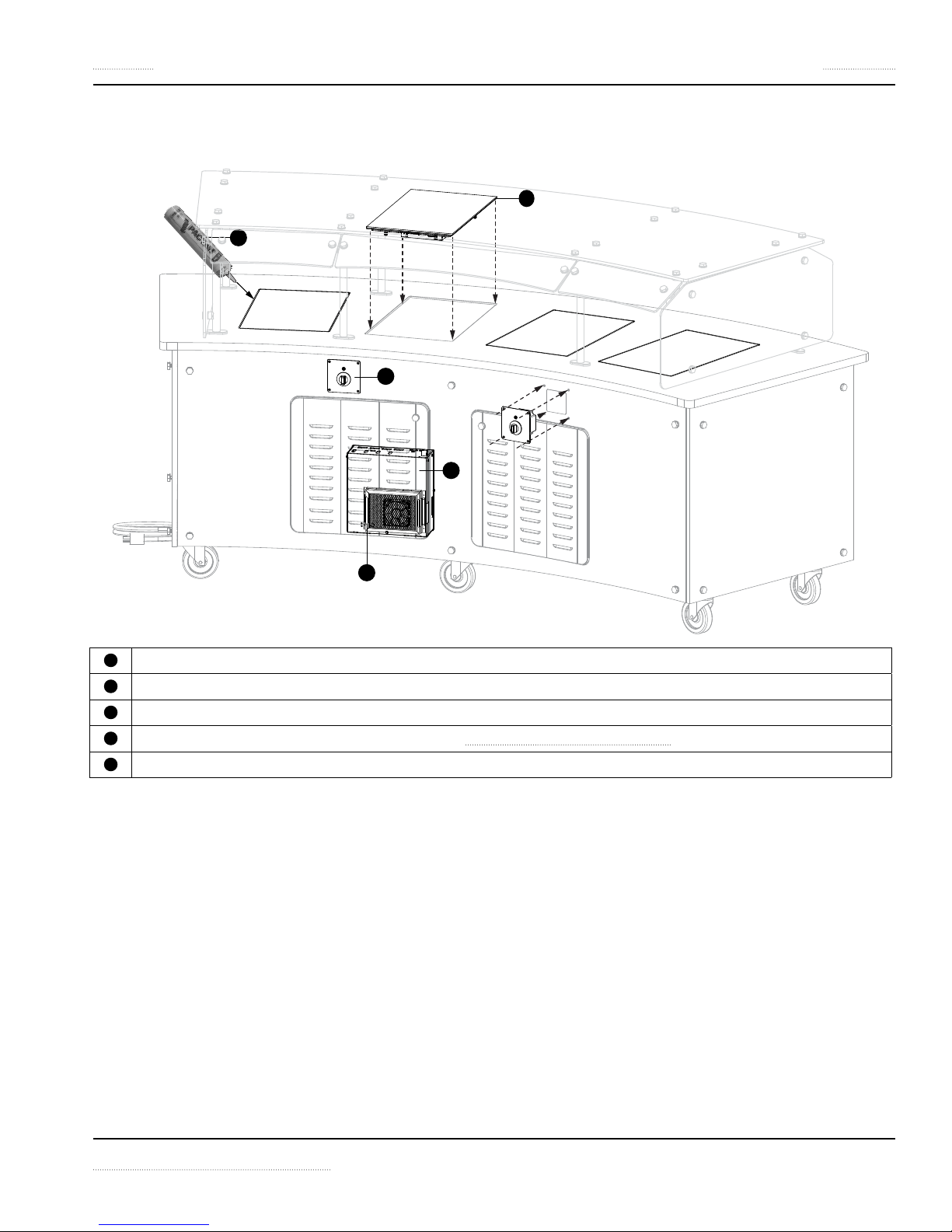

Exploded View of a Typical Installation..........................................................................13
Planning for Installation..................................................................................................14
Cabinet Requirements .....................................................................................................14
Typical Applications.........................................................................................................16

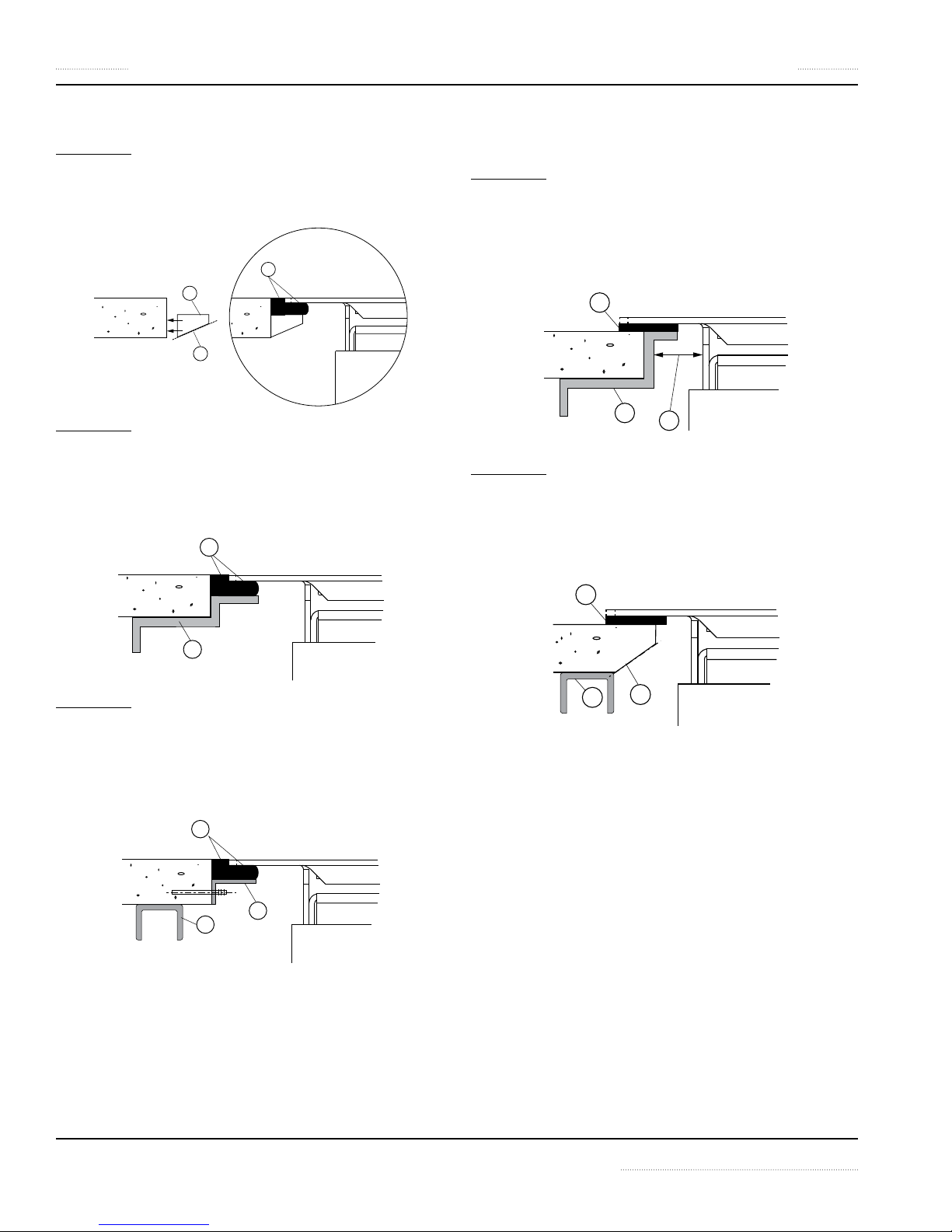

Countertop Support Requirements................................................................................19
Specifications ...................................................................................................................21
Dimensions: Heat Retaining Plate with Flush Mount installation frame (Standard)... 21
Dimensions: Heat Retaining Plate with Top Mount Installation Frame (Option) ......... 22
Dimensions: induction generator ................................................................................................. 23
Dimensions: Control Unit ................................................................................................................. 24
Cut-Out Dimensions: Control Unit Installation Template..................................................... 25
Installation Clearance ........................................................................................................................ 26
Electrical Specifications..................................................................................................................... 26
Configurations...................................................................................................................................... 26
Operating Conditions........................................................................................................................ 26
Parallel Installation and Clearance .................................................................................27
Arranging the Heat Plates................................................................................................................ 27
Non-Stone Counter-Top and Spacing Requirement............................................................... 27
Stone Counter-Top and Spacing Requirement......................................................................... 27
Spacing Requirement for Multiple Appliances......................................................................... 28
Table of Contents
Part Number 4532287 Rev 5 12/15

6 Part Number 4532287 Rev 5 12/15
Table of Contents (continued)
Installation Instructions ..................................................................................................29
Installing Heat Retaining Plate ....................................................................................................... 29
Installing the Induction Generator .............................................................................................. 31
Installing the Control Unit................................................................................................................ 32
Electrical Installation.......................................................................................................................... 33
Function Test.....................................................................................................................35
Installation Appendix A: Main Power Supply Cable Wiring Diagrams.........................36
Section 3
Operation
Operation Safety—Disclaimer........................................................................................................ 37
Operation Safety—Personal Protection...................................................................................... 37
Important Rules—Operation and Maintenance............................................................39
Proper Induction Chafing Dish or Pan............................................................................40
Condition ............................................................................................................................................... 40
Material................................................................................................................................................... 40
Size of PAN ............................................................................................................................................. 41
Placing Pan On A Heat Plate............................................................................................41
Temperature Control and Display...................................................................................42
Digital Display....................................................................................................................................... 42
Automatic Pan Detection, No Pan No Heat ....................................................................42
When Appliance Is Idle.....................................................................................................42
Section 4
Maintenance
Maintenance Safety—Disclaimer.................................................................................................. 43
Dangerous Electrical Voltage.......................................................................................................... 43
Maintenance Safety—Cleaning..................................................................................................... 43
Personal Protection ............................................................................................................................ 44
Daily Cleaning and Maintenance....................................................................................45
Glass Cleaning ...................................................................................................................................... 45
Stainless Steel case ............................................................................................................................. 45
Visual Inspection of Silicone Seal .................................................................................................. 45
Weekly Cleaning and Maintenance ................................................................................45
Air intake filters .................................................................................................................................... 45
Yearly Maintenance..........................................................................................................45
Section 5
Troubleshooting
Dangerous Electrical Voltage.......................................................................................................... 46
Common Problems...........................................................................................................46
Symptoms .........................................................................................................................46
Boil Test .............................................................................................................................46
Troubleshooting Without Error Code / Flash Code........................................................47
Troubleshooting — Error Code / Flash Code..................................................................47
Wearable Parts List...........................................................................................................49

Part Number 4532287 Rev 5 12/15 7
Description of Product
Built with a robust construction, our induction appliances
are compact and powerful with the revolutionary RTCS®
or RTCSmp® Technology (Realtime Temperature Control
System).
The RTCS®/RTCSmp® Technology monitors continuously in
realtime, the energy supply, temperature of the cook zone,
and the state of the components such as the induction coil.
This monitoring system ensures the most efficient energy
transfer, as well as maximizes safety:
• Safety functions such as Pan Detection and Boil Dry
Protection are therefore guaranteed.
• The appliance generates power only when a pan is in
contact with the cook zone surface.
• When a malfunction occurs, the integrated fault
diagnostic system reports the malfunction instantly.
Your induction appliance consists of a number of
components that make designing a flexible and efficient
kitchen an easy task:
• The components are compact and low profile.
• All power and communication connections can be
connected conveniently through plug connections.
Application
The RTCS®/RTCSmp® induction appliances are designed to
be incorporated into a custom-built counter or an island
suite. See section 2 Installation.
Four configuration options are possible because a single
induction generator can power up to four heat retaining
plates.
The induction RTCSmp® Hold-Line models are ideal for
buffets, events and banqueting, providing constant
and precise temperature to ensure top quality food
presentations and appeal.
Operators can adjust the temperature in an increment of
1oC [5oF], within a large temperature range from 50oC to
100oC [122 to 212oF].
The RTCSmp® HO/IN 800/1600/2400/3200 models are
designed to work with induction suitable serving pans in
standard or GN (Gastronorm) sizes such as 1/1, 2/4, 1/2, 2/3,
and 1/3. See section 3 Operation.
Compliances
• North American models:
ETL recognized* in compliance with UL 197, CSA C22.2
No.109, NSF-4. Complies with FCC part 18, ICES-001
*See section 2 Installation.
• CE models comply with the latest European Norms:
EN 60335-1, EN 60335-2-36, EN 62233 (EMC/EMV)
Section 1
General Information

8 Part Number 4532287 Rev 5 12/15
General Information Section 1
Components and Features
1. One (1) to four (4) Heat Retaining Plates
Energy transfer is carried out by induction coils located
beneath the heating surface. Incorporated underneath
glass are also sensors to control temperature accurately.
1.11.2
1.3
1.4
1.11.2
1.3
1.5
1.1 Ceran® glass cooktop
1.2 Digital display
1.3 Cable connectors.
1.4 A built-in mounting frame for flush-mount installation.
1.5 (Option) A built-in mounting frame for top-mount
installation.
2. Control Unit
2.1 2.2
2.3
2.1 Rotary power switch, allows for continuously variable
power adjustment.
2.2 RJ-45 or ethanet cable, to connect to the induction
generator.
2.3 Temperature switch is enclosed in a strong, polymer
housing, covered by a chrome sheet metal plate.
3. Induction Generator
All electronics are contained in a closed aluminum
housing. All electrical connectors are accessible from
the front of the generator.
3.1
3.2
3.3
3.4
3.1 Cable connectors.
3.2 Cooling fan and fresh air intake opening.
3.3 Hot exhaust vent. An air guiding system directs the
exhaust air out from the generator.
3.4 Power supply connection.
Main power supply cable is NOT INCLUDED.
4. Cables
With each heat retaining plate, a coil cable (2.5m [8.2’])
and a sensor cable are provided.
With each control unit, a 3-meter [9.8’] long, CAN/BUS
RJ-45/ethanet Cable is provided.
Main power supply cable is NOT INCLUDED.

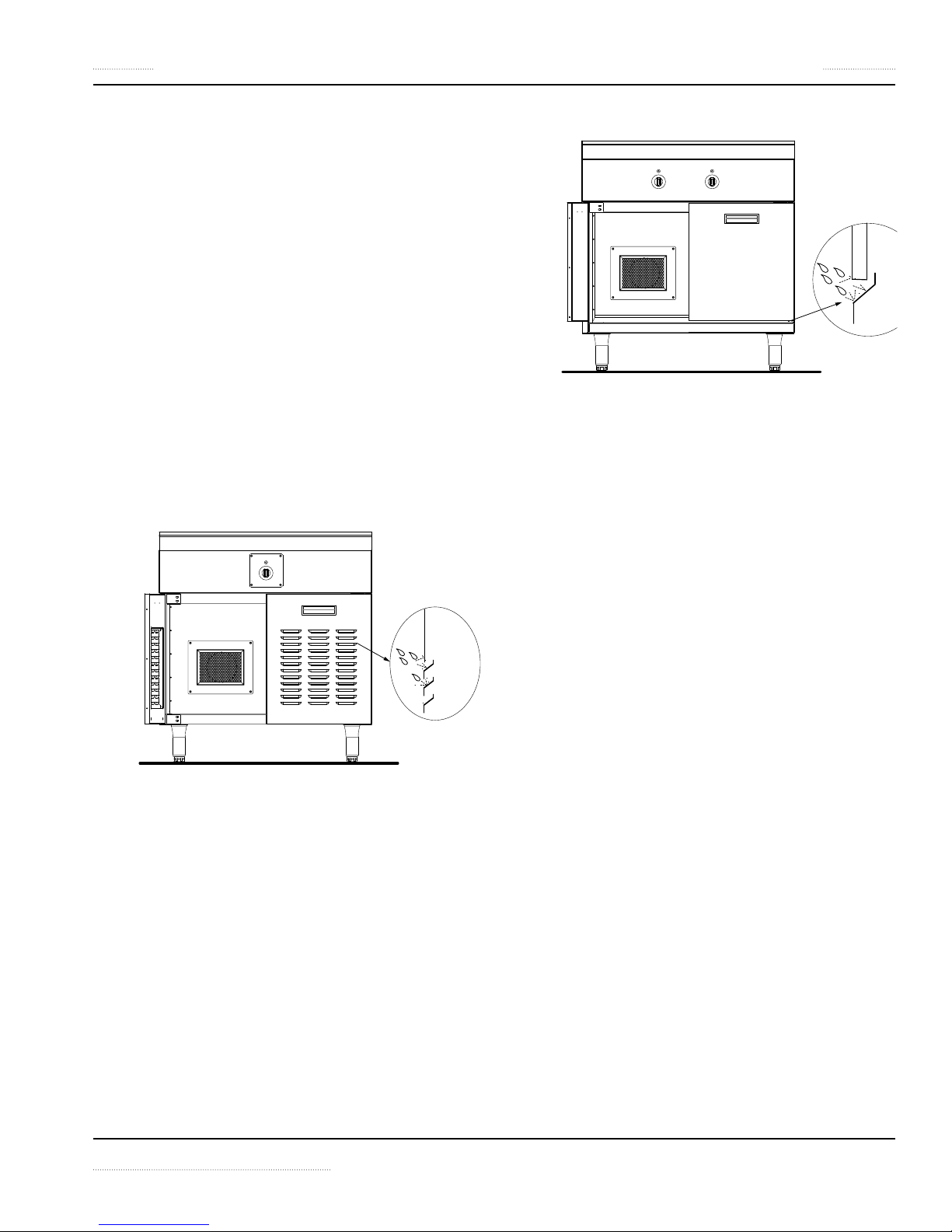

Serial Plate Location
The serial plate specifies the model number, serial number,
and electrical specifications of the appliance.
See illustration below for location.
Model Number
The model number is located on the serial plate.
NOTE: The model number on the serial plate is the model
number of the induction generator.
This manual covers the following models:
HO/IN 1-4 3200-GN
MARKETING IDENTIFIER
The marketing identifiers, which are used in brochures
and other marketing communications, indicate the type
of function and size of your appliance. To identify the
specific configuration of your appliance, use the marketing
identifier:
Marketing Identifier Number of Heat Plates
HO/IN 800 1
HO/IN 1600 2
HO/IN 2400 3
HO/IN 3200 4
READING THE MODEL NUMBER
Induction Generator
Example: HO/IN 1-4 3200-GN
3
2
14 5
1Product Series HO = Hold Line
2Built-In IN = Built-In Line
3Number of Heat Plates From 1to 4
4Power (Watt) 3200
5Function GN = Gastronorm Size Pans

Part Number 4532287 Rev 5 12/15 9
Section 1 General Information
The serial number is located on the serial plate.
READING THE SERIAL NUMBER
Example: BA01 . 00014 . 1214
3 4 5
2
1
1Type of induction appliance:
BA = Base Line Series (Counter-Top Cook-Top)
IN = Built-In Series
WO = Counter Wok Series
MO = Module Line Series
HO = Hold Line Series
GR = Griddle Line Series
2Last two(2) or three(3) digits of the appliance article number
or part number that can be found on the invoice or the
packing slip.
3A sequential number:
• A 4-digit sequence number indicates that the
appliance is not RTCS® nor RTCSmp®.
• A 5-digit sequence number indicates that the
appliance is either a RTCS® or RTCSmp® appliance.
• A RTCSmp® appliance is marked as such on the serial
plate.
4Month of manufacture: 01,02,03,04,...
5Year of manufacture: 2014 (14), 2015 (15), ...
Marketing Identifier
Example: HO/IN 3200
3
2
1
1Product Series HO = Hold Line
2Built-In IN = Built-In Line
3Power (Watt) of Total Heat Plates 800, 1600, 2400, 3200
Serial Number
Accessories
Induction cooking equipment requires Induction Ready
pans to operate. Please consult your equipment supplier for
a list of our pan selection and prices.

10 Part Number 4532287 Rev 5 12/15
General Information Section 1

Part Number 4532287 Rev 5 12/15 11
Section 2
Installation
INSTALLATION SAFETYDISCLAIMER
DANGER
Installation must be carried out by registered installation
contractors only.
The contractors are responsible for interpreting all
instructions correctly and performing the installation
in compliance with all applicable national and local
regulations.
The warning signs and serial plates on the equipment
must strictly be followed.
nWarning
This equipment is intended for indoor use only. Do not
install or operate this equipment in outdoor areas.
nWarning
To avoid instability, the installation area must be capable
of supporting the combined weight of the equipment
and food product. The equipment must be level side to
side and front to back.
,Caution
Consultants, fabricators and designers must consult their
counter-top suppliers when designing an appropriate
support structure and clearance for the counter-top and
the installation.
Notice
Induction equipment that is not installed correctly will
have warranty voided.
INSTALLATION SAFETYCLEARANCE AND
VENTILATION
DANGER
Risk of Fire or Shock or Equipment Failure
All minimum clearances must be maintained. Air intake
vents and exhaust vents must not be blocked or be
restricted by the installation.
IMPORTANT INSTALLATION SAFETY AND ELECTRICAL REQUIREMENTS
nWarning
Safety and Electrical Requirements
This appliance component requires additional features and components to comply with appliance and electrical
standards.
It is the responsibility of the customer and installer to interpret and comply with all applicable national and
regional health codes, safety and electrical standards in your jurisdiction.
This product requires the addition of:
• A suitable non-flammable electrical enclosure; a means to conceal and protect components and wiring.
• Grounding and bonding to the enclosure.
• An appliance rating plate that includes end manufacturer information.
• Investigation by local electrical authority. Warning, caution labels and other markings required by electrical
and safety standards could be provided by local authority.
Depending on the application and configuration of this product(s), consider the addition of:
• Field supply connection terminals (terminal block).
• Branch circuit protection (breakers).
• Fans, ventilation or cooling systems and controls.
nWarning
The induction appliance is designed to be installed into a custom built counter or an island suite.
The appliance includes a number of components that have to be installed separately. Customers are responsible for
providing proper installation mounting for the components.
Read ALL SECTIONS carefully, comply with all requirements listed and ensure inspection is done by qualified personnel.

12 Part Number 4532287 Rev 5 12/15
Installation Section 2
,Caution
This equipment must only be operated under an
approved ventilation system in accordance with all
applicable national and local regulations. Exceptions
may apply.
Notice
The maximum ambient temperature for the
induction appliance to operate must not exceed
40°C [104°F].
Failure to provide adequate ventilation will cause
the appliance to overheat, to reduce power, or to
shutdown.
NOTE: Always maintain enough space between and
around the equipment for maintenance and service.
INSTALLATION SAFETYELECTRICAL
DANGER
All electrical connections must be carried out by a
certified electrical contractor, who is responsible for
the correct rating and installation of the appliance. The
contractor has to comply with all legal safety regulations
and all applicable national and local electrical codes.
nWarning
Markings and warning labels mounted directly on the
equipment must be observed at all times and kept in a
fully legible condition.
nWarning
This equipment must be positioned so that the plug is
accessible unless other means for disconnection from
the power supply, such as circuit breaker or disconnect
switch, is provided.
nWarning
CE Induction Appliance only: If ground fault current
protective switches are used, they must be provided
with selective activation and designed for a minimum
fault current of 30mA.
Notice
Ensure the supply voltage and the line current match
the specifications given on the serial plate affixed to the
appliance. Wrong voltage will damage the appliance. A
stable power supply must be provided.
Notice
Always refer to the serial plate on the appliance to verify
the electrical data. When the data listed on the serial
plate is different than that listed in this manual, contact
the manufacturer or the authorized representative.
Notice
All cables must be routed, protected and tension free.
PERSONAL PROTECTION
DANGER
All utilities (gas, electric, water and steam) must be
OFF to all equipment and locked out of operation
according to national/regional, as well as company
approved practices during installation, maintenance
and servicing. Always allow appliance to cool.
DANGER
Use appropriate safety equipment during installation,
maintenance and servicing.
DANGER
Never stand, sit, or lean on the equipment! They are
not designed to hold the weight of an adult, and may
collapse or tip if misused in this manner.
DANGER
To avoid cardiac pacemaker malfunction, consult your
physician or pacemaker manufacture about effects of
electromagnetic field on your pacemaker.
nWarning
Markings and warning labels mounted directly on the
equipment must be observed at all times and kept in a
fully legible condition.
nWarning
Risk of burns from high temperatures.You may get burnt
if you touch any of the parts during operation. Surfaces
close to the cooking area including side panels may get
hot enough to burn skin. Use extreme caution to avoid
coming in contact with hot surfaces or hot grease. Wear
personal protective equipment.
,Caution
Use caution when handling metal surface edges of all
equipment.

Part Number 4532287 Rev 5 12/15 13
Section 2 Installation
Exploded View of a Typical Installation
(Shown below, HO/IN 3200.)
4
1
2
3
5
1Heat Retaining Plate
2Control Unit
3Induction Generator
4(NOT Provided) Air Intake filter and holder. See details in Typical Applications on page 16.
5(NOT Provided) PACTAN silicone sealant for installation. Part Number = 70000015

14 Part Number 4532287 Rev 5 12/15
Installation Section 2
Planning for Installation
1The induction appliance is designed to be installed
into a custom built counter or an island suite. You
must plan ahead for the location, ventilation and
electrical requirements for the induction appliance.
See sections:
• Electrical safety at the beginning of this chapter.
• Cabinet Requirements on page 14
• Typical Applications on page 16
• Specifications on page 21
2At the design stage, it is important to consult your
electrical contractor to ensure your cabinet design
and installation will meet all applicable electrical and
safety codes. See sections:
• Electrical safety at the beginning of this chapter.
• Electrical Specifications on page 26
• Electrical Installation on page 33
3Your custom built counter or island suite must have
proper support structure for the countertop,
the appliance and cooking vessels. The support
structure will depend on the installation method, the
countertop material and thickness. See section:
• Countertop Support Requirements on page
19
4We recommend consulting a mechanical
contractor to advise on the structure, ventilation
methods and the overall design. See sections:
• Cabinet Requirements on page 14
• Typical Applications on page 16
• Specifications on page 21
5The equipment includes a number of components
that have to be installed separately. Ensure
you understand the clearance requirements and
installation methods. See sections:
• Exploded View of a Typical Installation on page
13
• Specifications on page 21
6An exploded view of a typical installation is provided.
It is very important to seal all installation gaps
with silicone sealant to prevent water ingress. See
sections:
• Exploded View of a Typical Installation on page
13
• Installation Instructions on page 29
Cabinet Requirements
Read and understand all installation
safety instructions at the beginning of
Section 2 Installation.
1PLACE THE INDUCTION APPLIANCE AWAY FROM HEAT AND MOISTURE
• Similar to other electronic equipment, induction
equipment is sensitive to moisture and high heat.
Recommendations
• Do not position the air intake vent near steam or
heat exhaust of another appliance.
• Never place your induction equipment next to
any grease generating, heat generating or steam
emitting equipment, such as oven, deep fryer,
pasta cooker, steamer and water bath.
• Never install or place your induction equipment
near or on a hot surface.
• Isolate and protect the electronic equipment and
wiring with a separate compartment. Install heat
shield such as an insulated wall or air gap.
2PROVIDE ADEQUATE VENTILATION AND MANAGE AIRFLOW
• Maximum ambient temperature for the
induction appliance to operate must not exceed
40°C [104°F].
• Fresh air intake and hot exhaust vents must not be
blocked or restricted by the installation.
• Ensure the appliance does not pull in hot ambient
air or steam from another appliance.
• The intake air and exhaust air must not mix. Hot
exhaust must not be pulled back into the appliance
through the fresh air intake opening.
• Air intake filter, installed on the appliance or
installed with an air intake duct, must be easily
accessible for weekly cleaning.
Recommendations
• Install the fresh air intake kit or provide a custom
built fresh air intake plenum for low profile
application.
• Install louvered opening or ventilation gaps to aid
air movement and to allow hot exhaust to escape.
• Depending on the air path and the amount of
natural air movement, install ventilation fan on the
cabinet to pull quickly hot exhaust away from the
electronic equipment. As an alternative, provide a
separate exhaust air plenum.

Part Number 4532287 Rev 5 12/15 15
Section 2 Installation
NOTE: Additional air filters, ventilation fans, cooling
controls, and air ducts are the responsibility of the
customer and installer.
3PREVENT WATER INGRESSION
• Any ingress of water will damage the electronic
equipment.
Recommendations
• Consider cleaning method and how it might
impact your cabinet design.
• All mating surfaces and installation gaps between
the countertop and the appliance must be bonded
and sealed properly with silicone.
• Design and construct ventilation gaps in such a
ways that they would prevent water ingress.
Examples below shown that bent flanges are
created behind louvered openings (Example 1)
or ventilation gaps (Example2) to deflect water
splashes.
Example 1.
Example 2.
4ELIMINATE FIRE HAZARDS
• Comply with all ventilation and installation
clearances.
• Keep the appliance away from combustible
materials, vapors or liquids.
• Final cabinet construction and installation must
comply with all applicable national and local
electrical and safety codes.
5PROVIDE SAFE DISCONNECT FROM POWER
SUPPLY
• The appliance is intended to be permanently
connected to fixed wiring. Other means for
disconnection from power supply, such as circuit
breaker or disconnect switch, must be accessible.
Consult your local authorities or your electrical
contractor for details.
6PROVIDE SERVICE CLEARANCE
• Provide enough space and service access for
technicians to perform maintenance and service.

16 Part Number 4532287 Rev 5 12/15
Installation Section 2
Typical Applications
In this section you will find examples of the most common
installations for the induction appliance.
Use the list of features below as your design guideline to
ensure a proper cabinet is used for the application and
installation.
IMPORTANT DESIGN FEATURES
Install the Induction Generator in a separate
compartment away from heat and moisture. Ensure to
have adequate ventilation:
1The intake air must always be filtered. Install the
filter at the front or at a location where it can be
accessed easily for regular cleaning.
2The exhaust vent is located on the side of the
generator. Consider to create a baffle to prevent the
exhaust air from mixing with the fresh intake air. As an
alternative, create an exhaust air plenum.
3Louvered openings or ventilation gap facilitate
proper air-flow.
Safe electrical environment:
4An enclosed compartment protects the electronic
appliance and wiring from the environment.
Personnel are also protected from the electronics and
the electrical cables.
5It is important that the coil cables are routed
separately from other communication and power
cables.
6The appliance is intended to be permanently
connected to fixed wiring. Other means for
disconnection from power supply, such as circuit
breaker or disconnect switch, must be accessible.
NOTE: National and local electrical codes dictate the
electrical requirements. Consult your local authorities
or your electrical contractor for details.
7Circuit breaker box shown.
Water-tight environment:
8Mating surfaces between the appliance and
coutertop are sealed with silicone (not shown, see
Installation Instructions on page 29).
9Design and construct ventilation gaps that
could prevent water ingress (not shown, see Cabinet
Requirements on page 14).

Part Number 4532287 Rev 5 12/15 17
Section 2 Installation
APPLICATION EXAMPLE 1
• The equipment is built into a large, enclosed
compartment. There is ample of space to install the
appliance and to service the equipment.
• The air filter is removable and mounted onto a panel
behind the cabinet door.
,Caution
When a short, direct path to the air intake fan/
opening is used, ensure to provide finger guard on
the fan.
• Illustration, bottom, shows an example of a
compartment for the generator. The generator is
installed behind an access panel. Air filter is installed
on the panel. An exhaust opening is created on the
baffle or partition. The exhaust is vented into a separate
channel or chamber and then outside the cabinet.
Distance between the exhaust openings and any
obstruction is minimum 40mm [1.57”].
• Air intake filter and holder shown are not provided.
Illustration, item 11: Plastic holder, part number
72261030. This holder can be mounted directly onto the
bottom of the cabinet. Item 12, reusable and dishwasher
safe air filter, part number 71000003.
• See xx for the descriptions of items 1to 7in
illustration.
6
1
2
3
3
4
7
5
Application Example 1: Equipment Built Into A Large Compartment.
Indicates the direction of airflow for fresh air. Indicates the direction of airflow for exhaust air.
12
11
2
1
Application Example 1: Induction Generator Built Into A Compartment.
Indicates the direction of airflow for fresh air. Indicates the direction of airflow for exhaust air.

18 Part Number 4532287 Rev 5 12/15
Installation Section 2
APPLICATION EXAMPLE 2
• The equipment is built into a small, enclosed
compartment of a buffet counter with an open base.
• Illustration, bottom, shows an example of mounting
the generator horizontally with the cooling fan on
the bottom. Risers or brackets are used to secure the
generator (below, item 13, not provided).
• This application requires a custom made, short fresh
air intake path (below, item 10, not provided). The
fresh air intake vent can be installed on the base of the
compartment.
,Caution
When a short, direct path to the air intake fan is
used, ensure to provide a finger guard on the fan.
• Air intake filter and holder shown are not provided.
Illustration, item 11: Plastic holder, part number
72261030. This holder can be mounted directly onto the
bottom of the cabinet. Item 12, reusable and dishwasher
safe air filter, part number 71000003.
• See xx for the descriptions of items 1to 7in
illustration.
3
1
2
4
5
7
6
Application Example 2: Equipment Built Into A Counter With An Open Base.
Indicates the direction of airflow for fresh air. Indicates the direction of airflow for exhaust air.
12
13
1
11
10
1
Application Example 2: Side View of Induction Generator and Custom Made Air Intake Path.
Indicates the direction of airflow for fresh air. Indicates the direction of airflow for exhaust air.

Part Number 4532287 Rev 5 12/15 19
Section 2 Installation
Countertop Support Requirements
,Caution
Consultants, fabricators and designers must consult their
countertop suppliers when designing an appropriate
support structure and clearance for the countertop and
the installation.
DANGER
Risk of Fire or Shock or Equipment Failure
All minimum clearances must be maintained. Air intake
vents and exhaust vents must not be blocked or be
restricted by the installation.
The induction appliance can be installed either top-mount
or flush-mount. This section provides examples of possible
support structures for your consideration.
Flush-Mount Installation On A Typical Countertop
EXAMPLE 1
(i) A typical countertop of 2 to 3 mm thick. (ii) A
support bracket is stud-mounted (or welded) onto the
underside of the countertop. The bracket is bended to
provide the required recess height. (iii) Silicone sealant
shown.
i
ii
iii
EXAMPLE 2
(i) A countertop is machined to provide a recess flange.
Typically, a 1mm [18-gauge] thick countertop is used
for this type of application. (ii) Silicone sealant shown.
iii
EXAMPLE 3
(i) A plate steel countertop is thick enough for the
required recess height. (ii) A flat plate is attached to
the countertop as the installation support. (iii) Silicone
sealant shown.
i
ii
iii

20 Part Number 4532287 Rev 5 12/15
Installation Section 2
Flush-Mount Installation On Stone Countertop
EXAMPLE 4
(i) A stone block is glued to the stone countertop. (ii)
A chamfer is necessary to provide adequate exhaust
clearance. (iii) Silicone sealant shown.
i
ii
iii
EXAMPLE 5
(i) A support bracket (minimum 2mm [14 gauge]) is
stud-mounted onto the underside of the countertop.
The bracket is bended at both ends to provide the
required recess height and to reinforce the countertop.
(ii) Silicone sealant shown.
i
ii
EXAMPLE 6
(i) A support bracket (typical 1mm [18 gauge]) is
mounted onto the cut-out area of the countertop. (ii)
Additional reinforcement might be needed (typical
minimum 2mm [14-gauge] bracket used). (iii) Silicone
sealant shown.
i
ii
iii
Top-Mount Installation On Stone Countertop
(Option, Heat Plate with Top Mount Installation Frame)
EXAMPLE 7
(i) A support bracket (minimum 2mm [14-gauge]) is
stud-mounted onto the countertop. The bracket is
bended at both ends to provide the required air gap
(below, item ii) and to reinforce the countertop. (iii)
Silicone sealant shown.
iii
iii
EXAMPLE 8
(i) A chamfer is made in the stone countertop
to provide the required air gap. (ii) Additional
reinforcement might be needed (typical minimum
2mm [14-gauge] bracket used). (iii) Silicone sealant
shown.
i
iii
ii
