Metrohm OMNIS 6.03001.120 User manual

OMNIS Cylinder unit
6.03001.XX0
Product manual
8.0108.8010EN / 2018-08-17

Metrohm AG
Ionenstrasse
CH-9100 Herisau
Switzerland
Phone [phone]
Fax [phone]
[email protected]
www.metrohm.com
OMNIS Cylinder unit
6.03001.XX0
Product manual
8.0108.8010EN /
2018-08-17

Technical Communication
Metrohm AG
CH-9100 Herisau
[email protected]
This documentation is protected by copyright. All rights reserved.
This documentation has been prepared with great care. However, errors
can never be entirely ruled out. Please send comments regarding possible
errors to the address above.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents
OMNIS Cylinder unit
￭￭￭￭￭￭￭￭ III
Table of contents
1 Overview 1
1.1 Cylinder unit – Brief description .......................................... 1
1.2 Cylinder unit – Product versions .......................................... 1
1.3 About the documentation ................................................... 2
1.4 Additional information ......................................................... 3
1.4.1 Accessories .............................................................................. 3
2 Safety 4
2.1 Product safety ....................................................................... 4
2.2 Hazard levels ......................................................................... 4
2.3 Warning symbols .................................................................. 5
2.4 Intended use ......................................................................... 6
2.5 Residual risks ........................................................................ 6
2.5.1 General dangers at the workplace ........................................... 6
2.5.2 Danger from biological substances .......................................... 7
2.5.3 Danger from highly flammable substances ............................... 8
2.6 Responsibility of the operator ............................................. 8
2.7 Personnel requirement ......................................................... 8
3 Functional description 9
3.1 Dosing unit – Overview ........................................................ 9
3.1.1 Cylinder unit – Overview ........................................................ 11
3.2 Dosing unit – Function ....................................................... 12
3.2.1 Cylinder unit – Function ......................................................... 13
4 Transport and storage 14
4.1 Checking the delivery ......................................................... 14
4.2 Storing the packaging ........................................................ 14
5 Installation 15
5.1 Installation by Metrohm .................................................... 15
6 Initial start-up 16
6.1 Initial start-up by Metrohm ............................................... 16
7 Operation and control 17
7.1 Operation ............................................................................ 17

Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
IV ￭￭￭￭￭￭￭￭
OMNIS Cylinder unit
7.2 Dismantling the cylinder unit ............................................ 17
7.3 Mounting the cylinder unit ................................................ 20
7.4 Storing the cylinder unit .................................................... 23
7.5 Refitting the cylinder unit .................................................. 23
8 Maintenance 24
8.1 Cylinder unit – General maintenance ................................ 24
8.2 Maintenance agreement .................................................... 25
8.3 Cleaning the product .......................................................... 25
8.4 Disassembling the cylinder unit ........................................ 27
8.5 Cleaning the cylinder unit .................................................. 32
8.6 Cylinder unit – Cleaning the electrical contacts ............... 34
8.7 Assembling the cylinder unit ............................................. 35
9 Malfunctions and troubleshooting 41
9.1 Troubleshooting .................................................................. 41
10 Disposal 42
11 Technical specifications 43
11.1 Ambient conditions ............................................................ 43
11.2 Cylinder Unit – Energy supply ............................................ 43
11.3 Cylinder Unit – Dimensions ................................................ 43
11.4 Cylinder Unit – Housing ...................................................... 44
11.5 Cylinder Unit – Connectors specifications ........................ 44
11.6 Cylinder Unit – Liquid Handling specifications ................. 44
12 OMNIS dosing unit – Explanations regarding dosing accu-
racy 45

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview
￭￭￭￭￭￭￭￭ 1
1 Overview
1.1 Cylinder unit – Brief description

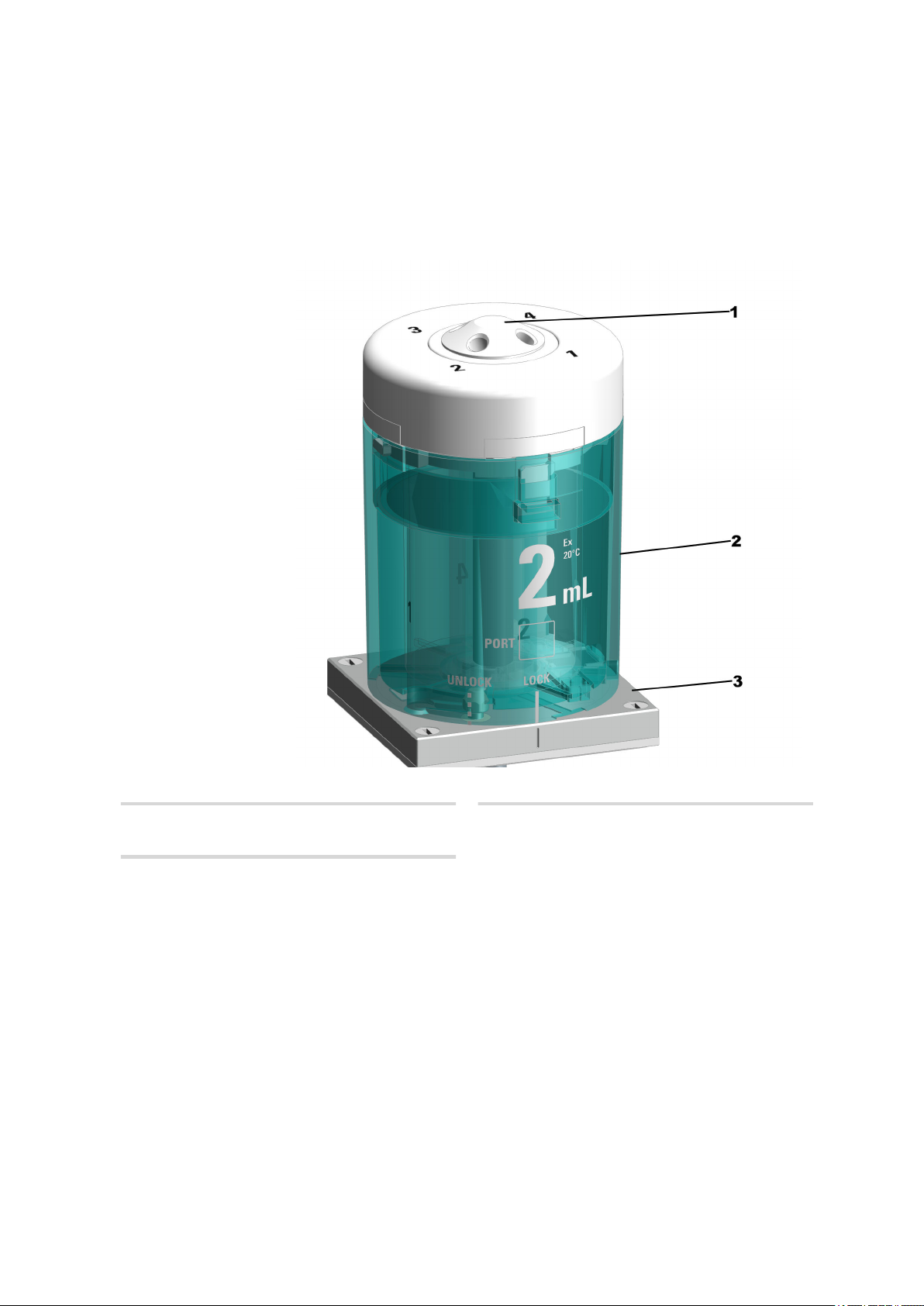

The dosing unit is used for the accurate dosing of liquid volumes in an
OMNIS analysis system. The dosing unit is comprised of the dosing drive
and the cylinder unit. The cylinder unit provides the liquid volume required
for the analysis.

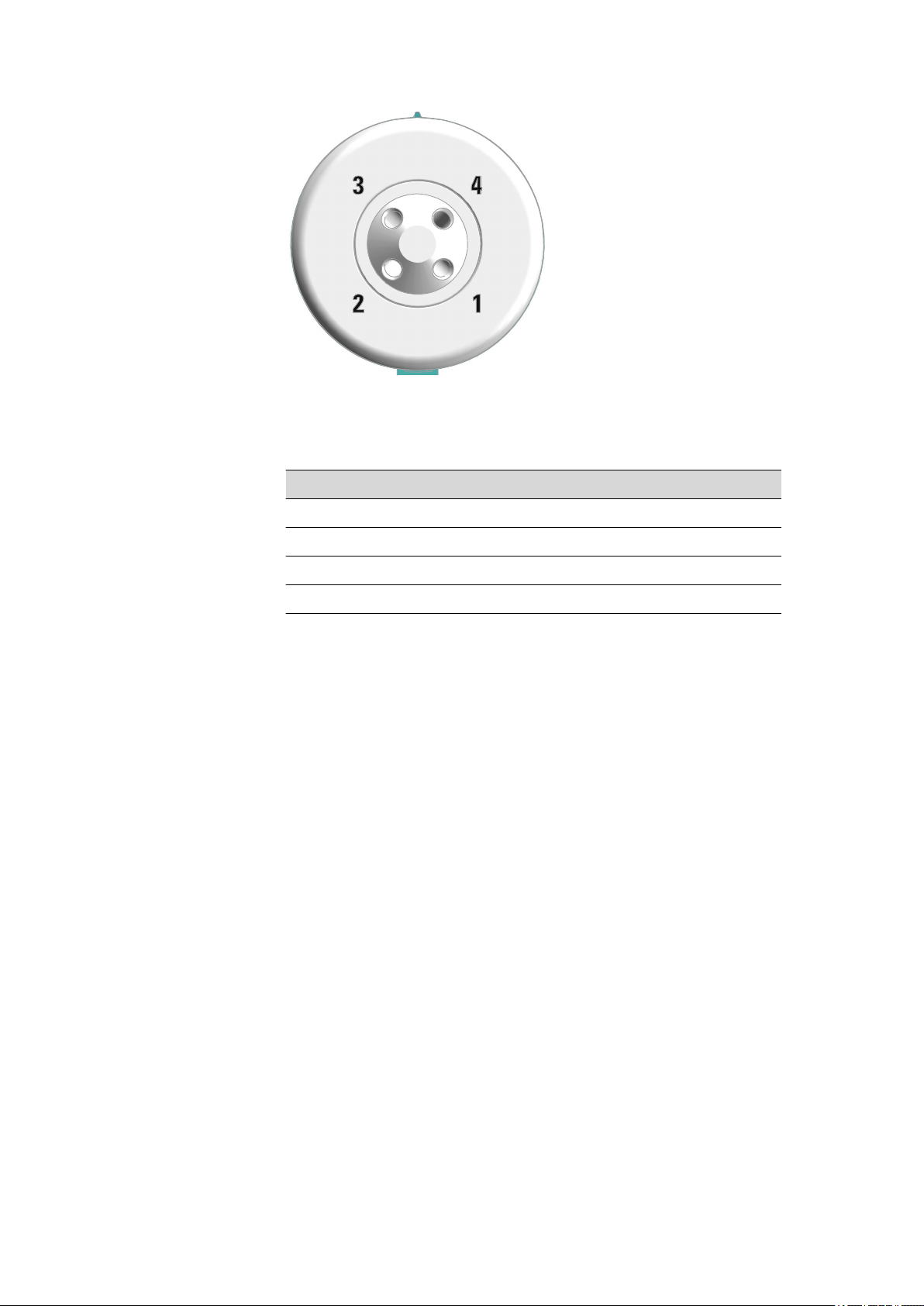

The cylinder unit is equipped with a distributor with four ports.
The cylinder units are available in various versions. The versions are distin-
guished according to their volumes.
1.2 Cylinder unit – Product versions
The product is available in the following versions:
Table 1 Product versions
Art. no. Designation Version feature
6.03001.120 Cylinder unit 2 mL Volume 2 mL
6.03001.150 Cylinder unit 5 mL Volume 5 mL
6.03001.210 Cylinder unit 10 mL Volume 10 mL
6.03001.220 Cylinder unit 20 mL Volume 20 mL
6.03001.250 Cylinder unit 50 mL Volume 50 mL

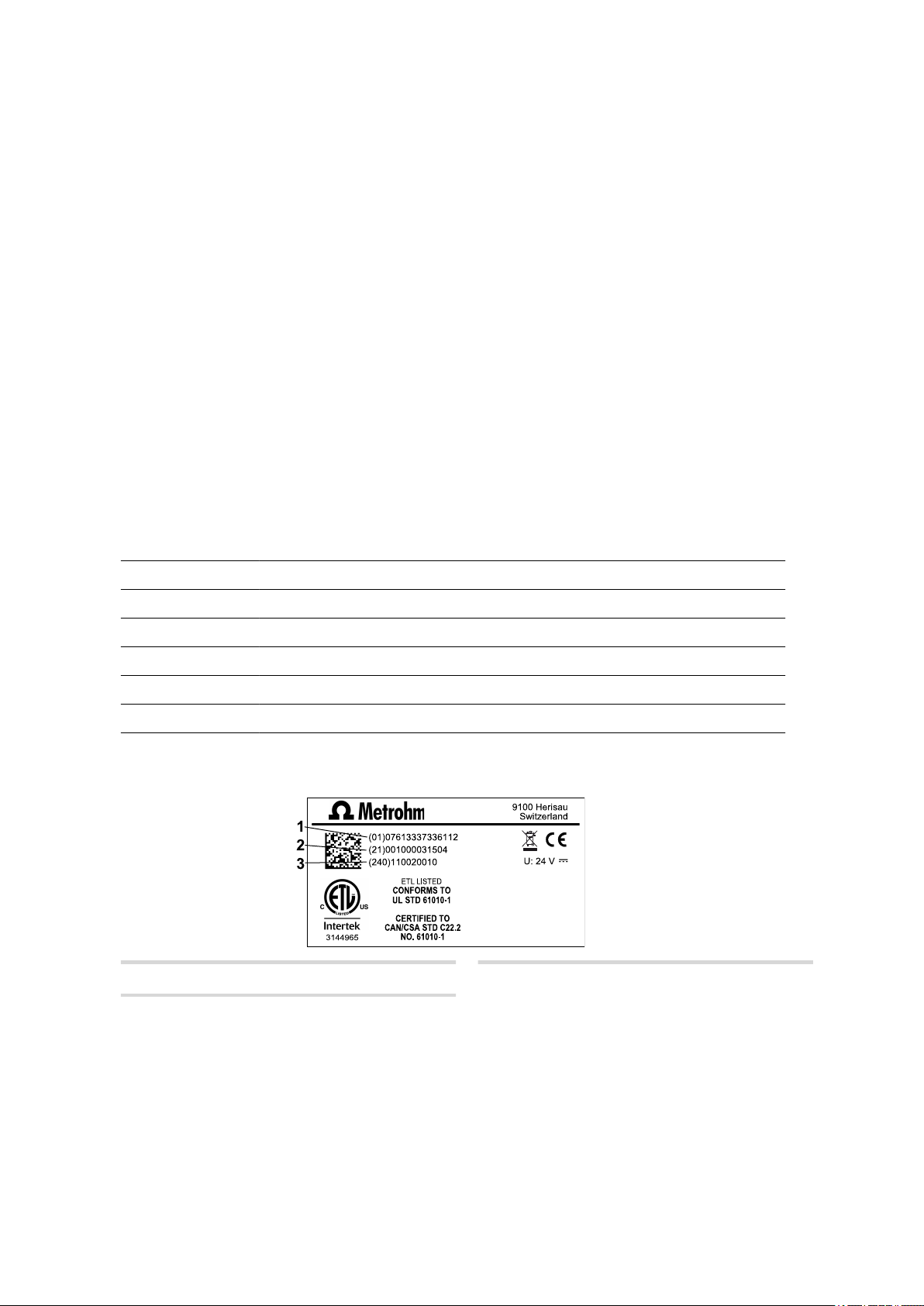

The required numbers for the customer service can be found on the type
plate (see example):
1(01) = External article number 2(21) = Serial number
3(240) = Metrohm article number

About the documentation ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2￭￭￭￭￭￭￭￭
NOTICE
Information on the accessories for the respective product version can
be obtained either on the Internet at http://www.metrohm.com or
via your regional Metrohm representative.
1.3 About the documentation
NOTICE
Please read through this documentation carefully before putting the
product into operation.
The documentation contains important information and warnings
which you must follow in order to ensure safe operation of the prod-
uct.
Symbols and conventions
The following icons and formatting may appear in this documentation:
Cross-reference to figure legend
The first number refers to the figure number, the sec-
ond to the product part in the figure.
Instruction step
Carry out these steps in the sequence shown.
Method Designations for names of parameters, menu items,
tabs and dialog windows in the software.
File ▶ New Menu or menu item
Work area /
Properties
Menu paths in order to arrive at a particular position
in the software.
[Next] Button or key

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Overview
￭￭￭￭￭￭￭￭ 3
1.4 Additional information
Additional information concerning the topic can be found:
￭in the software help
￭in the Metrohm information portal on the Internet https://
guide.metrohm.com
1.4.1 Accessories
Up-to-date information on the scope of delivery and optional accessories
for your product can be found on the Internet. You can download this
information using the article number as follows:
Downloading the accessories list
1Enter https://www.metrohm.com/ into your Internet browser.
2Enter the article number of the product (e.g. 2.1001.0010) into the
search field.
The search result is displayed.
3Click on the product.
Detailed information regarding the product is shown on various tabs.
4On the Included parts tab, click Download the PDF.
The PDF file with the accessories data is created.
NOTICE
When you receive your new product, we recommend downloading
the accessories list from the Internet, printing it out and keeping it for
reference purposes.

Product safety ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4￭￭￭￭￭￭￭￭
2 Safety
2.1 Product safety
This product exhibited no flaws in terms of technical safety at the time it
left the factory. To preserve this status and ensure non-hazardous opera-
tion of the product, the following instructions must be observed carefully.
2.2 Hazard levels
The following warning messages indicate the severity of the danger and
its possible effects.
DANGER
Immediate danger of life
Irreversible injuries that will result in death.
Warns of dangerous situations or unsafe actions that will most cer-
tainly cause severe injuries or death.
Lists measures to avoid hazard.
WARNING
Severe health hazards
Serious injuries that could result in death.
Warns of dangerous situations or unsafe actions that could result in
serious injuries or death.
Lists measures to avoid hazard.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety
￭￭￭￭￭￭￭￭ 5
CAUTION
Health hazards or severe property damage
Warns of dangerous situations or unsafe actions that could result in
moderate injuries or considerable property damage.
Lists measures to avoid hazard.
2.3 Warning symbols
Make sure that any additional hazard symbols are marked on the product
for your operation of the product.
The following warning symbols in the documentation and at hazard areas
of the product point out hazard potentials:
– Warning of a hazard area
NOTICE
Warning symbol on the product
If this warning symbol is on the product, read the respective docu-
mentation prior to installation and initial start-up.
– Warning of electric shock from electrical potential
– Warning of danger of fire and explosion from highly flammable
substances and gases
– Warning of danger of poisoning and chemical burns from chemi-
cal hazardous substances
– Warning of danger of infection and poisoning from biological
hazardous substances
– Warning of risk of injury from high temperatures

Intended use ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
6￭￭￭￭￭￭￭￭
– Warning of cut injuries from pieces of broken glass and/or sharp
edges
– Warning of risk of injury by laser radiation
– Warning of dangerous optical radiation
2.4 Intended use
Metrohm products are used for the analysis and handling of chemicals.
Usage therefore requires the user to have basic knowledge and experience
in handling chemicals. Knowledge regarding the application of fire preven-
tion measures prescribed for laboratories is also mandatory.
Adherence to this technical documentation and compliance with the
maintenance specifications make up an important part of intended use.
Any utilization in excess of or deviating from the intended use is regarded
as misuse.
Specifications regarding the operating values and limit values of individual
products are contained in the "Technical specifications" section, if relevant.
Exceeding and/or not observing the mentioned limit values during opera-
tion puts people and components at risk. The manufacturer assumes no
liability for damage due to non-observance of these limit values.
The EU declaration of conformity loses its validity if modifications are car-
ried out on the products and/or the components.
2.5 Residual risks
2.5.1 General dangers at the workplace
Generally, the regulations and provisions of the regulatory institutions and
authorities in the field of work apply.
The instructions regarding the following areas have to be followed when
using the products:
￭Work safety
￭Handling mechanical installations
￭Handling electricity
￭Handling hazardous and environmentally damaging substances
￭Handling hazardous and environmentally damaging liquids
￭Disposing hazardous and environmentally damaging substances
If they are not followed, this may result in:

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Safety
￭￭￭￭￭￭￭￭ 7
￭Disturbing, injuring and/or killing of people
￭Malfunction and/or damage to instruments and infrastructure
￭Damage and/or contamination of the environment
WARNING
General dangers at workplace
If the safety measures are not followed, working in a laboratory bears
a high risk of injury, which can endanger life and health.
￭Only professionally trained and qualified specialist personnel may
operate the products.
￭Follow the applicable provisions concerning work safety and all
regulations on wearing protective clothing.
￭Use suitable tools to perform your work.
￭Check the fill level of waste bottles or waste canisters and analysis
vessels, and make sure they do not overflow.
￭Use protective grounding when working with highly flammable
substances and gases.
2.5.2 Danger from biological substances
If the product is used for biological hazardous substances, it must be
marked in accordance with regulations.
In case of a return shipment to Metrohm or a Metrohm Service partner,
the product or product component has to be decontaminated and the
hazard symbol for biological hazardous substances must be removed. A
declaration of decontamination must be enclosed.
WARNING
Danger of infection and poisoning from biological hazardous
substances
Poisoning from toxins and/or infections from samples contaminated
with microorganisms.
￭Clean and disinfect contaminated surfaces.
￭Wear protective equipment.
￭Use exhaust equipment when working with vaporizing hazardous
substances.
￭Dispose of biologically contaminated substances properly.

Responsibility of the operator ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
8￭￭￭￭￭￭￭￭
2.5.3 Danger from highly flammable substances
WARNING
Danger of fire and explosion from highly flammable substances
and gases
Burns from fire and/or injuries from explosions.
￭Avoid ignition sources.
￭Use protective grounding.
￭Use exhaust equipment.
2.6 Responsibility of the operator
￭Eliminate defects or damage which impair operating safety without
delay.
￭Eliminate malfunctions which could impair safety without delay.
￭The rules, regulations and instructions listed in the present document
are not the only valid ones. Comply with the applicable statutory rules,
government agency directives and regulations.
￭Unauthorized modification of the products excludes any and all liability
on the part of the manufacturer for any damage resulting from this as
well as for any consequential damage. No modifications, attachments
or conversions which could impair safety may be carried out on the
products without the approval of the manufacturer.
￭Spare parts must meet the technical requirements established by the
manufacturer. Original spare parts always meet these requirements.
￭Personnel must be familiar with this safety-relevant information and it
must be available for consultation at all times.
2.7 Personnel requirement
Only qualified personnel may operate the present product.
Qualified personnel are people authorized by the safety responsible to
carry out the necessary operations. They are capable of recognizing and
avoiding possible dangers. These people are qualified due to their profes-
sional training, experience and/or instruction. They know the relevant
standards, laws, provisions, accident prevention regulations and the com-
pany conditions.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Functional description
￭￭￭￭￭￭￭￭ 9
3 Functional description
3.1 Dosing unit – Overview
Figure 1 Dosing unit – Overview
1Distributor
With four ports
2Cylinder unit
Available with various volumes
3Dosing drive
Installed

Dosing unit – Overview ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10 ￭￭￭￭￭￭￭￭

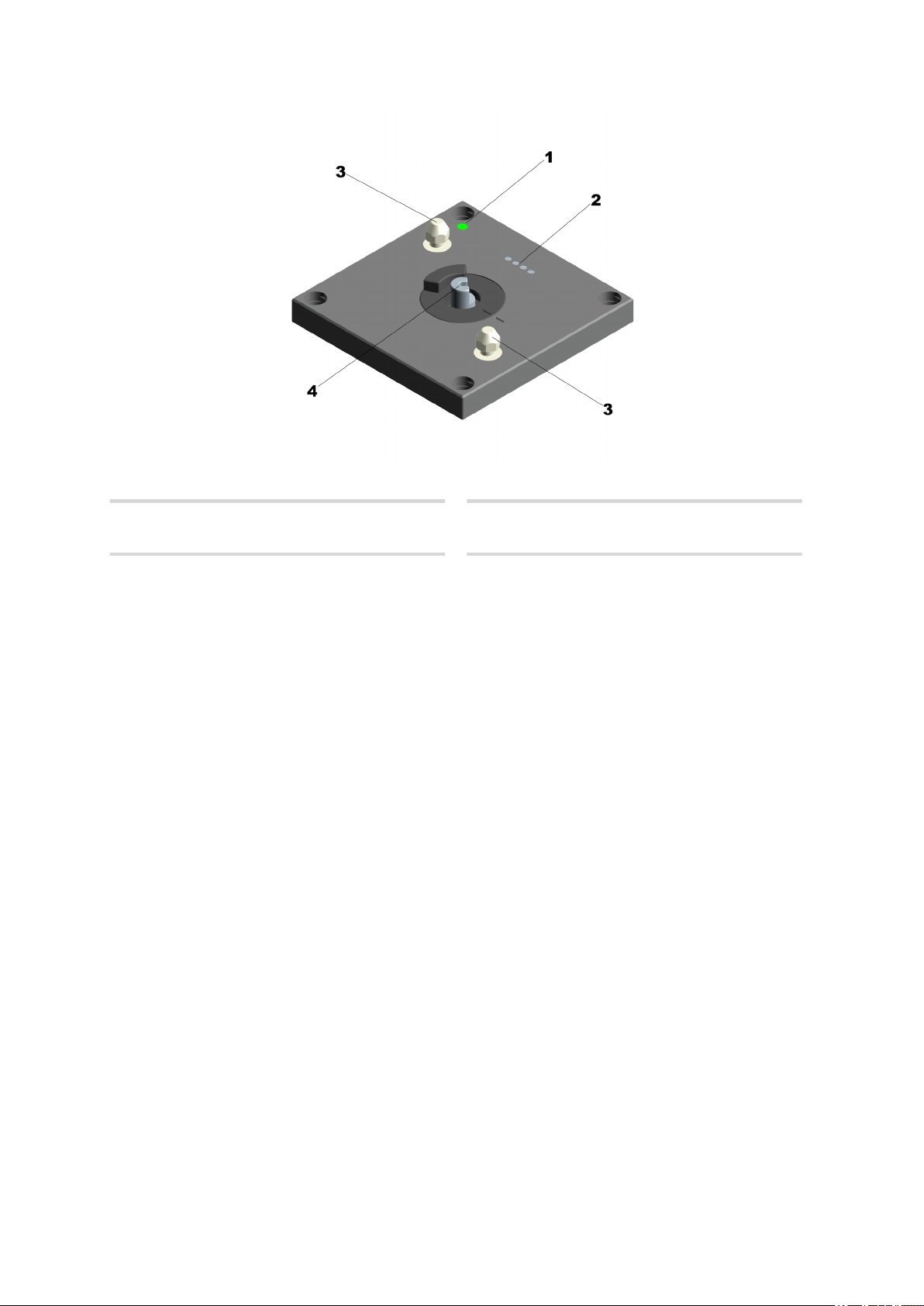

Figure 2 Dosing drive - Overview
1Status display
LED. Multi-colored
2Contact pins
For communicating with the cylinder unit
3Twistlocks
For locking the cylinder unit
4Piston rod
For moving the piston

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Functional description
￭￭￭￭￭￭￭￭ 11
3.1.1 Cylinder unit – Overview
2
3
5
6
7
1
4
8

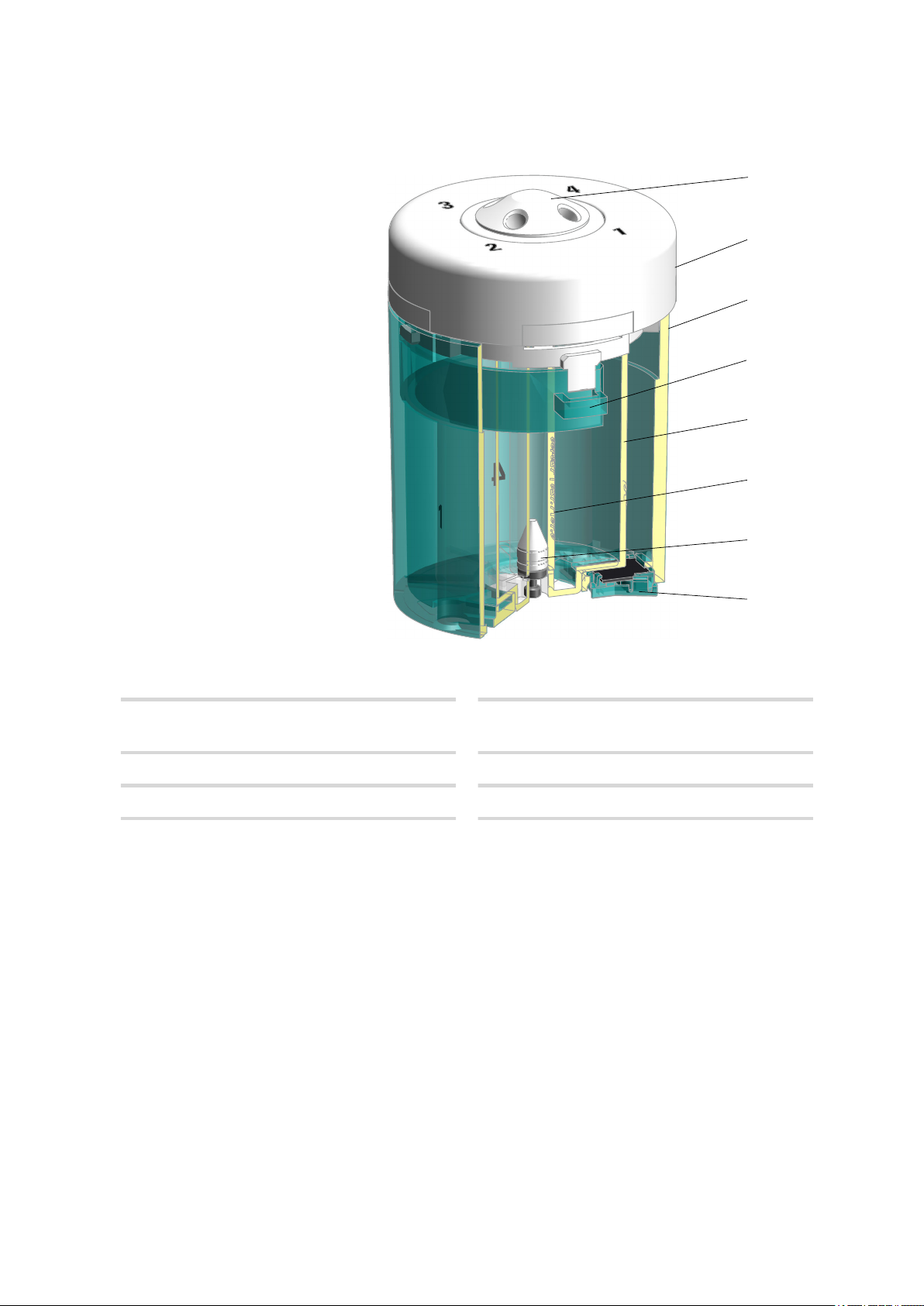

Figure 3 Cylinder unit – Overview
1Distributor
With four ports for solutions
2Cylinder top piece
3Housing 4Unlocking button
5Centering tube 6Cylinder
7Piston 8Data chip

Dosing unit – Function ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12 ￭￭￭￭￭￭￭￭
Figure 4 Cylinder unit – Overview from above
The four ports of the cylinder unit are intended for the following uses:
Table 2 Use of the ports
Port Use Connecting or sealing with
1 Dosing Dosing tip
2 Filling the cylinder Chemical bottle
3 Not used Stopper
4 Not used Stopper
The intended use of the ports can be changed in the OMNIS Software.
3.2 Dosing unit – Function
Software controls can be used for accurate dosing of liquid volumes with
the dosing unit.
The dosing unit is comprised of the following units:
￭The dosing drive
￭The cylinder unit
The dosing drive is permanently installed in the housing of the instrument.
It is controlled via the OMNIS Software and is responsible for the accurate
dosing of the solution.
If the cylinder unit is placed on top of the dosing drive, the dosing drive
assumes responsibility for the following functions:
￭Raising and lowering the piston:
Solution is aspirated if the piston is lowered. The cylinder fills up.
Solution is dosed if the piston is raised. The cylinder empties.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Functional description
￭￭￭￭￭￭￭￭ 13
￭Rotating the cylinder:
The rotation of the cylinder controls which of the four ports the solu-
tion flows through.
The valve disk with an opening is located in the middle of the cylinder
base.
The distributor disk with four openings corresponding to the four ports
of the distributor is located at the bottom in the cylinder attachment.
The dosing drive rotates the cylinder by 90° stages so that the opening
of the valve disk fits with an opening on the distributor disk. This
results in a passage for the solution to the corresponding port of the
distributor.
3.2.1 Cylinder unit – Function
The cylinder unit is an accessory set for the dosing unit in OMNIS instru-
ments with dosing function.
The movements of the piston and the cylinder are controlled via the
OMNIS Software.
An antidiffusion tip (6.1543.200) is part of the accessories of every cylin-
der unit. The antidiffusion tip is used whenever the titration tip is
immersed into the sample. The antidiffusion valve prevents the sample
from diffusing into the tip.
If accurate dosing is important, then you can order a dosing tip
(6.1543.100) as an alternative to the antidiffusion tip. The dosing tip must
not immerse into the sample.
See also
Cylinder unit – Product versions (chapter 1.2, page 1)
Cylinder unit – Overview (chapter 3.1.1, page 11)

Checking the delivery ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
14 ￭￭￭￭￭￭￭￭
4 Transport and storage
4.1 Checking the delivery
Immediately upon arrival of the merchandise, check the shipment against
the delivery note to ensure completeness and absence of damage.
4.2 Storing the packaging
The product is supplied in extremely protective packaging together with
the separately packed accessories. Keep this packaging, as only this
ensures safe transportation of the product.
